House plan The Wind Drift 3 (4943A)

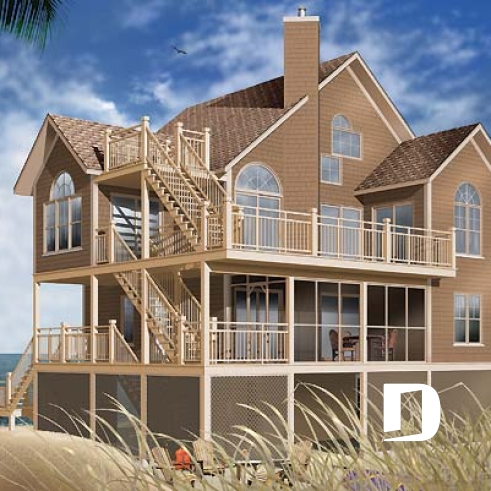

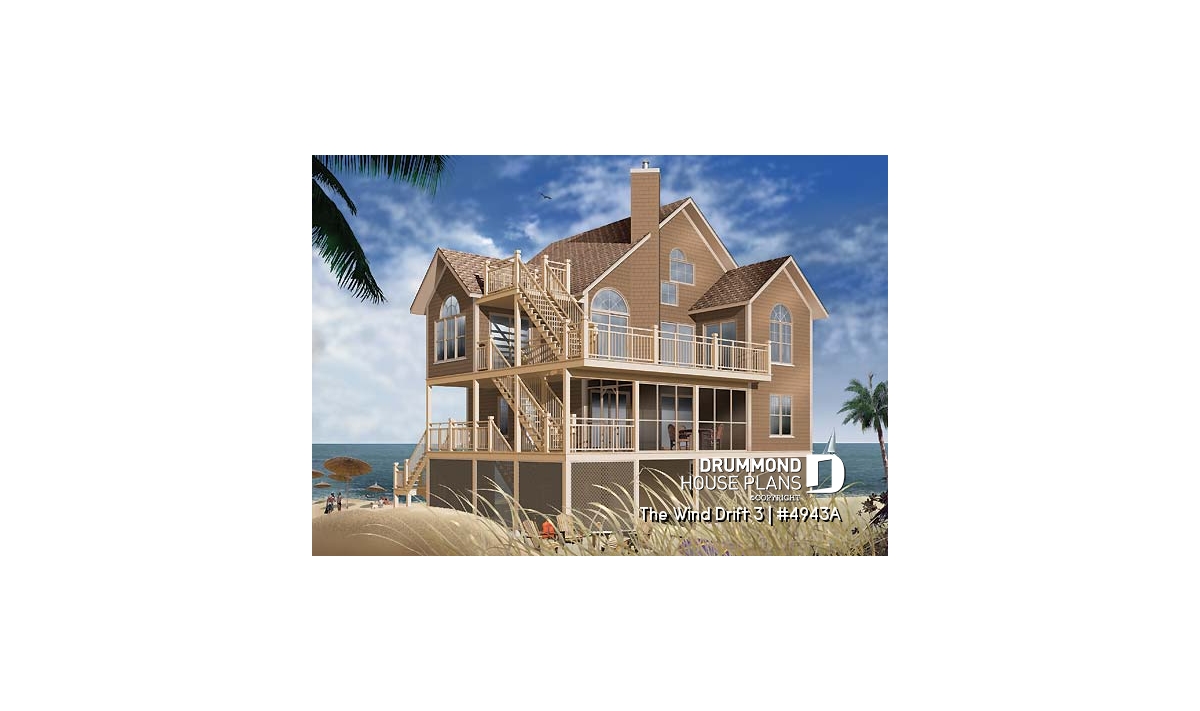

Great Cape Hatteras home style with 5 bedrooms, 3.5 baths, cathedral, large deck, screened-in porch
View the size of the rooms and height of the ceilings

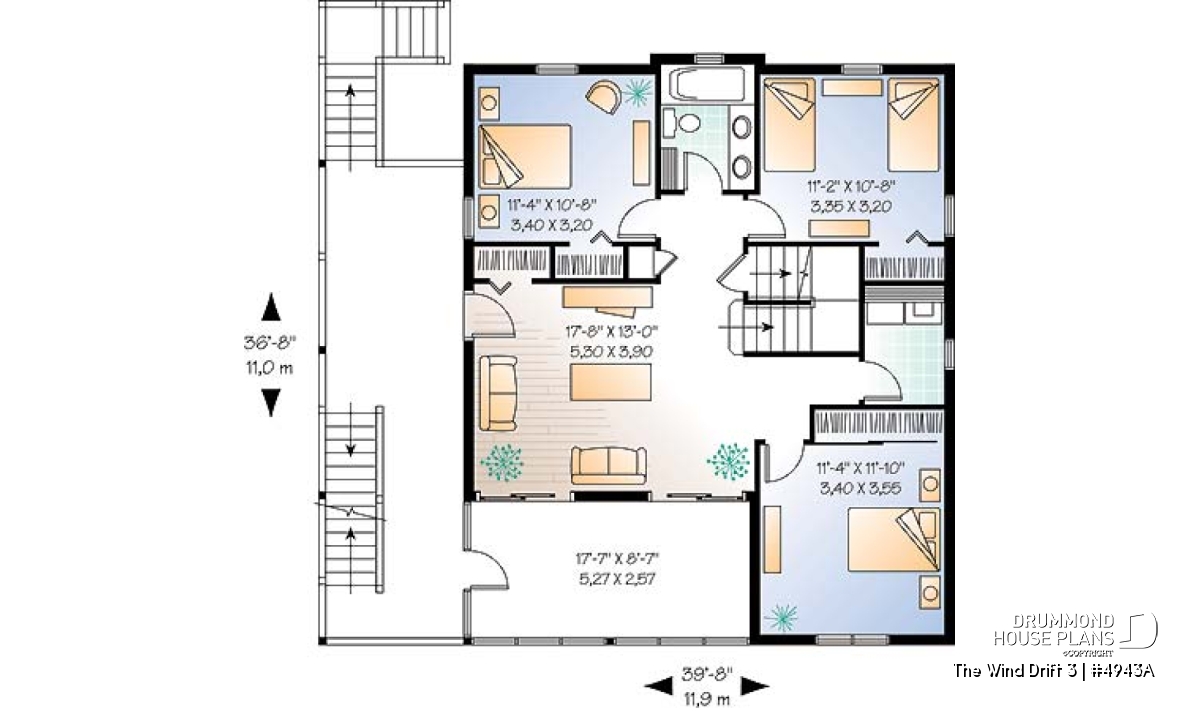

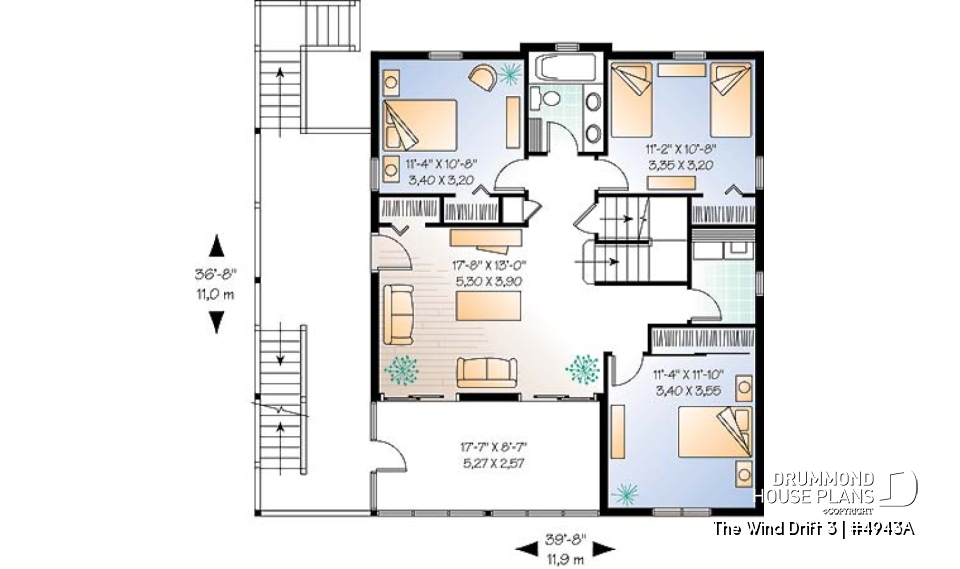

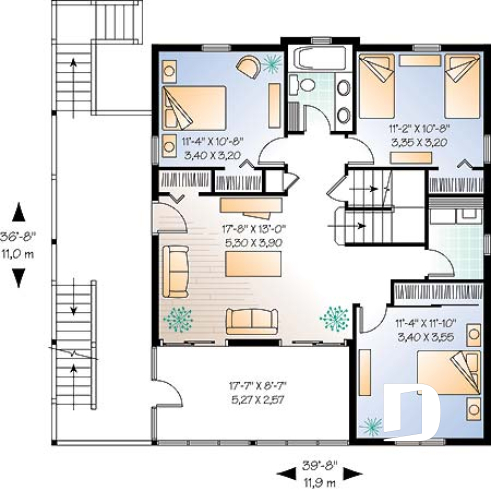

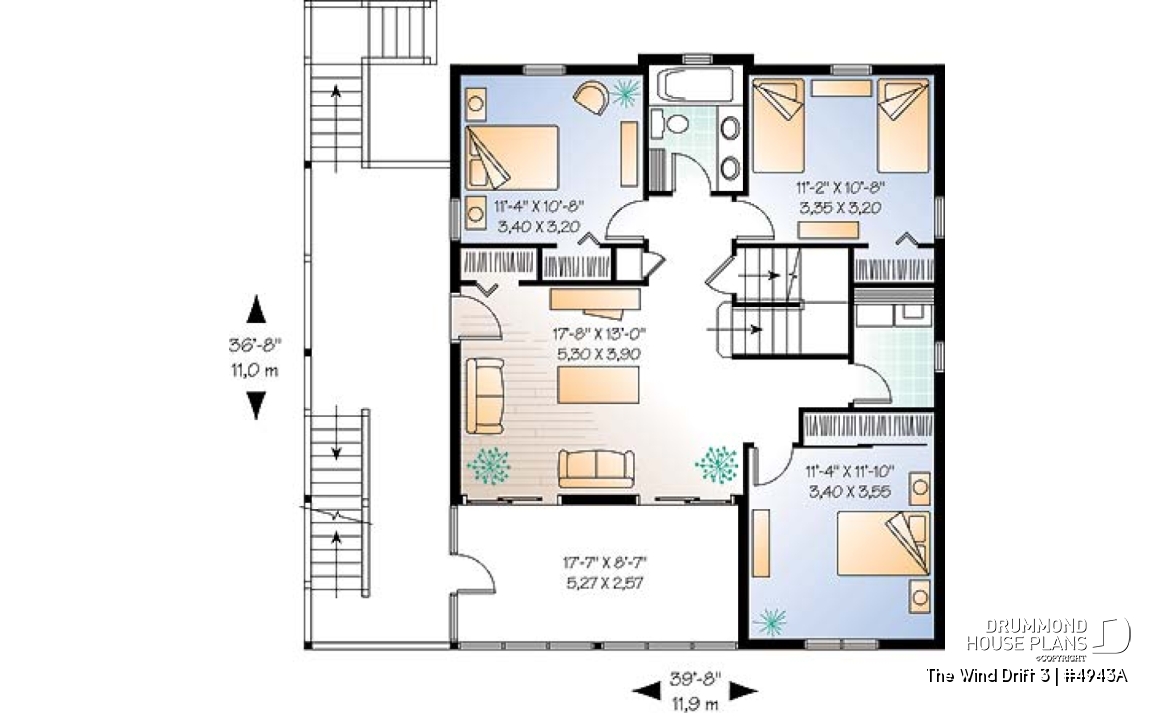

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 8'0" | ~ 8'0" |
| Bedroom | 11'4" x 11'10" | ~ 8'0" |
| Bedroom | 11'2" x 10'8" | ~ 8'0" |
| Bedroom | 11'4" x 10'8" | ~ 8'0" |
| Closet | 4'8" x 2'0" | ~ 8'0" |
| Great room or Family room | 17'8" x 13'0" | ~ 8'0" |
| Linen | 2'0" x 1'4" | ~ 8'0" |
| Utility room | 5'0" x 7'6" | ~ 8'0" |
| Porch | 9'0" x 30'6" | N/A |

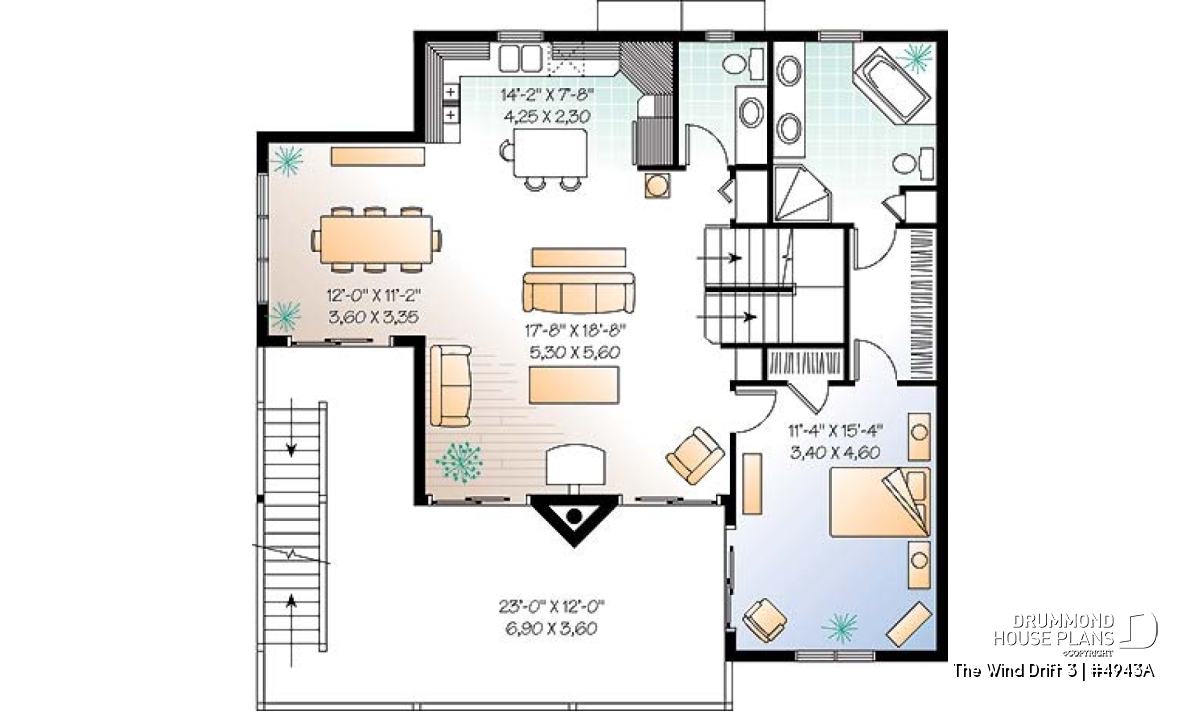

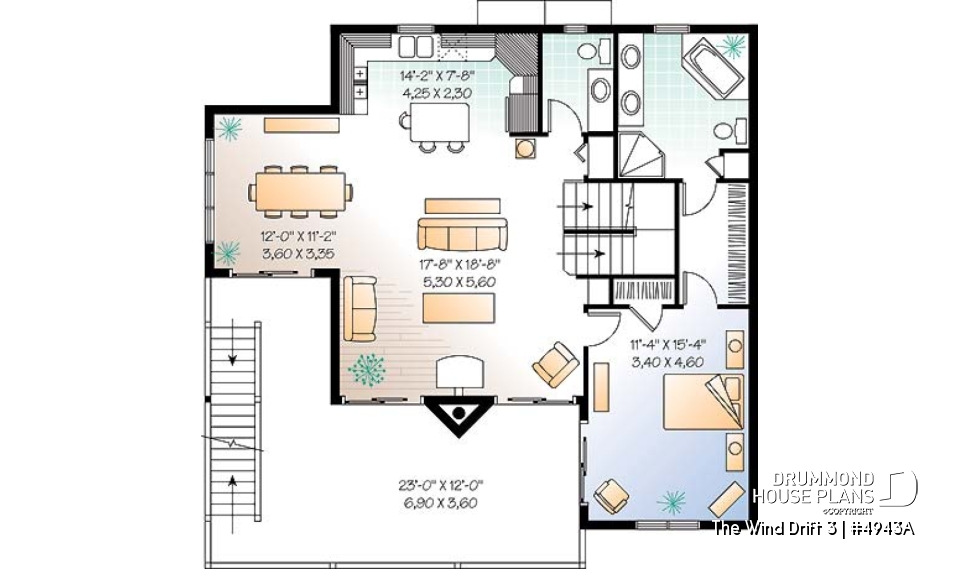

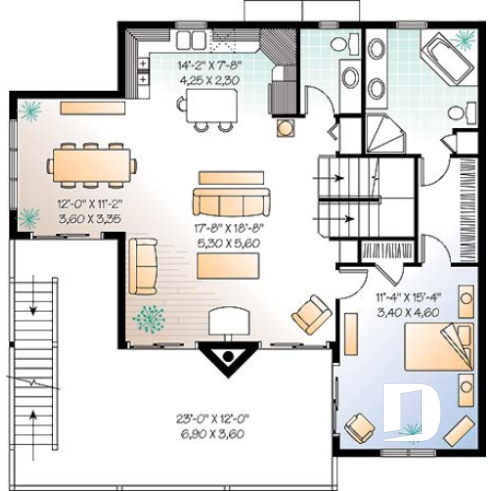

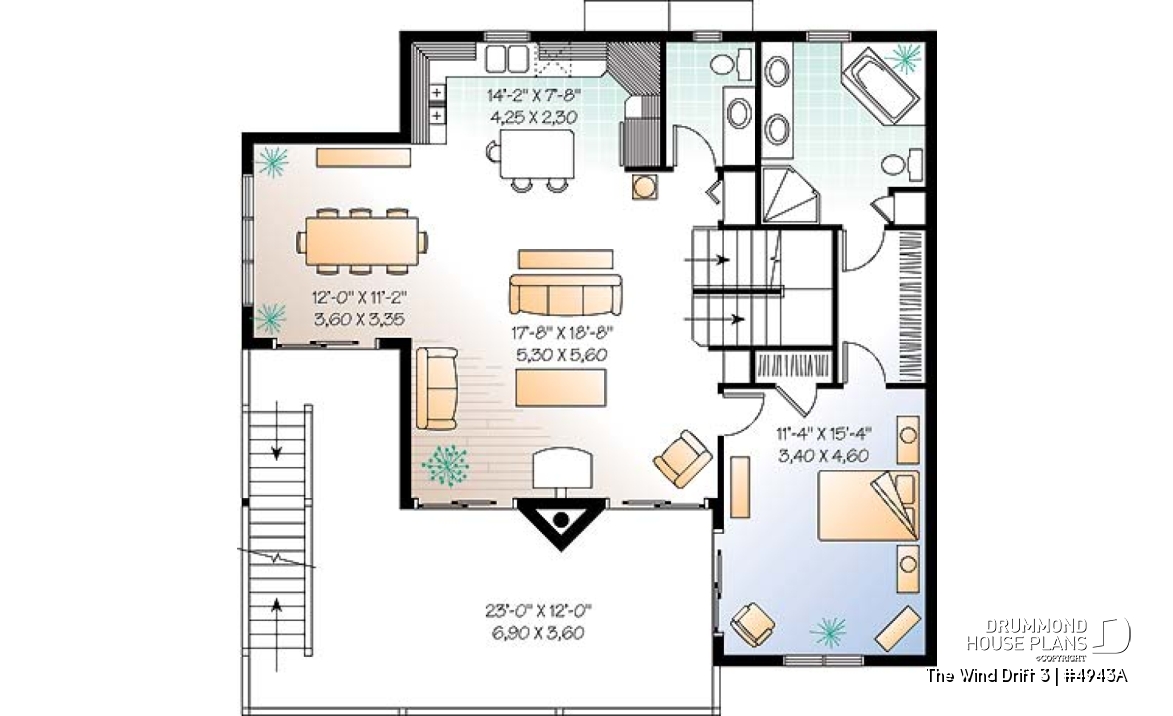

| 3rd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 12'0" x 11'2" | ~ 12'0" |
| Kitchen | 14'2" x 7'8" | ~ 8'0" |
| Living room | 17'8" x 18'8" | ~ 17'4" |
| Master suite | 11'4" x 15'4" | ~ 8'0" |
| Half bath or powder room | 5'0" x 7'4" | ~ 8'0" |
| Storage | 3'0" x 1'6" | ~ 8'0" |
| Porch | 23'0" x 12'0" | N/A |

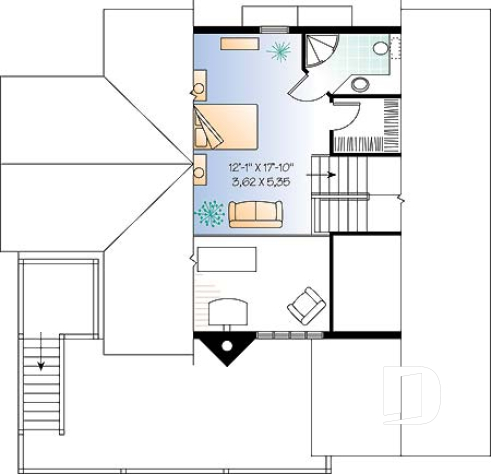

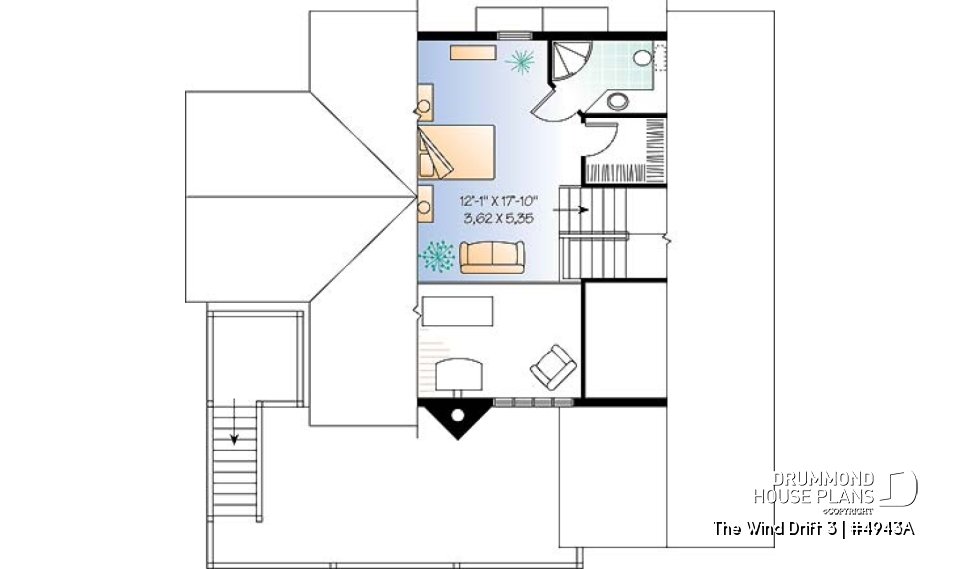

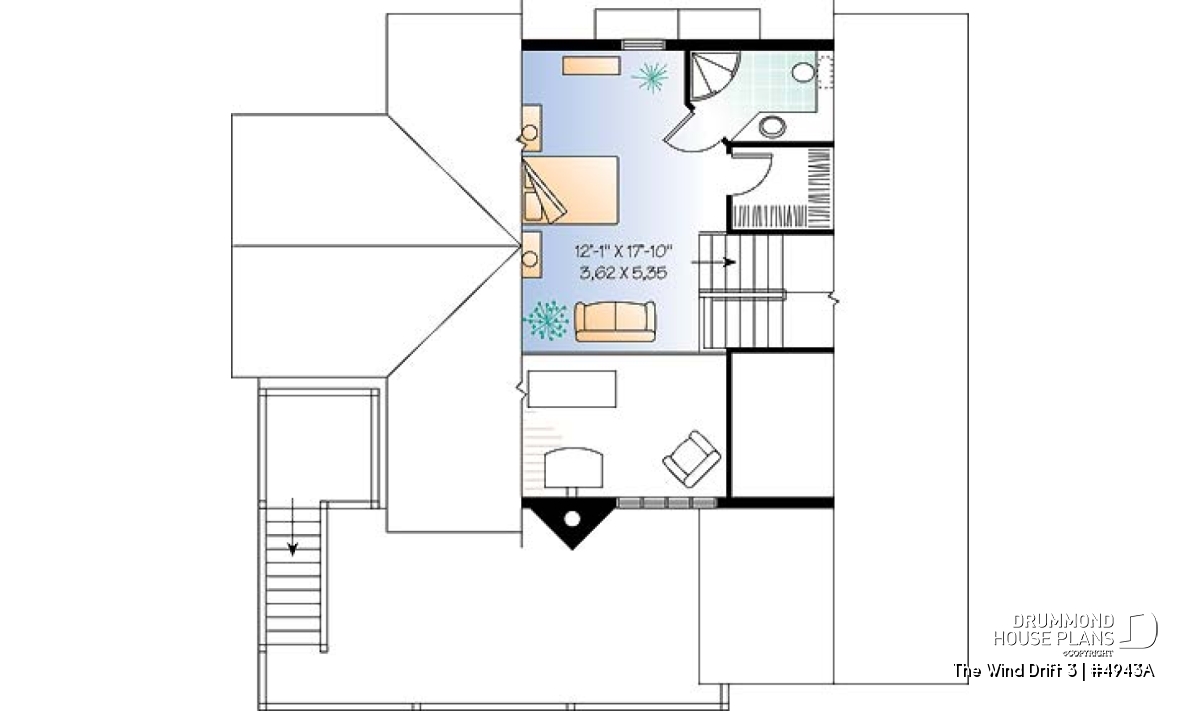

| 4th level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'1" x 17'10" | ~ 8'0" |
| Observatory | 7'0" x 7'0" | N/A |
General specifications
| Total living area | 2392 sq.ft. |
| 2nd level | 967 sq.ft. |
| 3rd level | 1076 sq.ft. |
| 4th level | 349 sq.ft. |
| Width | 39'8" |
| Depth | 36'8" |
| Ridge height from top of foundation | 40'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Pillars i |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
Large vacation style house plan with 2 master suites and total of 5 bedrooms, 3.5 bethrooms
Great space awaits across four levels, 2,392 sq. ft, five bedrooms, and 3.5 baths.
Lower level has carport, shower, storage.
Level one stars a family room, three bedrooms, full bath, and access to a screened in porch (ideal for an outdoor hot tub).
Second level, with cathedral ceiling, brings the living room, fireplace, dining room, kitchen, master suite and bath.
Rise to the third level for a pleasant guest room and private bath.
Need to make modification to this plan? Please contact us to get your free modification estimate.
Distinctive elements
Large covered balcony on 1st level, large non covered balcony on 2nd level, abundant and special fenestration, dual sinks in 1st level and master bathrooms, observatory balcony, special ceiling treatments.
Plan feature(s)
Screened porch, Fireplace, Mezzanine, Panoramic view, Master suite upstairs, Guest suite
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Rustic, . American, . Cape Cod, . Florida, . Traditional, . Modern / Design
