3914-V3 (Pocono 5)

A-Frame Rustic Country Cottage, 2 family rooms, 4 beds / 3 baths, solarium, unfinished walkout basement

Bedrooms

3, 4

Bathroom(s)

3

Living area

2416 sq.ft.

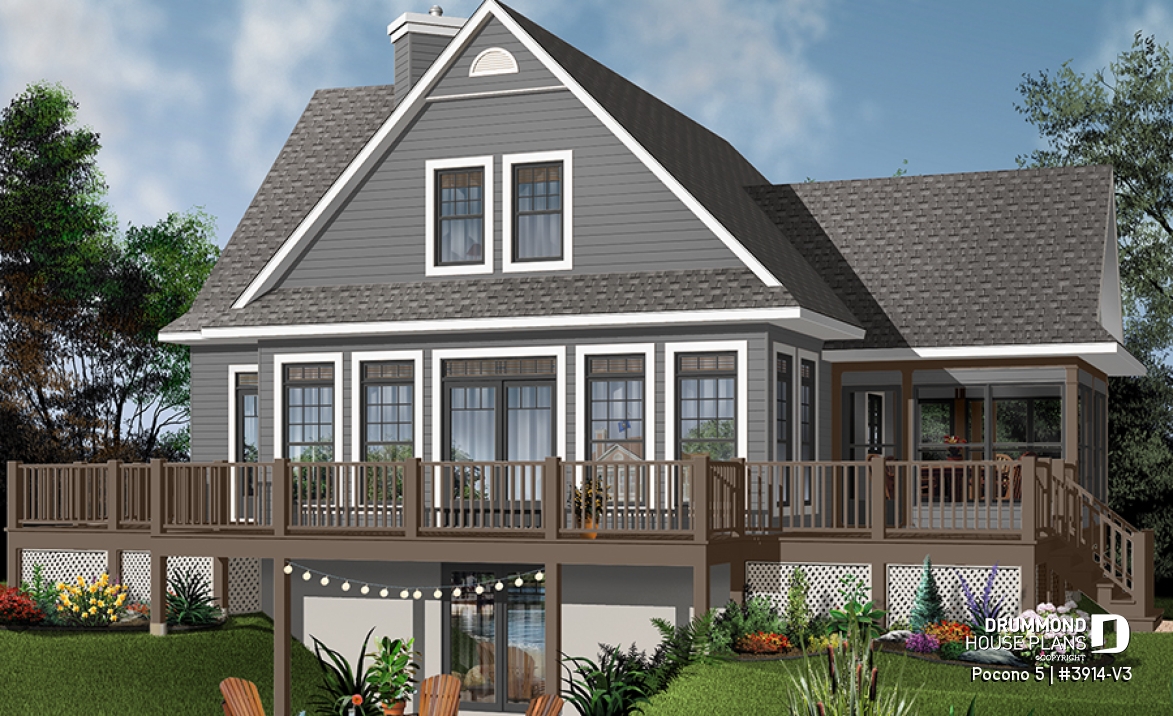

  • Color version 1 - Rear - A-Frame Rustic Country Cottage, 2 family rooms, 4 beds / 3 baths, solarium, unfinished walkout basement - Pocono 5

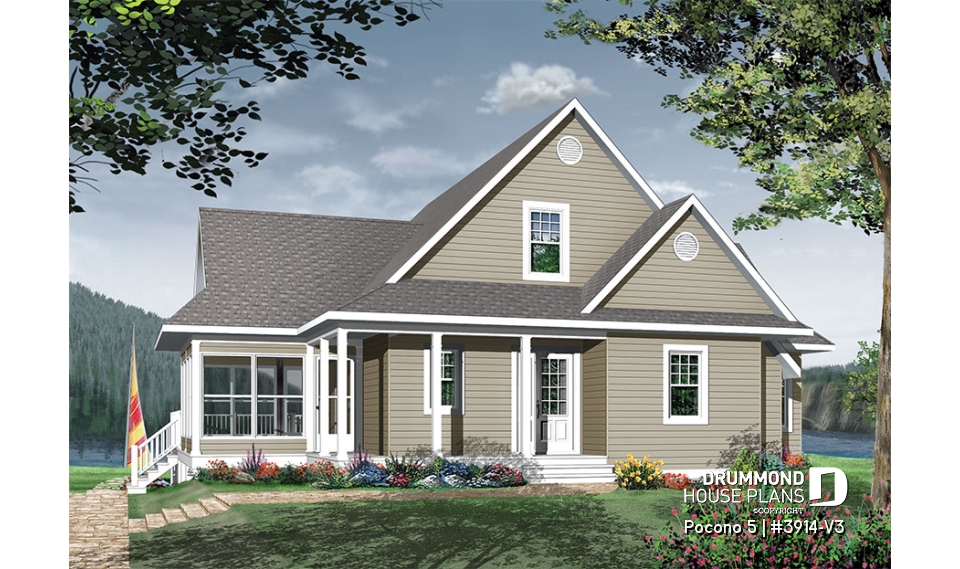

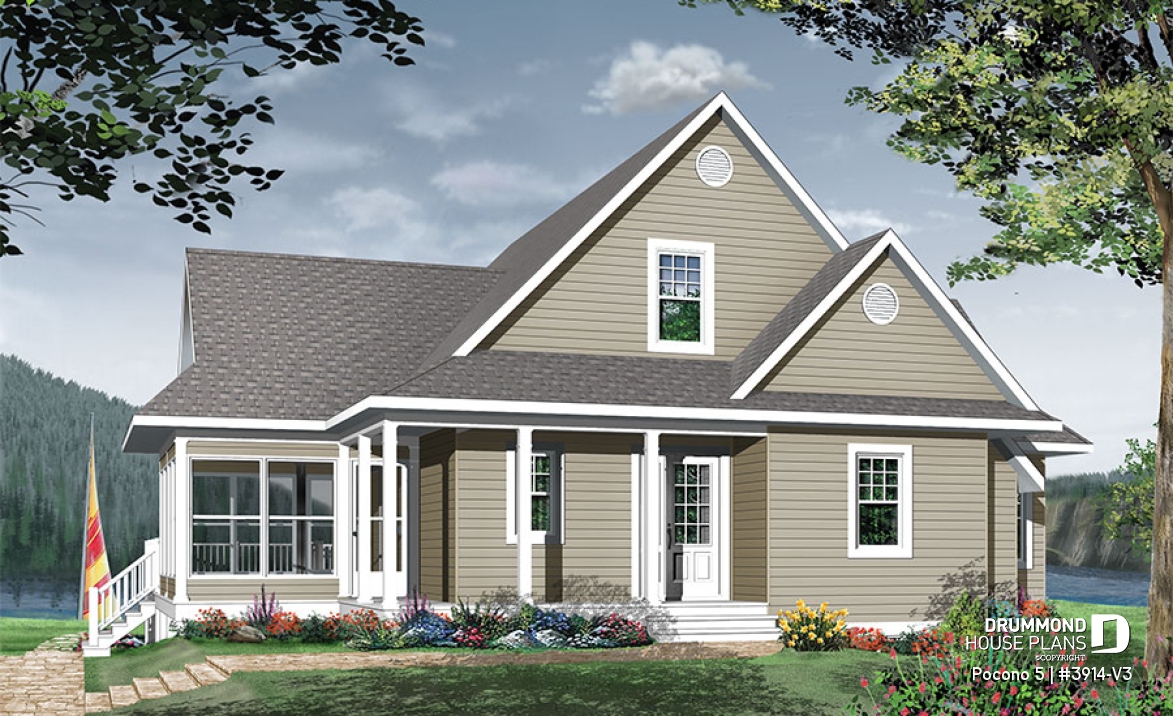

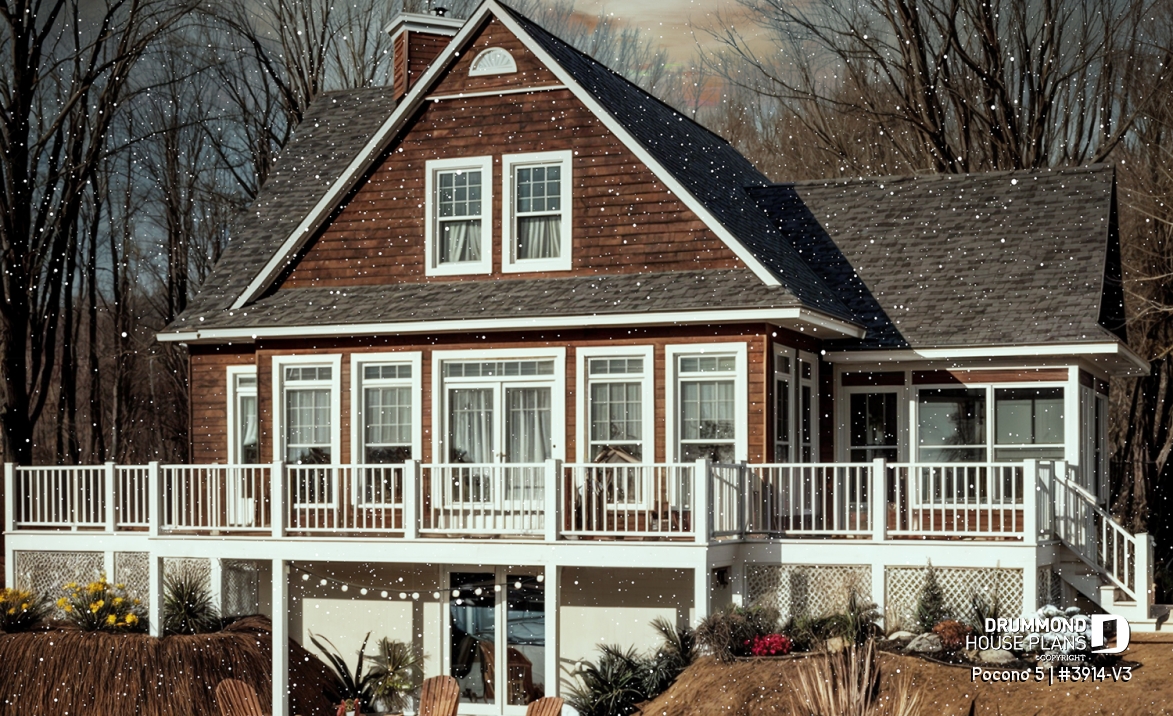

  • front - BASE MODEL - Pocono 5
  • Rear view - BASE MODEL - Pocono 5

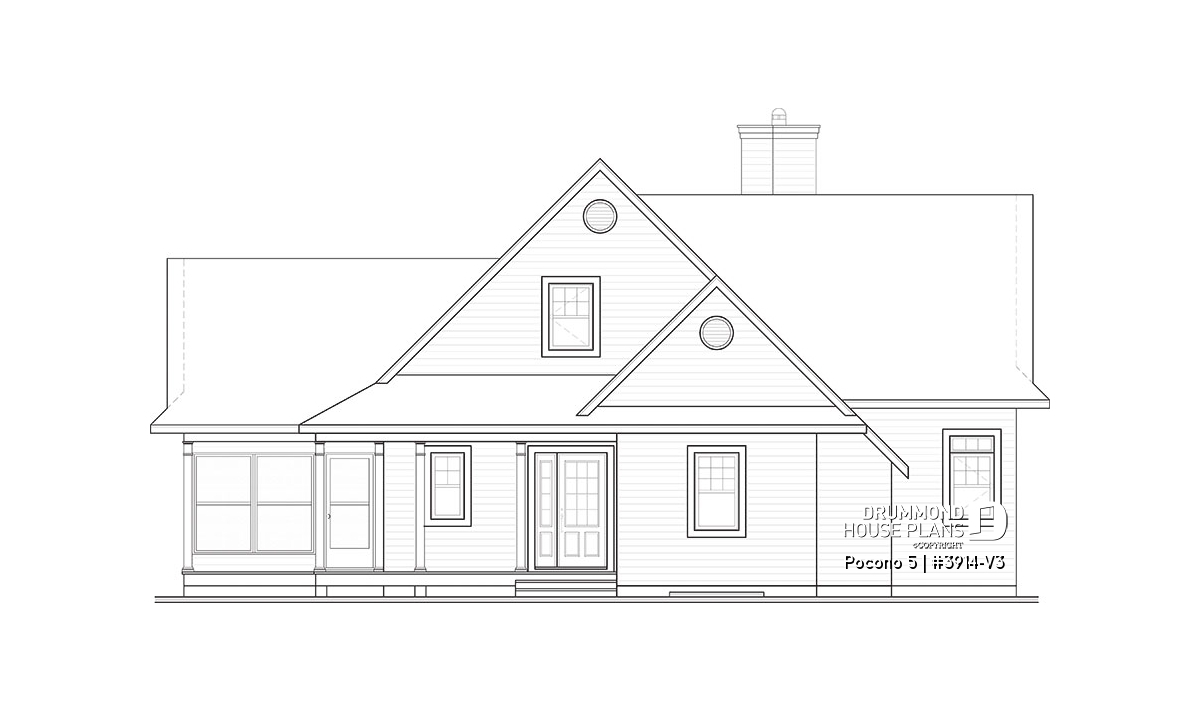

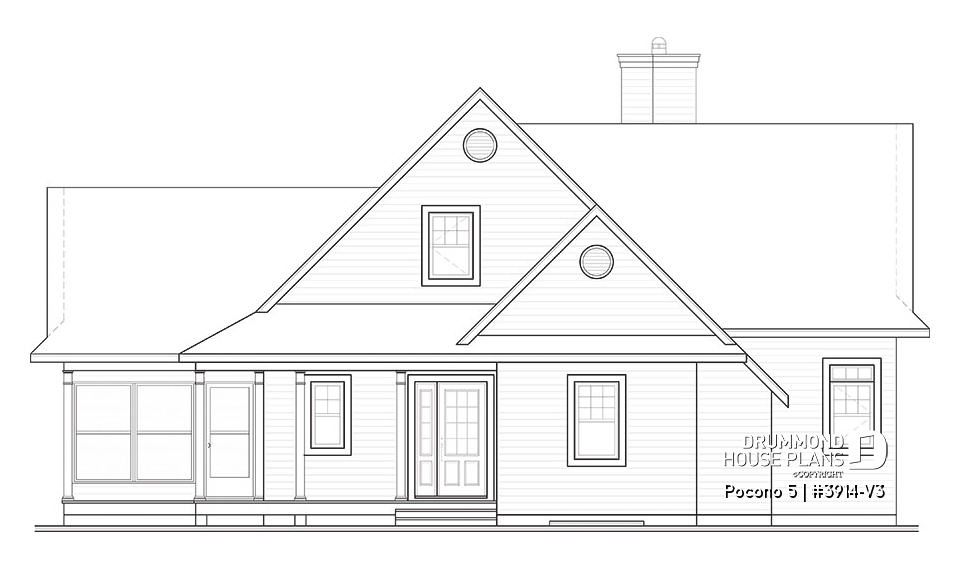

  • front elevation - Pocono 5
  • Color version 2 - Rear - Pocono 5

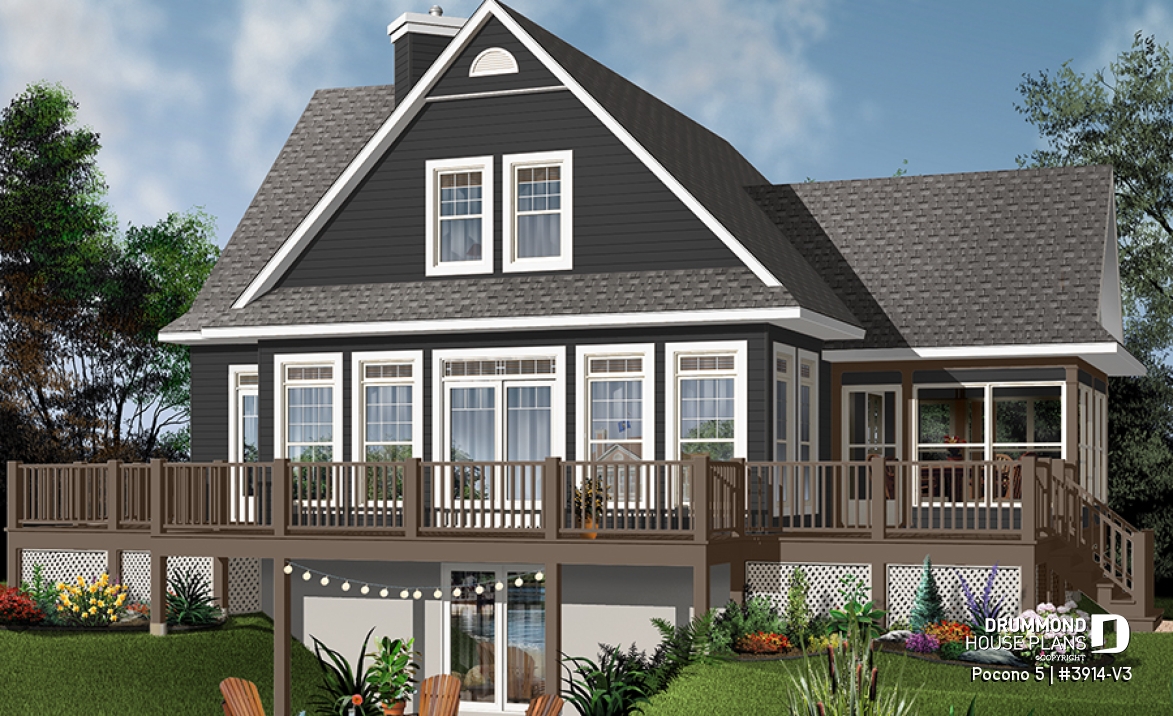

  • Color version 3 - Rear - Pocono 5

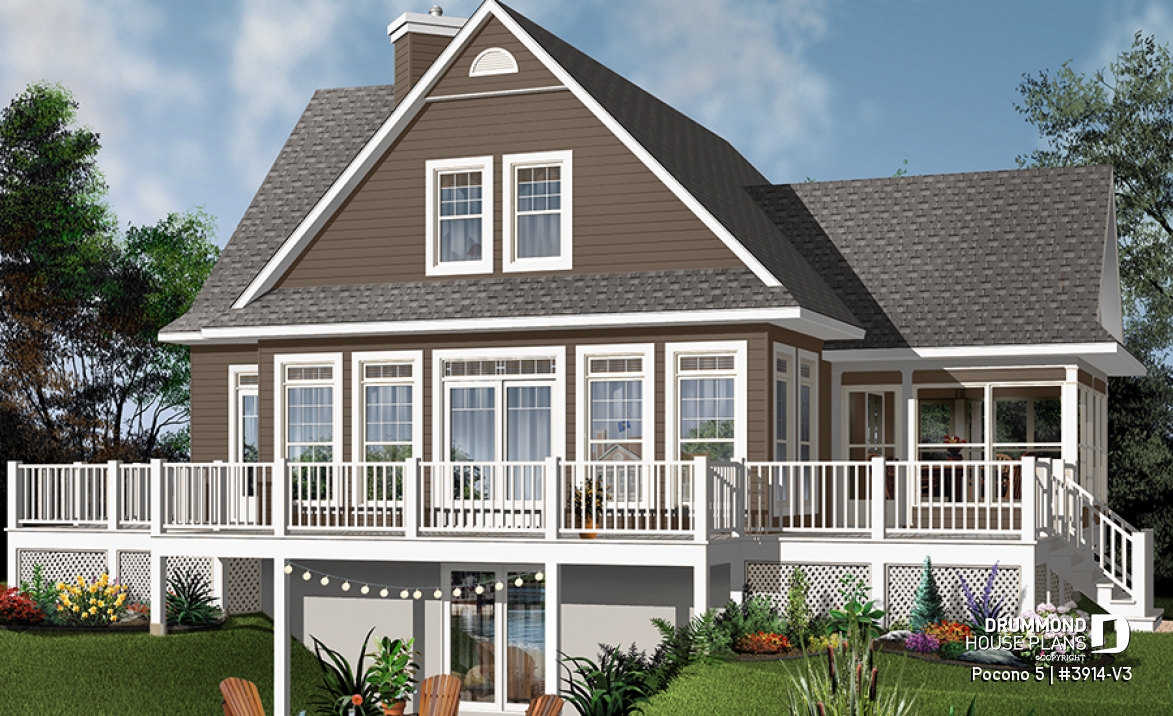

  • Color version 4 - Rear - Pocono 5

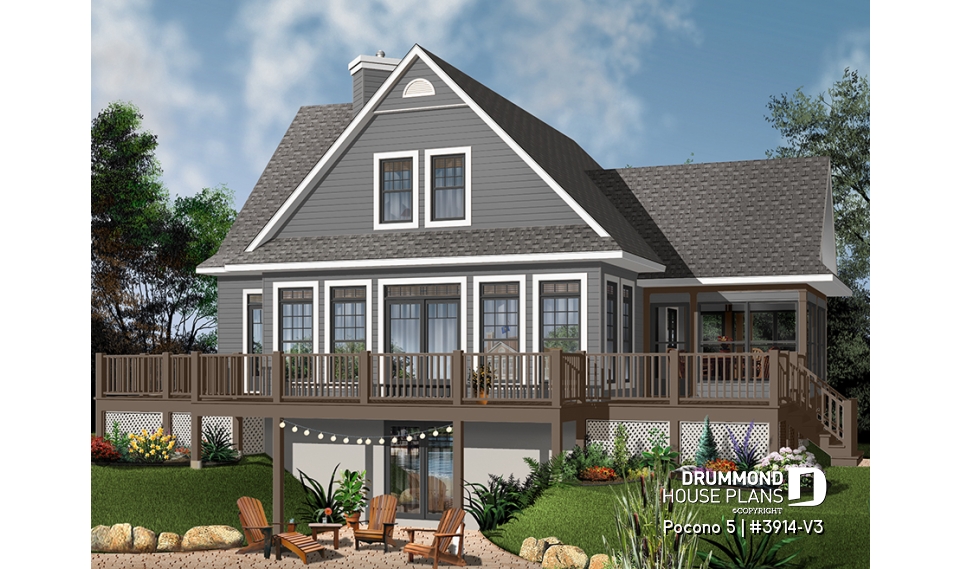

Color version 1 - Rear

front - BASE MODEL

Rear view - BASE MODEL

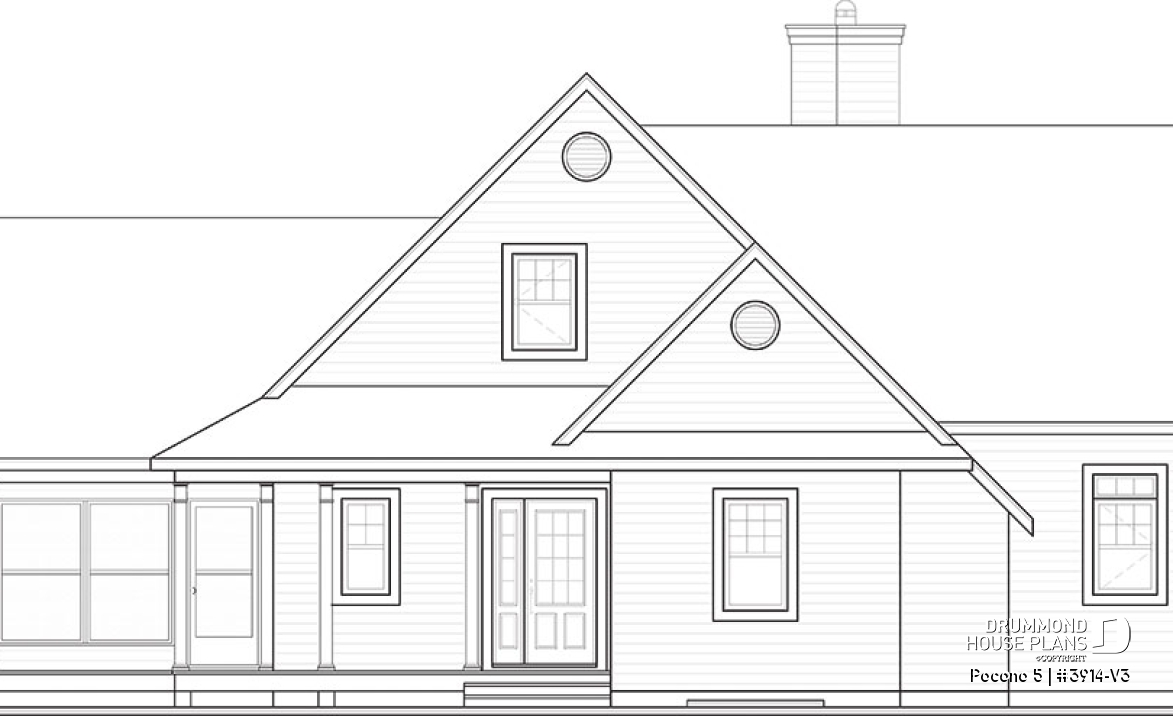

front elevation

Color version 2 - Rear

Color version 3 - Rear

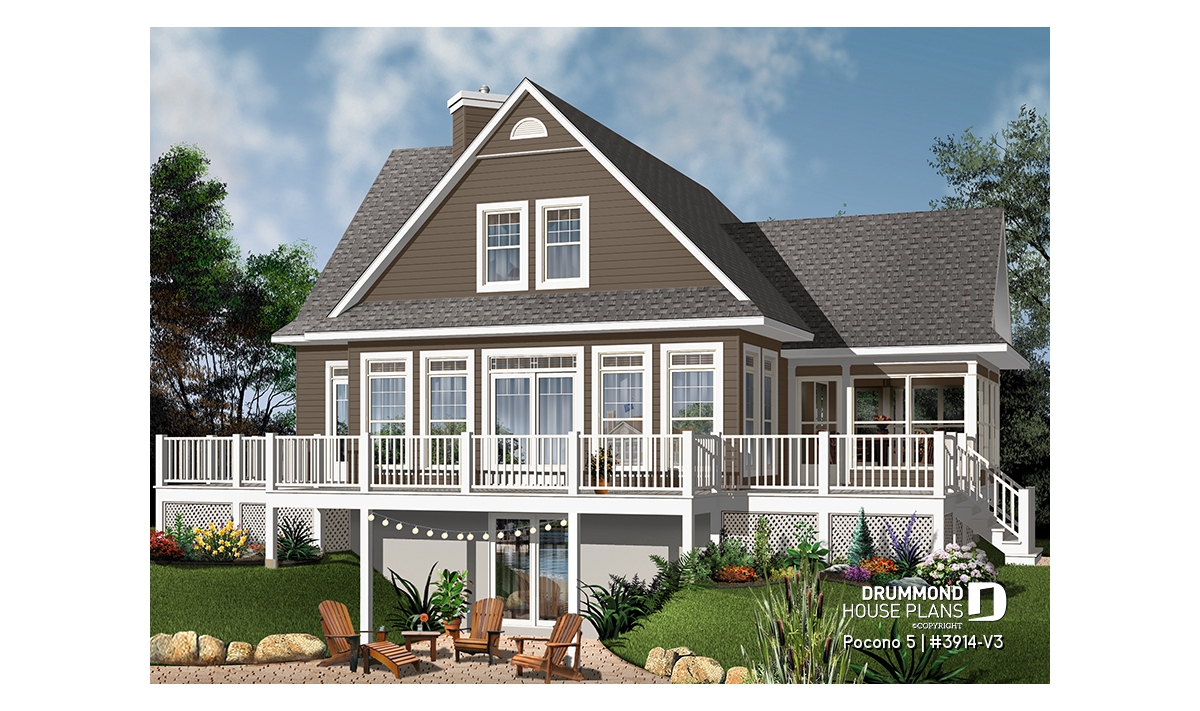

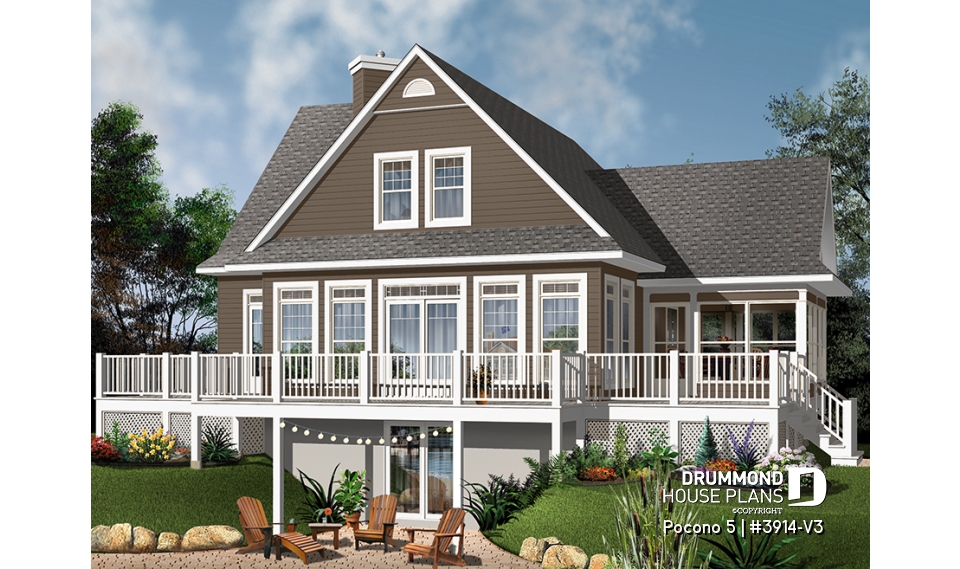

Color version 4 - Rear

Vignette Color version 1 - Rear - 3914-V3
Vignette front - BASE MODEL - 3914-V3
Vignette Rear view - BASE MODEL - 3914-V3
Vignette front elevation - 3914-V3
Vignette Color version 2 - Rear - 3914-V3
Vignette Color version 3 - Rear - 3914-V3
Vignette Color version 4 - Rear - 3914-V3

View by floor

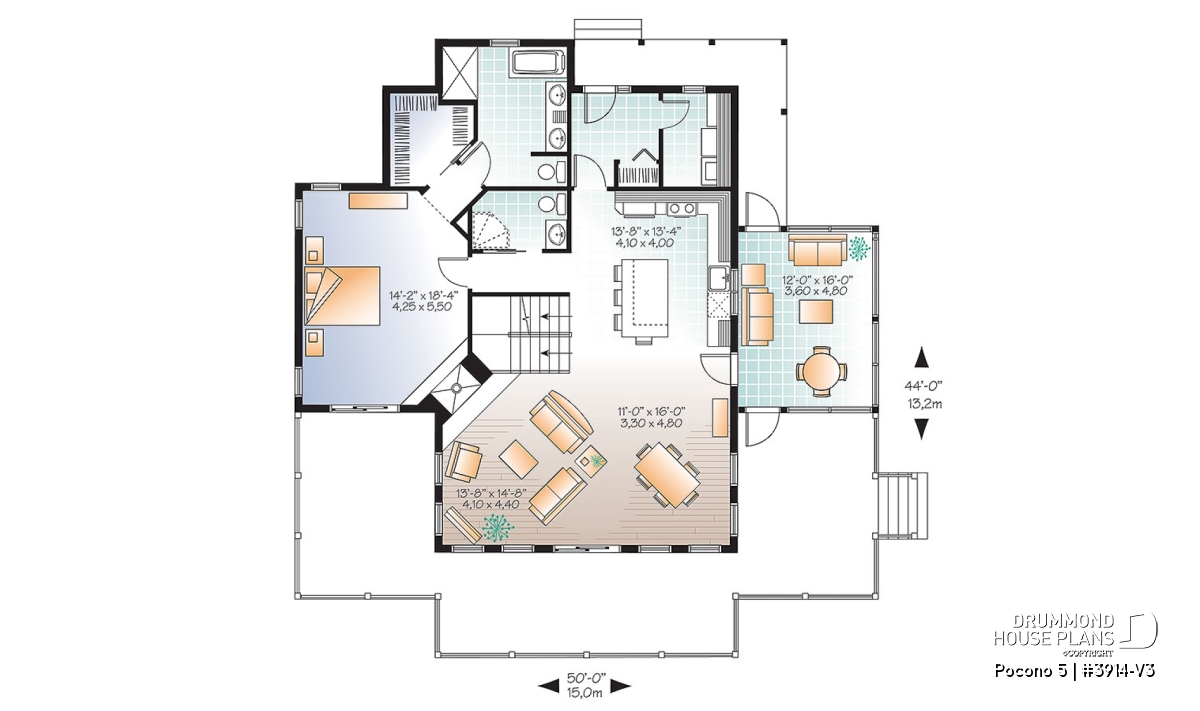

  • 1st level

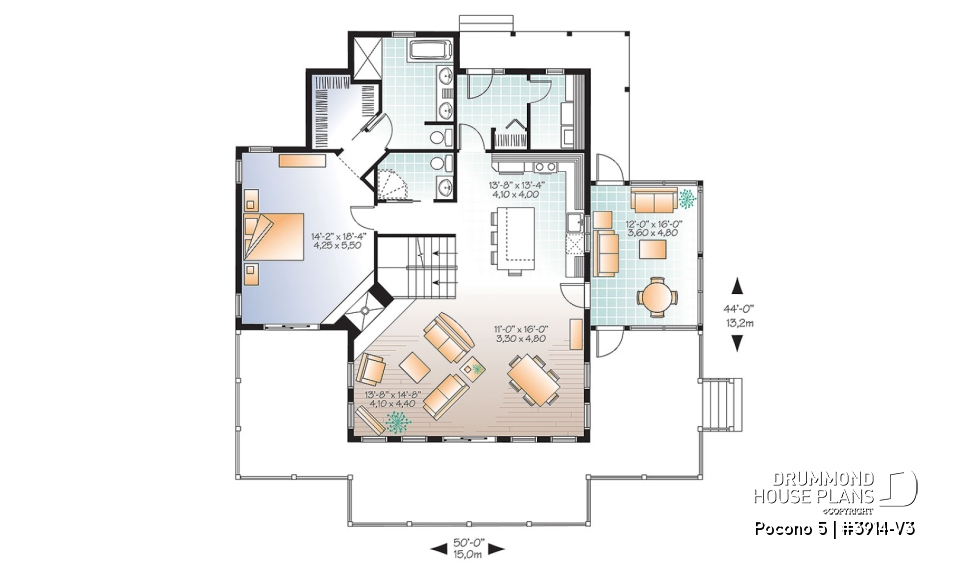

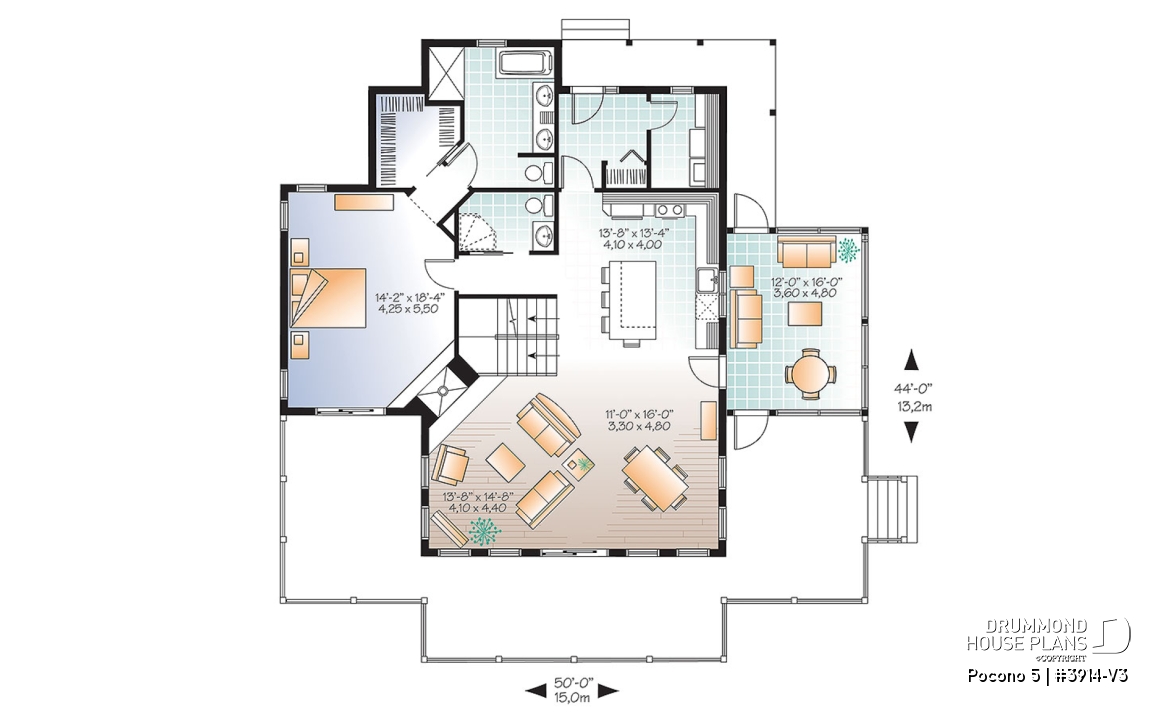

    1st level - A-Frame Rustic Country Cottage, 2 family rooms, 4 beds / 3 baths, solarium, unfinished walkout basement - Pocono 5

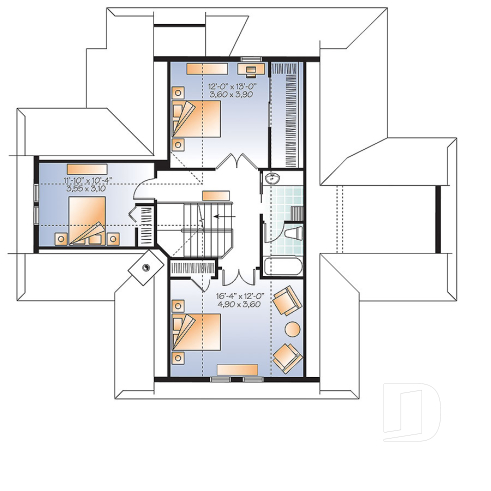

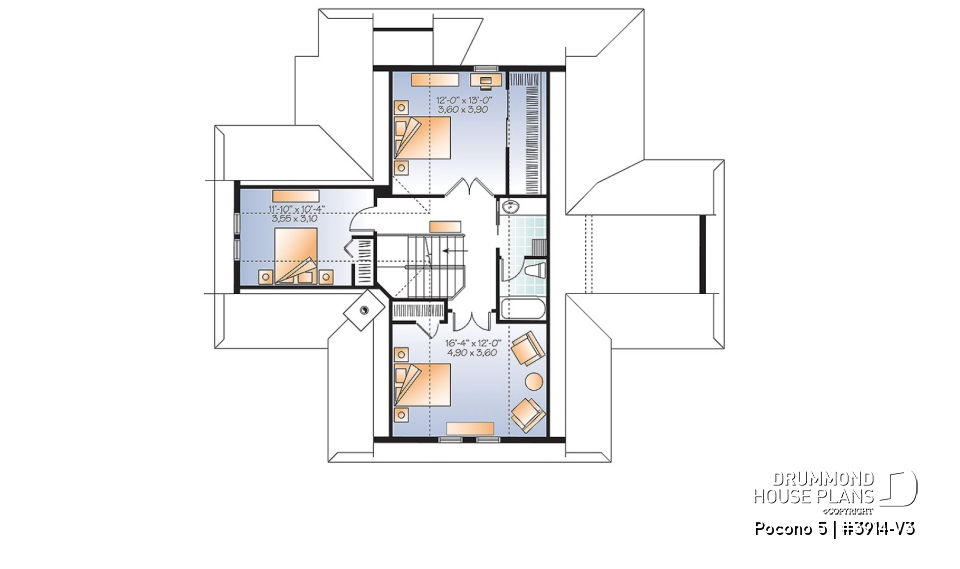

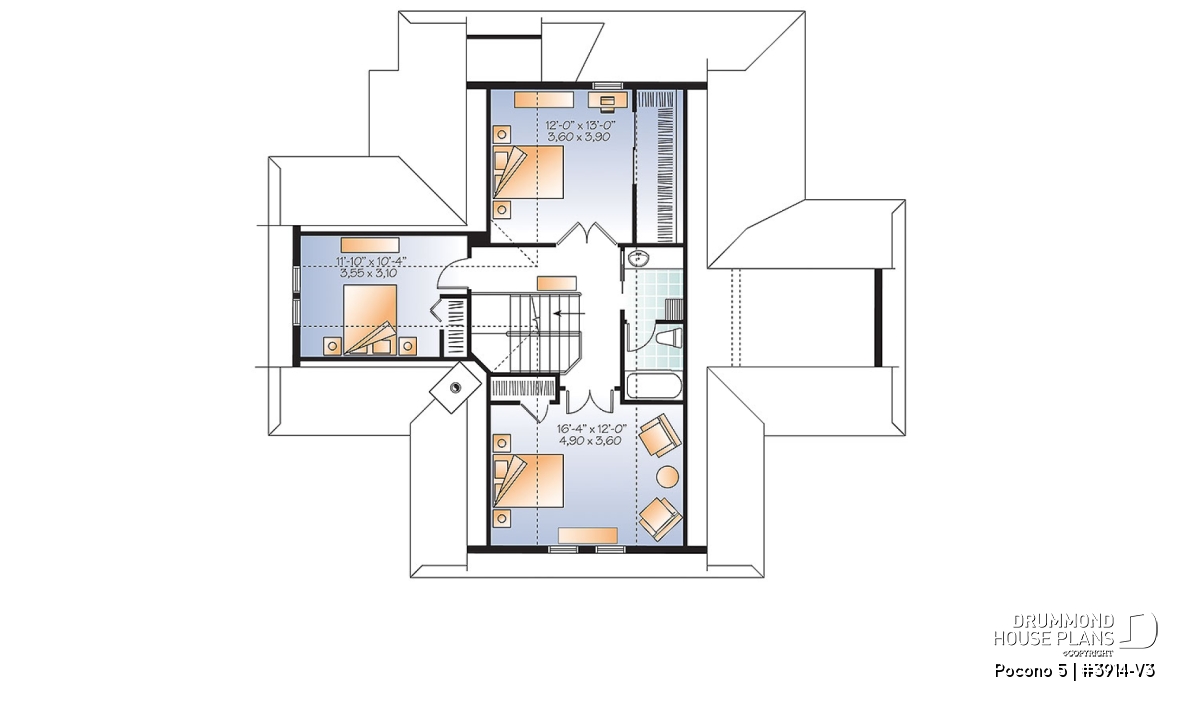

  • 2nd level

    2nd level - A-Frame Rustic Country Cottage, 2 family rooms, 4 beds / 3 baths, solarium, unfinished walkout basement - Pocono 5
Vignette 1st level - 3914-V3
Vignette 2nd level - 3914-V3

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Kitchen 13'8" x 13'4" ~ 9'0"
Lanai 12'0" x 16'0" ~ 8'0"
Dining room 11'0" x 16'0" ~ 9'0"
Living room 13'8" x 14'8" ~ 9'0"
Master suite 14'2" x 18'4" ~ 9'0"
Full bathroom 7'8" x 12'0" ~ 9'0"
Walk-in closet 7'2" x 8'0" ~ 9'0"
Shower room or three quarter bath 8'2" x 5'0" ~ 9'0"
Foyer 7'6" x 8'0" ~ 9'0"
Laundry room 5'10" x 8'0" ~ 9'0"
Mosquito Shelter 12'0" x 16'0" ~ 8'0"
Deck 26'0" x 9'0" ~ 0'0"
Deck 12'0" x 16'0" ~ 0'0"
Deck 12'0" x 16'0" ~ 0'0"
Covered porch 18'0" x 4'0" ~ 0'0"
Carport 0'0" x 0'0" ~ 0'0"
2nd level
Rooms Sizes Ceiling
Bedroom 16'4" x 12'0" ~ 8'0"
Closet 5'0" x 2'0" ~ 8'0"
Bedroom 12'0" x 13'0" ~ 8'0"
Closet 3'4" x 13'0" ~ 8'0"
Bedroom 11'10" x 10'4" ~ 8'0"
Shower 2'0" x 5'0" ~ 8'0"
Closet 2'0" x 5'0" ~ 8'0"
Bathroom 5'0" x 13'0" ~ 8'0"

General specifications

Total living area 2416 sq.ft.
1st level 1554 sq.ft.
2nd level 862 sq.ft.
Width 38'0"
Depth 44'0"
Ridge height from top of foundation 25'10"
Exterior wall 2 X 6
Foundation type included in the plan Full basement with walkout
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code F

Rooms specifications

Bedroom(s) 3, 4
Full baths 3
Half baths -
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 2416 sq.ft.
1st level 1554 sq.ft.
2nd level 862 sq.ft.
Width 38'0"
Depth 44'0"
Ridge height from top of foundation 25'10"
Exterior wall 2 X 6
Foundation type included in the plan Full basement with walkout i
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code F

Rooms specifications

Bedroom(s) 3, 4
Full baths 3
Half baths -
Garage type -
Living bonus space - i
Bonus storage - i

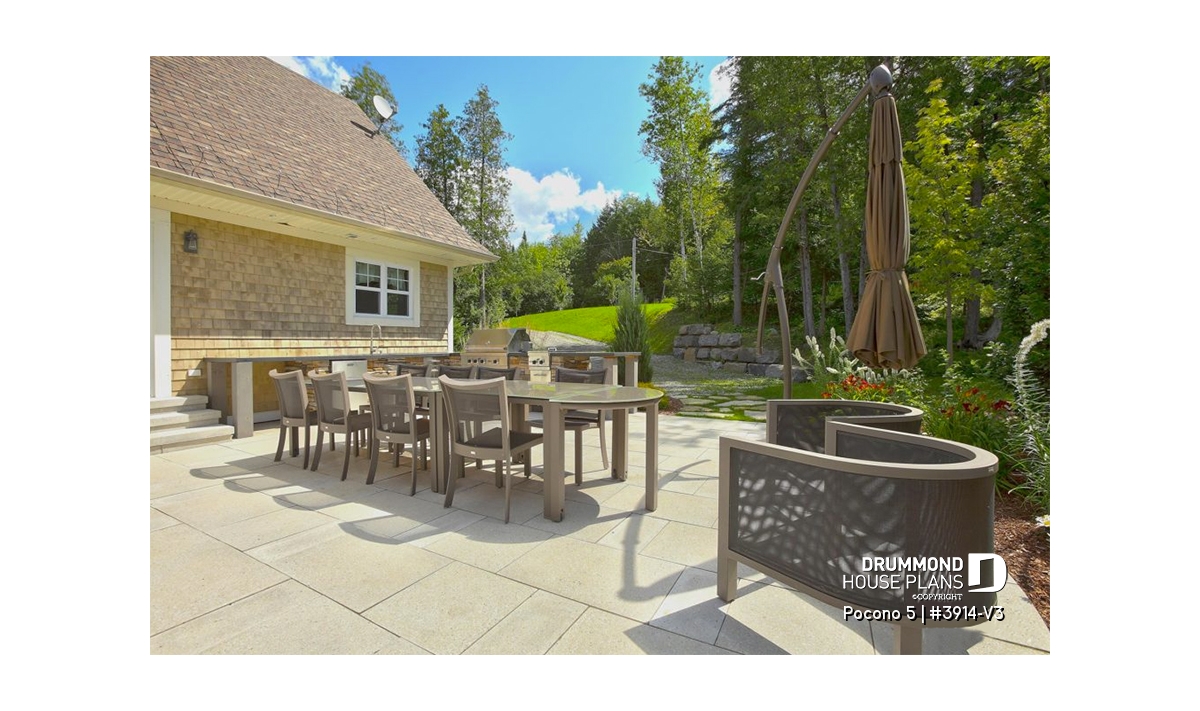

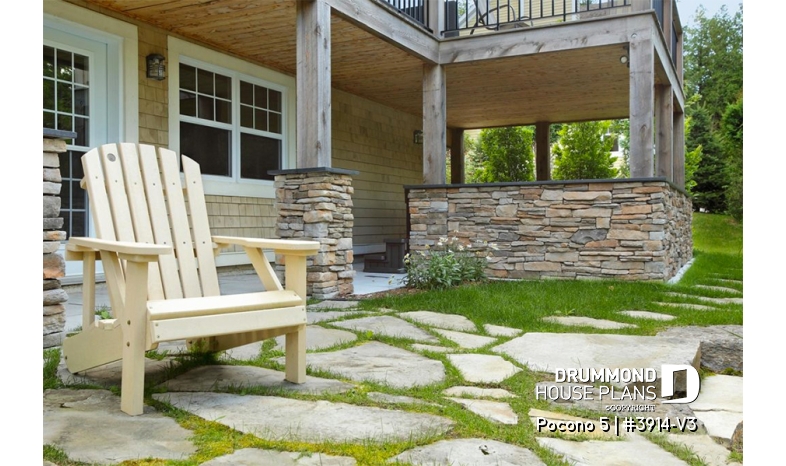

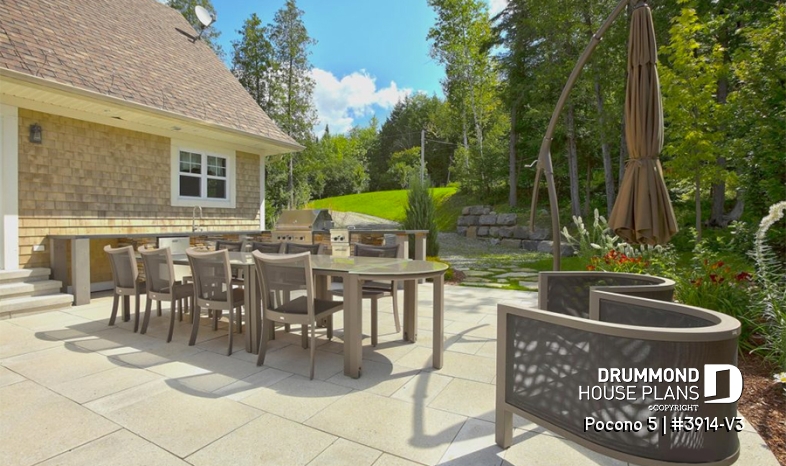

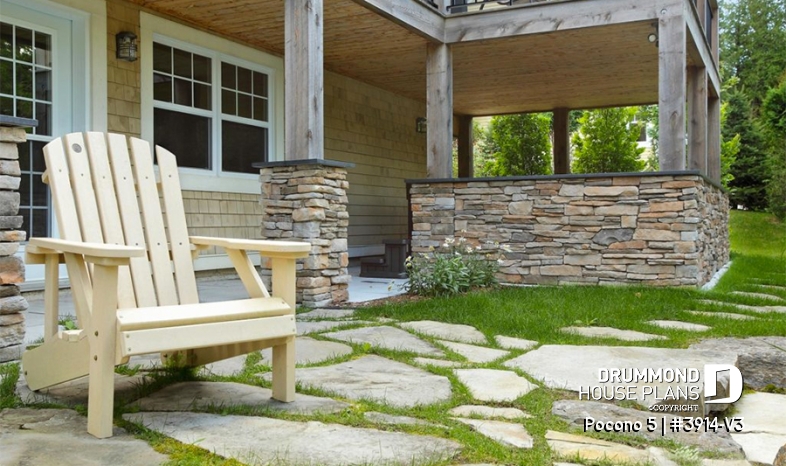

  • Photo Deck - Pocono 5
  • Photo Deck - Pocono 5

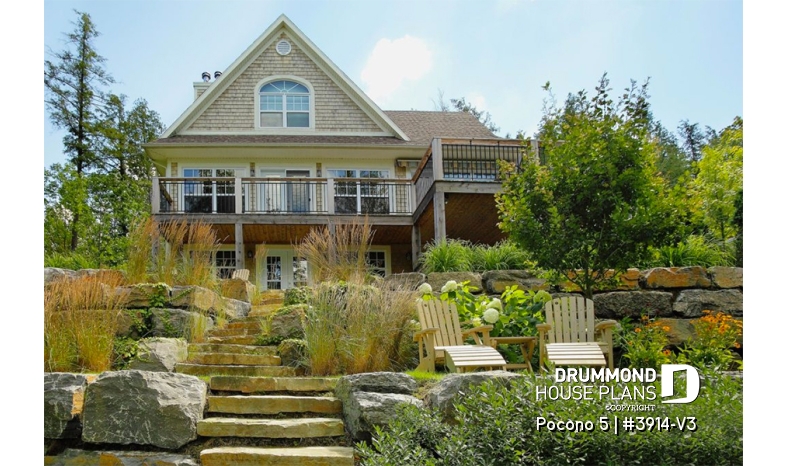

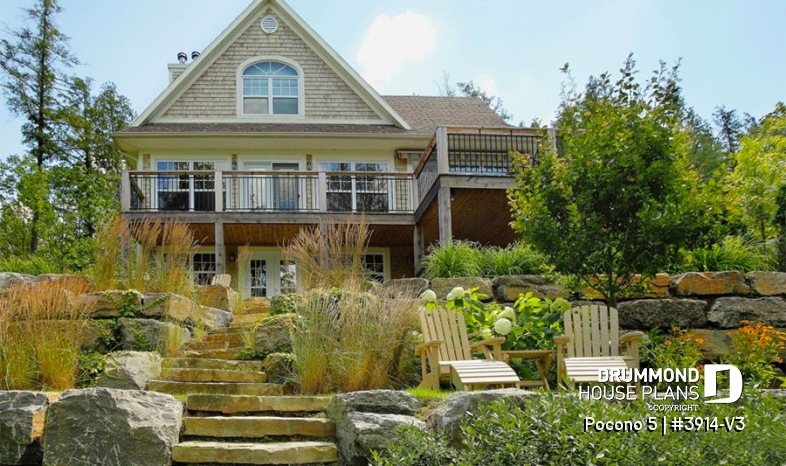

  • Photo back - Pocono 5

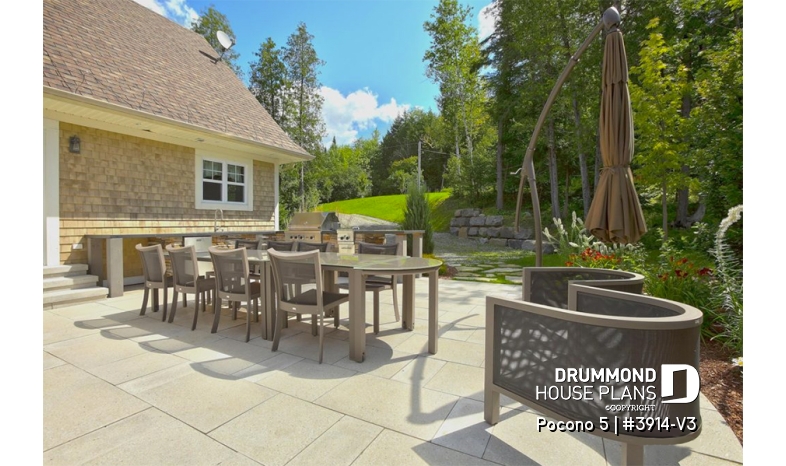

Deck
This color version might have decorative elements that are not available on base plan.

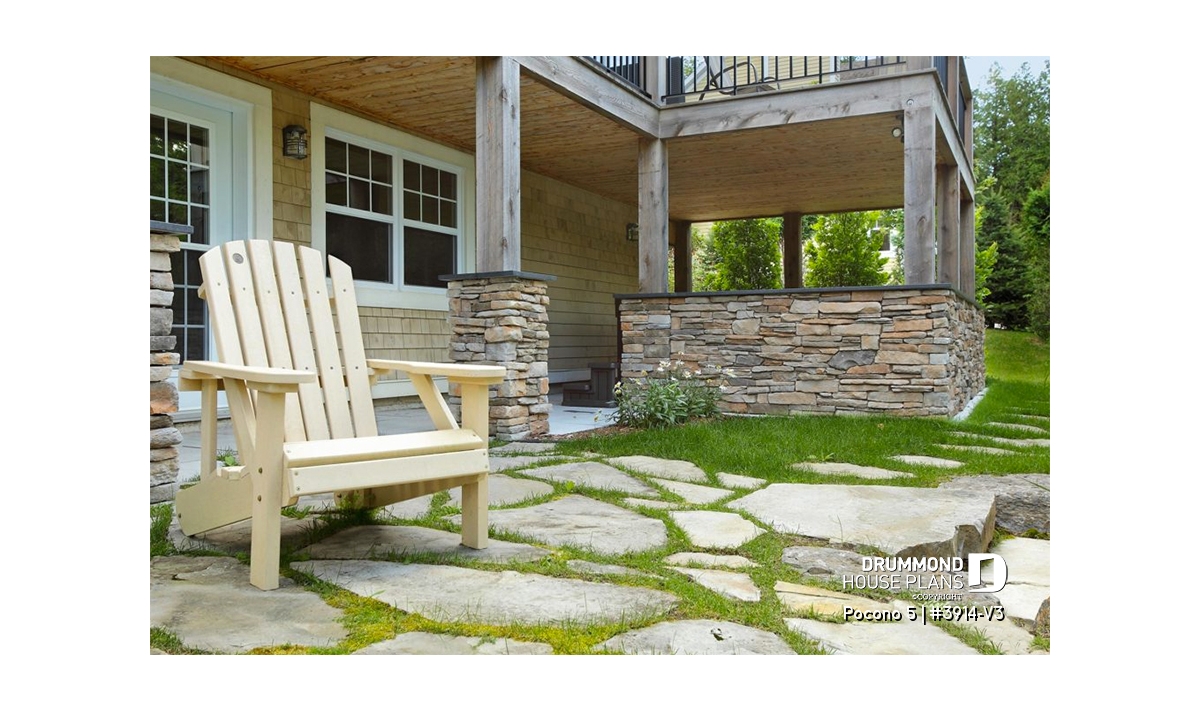

Deck
This color version might have decorative elements that are not available on base plan.

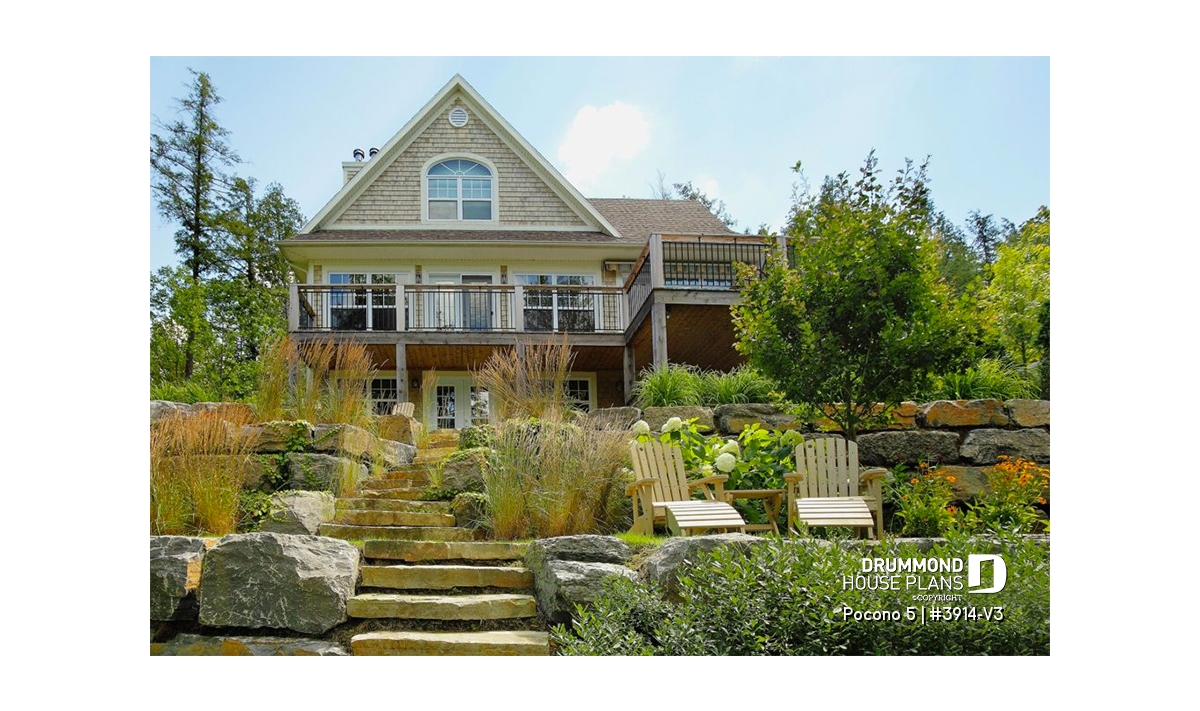

back
This color version might have decorative elements that are not available on base plan.

Photo thumbnail Deck - Plan 3914-V3
Photo thumbnail Deck - Plan 3914-V3
Photo thumbnail back - Plan 3914-V3

Buy this plan

From : 1080$

Modify this plan

Get a quote

Description

1st level: Foyer, laundry room, dining room and living room, kitchen with island counter, master suite with private bath and walk-in closet, half-bath and family room in sunroom. 2nd level: Three bedrooms with full bathroom.

Other useful information on this plan

Unobstructed views for this beautiful Vacation house plan!!

If you are looking for a home to capture a view, this model is sure to please. Simple and elegant lines, abundant windows, a screened veranda and wraparound deck... These are only the exterior allures of this model. A further benefit is a front facade just as attractive as the rear thus allowing great flexibility for a wide variety of lot styles.

Inside, a well-positioned staircase allows for panoramic views and casual access to the wraparound deck. The master bedroom is conveniently found on the main level adorned by a veranda access, a walk-in closet, master bathroom vaulted ceiling and a two-sided fireplace which is shared with the family room. A guest bathroom and laundry complete the main level comforts.

Upstairs, we find three bedrooms and a full bathroom.

Distinctive elements

9' ceiling in the activity area. Fireplace shared between master suite and living room. Remarkable kitchen with island counter. Master suite with private bathroom and walk-in closet. Three nice bedrooms on 2nd level share a full bathroom.

Plan feature(s)

Screened porch, Fireplace, Island, Master suite

Other useful information on this plan

Full description

Unobstructed views for this beautiful Vacation house plan!!

If you are looking for a home to capture a view, this model is sure to please. Simple and elegant lines, abundant windows, a screened veranda and wraparound deck... These are only the exterior allures of this model. A further benefit is a front facade just as attractive as the rear thus allowing great flexibility for a wide variety of lot styles.

Inside, a well-positioned staircase allows for panoramic views and casual access to the wraparound deck. The master bedroom is conveniently found on the main level adorned by a veranda access, a walk-in closet, master bathroom vaulted ceiling and a two-sided fireplace which is shared with the family room. A guest bathroom and laundry complete the main level comforts.

Upstairs, we find three bedrooms and a full bathroom.

Distinctive elements

9' ceiling in the activity area. Fireplace shared between master suite and living room. Remarkable kitchen with island counter. Master suite with private bathroom and walk-in closet. Three nice bedrooms on 2nd level share a full bathroom.

Plan feature(s)

Screened porch, Fireplace, Island, Master suite

Questions and comments on this plan

October 06 2014

Murray Crane

Does plan for #V3914-V3 come with 9' basement and 1st level? Any basement layout?

October 06 2014

Customer service

Good day Mr. Crane and thank you for your interest in this plan.

Although the full basement of this plan includes ceilings 8' high and a walk-out, the layout is limited to a dotted line which indicates a possible future bathroom the first floor layout is complete and does have 9' ceilings.

We would, however, be happy to return a free estimate within two business days after receipt of this on line form for an increase in the basement ceiling height to 9' as well as any divisions that you require or other changes required to make this plan conform to your specific needs.

Please let me know if I can further assist you
Regards
Deb

September 09 2014

Tyler

On your last question above, is the head height in the 2nd floor bathroom all 8' for that room or at least in the shower? Even at 5' at the eaves, that doesn't leave much room for movement? Thanks

September 09 2014

Customer service

Good day and thank you for taking the time to write.

The maximum height is to the left of the dotted line and the ceiling slopes to a knee wall height of 5' but if this is insufficient and you need to make any changes, we would be happy to return a free estimate for plan customization according to your requirements within 48 (business) hours.

Regards
Deb

September 02 2014

Jaymes

Regarding plan W3914V3: I like the 2nd and 3rd floor layout of this design but I would prefer a full basement/garage with three stalls, storage and a workbench area). Do you have versions of this plan with these modifications?
Thanks

September 02 2014

Customer service

Good day and thank you for your interest in this plan.

Since we do not have a stock plan that meets your needs, I invite you to request a free quote for the changes and we would be happy to respond within two business days after receipt of this on line form.

Please let me know if I can further assist you.
Regards
Deb

August 13 2014

Dan Barr

When ordering blueprints how long does it take to receive them?

August 13 2014

Customer service

Good day Mr. Barr and thank you for taking the time to write.

The lead time for you to receive paper copies of our plans is 3 to 5 business days and 24 to 48 business hours for electronic files such as PDF or CAD.

If changes, such as right reading reverse or a different foundation, are required there is an additional delay that is usually fror 2 to 7 business days.

Please let me know if you have any other questions or comments.
Regards
Deb

August 08 2014

Judy

Upstairs, what is the wall height under the eaves (dashed line on plan)? Want bathroom to have a shower/tub combo and wonder if there is standing head room.

August 08 2014

Customer service

Good day and thank you for your interest in this plan.

The lowest height in the room is 5' towards the outside extremity of the wall. There is already a tub/shower combo and there is enough headroom.

Please let me know if I can further assist you
Regards
Deb

Questions and comments

October 06 2014

Murray Crane

Does plan for #V3914-V3 come with 9' basement and 1st level? Any basement layout?

October 06 2014

Customer service

Good day Mr. Crane and thank you for your interest in this plan.

Although the full basement of this plan includes ceilings 8' high and a walk-out, the layout is limited to a dotted line which indicates a possible future bathroom the first floor layout is complete and does have 9' ceilings.

We would, however, be happy to return a free estimate within two business days after receipt of this on line form for an increase in the basement ceiling height to 9' as well as any divisions that you require or other changes required to make this plan conform to your specific needs.

Please let me know if I can further assist you
Regards
Deb

September 09 2014

Tyler

On your last question above, is the head height in the 2nd floor bathroom all 8' for that room or at least in the shower? Even at 5' at the eaves, that doesn't leave much room for movement? Thanks

September 09 2014

Customer service

Good day and thank you for taking the time to write.

The maximum height is to the left of the dotted line and the ceiling slopes to a knee wall height of 5' but if this is insufficient and you need to make any changes, we would be happy to return a free estimate for plan customization according to your requirements within 48 (business) hours.

Regards
Deb

September 02 2014

Jaymes

Regarding plan W3914V3: I like the 2nd and 3rd floor layout of this design but I would prefer a full basement/garage with three stalls, storage and a workbench area). Do you have versions of this plan with these modifications?
Thanks

September 02 2014

Customer service

Good day and thank you for your interest in this plan.

Since we do not have a stock plan that meets your needs, I invite you to request a free quote for the changes and we would be happy to respond within two business days after receipt of this on line form.

Please let me know if I can further assist you.
Regards
Deb

August 13 2014

Dan Barr

When ordering blueprints how long does it take to receive them?

August 13 2014

Customer service

Good day Mr. Barr and thank you for taking the time to write.

The lead time for you to receive paper copies of our plans is 3 to 5 business days and 24 to 48 business hours for electronic files such as PDF or CAD.

If changes, such as right reading reverse or a different foundation, are required there is an additional delay that is usually fror 2 to 7 business days.

Please let me know if you have any other questions or comments.
Regards
Deb

August 08 2014

Judy

Upstairs, what is the wall height under the eaves (dashed line on plan)? Want bathroom to have a shower/tub combo and wonder if there is standing head room.

August 08 2014

Customer service

Good day and thank you for your interest in this plan.

The lowest height in the room is 5' towards the outside extremity of the wall. There is already a tub/shower combo and there is enough headroom.

Please let me know if I can further assist you
Regards
Deb
