House plan The Woodlyne 2 (4940)
A-Frame 2 bedroom Cottage home plan with screened-in terrace and large fireplace
View the size of the rooms and height of the ceilings

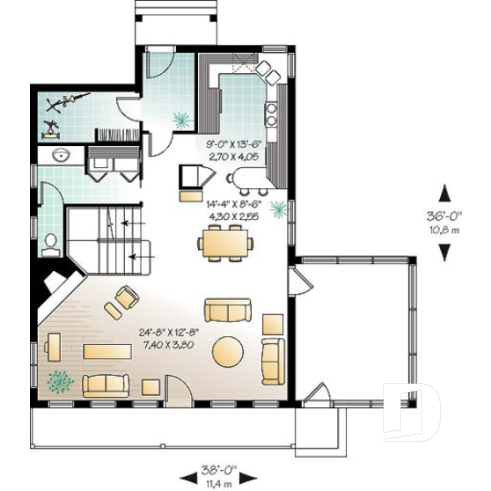

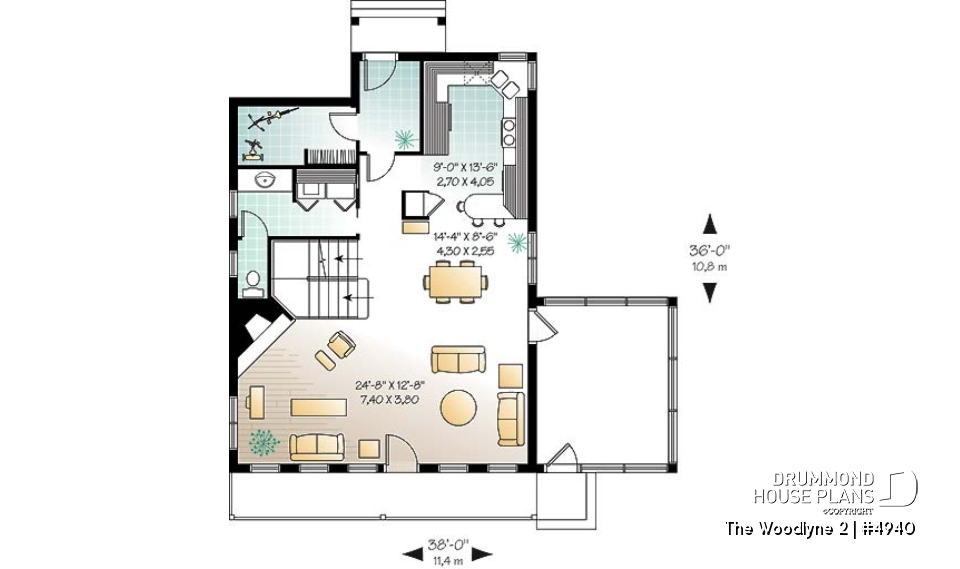

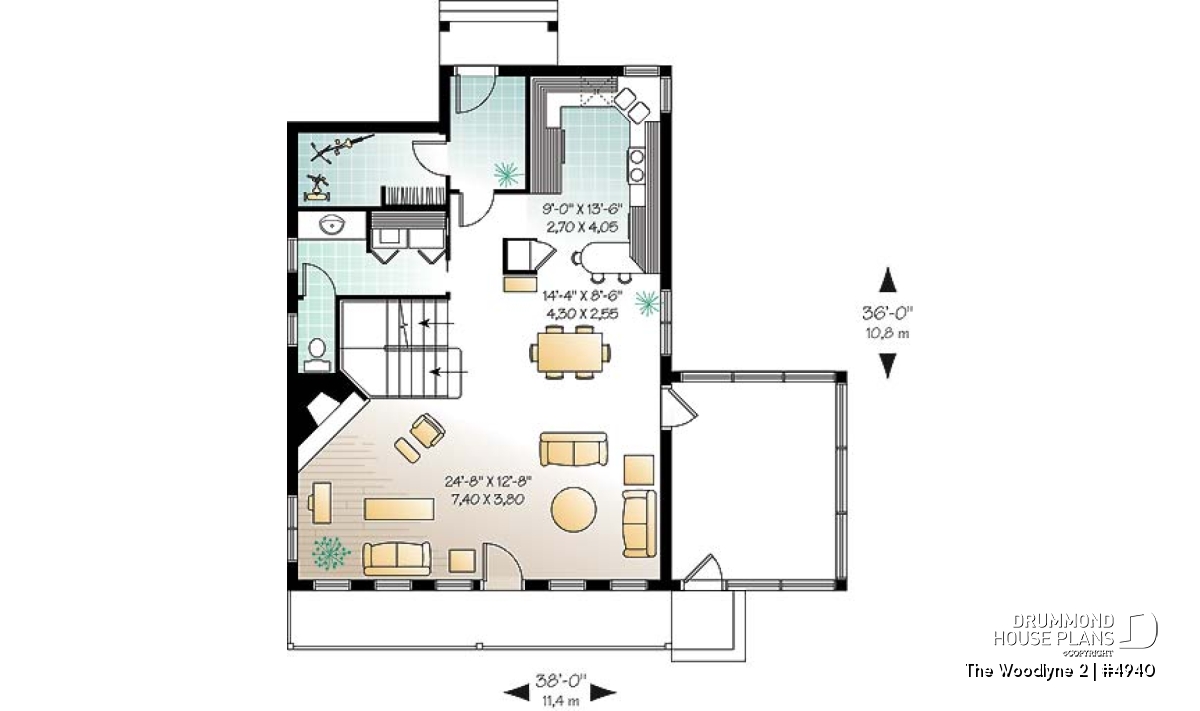

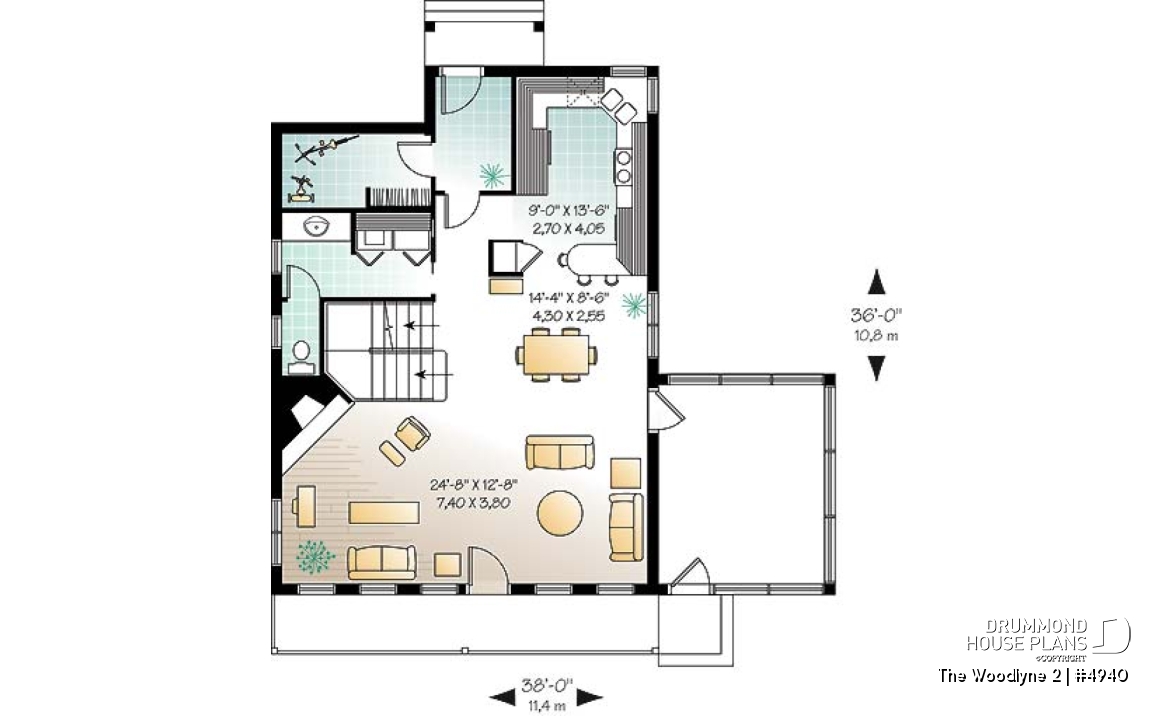

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 10'0" x 5'10" | ~ 8'0" |
| Kitchen | 8'0" x 13'6" | ~ 8'0" |
| Dining room | 14'4" x 8'6" | ~ 8'0" |
| Living room | 24'8" x 12'8" | ~ 8'0" |
| Foyer | 6'0" x 7'10" | ~ 8'0" |
| Porch | 26'0" x 4'0" | N/A |
| Porch | 8'0" x 3'0" | N/A |
| Storage | 10'0" x 4'10" | ~ 8'0" |

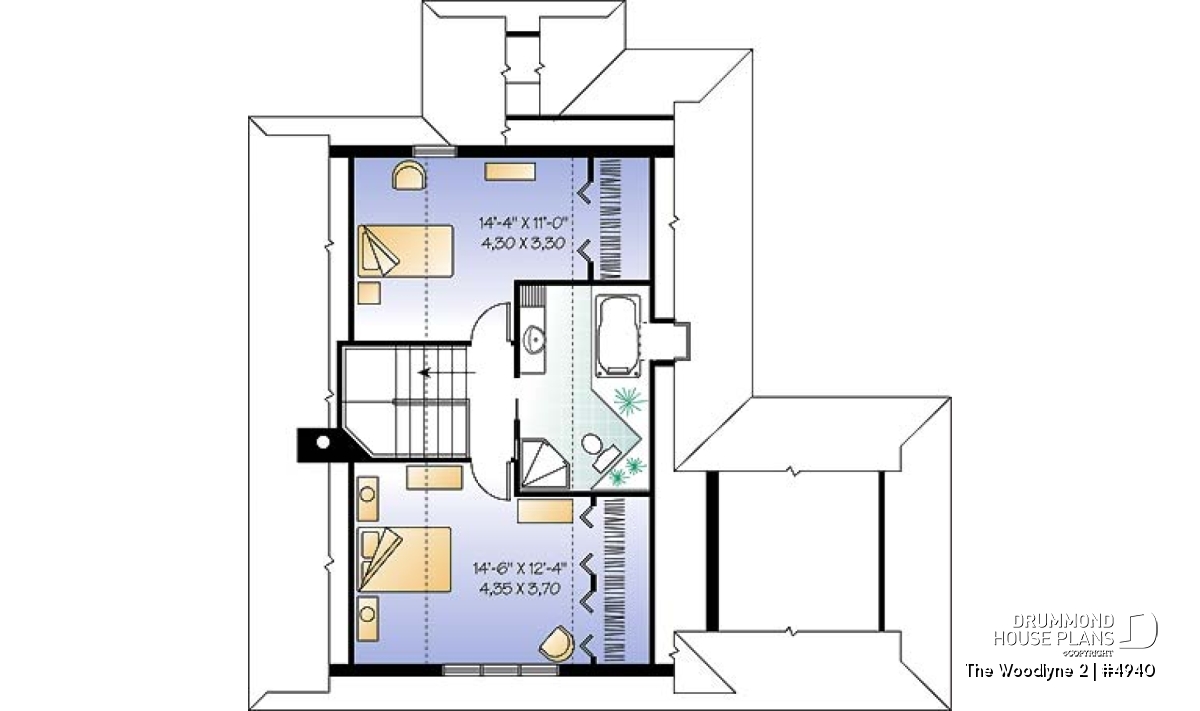

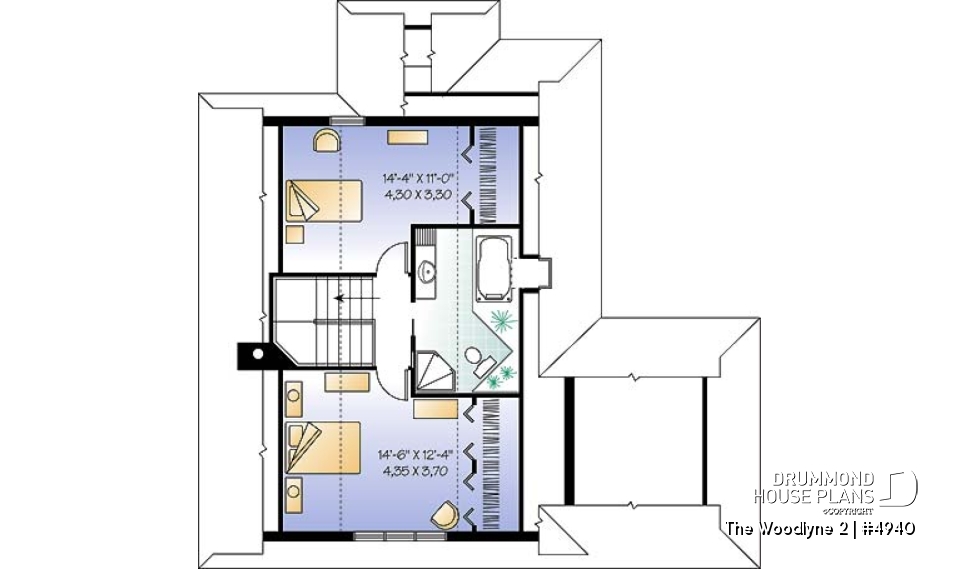

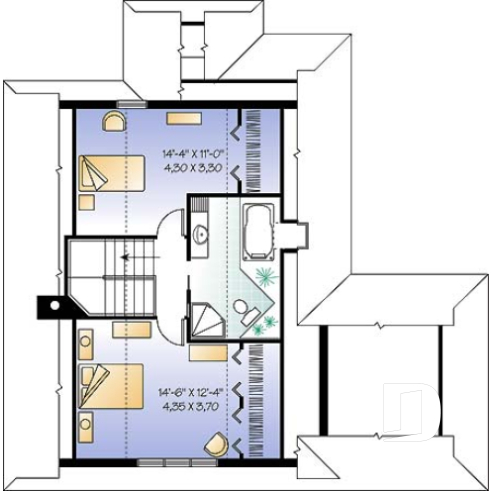

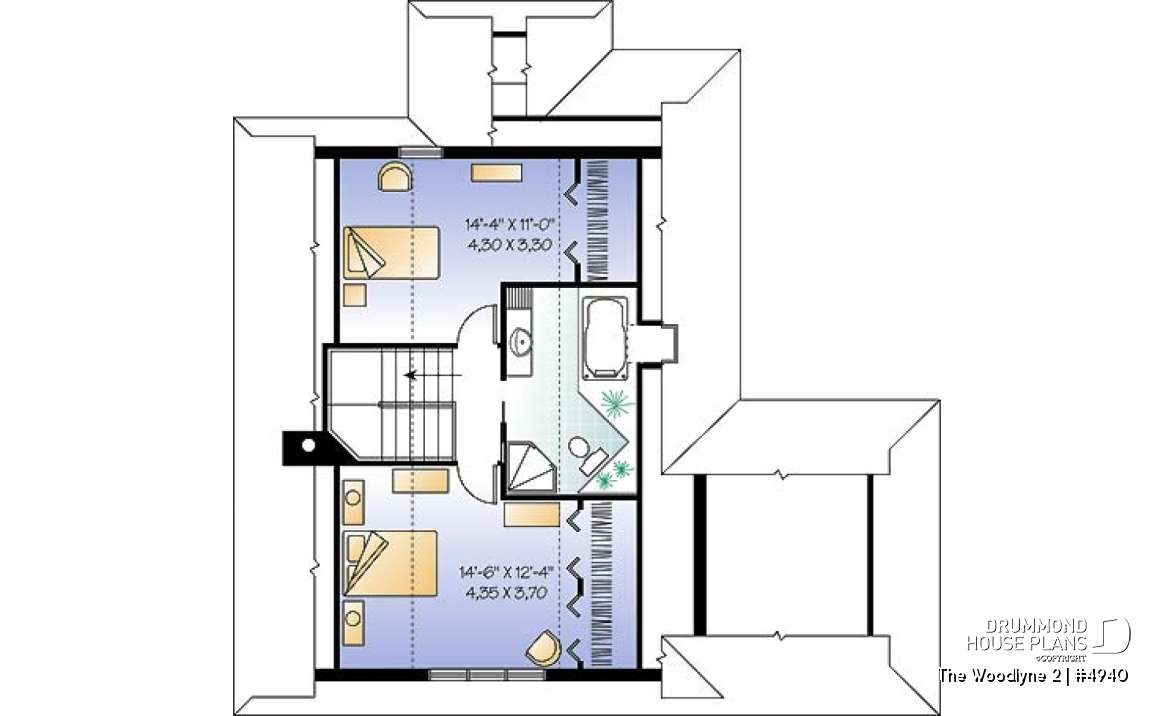

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'6" x 12'4" | ~ 8'0" |
| Bedroom | 14'6" x 12'4" | ~ 8'0" |
| Bedroom | 14'4" x 11'0" | ~ 8'0" |
General specifications
| Total living area | 1482 sq.ft. |
| 1st level | 895 sq.ft. |
| 2nd level | 587 sq.ft. |
| Width | 26'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 25'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Charming 2 bedroom cottage house plan with screened-in porch and large terrace
At the origin of many vacation home models proposing an interior layout with truly panoramic views and which you can view on http://www.drummonddesigns.com/, this one is even more interesting by the fact that it suggests a sheltered screened-in terrace in order to enjoy meals outside, safe from mosquitoes.
Inside, the comfort we refer to here is certainly notable with the activities center occupying the entire main level and proposing a beautiful kitchen equipped with plenty of storage, an airy dining room and a vast double living room with a corner fireplace in one of them. Also, there is a large storage area and a laundry corner adjoining the half-bath. And, above all, an abundance of windows spread over four facades, more particularly at the rear, for panoramic views.
On the upper level, this comfort translates into two remarkably sized bedrooms, each equipped with a good sized closet and sharing a complete bathroom whose brightness is assured by the presence of a skylight or roof window, for that interior ‘chalet’ look. Here, it would be feasible to convert, if desired, one of the two upstairs bedrooms in order to obtain three bedrooms while still having nice sized bedrooms.
Distinctive elements
Abundant fenestration, large screened porch (180 sq.ft., 16.20 sq.m.), special ceiling treatments.
Plan feature(s)
Screened porch, Fireplace, Open floor layout, Gound floor laundry room, Lunch counter, Panoramic view, Sloped ceiling, Mud room, Separate bath and shower
Plan architectural style(s)
. Country, . Vacation and waterfront, . Ski chalets, . American, . A-Frame, . Traditional, . Mountain, . Cottage, chalet, cabin
Similar plans
Previously Viewed Plans
Questions and comments
February 28
mark drown
im very interested in this home can you send me an estimated cost to build?
March 01
Customer service
Good day Mr. Drown and thank you for your interest in this plan.
Since we are a company from Quebec, Canada we do not have construction estimates for your state.
I can however give you a ballpark idea of what it costs to build here in Canada, which is approxiately $220,000. excluding land, taxes and hook-ups to municipal services.
You will need to consult local contractors and materials suppliers to get a more specifica idea of construction estimates for your particular area.
Please let me know if you have any other questions or comments.
Regards
Deborah
February 26
Jeff + Cindy
I would like more information on medications to this plan.please contact me this week.
February 26
Customer service
Good day
I am not sure how to respond to your inquiry.
If you would like to request a free estimate for modifications to this plan, just fill in our on line form for which I have attached the link below
http://www.dessinsdrummond.com/modification-de-votre-plan/formulaire-de-modification-en-ligne/plan/1002829.html
We will be happy to return a free estimate for the changes within two business days after receipt of your request.
If you need information about medication or a medical insurance plan, I will unfortunately not be able to help you as we sell house plans and other documents of that nature only.
Regards
Deborah
October 02
Mark sears
W4940 plan
I may like these plans with a small change. Can I get a quote on the cost if I describe a change
October 02
Customer service
Good day Mr. Sears and thank you for taking the time to write.
We would be happy to send you a free quote for the changes that you require to this plan.
All you need to do is to fill in the details using the on line modification form for which I have attached the link below.
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1001855.html
We will respond to your request within two business days to let you know the cost to change the plan to your requirements and the lead time required.
Please let me know if I can further assist you.
Regards
Deborah
