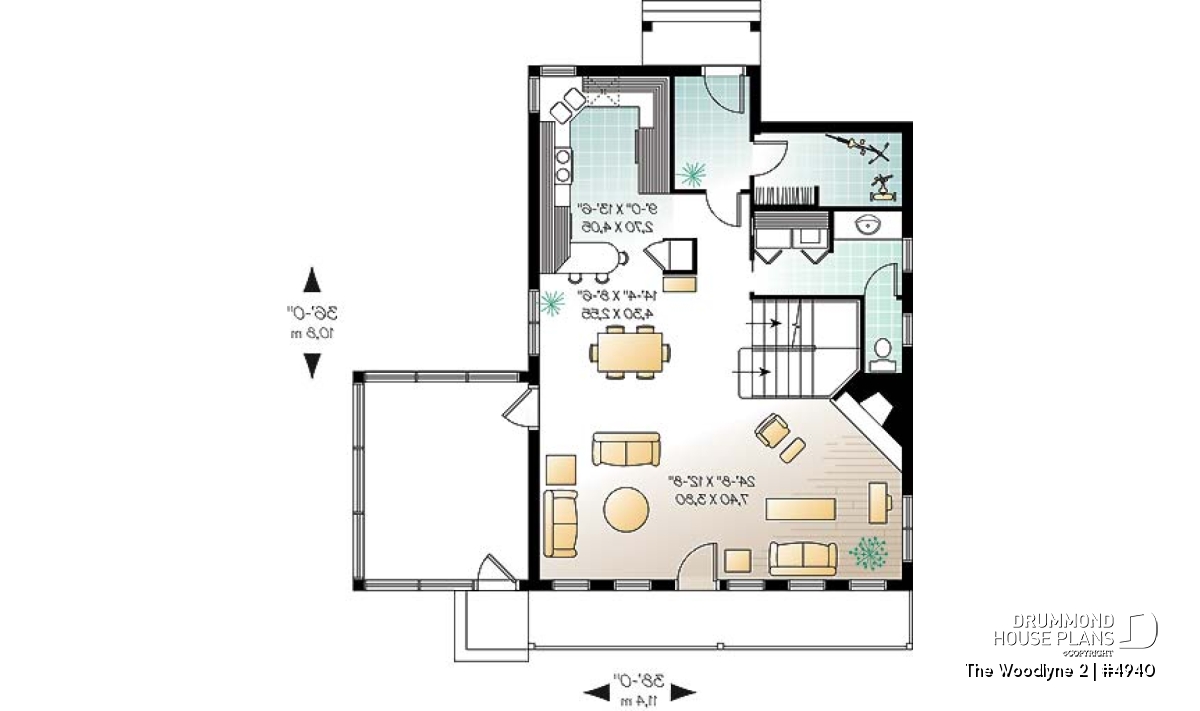

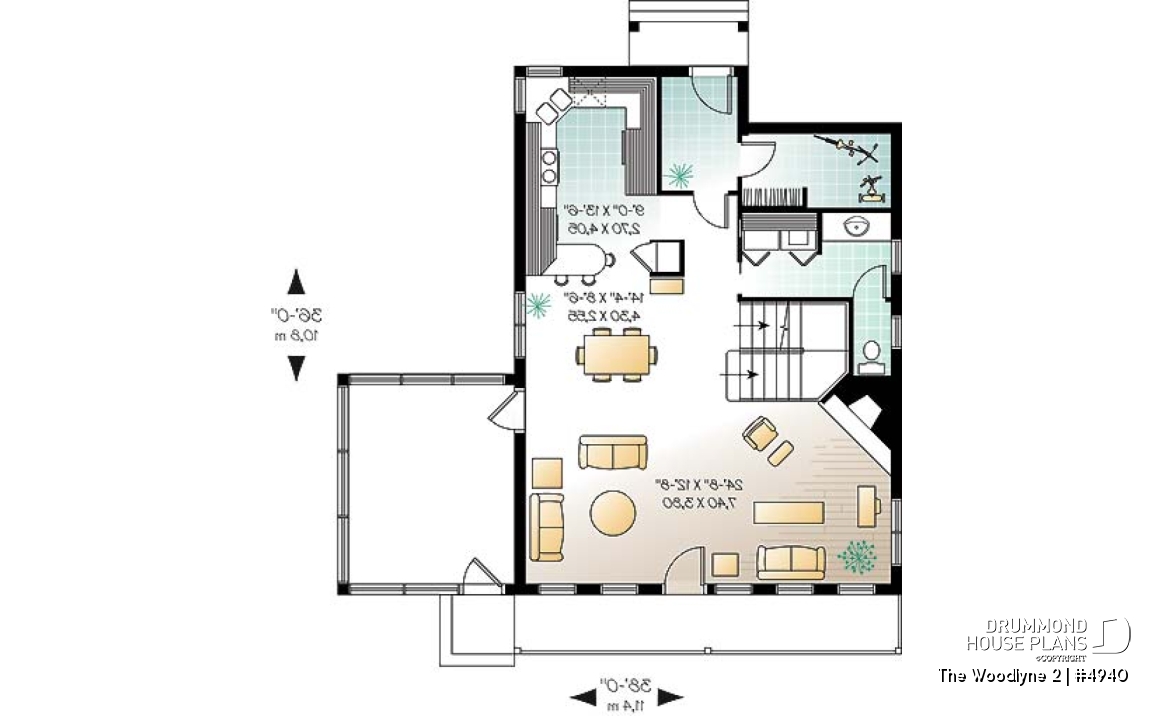

1st level

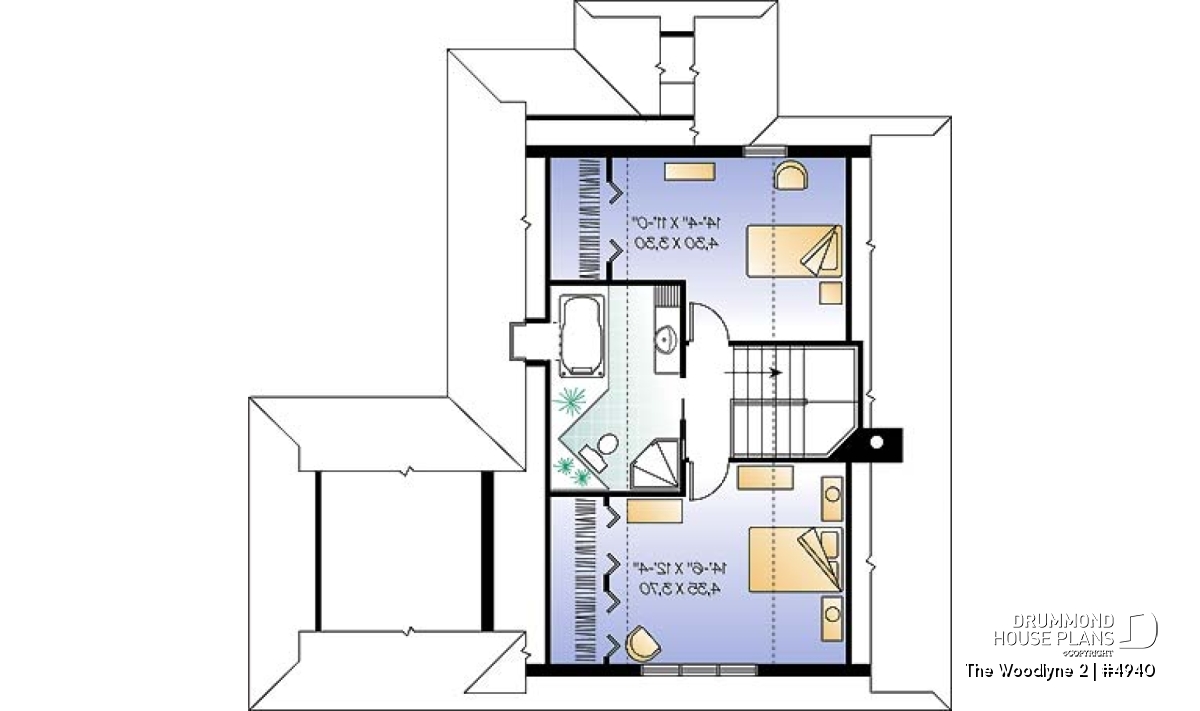

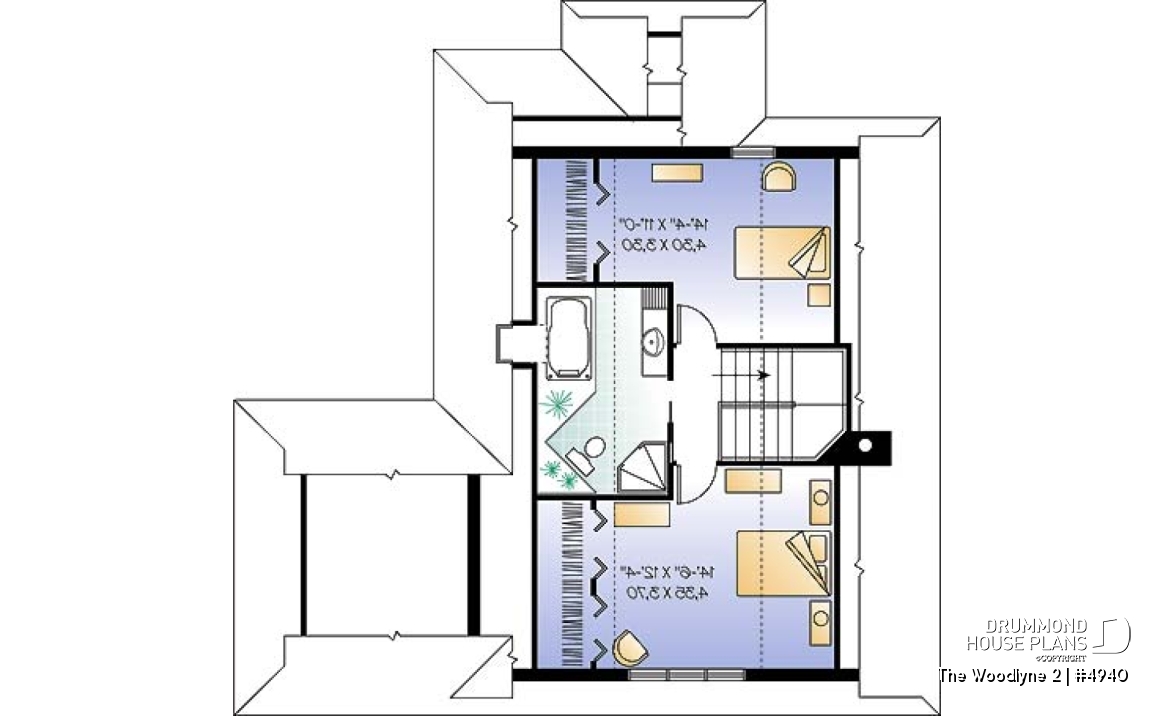

2nd level

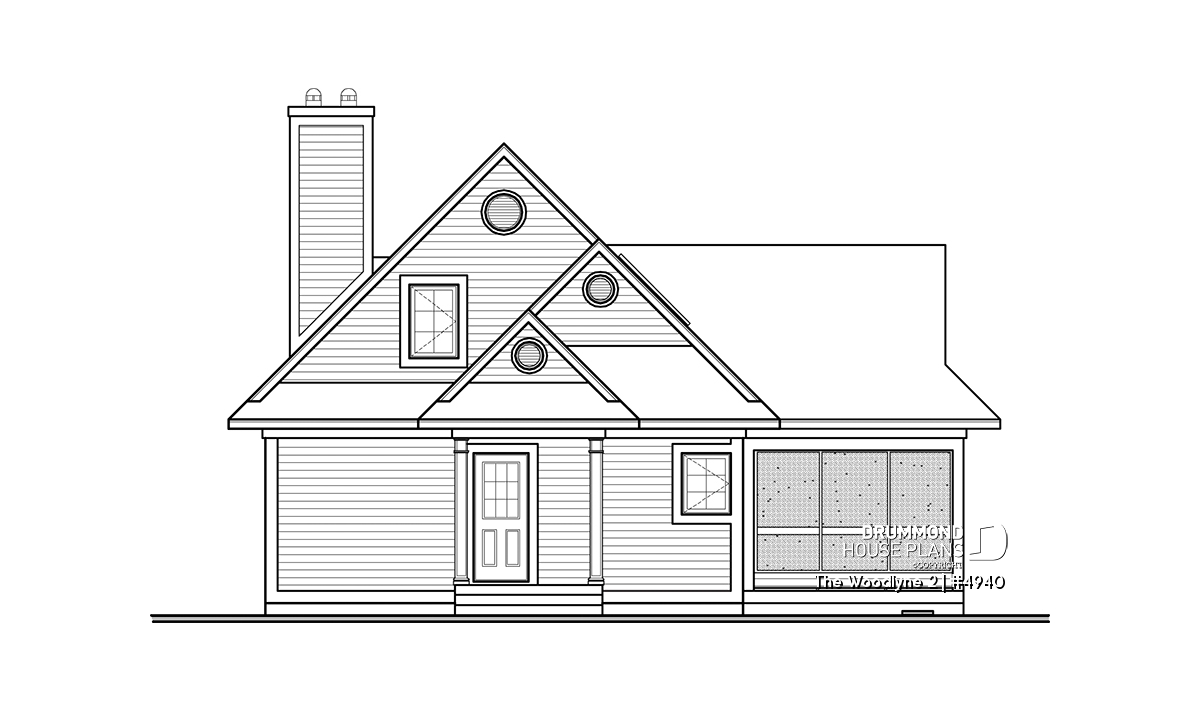

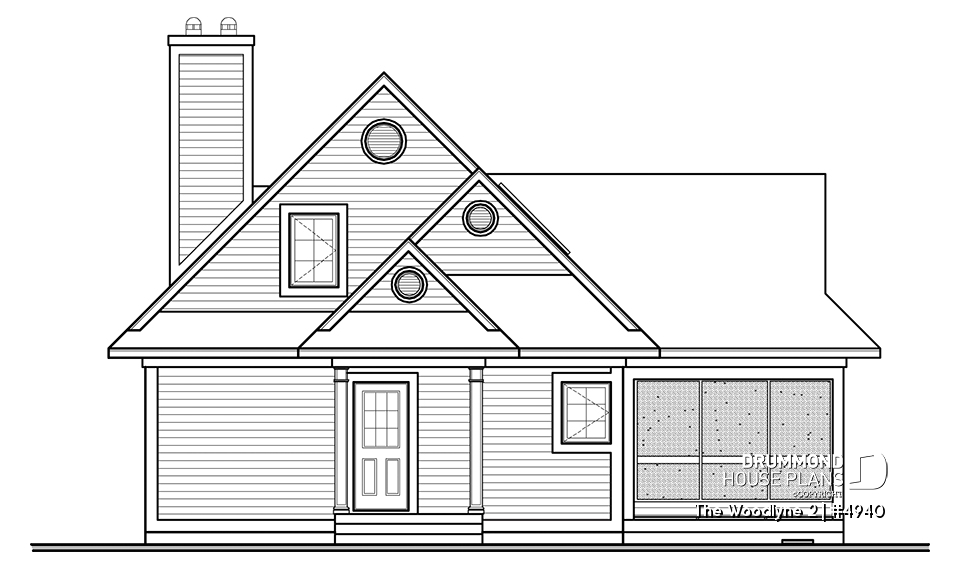

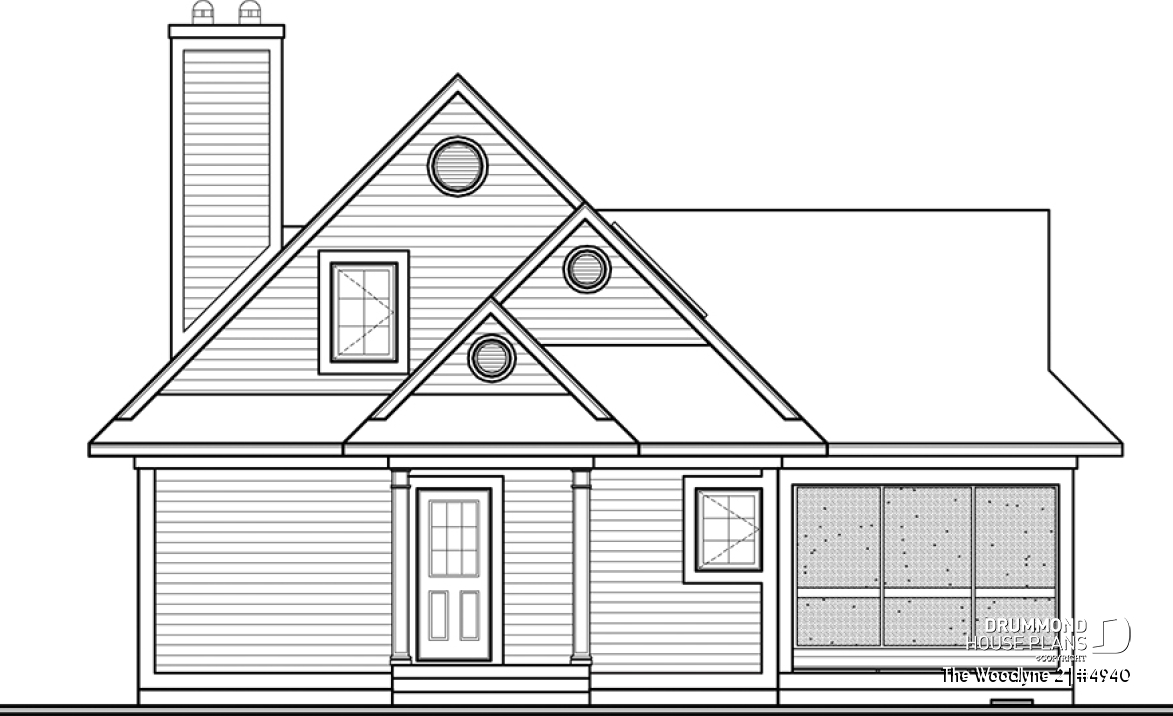

front elevation
Color version 2 - Rear

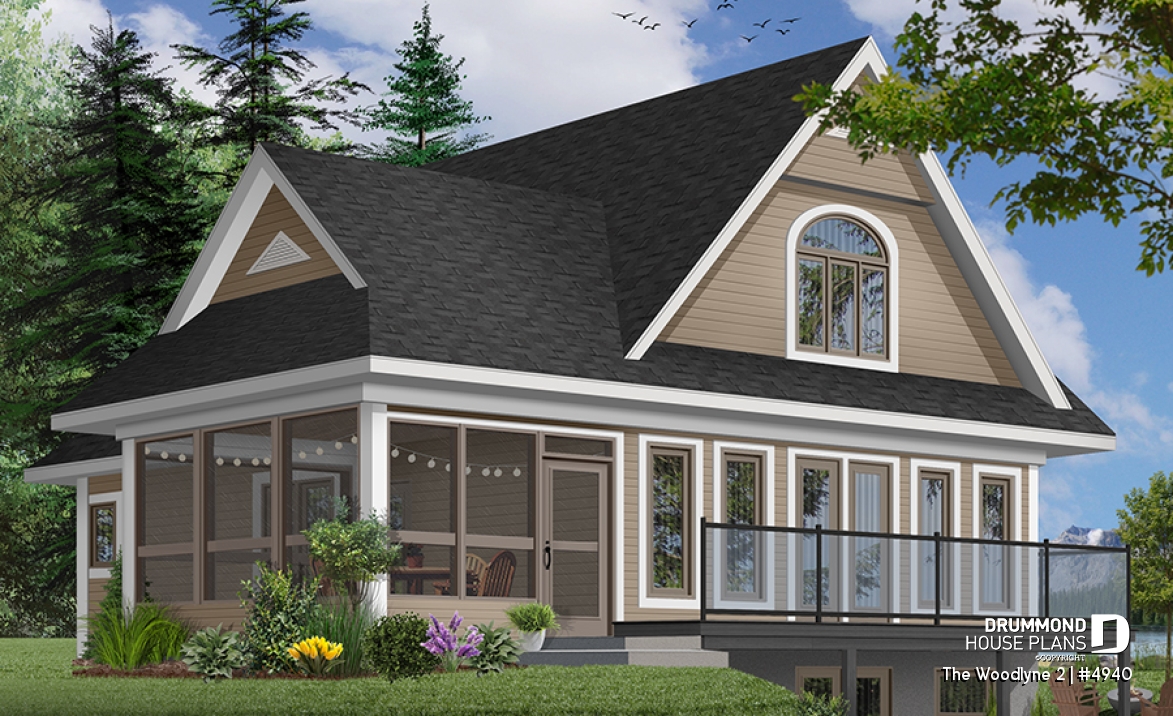

Color version 3 - Rear
Color version 4 - Rear
Color version 5 - Rear
Color version 6 - Rear
Color version 7 - Rear
Color version 8 - Rear
Color version 10 - Rear
The Woodlyne 2 House plan 4940
A-Frame 2 bedroom Cottage home plan with screened-in terrace and large fireplace
Starting from
1515$
| Technical details summary | Plan #4940 | ||
|---|---|---|---|
| Total living area | 1482 sq.ft. | Bedroom | 2 |
| Full baths | 1 | Half baths | 1 |
| Foundation included | Full basement with walkout | Garage | - |
| Width | 26'0" | Depth | 36'0" |
Additional details
General specifications
Total living area
1482 sq.ft.
1st level
895 sq.ft.
2nd level
587 sq.ft.
Width
26'0"
Depth
36'0"
Ridge height from top of foundation
25'0"
Exterior wall
2 X 6
Full basement with walkout
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
C
Rooms specifications
Bedroom(s)
2
Full baths
1
Half baths
1
Garage type
-
Covered porch area
128 sq.ft.

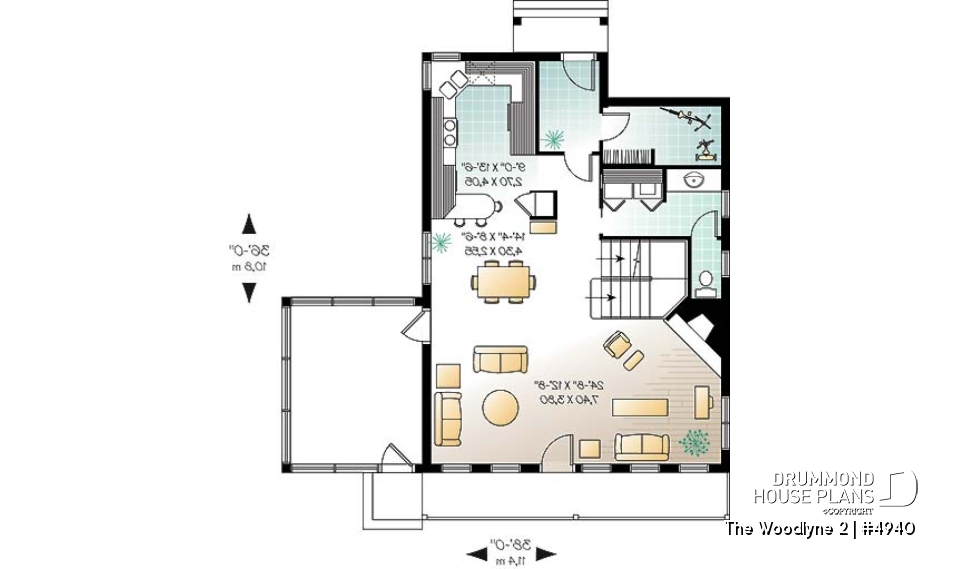

1st level
Rooms
Sizes
Ceiling
Half bath or powder room
10'0" x 5'10"
~ 8'0"
Kitchen
8'0" x 13'6"
~ 8'0"
Dining room
14'4" x 8'6"
~ 8'0"
Living room
24'8" x 12'8"
~ 8'0"
Foyer
6'0" x 7'10"
~ 8'0"
Porch
26'0" x 4'0"
N/D
Porch
8'0" x 3'0"
N/D
Storage
10'0" x 4'10"
~ 8'0"

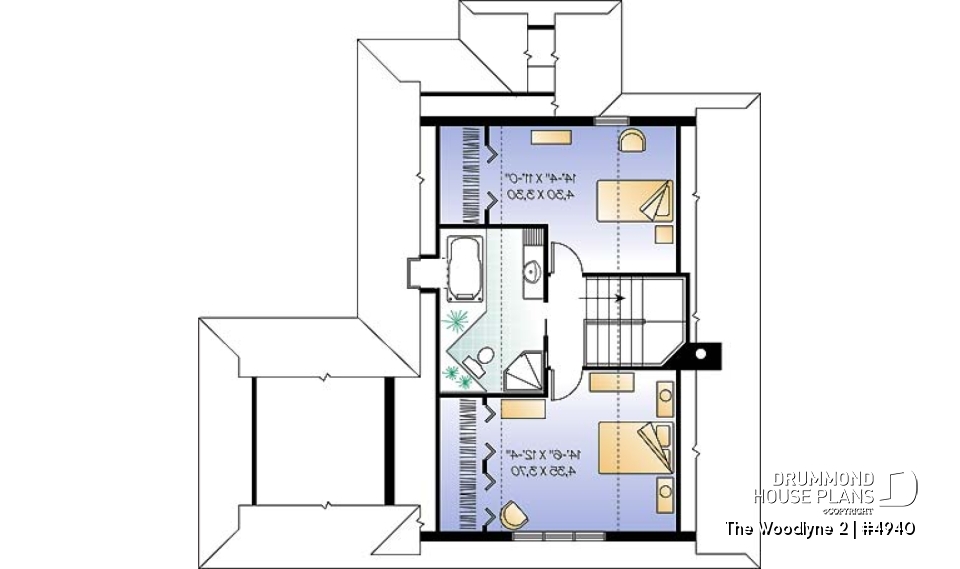

2nd level
Rooms
Sizes
Ceiling
Full bathroom
7'6" x 12'4"
~ 8'0"
Bedroom
14'6" x 12'4"
~ 8'0"
Bedroom
14'4" x 11'0"
~ 8'0"
Charming 2 bedroom cottage house plan with screened-in porch and large terrace
At the origin of many vacation home models proposing an interior layout with truly panoramic views and which you can view on http://www.drummonddesigns.com/, this one is even more interesting by the fact that it suggests a sheltered screened-in terrace in order to enjoy meals outside, safe from mosquitoes.
Inside, the comfort we refer to here is certainly notable with the activities center occupying the entire main level and proposing a beautiful kitchen equipped with plenty of storage, an airy dining room and a vast double living room with a corner fireplace in one of them. Also, there is a large storage area and a laundry corner adjoining the half-bath. And, above all, an abundance of windows spread over four facades, more particularly at the rear, for panoramic views.
On the upper level, this comfort translates into two remarkably sized bedrooms, each equipped with a good sized closet and sharing a complete bathroom whose brightness is assured by the presence of a skylight or roof window, for that interior ‘chalet’ look. Here, it would be feasible to convert, if desired, one of the two upstairs bedrooms in order to obtain three bedrooms while still having nice sized bedrooms.
Distinctive elements
Abundant fenestration, large screened porch (180 sq.ft., 16.20 sq.m.), special ceiling treatments.
Plan feature(s)
Screened porch, Fireplace, Open floor layout, Gound floor laundry room, Lunch counter, Panoramic view, Sloped ceiling, Mud room, Separate bath and shower
Plan architectural style(s)
Country, Vacation and waterfront, Ski chalets, American, A-Frame, Traditional, Mountain, Cottage, chalet, cabin
The plan The Woodlyne 2 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
