House plan The Thatchery (3931)
3 bedroom cottage plan, 3.5 baths, fantastic guest suite above 2-car garage,
View the size of the rooms and height of the ceilings

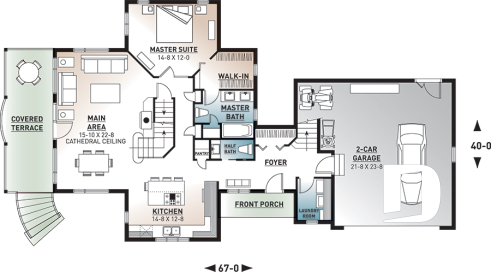

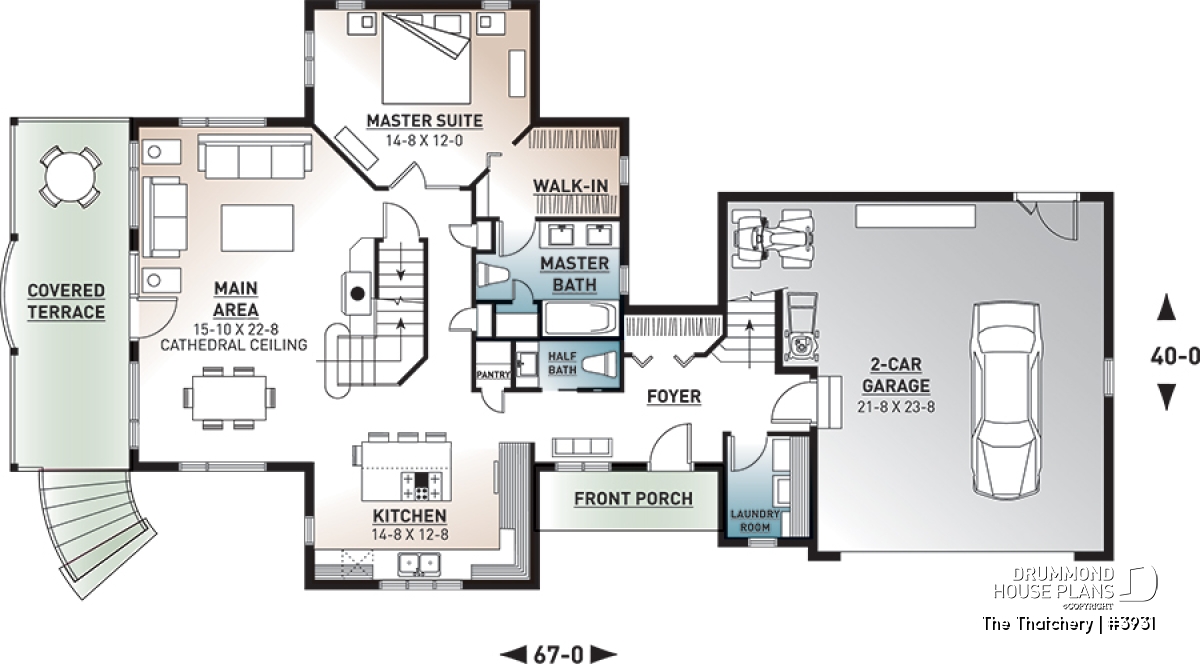

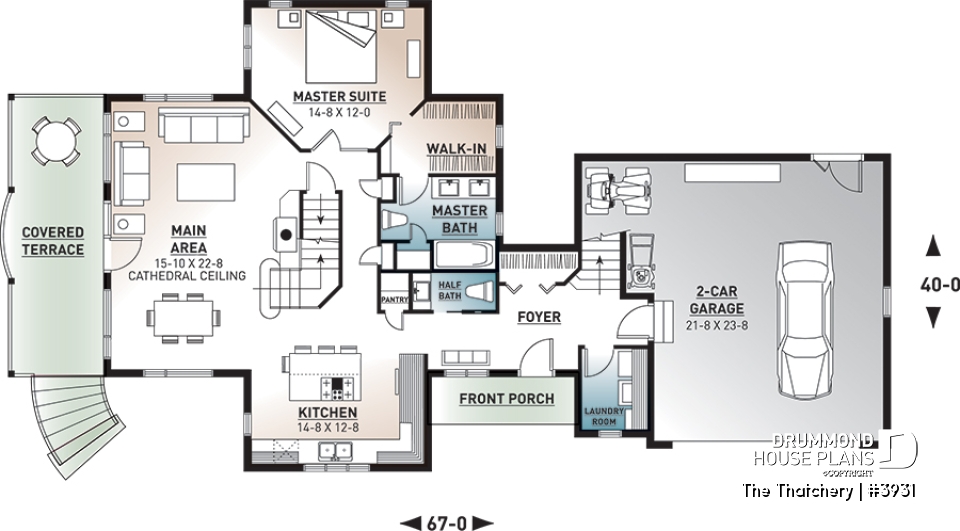

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'8" x 12'8" | ~ 8'0" |
| Living room/dining room | 16'0" x 22'8" | ~ 17'2" |
| Garage | 21'8" x 23'8" | ~ 8'6" |
| Closet | 6'8" x 2'6" | ~ 8'0" |
| Deck | 8'0" x 24'0" | N/A |
| Porch | 12'0" x 4'0" | N/A |
| Half bath or powder room | 6'10" x 3'2" | ~ 8'0" |
| Master suite | 14'8" x 12'0" | ~ 8'0" |
| Utility room | 5'4" x 6'9" | ~ 8'0" |
| Storage | 2'4" x 3'2" | ~ 8'0" |
| Linen | 1'4" x 2'2" | ~ 8'0" |
| Linen | 1'0" x 2'0" | ~ 8'0" |

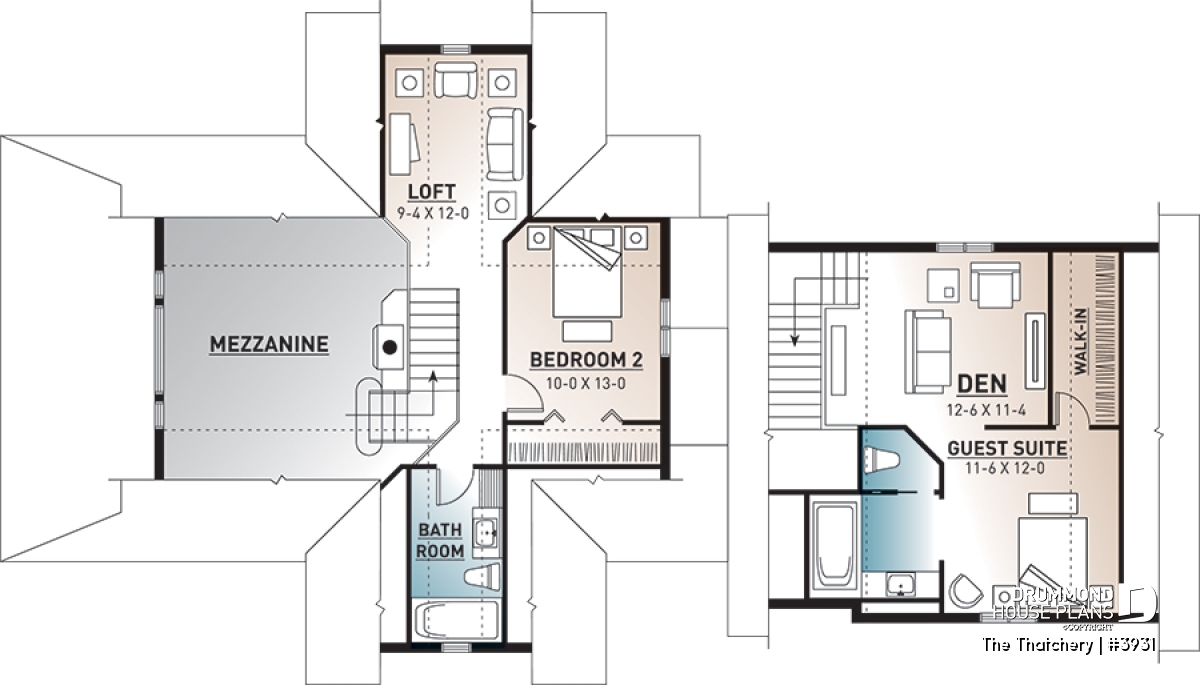

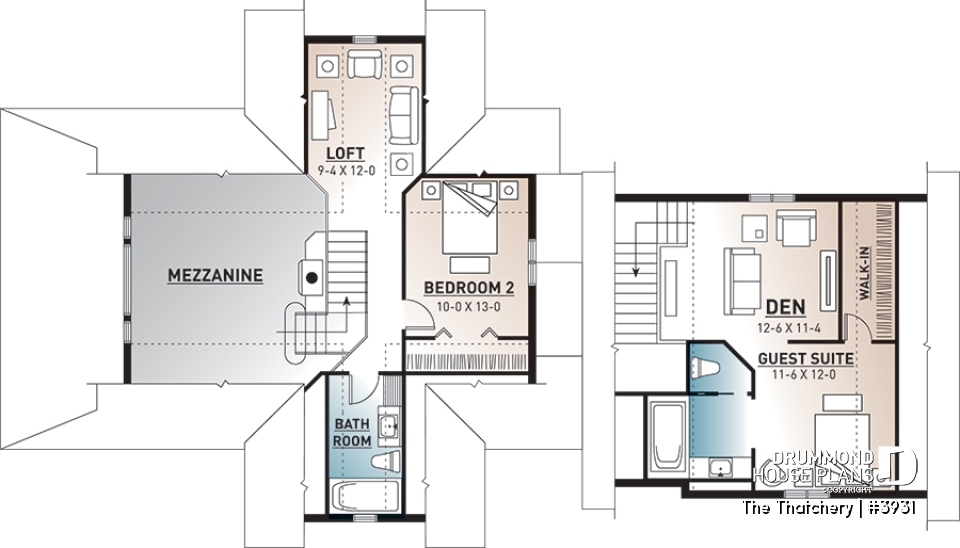

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 11'4" | ~ 8'0" |
| Mezzanine | 9'4" x 12'0" | ~ 8'0" |
| Bedroom | 10'0" x 13'0" | ~ 8'0" |
| Bedroom | 11'6" x 12'0" | ~ 8'0" |
| Reading/computer area | 12'6" x 11'4" | ~ 8'0" |
General specifications
| Total living area | 2219 sq.ft. |
| 1st level | 1232 sq.ft. |
| 2nd level | 987 sq.ft. |
| Width | 67'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 35'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
For the fulfilment of guests...
Once again Drummond Designs proves to be listening to its clientele with this interesting variation of a very popular 4-seasons vacation home, by the addition of a double garage and even more liveable space. For you to consider.
The addition of the double garage bulk to original plan 2939 (which can be viewed on the internet site drummonddesigns.com) thereby adds square footage for the addition of a comfortable entrance foyer, an independent laundry area, a master bedroom suite with private bathroom and large closet, a more than enviable living room/dining room and a kitchen with central island and remarquable lunch counter.
On the upper level, a little more space for the secondary bedroom, the boudoir and the bathroom; but, our attention is especially drawn to the suite above the garage, which will surely be very much appreciated by guests who will feel a little more at home with their own bedroom, to which a bathroom and a living room has been added just for them and which is sure to be the envy of many families who value their guests.
Distinctive elements
Guest suite above garage, cathedral ceiling in family and dining rooms, large covered balcony.
Plan feature(s)
Fireplace, Cathedral ceiling, Mezzanine, Open floor layout, Gound floor laundry room, Panoramic view, Side entry garage, Island, Sloped ceiling, Guest suite, Master suite upstairs, Deck, Walk-in master bed.
Plan architectural style(s)
. Country, . Vacation and waterfront, . American, . A-Frame, . Ski chalets, . Mountain, . Cottage, chalet, cabin, . Farmhouse
Similar plans
Previously Viewed Plans
Questions and comments
August 22
Beth Cole
This house has been built on a slab (in-floor heat) in my neighborhood in Nova Scotia. Lots of curb appeal as it sits on a corner lot.
August 22
Customer service
Good day Ms. Cole
Thank you for the wonderful suggestion. I am sure that it will be helpfull to others who might want to do the same as this plan can be ordered with an optional slab foundation.
Please don't hesitate to contact me if you have any other comments or questions.
Regards
Deborah
February 21
Jennifer Kobe
I'm looking at ordering w3931, besides the cathedral ceiling, what are the ceiling heights in all the other rooms?
February 21
Customer service
Good day and thank you for your interest in our plans.
The ceiling height in the other rooms is 8', the garage is 8' 6".
Please let me know if I can be of further assistance.
Regards
Deborah
January 16
Juline
What would be the cost of building this house in Quebec?
January 17
S. Wilson
I am very interested in your w3931 model. What is the to date sq. foot cost in U.S.?
January 18
Customer service
Dear Mrs Wilson,
Thank you for your interest in Drummond House Plans.
Since we are located in Quebec, Canada, we do not have building costs for the U.S. You may want to contact local builders to get this information. They will be able to provide an average cost per square foot for your area.
Do not hesitate ton contact me again if you need further information on this plan or any other plan.
Best Regards,
Doreen, Customer Service Department
April 01
David Henley
Plan W3931
If the space over the Garage were removed and the stairway closed to the wall in the back of the entryway closet. What would de the square footage of the living space be? I know this would require modification of the plan but I need a place to start and that would require my knowing the footage.
David Henley
April 02
Customer service
Dear Mr Henley,
The space over the garage is 481 square feet. If you were to close the part on the left of the house, the square footage of this area would be approximately 275 square feet. It may vary depending on how high you want the knee walls, since the ceiling is sloped.
The total square footage would be approximately 2050 total.
Do not hesitate to contact us again if you need further information.
Best Regards,
Customer Service Department
