Vistas 4 (2939B-V1)
Vacation home design, 3 to 4 bedrooms, 2 family rooms, open floor plan, walkout basement
View the size of the rooms and height of the ceilings

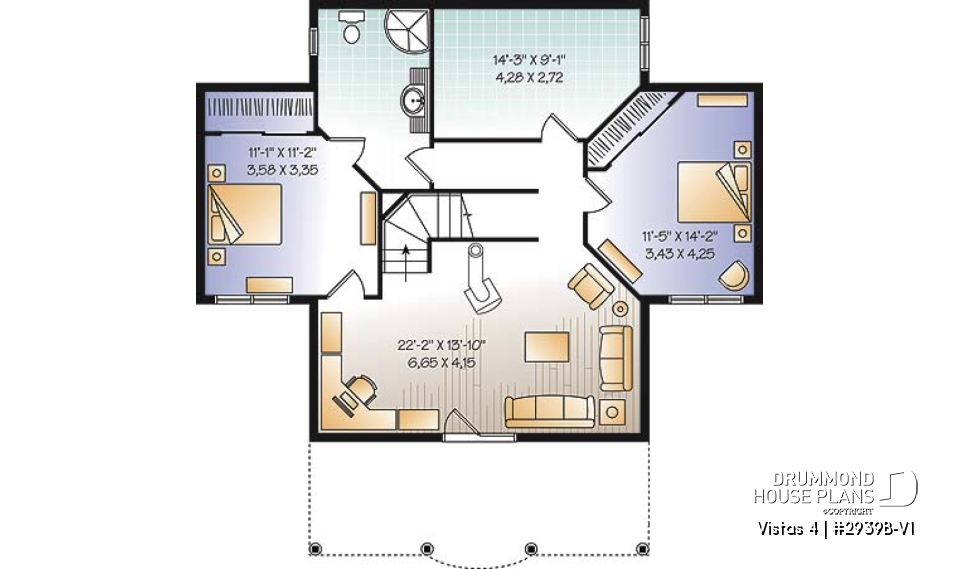

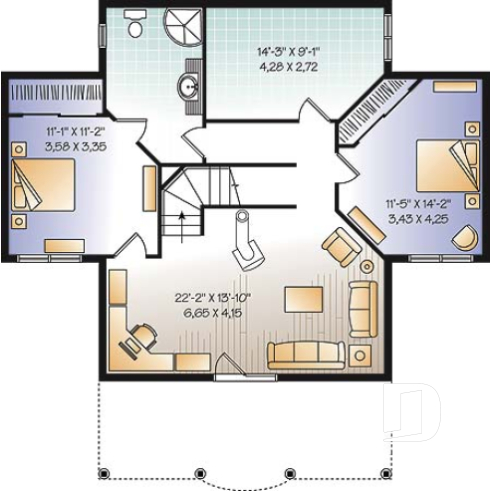

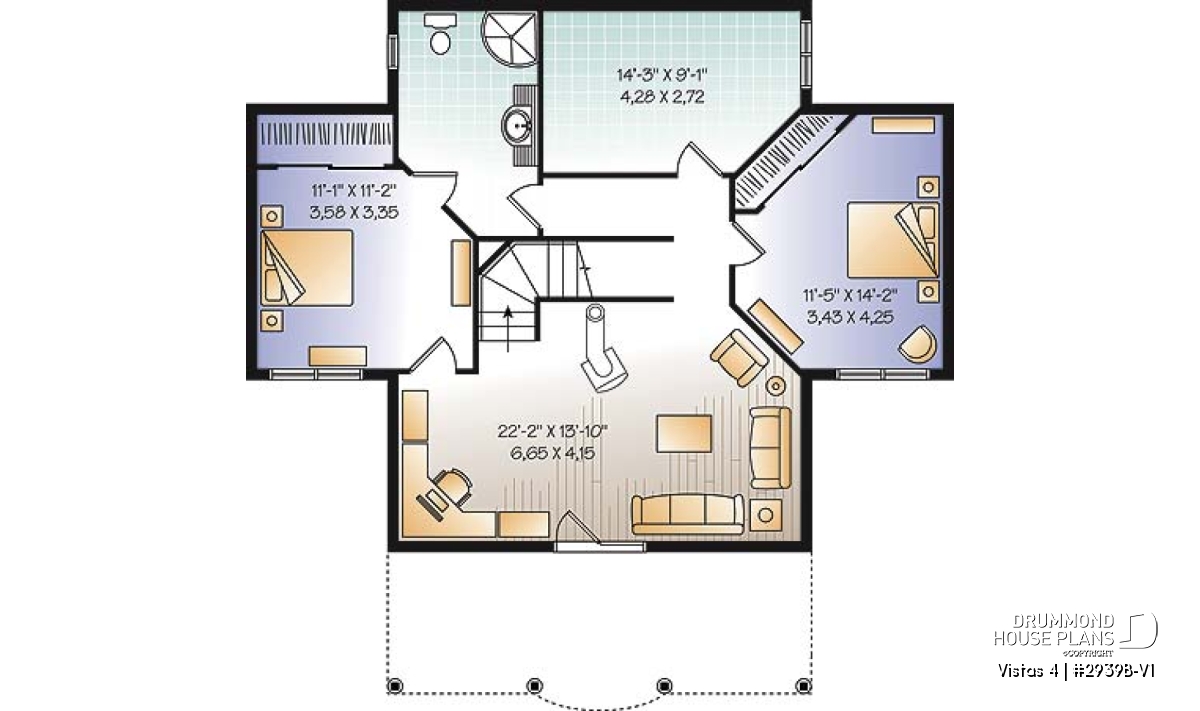

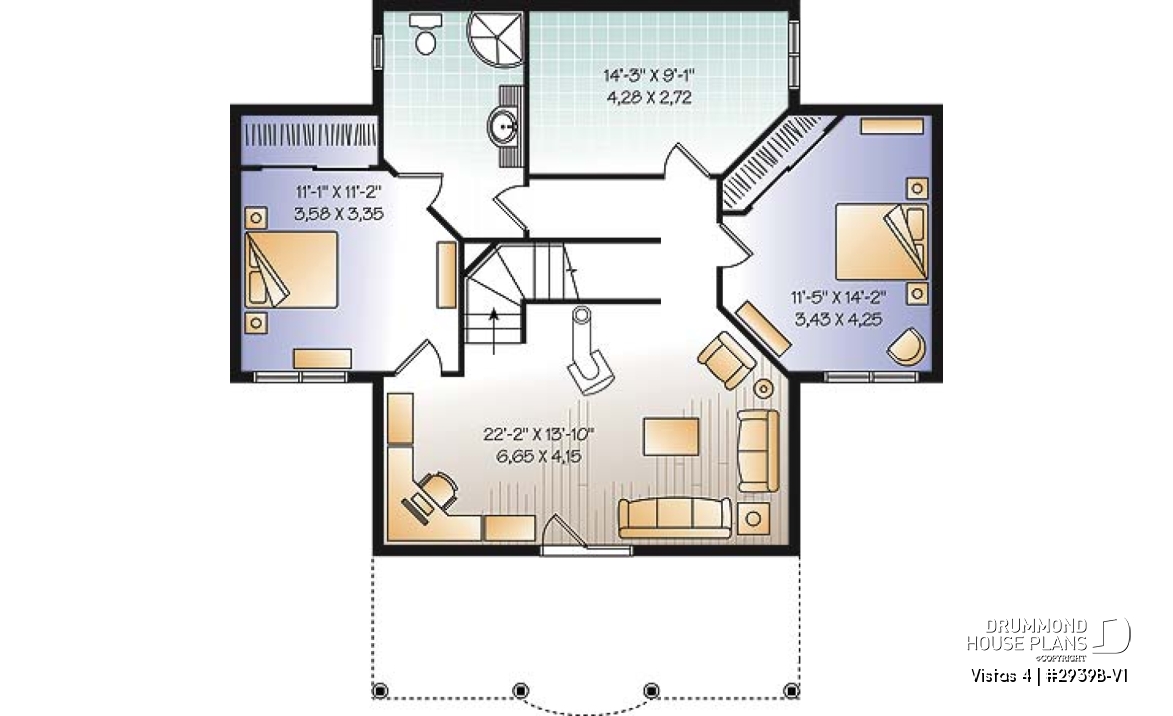

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Great room or Family room | 13'0" x 22'2" | ~ 8'0" |
| Full bathroom | 12'9" x 7'7" | ~ 8'0" |
| Bedroom | 14'2" x 11'5" | ~ 8'0" |
| Bedroom | 11'2" x 11'1" | ~ 8'0" |
| Workshop | 9'1" x 14'3" | ~ 8'0" |

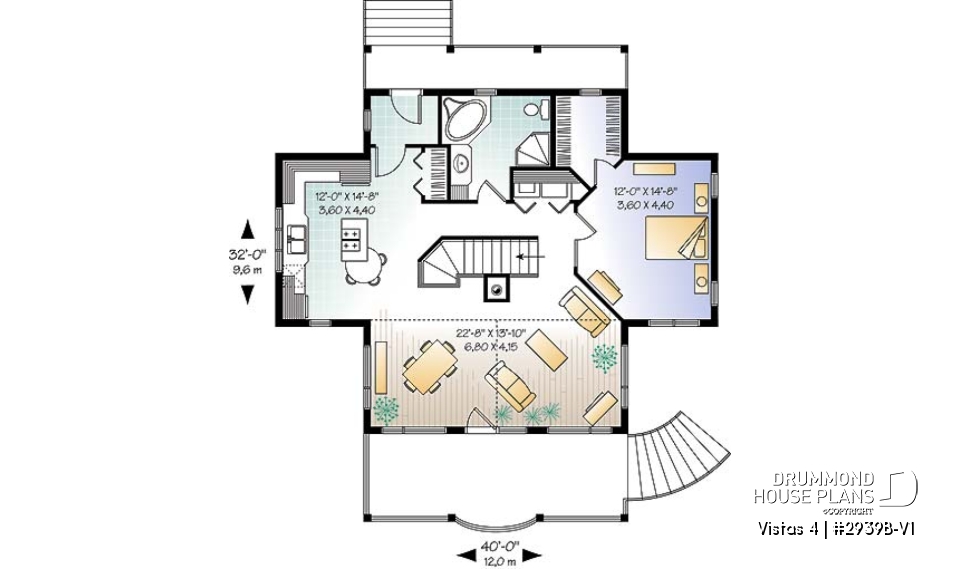

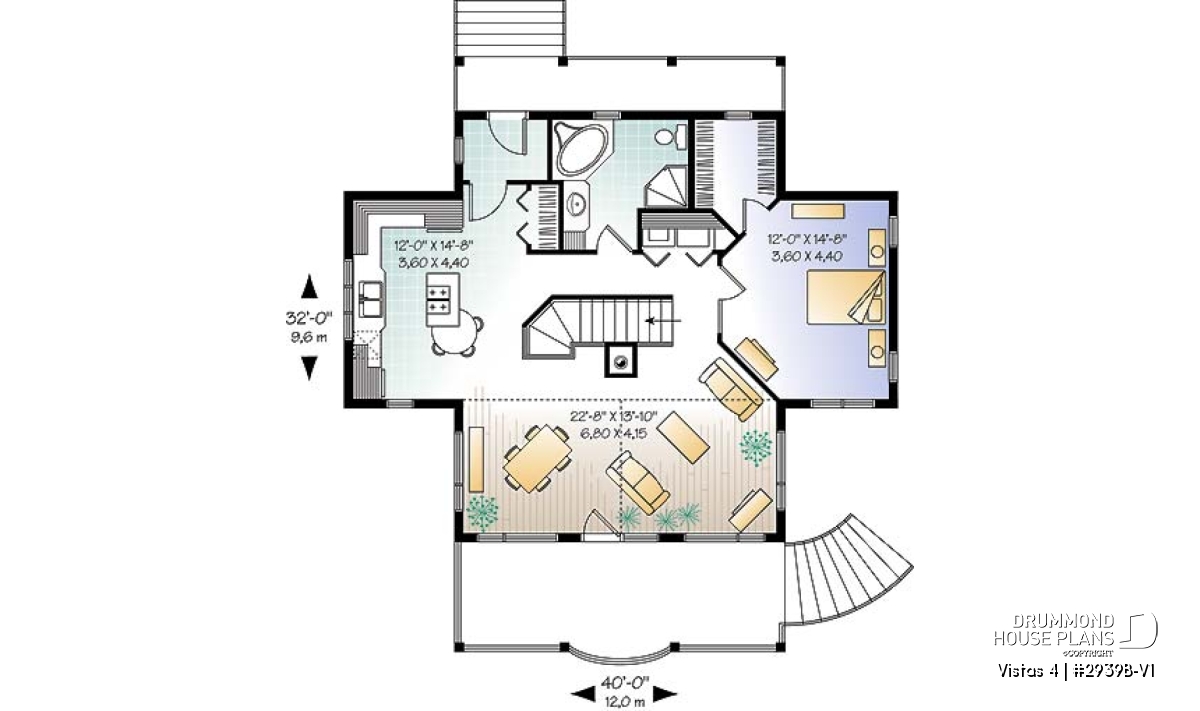

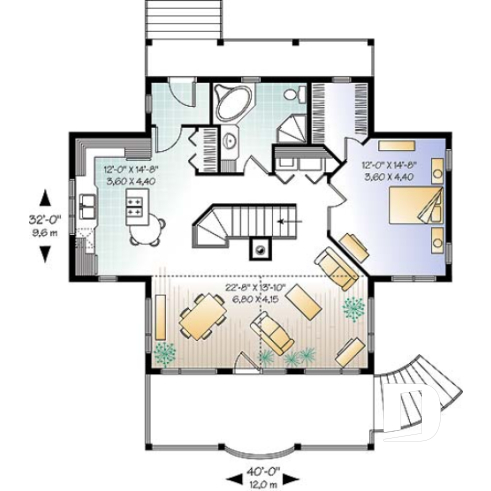

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'8" x 12'0" | ~ 8'0" |
| Porch | 4'0" x 24'0" | N/A |
| Porch | 8'0" x 24'0" | N/A |
| Dining room | 12'11" x 11'4" | ~ 17'0" |
| Living room | 11'6" x 11'4" | ~ 17'0" |
| Foyer | 4'6" x 6'0" | ~ 8'0" |
| Full bathroom | 9'8" x 9'0" | ~ 8'0" |
| Bedroom | 14'8" x 12'0" | ~ 8'0" |
| Laundry room | 2'9" x 6'0" | ~ 8'0" |
General specifications
| Total living area | 2048 sq.ft. |
| Basement | 1024 sq.ft. |
| 1st level | 1024 sq.ft. |
| Width | 40'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 24'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
3-4 bedroom Traditional Chalet - very popular!
Inspired from our plan 2939B, this version eliminates the second floor from the original plan and includes a basement layout for a three-bedroom home.
Distinctive elements
Nice mountain style cottage plan.
Master bedroom on 1st floor.

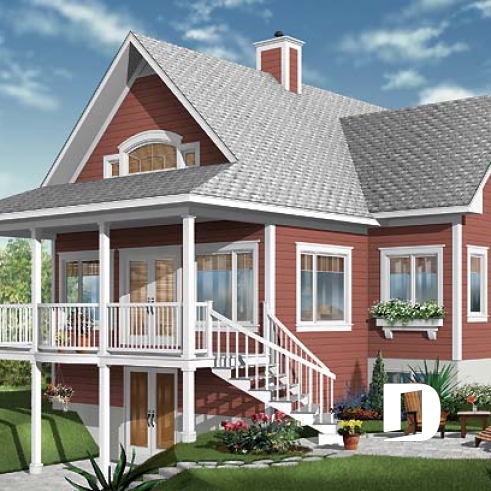

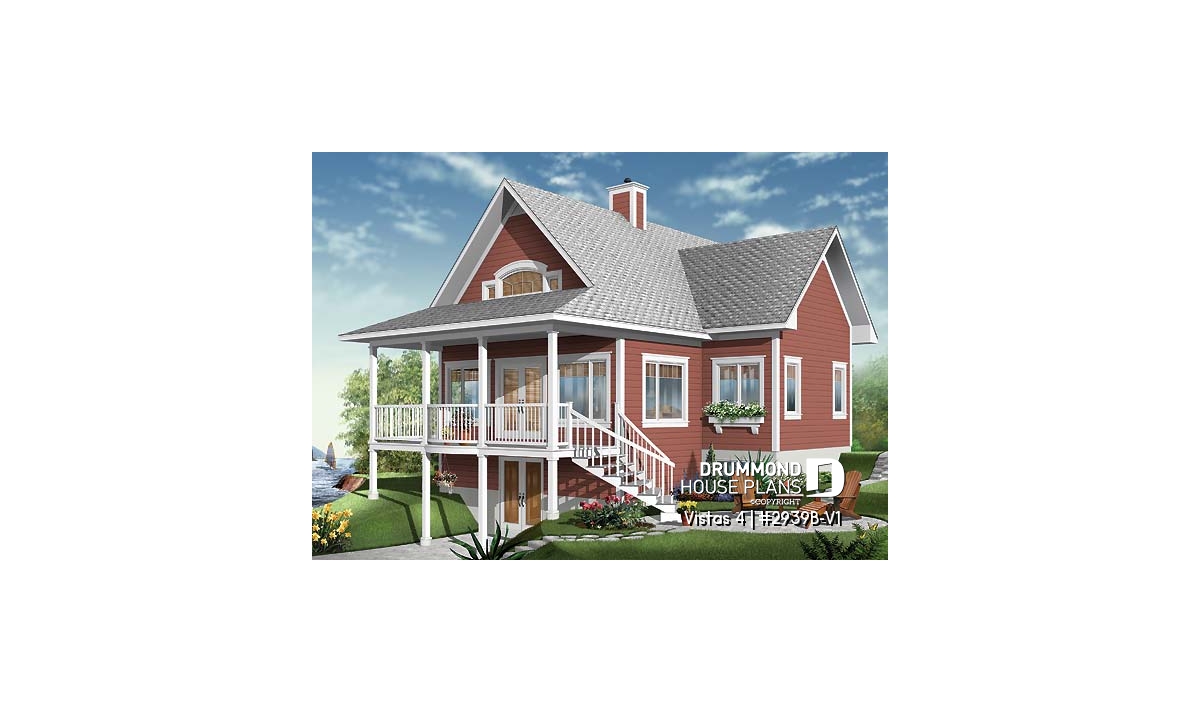

Abundant windows on the rear.
Fireplace and cathedral ceiling in living/dining room.
Large covered rear porch.
Laundry area onmain floor.
Two bedrooms, family room, workshop and shower room on lower level.
Plan feature(s)
Access to basement from exterior, Open floor layout, Gound floor laundry room, Wood stove, Breakfast nook, Panoramic view, Cathedral ceiling, Office / Study / Den, Walk-in master bed., Deck, Separate bath and shower
Plan architectural style(s)
. Country, . Vacation and waterfront, . American, . Traditional, . Ski chalets, . A-Frame, . Colonial, . Mountain, . Cottage, chalet, cabin
Previously Viewed Plans
Questions and comments
April 14 2014
Maura Carroll
Hi !
I have plan 2939B and I really like it. How much would it cost to buy the basement plan of 2939B-V1 ?
Thank You, Maura
April 14 2014
Customer service
please see previous response
April 14 2014
Maura Carroll
Hi !
I have plan 2939B and I really like it. How much would it cost to buy the basement plan of 2939B-V1 ?
Thank You, Maura
April 14 2014
Customer service
Good day Ms. Carroll and thank you for taking the time to write.
Although we do not sell parts of plans, our modification services would be happy to send you a free estimate within two business days after receipt of this on line form for the addition of this basement layout to plan 2939B.
Please let me know if I can further assist you
Regards
Deb
January 11 2011
Harry Valdes
I'm interesed in Plan: W2939B-V1 (reverse reading) one story plus finished basement but I'm having a hard time justifying the $150 charge for reverse reading... Is there anything cost wise that you can suggest//help me with
Regards,
Harry (Brighton MI)
January 12 2011
Customer service
Dear Mr Valdes,
Thank you for your interest in Drummond House Plans.
The $150 fee is a standard fee to reverse the plan. Our techinical department has to do some work on the plan to reverse all the technical details and re-write the information. Ordering the plan reverse can save you time and money since your builder will not have to reverse it on-site, which can avoid some mistakes and confusion.
Please contact me again if you need further information on this plan or any of our plans. I will gladly answer any question you may have.
Regards,
Doreen, Customer Service Department
