House plan Vistas 6 (2939-V1)
4 bedrooms lakefront cottage, walkout basement, master suite on first floor, panoramic views
View the size of the rooms and height of the ceilings

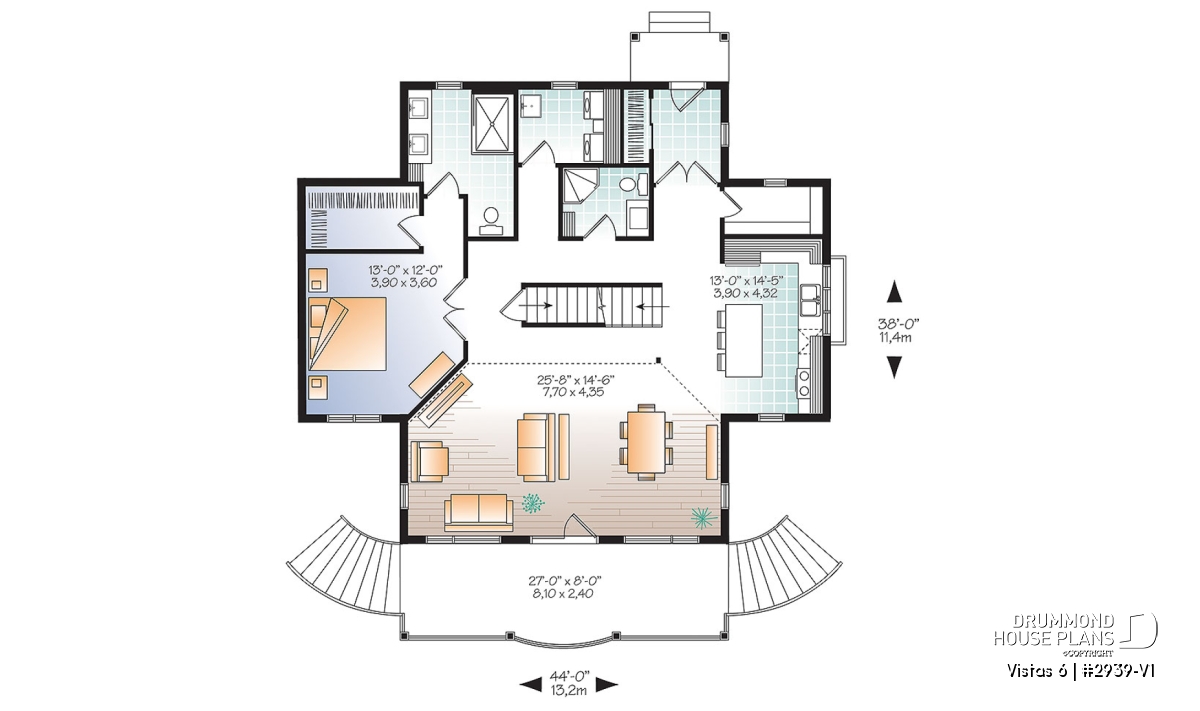

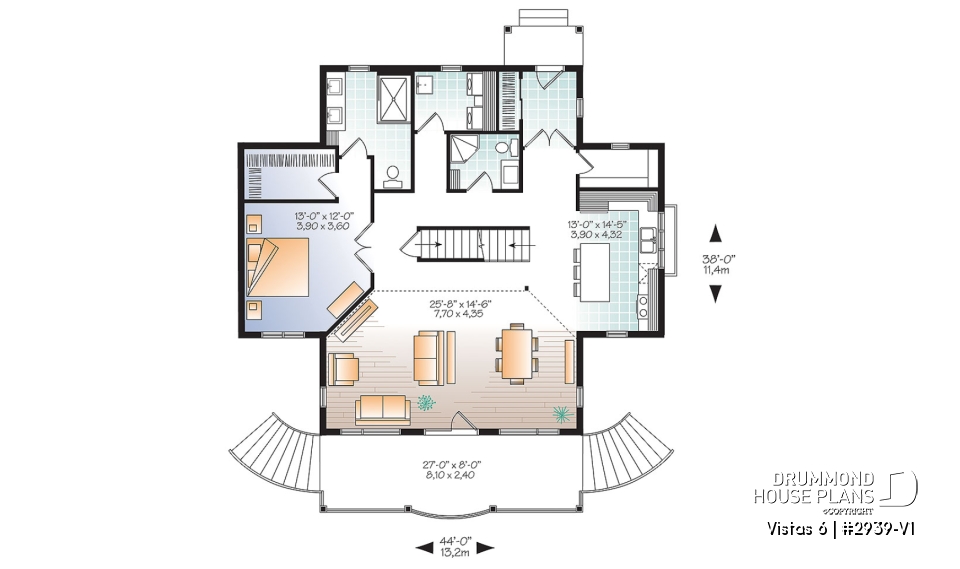

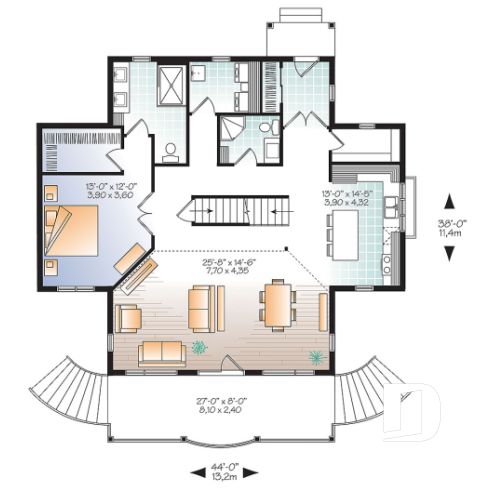

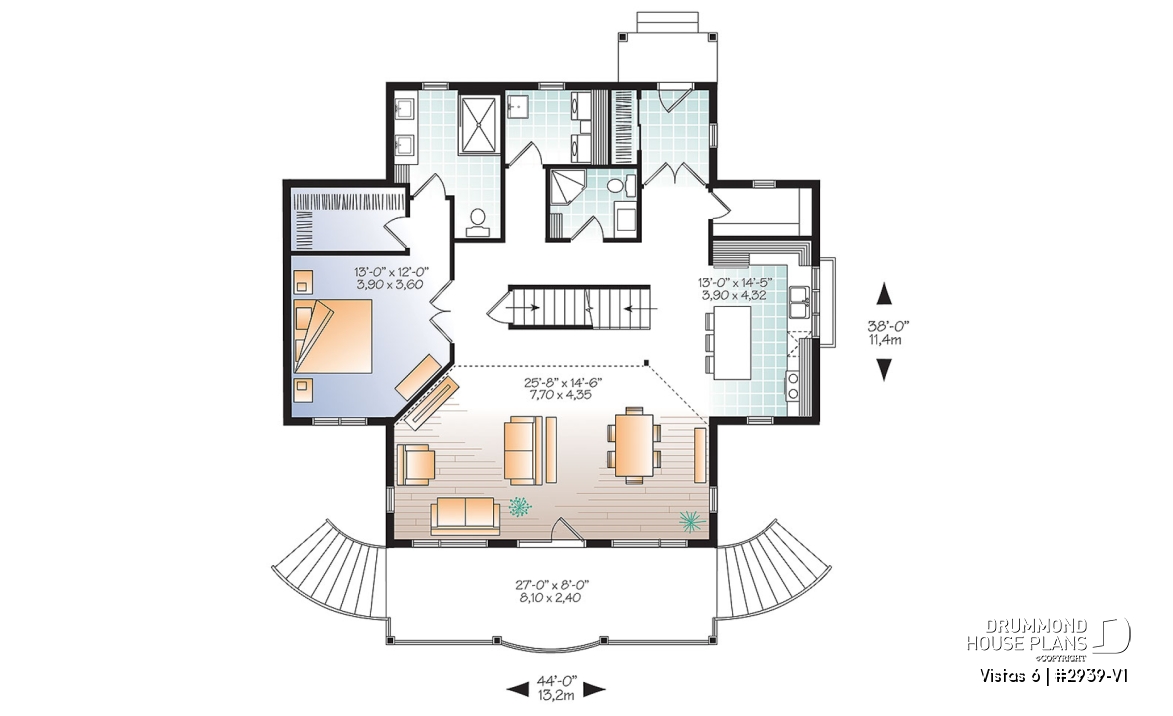

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 13'0" x 12'0" | ~ 9'0" |
| Walk-in closet | 9'4" x 5'2" | ~ 9'0" |
| Full bathroom | 8'8" x 12'0" | ~ 9'0" |
| Kitchen | 13'0" x 14'5" | ~ 9'0" |
| Pantry | 8'2" x 4'0" | ~ 9'0" |
| Foyer | 5'6" x 7'8" | ~ 9'0" |
| Shower room or three quarter bath | 7'2" x 5'9" | ~ 9'0" |
| Laundry room | 8'3" x 6'0" | ~ 9'0" |
| Living room/dining room | 25'8" x 14'8" | ~ 18'6" |
| Covered porch | 8'0" x 4'0" | N/A |
| Covered deck | 27'0" x 8'0" | N/A |

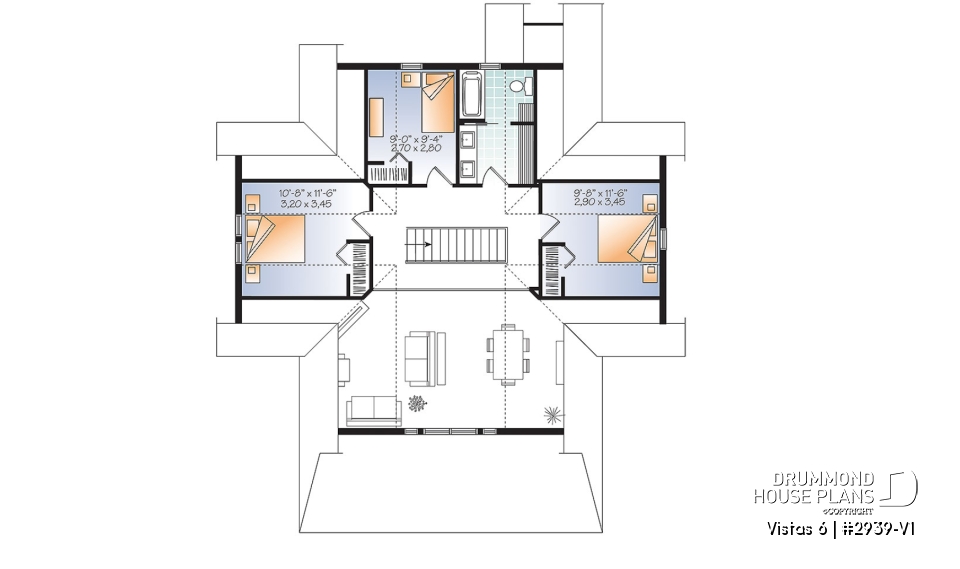

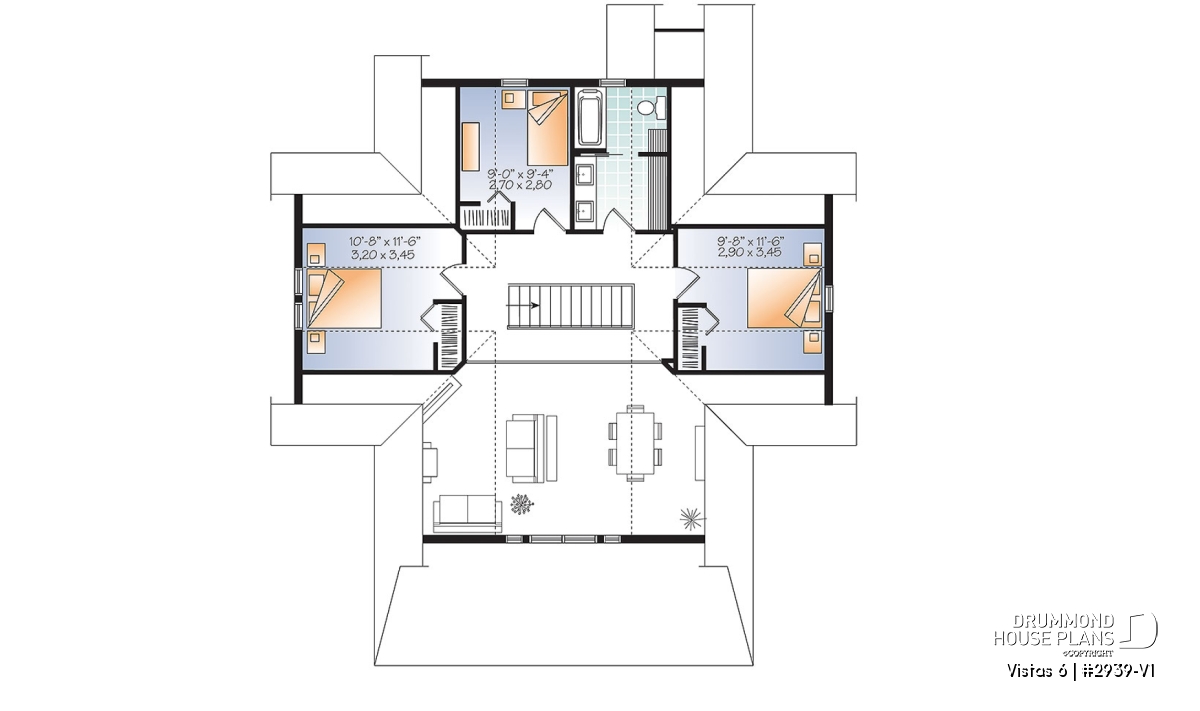

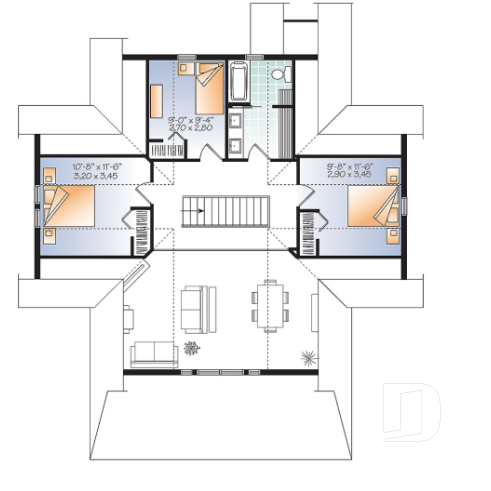

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'8" x 11'6" | ~ 8'0" |
| Closet | 2'0" x 5'6" | N/A |
| Bedroom | 9'8" x 11'6" | ~ 8'0" |
| Closet | 2'0" x 5'2" | ~ 8'0" |
| Bedroom | 9'0" x 9'4" | ~ 8'0" |
| Closet | 4'0" x 2'0" | ~ 8'0" |
| Full bathroom | 7'8" x 11'9" | ~ 8'0" |
General specifications
| Total living area | 2105 sq.ft. |
| 1st level | 1366 sq.ft. |
| 2nd level | 739 sq.ft. |
| Width | 44'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 24'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan

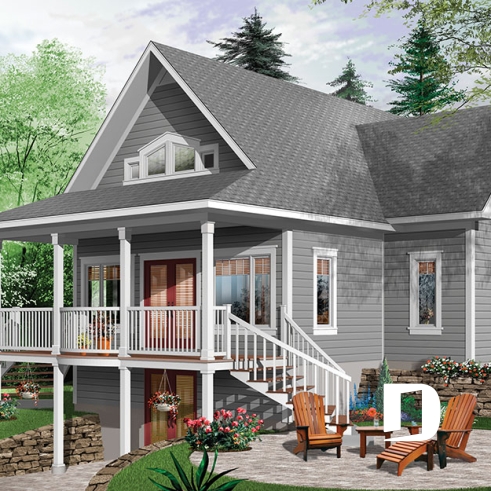

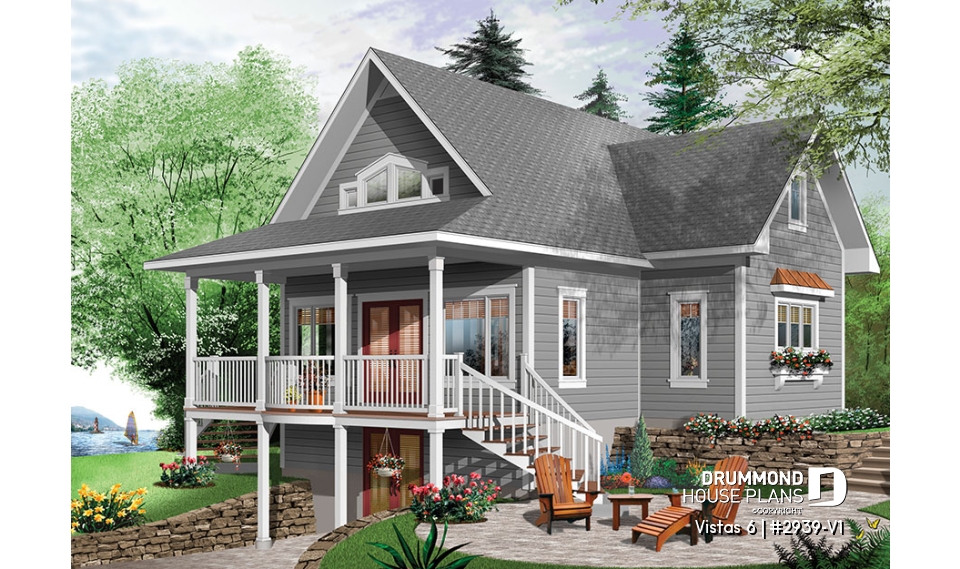

Beautiful 4 bedroom cottage with walkout basement!
Four bedrooms and 3.5 baths creatively occupy an average size chalet. Living, dining rooms open to each other, sharing a cathedral ceilings, and entry to a nature-loving, covered balcony. Adults enjoy a main-floor master suite with deep walk-in closet and unique master bath. Second level offers 3 bedrooms and mezzanine overlook. Walk-out basement, included!
Distinctive elements
Country cottage chalet style house plan.
Main-floor master suite with private bathroom and walk-in.
Kitchen with kitchen island and pantry.
Abundant windows in the rear of the house. Cathedral ceiling in the dining / living rooms. Large covered rear porch.
Large unfinished walkout basement for extra square footage.
Plan feature(s)
Mezzanine, Deck, Cathedral ceiling, Pantry, Master suite upstairs, Access to basement from exterior, Open floor layout, Gound floor laundry room, Panoramic view, Island, Walk-in master bed.
Plan architectural style(s)
. Cottage, chalet, cabin, . A-Frame, . Country, . Traditional, . Vacation and waterfront, . American, . Ski chalets
Similar plans
Previously Viewed Plans
Questions and comments
July 16
Ken
Does the plan W2939 have a laundry room? V-1 shows one. Can you get V1 plan with 2 bedrooms and a loft instead of 3 bedrooms?
July 16
Customer service
Hello Ken,
I checked and plan 2939 does have a laundry room but it is in the basement. And yes, you could have plan 2939-V1 modified to suit your needs. Actually, we presently have a 30% discount on the base price of our plans for modifications. You can write to us at any time at: [email protected] for an estimate on changes.
September 29
Jim Hackbarth
Hello, you have a couple plans I am considering building my vacation home with. Is it possible to get an estimated materials cost prior to ordering the plans? I am the builder so a total cost to build won't help me. One of them is: W2939B-V1. Thanks!
September 29
Customer service
Good day Mr. Hackbarth and thank you for your interest in our plans.
The materials list can be purchased prior to buying the plan but the order must be placed by telephone during regular business hours (Eastern time)
If you are a registered builder we have a program with some interesting options that may also prove helpful so please feel free to call me for the details at 1-800-567-5267 ext. 115
Have a great day
Deb
