Vistas 5 (2939B-V2)

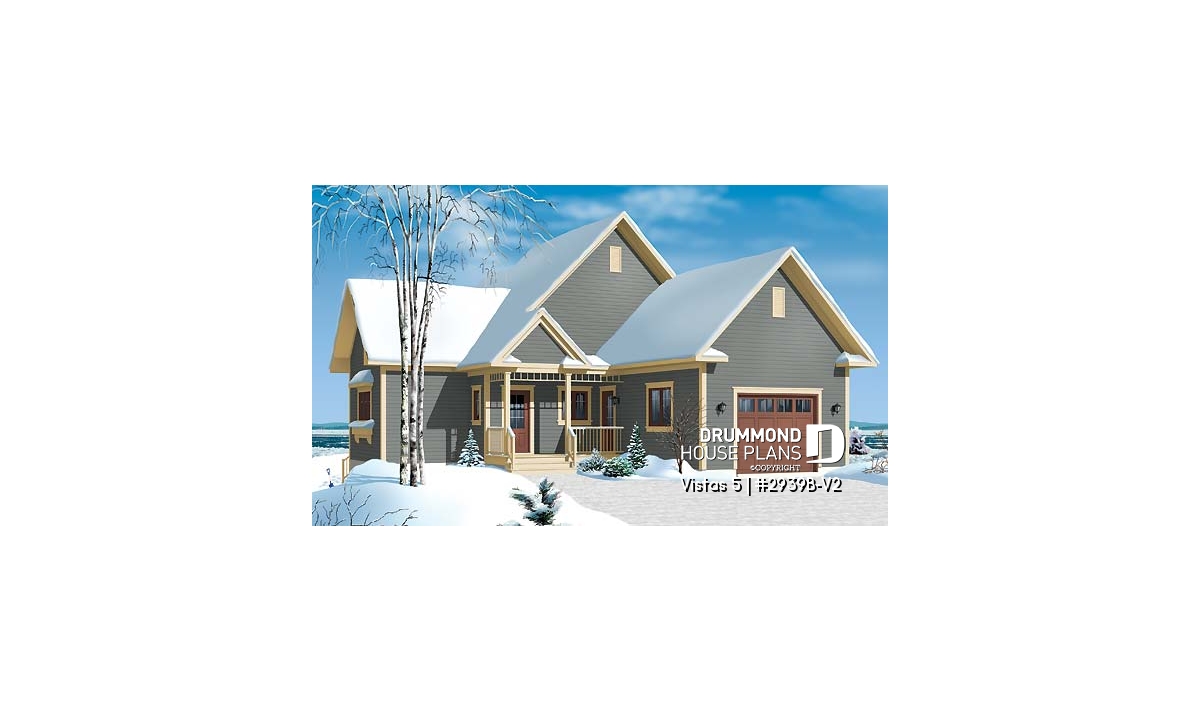

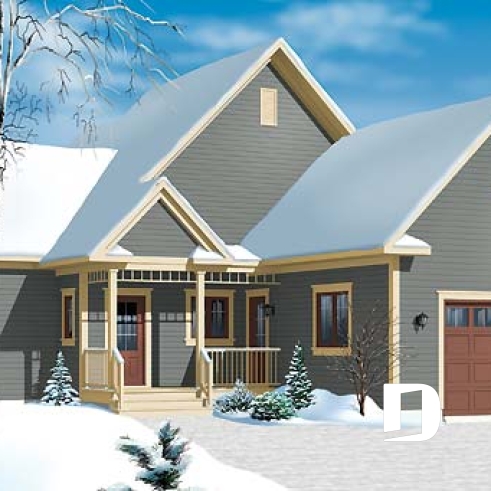

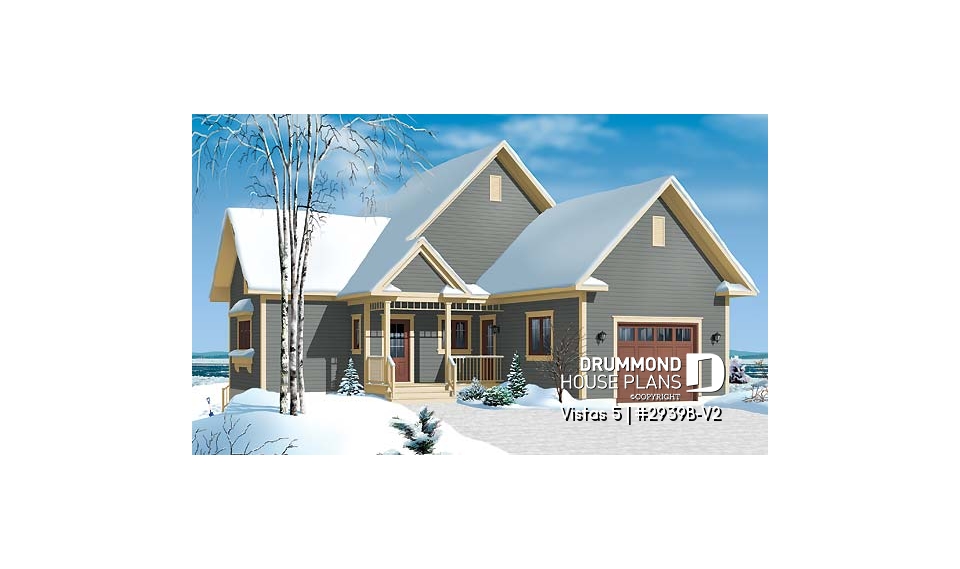

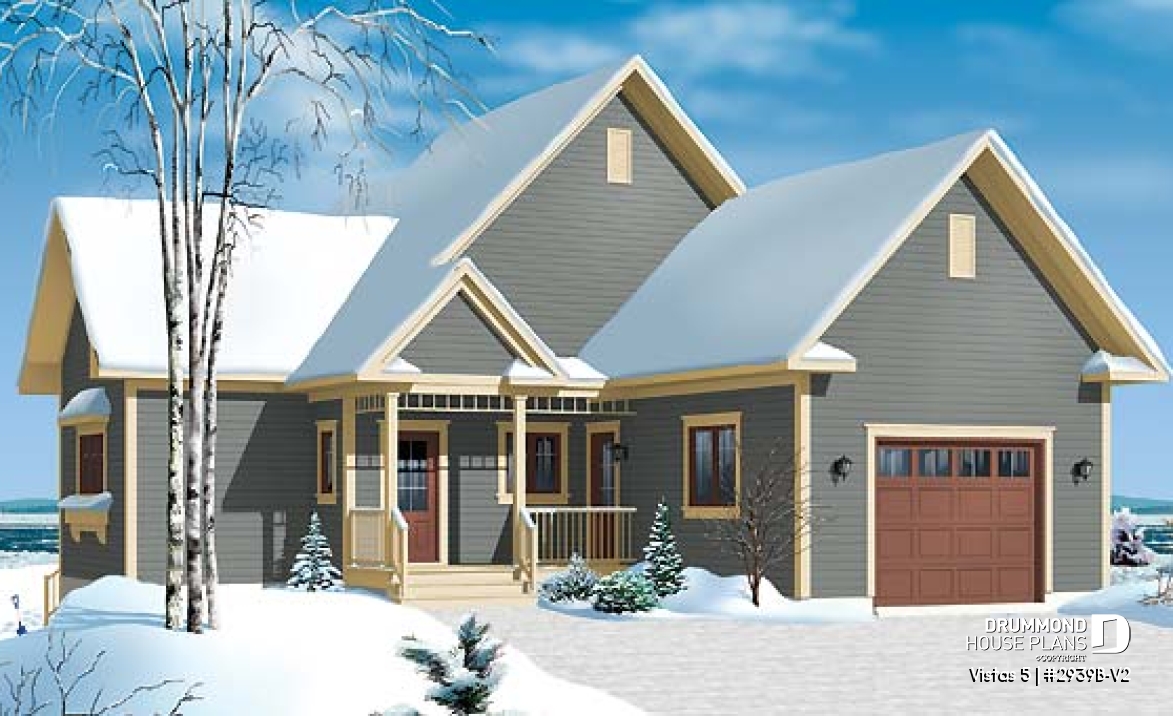

Charming chalet cottage house plan, 3 bedroos, garage, game room, 2 family rooms & ample storage
View the size of the rooms and height of the ceilings

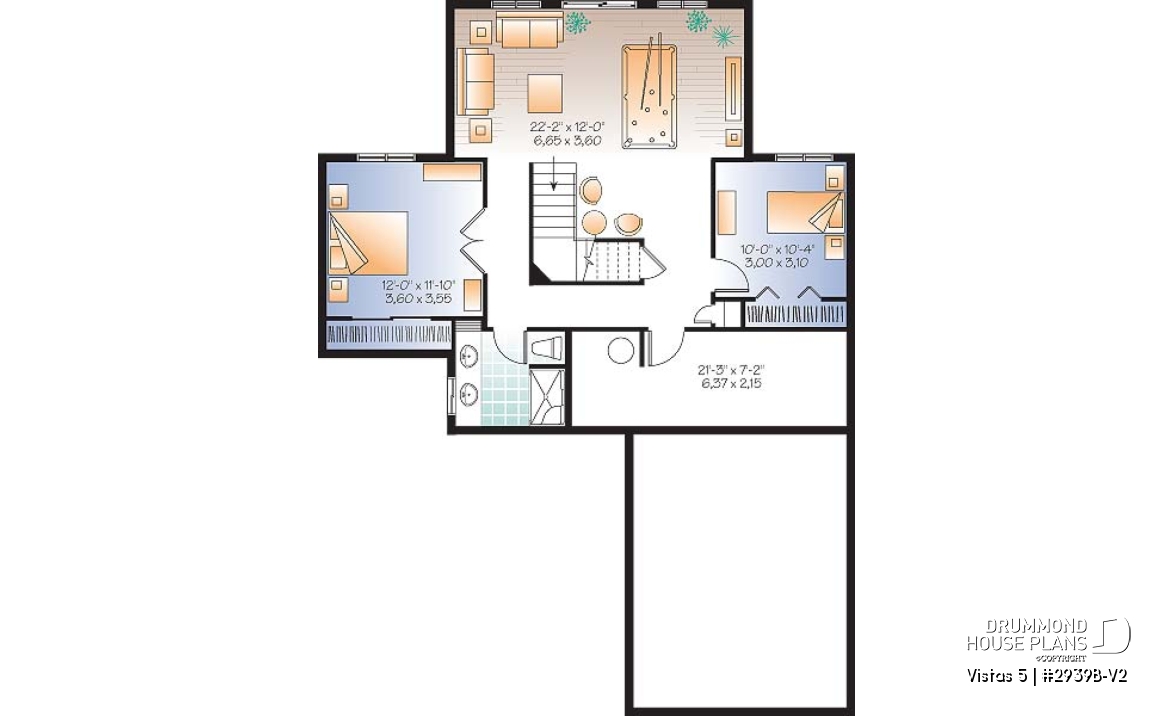

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'4" x 10'0" | ~ 7'10" |
| Bedroom | 11'10" x 12'0" | ~ 7'10" |
| Storage | 7'2" x 21'3" | ~ 7'10" |
| Great room or Family room | 12'0" x 22'2" | ~ 7'10" |
| Full bathroom | 7'2" x 8'5" | ~ 7'10" |

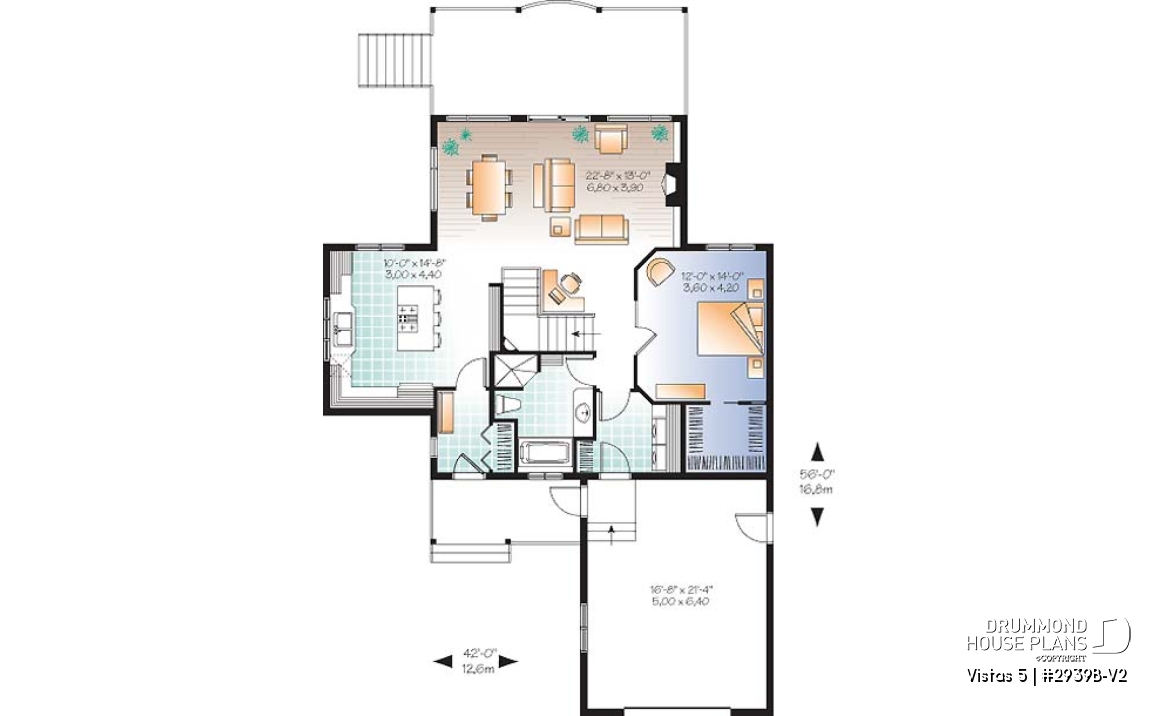

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Porch | 10'0" x 24'0" | N/A |
| Porch | 6'0" x 14'0" | N/A |
| Kitchen/dinette | 14'8" x 10'0" | ~ 8'0" |
| Bedroom | 14'0" x 12'0" | ~ 8'0" |
| Garage | 21'4" x 16'8" | ~ 10'4" |
| Living room/dining room | 13'0" x 22'8" | ~ 8'0" |
| Laundry room | 6'4" x 7'10" | ~ 8'0" |
| Full bathroom | 11'0" x 9'2" | ~ 8'0" |
General specifications
| Total living area | 2304 sq.ft. |
| Basement | 1152 sq.ft. |
| 1st level | 1152 sq.ft. |
| Width | 42'0" |
| Depth | 56'0" |
| Ridge height from top of foundation | 28'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
3 bedroom cottage house plan with garage
Our popular panoramic view chalet plan 2939, whose model styles include the reversed version with plan 2939A, 2939B, that has a laundry area on the main floor, and 2939B-V1 which offers a finished basement instead of the second floor. The Vistas collection has just gotten better with an attached garage on plan 2939B-V2 to complete the available variations of this style. Whether you need a vacation getaway or fabulous design for full-time living on a sloping view lot, this one is full of desirable features.
The central theme of all of the members of the Vistas collection is a comfortable entrance foyer, a central island in the kitchen, an open floor plan family area with abundant fenestration and fireplace, the master bedroom and full bath on the main level and a covered porch in the back which would readily lend itself to being screened in for added comfort. The livability of this concept is enhanced because all amenities are within easy reach and positioned to take advantage of the sweeping views from within rooms that boast 9 ft ceilings.
The almost 400 sq.ft. garage of plan 2939B-V2 offers access to the home through an enlarged laundry area or from the walkout basement. The basement benefits from the addition of more than 125 sq.ft to accommodate a generous games room, two additional bedrooms, a bathroom with shower and a mechanical/storage room. With so many versions of this versatile design, one of them is sure to be tailored to meet your needs and lifestyle!
Distinctive elements
Beautiful cottage house plan with garage.
Simple single garage.
Master bedroom on main floor.
Open ctivities areas, complete with computer area enjoy abundant windows.
Kitchen with 6' island.
Fireplace in living room.

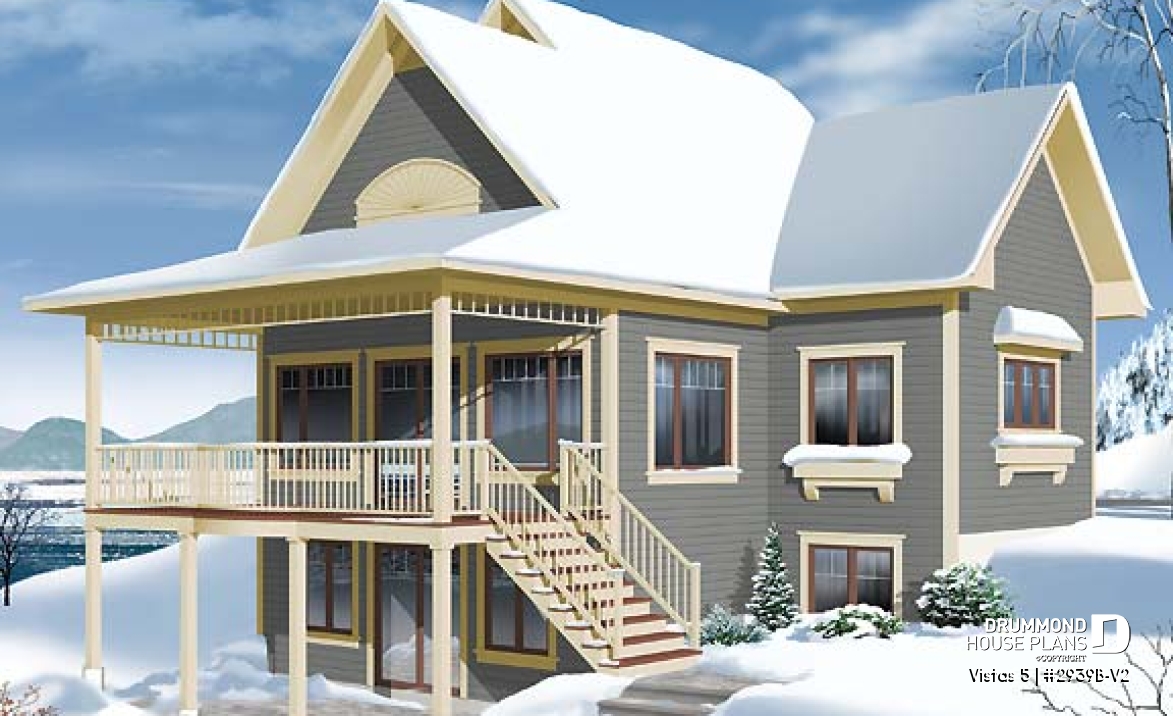

Large sheltered terrace.
Plan feature(s)
Open floor layout, Gound floor laundry room, Office / Study / Den, Panoramic view, Fireplace, Island, Game room, Walk-in master bed., Deck
Plan architectural style(s)
. Cottage, chalet, cabin, . Country, . Vacation and waterfront, . Ski chalets, . Traditional, . A-Frame, . American, . Mountain
Previously Viewed Plans
Questions and comments
October 14 2014
denise perkins
Is there another plan that doesnt break u the flow of master bedroom and bath,with an entrance from the garage
thanks denise:)
October 15 2014
Customer service
Good day and thank you for taking the time to write
The following are links to our site for plans that may meet your requirements. We would be happy to return a free estimate for the customization of any of our plans within two business days after receipt of this online form.
Plan 2957-V2 or plan 3945-V1 may be just what you are looking for
3507-V3 has a more "Craftsman" style that is also quite appealing
Although plans 2691 and 2687 do not have master suites and the three bedrooms are upstairs, they may be interesting choices
Please let me know if I can further assist you
Regards
Deb
February 17 2014
Olivier van Lier
We really like this plan. Any idea of a ballpark figure on the cost to build this in Quebec (excluding land, taxes, services etc.).
Thanks
February 17 2014
Customer service
Good day Mr. Van Lier and thank you for taking the time to write.
A ballpark figure to build this home in Quebec with the exclusions stated is approximately $300,000. but can vary from 10% to 30% depending on the area, the season in which you choose to build and the materials chosen.
Please let me know if you have any other questions or comments
Regards
Deb
