House plan The Gallagher 3 (3949-V2)
One-storey cottage home plan, finished walkout basement, master suite on main, screened-in porch + terrace
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 15'0" x 10'0" | ~ 9'0" |
| Pantry | 2'0" x 1'8" | N/A |
| Covered deck | 12'3" x 12'0" | N/A |
| Deck | 26'3" x 12'0" | N/A |
| Sunroom | 11'6" x 13'0" | N/A |
| Bedroom | 12'4" x 10'0" | ~ 9'0" |
| Closet | 7'2" x 2'0" | ~ 9'0" |
| Master suite | 17'6" x 11'6" | ~ 9'0" |
| Shower room or three quarter bath | 10'0" x 12'2" | ~ 9'0" |
| Walk-in closet | 8'2" x 5'0" | ~ 9'0" |
| Shower room or three quarter bath | 8'4" x 10'8" | ~ 9'0" |
| Foyer | 5'6" x 6'6" | ~ 9'0" |
| Closet | 2'2" x 6'2" | ~ 9'0" |
| Living room | 15'0" x 12'0" | ~ 9'0" |
| Dining room | 15'0" x 9'8" | ~ 9'0" |
| Garage | 22'8" x 23'4" | ~ 10'4" |
| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 11'9" x 6'4" | ~ 8'8" |
| Bedroom | 11'9" x 11'2" | ~ 8'8" |
| Closet | 7'8" x 2'0" | ~ 8'8" |
| Bedroom | 12'11" x 10'4" | ~ 8'8" |
| Closet | 2'0" x 6'0" | ~ 8'8" |
| Great room or Family room | 14'5" x 31'4" | ~ 8'8" |
| Bathroom | 11'9" x 5'0" | ~ 8'8" |
| Mechanical room | 4'2" x 9'8" | ~ 8'8" |
General specifications
| Total living area | 2596 sq.ft. |
| 1st level | 1298 sq.ft. |
| Basement | 1298 sq.ft. |
| Width | 38'0" |
| Depth | 62'0" |
| Ridge height from top of foundation | 27'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
2 additional bedrooms for this very popular ranch / cottage style bungalow with panoramic view!
You appreciate the Drummond House Plans’ cottage design The Gallagher (Plan # 3949 or # 3949-V1) for its beautiful interior spaces, panoramic view, large terraces and solarium well integrated near the dining room, but you are disappointed that it does not offer more bedrooms and family/play areas? Well, this new chalet style house Drummond House Plans # 3949-V2 (The Gallagher 3) offers you a completely finished walkout basement with 2 additional bedrooms, a shower room, a laundry room, a family room and a playroom! And as a bonus, a new layout of the living room and master bedroom on the main floor!

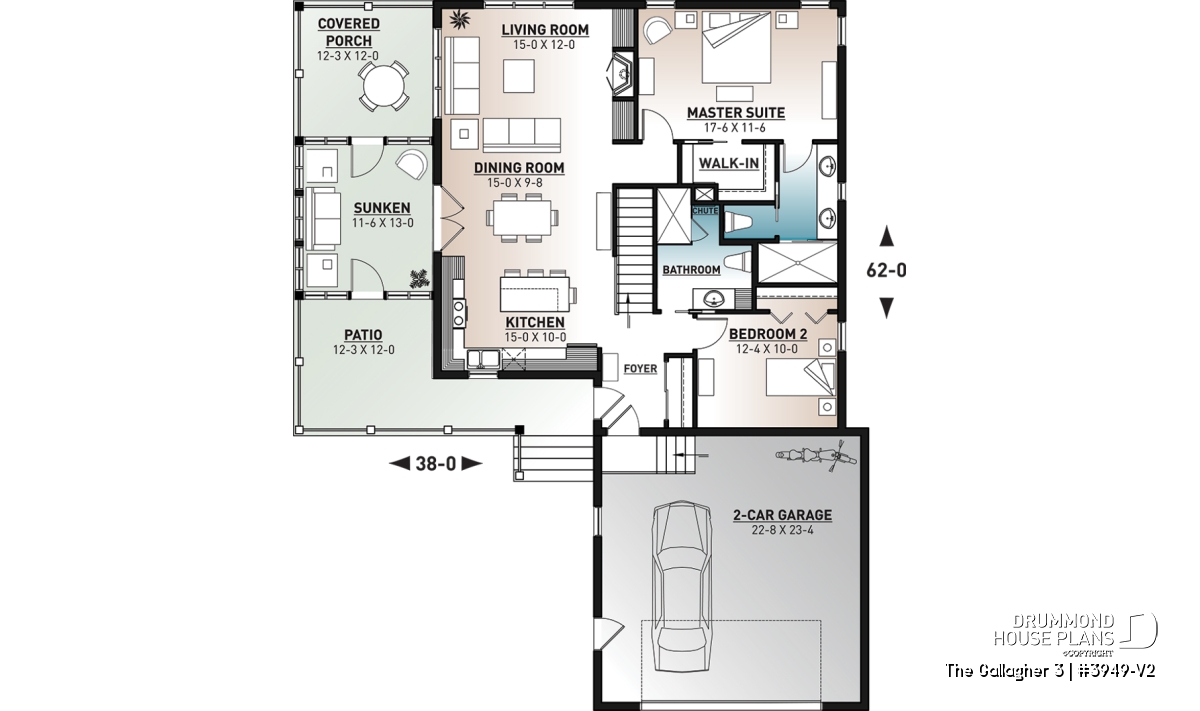

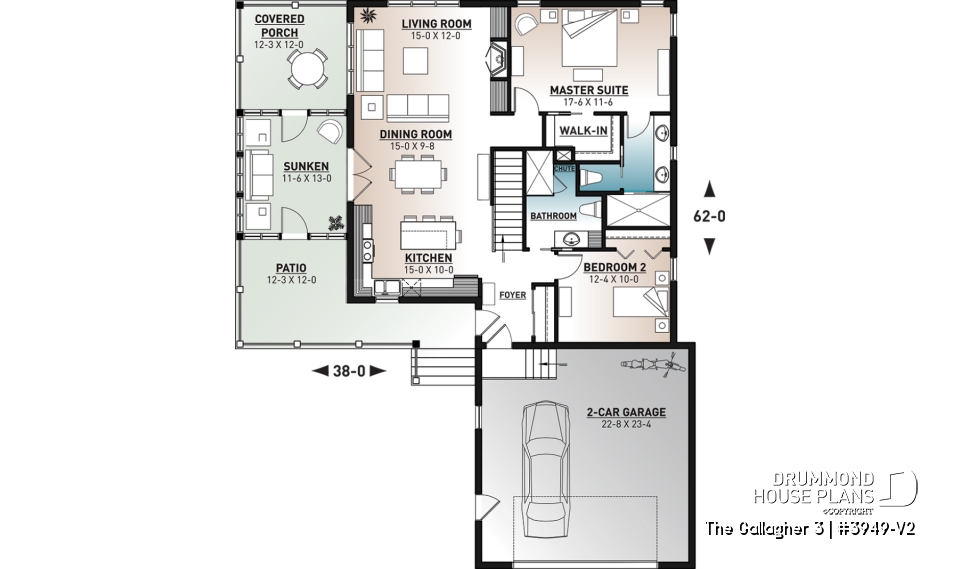

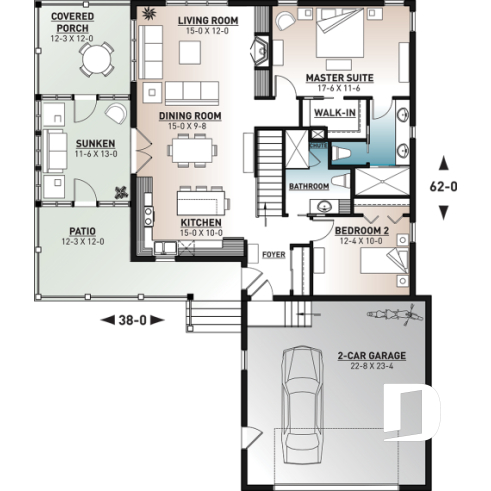

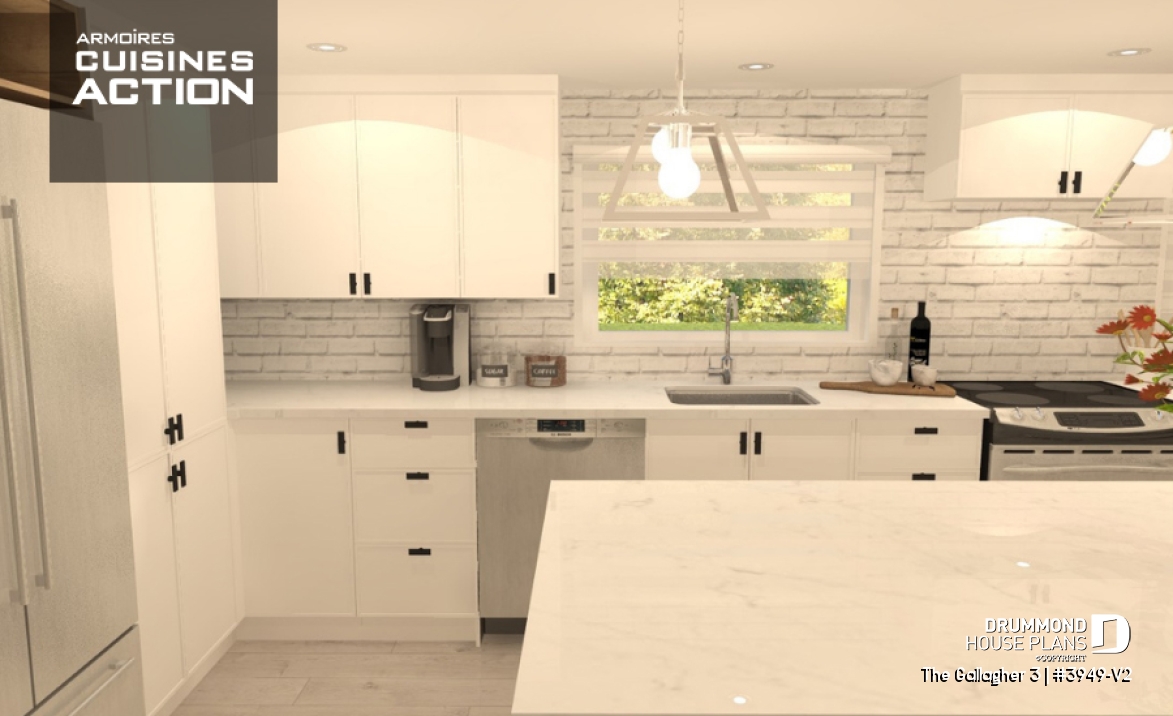

On the main floor, find the entry with coat closet located near the secondary bedroom, allowing easy conversion to a home office. The "U" shaped kitchen with central island opens to the dining room that can easily accommodate 6 guests. A solarium (Florida room) with plenty of natural light is accessible from the dining room as well as two beautiful large covered balconies (rear and front). The living room offers a central fireplace with built-in shelves on each side. The master suite has a large walk in closet, and a private shower room with double vanity. Note, a laundry drop is located between the walk-in closet of the master suite and the guest shower room. A nice convenience that is sure to please!

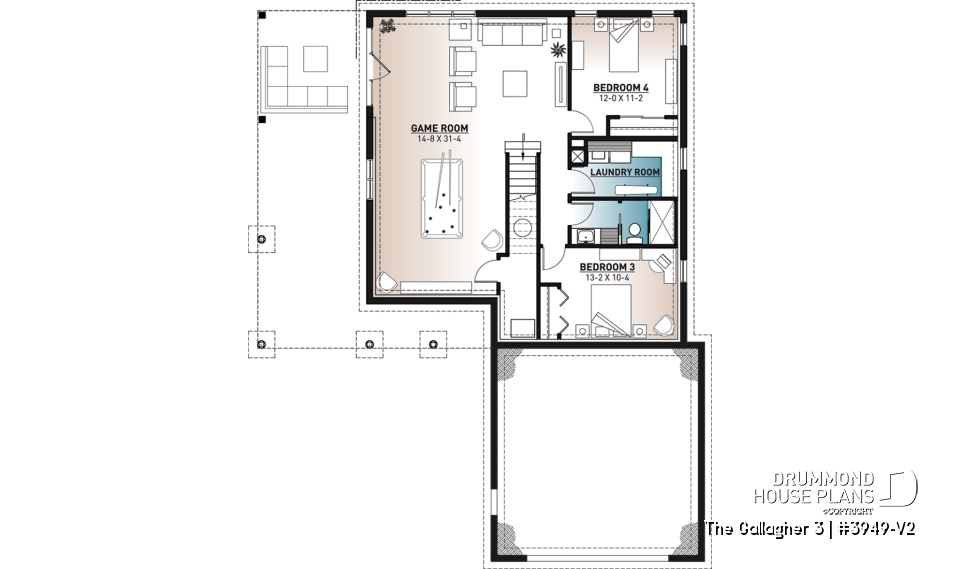

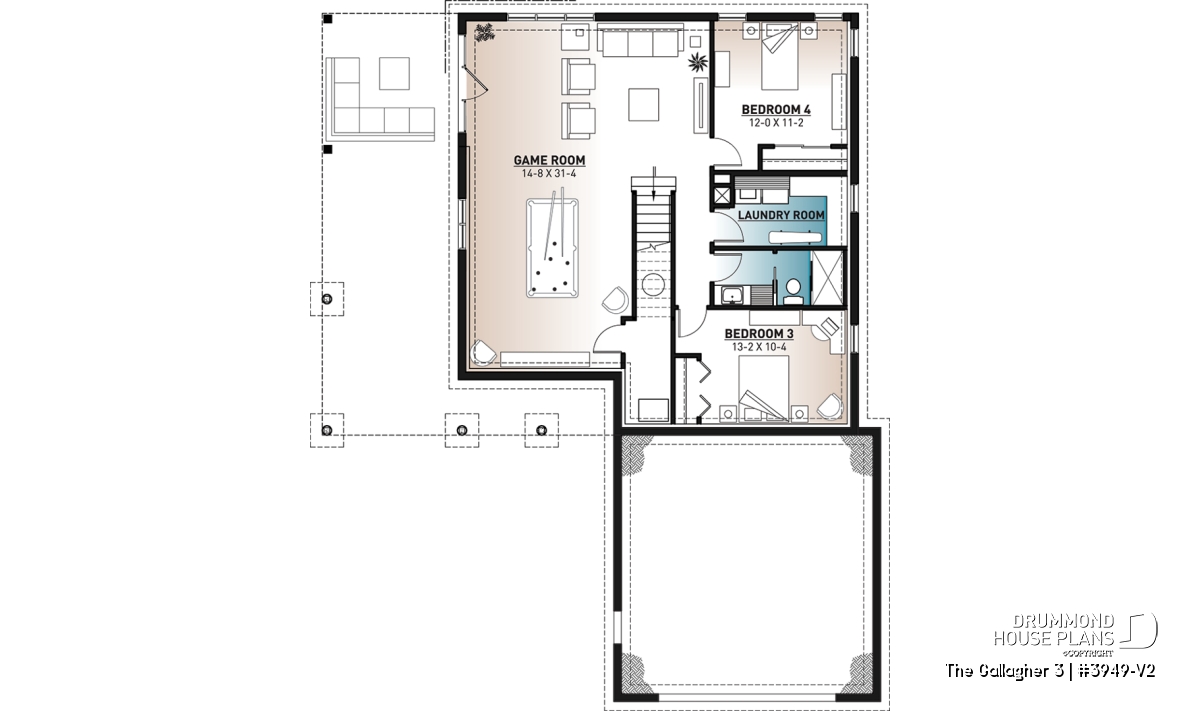

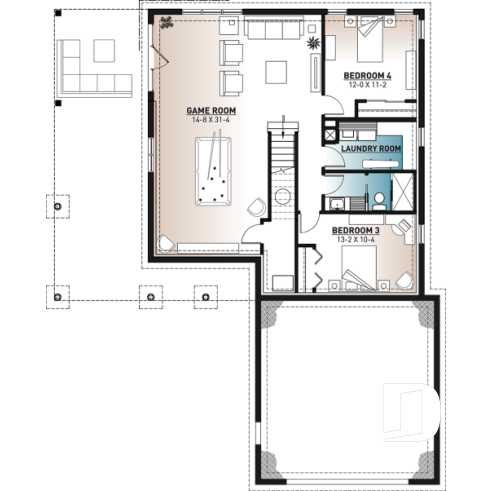

The walkout basement offers 2 secondary rooms with each a large closet. A shower room with toilet and shower separated from the vanity, and a laundry room with large counter space are located between the 2 secondary bedrooms. A family room (TV room) and a game room are also offered in the finished walkout basement of this new Drummond House Plans chalet / ranch style house plan # 3949-V2 or The Gallagher 3 house plan.
This new style chalet or 4-season chalet-style cottage offers a double garage with direct access to the house, near the kitchen. Very convenient when returning from grocery shopping!
Distinctive elements
One-storey 4-season chalet house plan.
9' ceiling throughout main floor.
Open floor plan concept.
Master suite with private bathroom including dual vanity, large shower stall and separate toilet area.
Sunroom access from dining room and also from 2 covered balconies (rear and front).
Walkout basement with 2 secondary bedrooms.
Laundry room, shower room, family room or TV room and playroom also located in fully finished walkout basement.
Plan feature(s)
Laundry chute, Fireplace, Built-ins, Master suite upstairs, Deck, Walk-in master bed., Island, Ceiling over 8', Game room, Double sinks, Sunroom
Plan architectural style(s)
. Country, . Ranch, . American, . Farmhouse, . Traditional, . Transitional, . Vacation and waterfront, . Mountain, . Cottage, chalet, cabin
