The Sunburst 2 (2945A)
Country style cottage plan with a screened in porch, 3 bedrooms, 2 baths, cathedral ceiling & mezzanine
View the size of the rooms and height of the ceilings

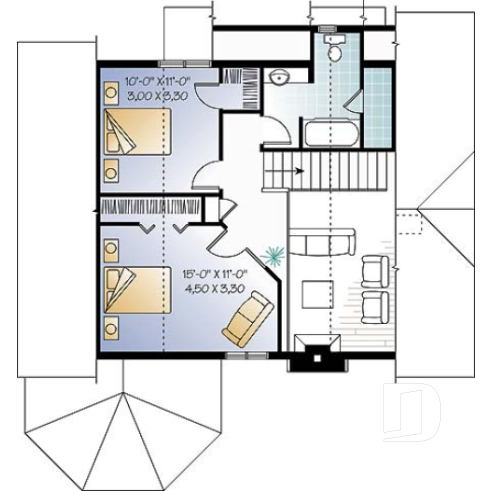

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'5" x 6'10" | ~ 8'0" |
| Bedroom | 15'0" x 11'0" | ~ 8'0" |
| Closet | 8'6" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 11'0" | ~ 8'0" |
| Closet | 3'0" x 3'8" | ~ 8'0" |
| Linen | 1'2" x 2'0" | ~ 8'0" |
| Storage | 2'1" x 7'0" | ~ 8'0" |

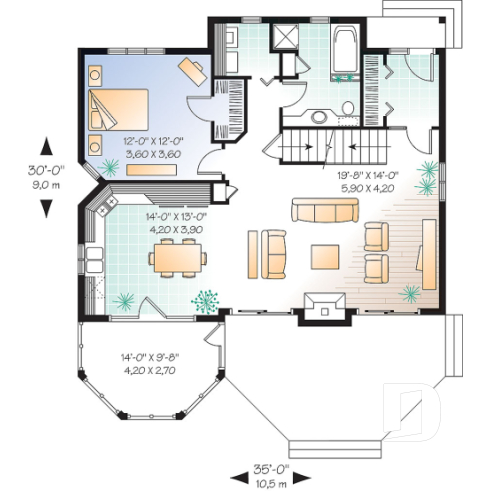

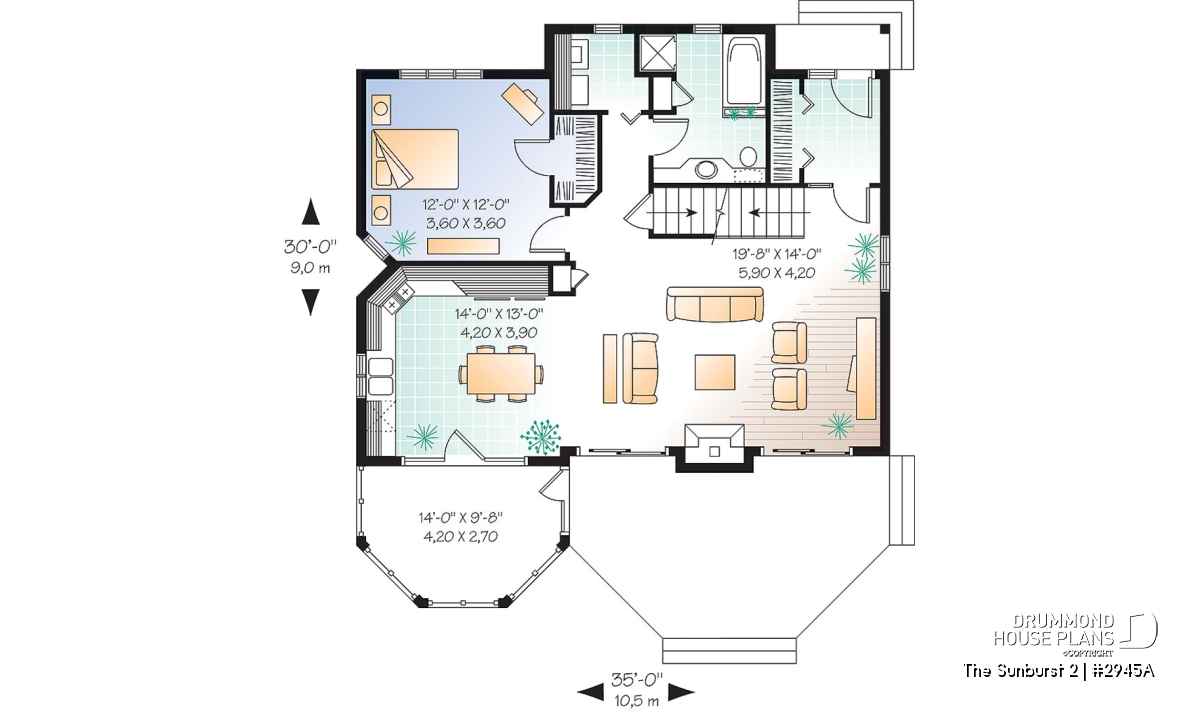

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'2" x 9'10" | ~ 7'6" |
| Linen | 1'6" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Closet | 2'10" x 6'0" | ~ 8'0" |
| Deck | 21'0" x 12'0" | N/A |
| Foyer | 4'10" x 7'0" | ~ 8'0" |
| Closet | 2'0" x 7'0" | ~ 8'0" |
| Kitchen/dining room | 14'0" x 13'0" | ~ 8'0" |
| Linen | 1'2" x 1'8" | ~ 8'0" |
| Mosquito Shelter | 13'0" x 9'0" | ~ 8'0" |
| Covered porch | 7'6" x 3'0" | N/A |
| Great room or Family room | 19'8" x 14'0" | ~ 17'2" |
| Laundry room | 6'4" x 5'0" | ~ 8'0" |
General specifications
| Total living area | 1494 sq.ft. |
| 2nd level | 534 sq.ft. |
| 1st level | 960 sq.ft. |
| Width | 35'0" |
| Depth | 29'8" |
| Ridge height from top of foundation | 26'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Charming & bright small country style house plan with mezzanine, 3 beds and 2 baths!
A fabulous family retreat with 1468 sq. ft., three bedrooms and two baths. Folks can gather in the family room, and flow into the dining/kitchen area, or spill onto the breezy outdoor gazebo. A main-floor bedroom rests prettily near a full bath. Upstairs two large secondary bedrooms (one with sitting area) share a creatively contoured full bath, and mezzanine.
If this cottage seems hauntingly familiar, it is because it is one of our most popular cottage models!
Distinctive elements
Cathedral ceiling in family room, screened gazebo, French doors in master bedroom, ample windows.
Plan feature(s)
Screened porch, Fireplace, Cathedral ceiling, Mezzanine, Open floor layout, Gound floor laundry room, Master suite on main, Walk-in master bed., Separate bath and shower, Sloped ceiling
Plan architectural style(s)
. Country, . Vacation and waterfront, . Ski chalets, . A-Frame, . American, . Cottage, chalet, cabin
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
You may also like
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
Conditions of use
Important copyright notice! Please take note of these copyright conditions before printing:
By printing this house plan, cottage or garage or the floorplan(s), you confirm being informed that every house plan on this website is the exclusive property of Drummond House
Plans and is protected by Canadian copyright law. You are aware that these prints cannot be used to build or even obtain a building permit. The graphic representations of these
models are offered by Drummond House Plans for the sole purpose of allowing you to notate modifications of a model and then take it to one of the Drummond House Plans Canadian dealers for
modification of the plan.
The purchase of a house plan, cottage or garage from Drummond House Plans is mandatory if you wish to build any of our models. The plan purchase allows you to build a single unit; you cannot resell or give your plan to anyone once the house, cottage or garage has been built. If you wish to build the same house, cottage or garage more than once, you need to obtain the licence to this effect. Please contact us for more details.
All plans from Drummond House Plans can only be modified by a licensed Drummond House Plan Canadian dealer. If any other business or individual with no affiliation to Drummond House Plans modifies a Drummond House Plan on your behalf, please ensure this business or individual has a licence to modify this specific plan or you will be subject to prosecution on the same level as the business or individual who modified or reproduced the plan.
For more details, do not hesitate to contact u by e-mail or by phone at 1-800-567-1413.
I agree to respect the conditions above to not reproduce, modify or build a model from Drummond House Plans without previously purchasing a complete house plan.
March 08 2016
janet kreek
could the plan be modified to make the gazebo two stories tall and have a walkout door from the master bedroom to the gazebo and also put the home on a slab foundation? also, does the first floor have 8 or 9 foot ceilings?
