House plan Sunburst 5 (2945-V1)
Charming 3 bedroom cottage house plan, 2 bathrooms, mezzanine, unfinished walkout basement
View the size of the rooms and height of the ceilings

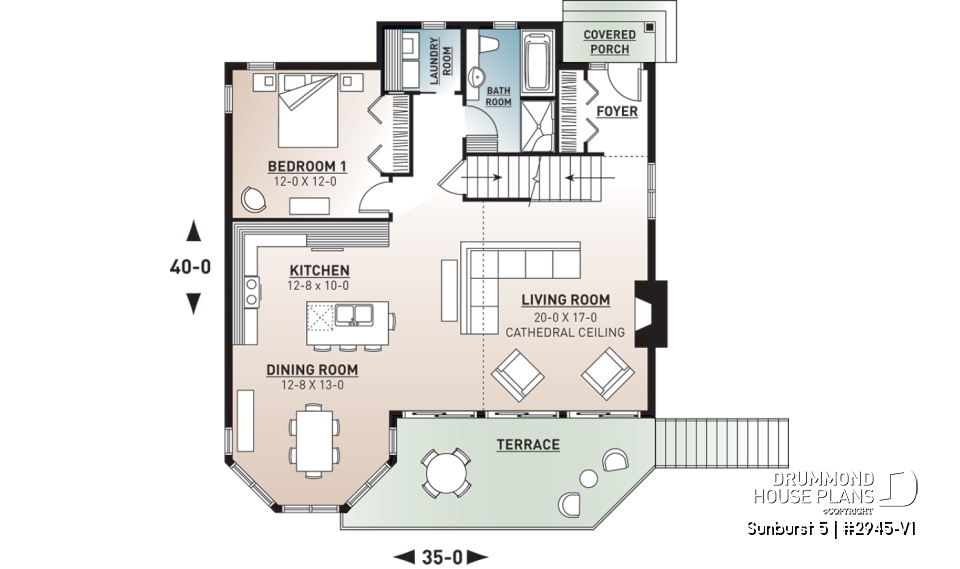

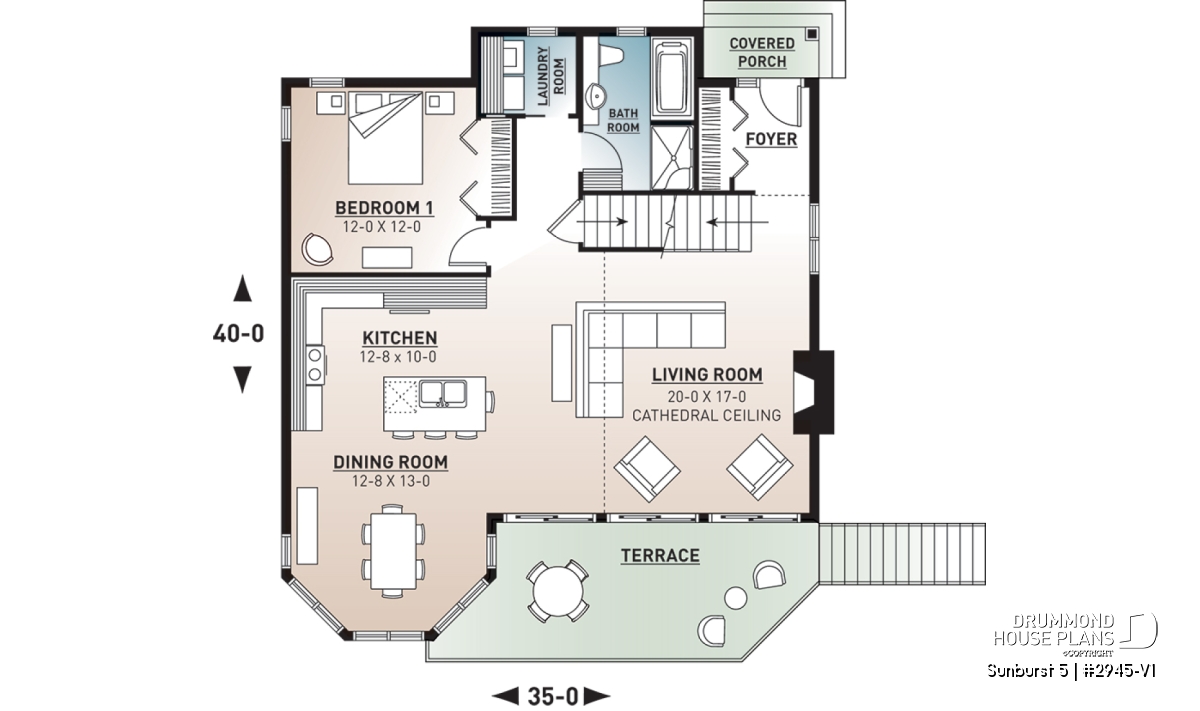

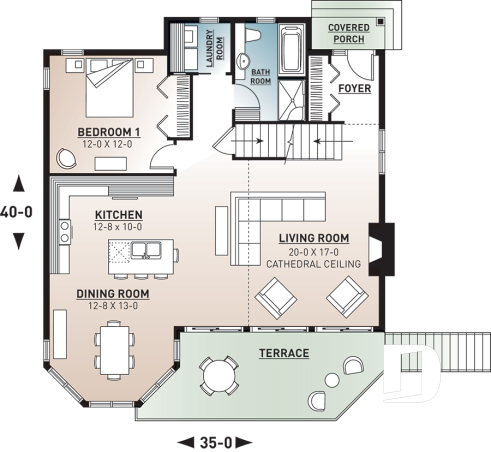

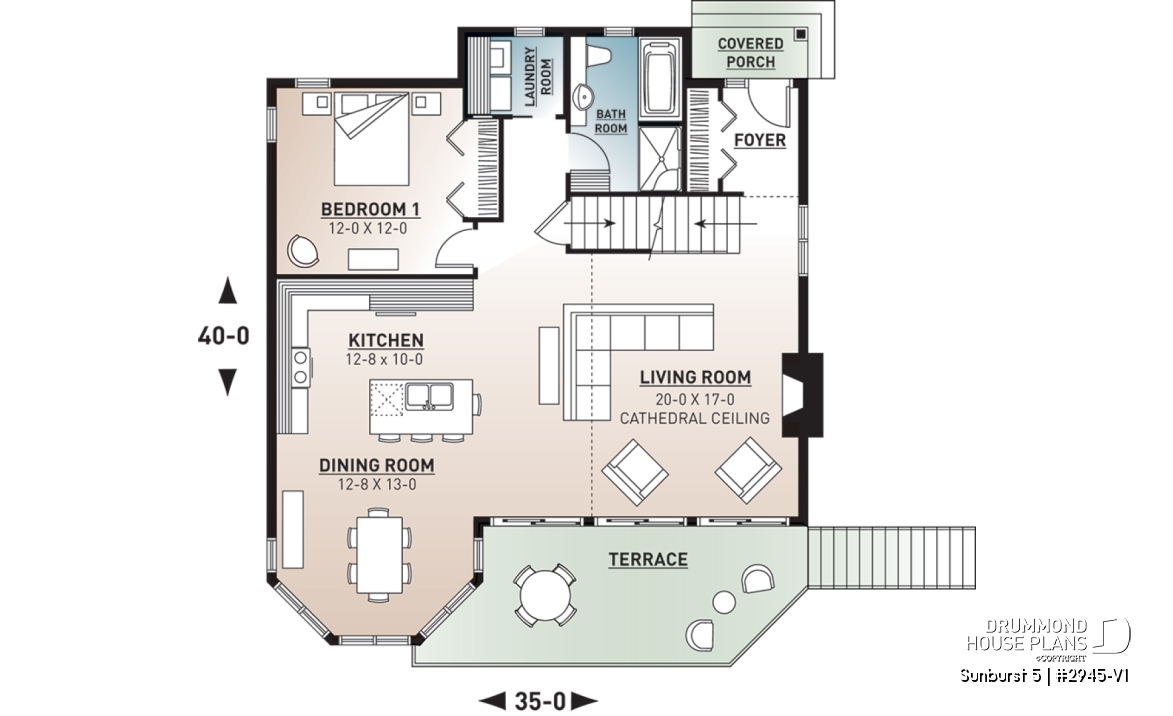

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 12'8" x 13'0" | ~ 8'0" |
| Living room | 20'0" x 17'0" | ~ 18'2" |
| Foyer | 4'10" x 6'8" | ~ 8'0" |
| Full bathroom | 7'2" x 10'0" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Laundry room | 6'0" x 5'0" | ~ 8'0" |
| Porch | 7'6" x 3'4" | N/A |
| Deck | 25'7" x 9'0" | N/A |
| Kitchen/dinette | 12'8" x 10'0" | ~ 8'0" |

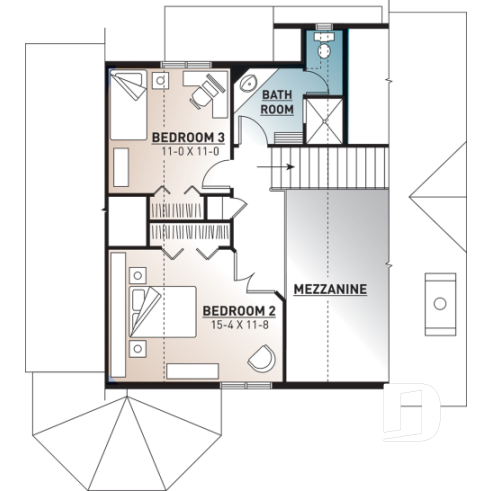

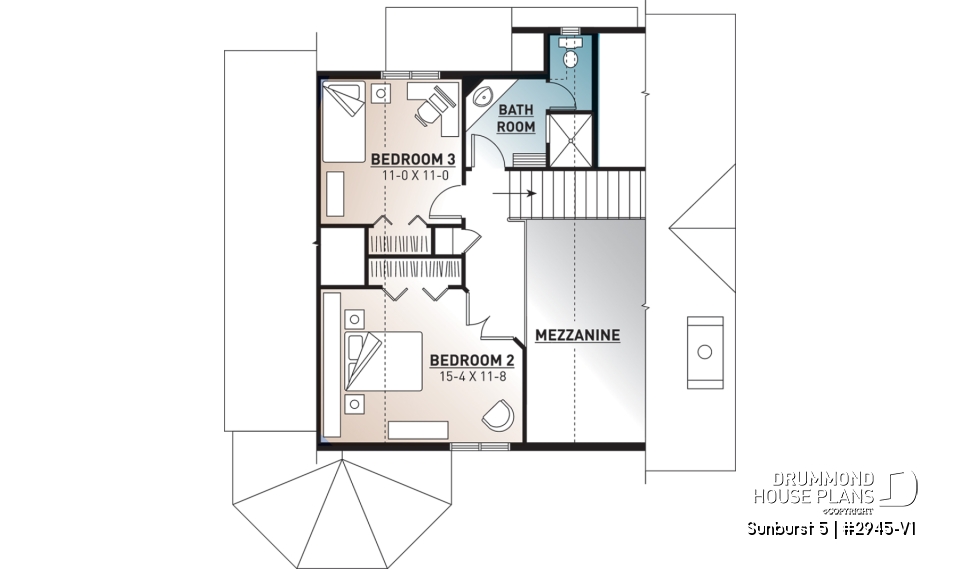

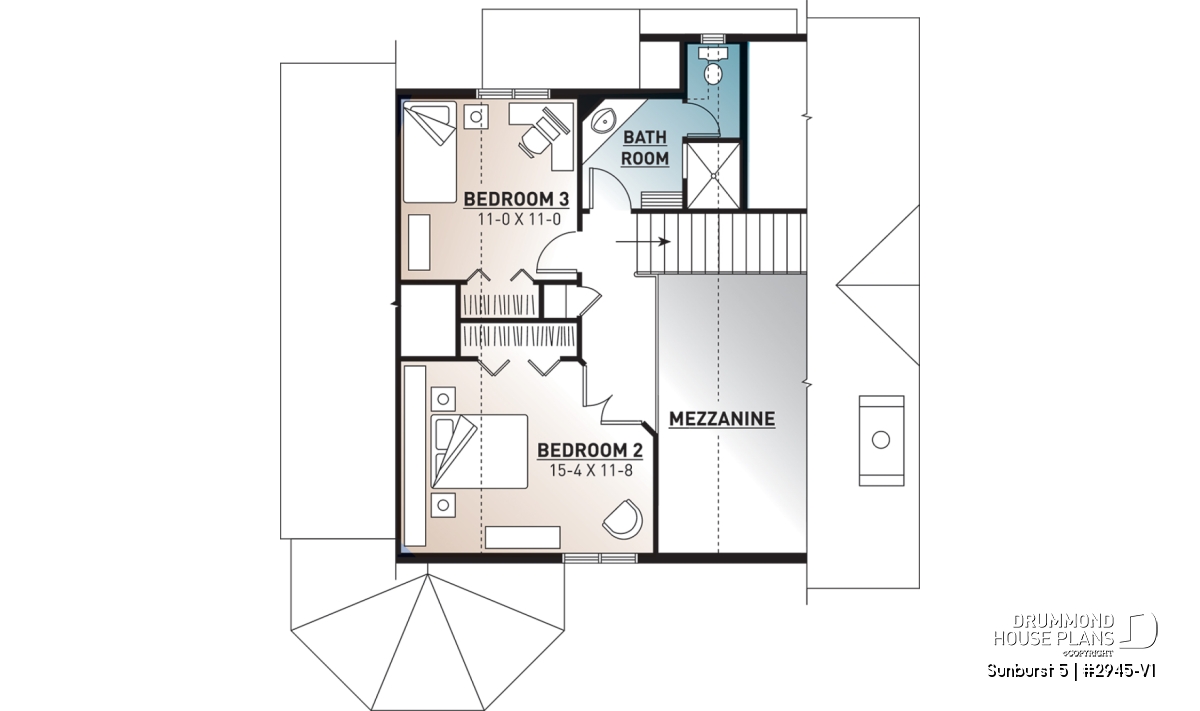

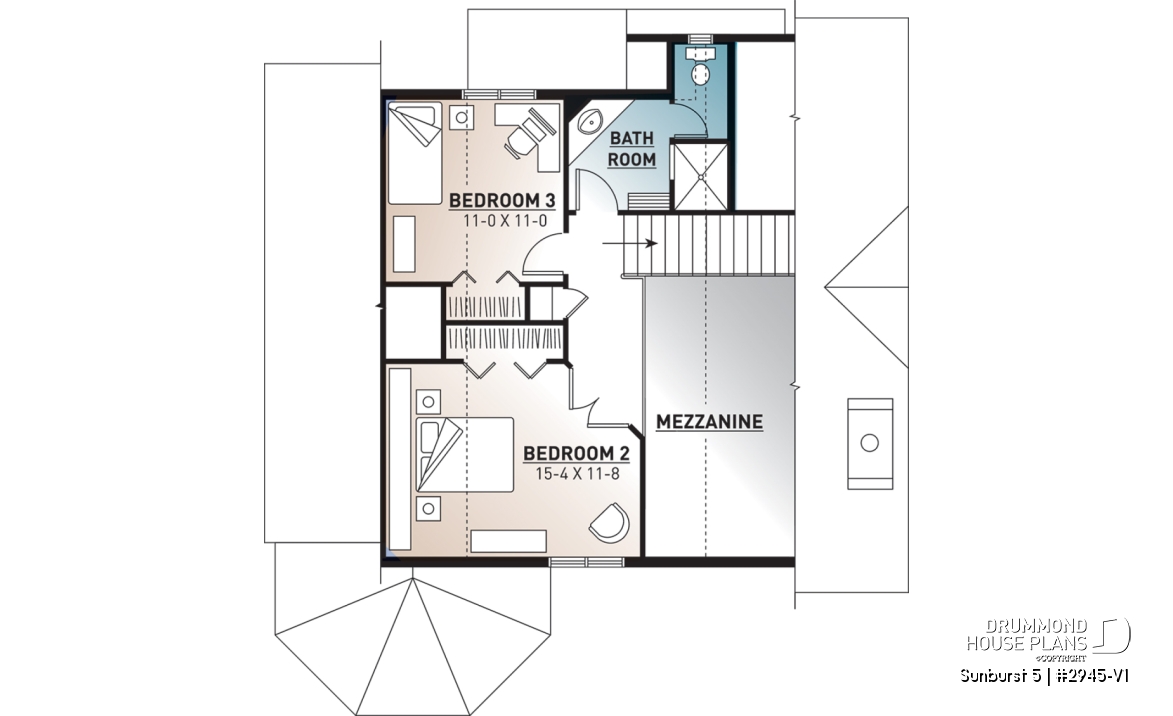

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 15'4" x 11'8" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Shower room or three quarter bath | 9'7" x 10'0" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1680 sq.ft. |
| 1st level | 1156 sq.ft. |
| 2nd level | 524 sq.ft. |
| Width | 35'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 34'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Bright 3 bedroom, 2 bathroom cottage plan with great open floor plan and a mezzanine
.
Distinctive elements
Entry with large closet. Cathedral ceiling in the living room. Three nice bedrooms and bathrooms each offering independant shower. Lower level well above ground level in the back which would allow an independant appartment in the basement.
Plan feature(s)
Cathedral ceiling, Fireplace, Gound floor laundry room, Mezzanine, Island, Panoramic view, Master suite on main, Separate bath and shower, Sloped ceiling
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Ski chalets, . A-Frame, . Country, . American, . Traditional, . Craftsman / Northwest, . Mountain
Similar plans
Previously Viewed Plans
Questions and comments
January 29
Cheryl
Hi, Can a garage be added to this plan? Or would that be plan 2945A-V1?
January 30
Customer service
Good day and thank you for your interest in our plans.
Plan 2945A-V1 is a somewhat different plan which is slightly smaller and does not have a walk-out basement as a standard foundation.
Plan 2945-V1 is inspired by our Panoramic style models and the walk-out basement is an attractive aspect of this type of plan especially when building on a sloped lot.
Although the former has an attached garage, the latter could be modified to add one as well.
All you need to do is to fill in our on line modification form for which you will find the link below.
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1003014.html
We will be happy to return a free estimate for the change within two business days after receipt of your request.
Please let me know if I can further assist you.
Regards
Deborah
October 01
Linda
Hi, can a garage be added to this plan? Thanks, Linda
October 01
Customer service
Good day and thank you for taking the time to write.
The addition of an attached garage to this plan would be possible, all you need to do is to fill in our on line modification form for which I have attached the link below.
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1003014.html
We will be happy to return a free estimate for this addition within two business days after receipt of your request.
Please let me know if I can further assist you any way.
Regards
Deborah
