The Sunburst 3 (2945-V2)
Popular small country home plan with 4 bedrooms - 2 bathrooms chalet style with open floor plans, master suite
View the size of the rooms and height of the ceilings

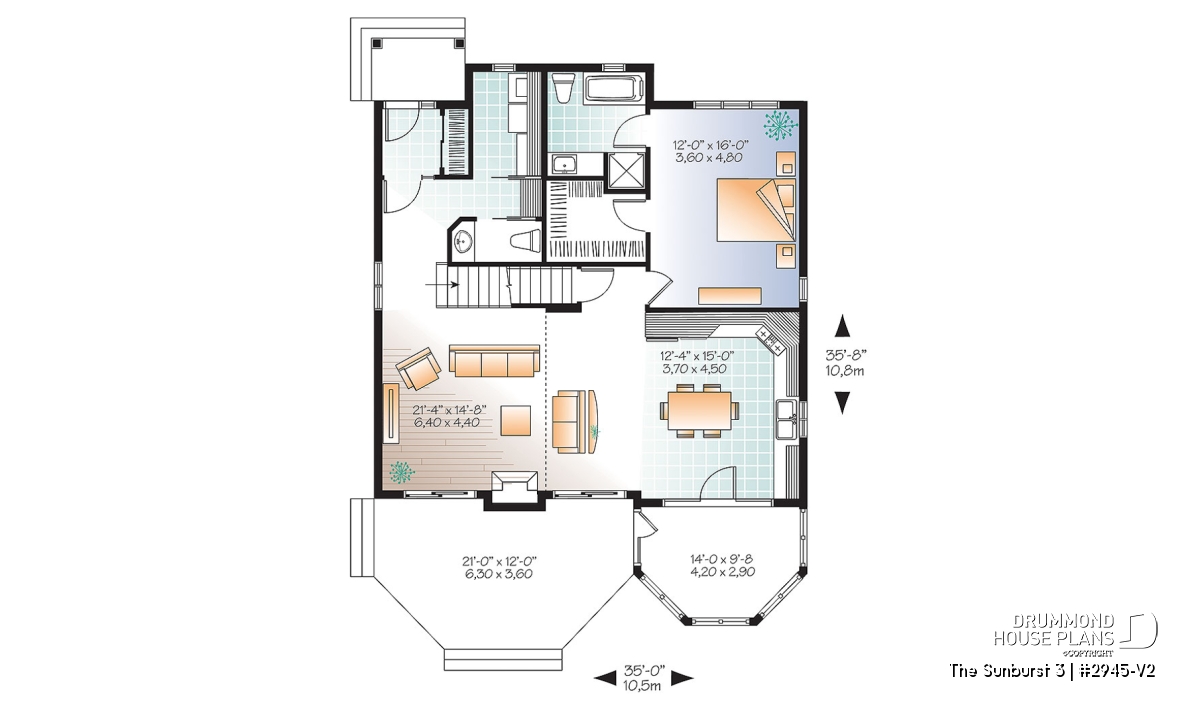

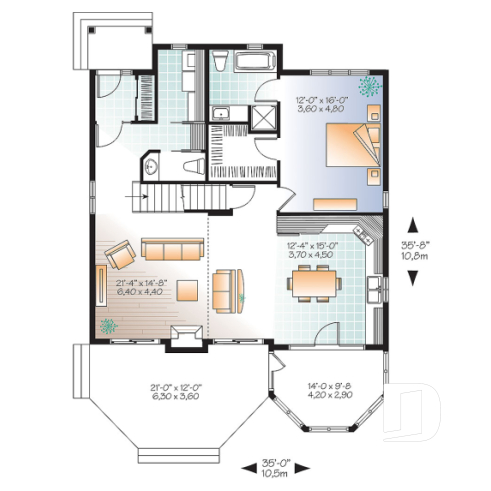

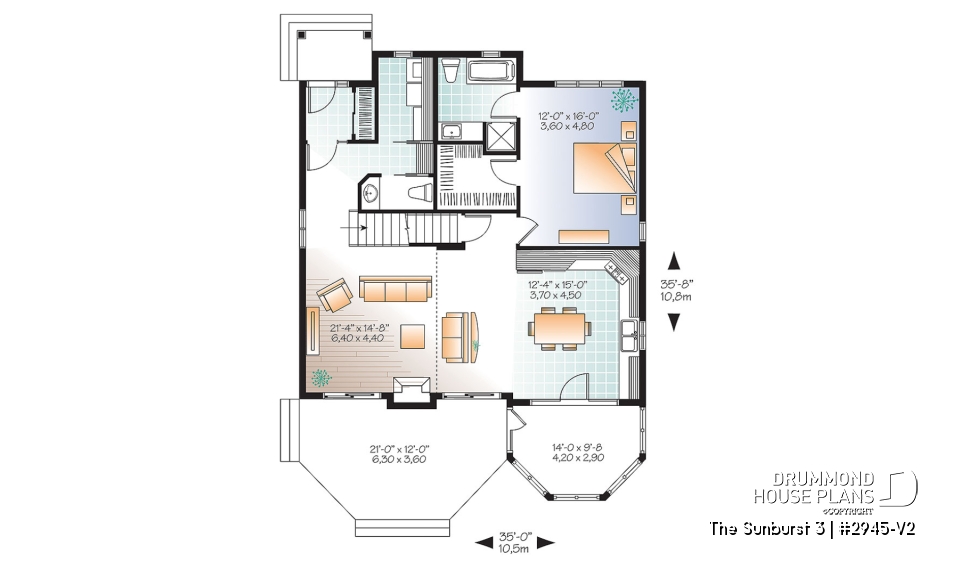

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Mosquito Shelter | 13'0" x 9'0" | ~ 8'0" |
| Laundry room | 5'6" x 8'4" | ~ 8'0" |
| Bedroom | 12'0" x 16'0" | ~ 8'0" |
| Full bathroom | 7'10" x 8'4" | ~ 8'0" |
| Walk-in closet | 8'0" x 6'8" | ~ 8'0" |
| Foyer | 4'10" x 5'4" | ~ 8'0" |
| Closet | 2'0" x 5'4" | ~ 8'0" |
| Bathroom | 7'3" x 3'4" | ~ 8'0" |
| Kitchen | 12'4" x 15'0" | N/A |
| Living room/dining room | 21'4" x 14'8" | ~ 8'0" |
| Storage | 3'0" x 1'6" | ~ 8'0" |
| Deck | 21'0" x 12'0" | N/A |
| Covered porch | 7'6" x 5'0" | N/A |

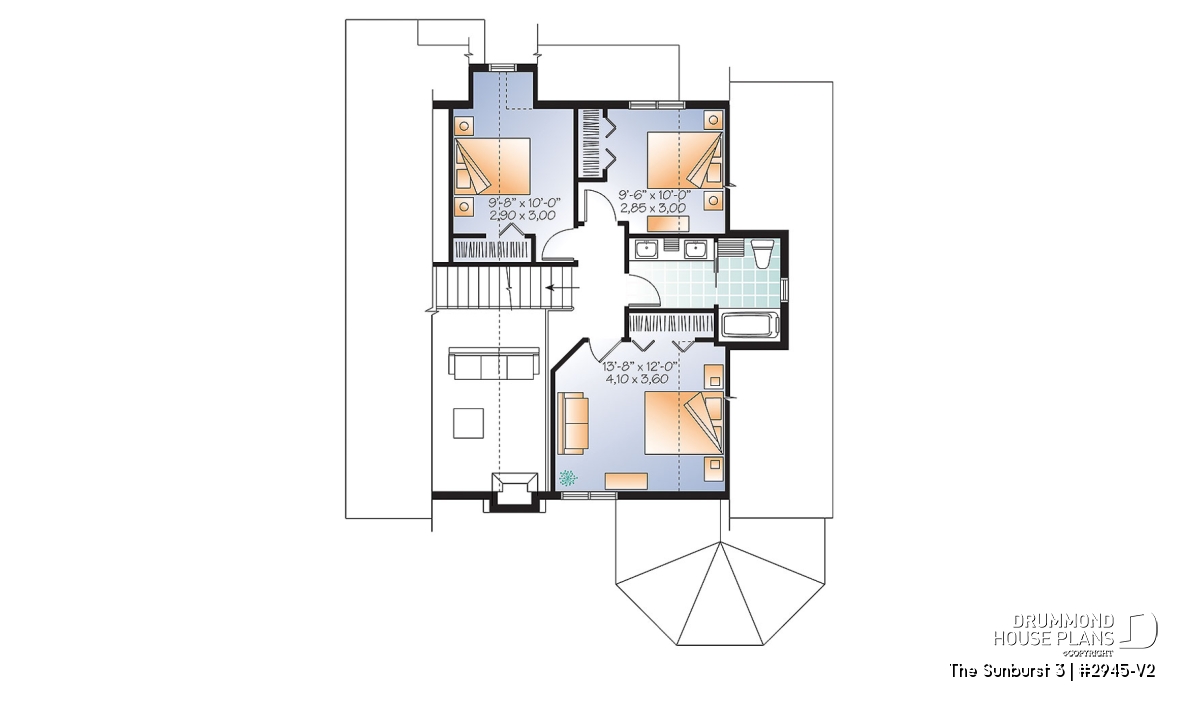

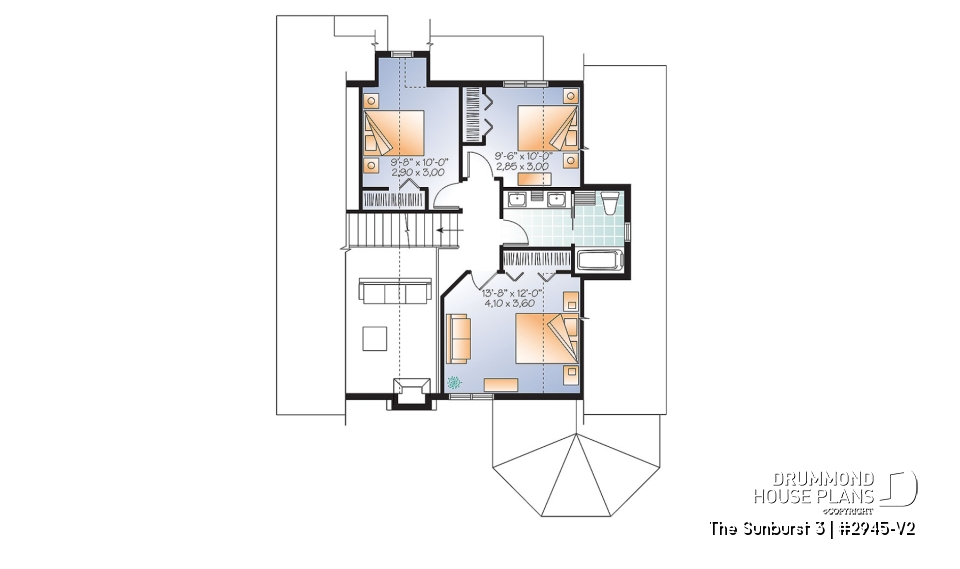

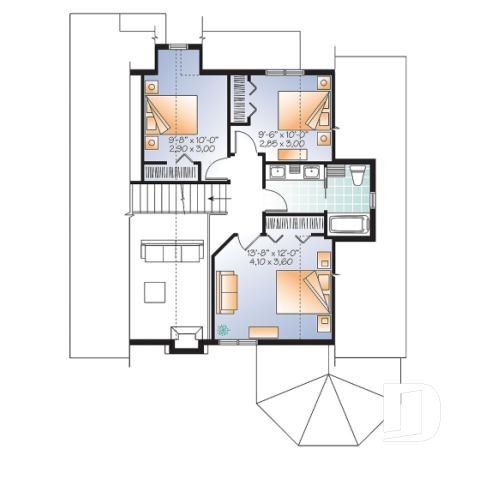

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'8" x 12'0" | ~ 8'0" |
| Closet | 6'3" x 2'0" | ~ 8'0" |
| Bedroom | 9'6" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 5'6" | ~ 8'0" |
| Bedroom | 9'8" x 10'0" | ~ 8'0" |
| Closet | 6'3" x 2'0" | ~ 8'0" |
| Full bathroom | 12'2" x 8'3" | ~ 8'0" |
| Linen | 2'0" x 1'6" | ~ 7'0" |
General specifications
| Total living area | 1811 sq.ft. |
| 1st level | 1180 sq.ft. |
| 2nd level | 631 sq.ft. |
| Width | 35'0" |
| Depth | 35'8" |
| Ridge height from top of foundation | 26'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan

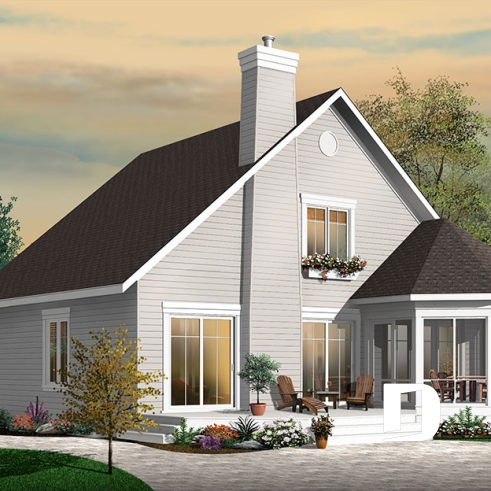

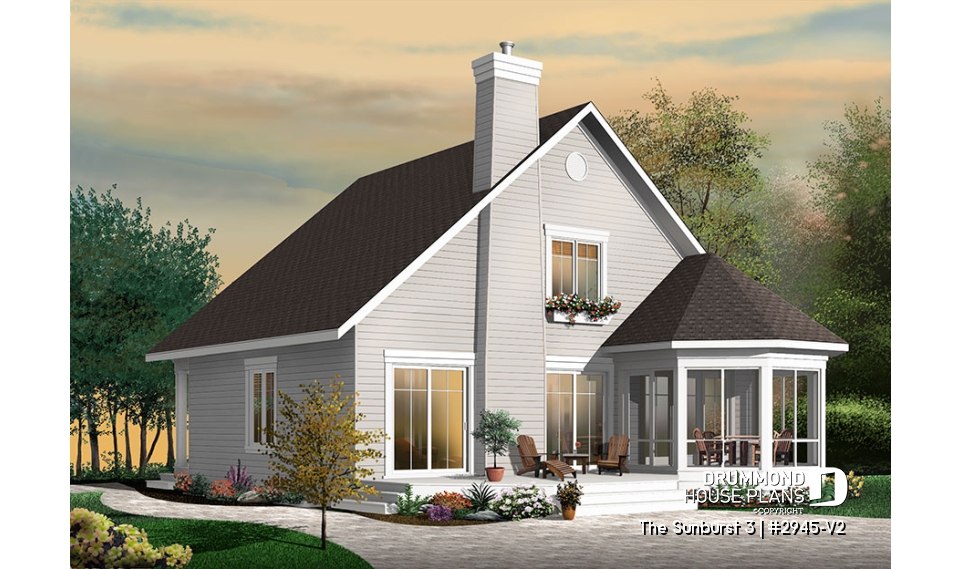

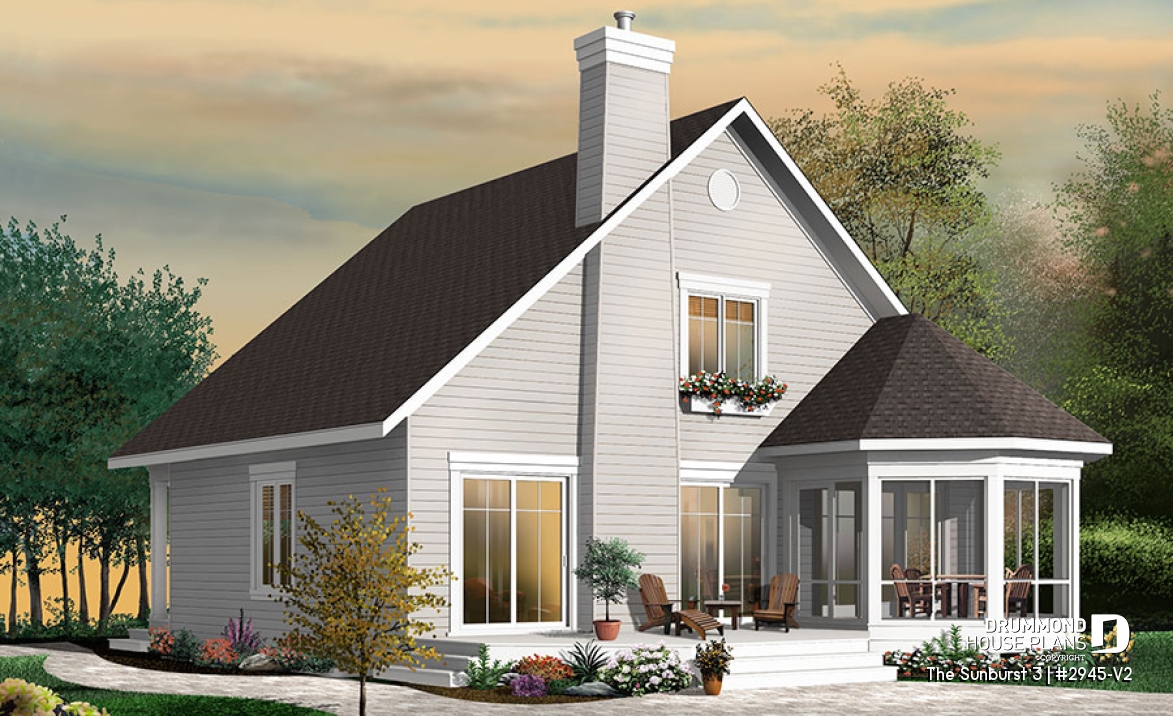

Stunning A-frame chalet with 4 bedrooms and a screened-in gazebo
This is the perfect plan for larger families looking for a lake front or ski chalet with all the extras!
From the large, covered porch in front through the entrance foyer this delightful, 4 season vacation home offers a beautiful open floor plan with access to the 21' x 12' terrace and a screened-in gazebo from the main living area. The living/dining area has a cathedral ceiling and both share views of the large, central fireplace that is also visible from the mezzanine above.
The master suite on the main level has a walk-in closet and the well appointed bathroom has both tub and shower. A powder room and the laundry area on the main level are sure to be welcome enhancements to the livability of this home.
Upstairs, the three other bedrooms share a full bathroom complete with linen closet and double vanity.
Distinctive elements
Large terrace, gazebo, cathedral ceiling in open living/dining room, central fireplace. Laundry room, powder room and master bedroom on the main level. Three other bedrooms on second floor share a full bathroom with linen closet and double vanity.
Plan feature(s)
Screened porch, Fireplace, Mezzanine, Cathedral ceiling, Sloped ceiling, Gound floor laundry room, Master suite on main, Walk-in master bed., Double sink vanity, Mud room, Separate bath and shower
Plan architectural style(s)
. Cottage, chalet, cabin, . A-Frame, . American, . Vacation and waterfront, . Ski chalets, . Traditional, . Modern rustic, . Country, . Transitional
Previously Viewed Plans
Questions and comments
June 10 2015
Valerie
Hi
Beautiful plan ! Is it possible to make the screened in porch area larger without compromising the design
June 10 2015
Customer service
Hello Valerie,
The best way would be to increase the width of the home proportional to keep the balance and the flow.
Or simply just enlarge the depth of the screened porch.
Let me know if you would like a free cost estimate for those changes on the plan?
Thanks for your interest,
Marie
April 13 2015
Peggy Anderson
I really like this plan but is there any additional photos you could show of the panoramic view and the loft?
April 13 2015
Customer service
Good day Ms. Anderson and thank you for your interest in this plan.
Since we do no actual building, the only pictures that we have are those which our clients have generously shared and there are unfortunately none on file at the present time so I am unable to send any.
Please let me know if you have any other questions or comments.
Regards
Deb
October 20 2014
Jean
Can the screened porch be the entire length of the rear of house?
October 20 2014
Customer service
Good day and thank you for taking the time to write.
Yes, the length of the screened porch can be increased to conform to your needs and we would be happy to provide a free estimate within two business days after receipt of this on line request.
Please let me know if I can further assist you.
Regards
Deb
September 15 2014
M Norris
Can this
house be done with 9ft ceilings on the main and a landing on the stairs. I would like a minimum 10.5 in tread.i would prefer landing with 2 to 3 steps
September 15 2014
Customer service
Good day and thank you for your interest in this plan.
The changes that you require are possible and we would be happy to return a free estimate within two business days after receipt of this on line form.
Please let me know if you have any other questions or comments.
Regards
Deb
August 19 2014
Nancy Stanton
Can this plan be built on a slab foundation with a crawl space?
August 19 2014
Customer service
Good day Ms. Stanton and thank you for taking the time to write.
This plan can be ordered with either an optional slab foundation or a crawl space for an additional $245. but if you would like a foundation that is a combination of the two, I invite you to fill in this on line request to which we will reply within two business days with a free estimate.
Please let me know if I can further assist you
Regards
Deb
