House plan The Sun Stream 1 (3922)
Rustic chalet house plan, 3 to 4 bedrom, screened in porch, cathedral ceiling, mezzanine, panoramic views
View the size of the rooms and height of the ceilings

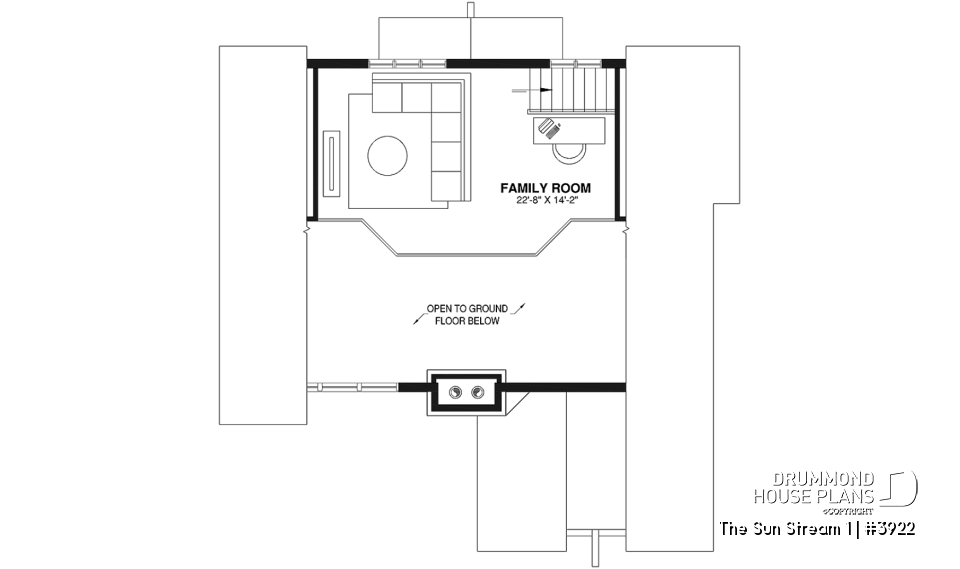

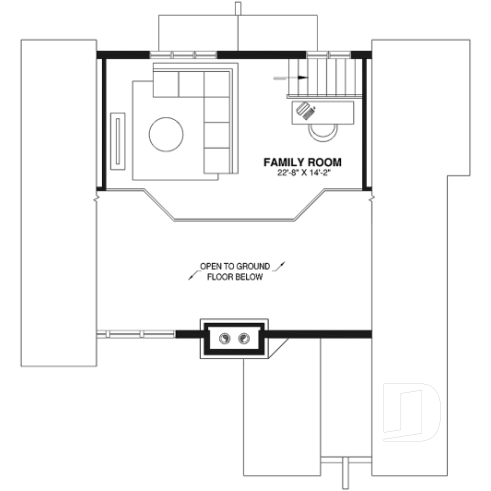

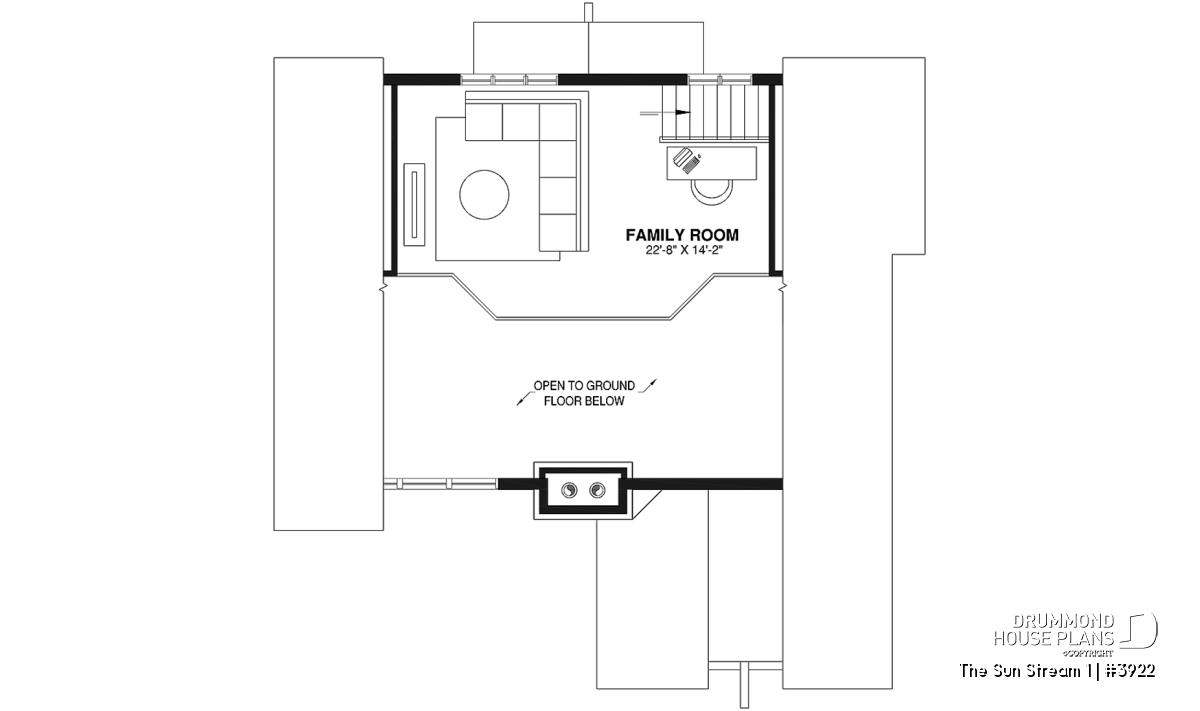

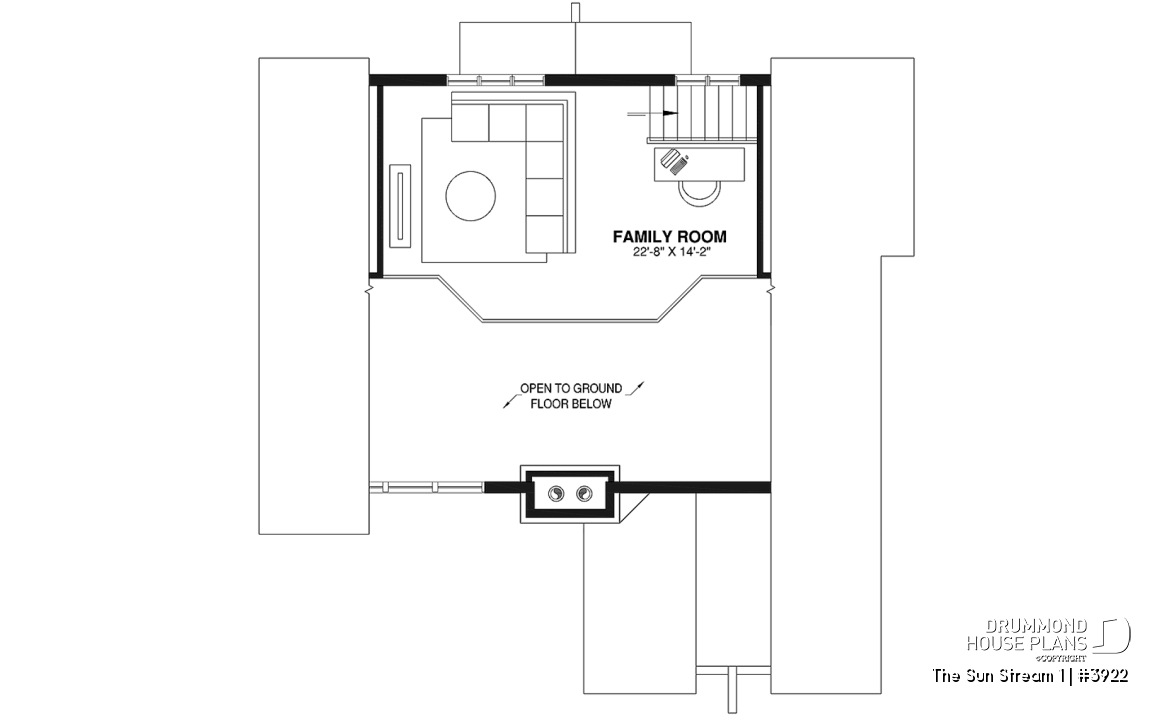

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living bonus room | 22'8" x 14'2" | ~ 8'0" |

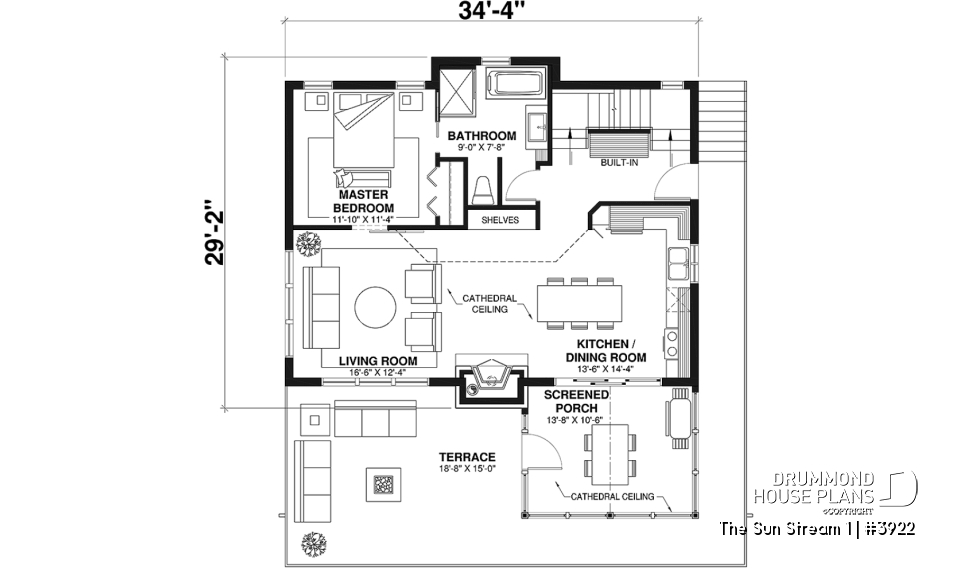

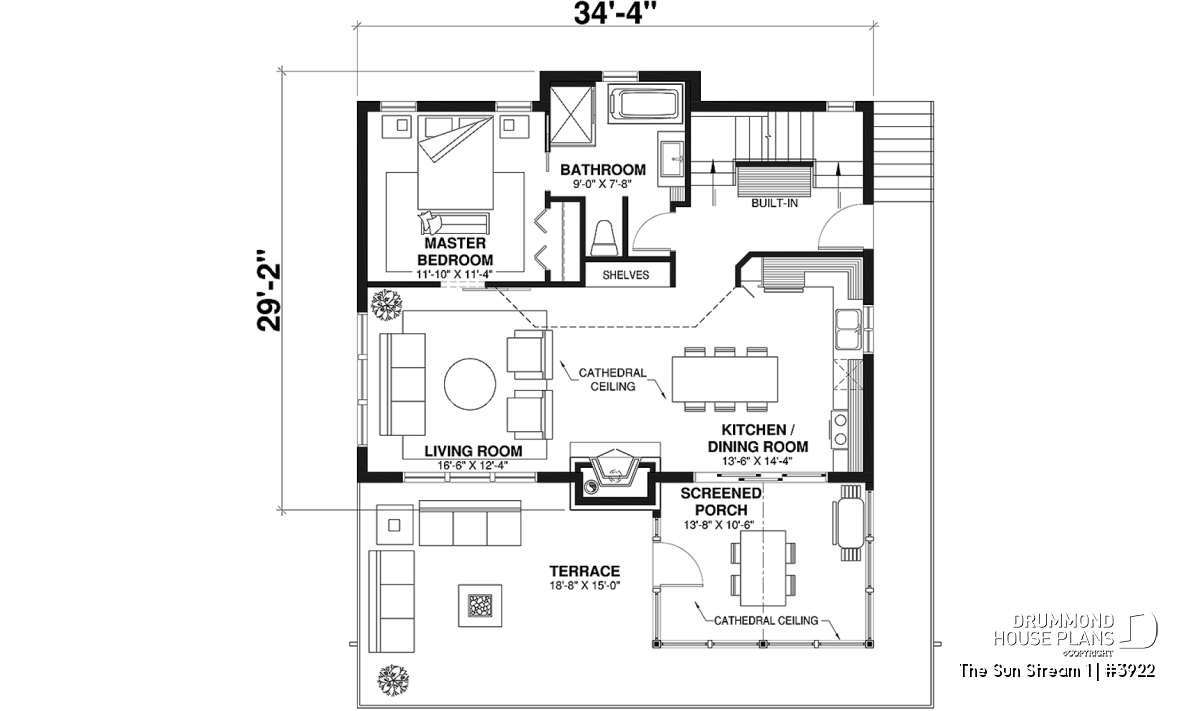

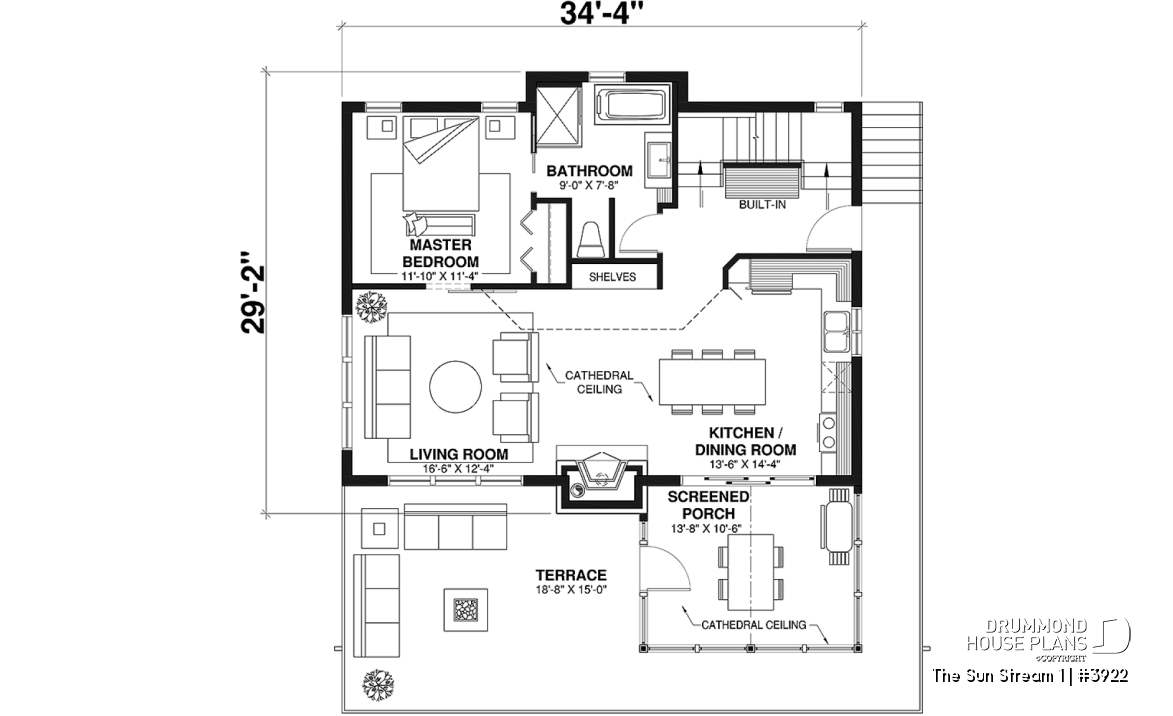

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'0" x 7'8" | ~ 8'0" |
| Living room | 16'6" x 12'4" | ~ 17'2" |
| Master suite | 11'10" x 11'4" | ~ 8'0" |
| Kitchen/dining room | 13'6" x 14'4" | ~ 17'2" |
| Deck | 18'8" x 15'0" | N/A |

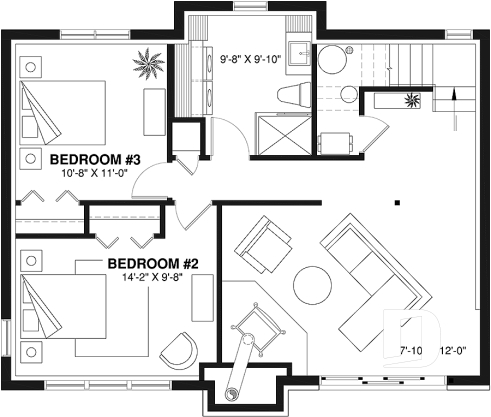

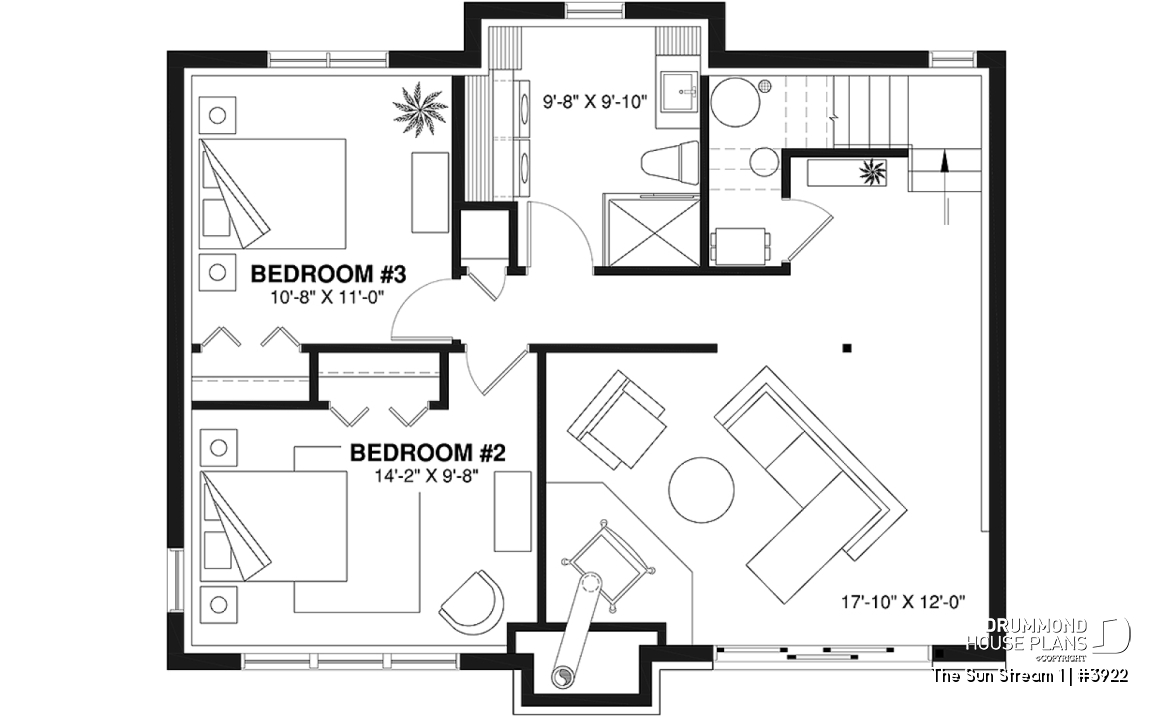

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 14'2" x 9'8" | ~ 8'0" |
| Bedroom | 10'8" x 11'0" | ~ 8'0" |
| Linen | 2'0" x 2'4" | ~ 8'0" |
| Playroom | 17'10" x 12'0" | ~ 8'0" |
| Bathroom/laundry room | 9'8" x 9'10" | ~ 8'0" |
General specifications
| Total living area | 2105 sq.ft. |
| 2nd level | 323 sq.ft. |
| 1st level | 891 sq.ft. |
| Basement | 891 sq.ft. |
| Width | 34'4" |
| Depth | 29'2" |
| Ridge height from top of foundation | 29'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Rustic 4-season cottage with mezzanine
One and a half storeys plus a walkout basement featuring expansive windows make this a stunning 4-season getaway or year round residence. Extensive deck and patio space and view-soaking windows ensure easy indoor/outdoor enjoyment. Fireplaces warm the basement and main levels. Four bedrooms, two bathrooms and two flexible spaces ensure ample room for family and friends to stay. The mezzanine bedroom enjoys a birdseye view of the living area below.
A screen room further guarantees outdoor pleasure, even when unwelcome guests of the insect variety show up.
Distinctive elements
Cathedral ceiling over family/dining/kitchen areas, four bedrooms in all, large terrace and remarkeable screened in area, dual sinks in main level bathroom, finished walk-out basement, balcony wraps around to front entrance, multiple fireplaces.
Plan feature(s)
Screened porch, Fireplace, Cathedral ceiling, Mezzanine, Loft, Mud room, Open floor layout, Sloped ceiling, Separate bath and shower, Master suite on main
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Ski chalets, . A-Frame, . Rustic, . Country
Similar plans
Previously Viewed Plans
Questions and comments
August 12
Denis soubliere
what changes would be needed to build this cottage on a sloped lot? plan CW3922
August 12
Customer service
Good day Mr. Soubliere and thank you for your interest in this plan.
Since this particular model is part of our panoramic collection, there should not be any major changes required to build it on a sloped lot and the walk-out basement is sure to be the perfect foundation for your project!
Please let me know if you have any other questions or comments.
Regards
Deb
