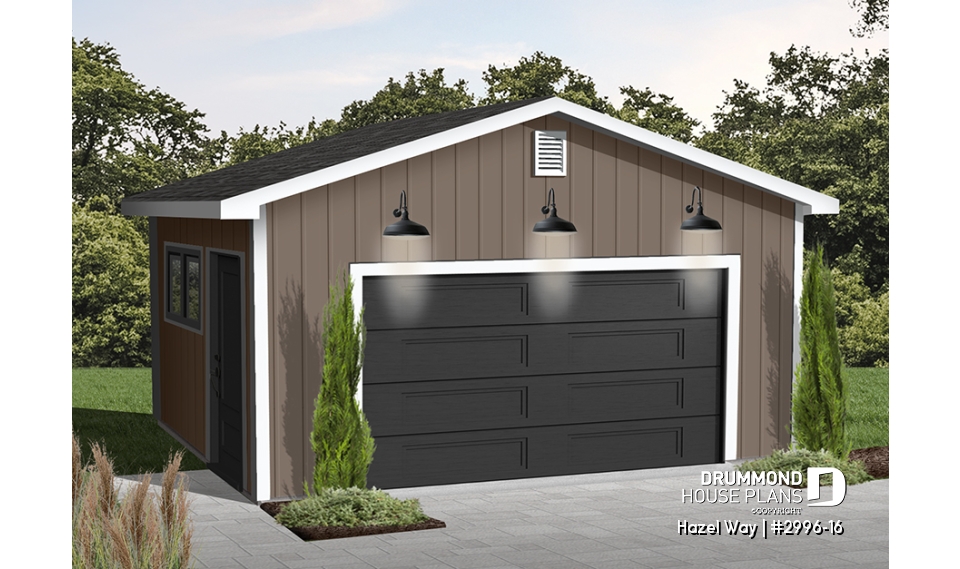

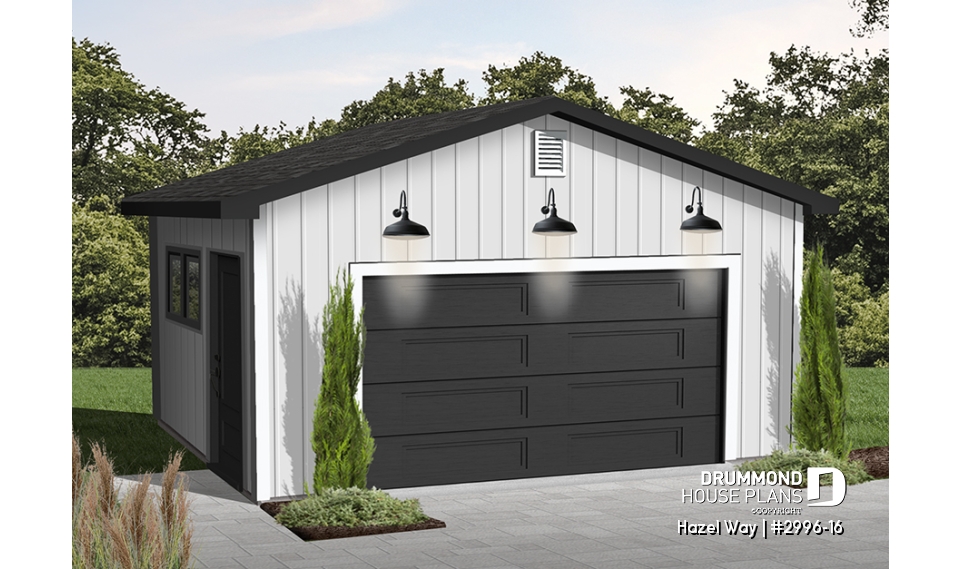

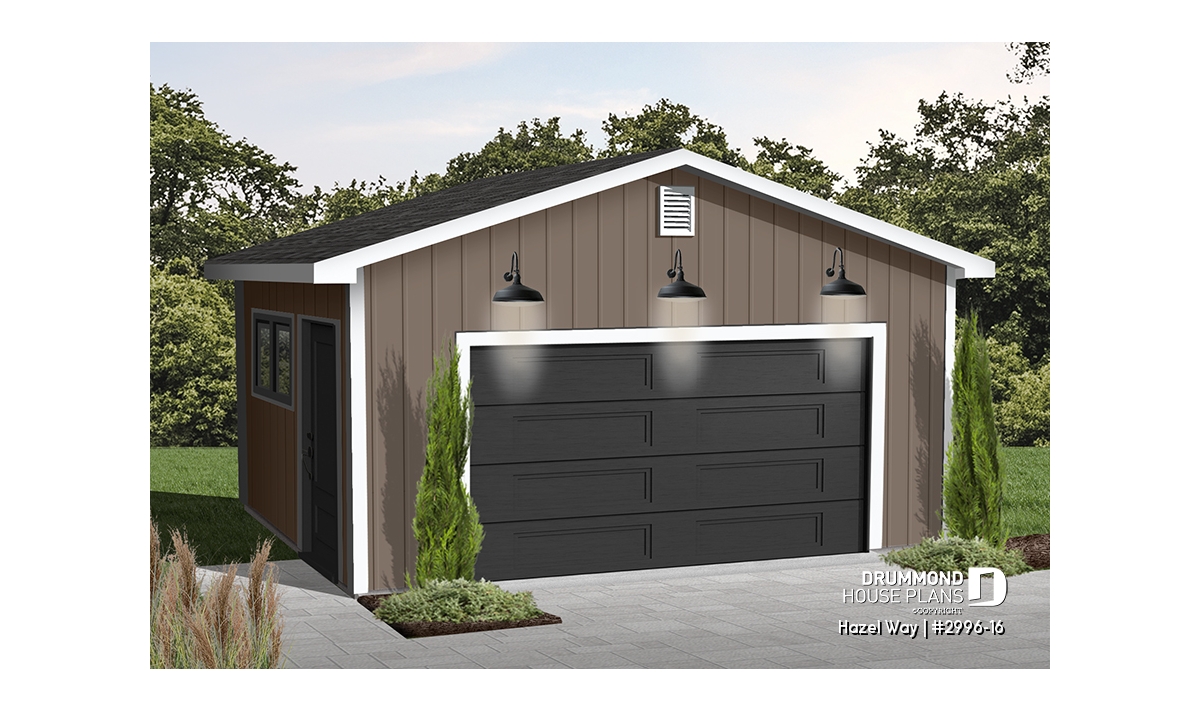

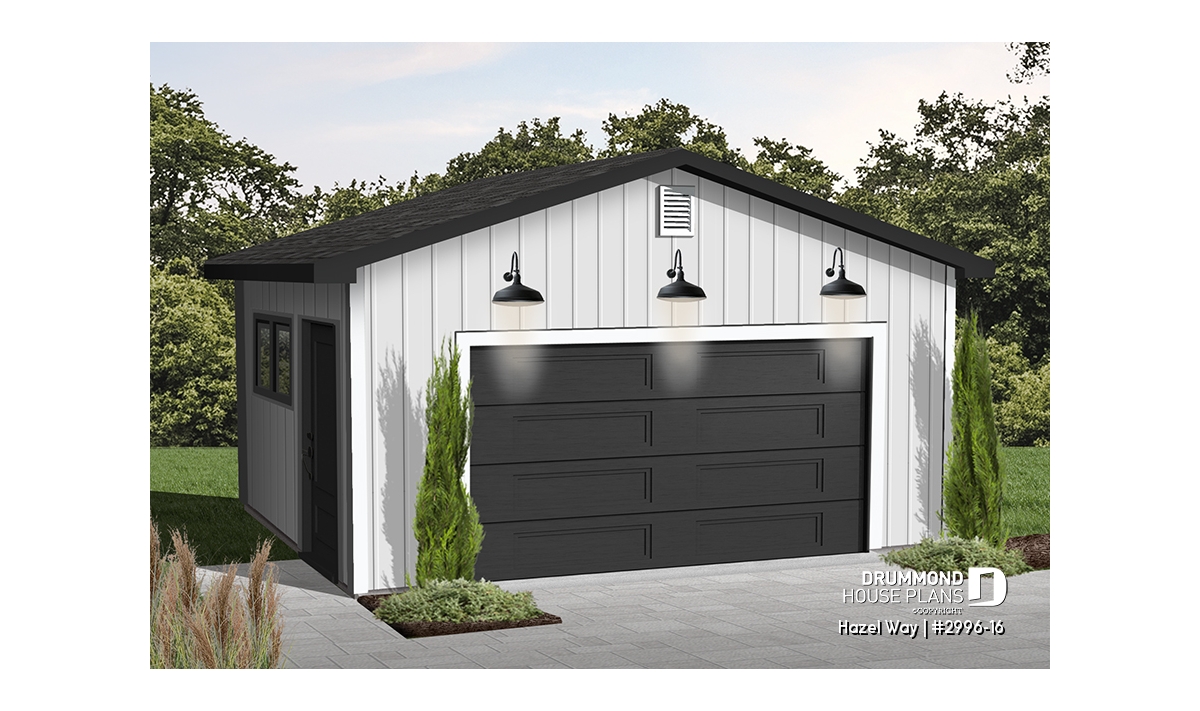

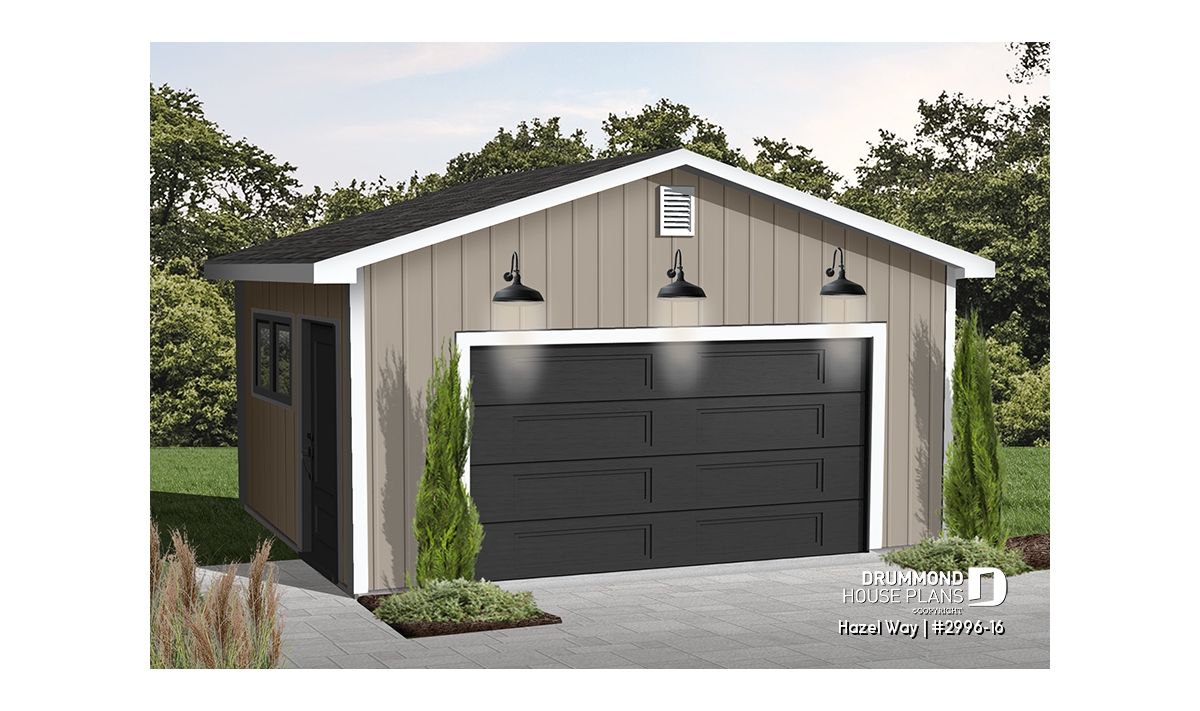

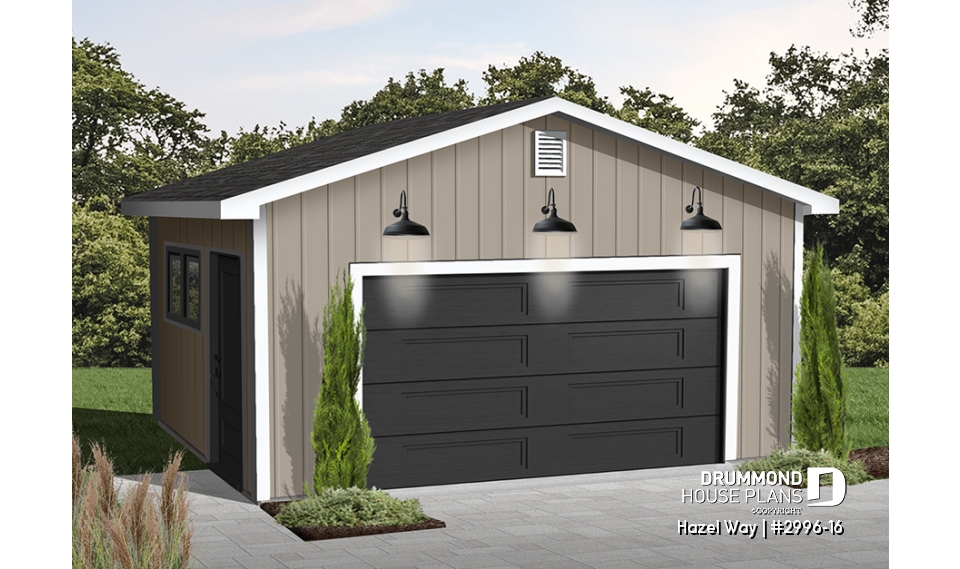

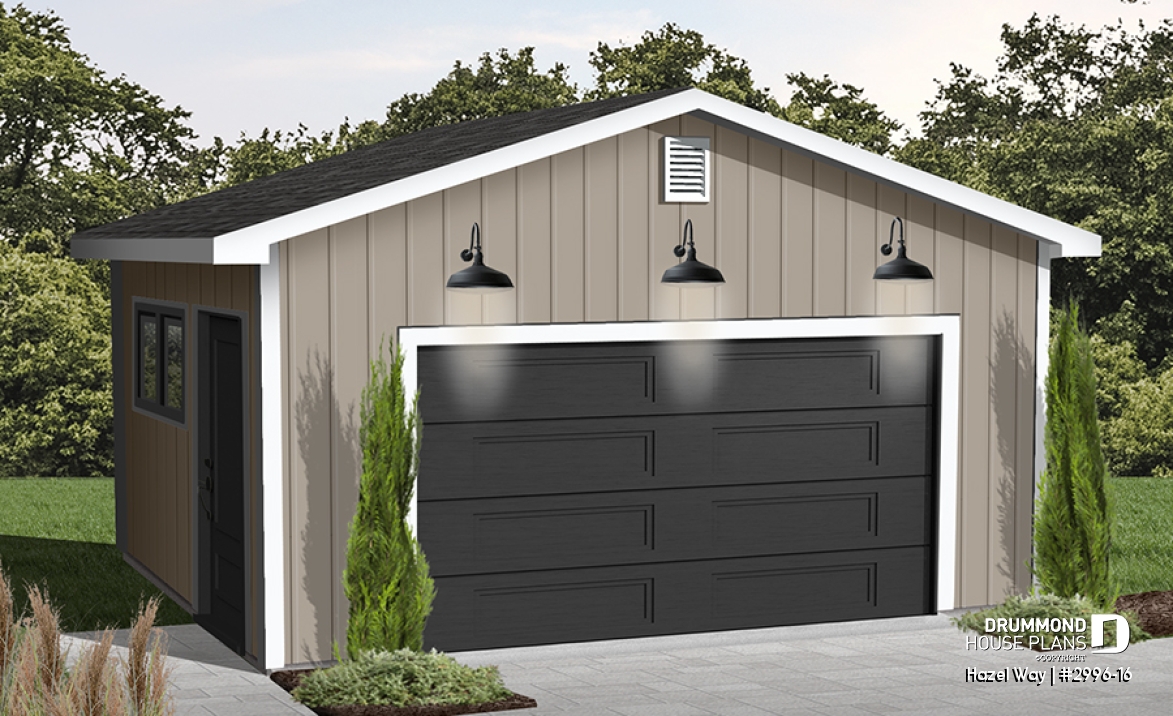

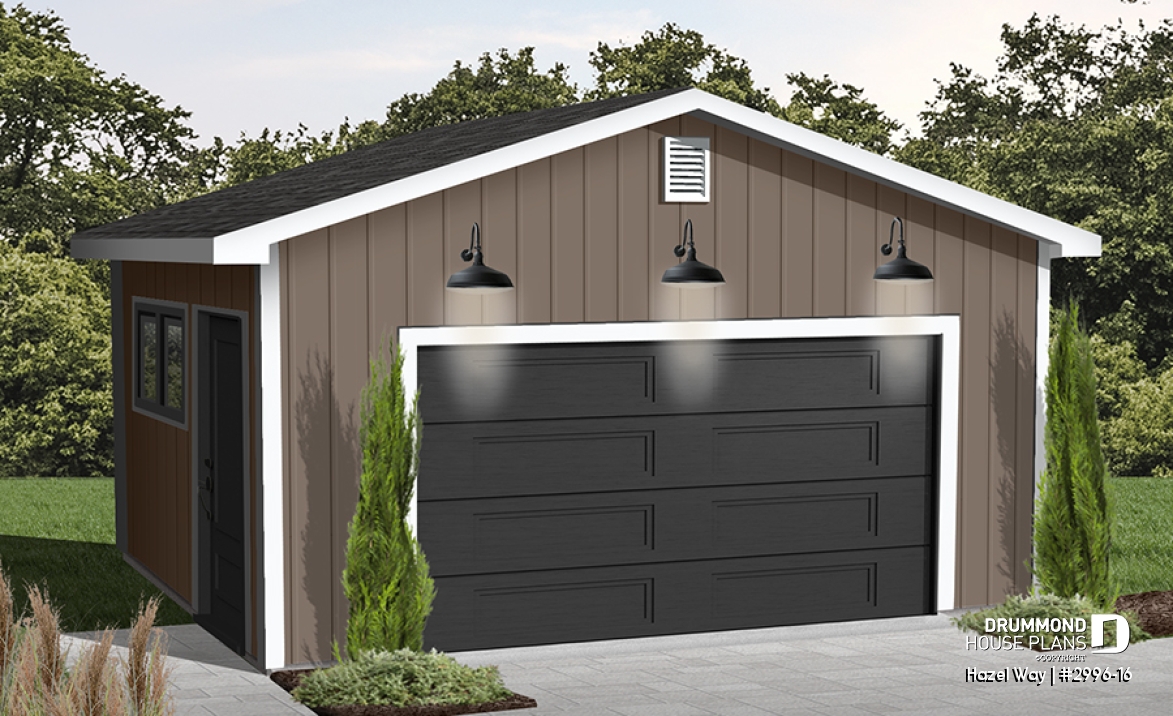

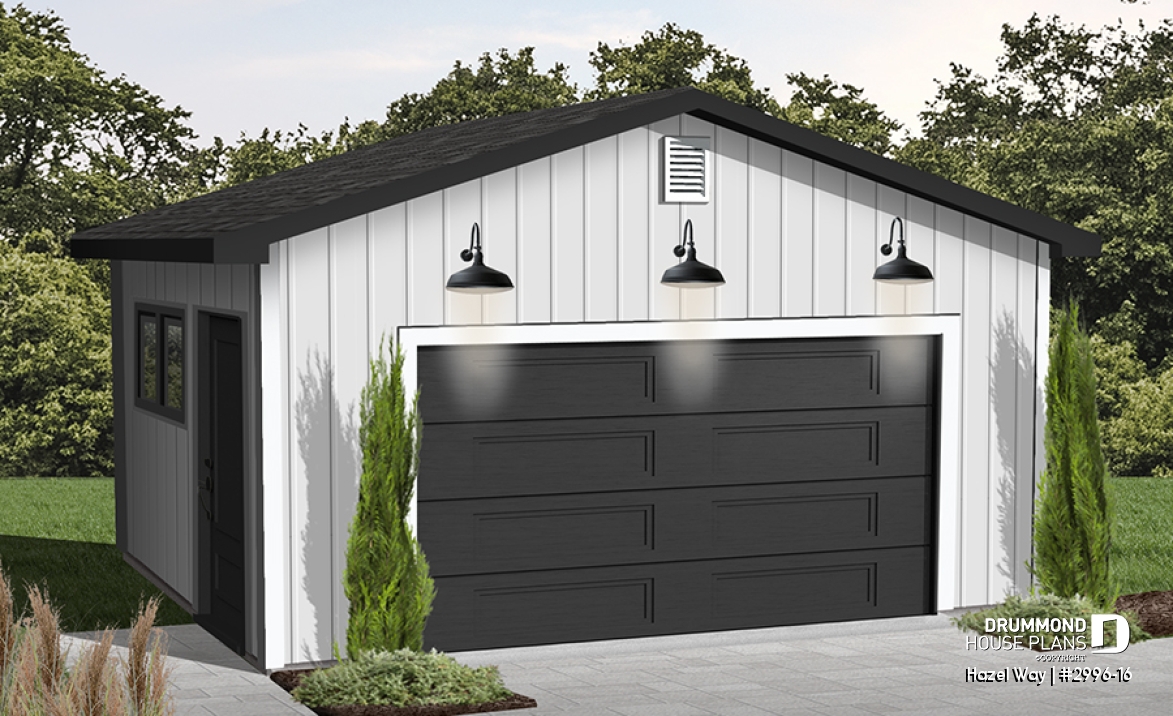

Garage plan Hazel Way (2996-16)
One-car garage plan, traditional style
General specifications
| Total living area | 384 sq.ft. |
| 1st level | 384 sq.ft. |
| Width | 16'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 11'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1A |
Rooms specifications
Other useful information on this plan
Simple Storage!
When space is at a premium, less is more. This simple garage, 16 ft. wide and 24 ft. deep gets the job done. Perfect for parking and a bit of storage!
Distinctive elements

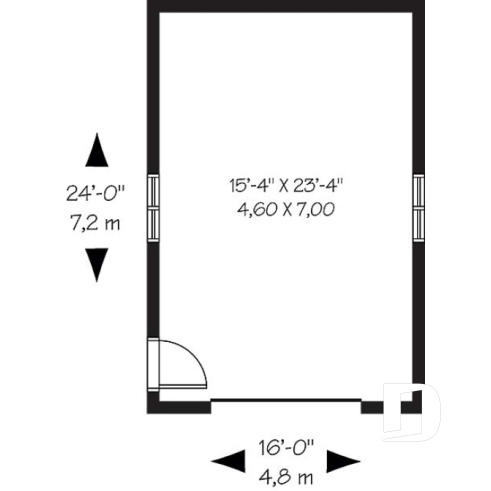

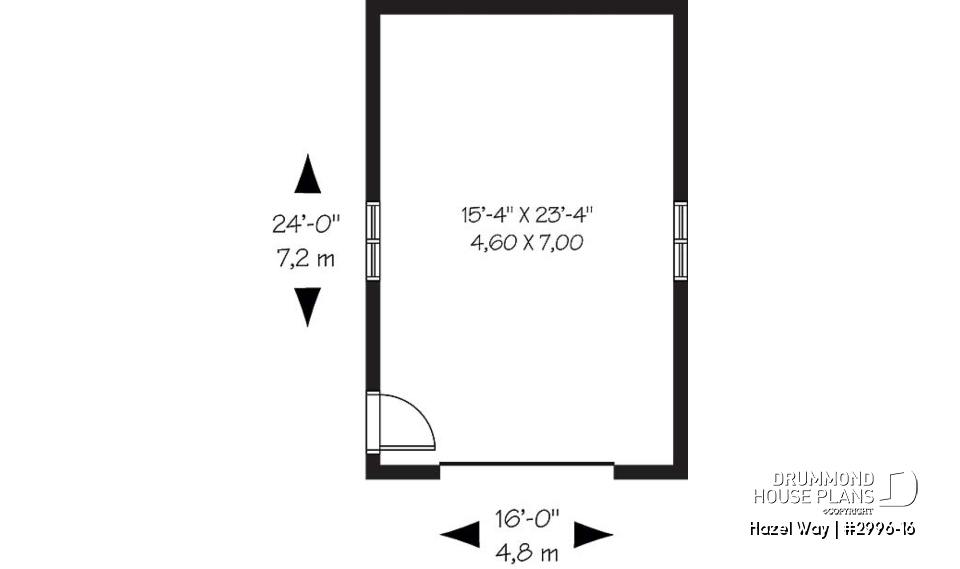

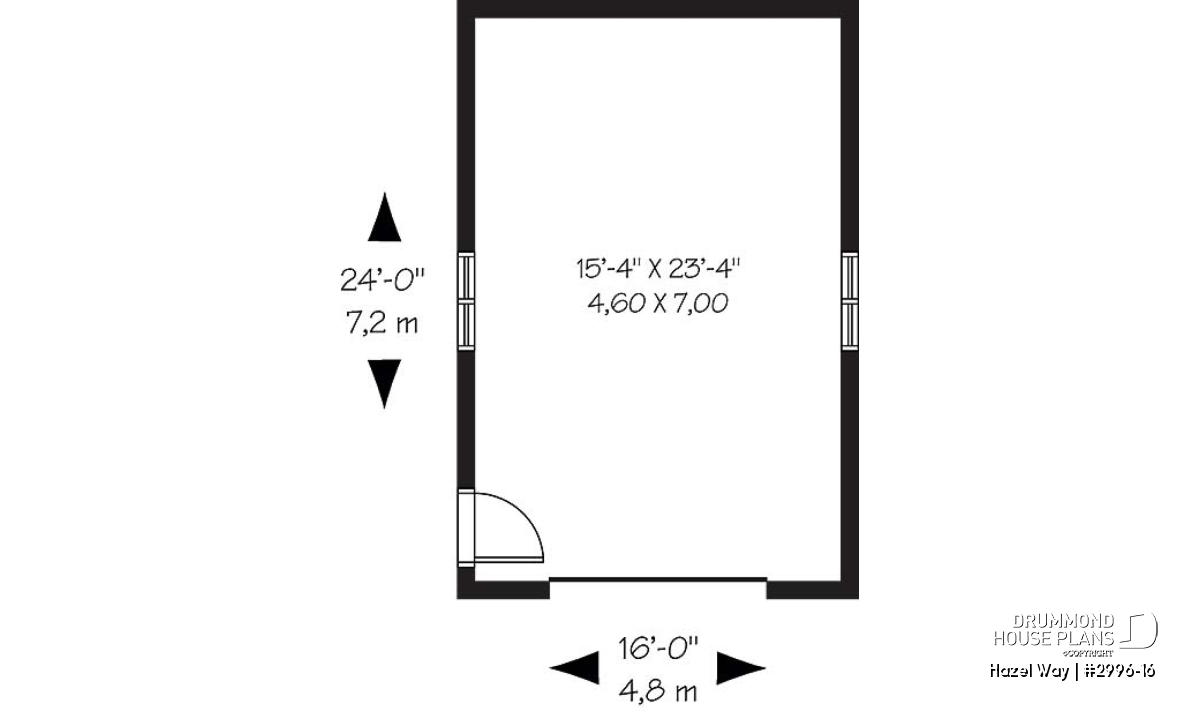

Small single garage plan.
Total of 384 sq.ft.
Size of 16' x 24'.
Foundation: floating slab.
Insulated walls.
One door and two side windows.
Plan architectural style(s)
. Traditional, . Country, Modern Craftsman, . Farmhouse
