Colonial Bay 1 (2977-16)
One-car garage plan with bonus storage in attic. PDF and blueprints available.
View the size of the rooms and height of the ceilings

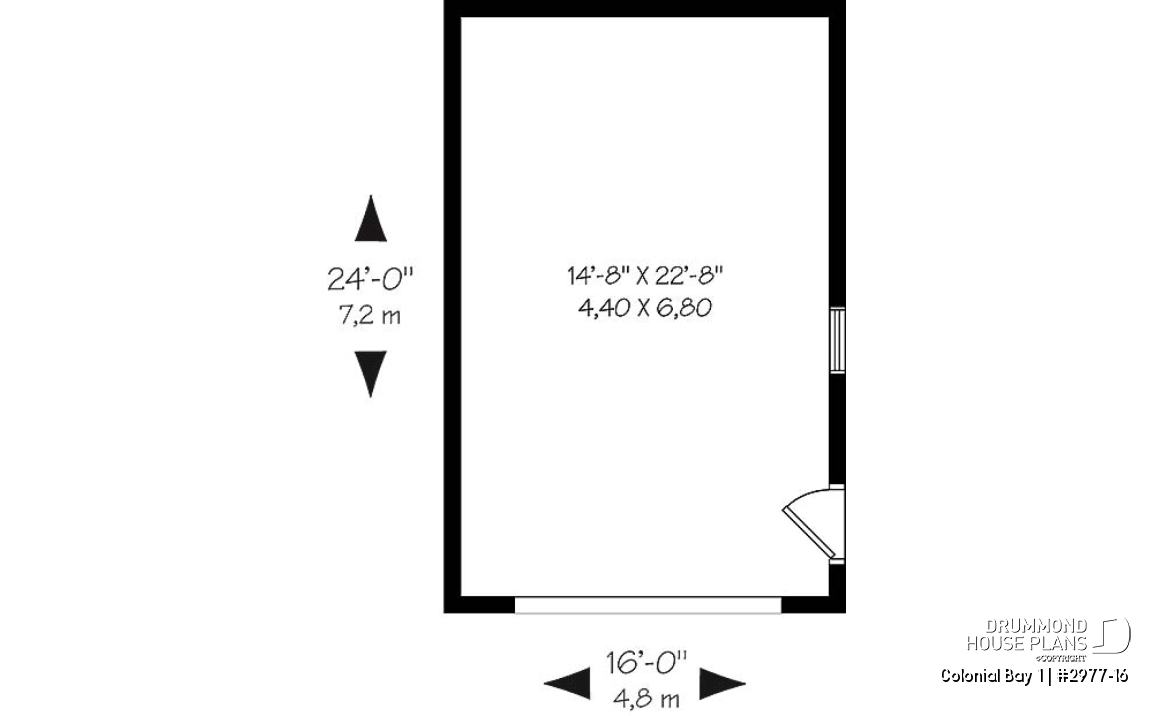

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

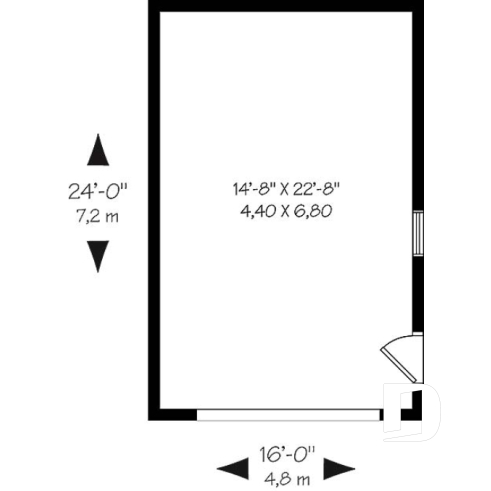

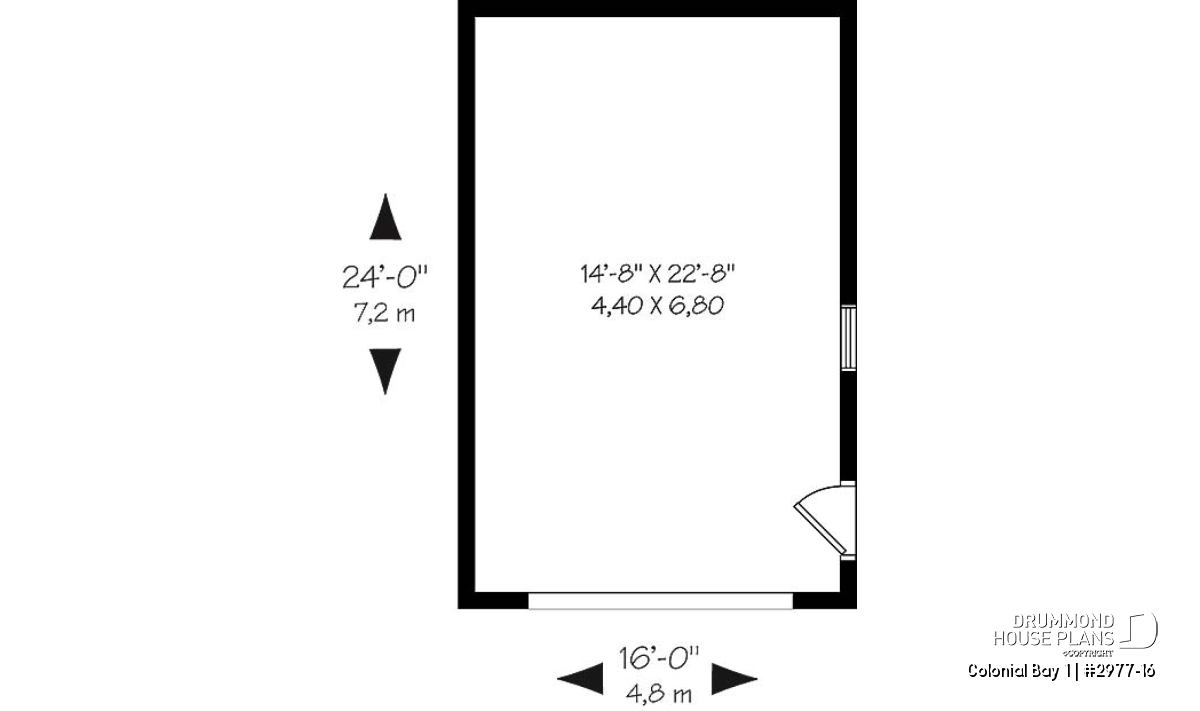

| Garage | 24'0" x 16'0" | ~ 8'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

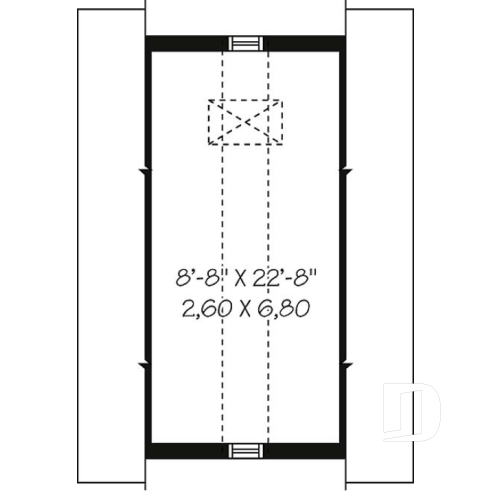

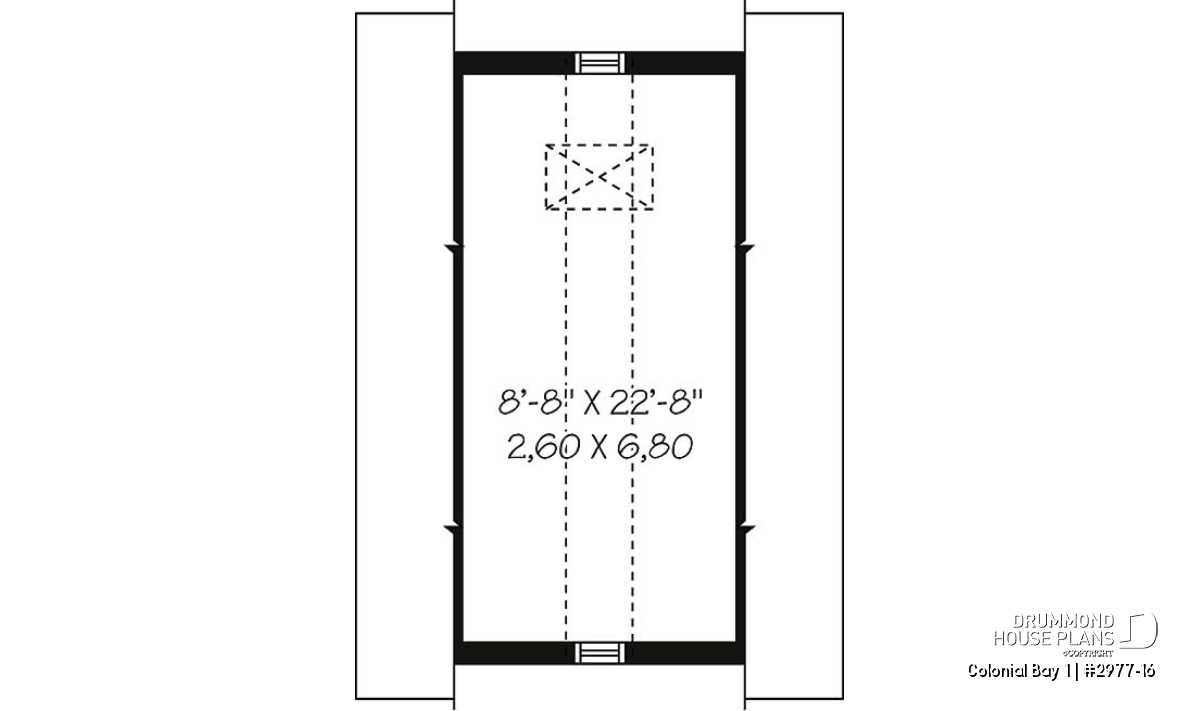

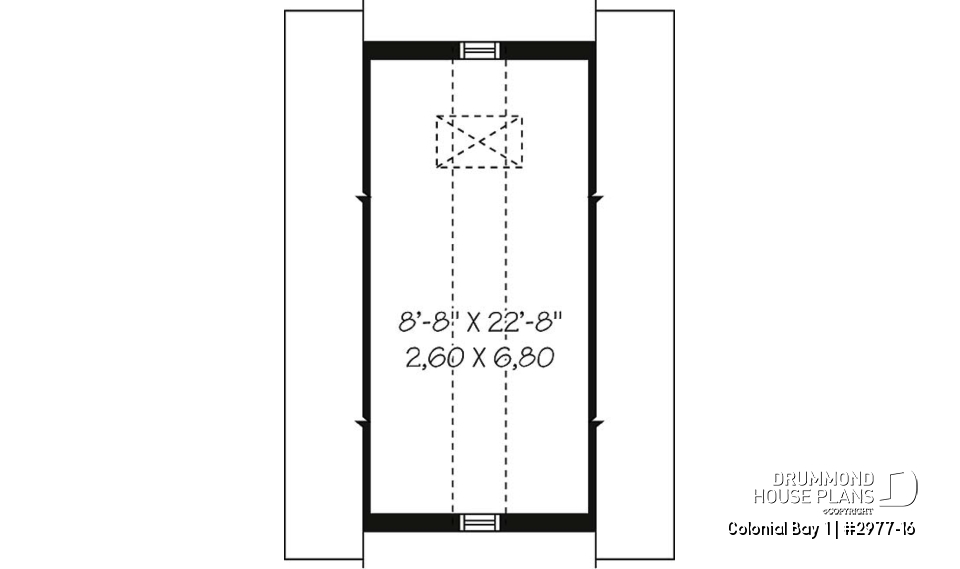

| Storage | 8'8" x 22'8" | ~ 6'0" |
General specifications
| Total living area | 656 sq.ft. |
| 1st level | 384 sq.ft. |
| 2nd level | 272 sq.ft. |
| Width | 16'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 18'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1B |
Rooms specifications
Other useful information on this plan
Garage plan with bonus storage
This single car garage is simple, yet functional with the added bonus of storage space above. Decorative moldings add charm and windows on both ends allow daylight into the storage area.
Distinctive elements
Storage above garage (272 sq.ft., 24,48 sq.m.)
Decorative moldings
Sloped ceiling
Plan feature(s)
Sloped ceiling
Plan architectural style(s)
. American, . Colonial, . Traditional, . Country
