The Pottery Port 1 (2975-16)

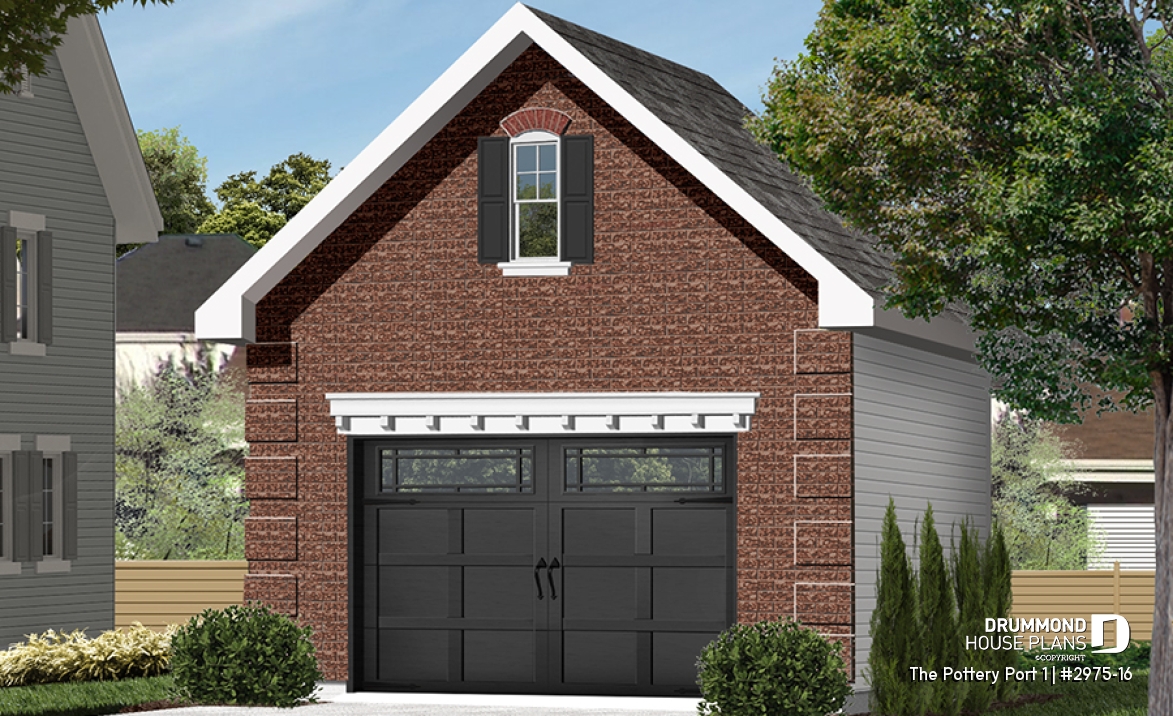

One car garage with second floor storage, colonial style
View the size of the rooms and height of the ceilings

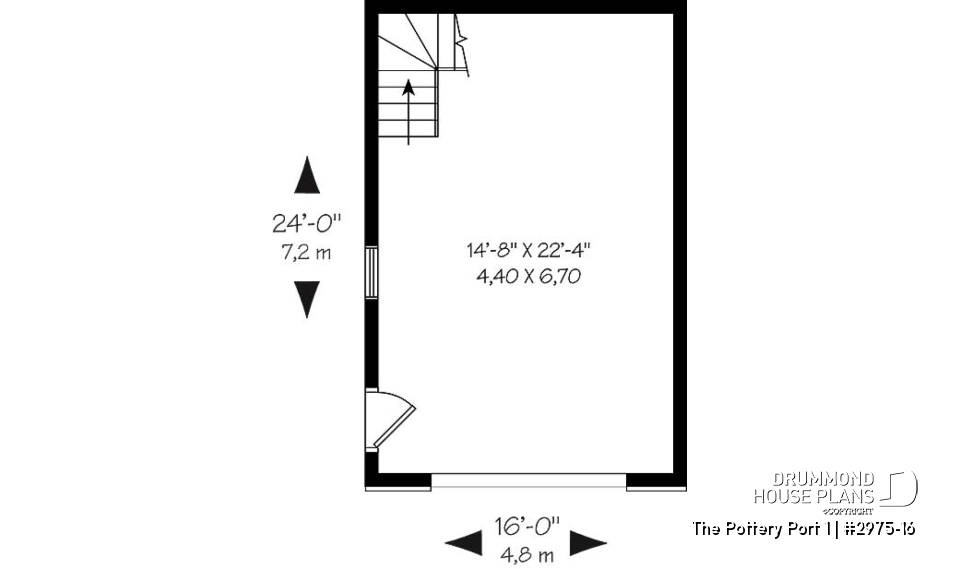

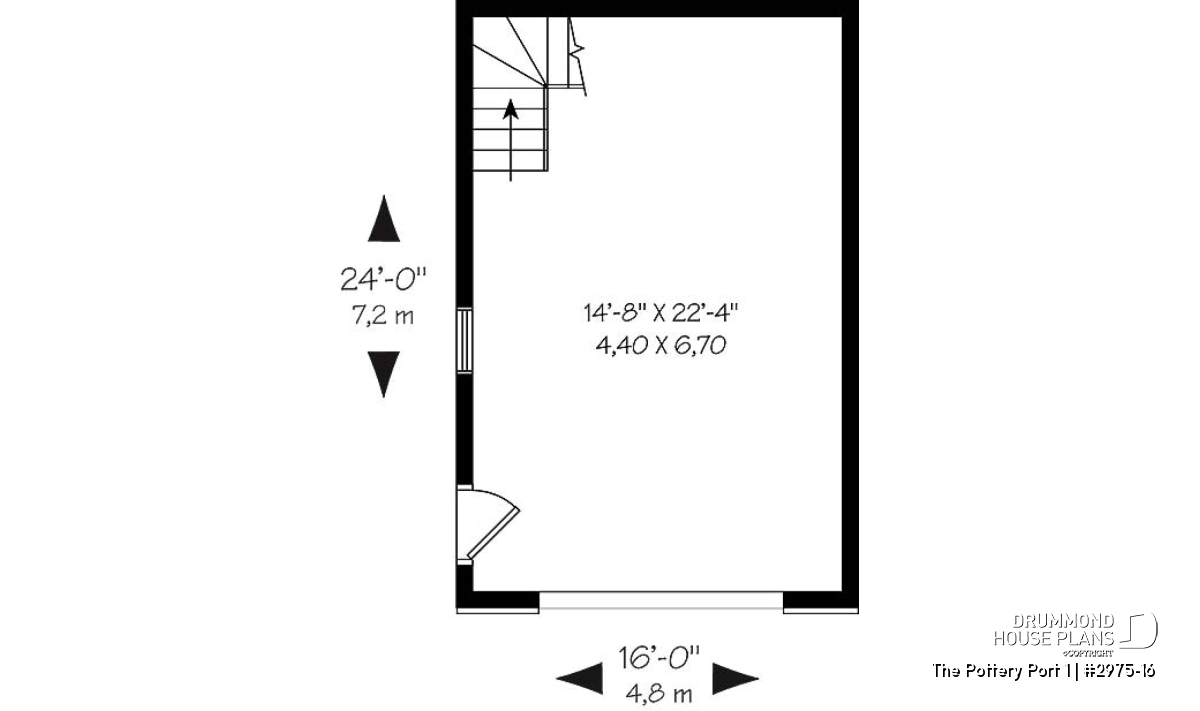

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 14'8" x 22'4" | ~ 8'6" |

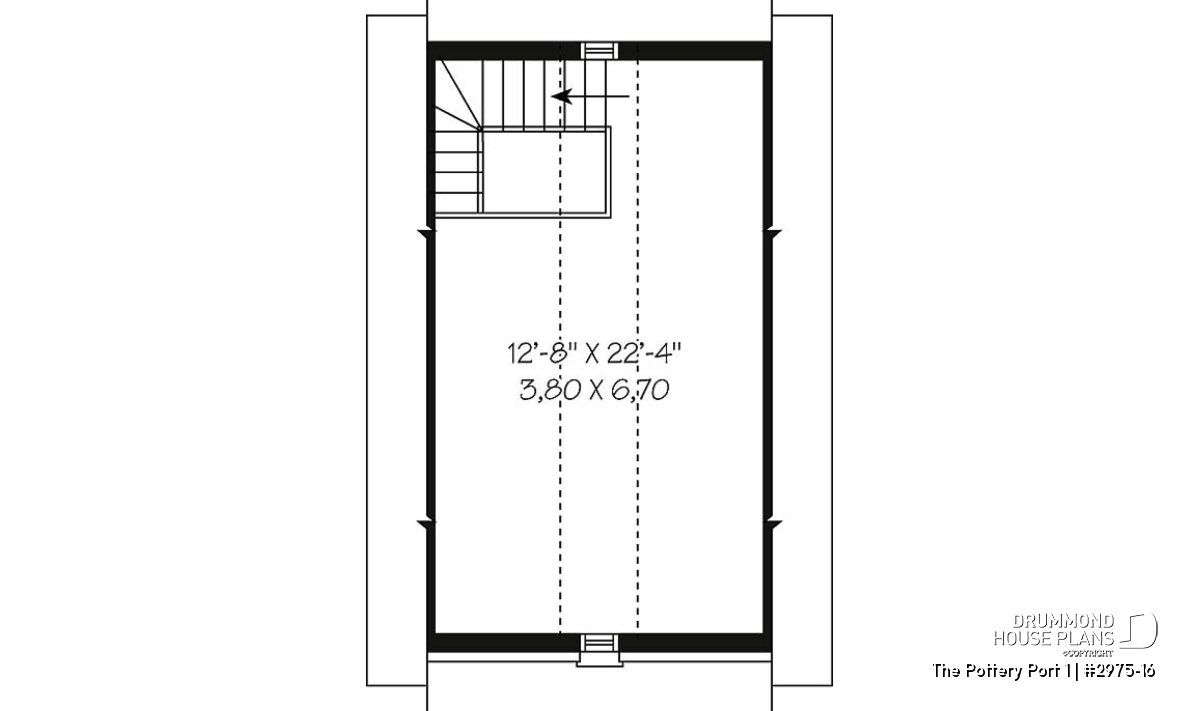

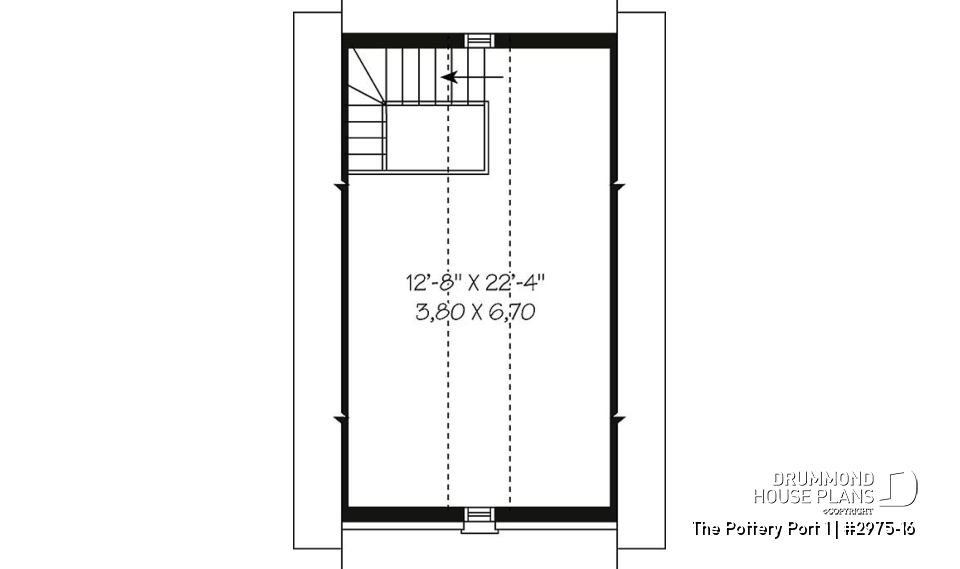

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 11'4" x 15'4" | ~ 6'0" |
General specifications
| Total living area | 658 sq.ft. |
| 1st level | 384 sq.ft. |
| 2nd level | 274 sq.ft. |
| Width | 16'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 18'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1B |
Rooms specifications
Other useful information on this plan
Sweet storage on second floor

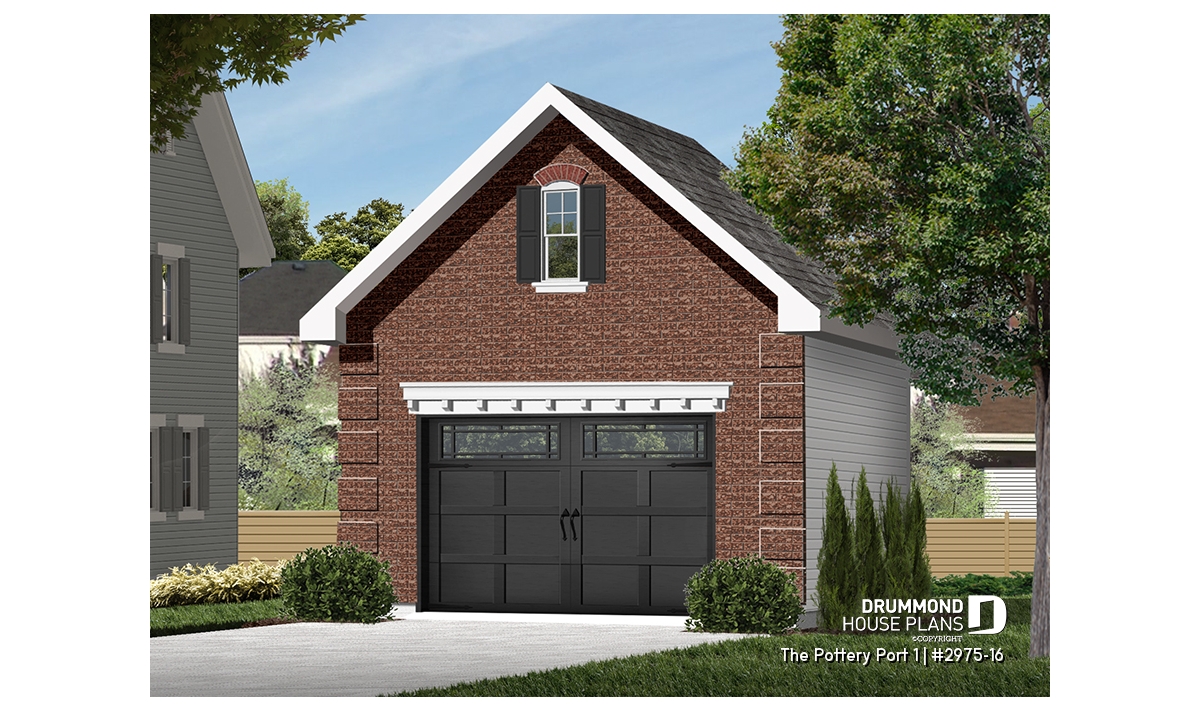

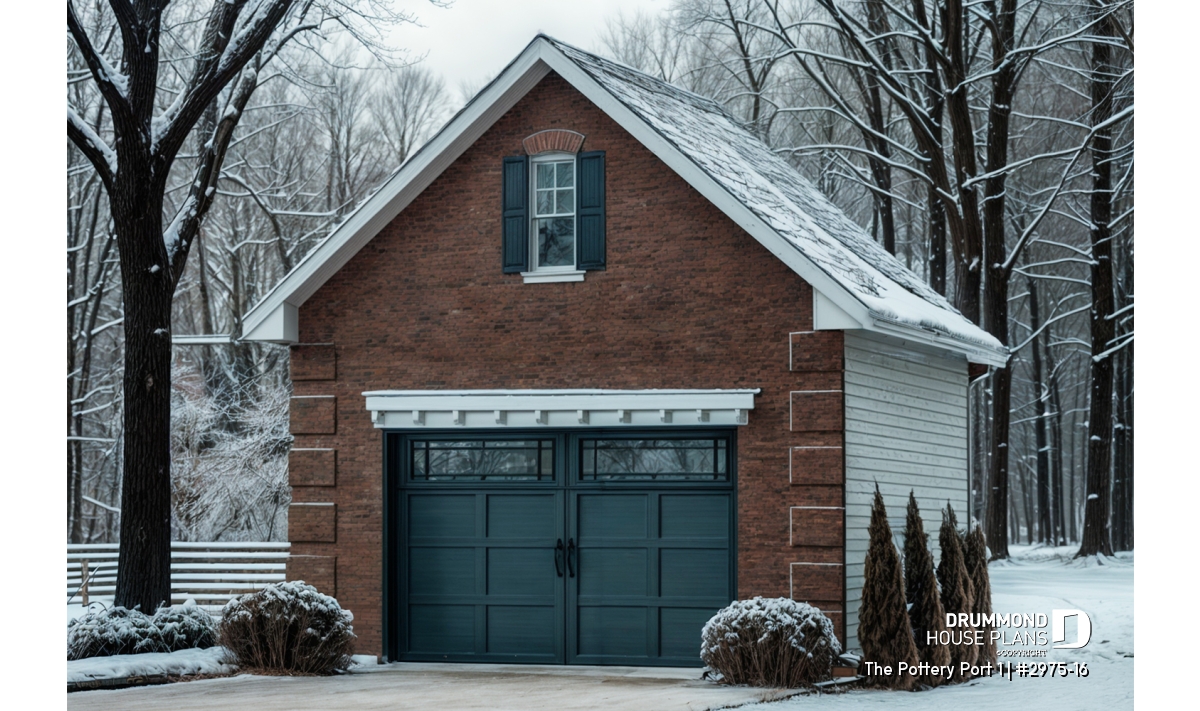

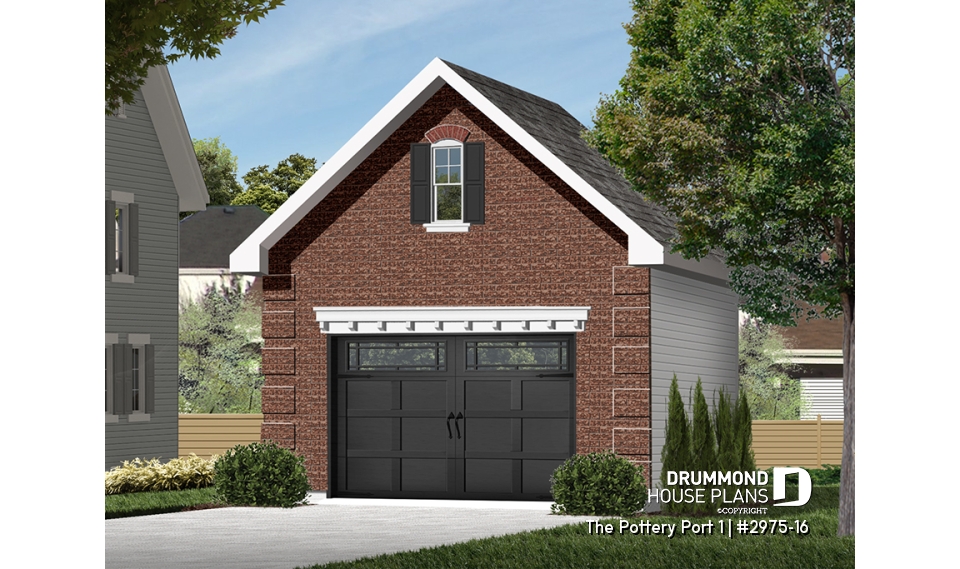

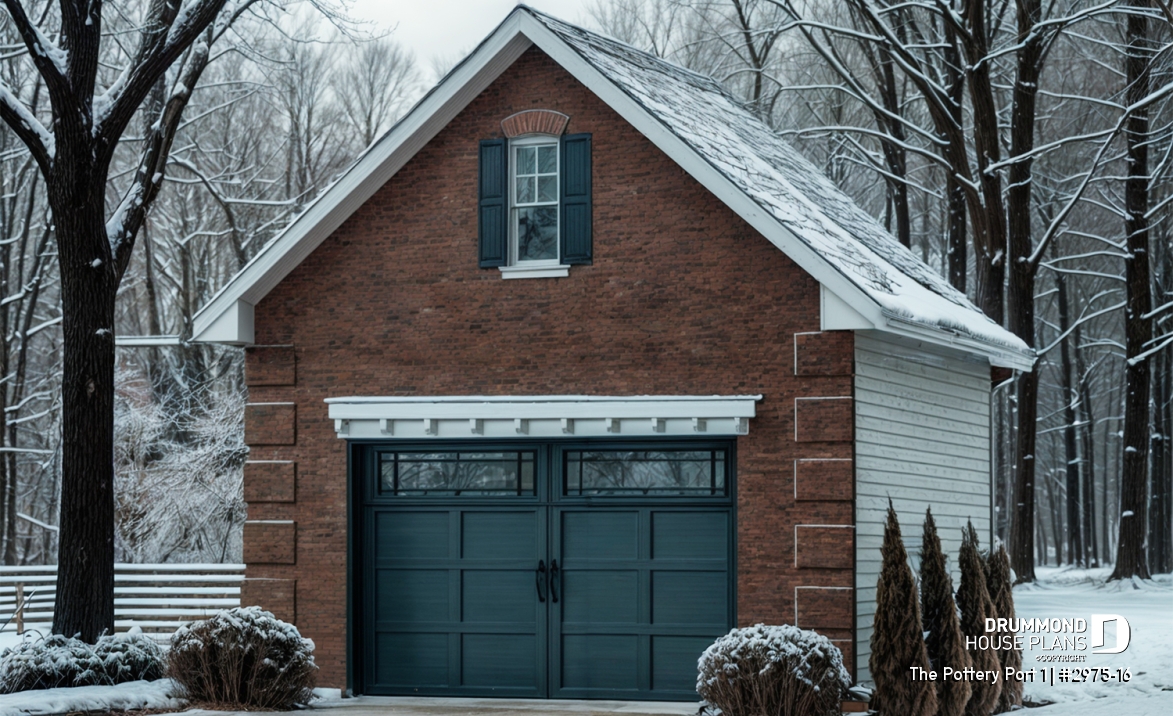

A brick facade, ornamental trim and shuttered window make this 16 foot wide garage a pleasing addition to any home. Stairs lead to a handy 12’8” x 22’4” storage area – perfect for seasonal items.
Distinctive elements
Decorative shutters
Corner stone
Second level storage of 320 sq.ft. (28,80 sq.m.)
Plan architectural style(s)
. European, . Country, . American, . Colonial, . Traditional
Previously Viewed Plans
Questions and comments
August 22 2011
Corey
Can you tell me what the roof pitch is on this building. Thank you
August 22 2011
Customer service
Dear Corey,
Thank you for your interest in Drummond House Plans.
For plan 2975-16, the pitch of the roof is 10/12.
If you have other questions, please contact me again. I will gladly answer them.
Best regards,
France, Customer Service Department
