Garage plan The Carriage Colonial 1 (2979-15)
One-car garage plan with bonus space on attic
View the size of the rooms and height of the ceilings

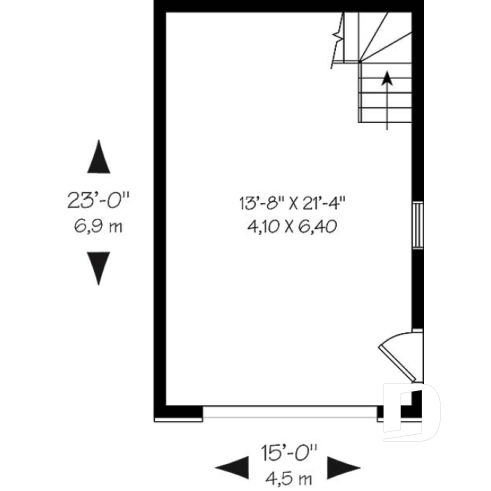

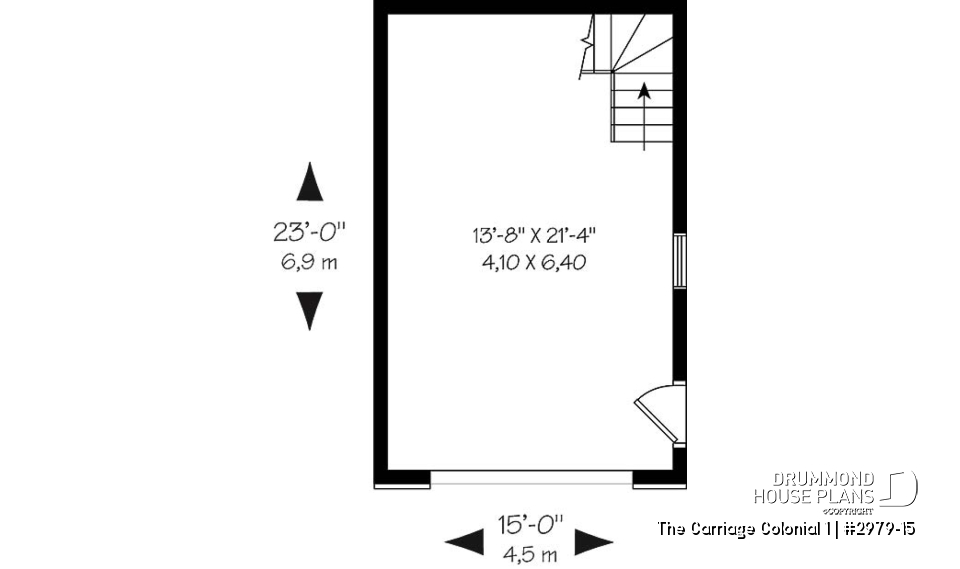

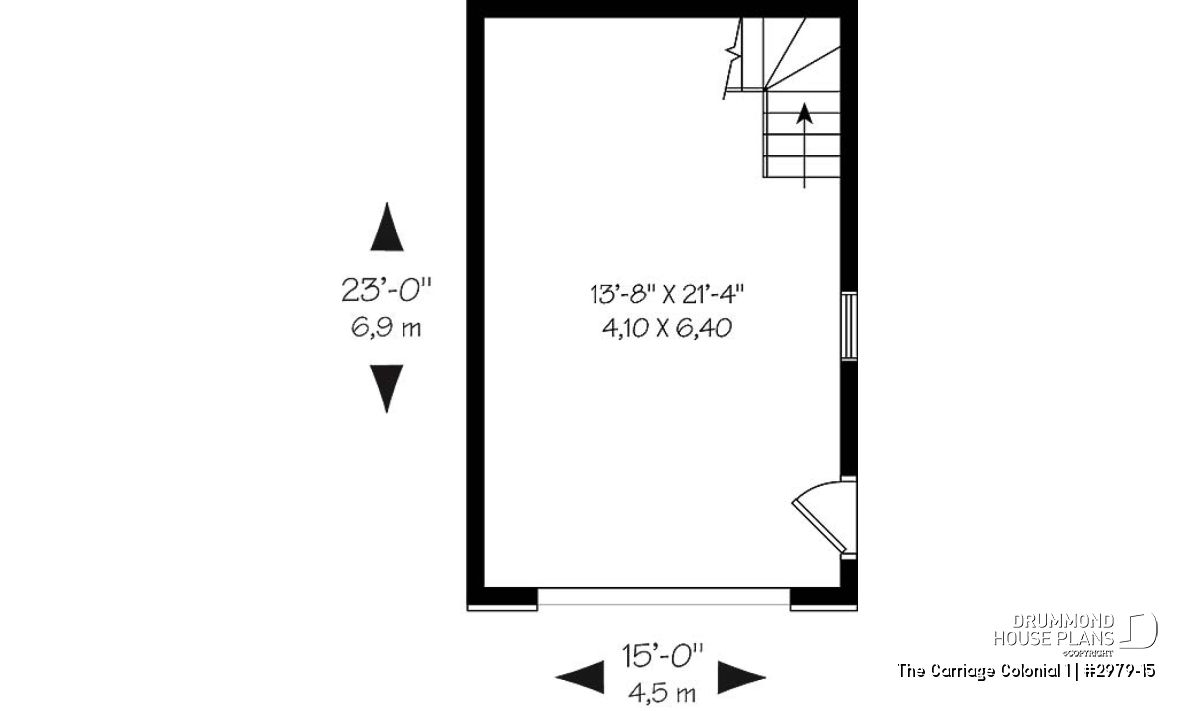

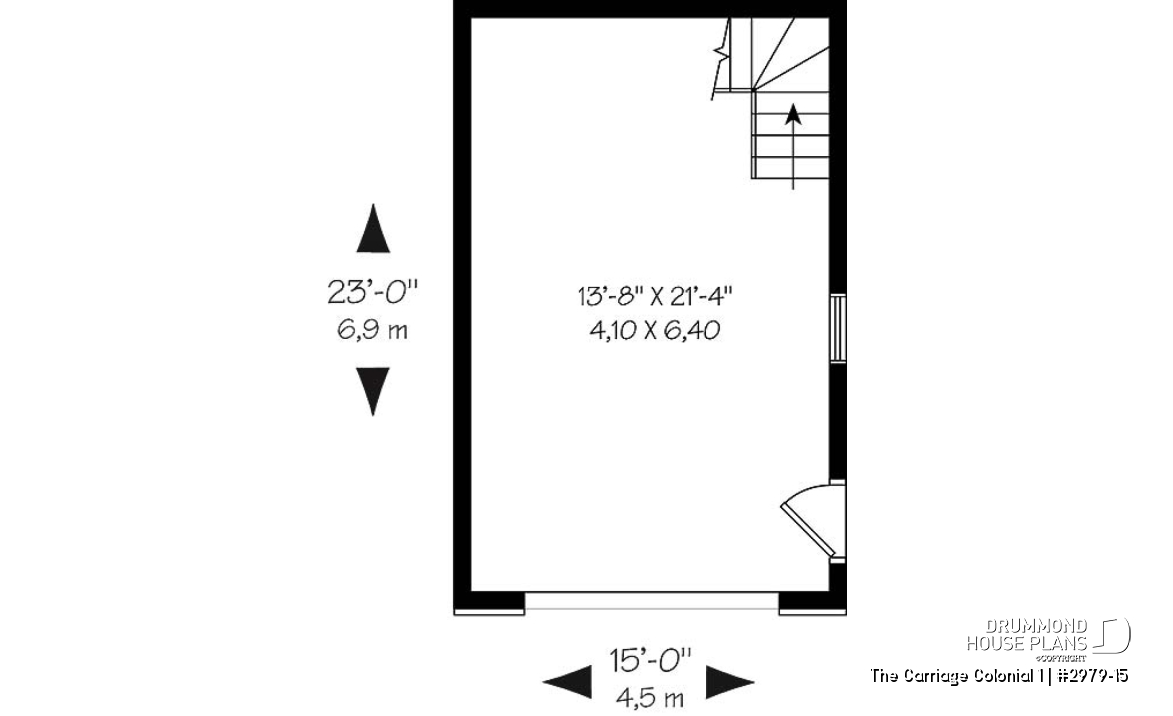

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 13'8" x 21'4" | ~ 8'0" |

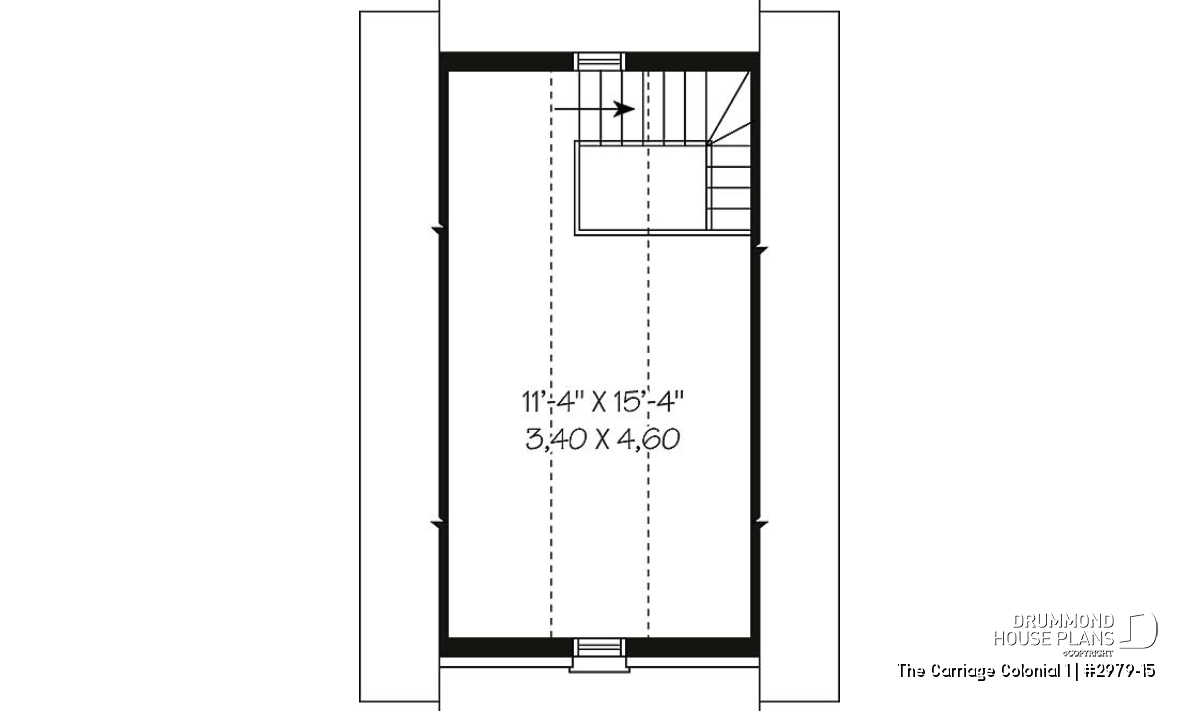

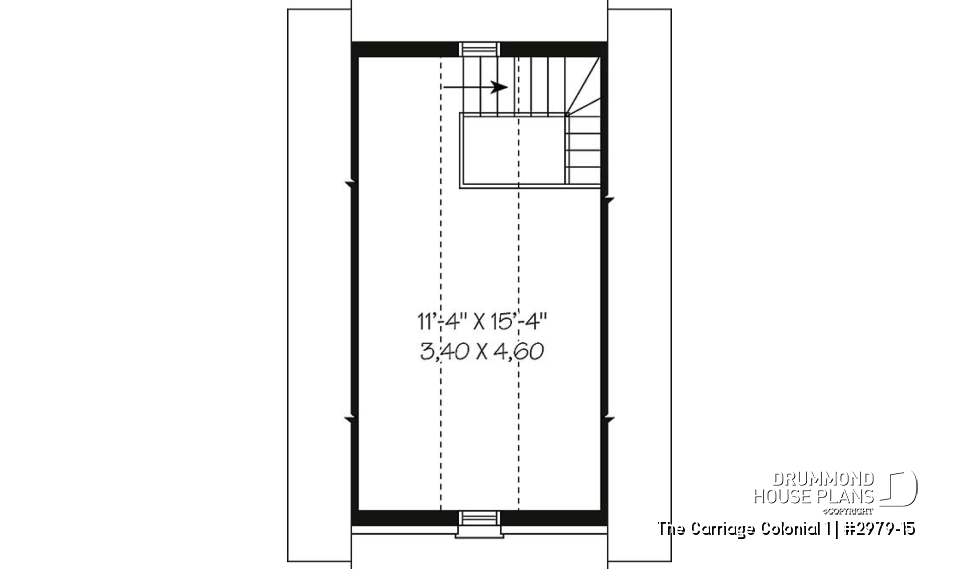

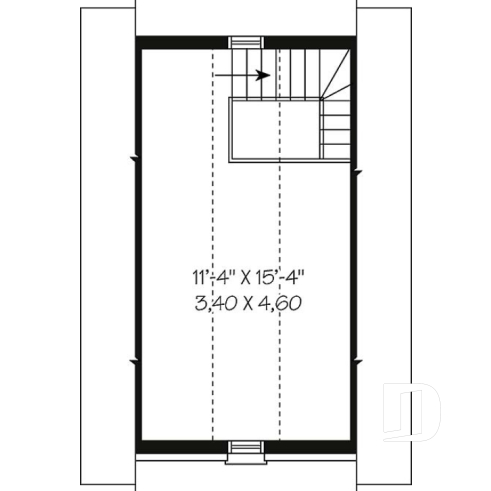

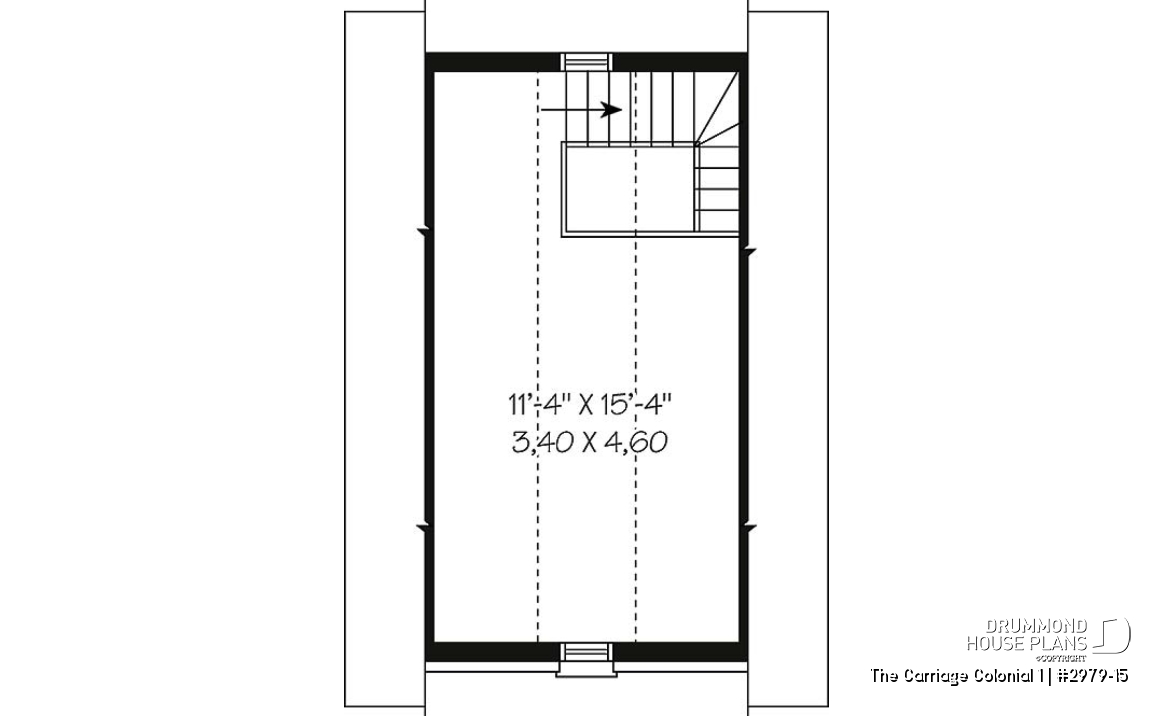

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bonus storage | 11'4" x 15'4" | ~ 7'0" |
General specifications
| Total living area | 576 sq.ft. |
| 1st level | 345 sq.ft. |
| 2nd level | 231 sq.ft. |
| Width | 15'0" |
| Depth | 23'0" |
| Ridge height from top of foundation | 20'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1B |
Rooms specifications
Other useful information on this plan
Garages can be beautiful

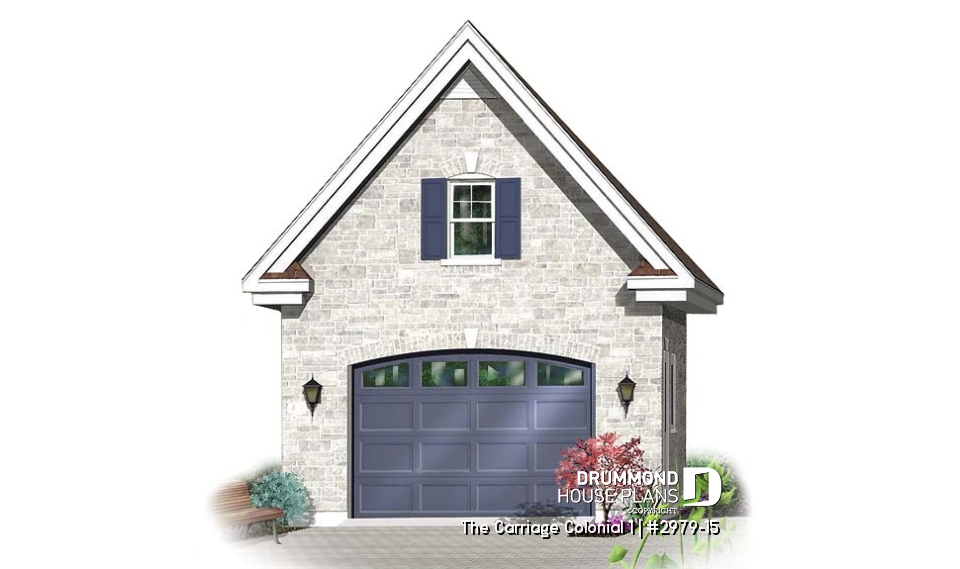

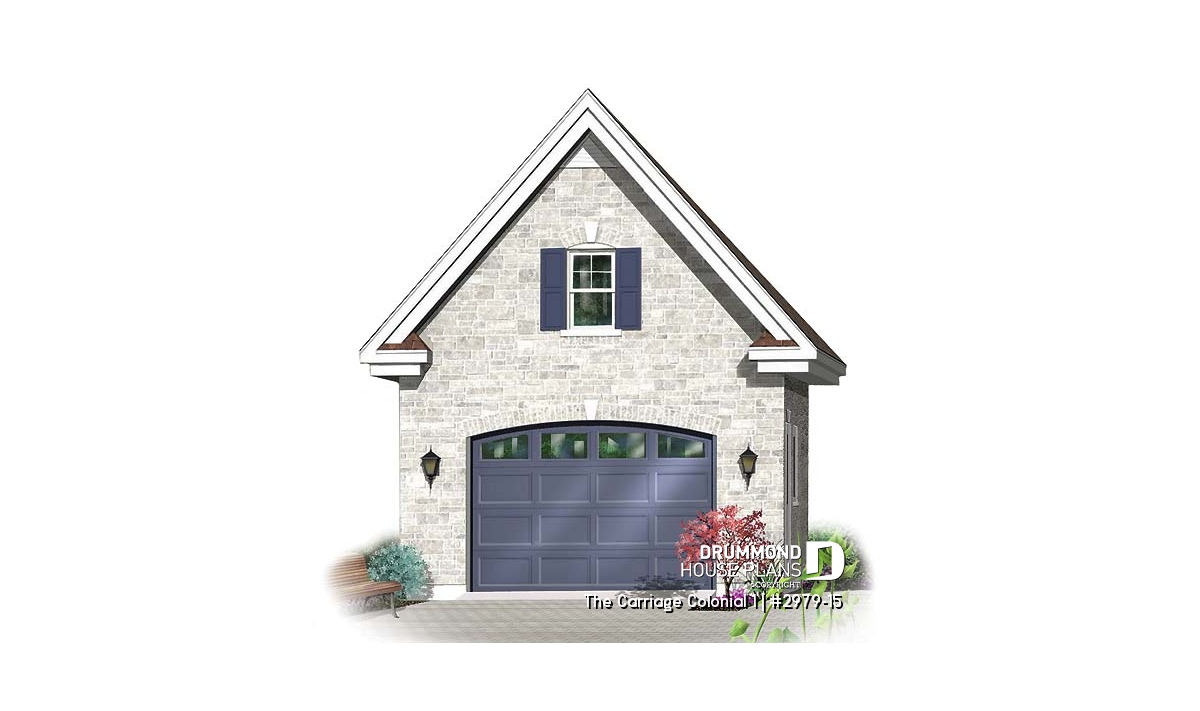

Store your ride in style in this charming colonial style garage. Stonework, decorative trim, an arched door and a shuttered window create a most pleasing facade. Stairs lead to a 231 square foot storage area which would also delight youngsters as a play area.
Distinctive elements
One-car garage plan 15' x 23'
Storage in attic.
Decorative moldings and shutters.
Second level storage area of 231 sq.ft.
Plan architectural style(s)
. American, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
January 28
Will McMullen
Hello,
We are interested in this plan, W2979-15. Reverse
Do the plans include any electrical details? Or can they be added?
Thanks
Will McMullen
January 28
Customer service
Good day and thank you for your interest in this plan.
The right reading reverse version is available for an extra $100. but we do not supply detailed electrical diagrams with our plans. A local contractor would be your best resource for this kind of information.
Please let me know if you have any other questions or comments
Regards
Deb
March 05
Wesley Walker
We want to use this plan( Plan no.W2979-15
The Carriage Colonial 1) as a workshop. I don't need the garage door and would like the gable to face the longer part of the building(flip the current roof) Is that possible and how much would that cost?
March 05
Customer service
Good day Mr. Walker and thank you for taking the time to write.
The changes that you require to this plan are possible. By filling in our on line modification form with the details,the link for which is attached below, we will be able to return a free estimate for the changes within two business days after receipt of your request.
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1002238.html
Please let me know if I can further assist you.
Regards
Deborah
May 09
dave
wondering what the roof pitch is? how much headspace in the loft? thanks, dave
May 09
Customer service
Dear Dave,
Thank you for your interest in Drummond House Plans.
The roof pitch for this plan is 14/12. The 2nd floor ceiling is sloped and the highest part of it is at 8 feet.
Please contact me again if you need further information. I will gladly answer any questions you may have.
Best Regards,
Doreen, Customer Service Department
