2975-19 (The Pottery Port 2)

Single car garage plan with 24 ft. depth, traditional style

Bedrooms

-

Bathroom(s)

-

Living area

715 sq.ft.

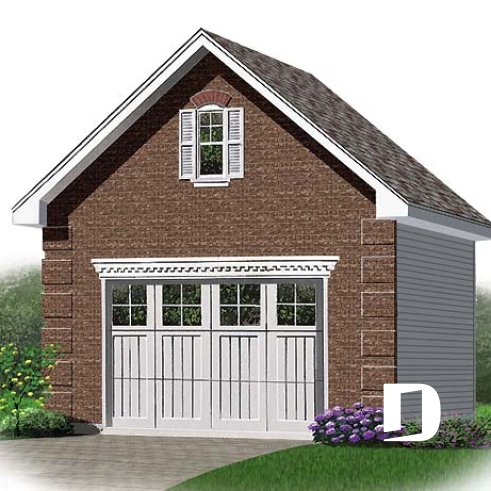

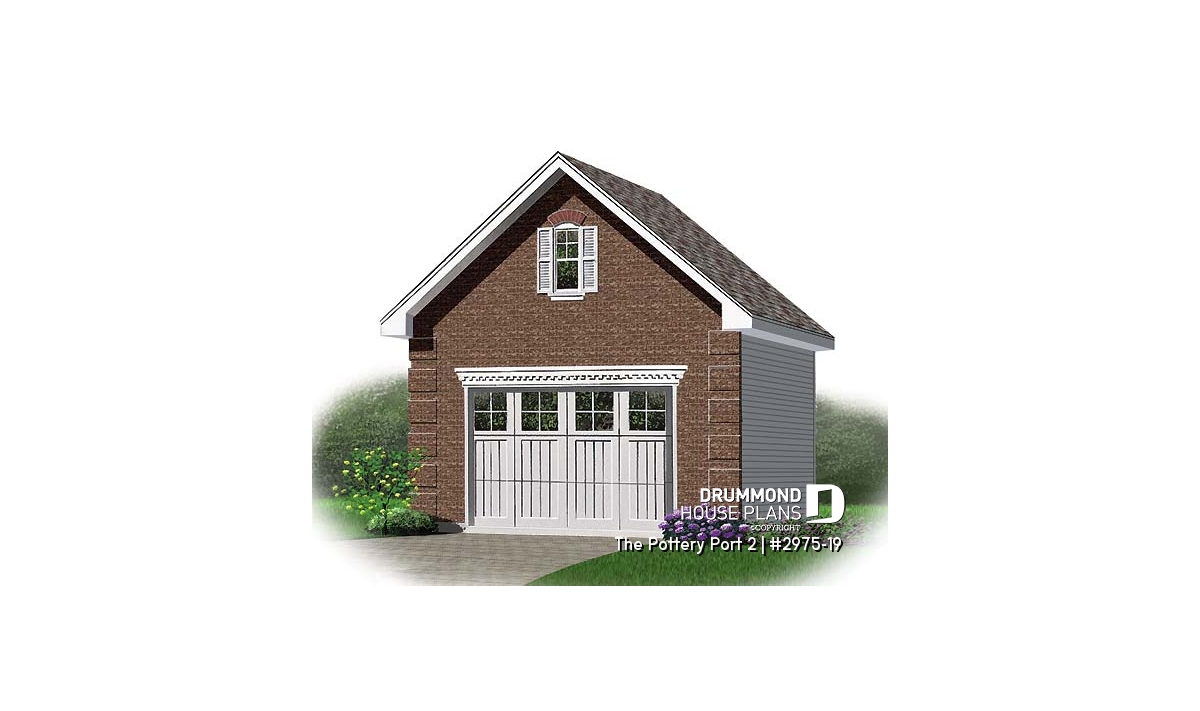

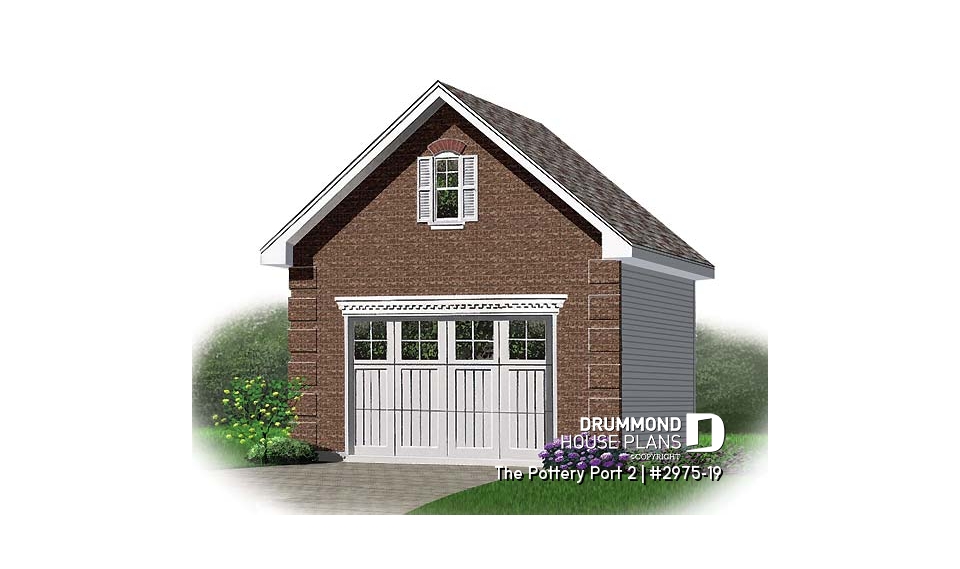

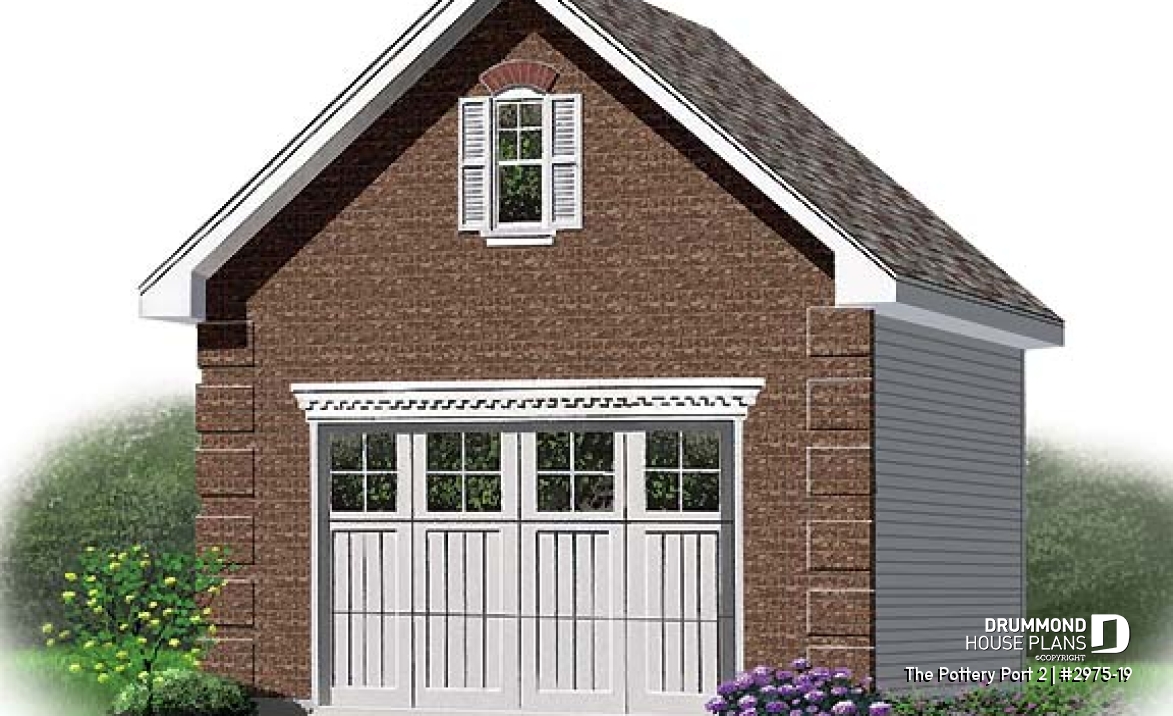

  • front - BASE MODEL - Single car garage plan with 24 ft. depth, traditional style - The Pottery Port 2

front - BASE MODEL

Vignette front - BASE MODEL - 2975-19

View by floor

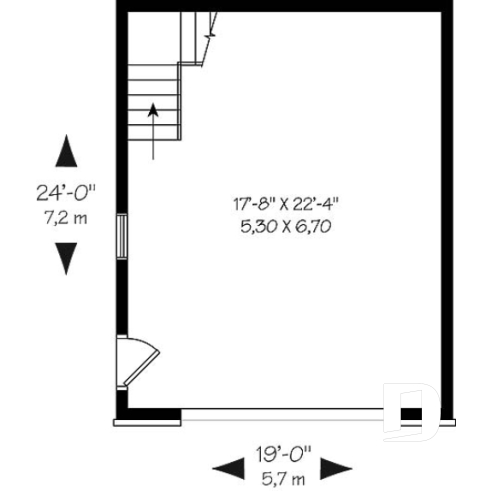

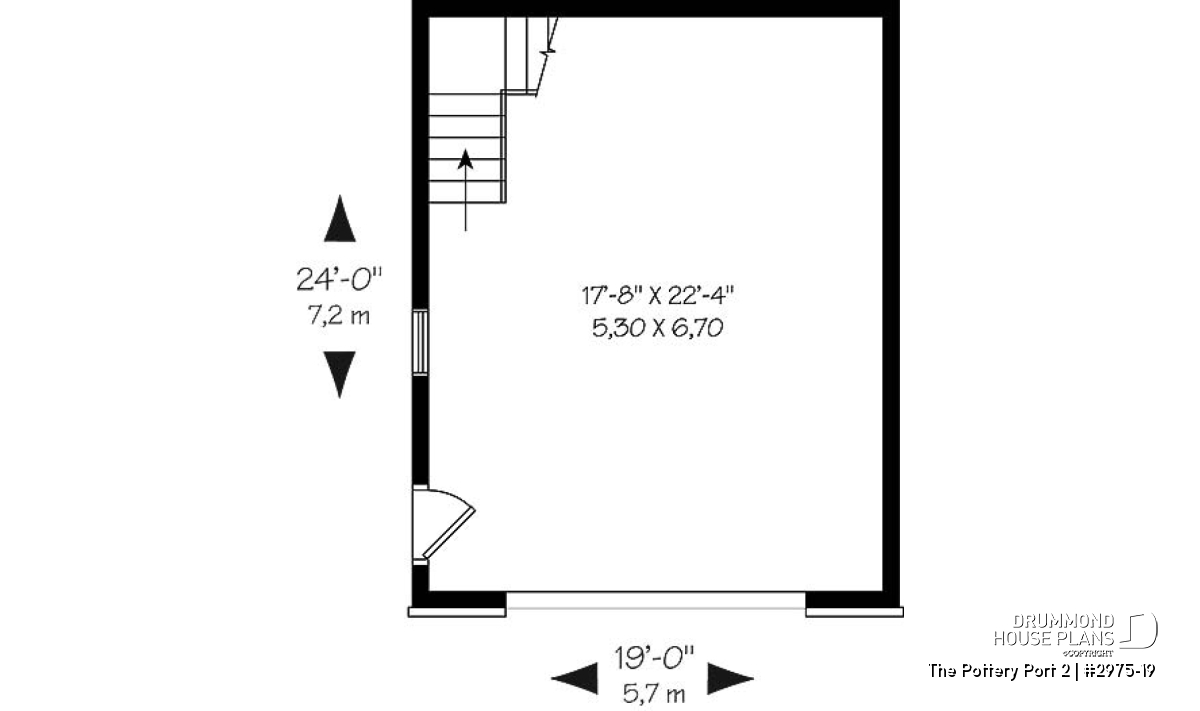

  • 1st level

    1st level - Single car garage plan with 24 ft. depth, traditional style - The Pottery Port 2

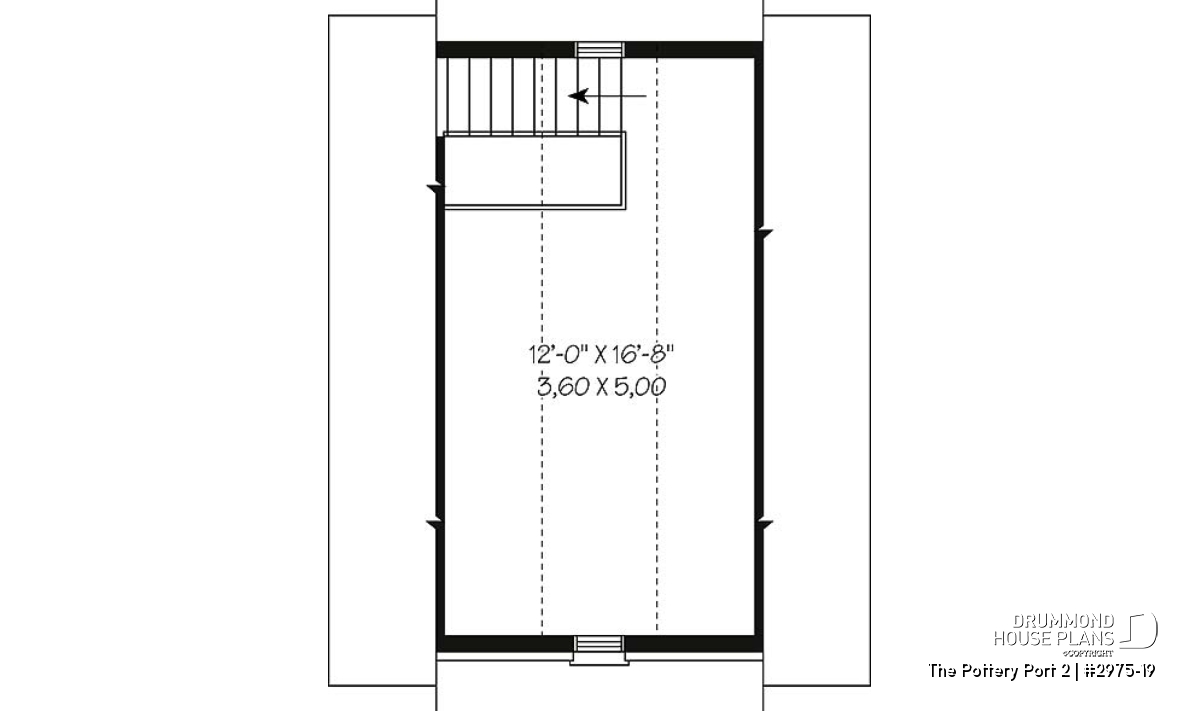

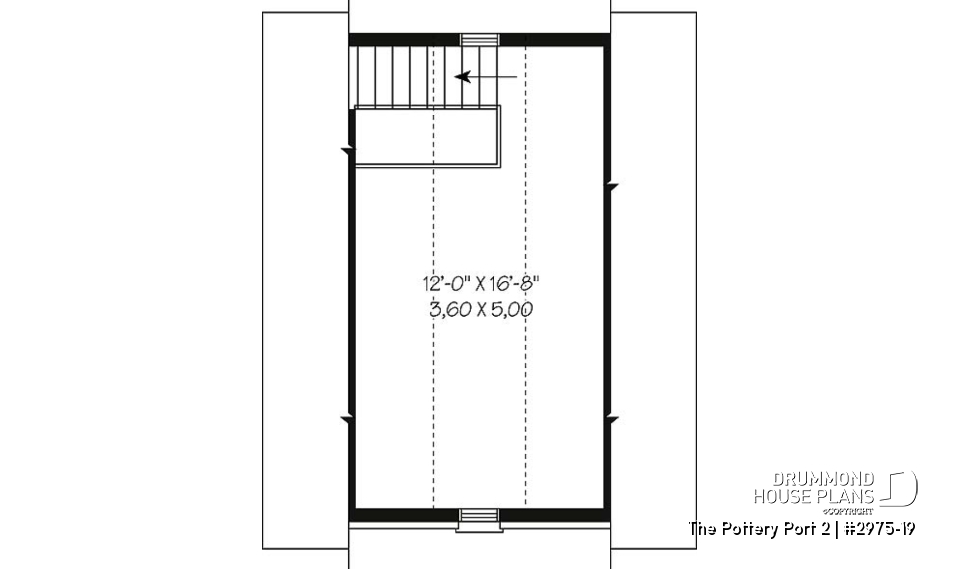

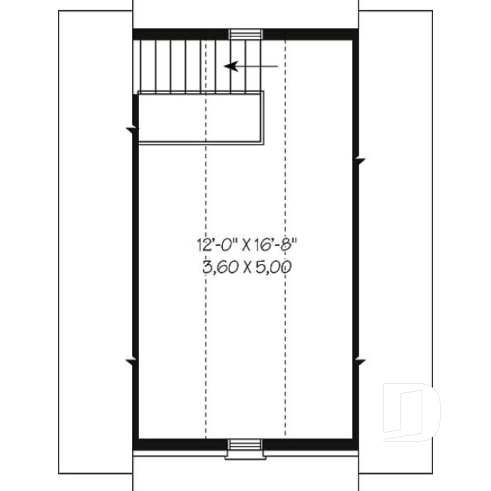

  • 2nd level

    2nd level - Single car garage plan with 24 ft. depth, traditional style - The Pottery Port 2
Vignette 1st level - 2975-19
Vignette 2nd level - 2975-19

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Garage 17'8" x 22'4" ~ 8'6"
2nd level
Rooms Sizes Ceiling
Storage 12'0" x 16'8" ~ 6'8"

General specifications

Total living area 715 sq.ft.
1st level 456 sq.ft.
2nd level 259 sq.ft.
Width 19'0"
Depth 24'0"
Ridge height from top of foundation 19'3"
Exterior wall 2 X 6
Foundation type included in the plan Floating Slab
Builder price code G1B

Rooms specifications

Bedroom(s) -
Full baths -
Half baths -
Garage type One-car garage (456 sq.ft.)
Living bonus space 259 pi2
Bonus storage -
Find a builder

General specifications

Total living area 715 sq.ft.
1st level 456 sq.ft.
2nd level 259 sq.ft.
Width 19'0"
Depth 24'0"
Ridge height from top of foundation 19'3"
Exterior wall 2 X 6
Foundation type included in the plan Floating Slab i
Builder price code G1B

Rooms specifications

Bedroom(s) -
Full baths -
Half baths -
Garage type One-car garage (456 sq.ft.)
Living bonus space 259 sq.ft. i
Bonus storage - i

Buy this plan

From : 305$

Modify this plan

Get a quote

Description

Other useful information on this plan

Plan architectural style(s)

American, European, Manors and small castles, Traditional

Other useful information on this plan

Plan architectural style(s)

Questions and comments on this plan

August 10 2012

Jesse Hooge

I am interested in this plan but have building code restrictions of a max of 10' side wall and 20' max pitch height. I see the pitch height is ok but want to be sure on the side wall height before purchasing. Thank you for your help.

August 10 2012

Service à la clientele

Good day and thank you for taking the time to write.

The height of the actual wall is 10' plus 8" from the top of the foundation. The pitch height is 19' 3" from the top of the foundation.

Please let me know if I can further assist you.

Regards

Deborah

May 16 2011

dave

can this plan be modified to 20ft wide instead of 19? why does this plan(19x24) have smaller square footage in 2nd floor compared to the 16x24 plan? what size garage door is suggested for the 19X24 plan?
thanks,
dave

May 19 2011

Customer service

Dear Dave,

Thank you for your interest in Drummond House Plans.

The knee wall is lower for plan 2975-19 than for plan 2975-16. That is why there is less square footage for plan 2975-19. The garage door is 12' x7'. Please contact me again if you need further information. I will gladly answer any questions you may have.

Best Regards,

Doreen, Customer Service Department

Questions and comments

August 10 2012

Jesse Hooge

I am interested in this plan but have building code restrictions of a max of 10' side wall and 20' max pitch height. I see the pitch height is ok but want to be sure on the side wall height before purchasing. Thank you for your help.

August 10 2012

Service à la clientele

Good day and thank you for taking the time to write.

The height of the actual wall is 10' plus 8" from the top of the foundation. The pitch height is 19' 3" from the top of the foundation.

Please let me know if I can further assist you.

Regards

Deborah

May 16 2011

dave

can this plan be modified to 20ft wide instead of 19? why does this plan(19x24) have smaller square footage in 2nd floor compared to the 16x24 plan? what size garage door is suggested for the 19X24 plan?
thanks,
dave

May 19 2011

Customer service

Dear Dave,

Thank you for your interest in Drummond House Plans.

The knee wall is lower for plan 2975-19 than for plan 2975-16. That is why there is less square footage for plan 2975-19. The garage door is 12' x7'. Please contact me again if you need further information. I will gladly answer any questions you may have.

Best Regards,

Doreen, Customer Service Department
