Garage plan The Pottery Port 2 (2975-19)
Single car garage plan with 24 ft. depth, traditional style
View the size of the rooms and height of the ceilings

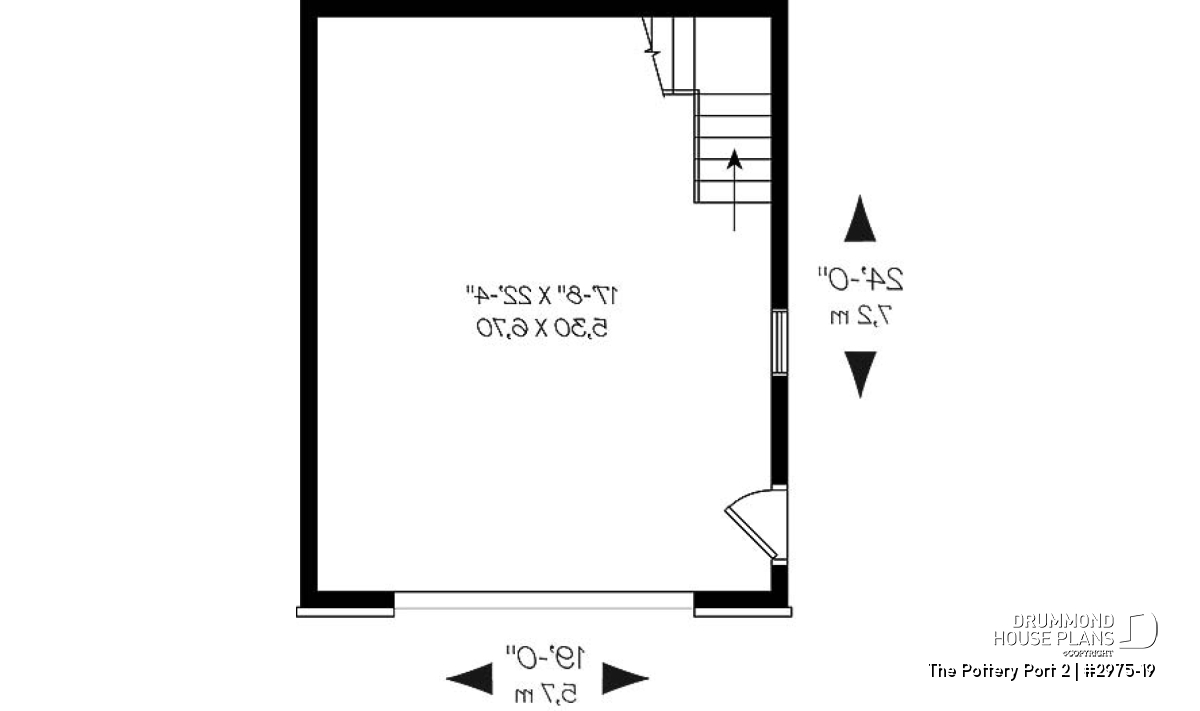

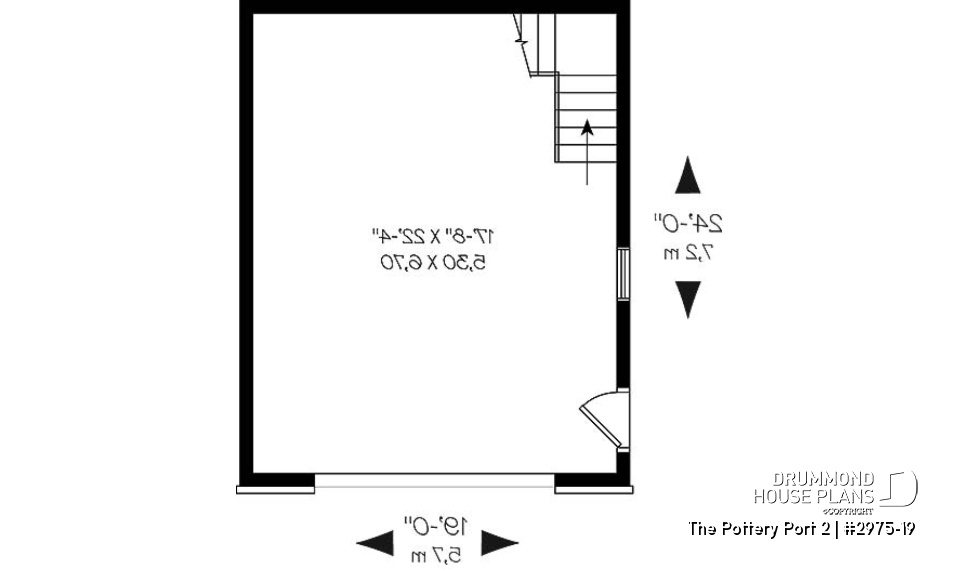

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 17'8" x 22'4" | ~ 8'6" |

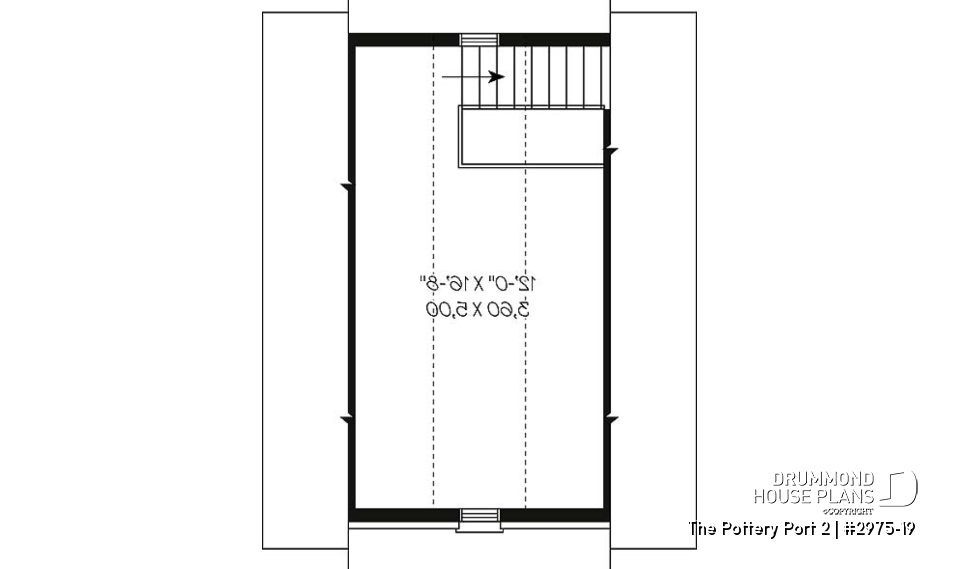

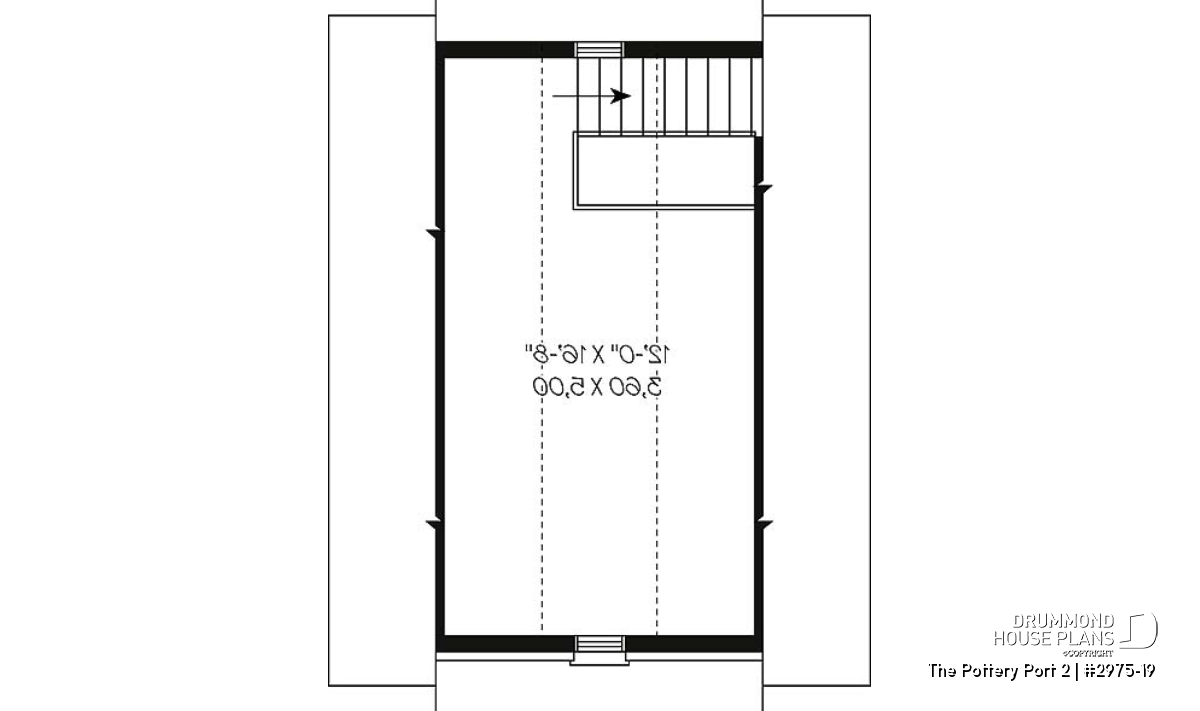

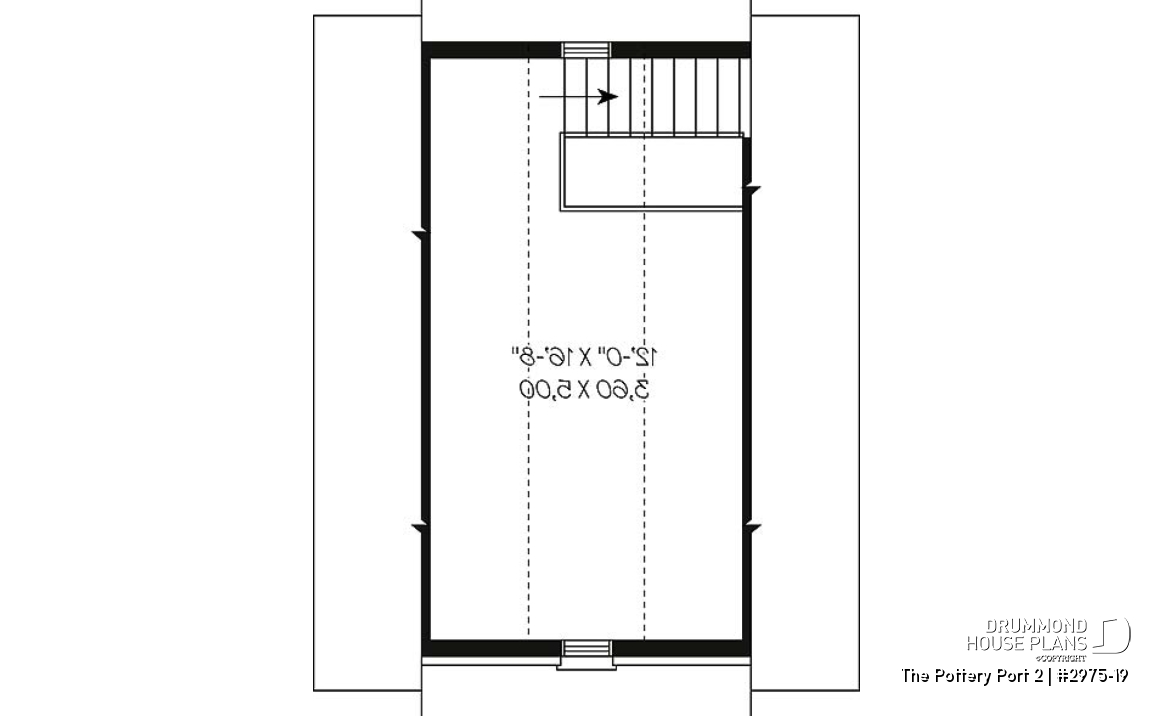

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 12'0" x 16'8" | ~ 6'8" |
General specifications
| Total living area | 715 sq.ft. |
| 1st level | 456 sq.ft. |
| 2nd level | 259 sq.ft. |
| Width | 19'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 19'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1B |
Rooms specifications
Other useful information on this plan

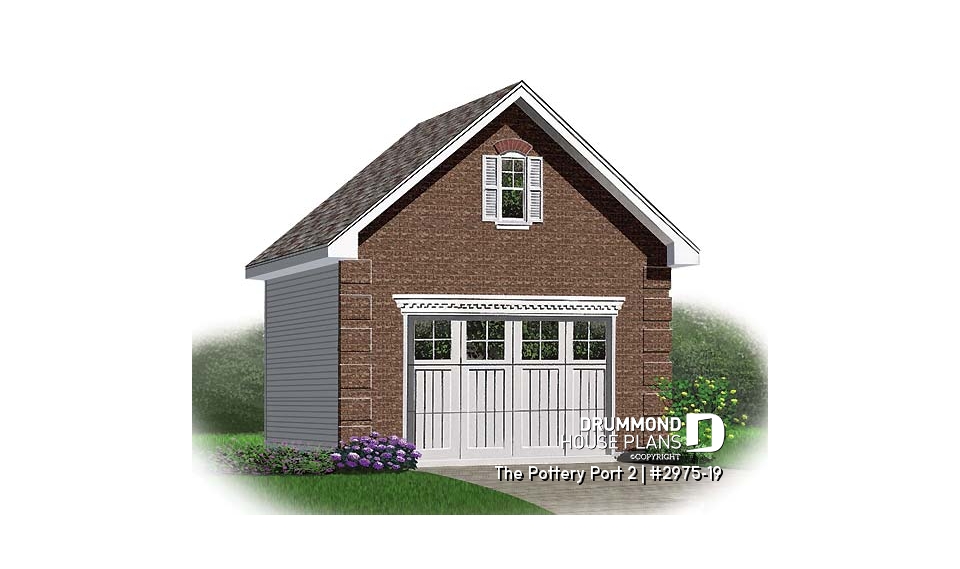

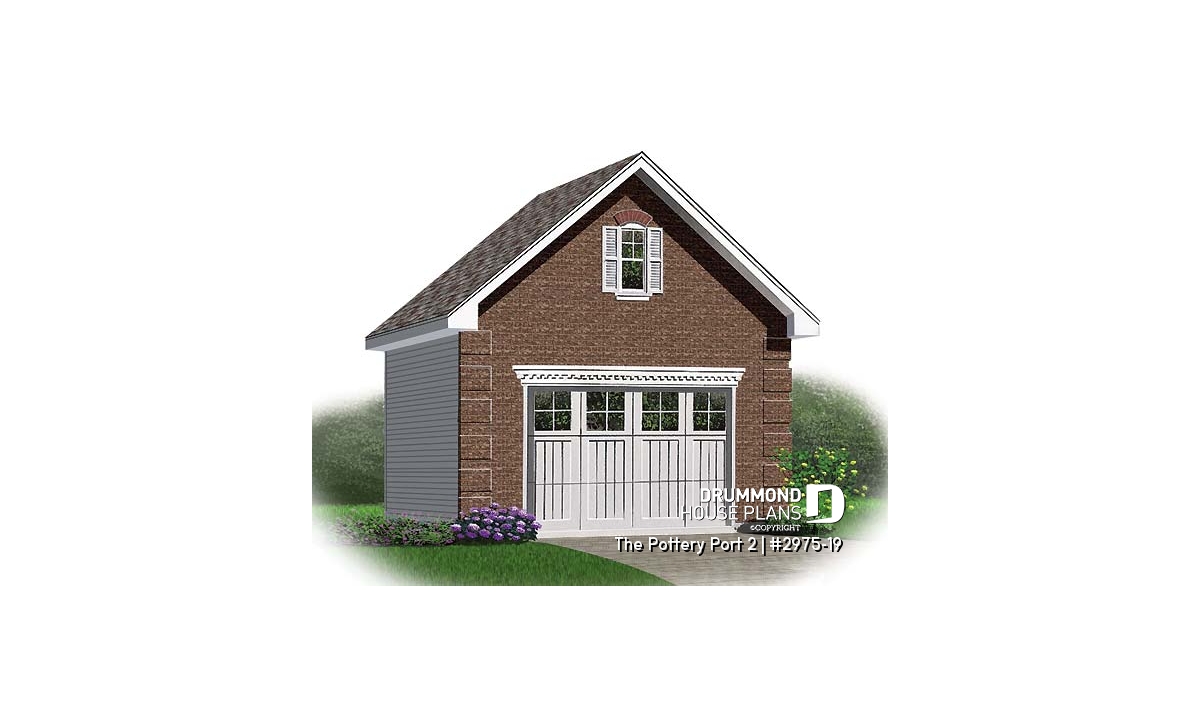

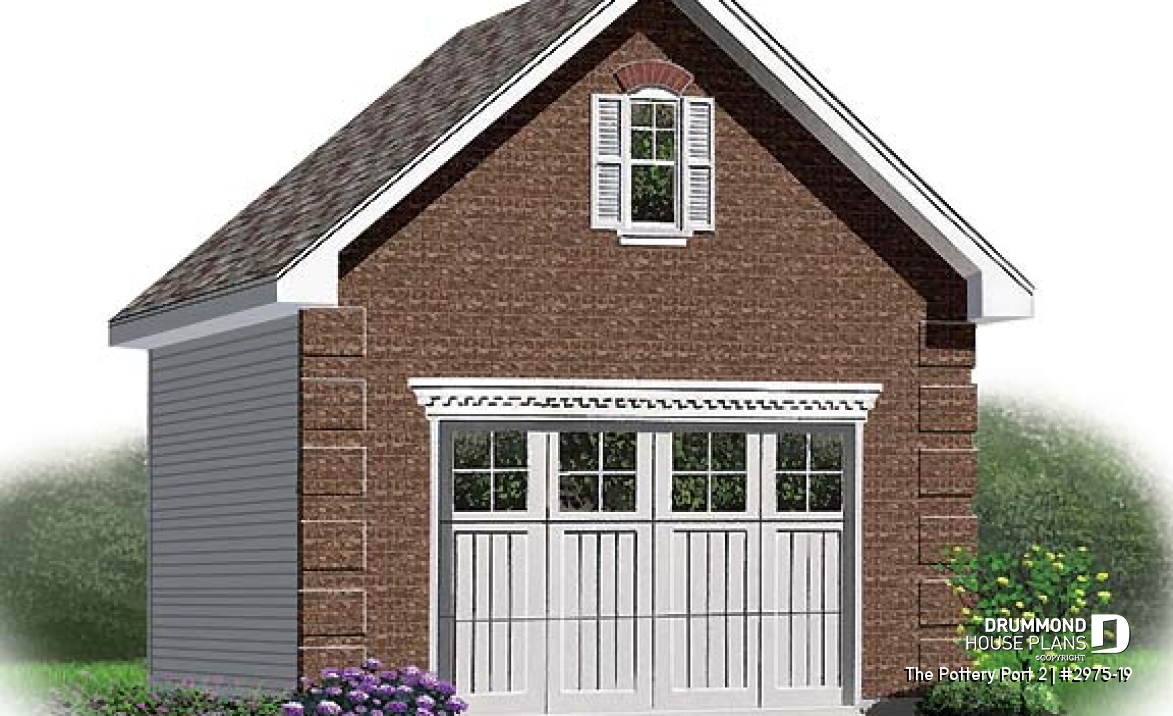

Bold brickwork for this one-car garage plan with 2nd floor storage!
Designed and illustrated in a style to complement traditional brick houses, this single-car garage provides pleasing proportions for vehicle parking and a bit of workspace to spare. A staircase leads to bonus storage above – perfect for storage of seasonal items.
Distinctive elements
Decorative shutters.
Facade bricks.
Second level storage of 259 sq.ft.
Plan architectural style(s)
. American, . European, . Manors and small castles, . Traditional, . Colonial
Similar plans
Previously Viewed Plans
Questions and comments
August 10
Jesse Hooge
I am interested in this plan but have building code restrictions of a max of 10' side wall and 20' max pitch height. I see the pitch height is ok but want to be sure on the side wall height before purchasing. Thank you for your help.
August 10
Service à la clientele
Good day and thank you for taking the time to write.
The height of the actual wall is 10' plus 8" from the top of the foundation. The pitch height is 19' 3" from the top of the foundation.
Please let me know if I can further assist you.
Regards
Deborah
May 16
dave
can this plan be modified to 20ft wide instead of 19? why does this plan(19x24) have smaller square footage in 2nd floor compared to the 16x24 plan? what size garage door is suggested for the 19X24 plan?
thanks,
dave
May 19
Customer service
Dear Dave,
Thank you for your interest in Drummond House Plans.
The knee wall is lower for plan 2975-19 than for plan 2975-16. That is why there is less square footage for plan 2975-19. The garage door is 12' x7'. Please contact me again if you need further information. I will gladly answer any questions you may have.
Best Regards,
Doreen, Customer Service Department
