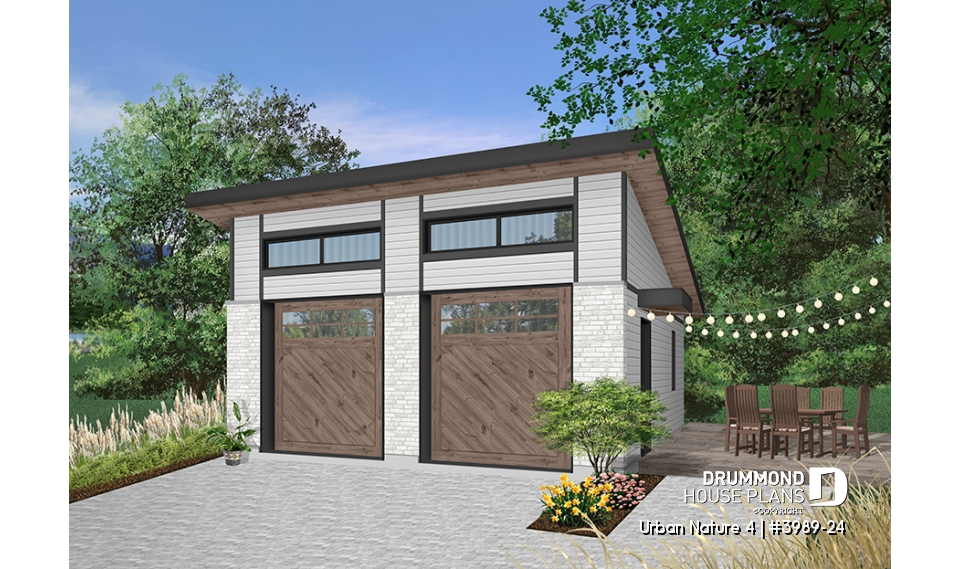

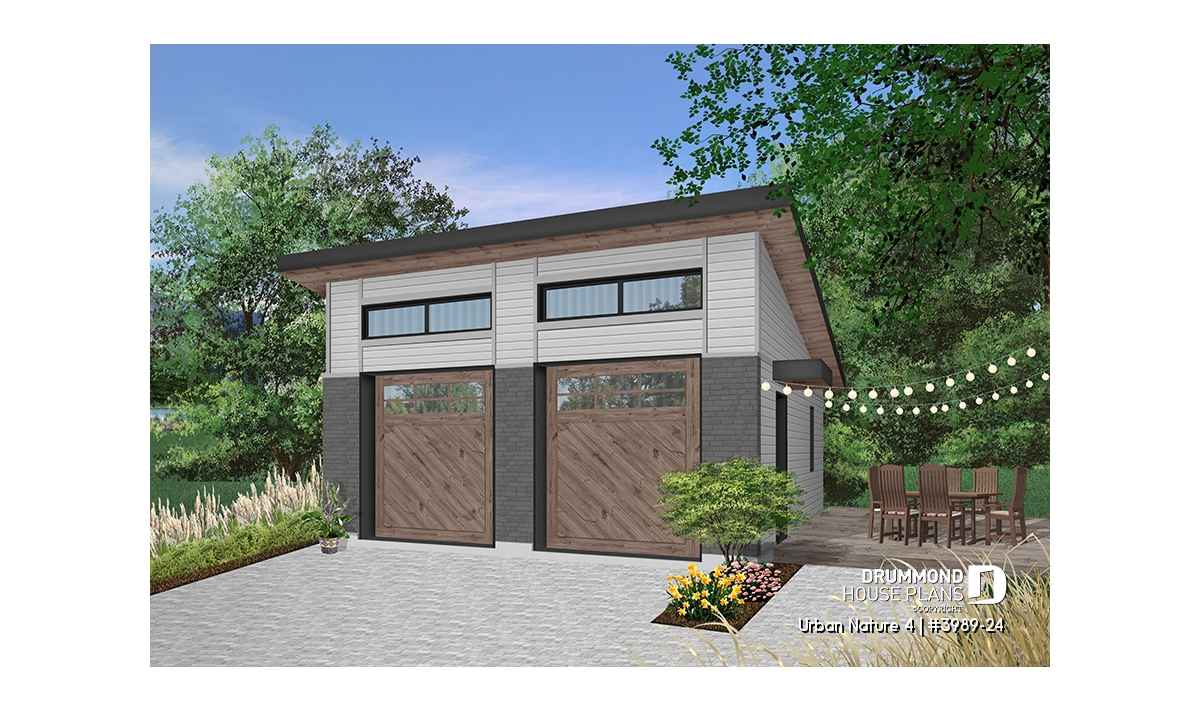

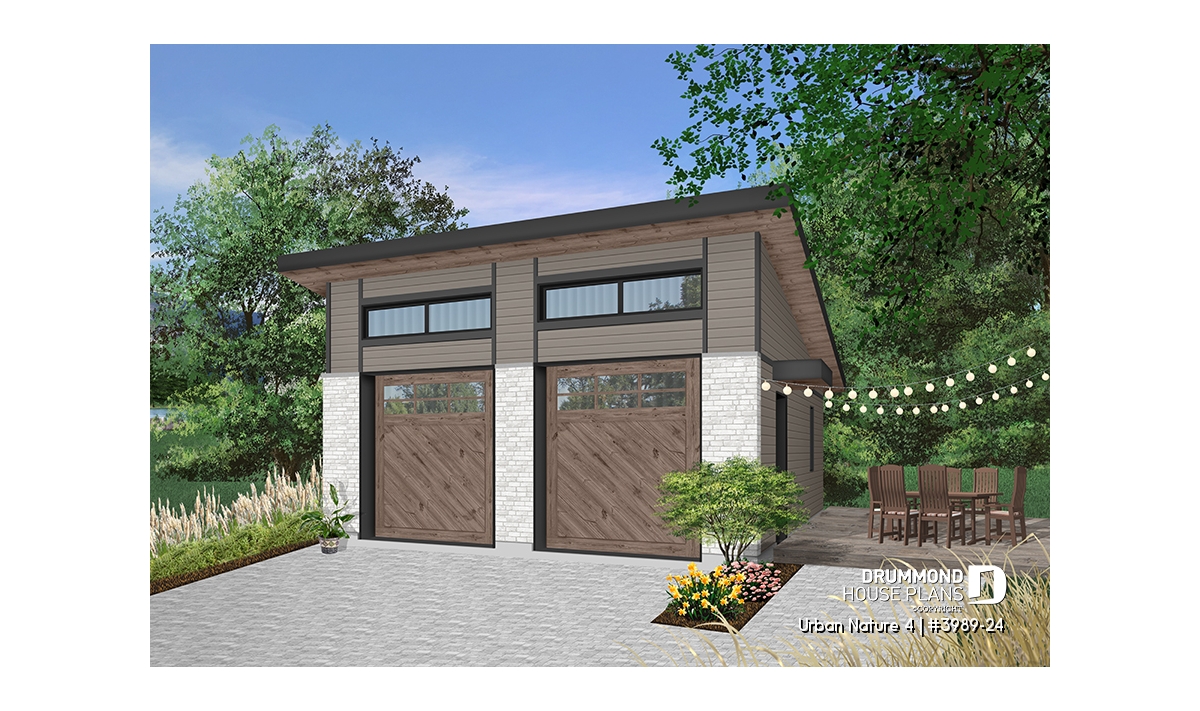

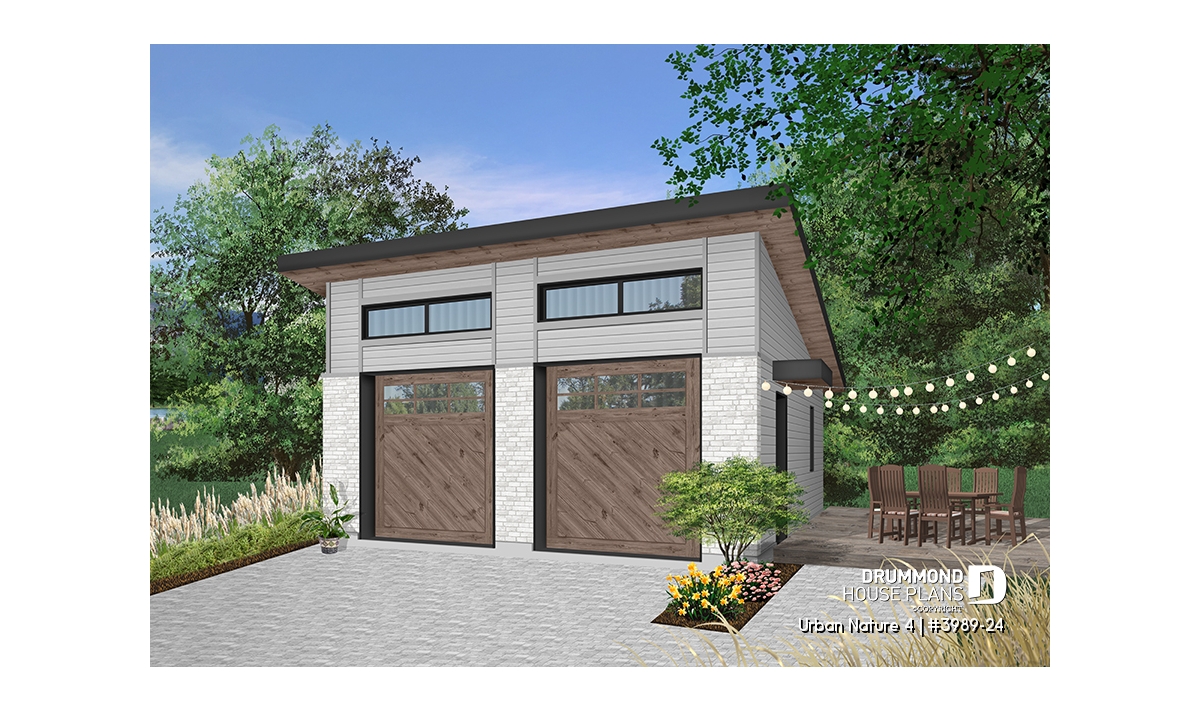

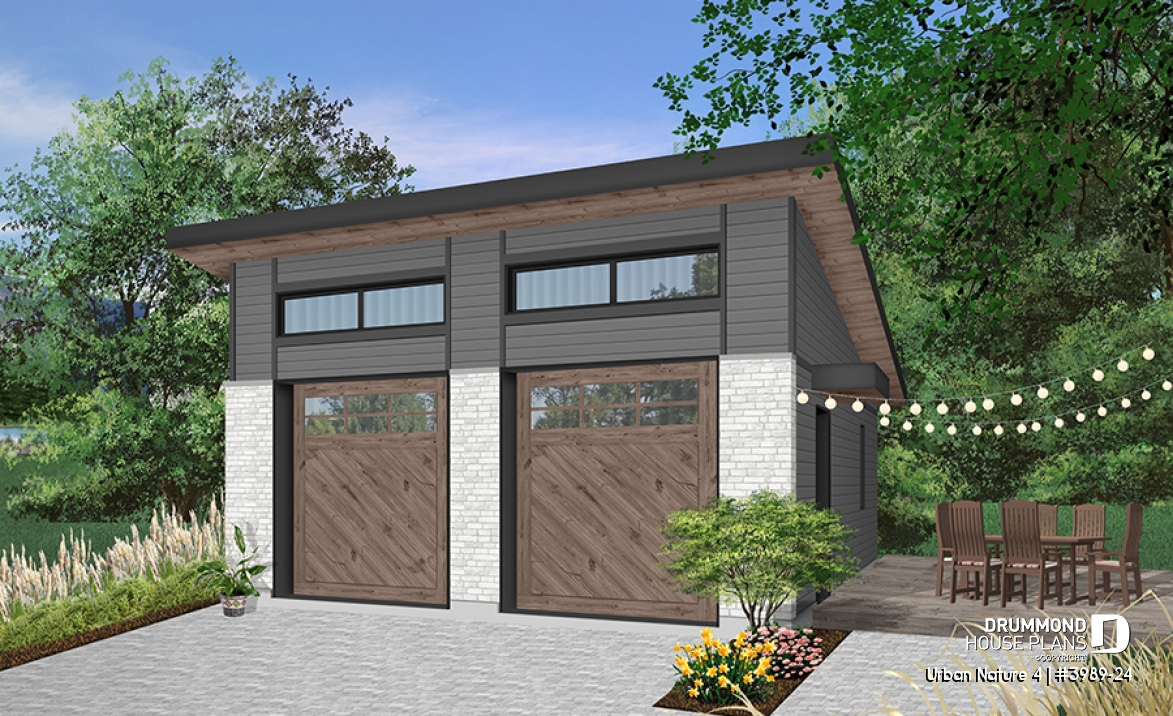

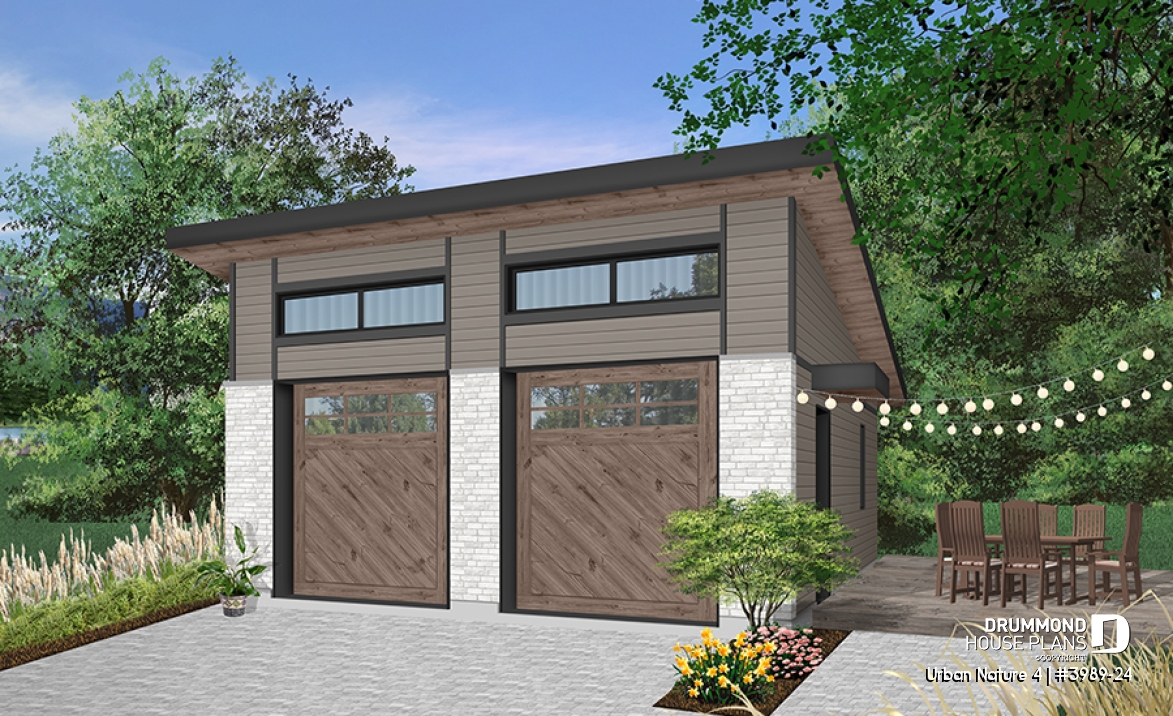

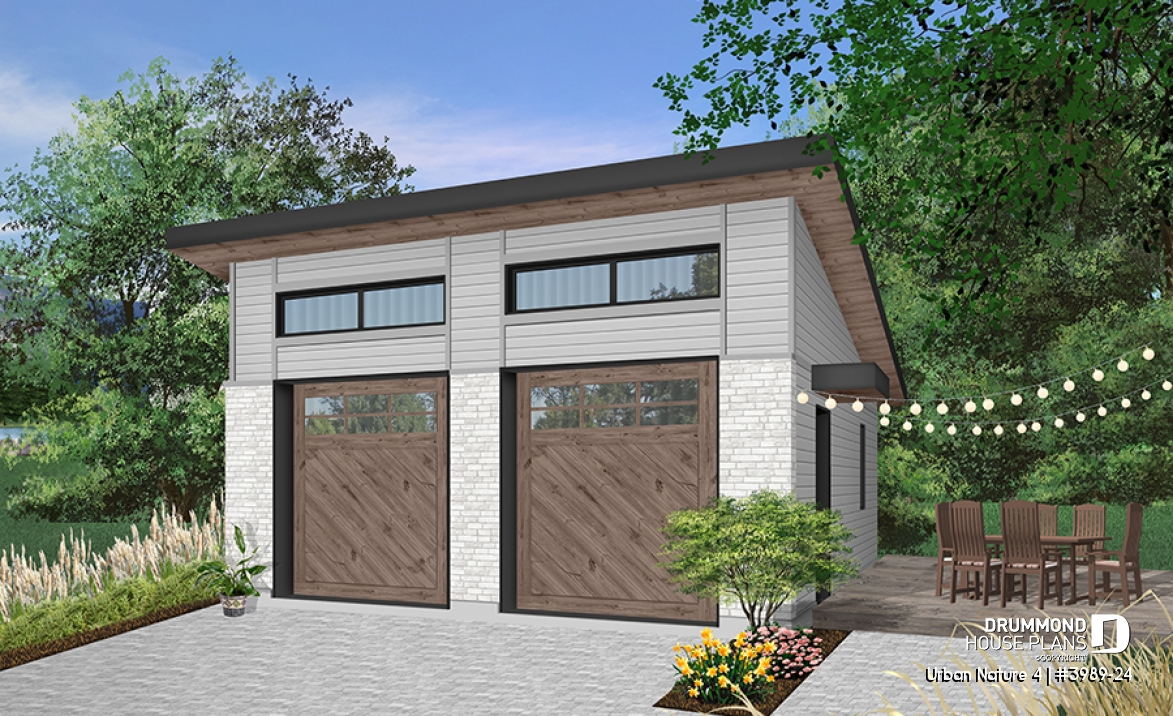

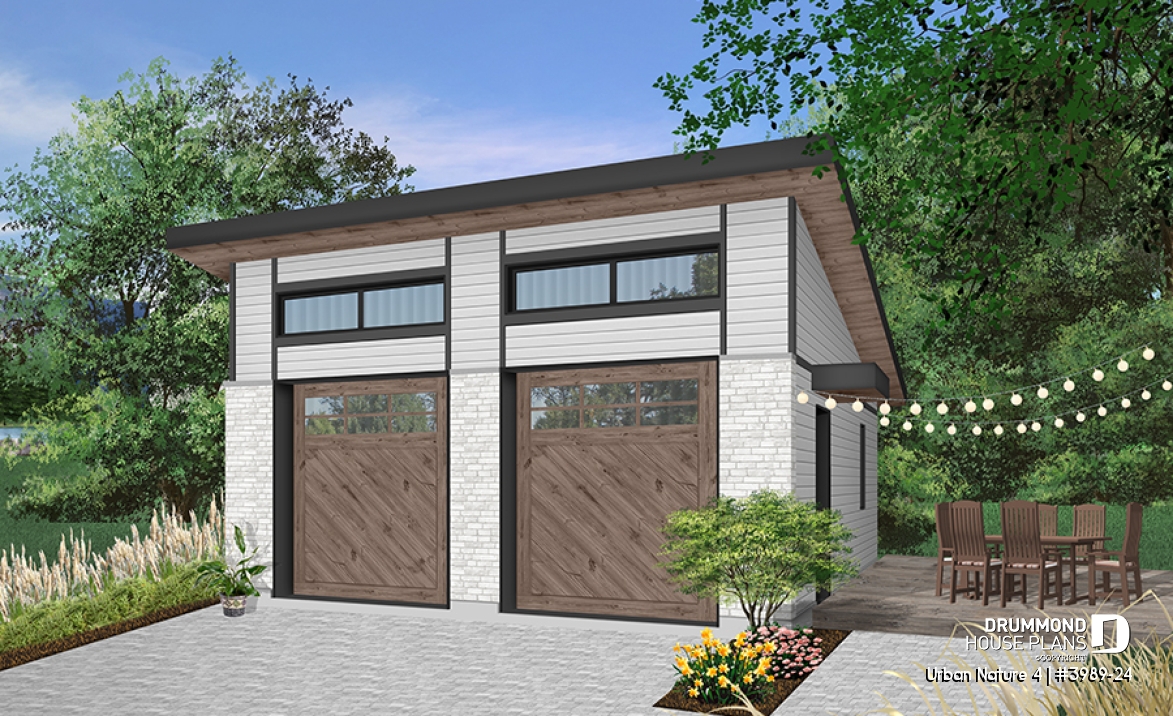

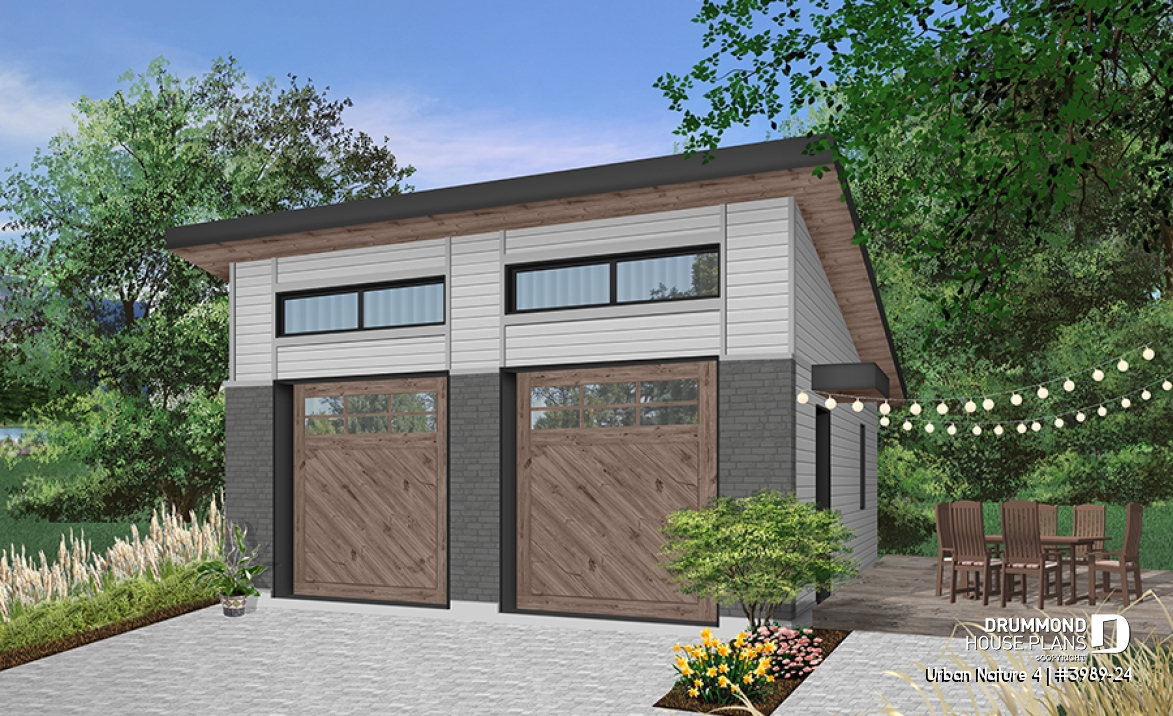

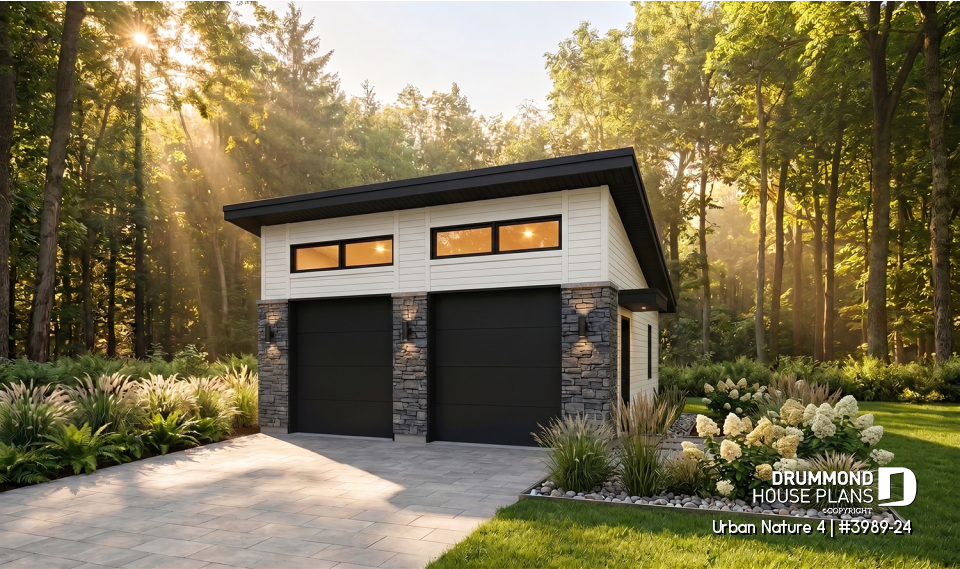

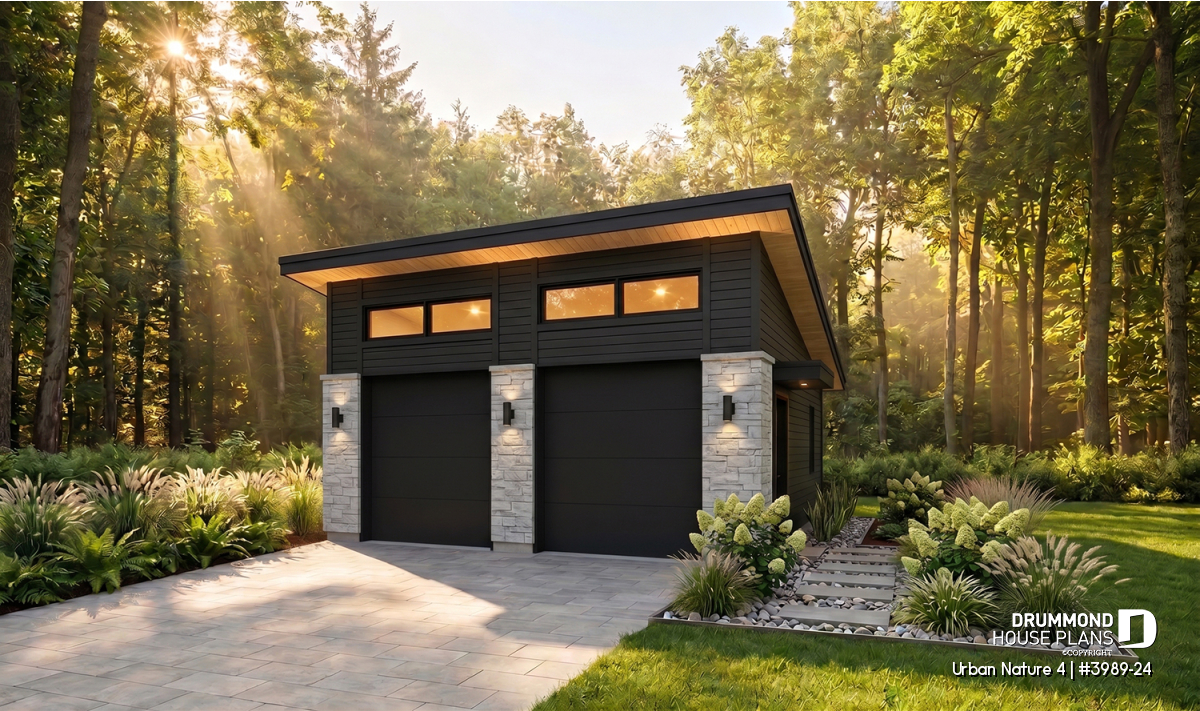

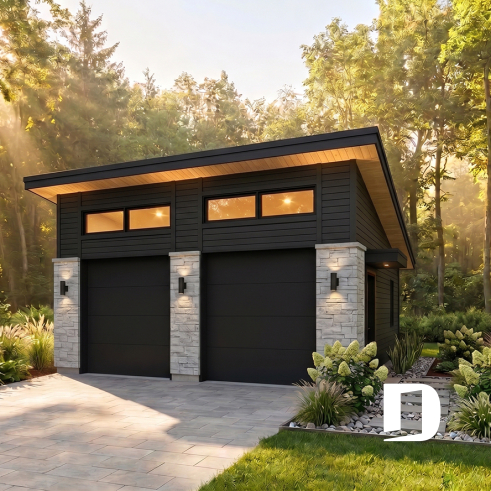

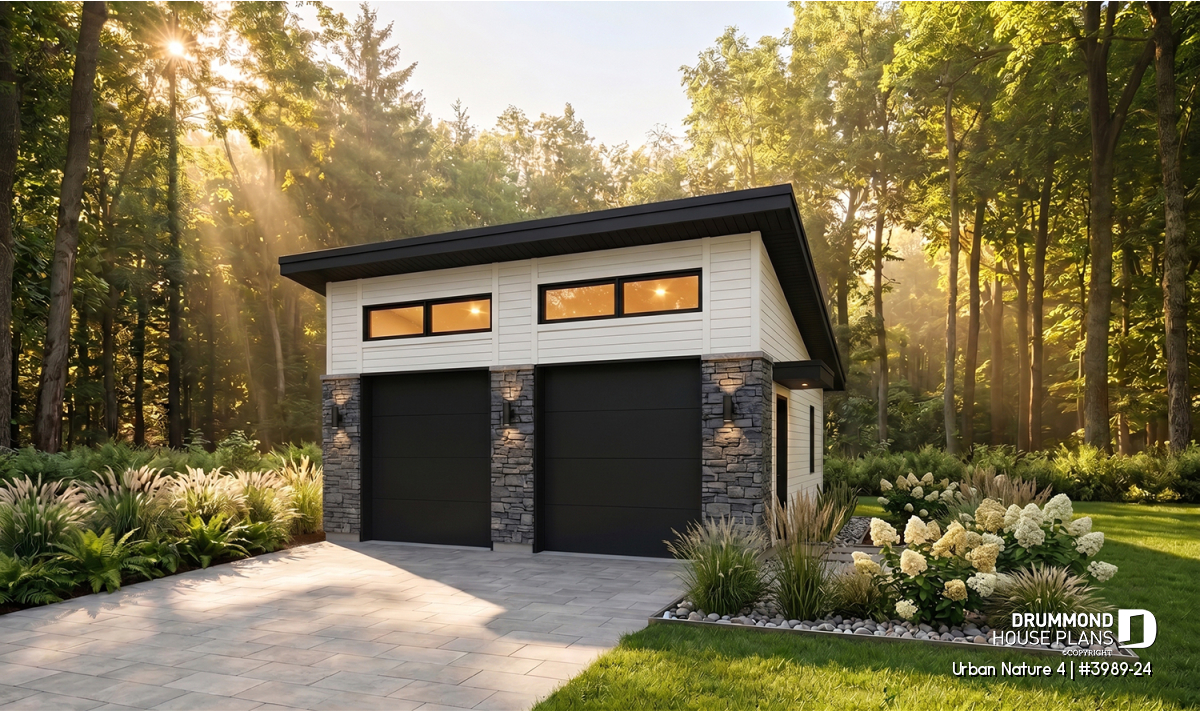

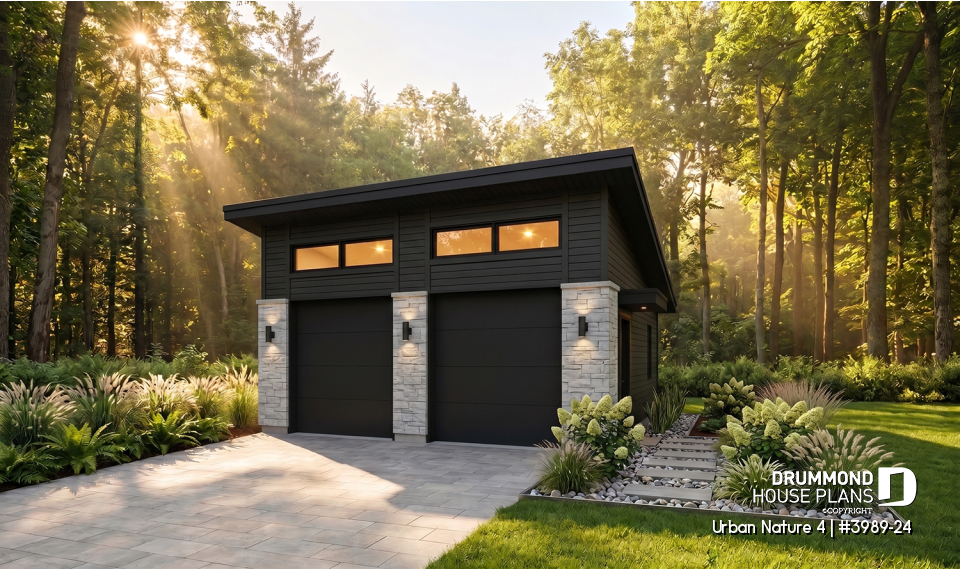

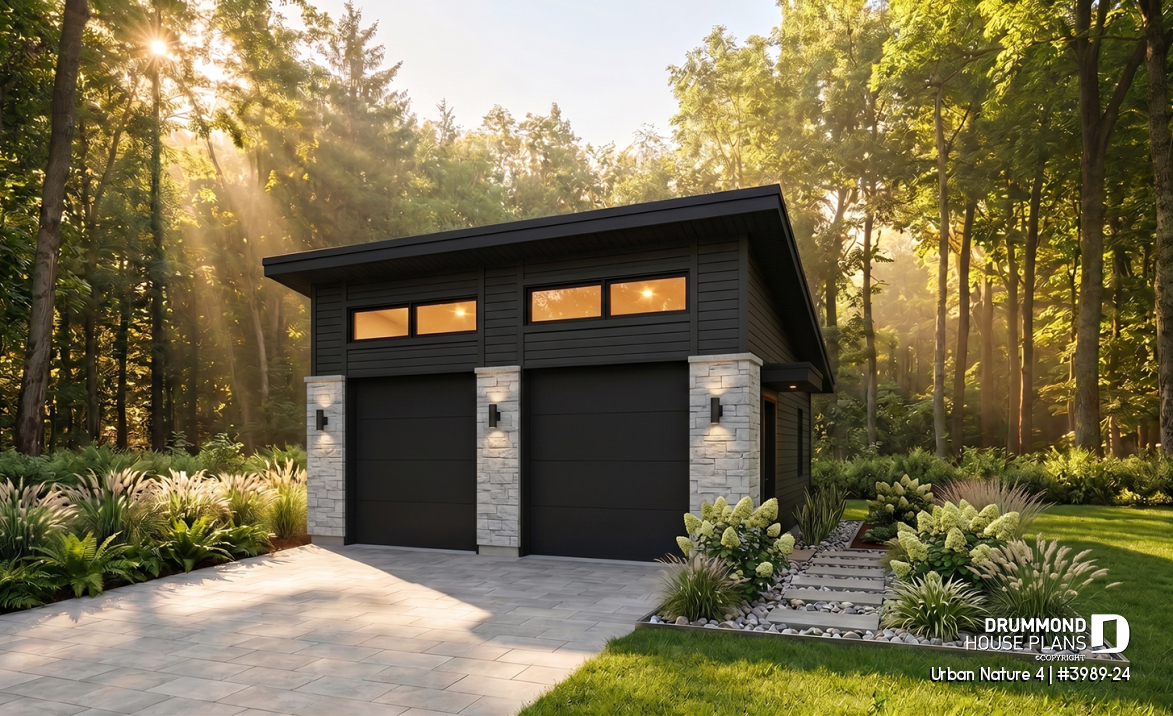

Garage plan Urban Nature 4 (3989-24)
2-car garage plan with 2 garage doors, lateral door access, 2 windows, variable ceiling height

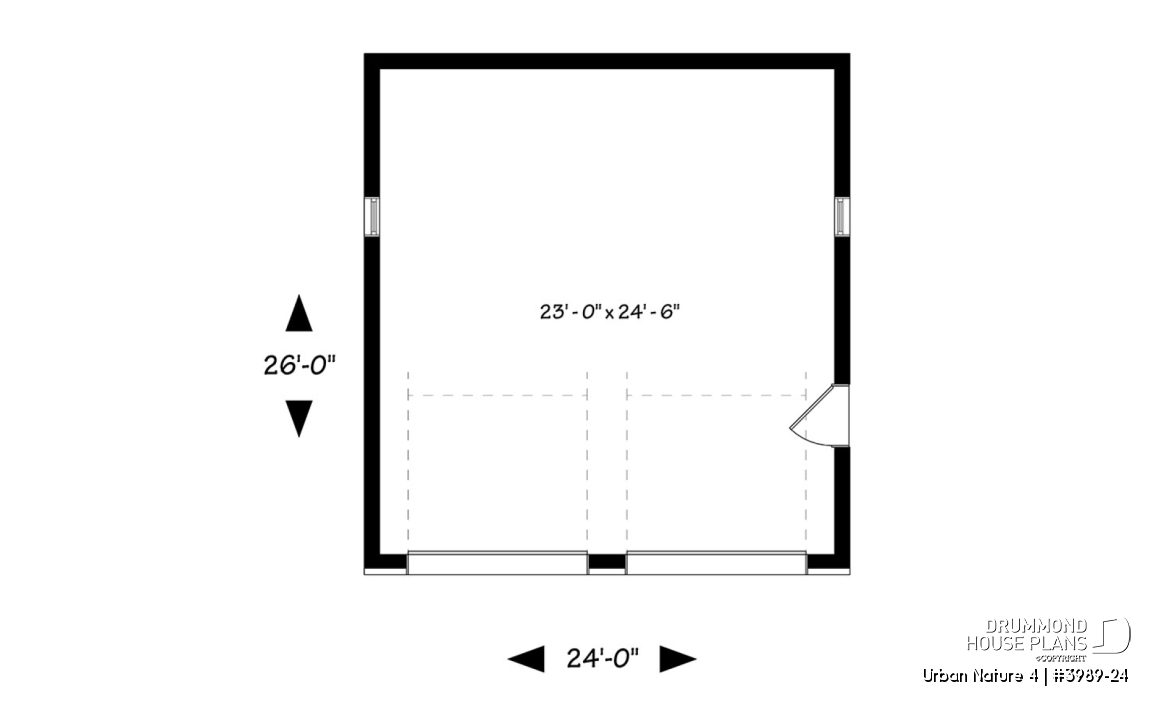

View the size of the rooms and height of the ceilings

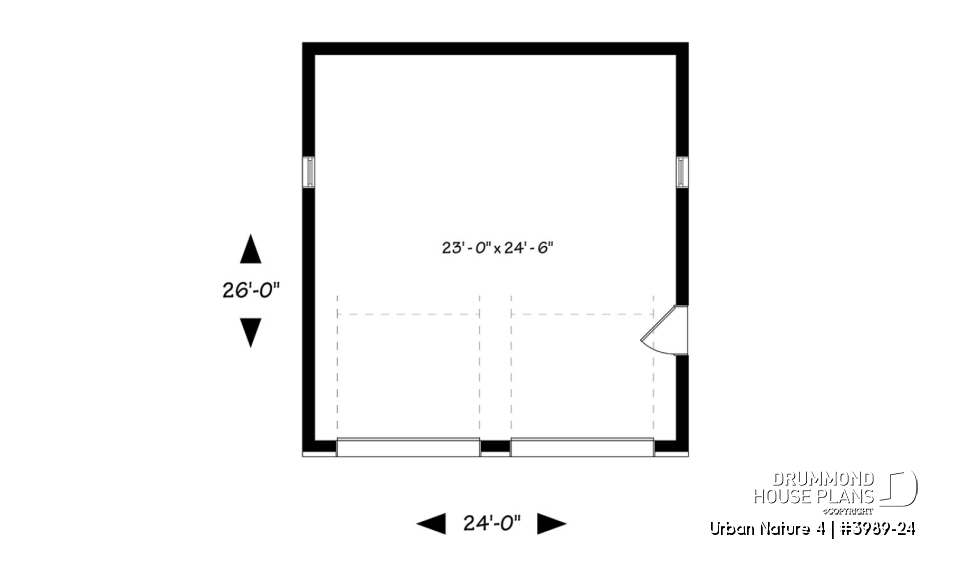

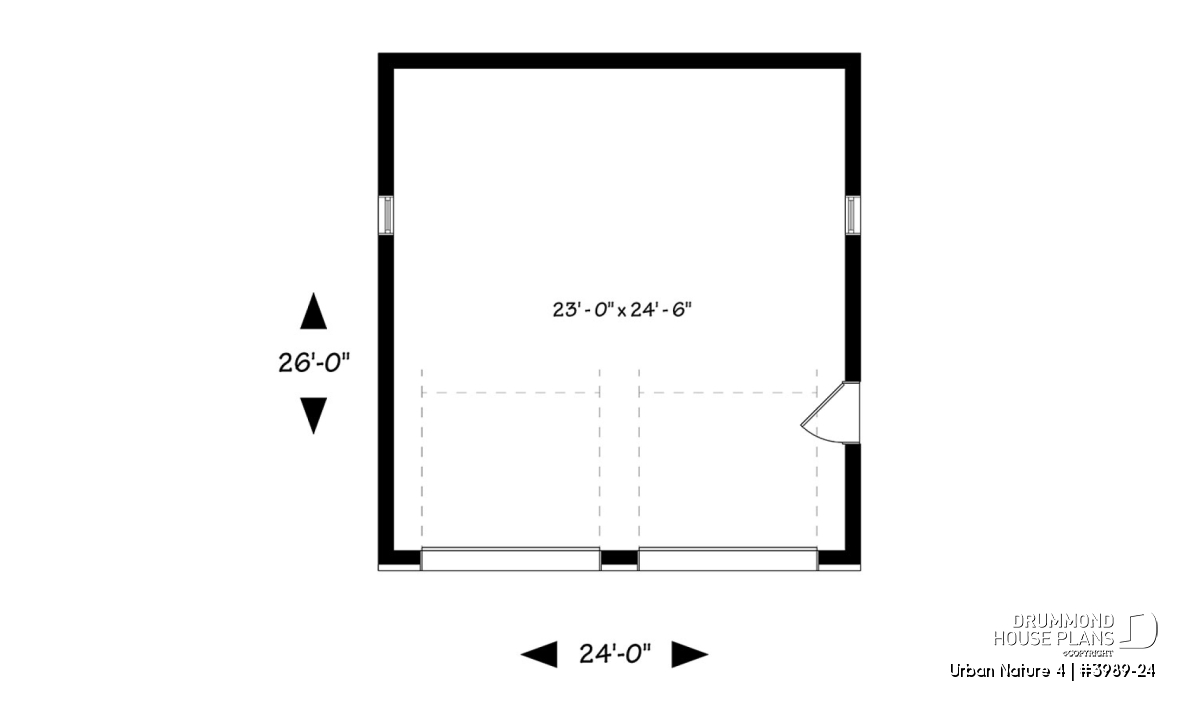

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 23'0" x 24'6" | ~ 8'0" |
General specifications
| Total living area | 624 sq.ft. |
| 1st level | 624 sq.ft. |
| Width | 24'0" |
| Depth | 26'0" |
| Ridge height from top of foundation | 13'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Monolithic Slab i |
| Other available foundations (a fee may apply) | Floating Slab |
| Builder price code | G2A |
Rooms specifications
Other useful information on this plan

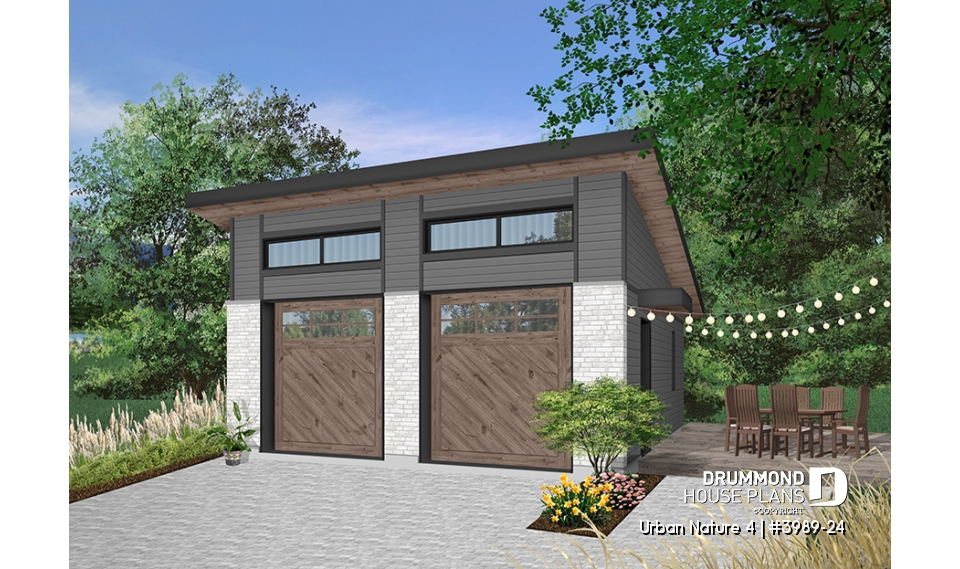

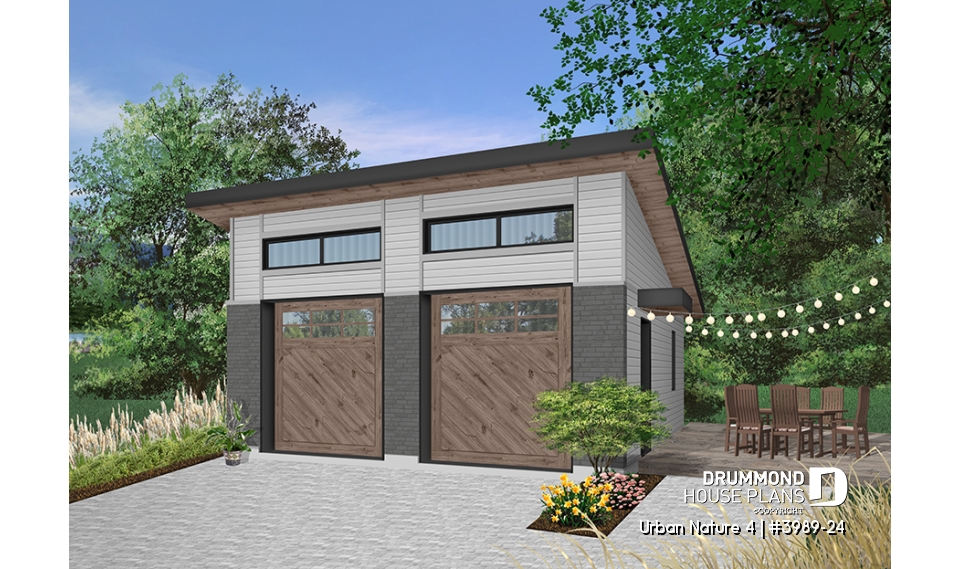

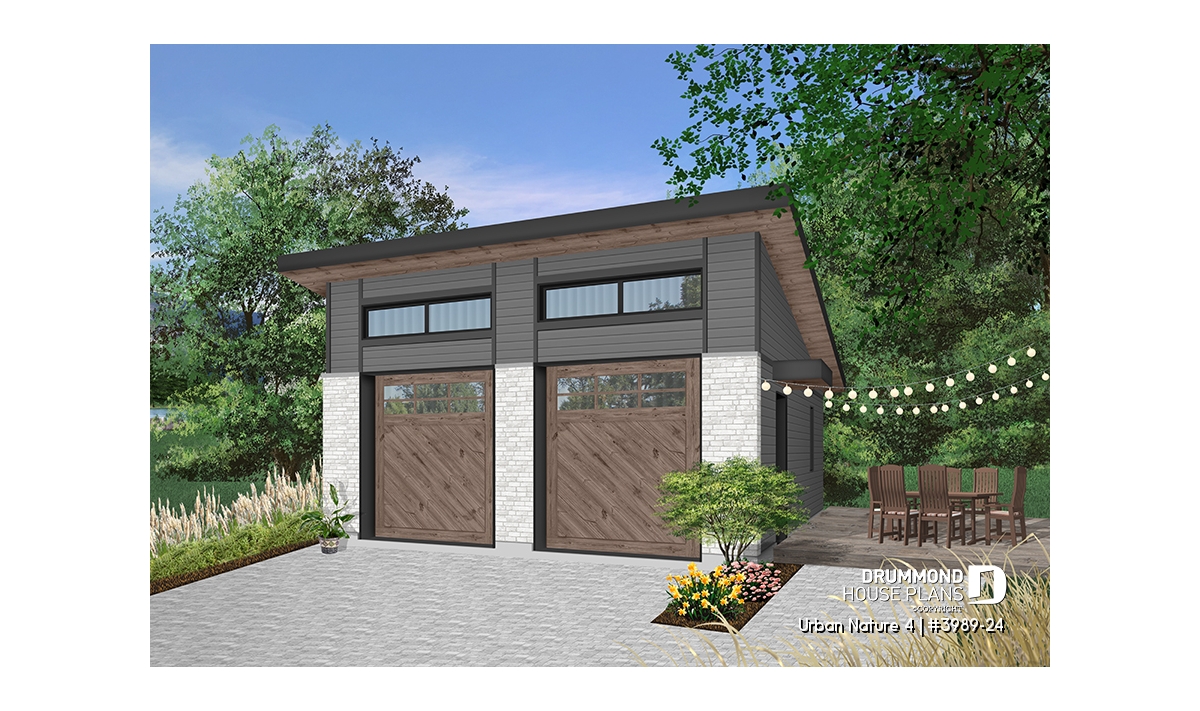

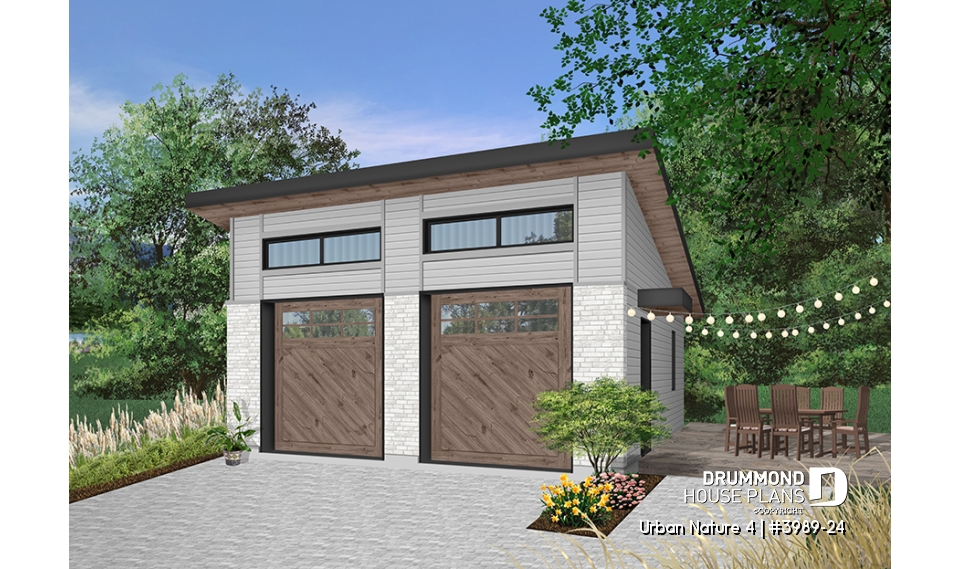

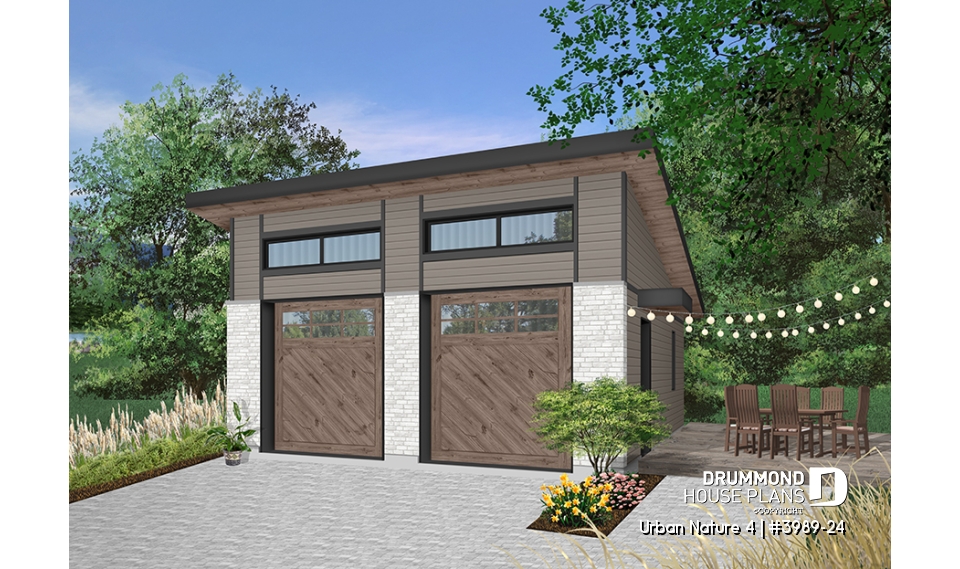

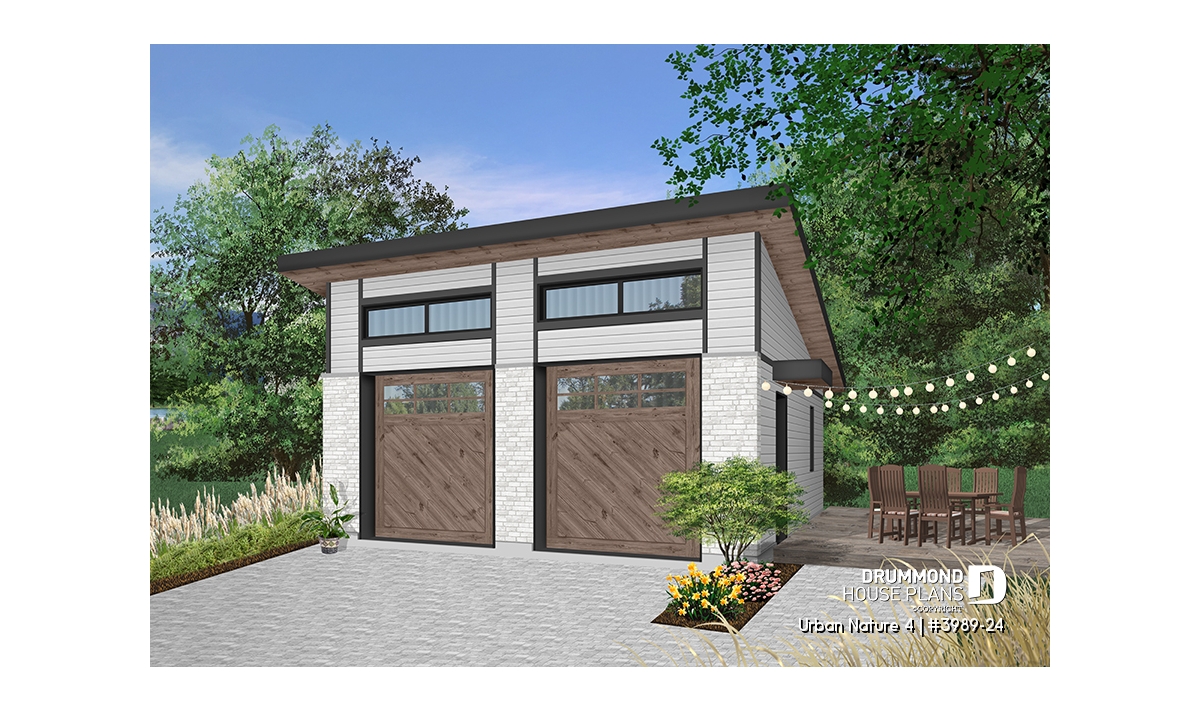

2-Car garage with urban style
This 2 car garage with 2 separate doors will be sure to charm you. In addition to the conveniently placed side entrance door, you will also enjoy the natural light coming in from the top windows.
Distinctive elements
Two-car garage, Modern style.
Lots of natural lights coming from the large window on top of the garage door, and also from the windows on the side elevations.
Practical access through side door.
Total of 624 sq.ft.
Size: 24' x 26'.
Insulated walls.
Foundation: monolithic slab
Plan architectural style(s)
. Contemporary, . Modern / Design, . Modern rustic, . Scandinavian
