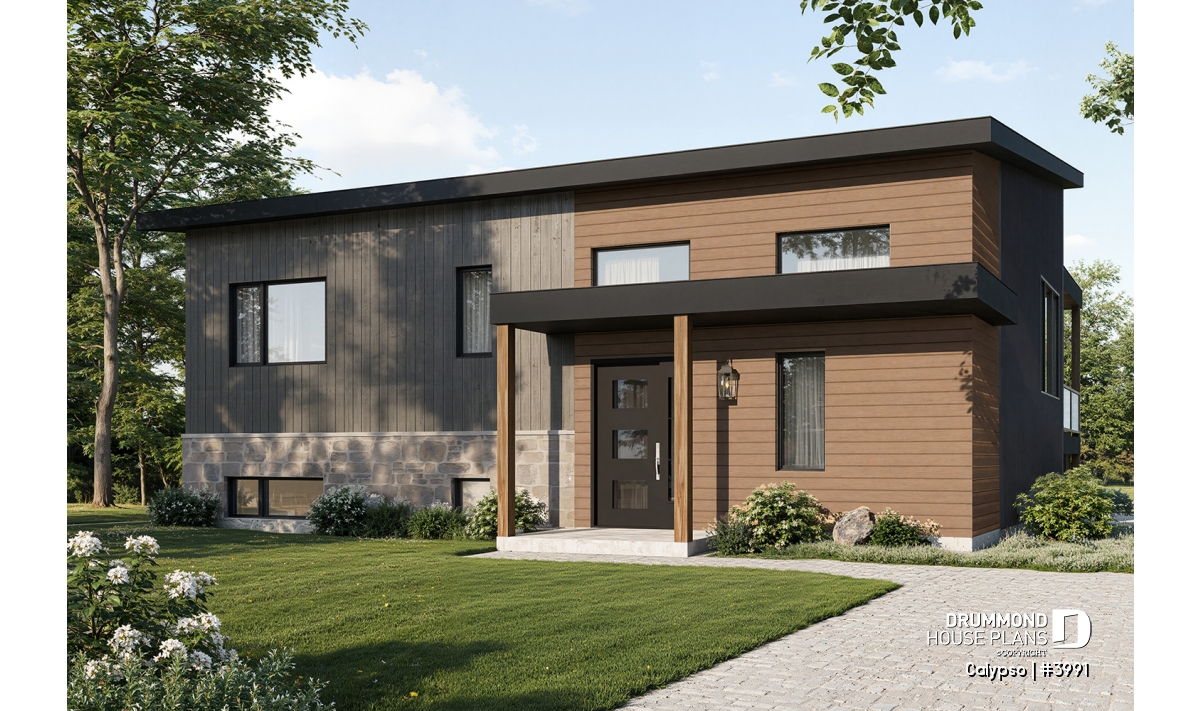

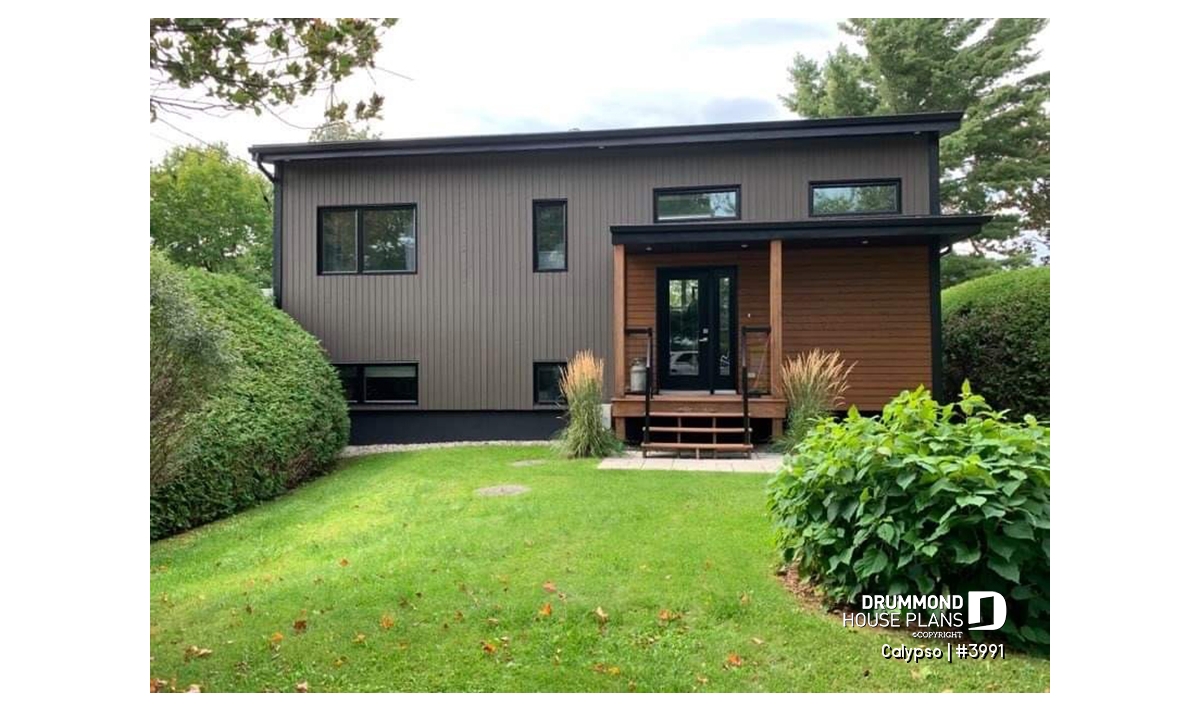

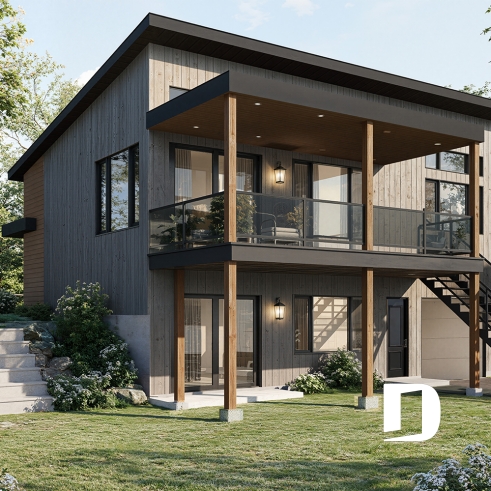

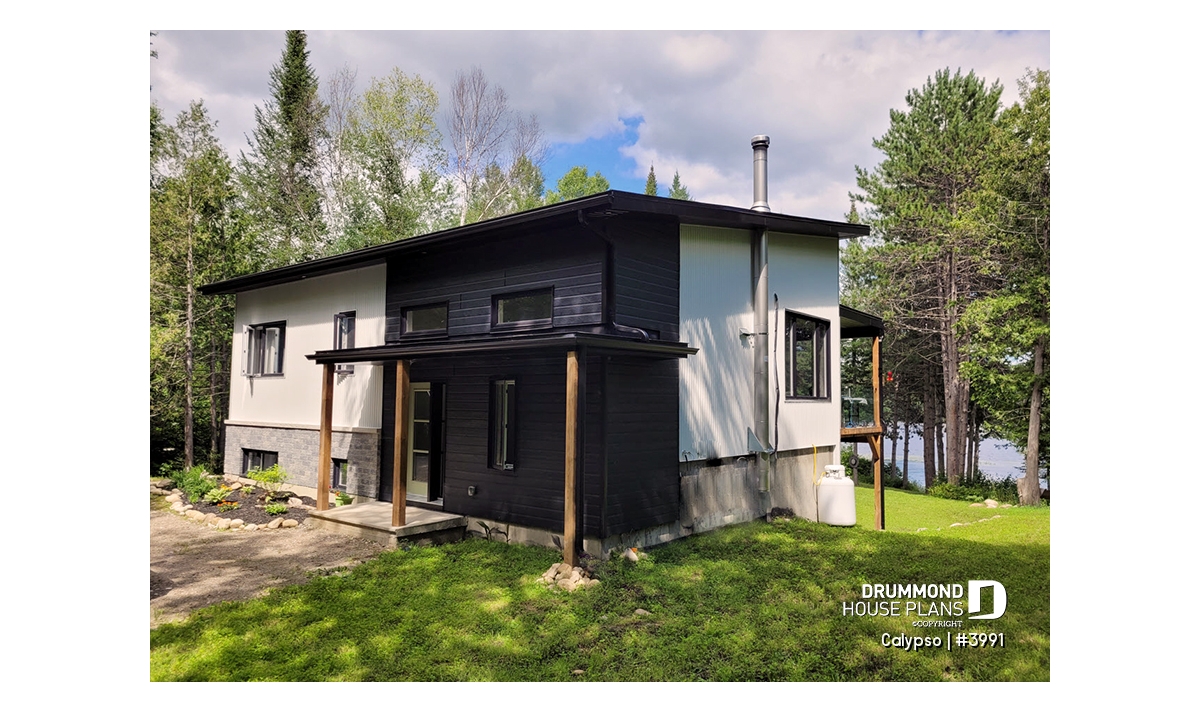

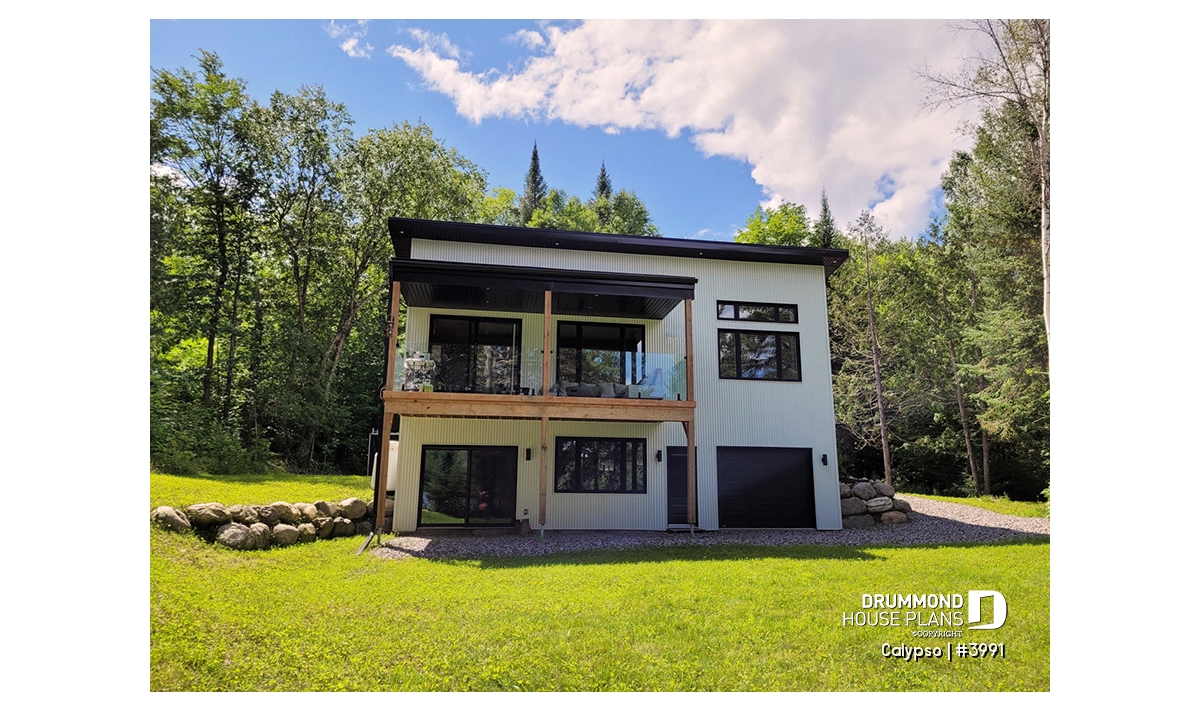

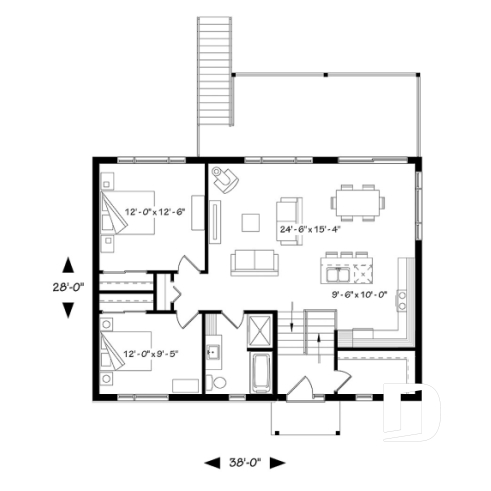

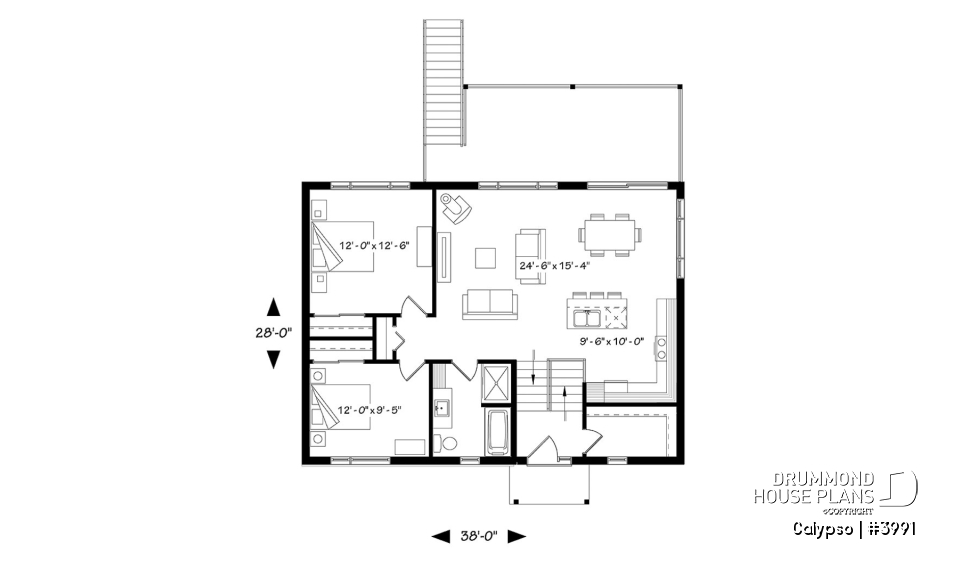

Split entry, Modern style cottage plan, up to 4 bedrooms, walk-out basement, covered terrace, open floor plan

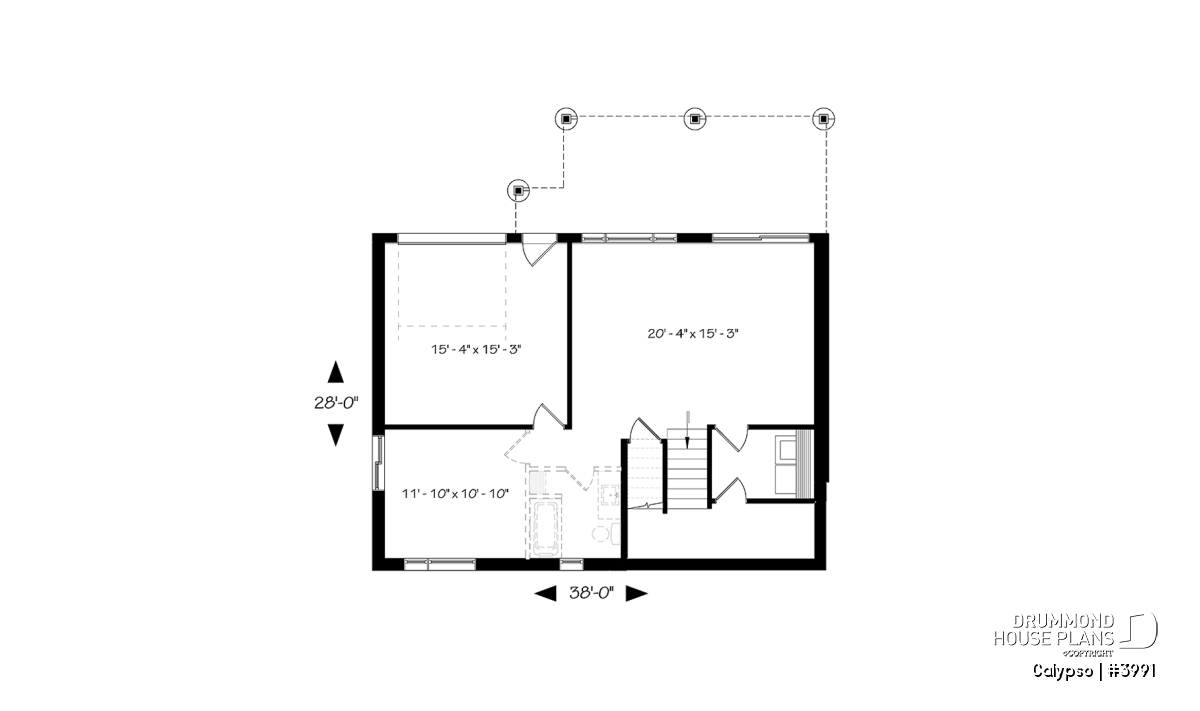

View the size of the rooms and height of the ceilings

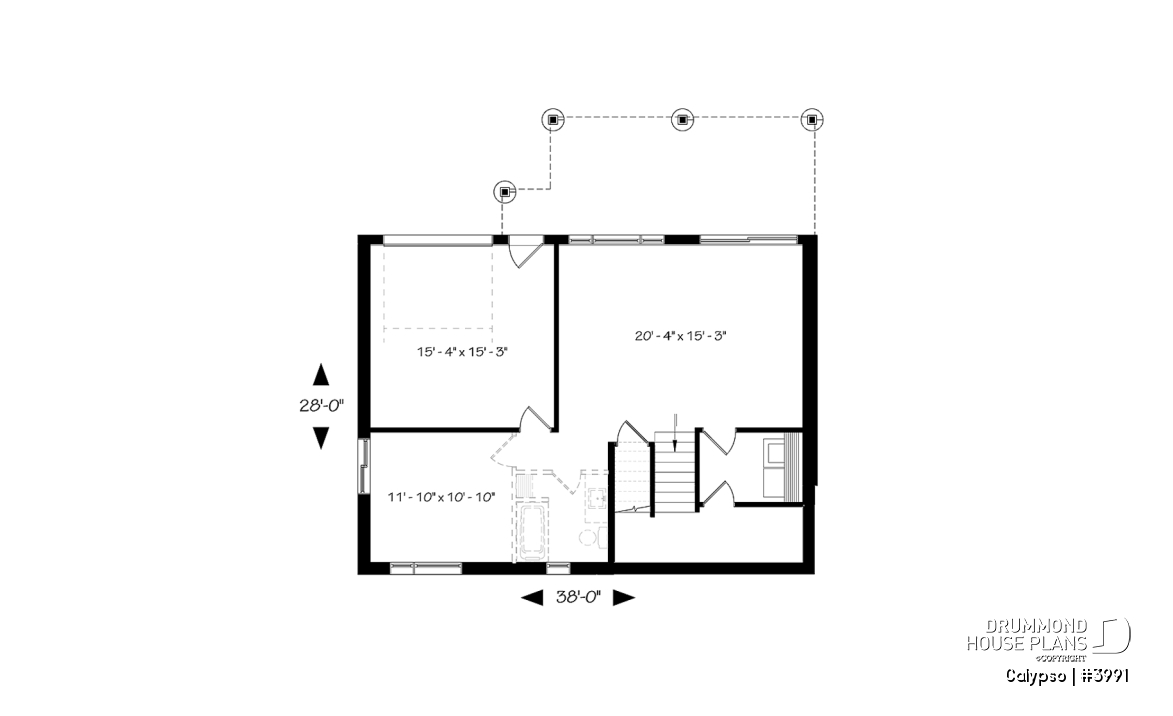

|Laundry room||8'3" x 5'10"||~ 8'6"|

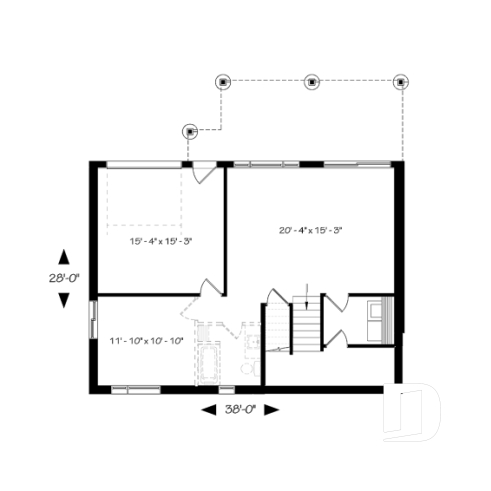

|Storage||15'4" x 15'3"||~ 8'6"|

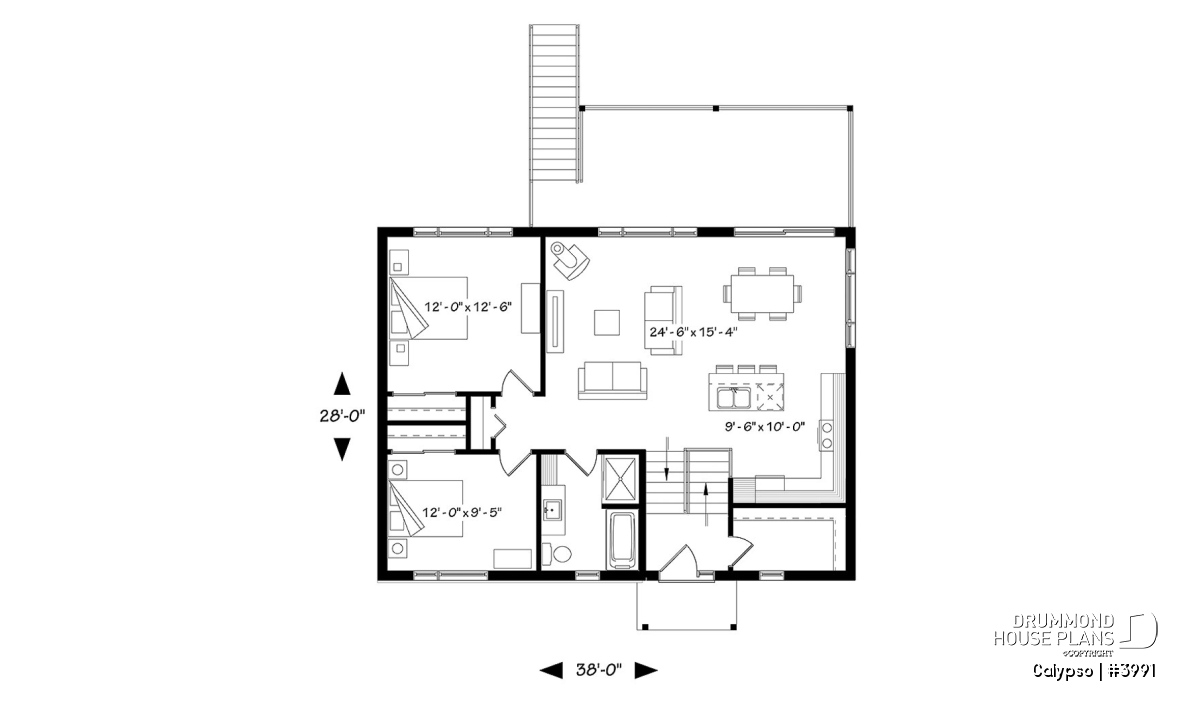

|Bedroom||12'0" x 12'6"||~ 13'0"|
|Closet||6'4" x 2'0"||~ 8'0"|
|Bedroom||12'0" x 9'5"||~ 8'0"|
|Closet||6'4" x 2'0"||~ 8'0"|
|Foyer||6'8" x 4'6"||~ 13'0"|
|Walk-in closet||9'1" x 5'1"||~ 13'0"|
|Full bathroom||7'11" x 9'5"||~ 8'0"|
|Linen||1'8" x 4'4"||~ 8'0"|

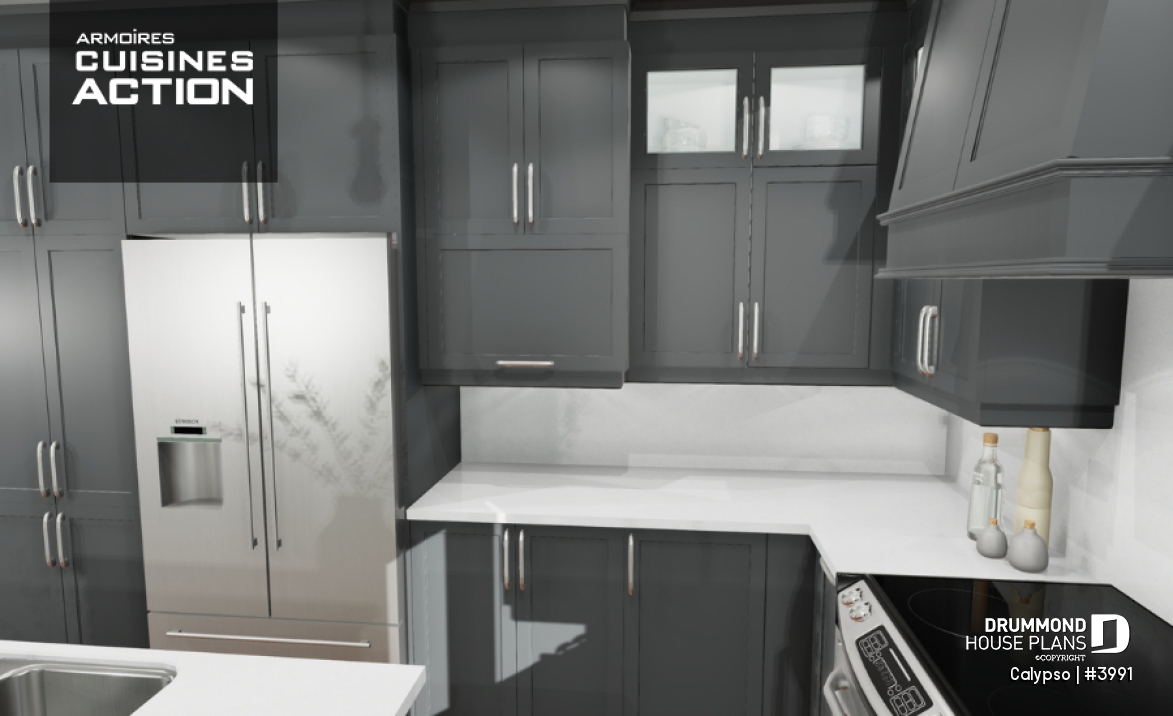

|Kitchen||9'6" x 10'0"||~ 13'0"|
|Living room/dining room||24'6" x 15'4"||~ 13'0"|

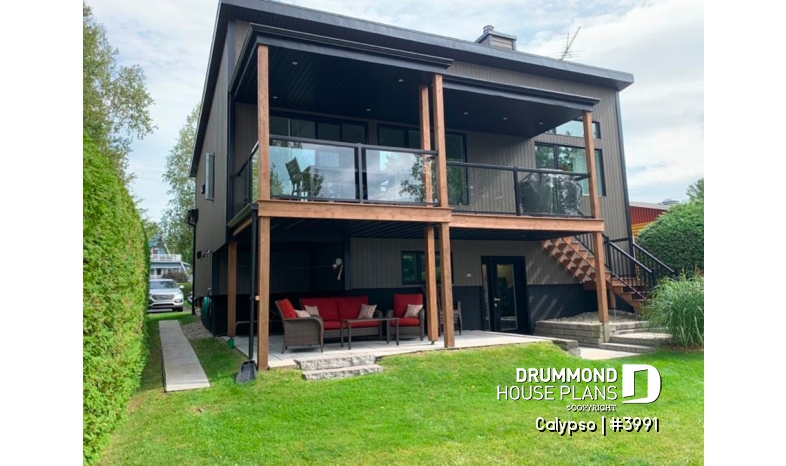

|Covered deck||22'0" x 10'0"||N/A|
|Covered porch||8'0" x 4'0"||N/A|
|Total living area||1064 sq.ft.|
|1st level||1064 sq.ft.|
|Ridge height from top of foundation||19'5"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full basement with walkout|
|Builder price code||B|
|Bedroom(s)||2, 3, 4|
|Living bonus space||-|
Other useful information on this plan
