House plan Dahilia (3969)
Contemporary rustic cottage plan, 3 bedroom, master suite, 2 family room, mud room, cathedral, fireplace
View the size of the rooms and height of the ceilings

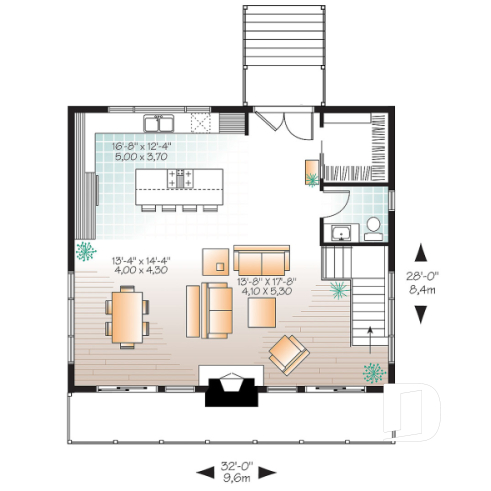

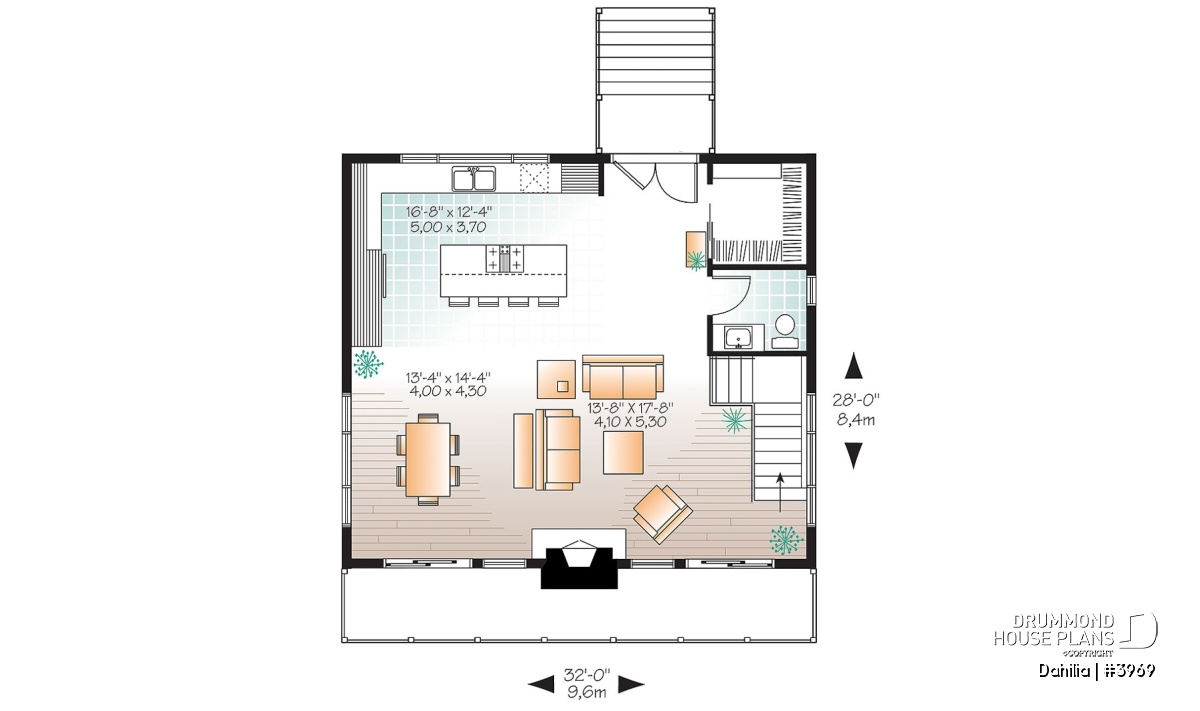

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 13'4" x 14'4" | ~ 9'0" |
| Living room | 13'8" x 17'8" | ~ 9'0" |
| Kitchen | 16'8" x 12'4" | ~ 9'0" |
| Powder room | 6'4" x 5'6" | ~ 9'0" |
| Walk-in closet | 6'4" x 6'10" | ~ 9'0" |
| Foyer | 7'4" x 9'0" | ~ 9'0" |
| Balcony | 32'0" x 5'0" | N/A |
| Porch | 8'0" x 4'0" | N/A |

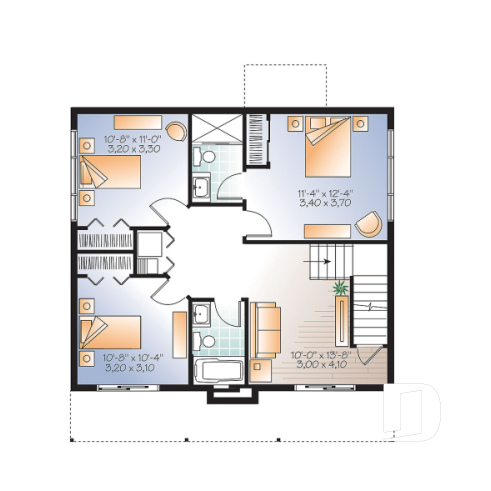

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'8" x 11'0" | ~ 8'0" |
| Closet | 5'3" x 2'0" | ~ 8'0" |
| Bedroom | 10'8" x 10'4" | ~ 8'0" |
| Closet | 5'3" x 2'0" | ~ 8'0" |
| Great room or Family room | 10'8" x 13'8" | ~ 8'0" |
| Master suite | 11'4" x 12'4" | ~ 8'0" |
| Shower room or three quarter bath | 5'0" x 8'8" | ~ 8'0" |
| Walk-in closet | 3'0" x 6'10" | ~ 8'0" |
| Closet | 2'0" x 5'0" | ~ 8'0" |
| Bathroom | 5'2" x 8'0" | ~ 8'0" |
| Linen | 1'2" x 2'0" | ~ 8'0" |
| Laundry space | 2'8" x 4'4" | ~ 8'0" |
General specifications
| Total living area | 1792 sq.ft. |
| 1st level | 896 sq.ft. |
| Basement | 896 sq.ft. |
| Width | 32'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 25'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Modern cottage plan with 3 bedrooms, master suite, fireplace and 2 terraces

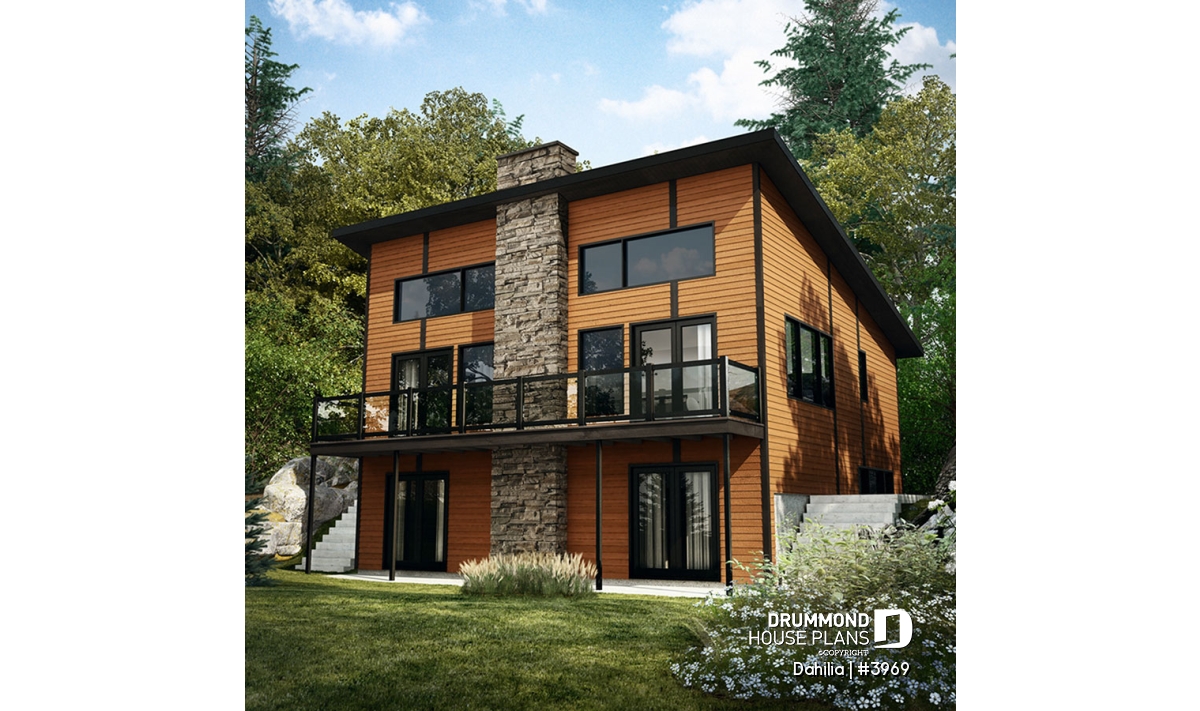

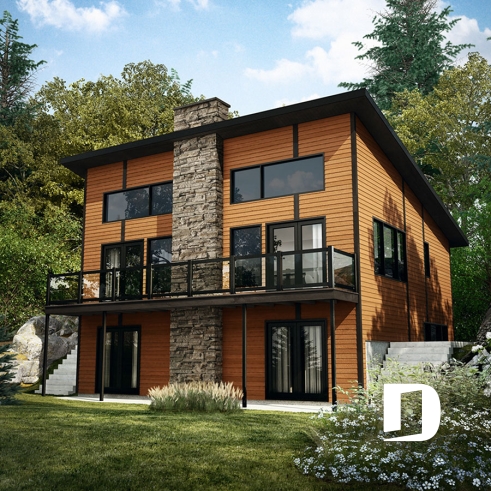

Scenic views from the cathedral ceiling, the upper balcony or the patio are some of the features that make this model a contemporary classic!

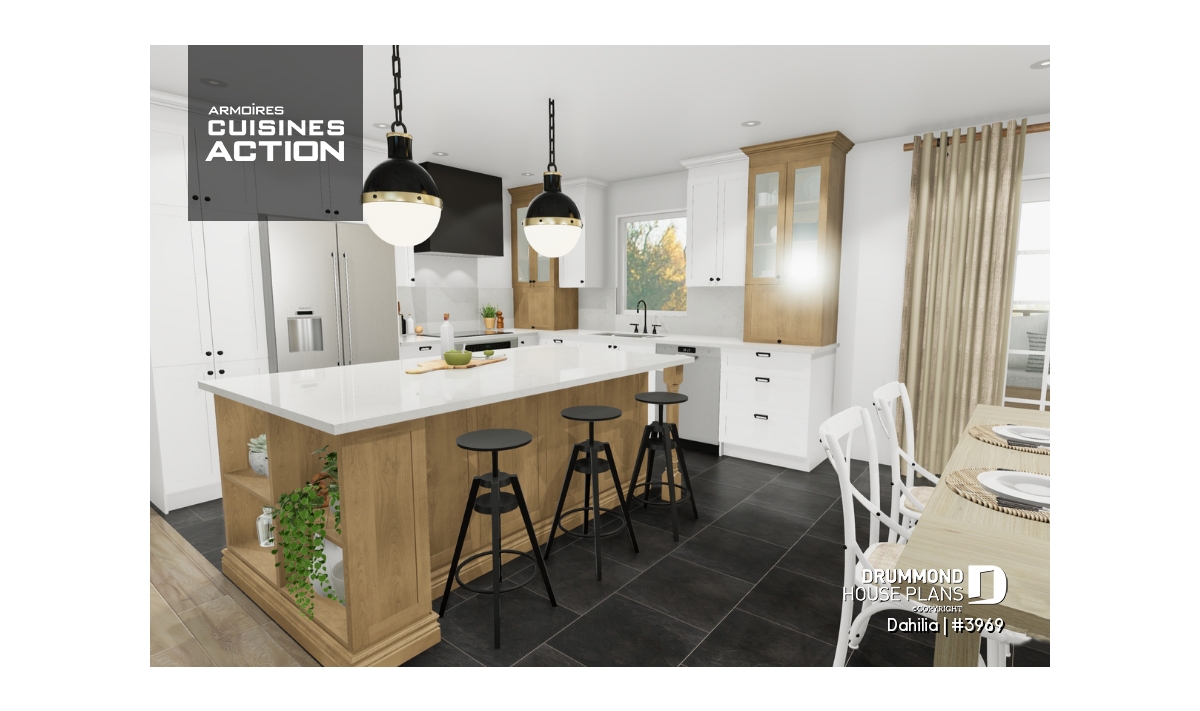

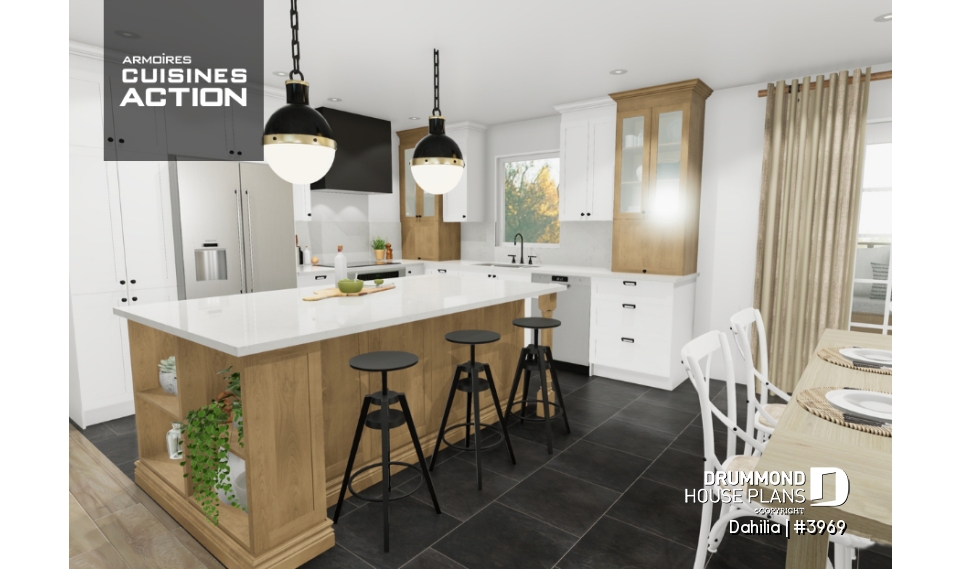

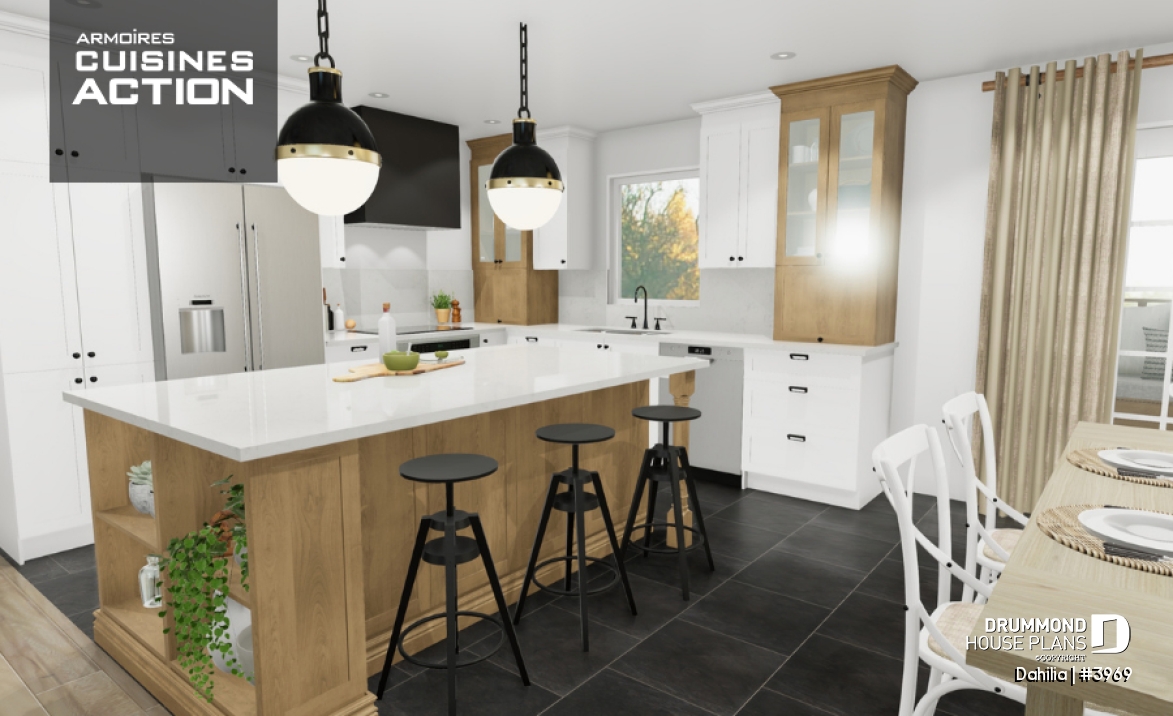

Upon entering, the entirely open floor plan of the main level has a large walk-in closet / mud room and a conveniently located powder room. A large kitchen island with seating for 4 snuggles into the 'L' shaped kitchen space beyond which is a dining room area with place for a table that seats 6+. The living / dining room share the entire width of the home and a large, cozy fireplace between two sets of patio doors is visible throughout.

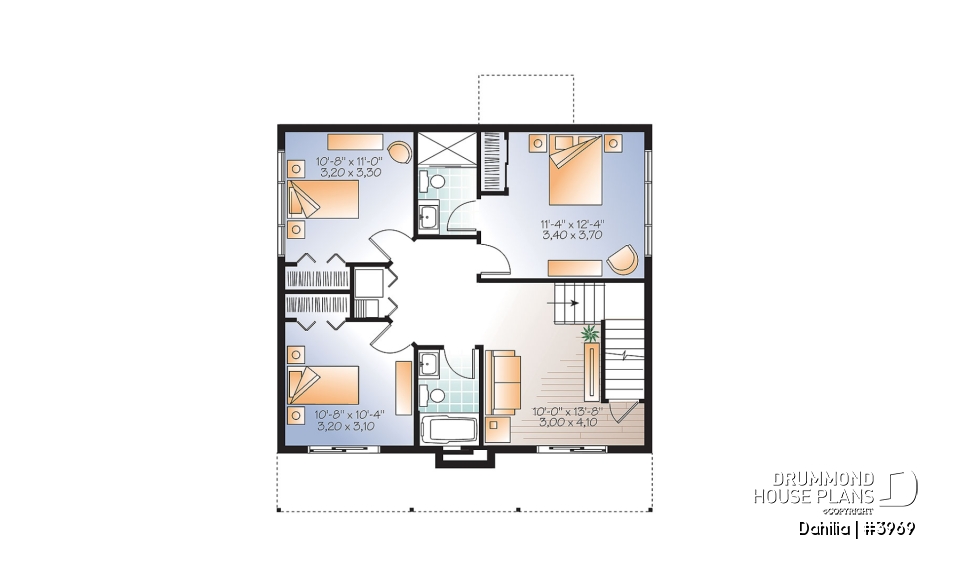

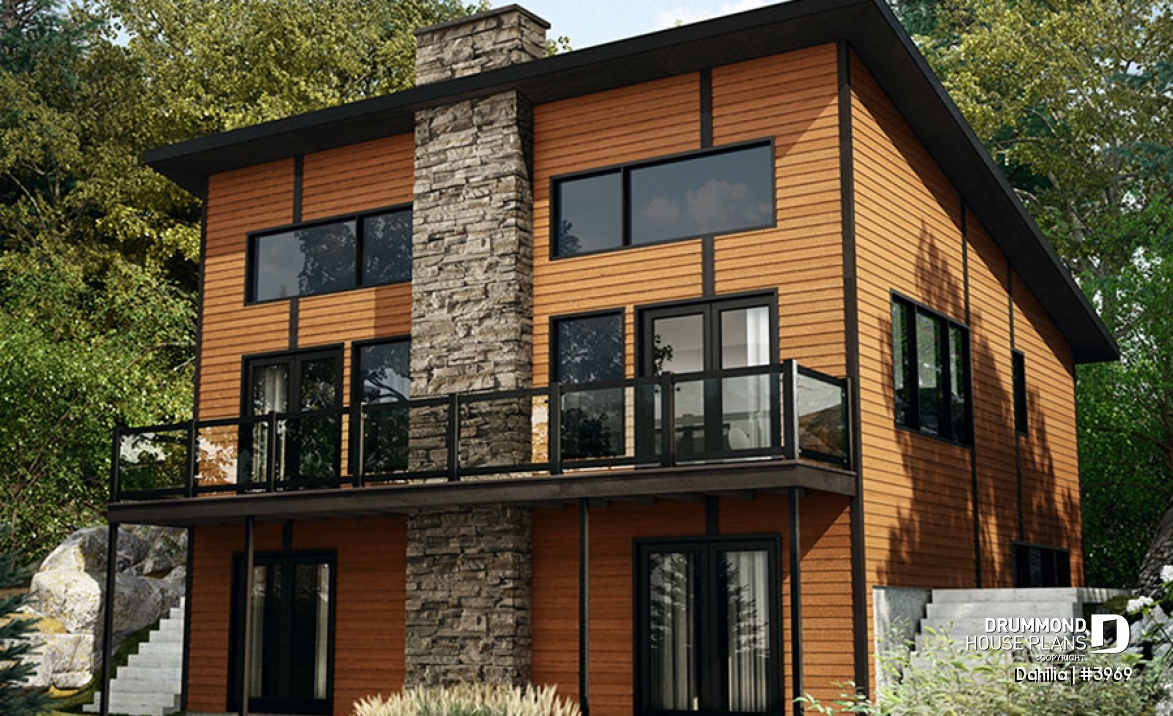

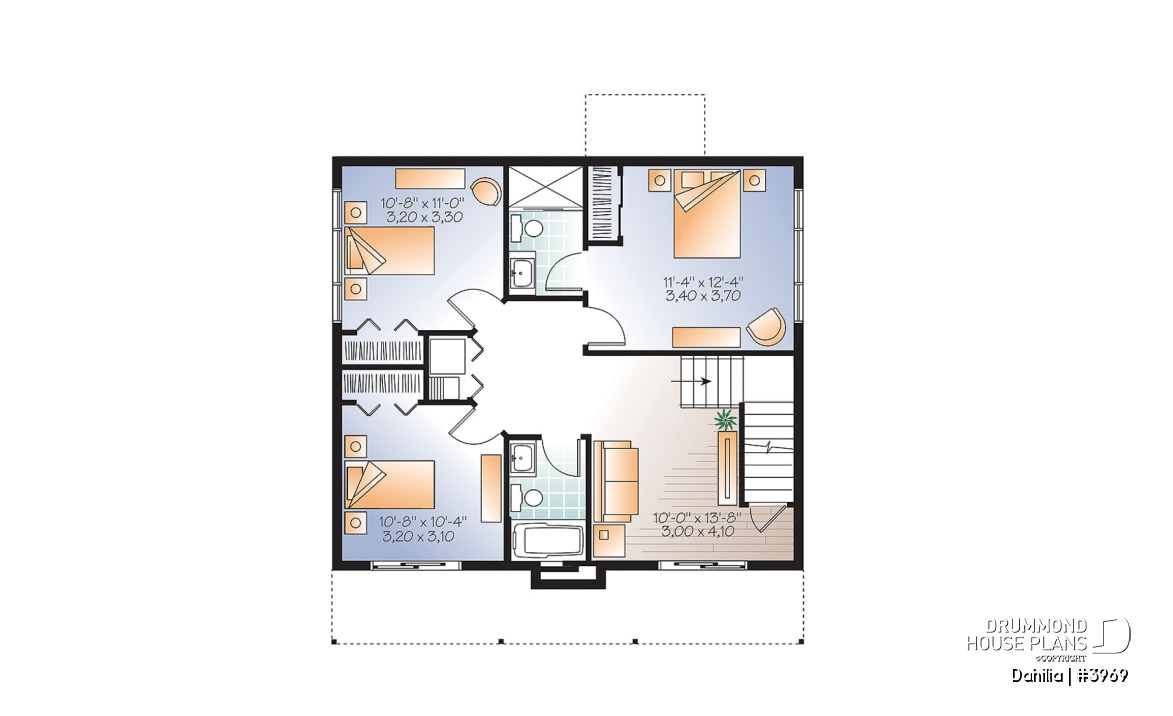

On the lower level, there are 3 nicely sized bedrooms, one a master suite with a large and private shower enclosure. The second bathroom on this level has a bathtub. A covered balcony runs the entire width of the lower level and is accessible through patio doors either from the second living room or bedroom #2.
You can easily make any changes to this floor plans, using our online modification service.
Distinctive elements
3 bedrooms, 2 1/2 bathrooms, second living room balcony along the full width upstairs and covered porch on the main floor, fireplace, kitchen island and dining room,
Plan feature(s)
Island, Mud room, Fireplace, Open floor layout, Panoramic view, Cathedral ceiling, Deck, Inverted living, Self-Build
Plan architectural style(s)
. Cottage, chalet, cabin, . Modern / Design, . Vacation and waterfront, . Modern rustic, . Ski chalets, . Rustic, . Scandinavian, . Mountain, . Craftsman / Northwest, . Contemporary
Similar plans
Previously Viewed Plans
Questions and comments
October 28
Larry
R-Value of walls? Thank you.
October 28
Customer service
Good day and thank you for your interest in this plan.
Although our standard plans have an R-25 rating for the walls, the plans for your geographic area are R-29.
Please let me know if you have any other questions or comments.
Regards
Deb
