House plan Odessa (6400)

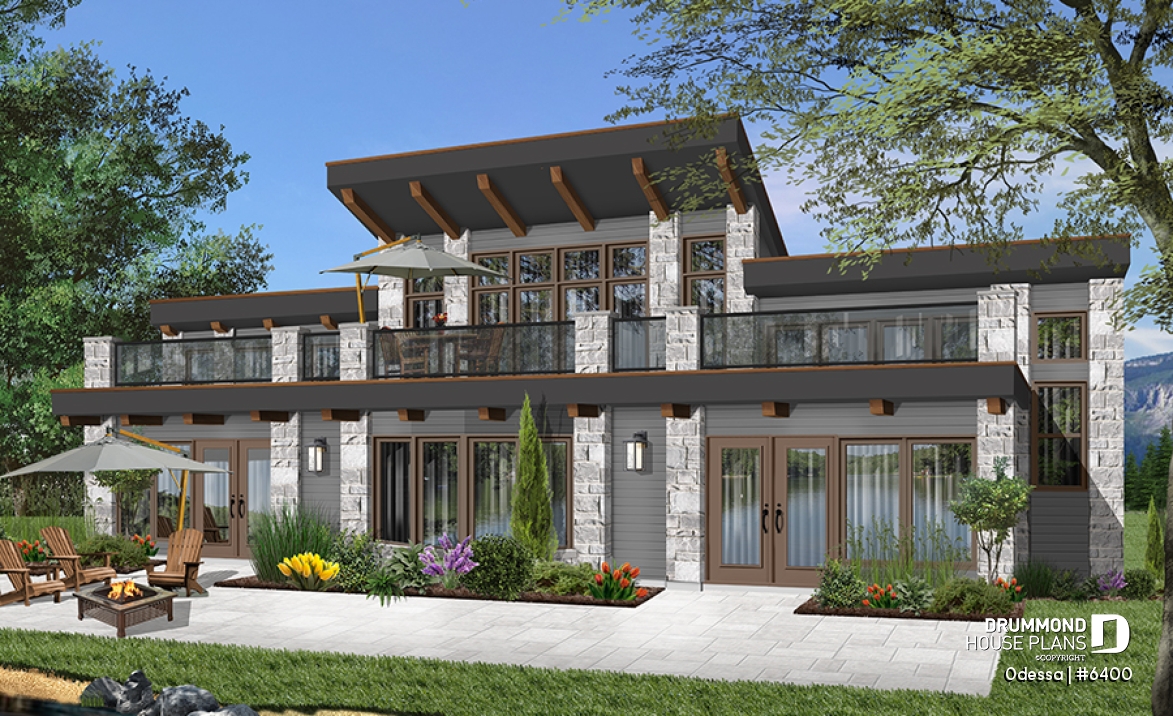

Large 3 bedroom beachfront or lakefront modern house plan, Xlarge second floor deck, 2 family rooms, fireplace
View the size of the rooms and height of the ceilings

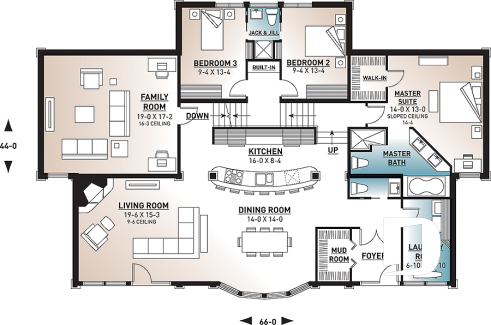

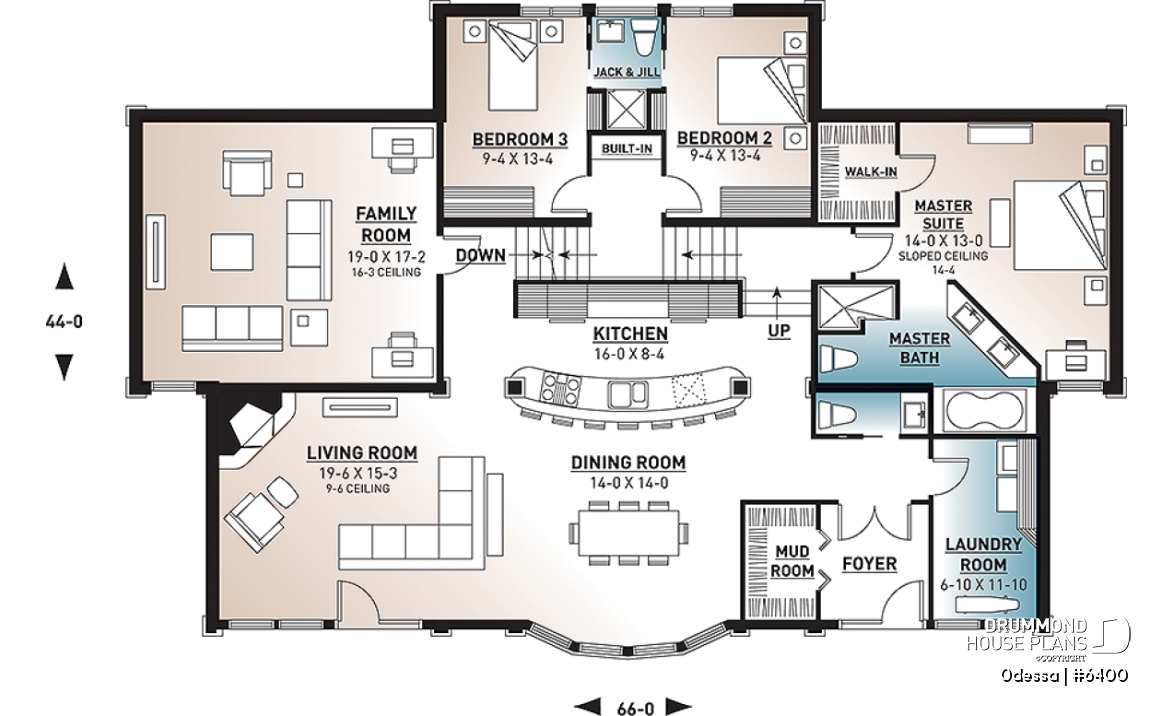

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 7'2" x 3'0" | ~ 9'6" |
| Full bathroom | 4'8" x 7'9" | ~ 10'6" |
| Kitchen | 16'0" x 8'4" | ~ 9'6" |
| Dining room | 14'10" x 14'0" | ~ 9'6" |
| Living room | 19'6" x 15'3" | ~ 9'6" |
| Master suite | 14'0" x 13'0" | ~ 14'4" |
| Bedroom | 9'4" x 13'4" | ~ 12'5" |
| Bedroom | 9'4" x 13'4" | ~ 12'5" |
| Foyer | 7'2" x 7'6" | ~ 9'6" |
| Laundry room | 6'10" x 11'10" | ~ 9'6" |
| Home theater | 19'0" x 17'2" | ~ 16'3" |

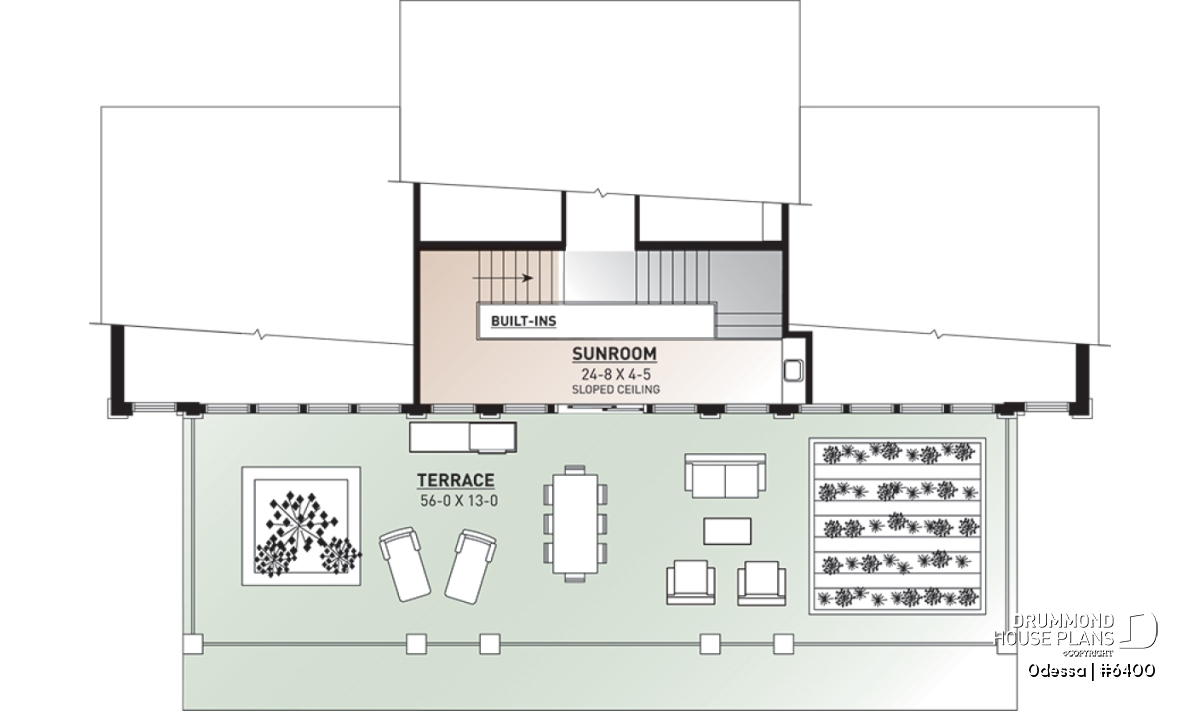

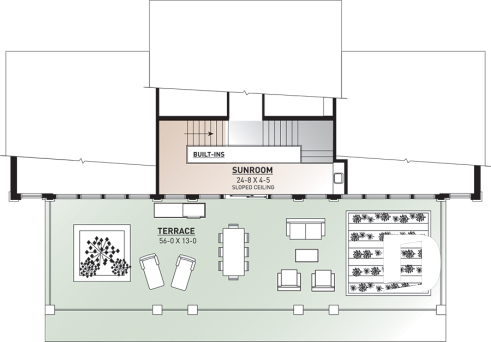

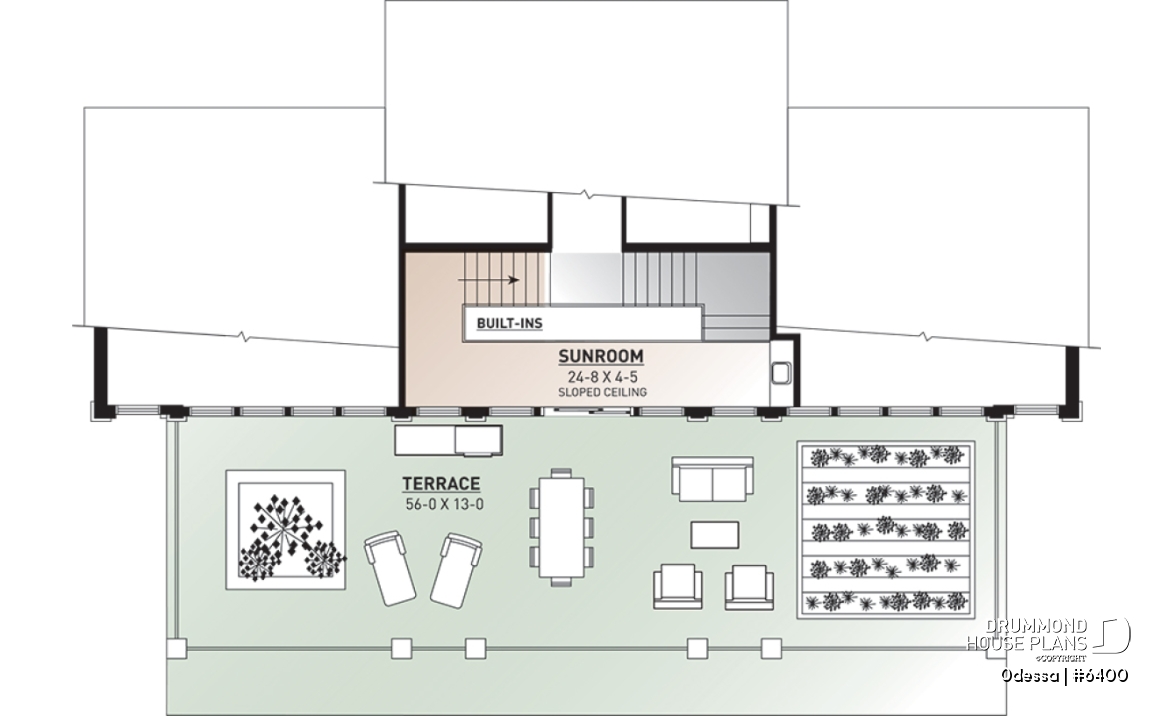

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Sunroom | 24'8" x 4'5" | ~ 11'11" |
| Deck | 56'0" x 16'0" | N/A |

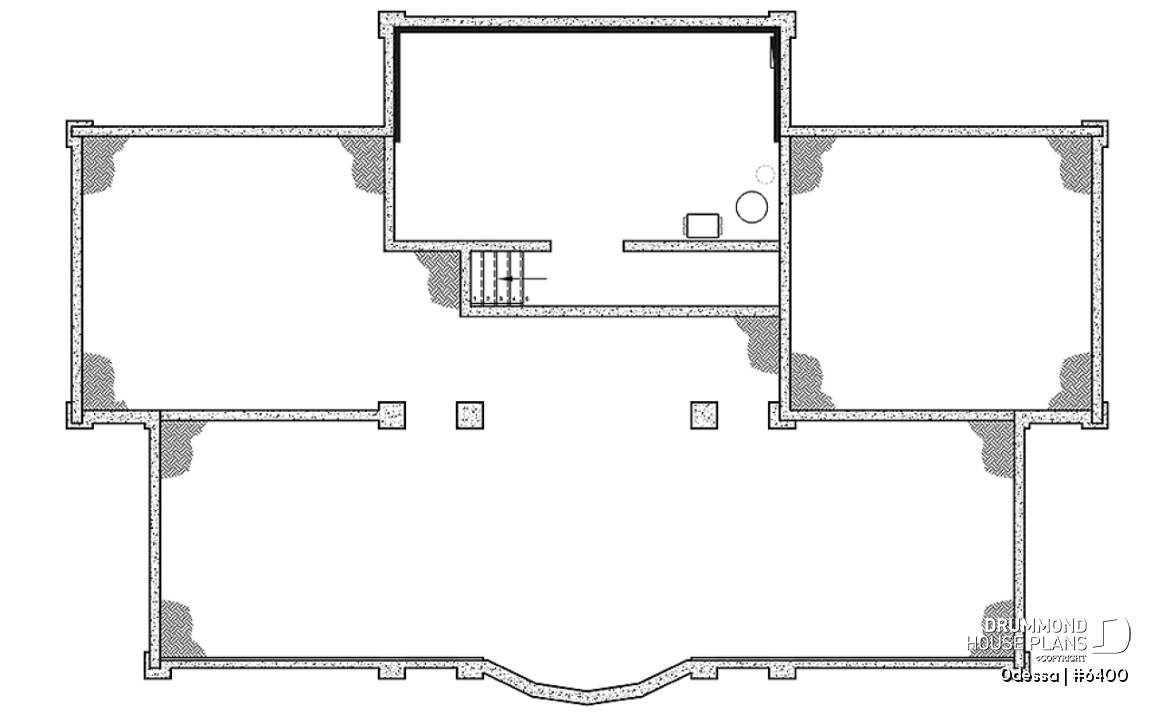

| Basement |
|---|
General specifications
| Total living area | 2527 sq.ft. |
| 1st level | 2357 sq.ft. |
| 2nd level | 170 sq.ft. |
| Basement | 396 sq.ft. |
| Width | 66'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 25'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | 1/2 Basement - 1/2 Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
Large Modern 3 to 4 bedroom lakefront house plan with x-large second floor deck.
.
Distinctive elements
Large beachfront or lakefront modern house plan.
3 to 4 bedrooms.
Home theatre can be converted into a garage (400sq.ft./ 36 sq.m.), VIA OUR PLAN MODIFICATION SERVICE, PLEASE CONTACT US FOR A FREE QUOTE.
Lots of natural light.
Large kitchen with central x large island.
Fireplace.
Plan feature(s)
Fireplace, Mezzanine, Jack & Jill bath, Balcony 2nd floor, Media Room, Gound floor laundry room, Panoramic view, Island, Mud room, Walk-in master bed., Master suite on main, Sunroom, Split bedrooms, Lunch counter, Built-ins, Sloped ceiling, Office / Study / Den, Ceiling over 8', Separate bath and shower, Double sinks
Plan architectural style(s)
. Vacation and waterfront, . Florida, . Mediterranean, . Transitional, . Contemporary, . Mid-century, . Mountain, . Cottage, chalet, cabin
