House plan Belmont (3957)
Home Design Featuring an Elevator and Walkout Basement, Panoramic Views, a Double Garage, 3 to 4 Bedrooms.
View the size of the rooms and height of the ceilings
| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Playroom | 14'8" x 16'8" | ~ 8'0" |
| Foyer | 9'0" x 5'4" | ~ 8'0" |
| Walk-in closet | 5'0" x 4'4" | ~ 8'0" |
| Half bath or powder room | 5'0" x 4'10" | ~ 8'0" |
| Garage | 13'8" x 38'8" | ~ 8'0" |
| Workshop | 24'0" x 13'8" | ~ 8'0" |
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'4" x 18'8" | ~ 8'0" |
| Pantry | 4'0" x 6'0" | ~ 8'0" |
| Dining room | 13'0" x 12'0" | ~ 8'0" |
| Living room | 15'4" x 16'8" | N/A |
| Master suite | 14'0" x 14'0" | ~ 8'0" |
| Walk-in closet | 9'8" x 5'4" | ~ 8'0" |
| Laundry room | 3'6" x 5'4" | ~ 8'0" |
| Office | 11'0" x 14'0" | ~ 8'0" |
| Full bathroom | 12'10" x 8'4" | ~ 8'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'0" x 14'0" | ~ 8'0" |
| Closet | 6'10" x 2'10" | ~ 8'0" |
| Bedroom | 12'0" x 14'0" | ~ 8'0" |
| Closet | 6'10" x 2'10" | ~ 8'0" |
| Linen | 2'0" x 3'4" | ~ 8'0" |
| Shower room or three quarter bath | 9'6" x 10'4" | ~ 8'0" |
General specifications
| Total living area | 3167 sq.ft. |
| Basement | 924 sq.ft. |
| 1st level | 1500 sq.ft. |
| 2nd level | 743 sq.ft. |
| Width | 40'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 35'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Mountain Chalet Home Plan With Optional Elevator and Tandem Double Garage
Designed for scenic living near a ski hill, a lake, or any panoramic natural setting, this exceptional mountain-style chalet offers three levels of comfort, flexibility, and architectural beauty. Inspired by the highly popular model 2957 (The Touchstone), this enhanced version 3957 adds valuable square footage, a spacious tandem double garage, and the possibility of integrating a three-stop elevator for optimal accessibility.

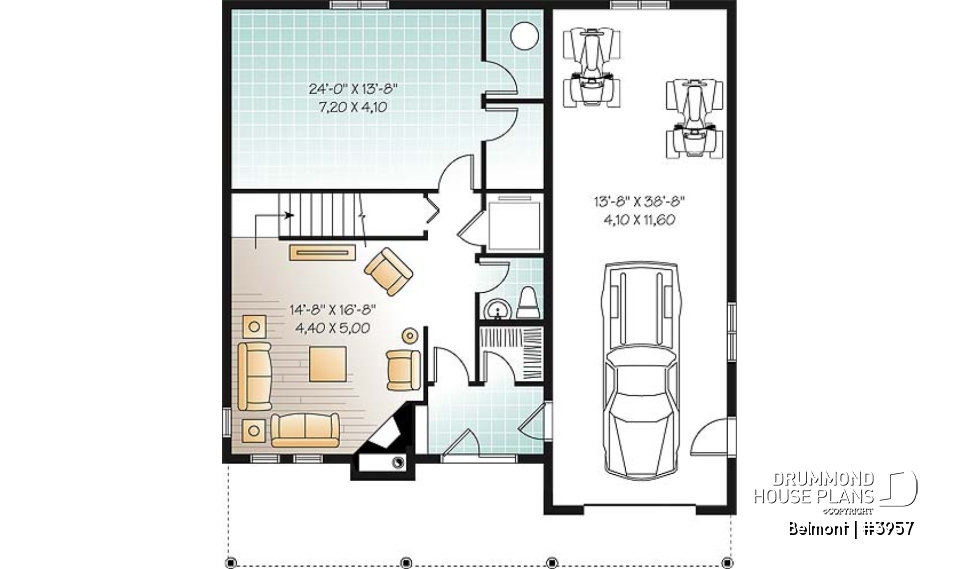

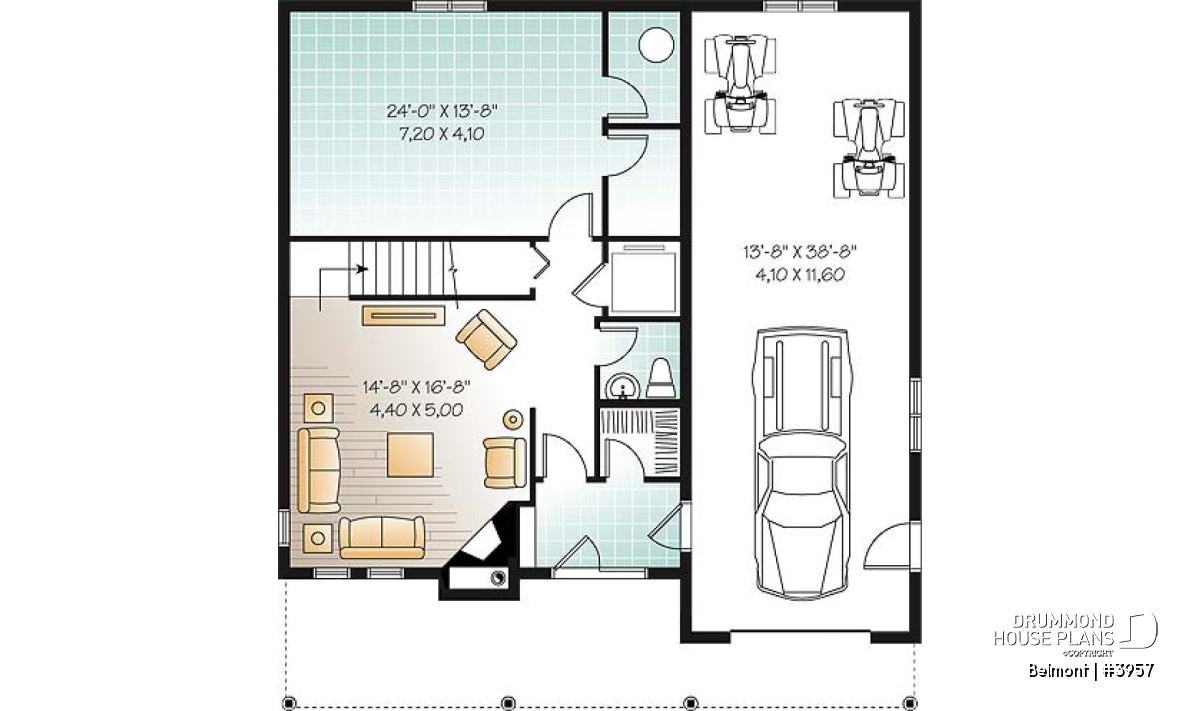

On the garden level, the main entrance opens into a practical mudroom with a walk-in closet ideal for storing seasonal gear. This floor also includes a generous game room with a cozy fireplace, a large workshop-storage area, and a convenient powder room. The elevator space—optional and to be confirmed with your contractor—connects all three levels for effortless movement throughout the home.

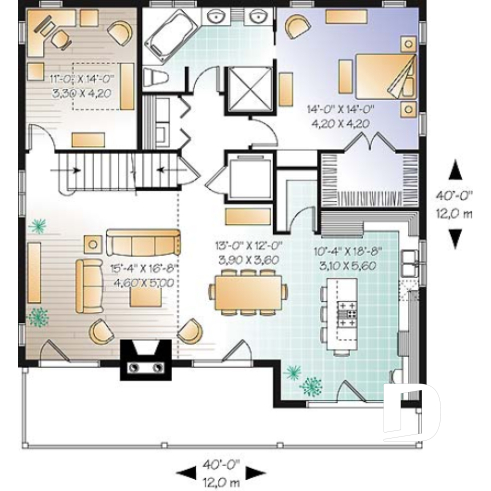

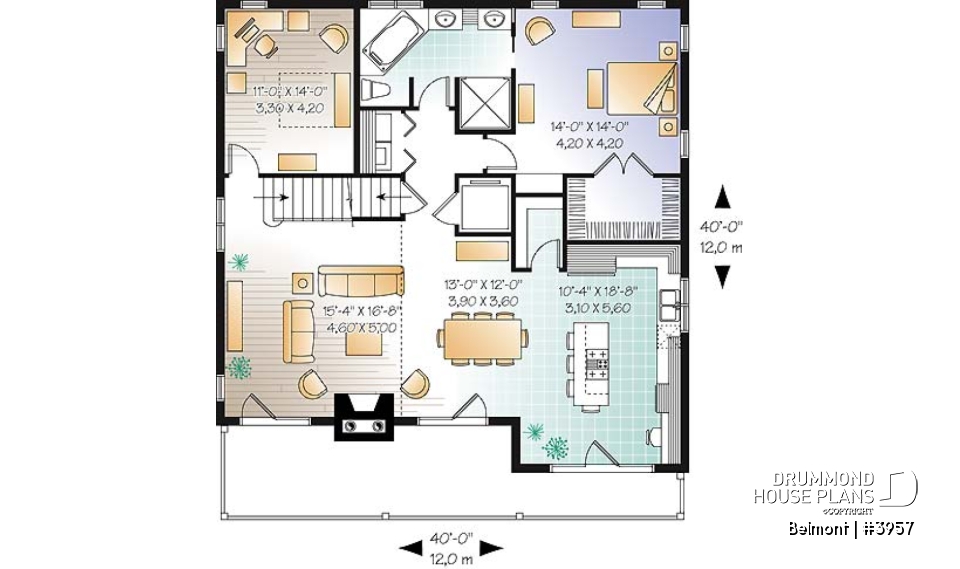

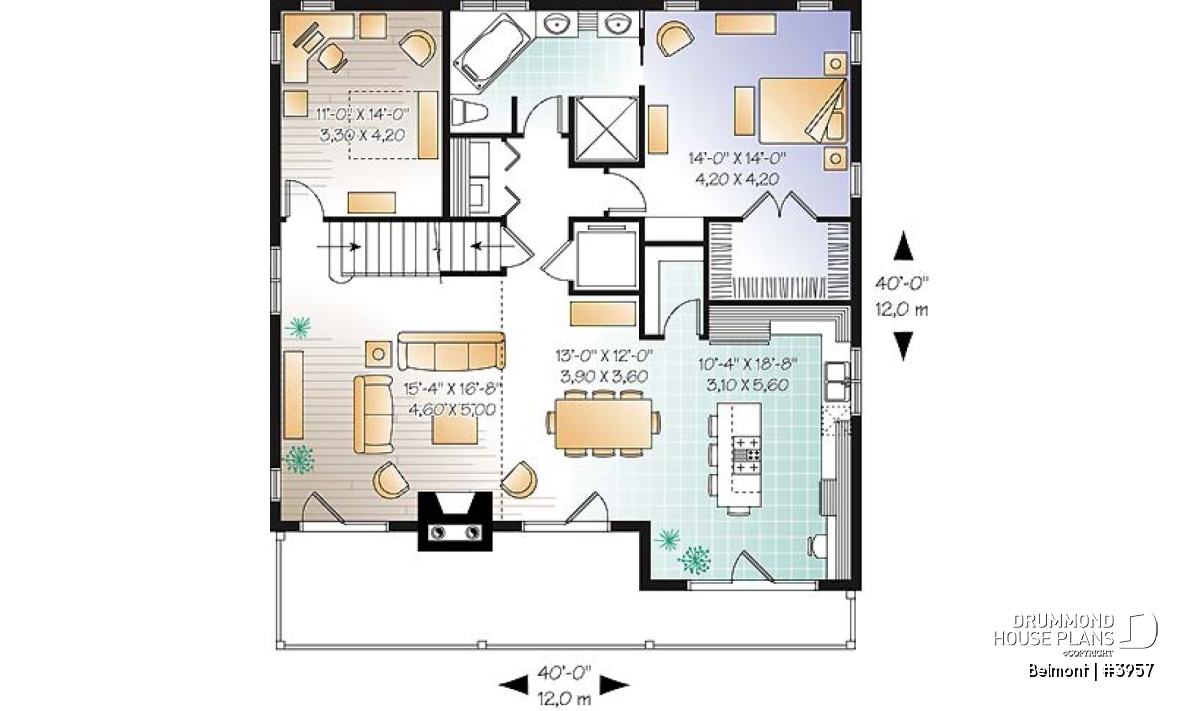

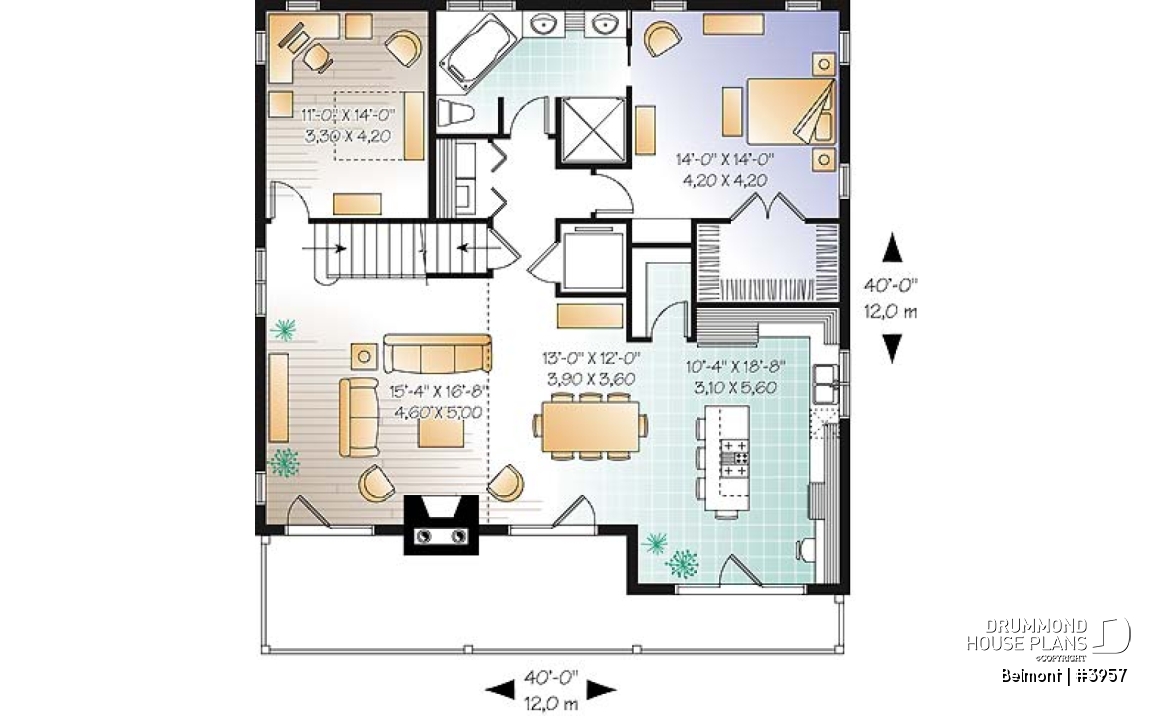

The main living floor offers a breathtaking open-concept layout bathed in natural light. A cathedral ceiling elevates the living room, where a beautiful fireplace creates a warm gathering point after outdoor adventures. The kitchen is designed for both style and efficiency, featuring a walk-in pantry, a central island with lunch counter, and even a computer nook for remote work or planning family activities. The adjoining dining room comfortably seats up to eight guests and opens toward the panoramic front views that make this home truly exceptional.
This level also includes a luxurious primary suite with a walk-in closet and integrated custom furniture, along with a striking bathroom featuring a double vanity, corner tub, and large 54" x 54" shower. A versatile office can double as a guest bedroom thanks to its smart layout and the option of a built-in Murphy bed. A dedicated laundry space is also conveniently located on this floor.

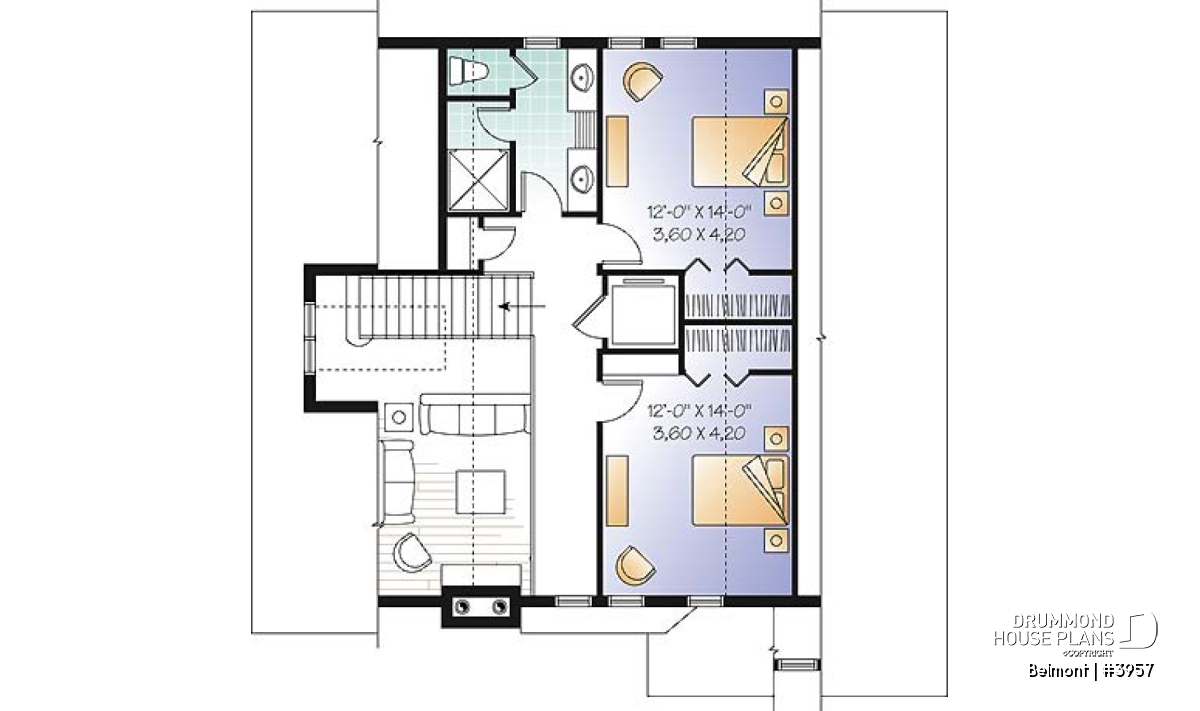

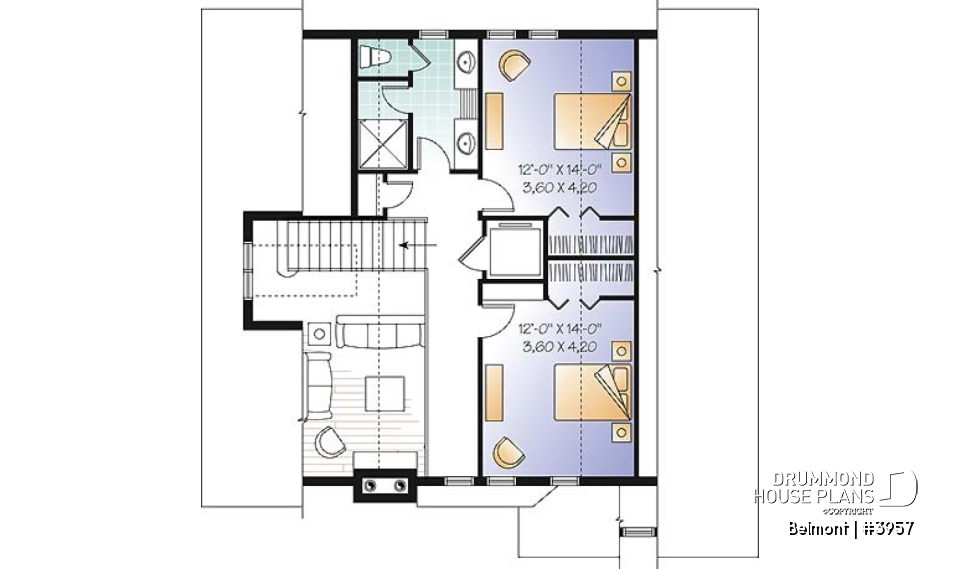

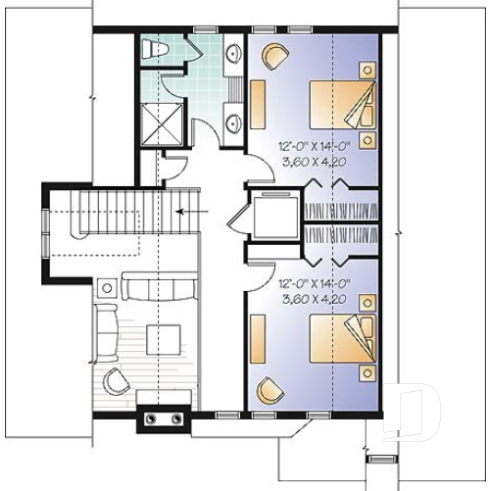

On the top floor, two charming secondary bedrooms each fit a double bed, making them perfect for family or visitors. A bright mezzanine offers an inviting reading nook or quiet retreat overlooking the main living area. A well-planned bathroom with a compartmentalized toilet, double vanity, and 48" x 48" shower completes the layout.
With over 3000 sq.ft. of flexible living space, an optional elevator, and a deep tandem double garage ideal for vehicles, sports gear, and seasonal storage, this chalet plan delivers comfort, versatility, and mountain-inspired elegance for year-round living.
Distinctive elements
Ski Chalet–Style or Waterfront Home Plan
Space planned for an elevator on all three levels.
Purchase and installation costs for the elevator are not included; please confirm with your contractor.
Main entrance on the garden level with a convenient walk-in closet.
Large game room and spacious workshop-storage area.
Extra-deep garage allowing for optimal equipment storage.
Fully open and bright main living area on the first floor.
Kitchen with walk-in pantry, central lunch island and computer nook.
Dining room designed to comfortably seat up to eight guests.
Living room with a fireplace and cathedral ceiling.
Primary suite with walk-in closet and built-in furnishings.
Office that can also serve as a guest bedroom.
Impressive bathroom with double vanity, corner tub and 54" x 54" shower.
On the upper floor, two secondary bedrooms each sized for a double bed.
A bright mezzanine, perfect for creating a cozy and inspiring reading nook.
Upstairs bathroom with toilet enclosure, double vanity and 48" x 48" shower.
Double tandem garage.
Plan feature(s)
Elevator, Fireplace, Pantry, Office / Study / Den, Mezzanine, Master suite on main, Walk-in master bed., Gound floor laundry room, Cathedral ceiling, Island, Panoramic view, Separate bath and shower, Double sinks, Sloped ceiling
Plan architectural style(s)
. Mountain, . Country, . Vacation and waterfront, . Craftsman / Northwest, . Ski chalets, . Rustic, . A-Frame, . American, . Cottage, chalet, cabin, . Cape Cod
Similar plans
Previously Viewed Plans
Questions and comments
March 06
Diane Wolenski
Do you have a 3D view of the kitchen? I am wondering what is to the right of the sink and dishwasher.
March 06
Customer service
Good day Ms. Wolenski and thank you for taking the time to write.
Unfortunately, we do not have a 3D view of the inside of our designs but, to the right of the sink and the dishwasher in the kitchen is first the oven and microwave and further to the right is a computer corner so what is shown along the wall closest to the front is the chair that is partially tucked under the desk.
Please let me know if you have any other questions or comments.
Regards
Deb
January 08
Mo
Was wondering if this design can be made with a two car garage and a powder room in the 1st floor?
January 08
Customer service
Good day and thank you for your interest in this plan.
We would be happy to return a free estimate for the changes that you require to this plan within two business days after receipt of this on line form.
Please let me know if I can further assist you.
Regards
Deborah
