House plan The Touchstone 2 (2957A)
Modern rustic lakefront cottage house plan ( ski chalet ), cathedral ceiling, master suite on main floor, mezz
View the size of the rooms and height of the ceilings

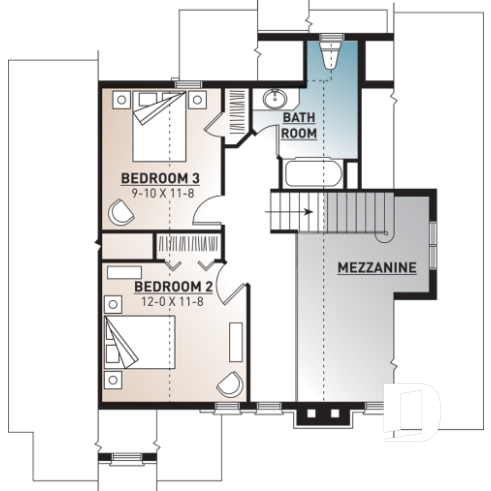

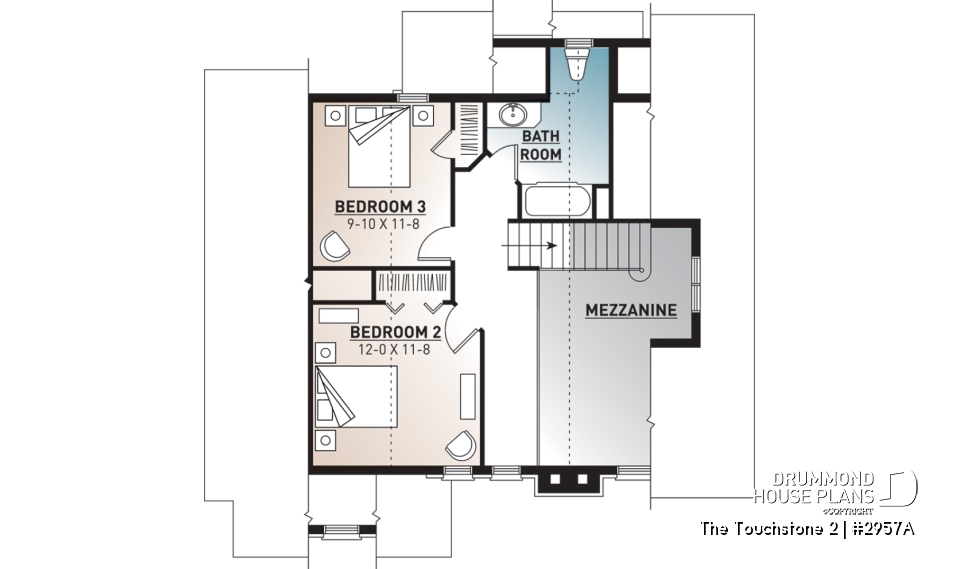

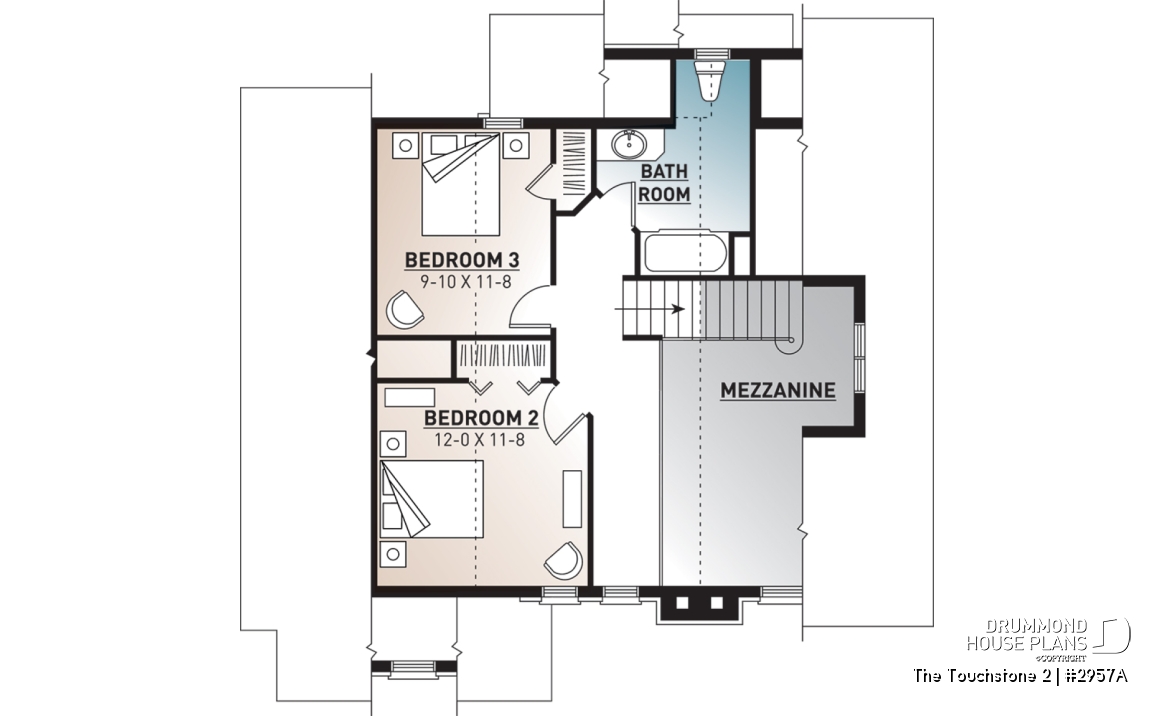

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'6" x 12'4" | ~ 8'0" |
| Bedroom | 9'10" x 11'8" | ~ 8'0" |
| Bedroom | 12'0" x 11'8" | ~ 8'0" |

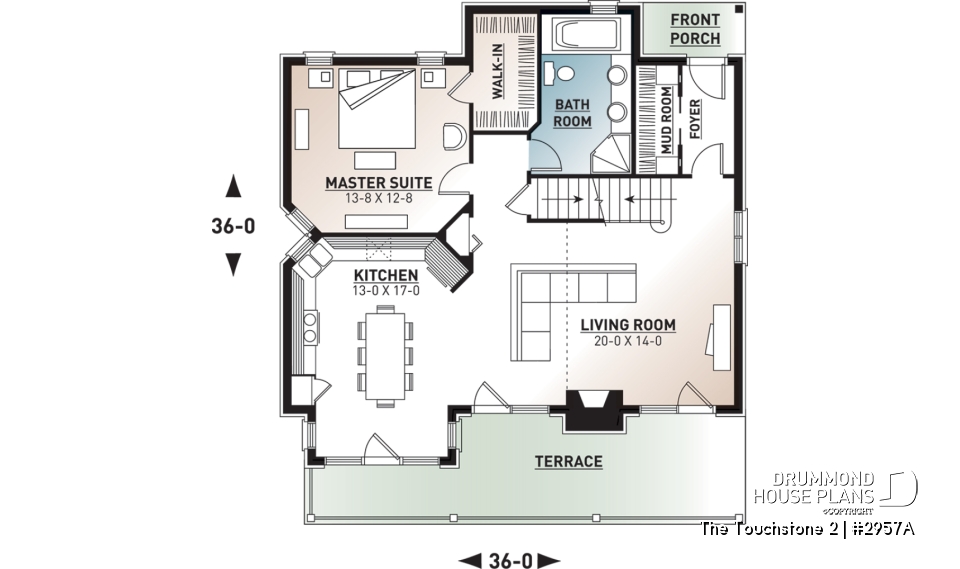

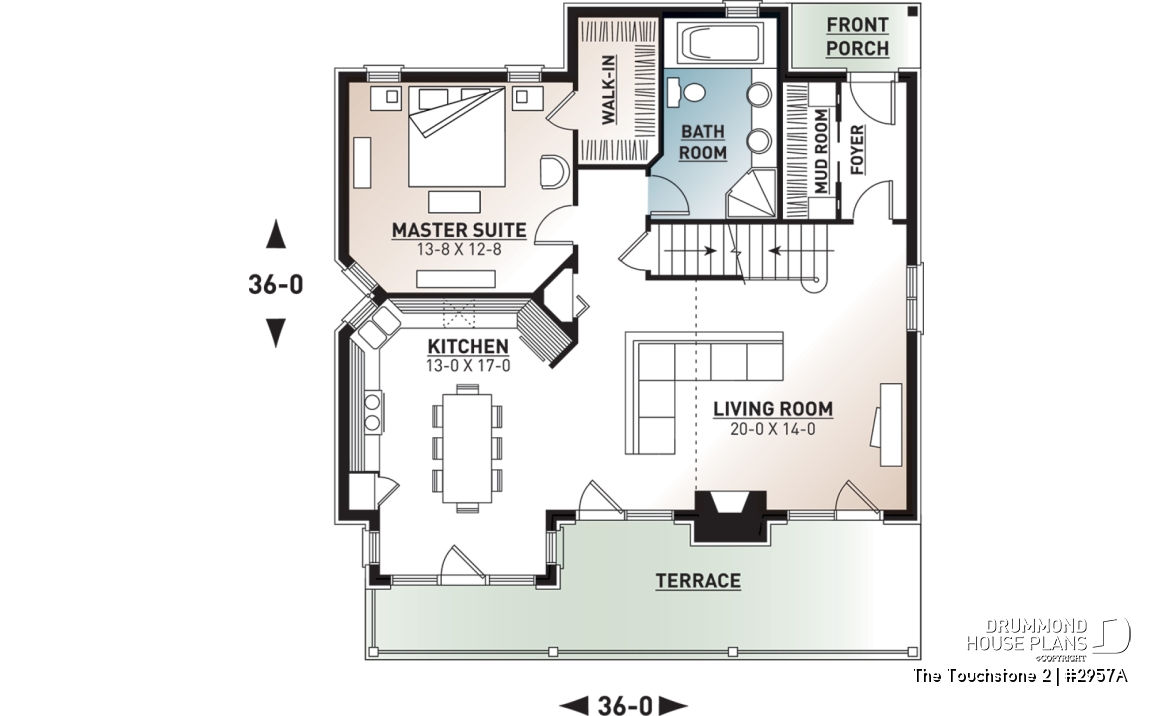

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'8" x 12'4" | ~ 8'0" |
| Bedroom | 13'8" x 12'8" | ~ 8'0" |
| Foyer | 4'0" x 8'4" | ~ 8'0" |
| Linen | 2'0" x 3'4" | ~ 8'0" |
| Living room | 20'0" x 14'0" | ~ 17'2" |
| Deck | 33'4" x 8'0" | N/A |
| Porch | 7'7" x 3'8" | N/A |
| Kitchen/dining room | 13'0" x 17'0" | ~ 9'10" |
| Pantry | 2'0" x 2'0" | N/A |
General specifications
| Total living area | 1625 sq.ft. |
| 2nd level | 517 sq.ft. |
| 1st level | 1108 sq.ft. |
| Width | 36'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 25'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications

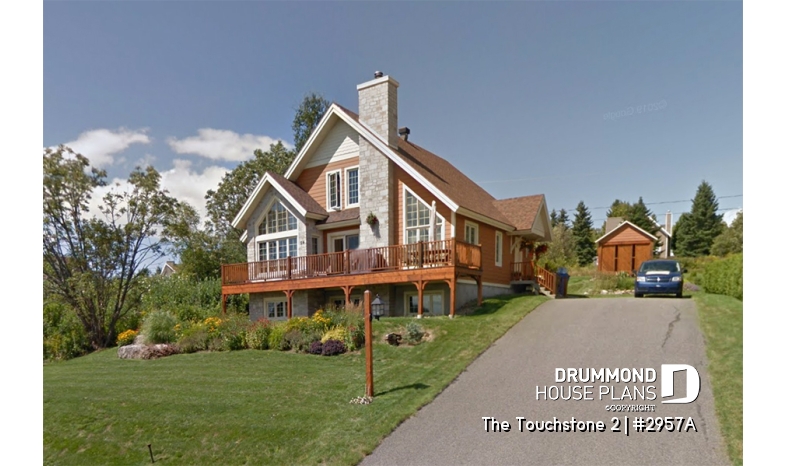

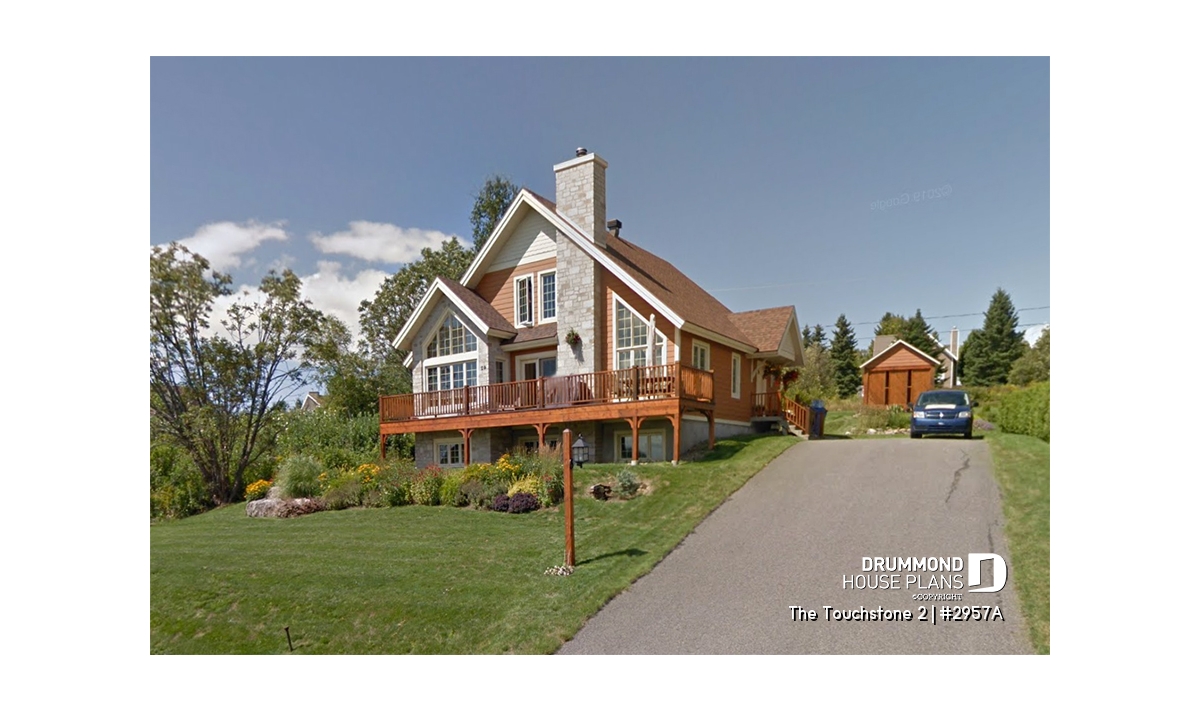

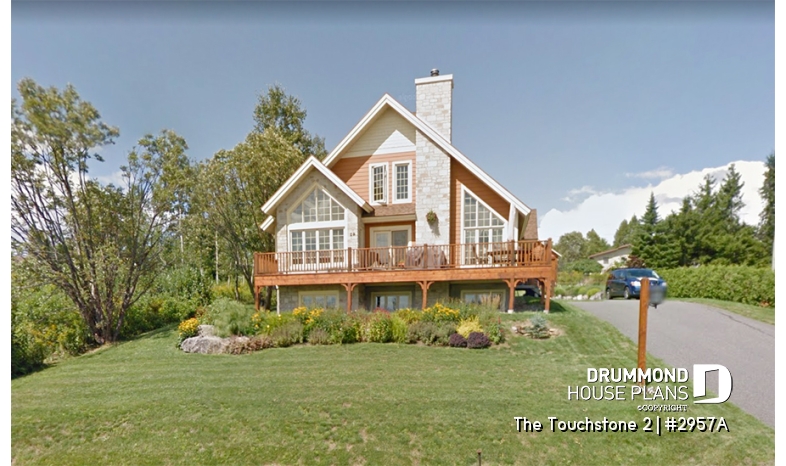

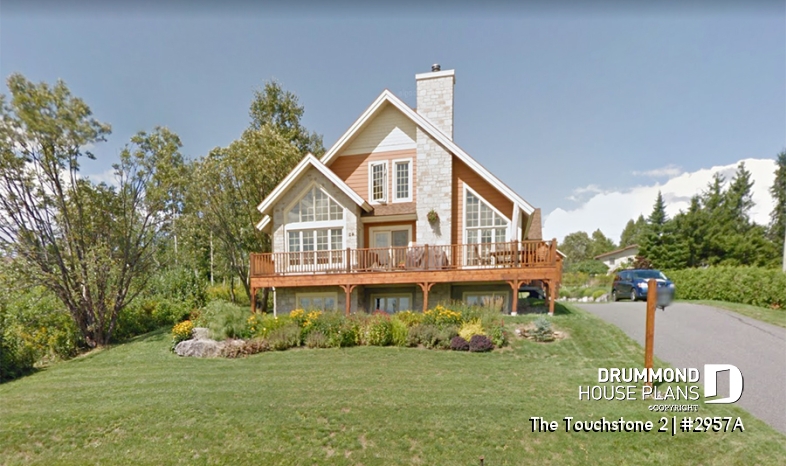

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

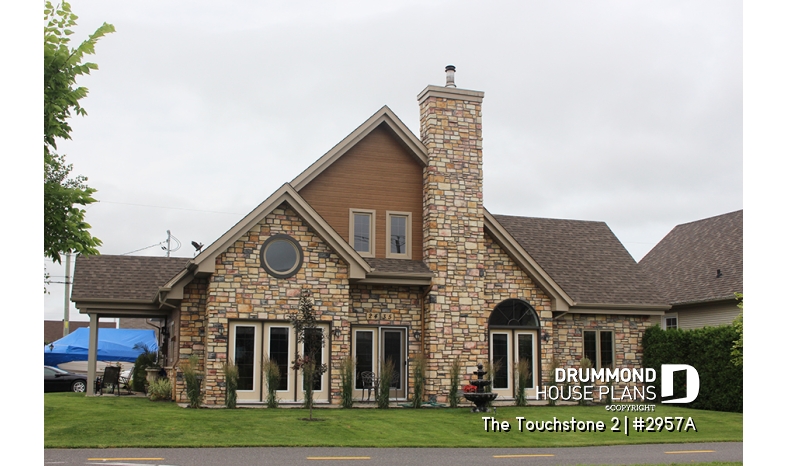

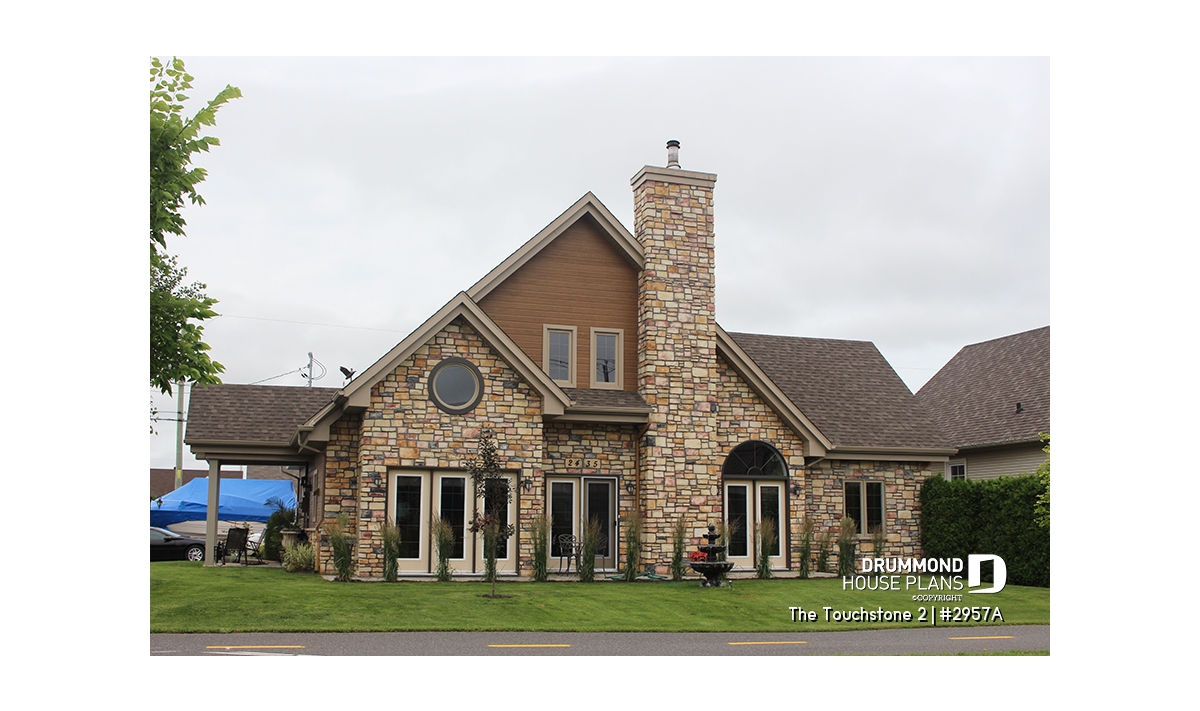

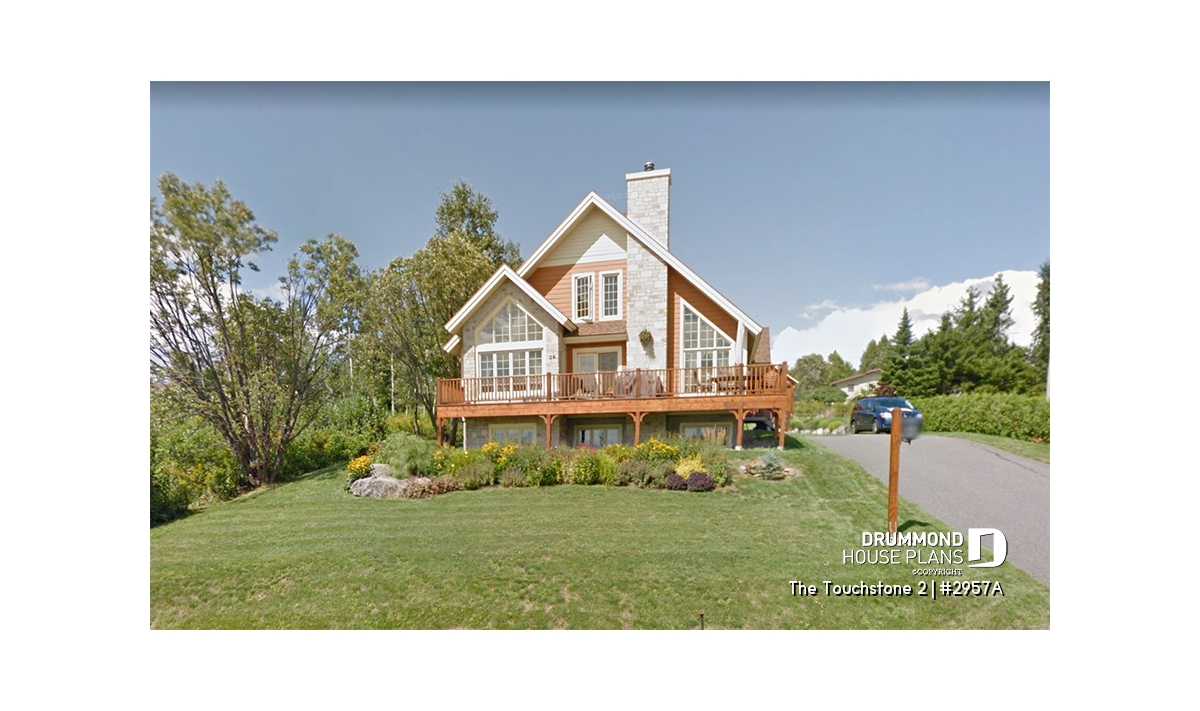

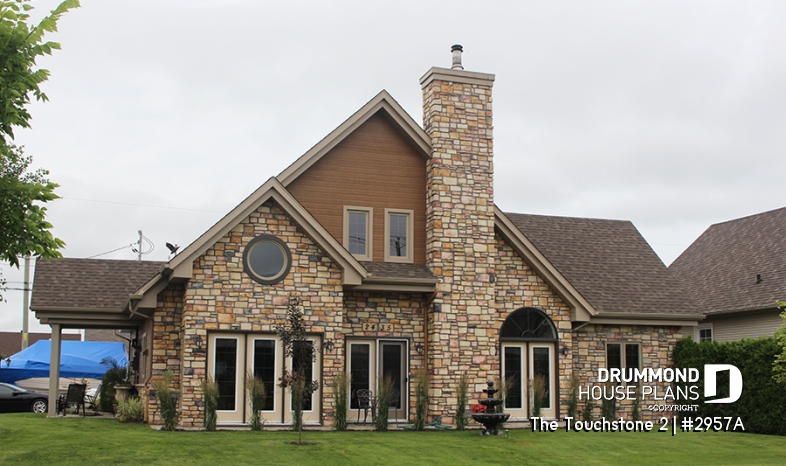

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

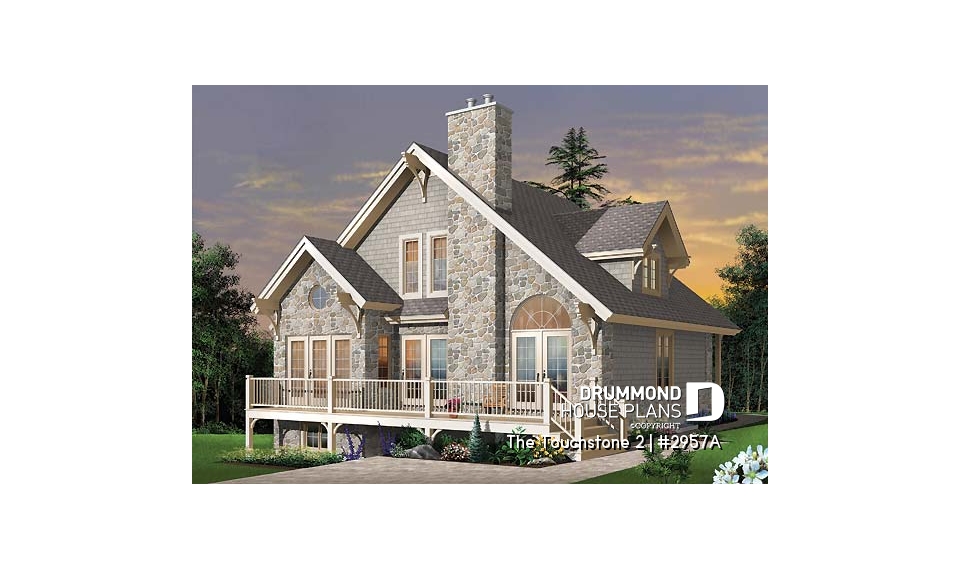

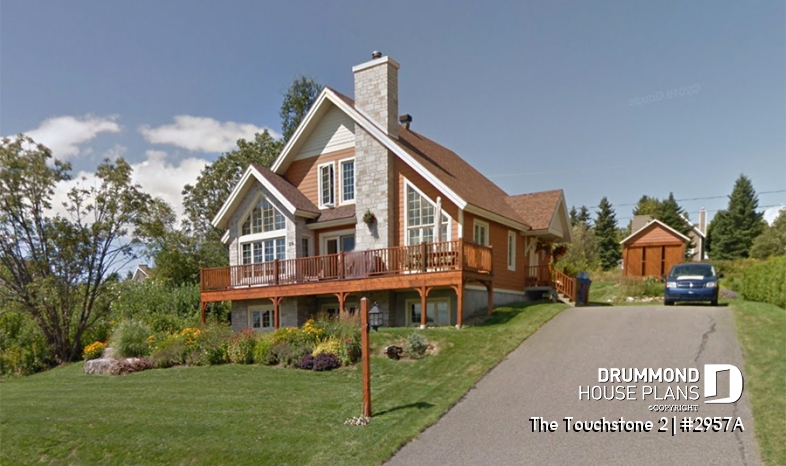

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Superb Mountain style lakefront vacation home plan with 3 beds et 2 baths
An ideal house for any time of year. Warm and inviting, it does not skimp on windows and offers a remarkable blend of materials, sloping roof, decorative mouldings and angles. The exterior is just a hint of the charm within.
The entrance foyer is appointed with a large storage closet, indispensable in such a home. Passing through, a beautiful living room space, a central fireplace, French doors and a cathedral ceiling, as well as a skylight illuminating the staircase. Further, a large kitchen allows for a table to seat at least 6 with a rear view assured by a projection filled with windows. On this same floor as well, a master bedroom with a partial view to the rear, benefiting from a large storage closet and an adjoining full bathroom.
On the upper level, two other good sized bedrooms will meet the expectations of their occupants. Other lovely appointments include a full bathroom and a mezzanine, always appreciated in a cathedral space for an unimpeded view of the beautiful living room below. A “must” when we talk “chalet”.
Distinctive elements
Family room with fireplace and cathedral ceiling. Bedroom #1 with walk-in closet on 1st level. Original kitchen with dinette in sunroom. 2 bedrooms and bathroom on 2nd level.
Plan feature(s)
Fireplace, Mezzanine, Cathedral ceiling, Walk-in master bed., Mud room, Panoramic view, Open floor layout
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Craftsman / Northwest, . Ski chalets, . Rustic, . American, . A-Frame, . Modern rustic, . Country, . Mountain
Similar plans
Previously Viewed Plans
Questions and comments
May 21
Suzanne
House plan
May 21
Customer service
Please let me know if you have any questions or comments.
Regards
Deb
October 15
Dave
Can this plan be modified for screw pile foundation?
October 15
Customer service
Good day and thank you for taking the time to write
This plan can be modified for a screw pile foundation. There will however be an addtional charge and a seven business day lead time to change the plan.
Please let me know if I can furhter assist you.
Regards
Deborah
October 01
Linda
I love this plan and those that are similar. I really need a laundry room on the main floor. Is that possible? Thanks, Linda
October 01
Customer service
Good day and thank you for yur interest in our plans.
The addition of a laundry room on the main floor can be done.
By completing our on line modification form, the link for which you will find below, we will be pleased to return a free estimate for the change to the plan of your choice within two business days after receipt of your request.
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1001785.html
Please let me know if you have any other questions or comments.
Regards
Deborah
January 23
Bramwell Pilgrim
Dear Sir
I am interested in the distance from the inside wall off Living Room to the beginning of the mezanine floor above the Living room
January 23
Service à la clientele
Good day Mr. Pilgrim and thank you for taking the time to write.
The distance from the inside wall in the living room to the beginning of the mezzanine floor above is 13'-2".
Please let me know if I can be of further assistance.
Regards
Deborah
