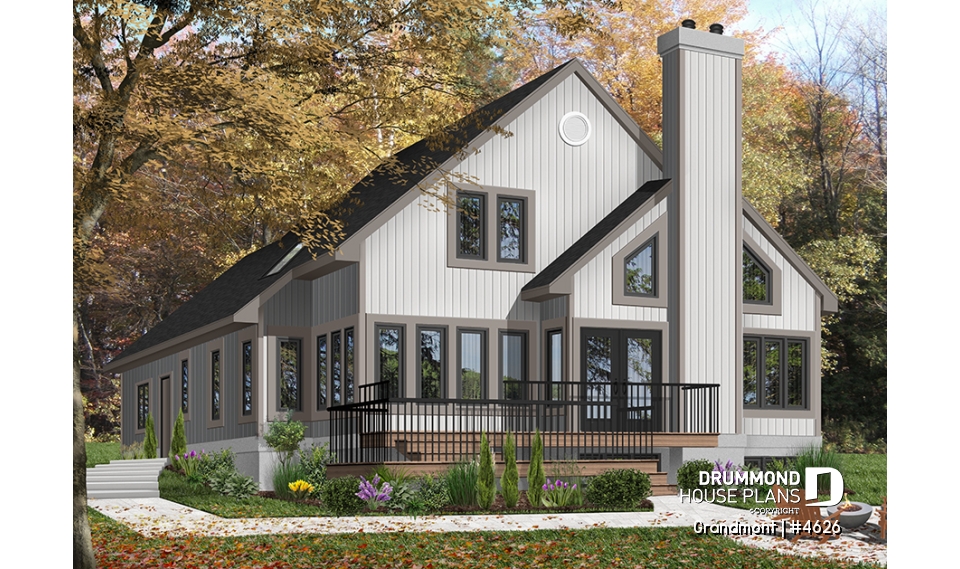

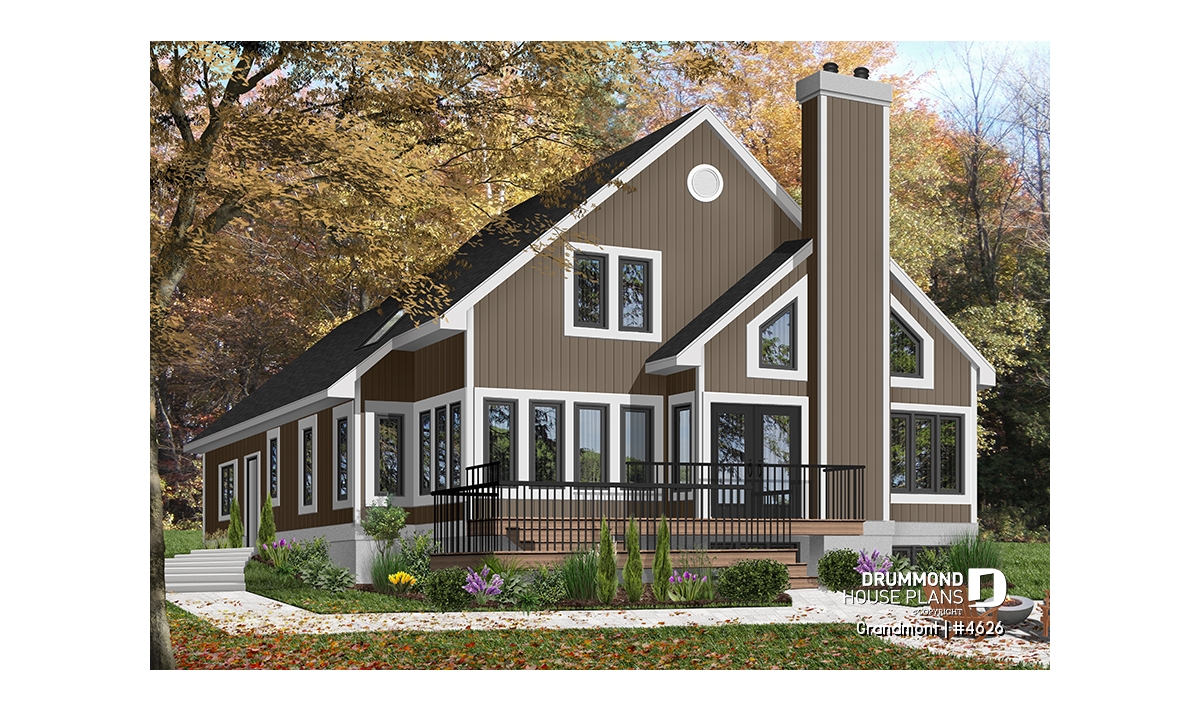

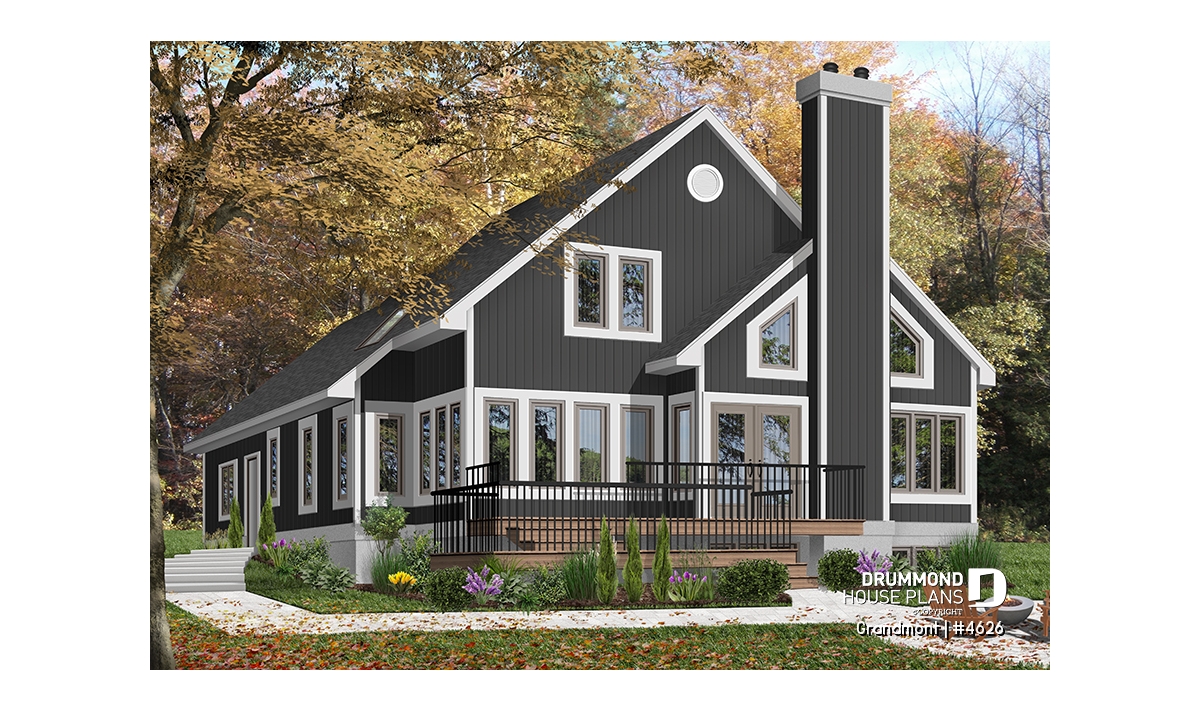

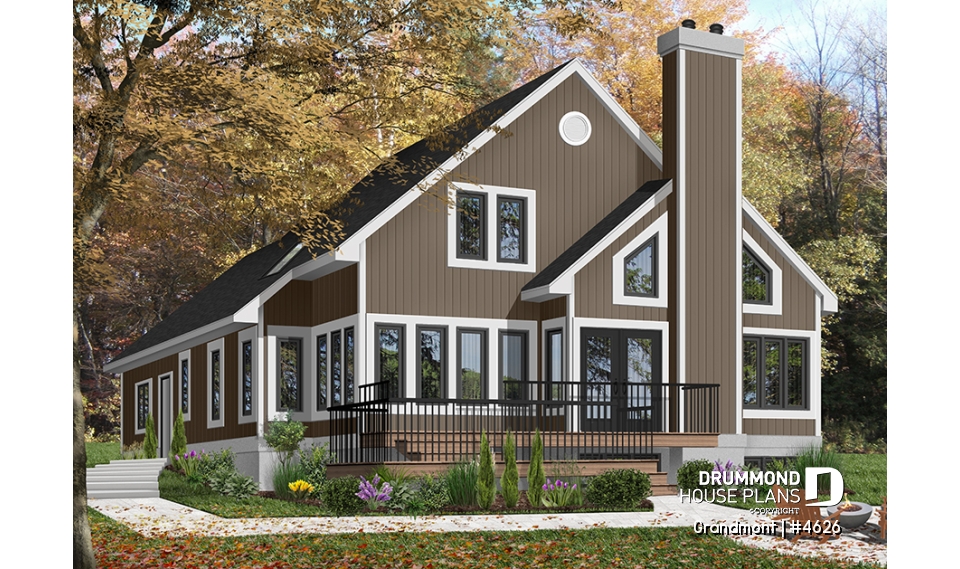

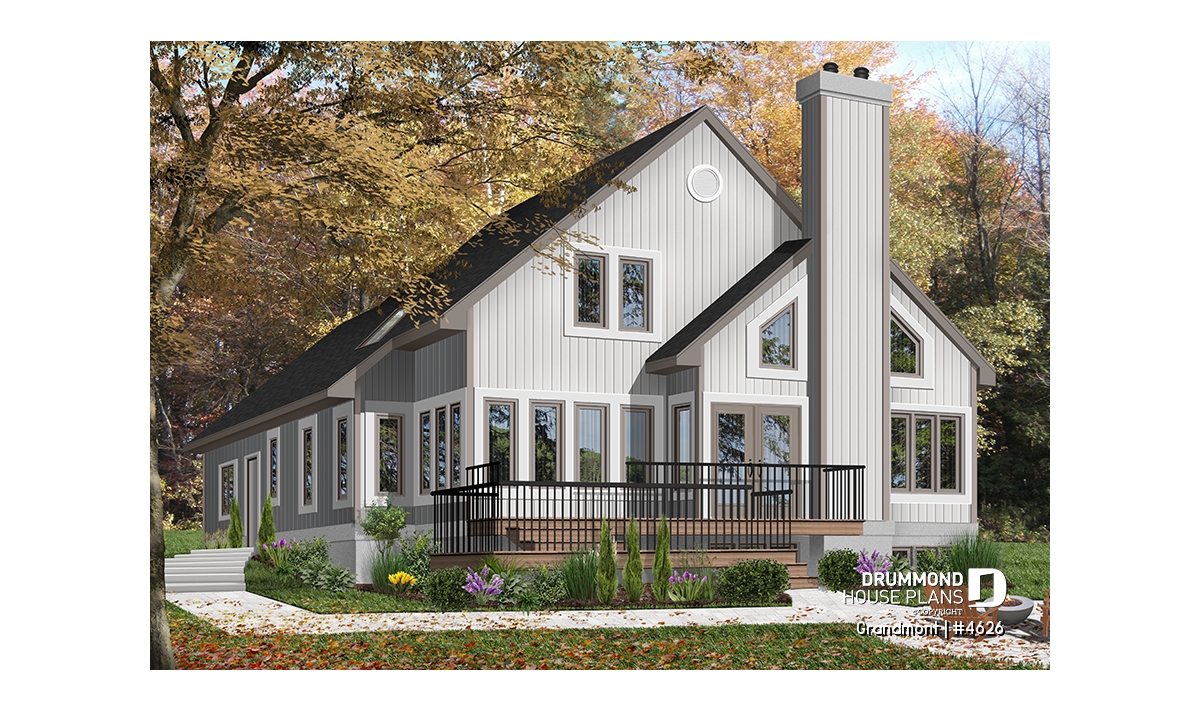

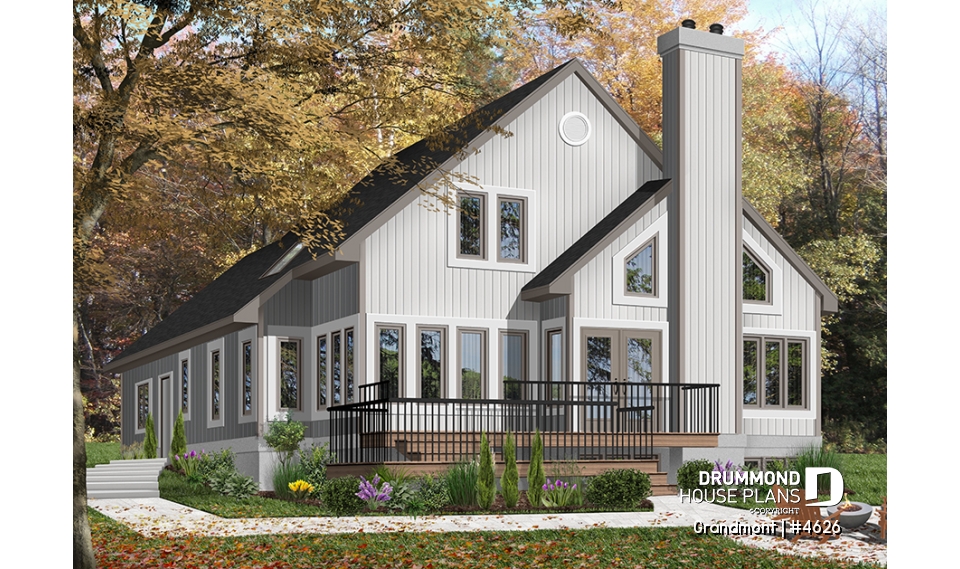

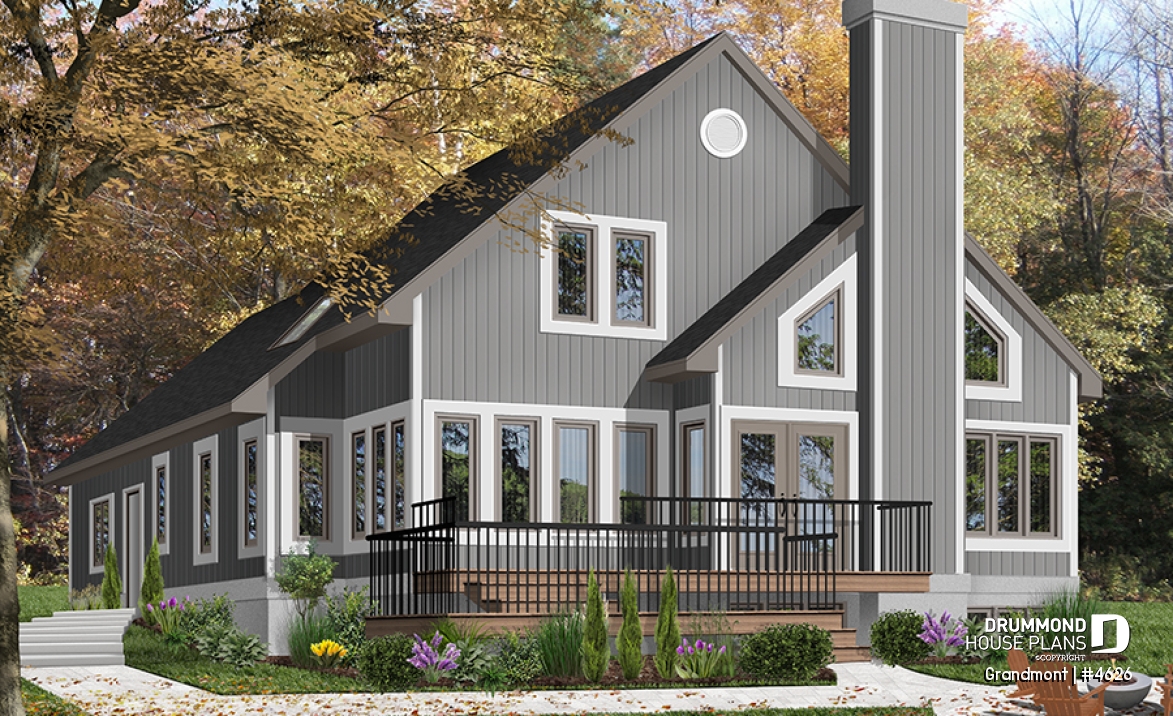

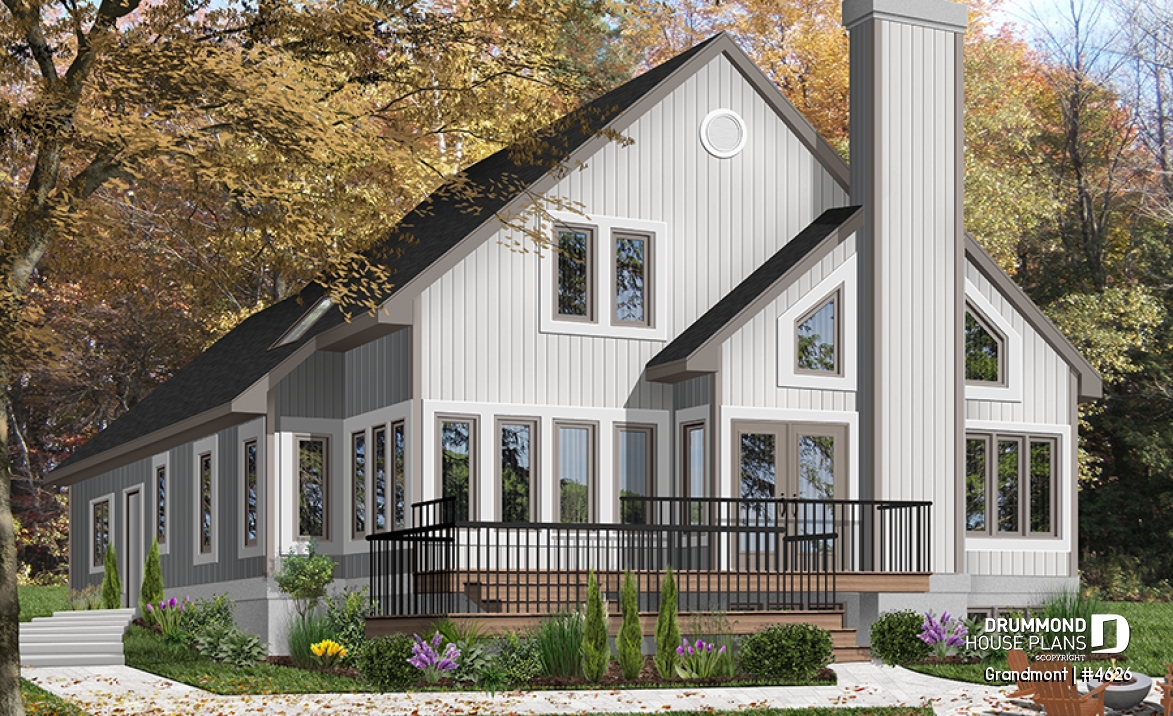

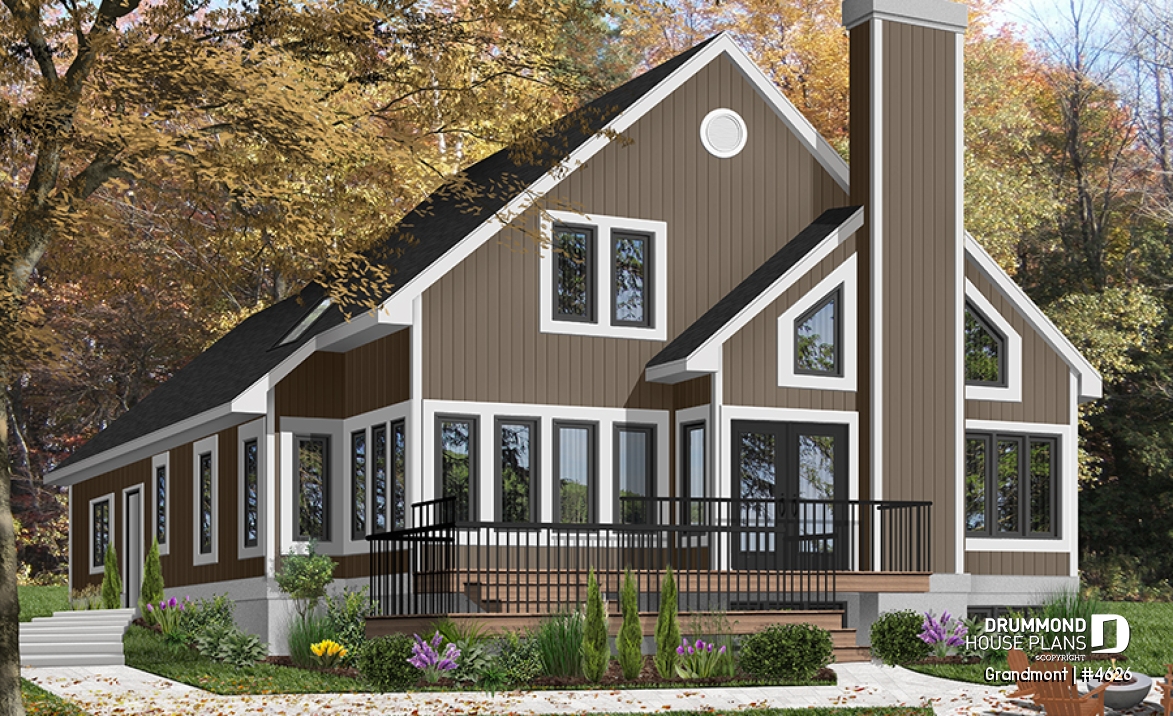

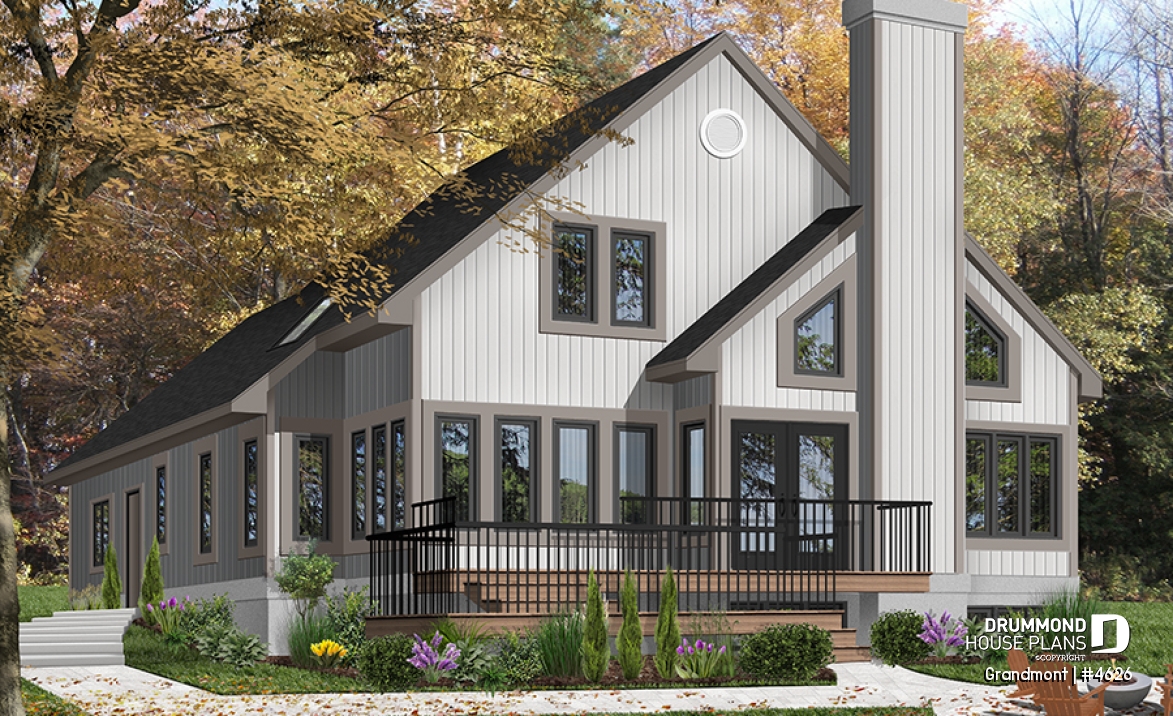

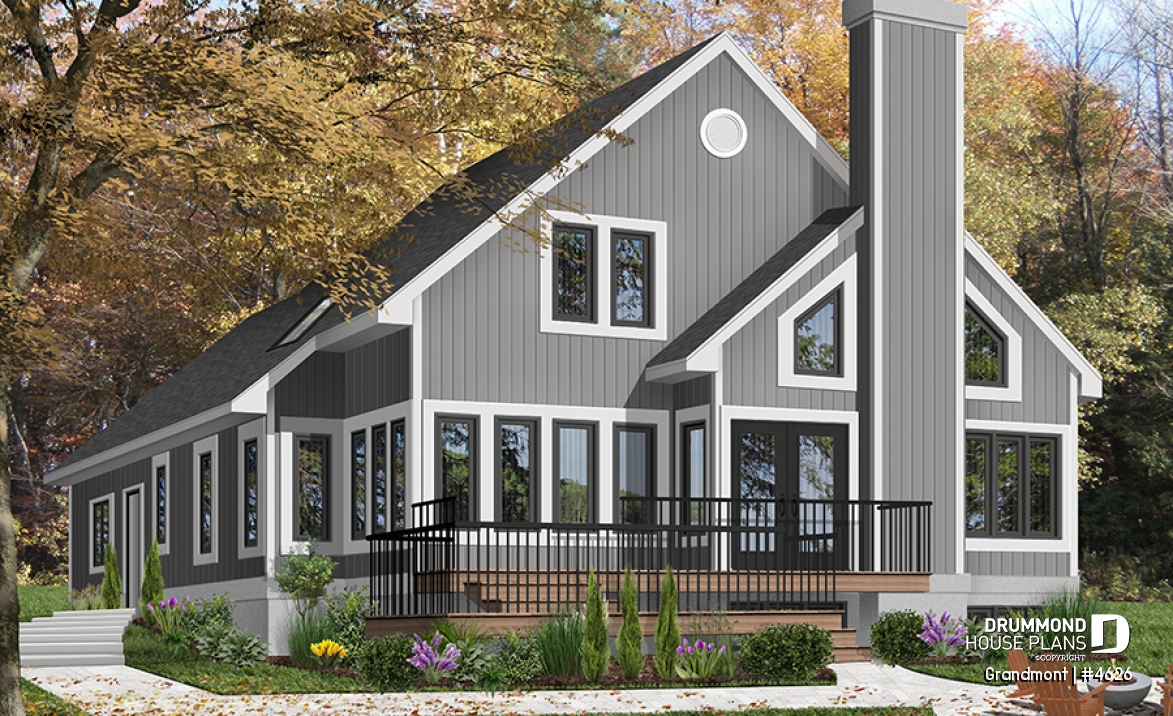

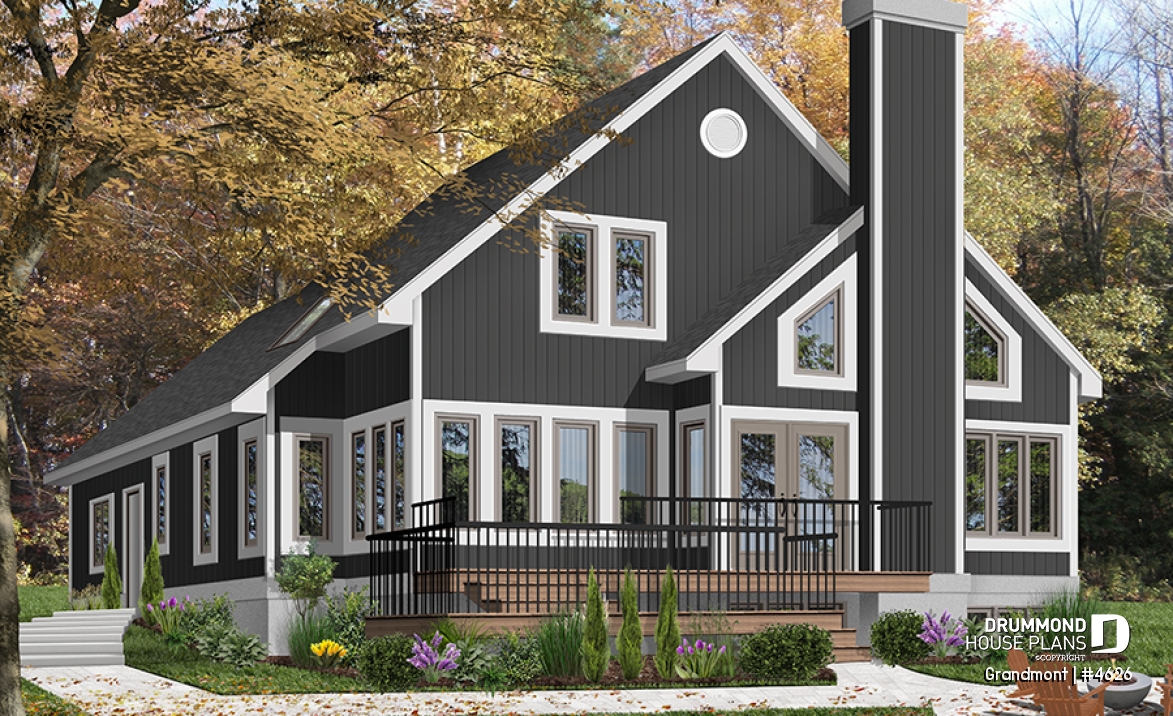

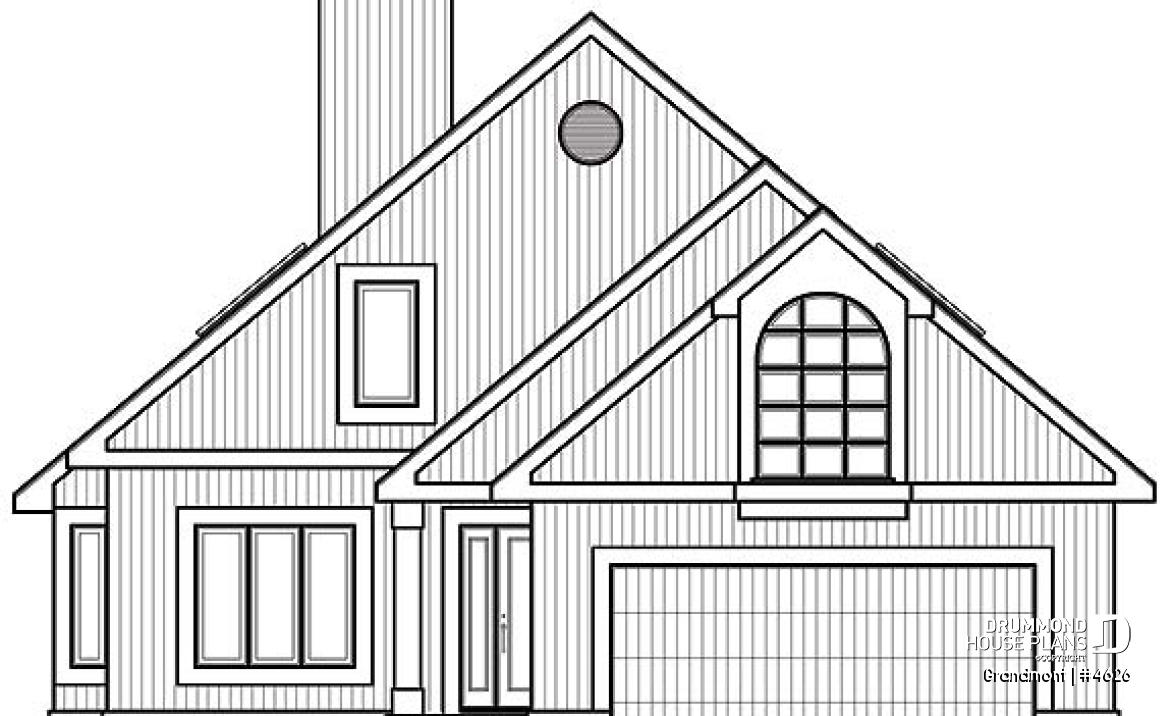

House plan Grandmont (4626)
Lakefront house plan, grand Master Suite with witting area, open floor plan and large bonus space
View the size of the rooms and height of the ceilings

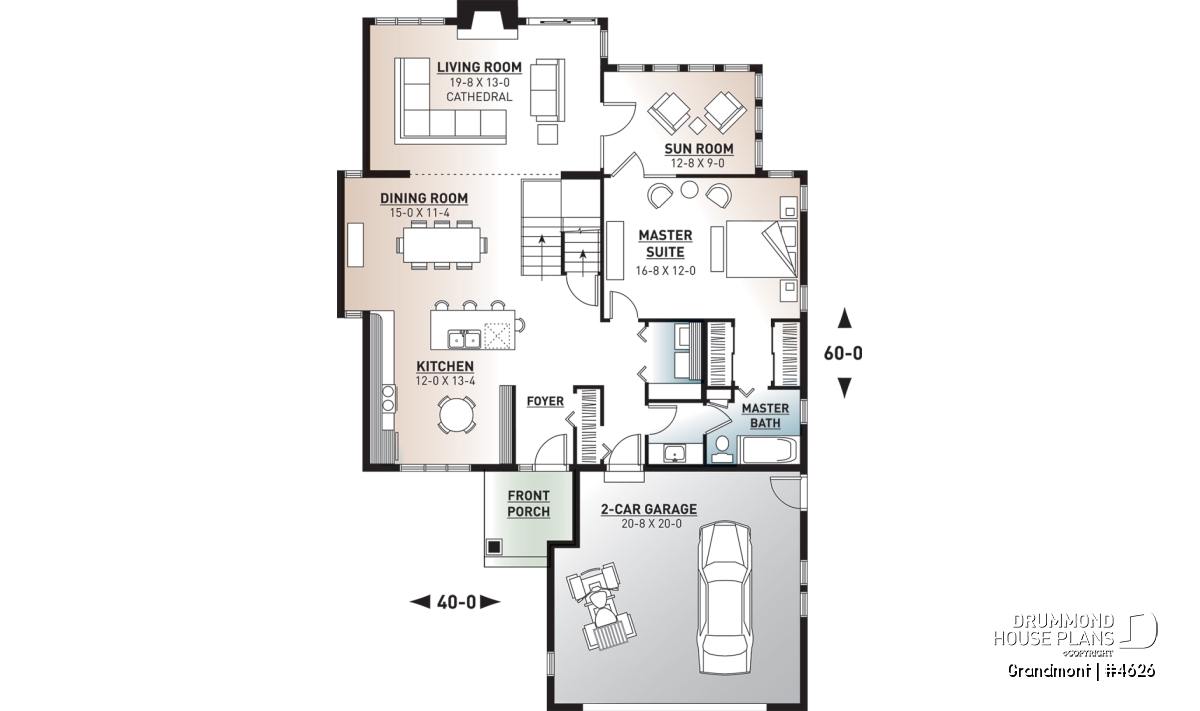

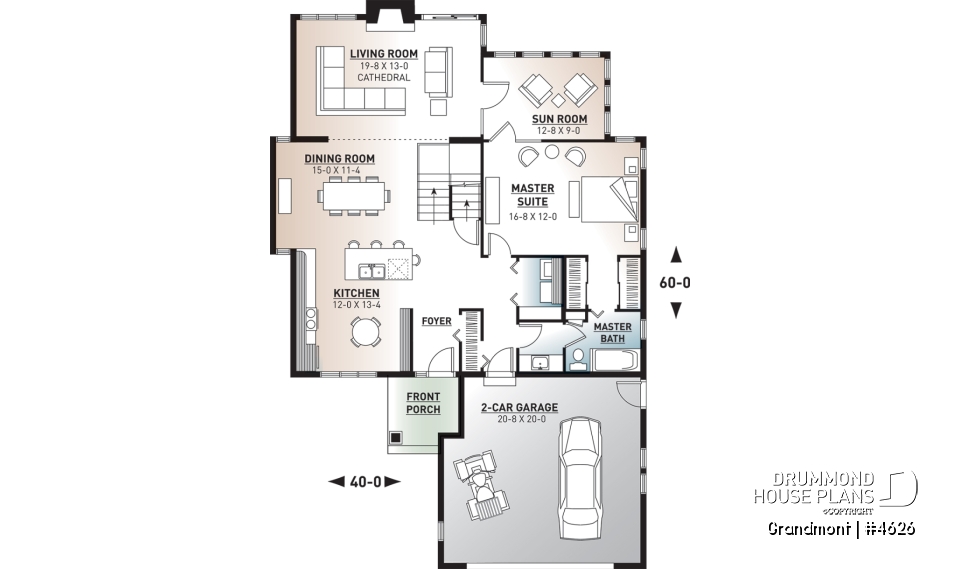

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'10" x 6'6" | ~ 8'0" |
| Dining room | 15'0" x 11'4" | ~ 8'0" |
| Living room | 19'8" x 13'0" | ~ 17'4" |
| Master suite | 16'8" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 5'6" | ~ 8'0" |
| Laundry room | 4'6" x 6'8" | ~ 8'0" |
| Kitchen | 12'0" x 13'4" | ~ 8'0" |
| Pantry | 1'0" x 6'10" | N/A |
| Foyer | 5'0" x 6'10" | ~ 8'0" |
| Closet | 2'0" x 6'6" | ~ 8'0" |
| Garage | 20'8" x 20'0" | ~ 8'11" |
| Deck | 18'10" x 10'0" | N/A |
| Deck | 21'0" x 10'0" | N/A |
| Covered porch | 7'6" x 7'6" | N/A |
| Sunroom | 12'8" x 9'0" | ~ 9'0" |

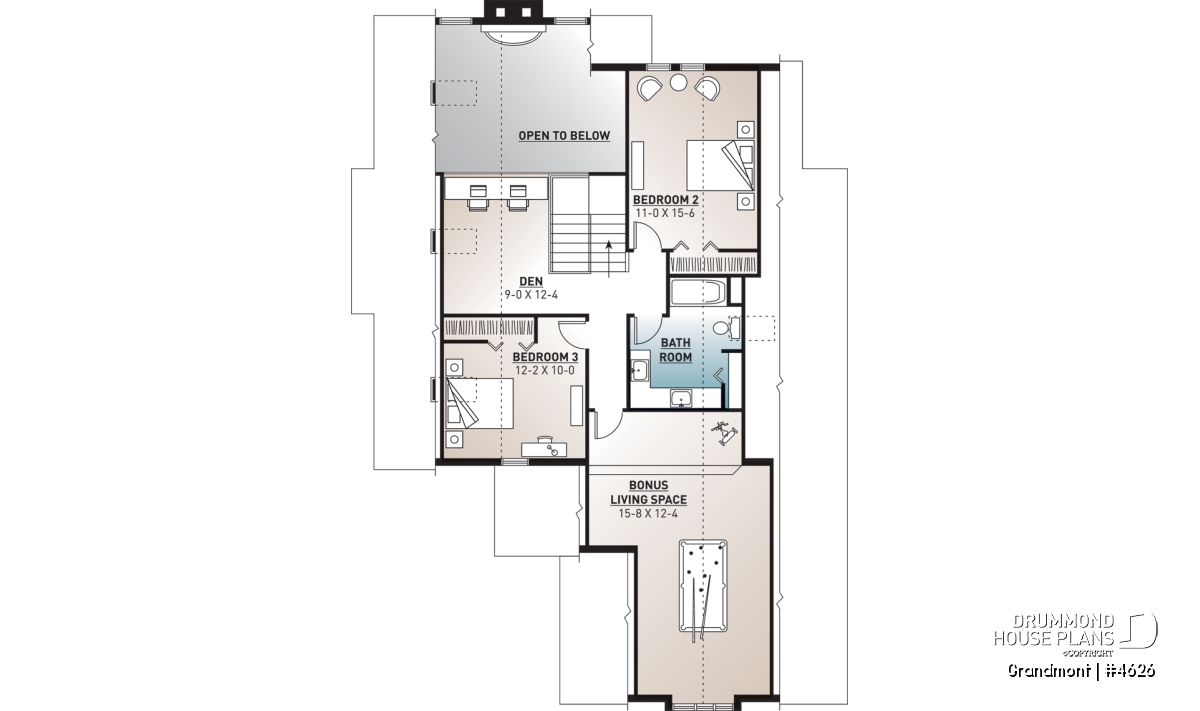

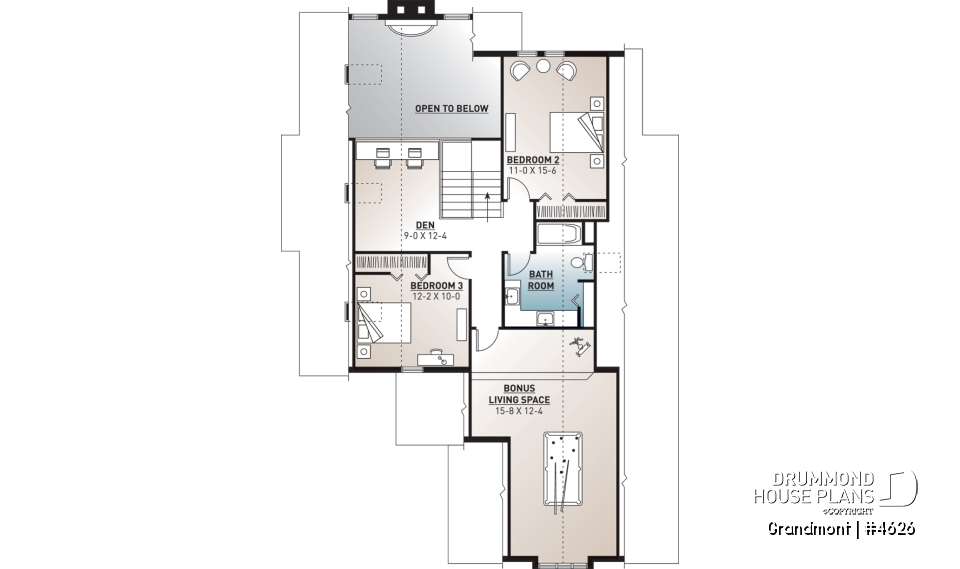

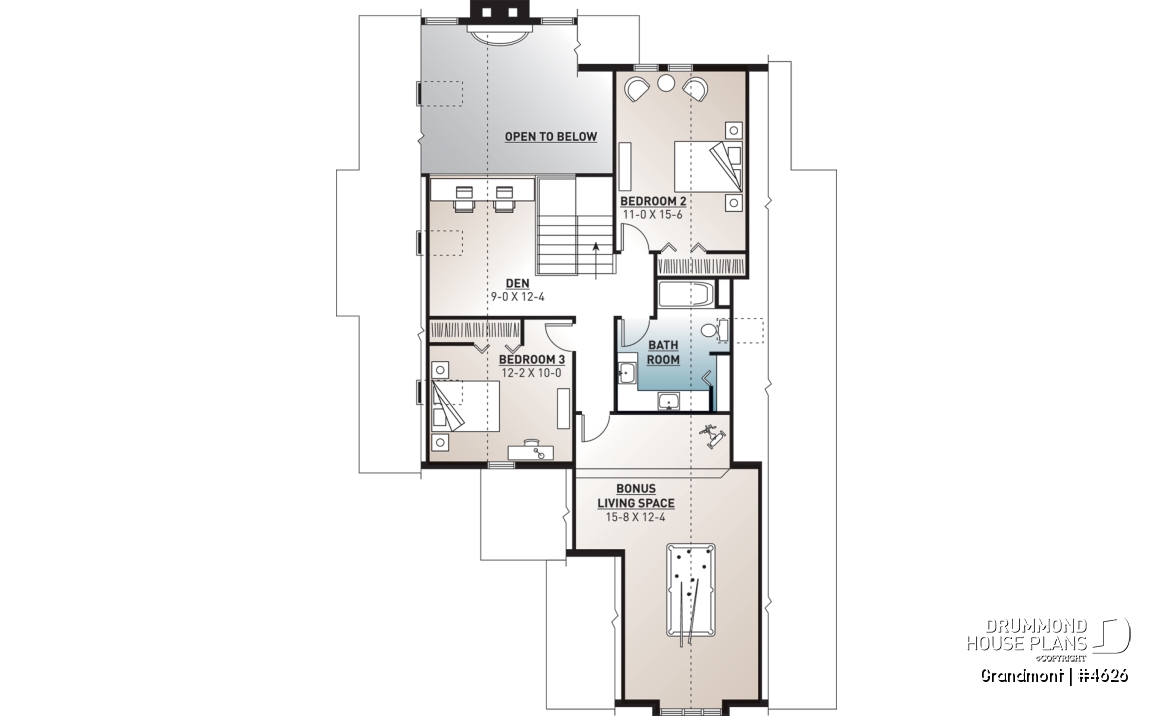

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'8" x 11'4" | ~ 8'0" |
| Bedroom | 11'0" x 15'6" | ~ 8'0" |
| Bedroom | 12'2" x 10'0" | ~ 8'0" |
| Living bonus room | 15'8" x 12'4" | ~ 8'0" |
| Living bonus room | 11'4" x 12'4" | ~ 7'1" |
| Mezzanine | 9'0" x 12'4" | ~ 8'0" |
General specifications
| Total living area | 2162 sq.ft. |
| 1st level | 1415 sq.ft. |
| 2nd level | 747 sq.ft. |
| Width | 40'0" |
| Depth | 60'0" |
| Ridge height from top of foundation | 27'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Lakefront style house plan with 3 to 4 bedrooms and large master suite
.
Distinctive elements
Solarium, exercise area, abundant fenestration, cathedral ceiling, special ceiling treatments, double sinks in private bathroom, bonus room over garage.
Plan feature(s)
Fireplace, Mezzanine, Panoramic view, Sunroom, Gound floor laundry room, Island, Narrow lot, Breakfast nook, Sitting area, Living bonus space, Master suite on main, Cathedral ceiling, Game room
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . American, . A-Frame, . Rustic, . Ski chalets, . Scandinavian, . Transitional, . Modern / Design, . Modern rustic, . Mountain
Similar plans
Previously Viewed Plans
Questions and comments
April 10
Adam R
Does the main level share a bath with the master? Any suggestions/modifications that include a 1/2 bath or powder room for main level?
April 10
Customer service
Good day and thank you for your interest in this plan.
A separate powder room could be created if we just close of the door from the sink area and add a toilet thus creating the powder room.
The master bath can then be reconfigured to include a vanity and sink and there is enough space to do this without moving any walls.
Please let me know if you have any other questions or comments
Regards
Deb
