Meunier (2949)
Cottage plan with a large master bedroom (sitting area), great natural lights, laundry on main floor
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'4" x 13'0" | ~ 8'0" |
| Pantry | 3'10" x 3'10" | N/A |
| Dining room | 13'0" x 14'0" | ~ 8'0" |
| Living room | 16'8" x 18'0" | ~ 8'0" |
| Linen | 1'2" x 2'2" | ~ 8'0" |
| Foyer | 6'8" x 5'8" | ~ 8'0" |
| Closet | 6'8" x 2'0" | ~ 8'0" |
| Laundry room | 6'8" x 5'8" | ~ 8'0" |
| Porch | 7'0" x 6'0" | N/A |
| Deck | 13'8" x 10'0" | N/A |
| Half bath or powder room | 6'8" x 4'10" | ~ 8'0" |

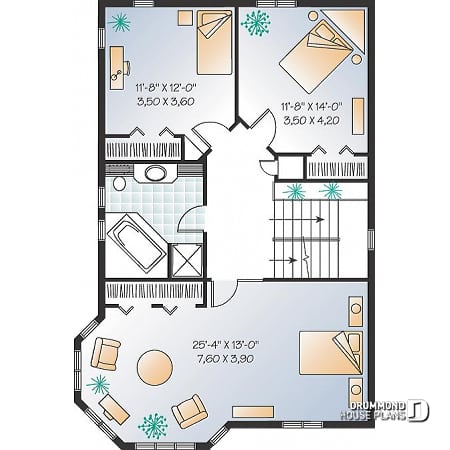

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'10" x 10'8" | ~ 8'0" |
| Bedroom | 25'4" x 13'0" | ~ 8'0" |
| Closet | 8'10" x 2'0" | ~ 8'0" |
| Bedroom | 11'8" x 14'0" | ~ 8'0" |
| Closet | 5'5" x 2'0" | ~ 8'0" |
| Bedroom | 11'8" x 12'0" | ~ 8'0" |
| Closet | 6'8" x 2'0" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |

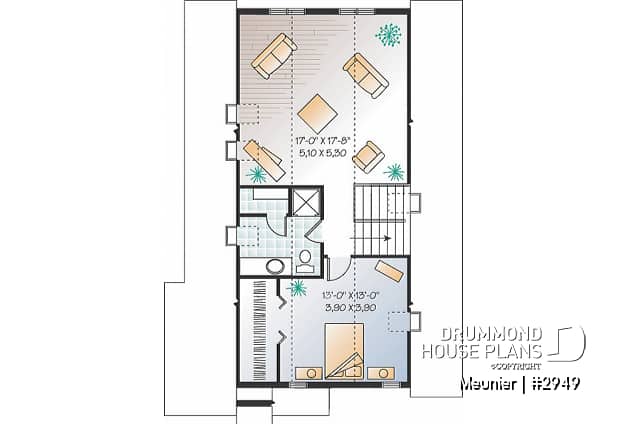

| 3rd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 8'7" x 9'0" | ~ 8'0" |
| Great room or Family room | 17'0" x 17'8" | ~ 8'0" |
| Bedroom | 13'0" x 13'0" | ~ 8'0" |
| Walk-in closet | 3'10" x 11'0" | ~ 8'0" |
General specifications
| Total living area | 2750 sq.ft. |
| 1st level | 994 sq.ft. |
| 2nd level | 1036 sq.ft. |
| 3rd level | 720 sq.ft. |
| Width | 27'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 32'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
3-storey panoramic view house plan, ideal for lakefront location
.
Distinctive elements
Abundant fenestration, plenty of light in dining room and sitting area in master bedroom, special ceiling treatments.
Plan feature(s)
Entrance hall, Gound floor laundry room, Lunch counter, Pantry, Separate bath and shower, Loft, Sloped ceiling
Plan architectural style(s)
. Country, . Traditional, . Ski chalets, . Vacation and waterfront, . Victorian, . Cape Cod, . Mountain, . Cottage, chalet, cabin
