House plan Gorgian 2 (3904)
Country style cottage plan with 2 family rooms, and a master bedroom on second floor
View the size of the rooms and height of the ceilings

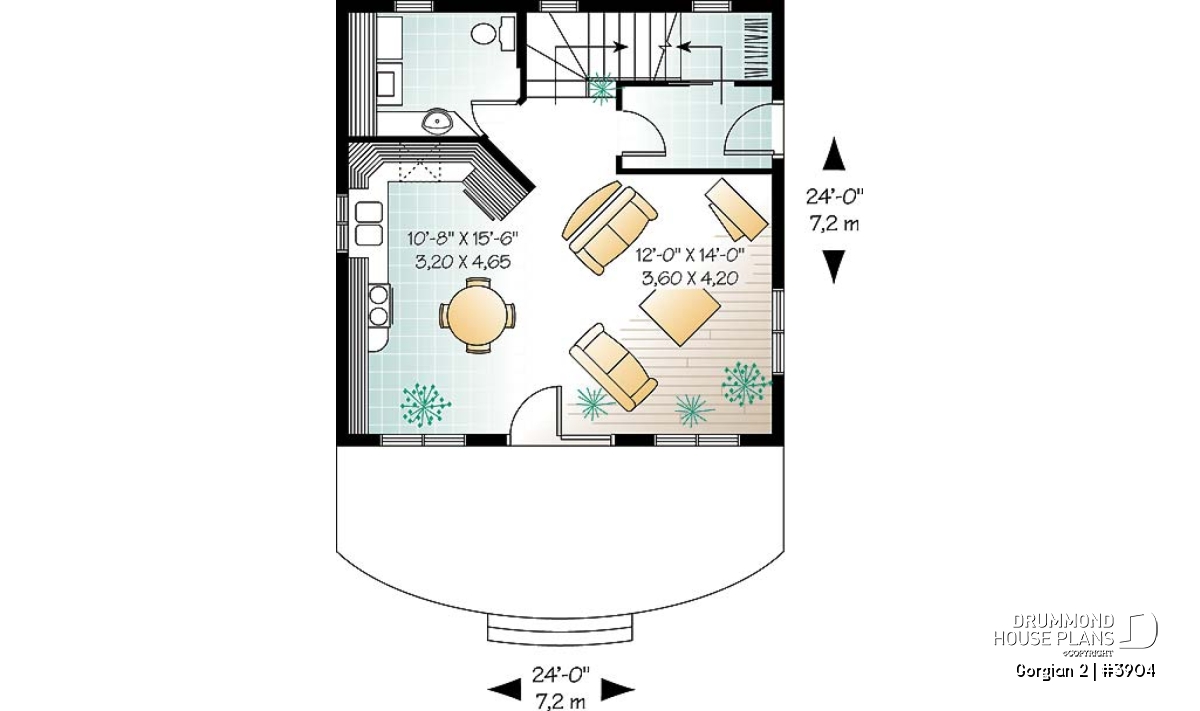

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 9'0" x 6'10" | ~ 8'0" |
| Kitchen | 10'8" x 15'6" | ~ 8'0" |
| Living room | 12'0" x 14'0" | ~ 8'0" |
| Foyer | 8'0" x 4'6" | ~ 8'0" |
| Porch | 24'0" x 10'0" | N/A |
| Porch | 3'6" x 6'0" | N/A |

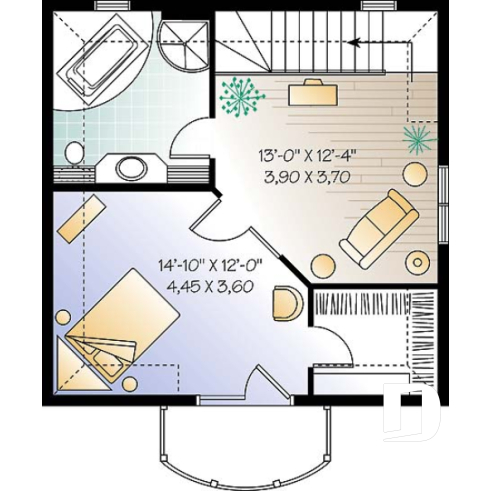

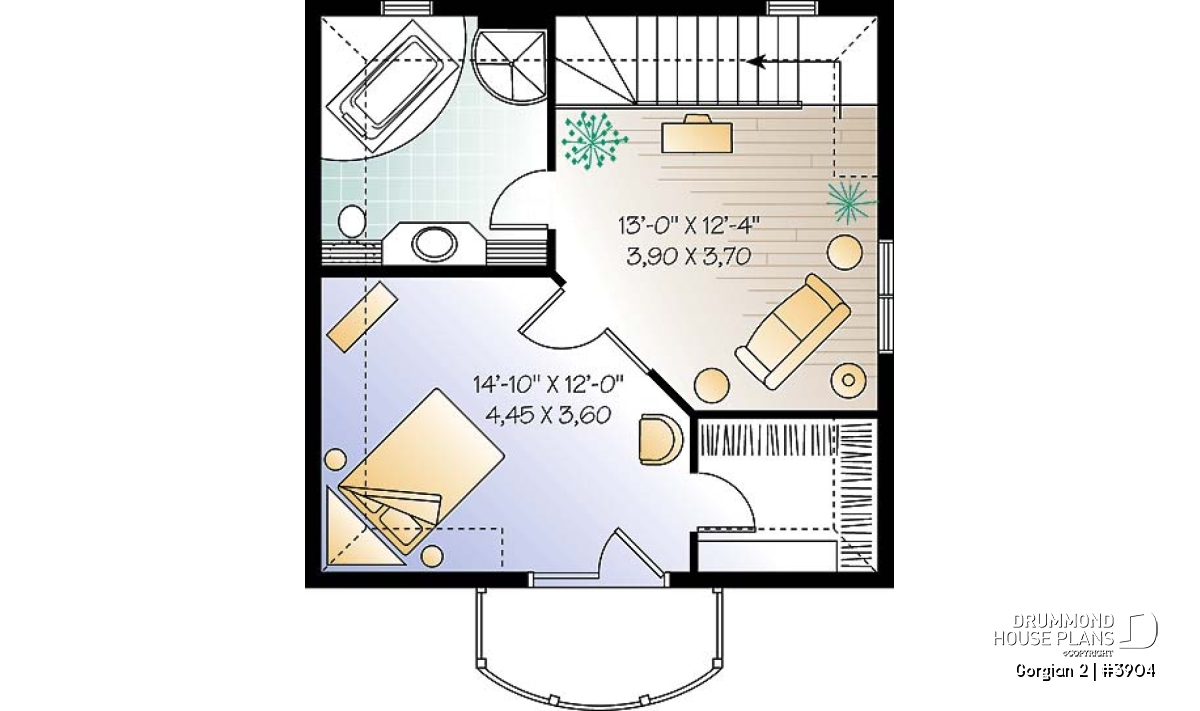

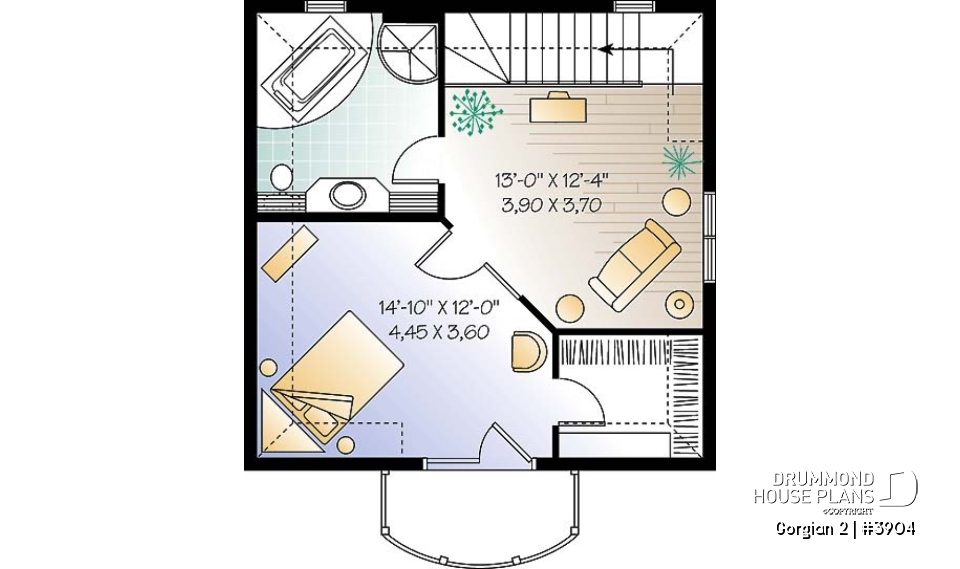

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'4" x 10'2" | ~ 8'0" |
| Bedroom | 14'10" x 12'0" | ~ 8'0" |
| Balcony | 10'0" x 5'0" | N/A |
| Great room or Family room | 13'0" x 12'4" | ~ 8'0" |
General specifications
| Total living area | 1152 sq.ft. |
| 1st level | 576 sq.ft. |
| 2nd level | 576 sq.ft. |
| Width | 24'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 30'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Small two-storey house plan offering only one bedroom!
.
Distinctive elements
Open floor plan on main floor. Second floor offering a bedroom with private outdoor balcony, a small living room that can be used as a dormitory and a bathroom.
Plan feature(s)
Mezzanine, Sitting area, Gound floor laundry room, Balcony 2nd floor, Separate bath and shower, Entrance hall, Walk-in master bed., Sloped ceiling
Plan architectural style(s)
. Ski chalets, . Country, . Traditional, . Vacation and waterfront, . American, . Cottage, chalet, cabin
