House plan Gaudry (2936)
Budget friendly 2-story house plan with 2 bedrooms, 1.5 baths, fireplace, open dining and living concept
View the size of the rooms and height of the ceilings

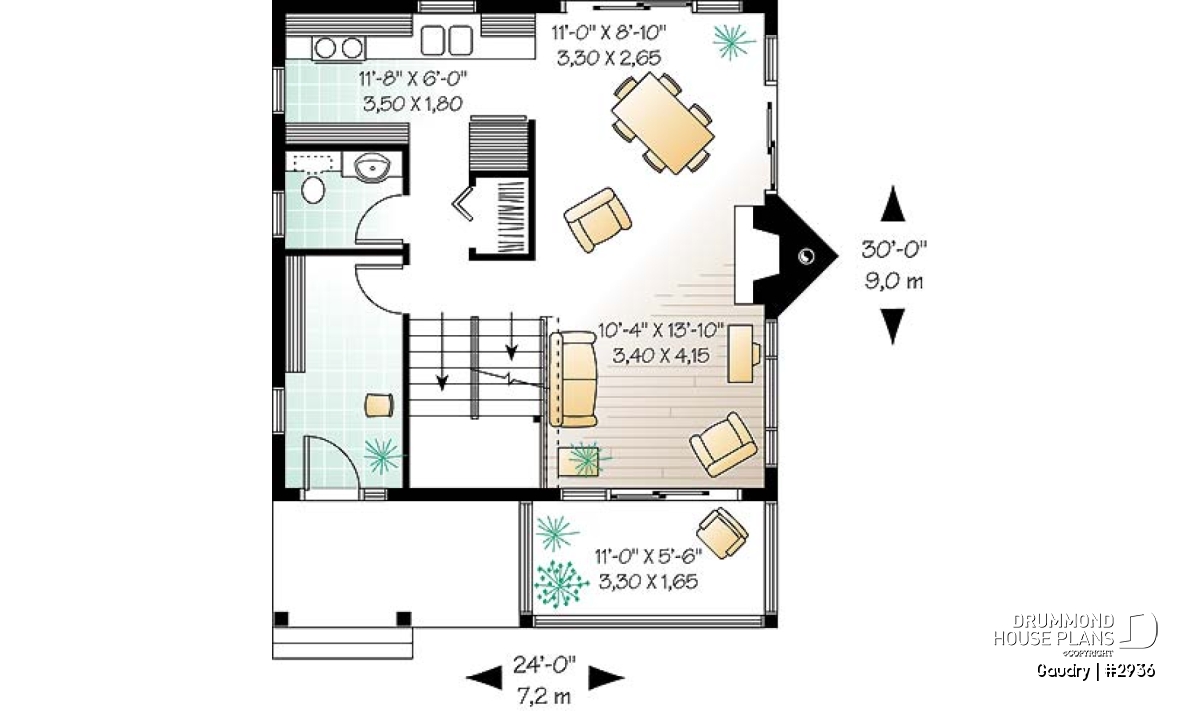

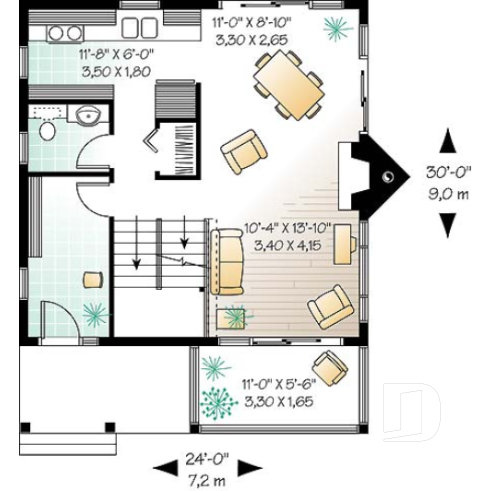

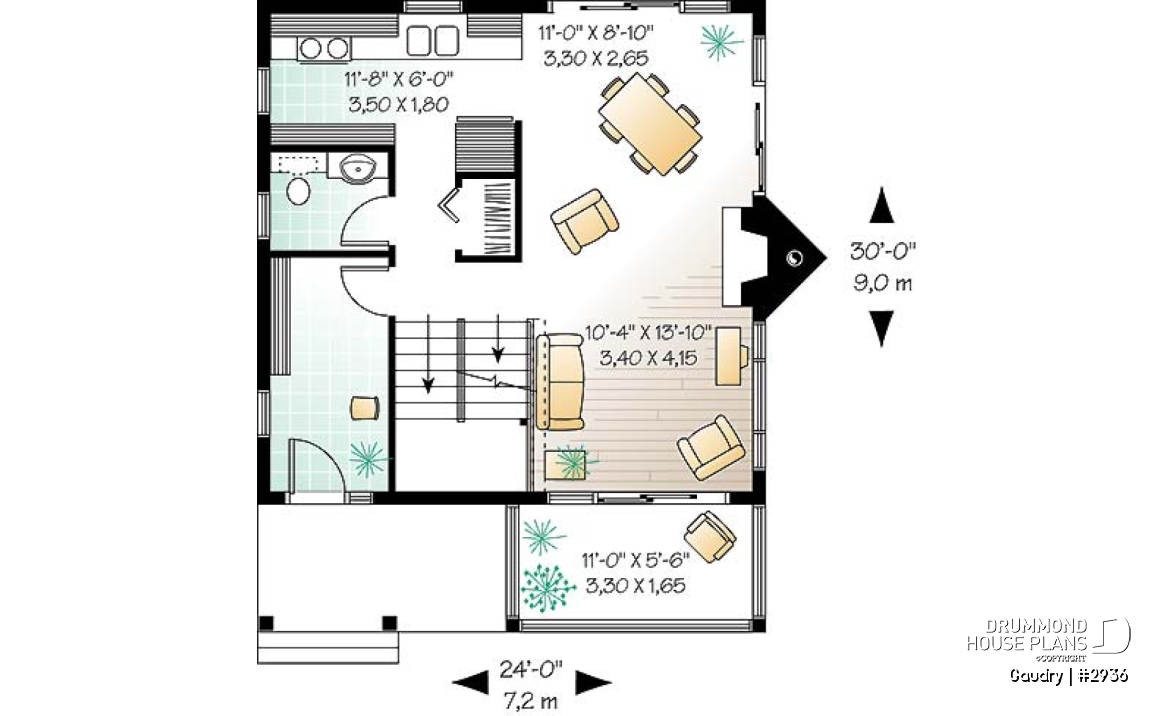

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'8" x 6'0" | ~ 8'0" |
| Dining room | 11'0" x 8'10" | ~ 8'0" |
| Living room | 10'4" x 13'10" | ~ 8'0" |
| Foyer | 5'4" x 11'2" | ~ 8'0" |
| Closet | 2'4" x 3'4" | ~ 8'0" |
| Porch | 12'0" x 6'0" | N/A |
| Porch | 22'6" x 14'0" | N/A |
| Half bath or powder room | 5'4" x 4'8" | ~ 8'0" |

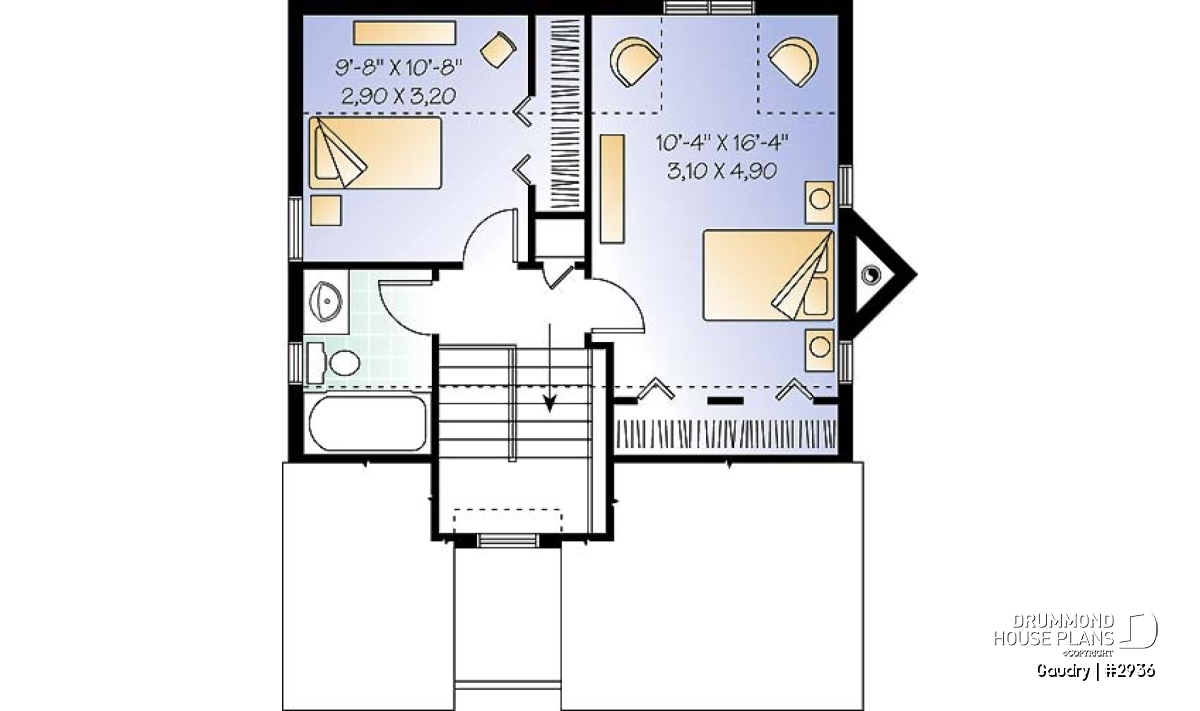

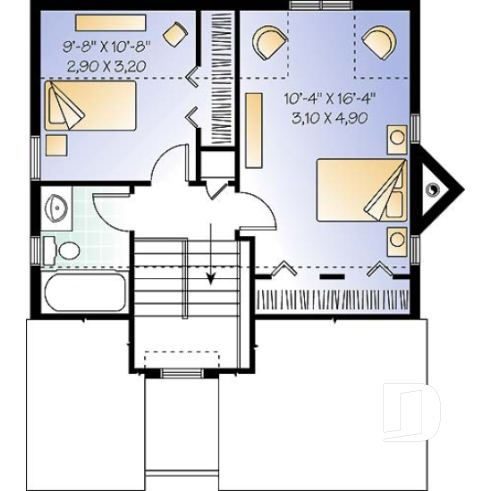

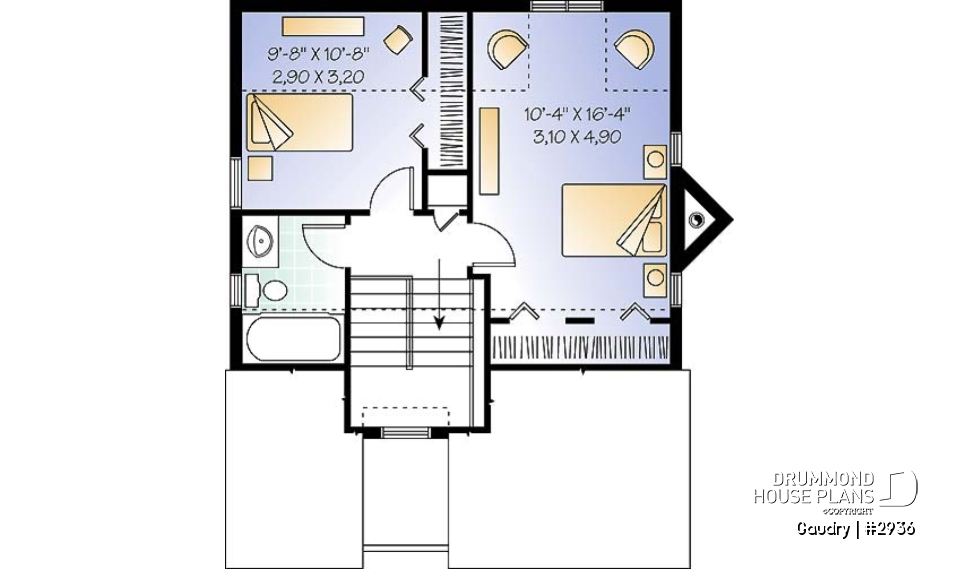

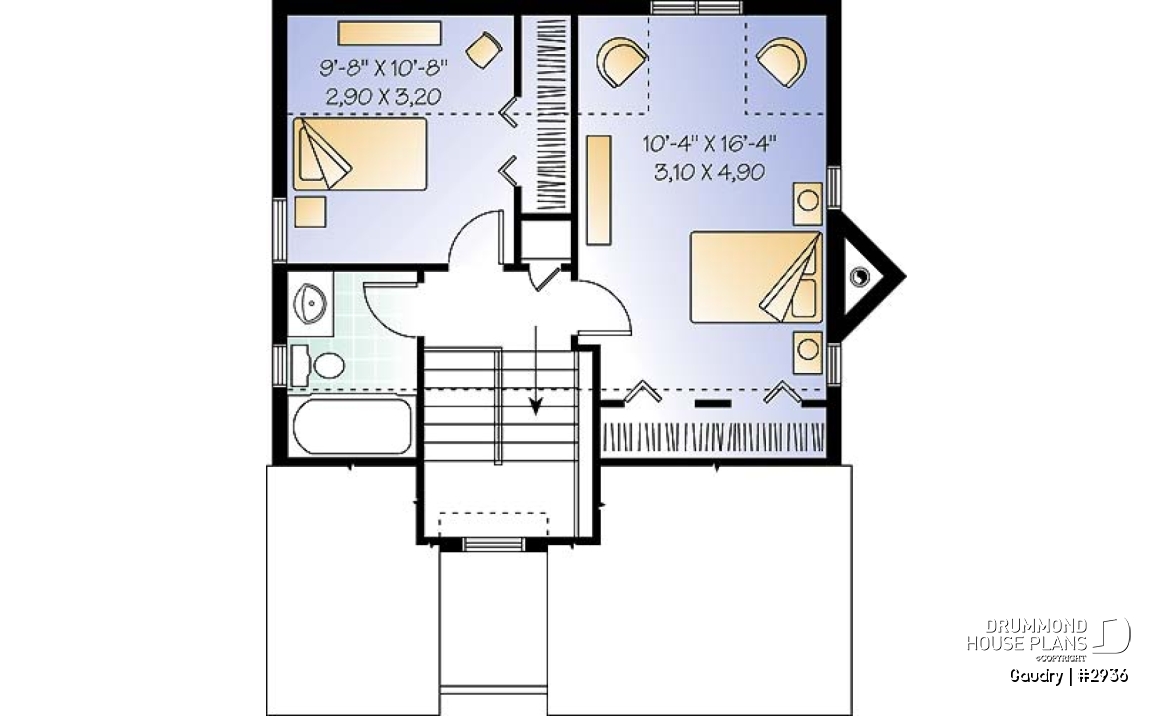

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'2" x 7'5" | ~ 8'0" |
| Bedroom | 10'4" x 16'8" | ~ 8'0" |
| Bedroom | 9'8" x 10'8" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1056 sq.ft. |
| 1st level | 576 sq.ft. |
| 2nd level | 480 sq.ft. |
| Width | 24'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 23'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Budget-friendly 2 bedroom house plan with lots of natural light
.
Distinctive elements
Screened porch, large patio with pergola, abundant fenestration, master bedroom wits reading area, covered front entry.
Plan feature(s)
Fireplace, Screened porch, Entrance hall, Pergola
Plan architectural style(s)
. Country, . Vacation and waterfront, . Cottage, chalet, cabin
