House plan Gaillon (2597)
Affordable and charming small 2-storey home plan with up to 3 bedrooms, mezzanine, wraparound porch
View the size of the rooms and height of the ceilings

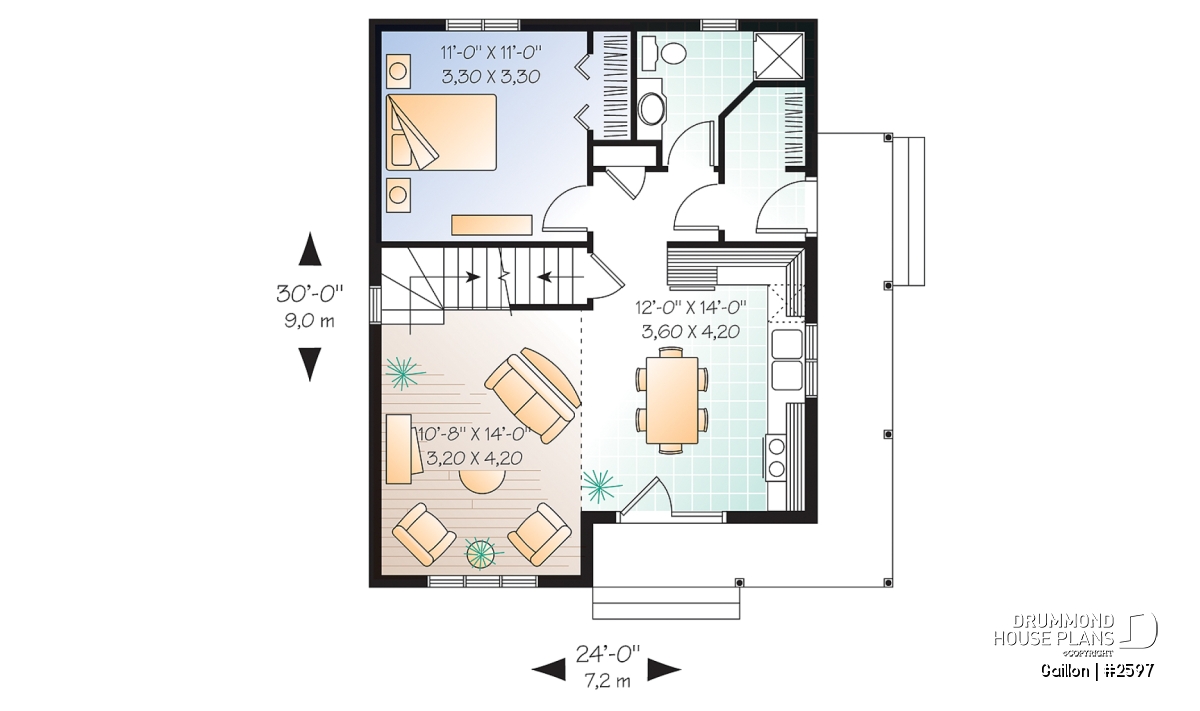

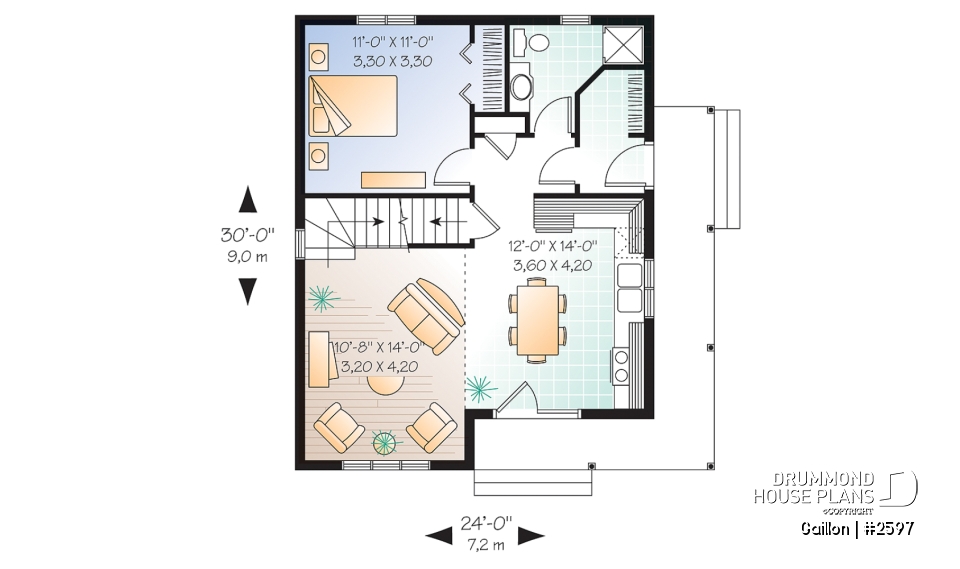

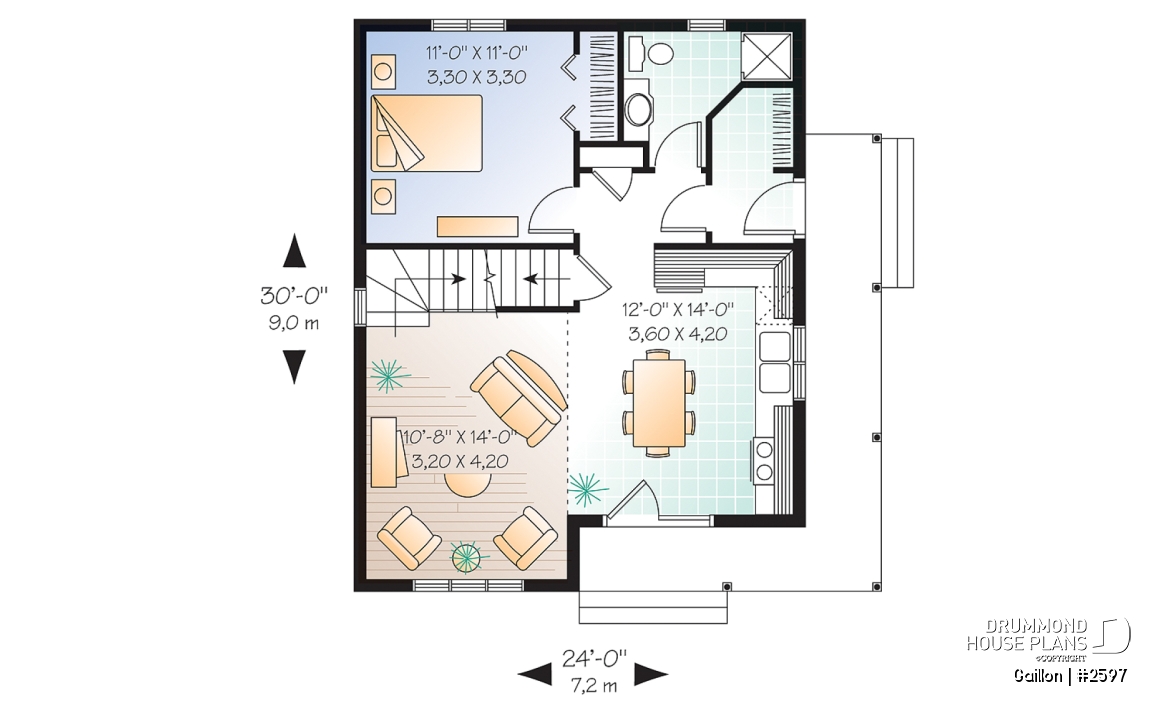

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 9'0" x 5'8" | ~ 8'0" |
| Kitchen | 12'0" x 14'0" | ~ 8'0" |
| Living room | 10'8" x 14'0" | ~ 13'6" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Closet | 2'0" x 5'8" | ~ 8'0" |
| Linen | 3'4" x 1'0" | ~ 8'0" |
| Porch | 16'0" x 3'4" | N/A |
| Porch | 4'0" x 20'8" | N/A |
| Foyer | 4'8" x 3'8" | ~ 8'0" |
| Closet | 4'4" x 4'0" | ~ 8'0" |

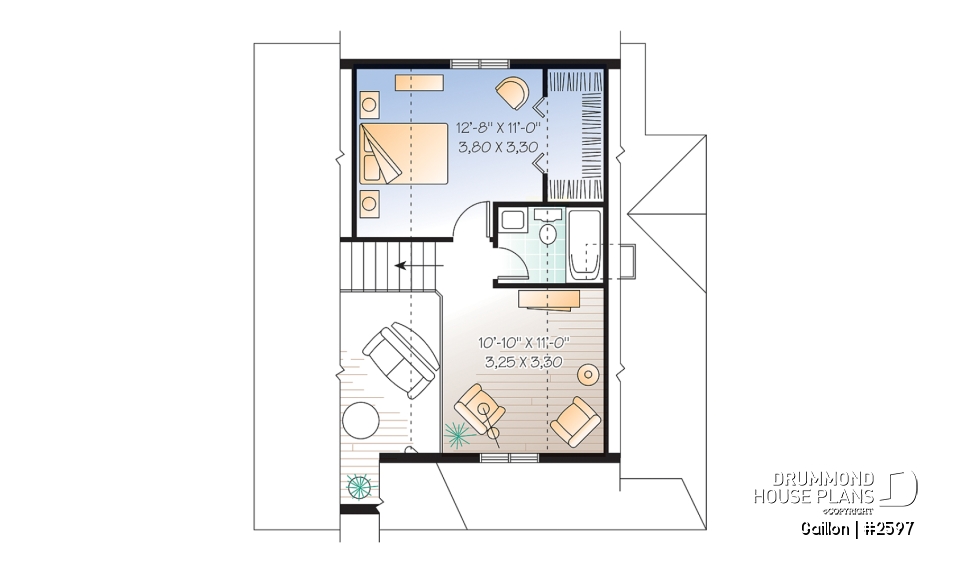

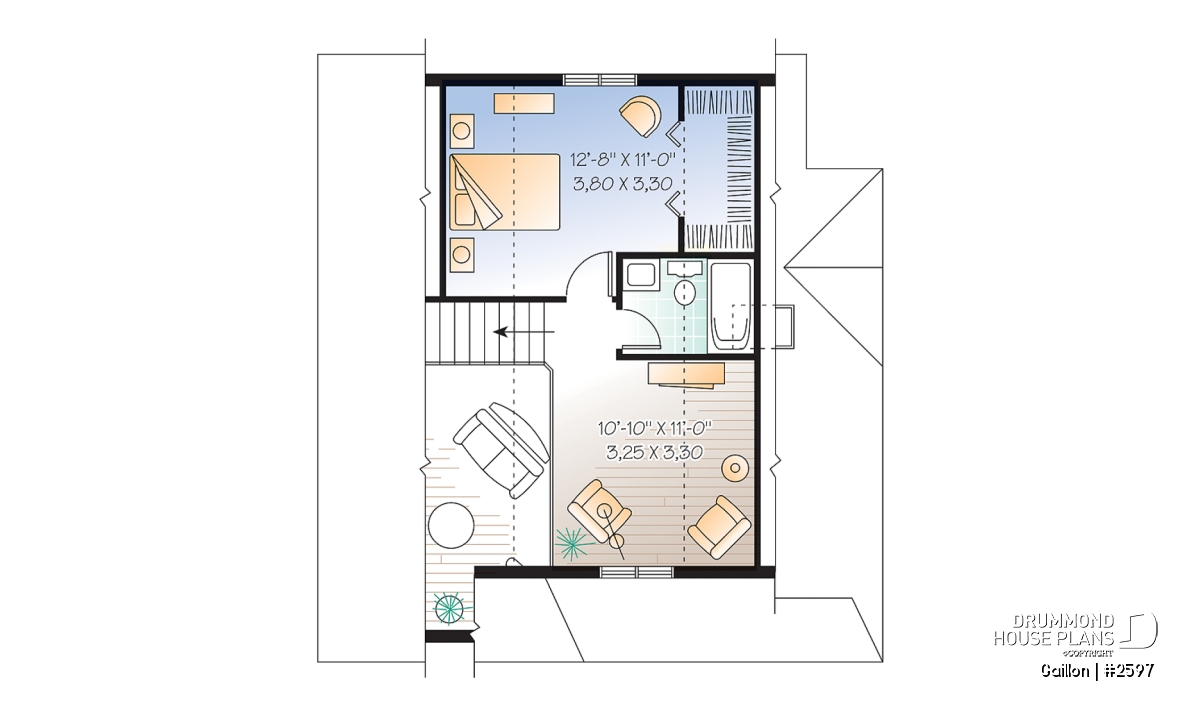

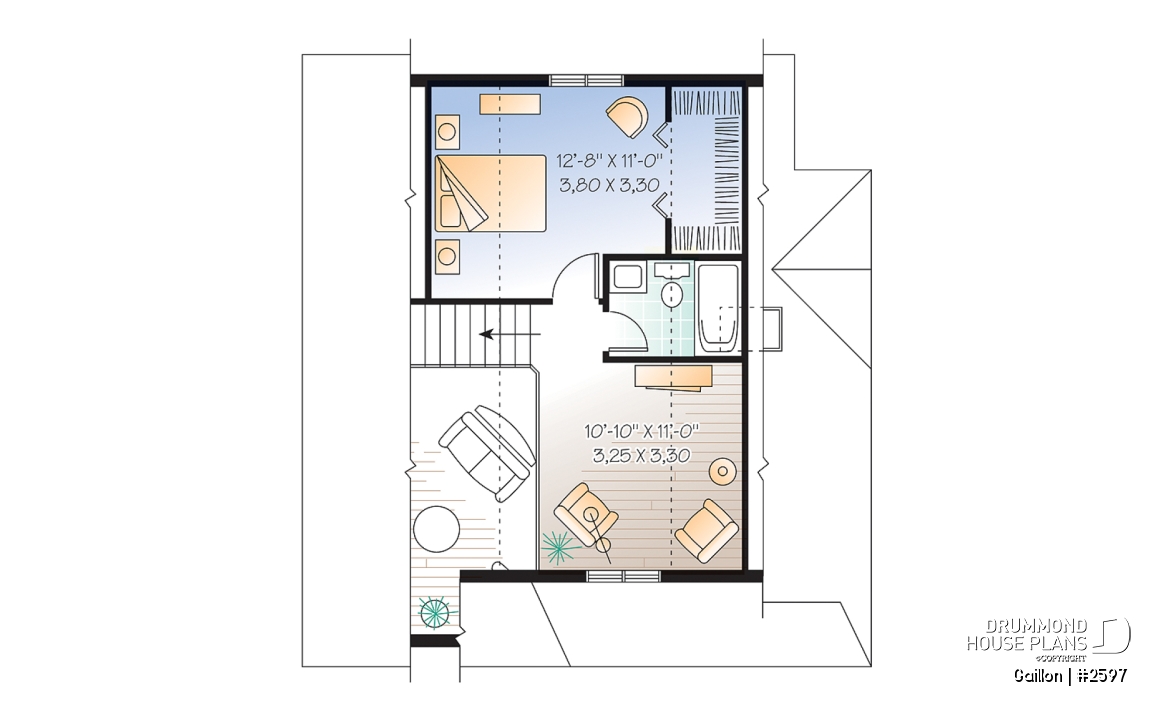

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'0" x 5'0" | ~ 8'0" |
| Bedroom | 12'8" x 11'0" | ~ 8'0" |
| Walk-in closet | 3'4" x 8'8" | ~ 8'0" |
| Great room or Family room | 10'10" x 11'0" | ~ 8'0" |
General specifications
| Total living area | 1068 sq.ft. |
| 1st level | 680 sq.ft. |
| 2nd level | 388 sq.ft. |
| Width | 24'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 24'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications

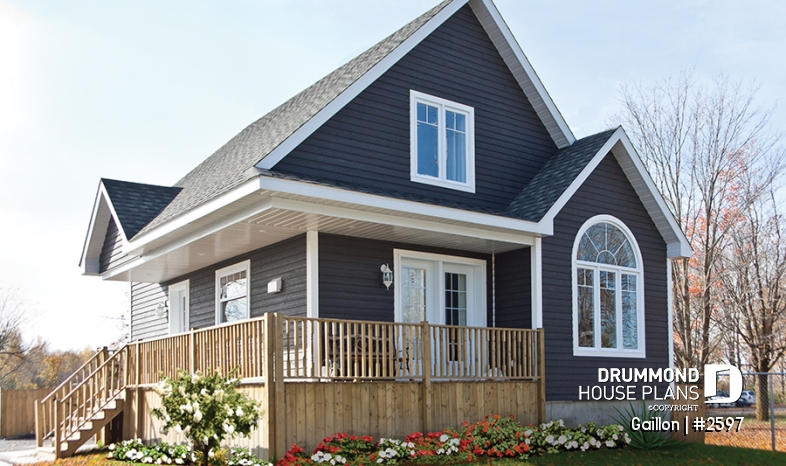

Right reading reverse
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

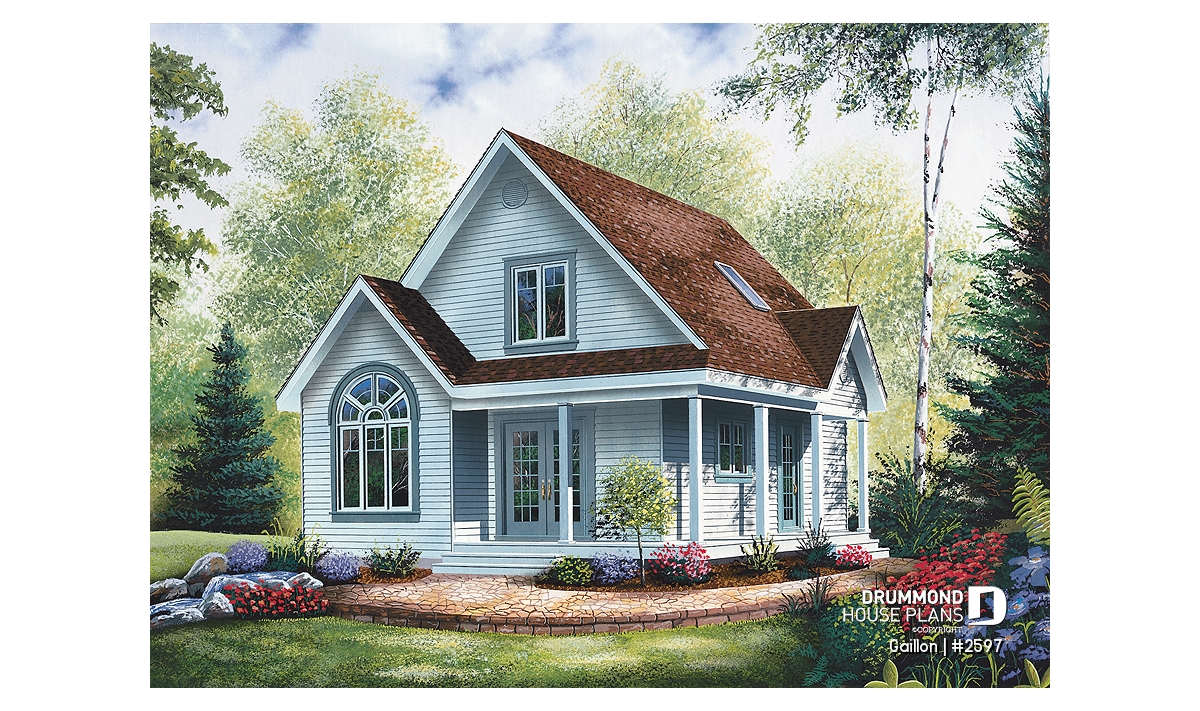

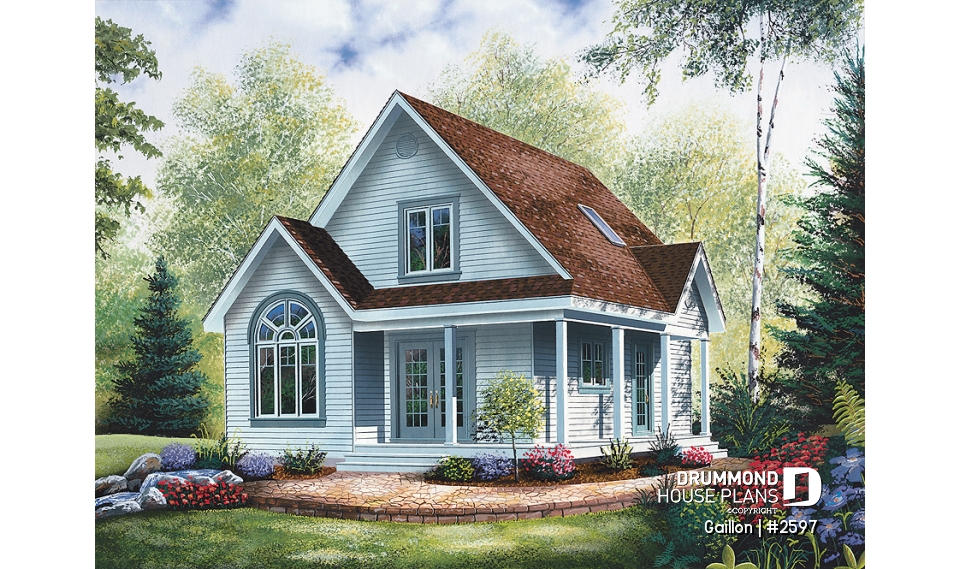

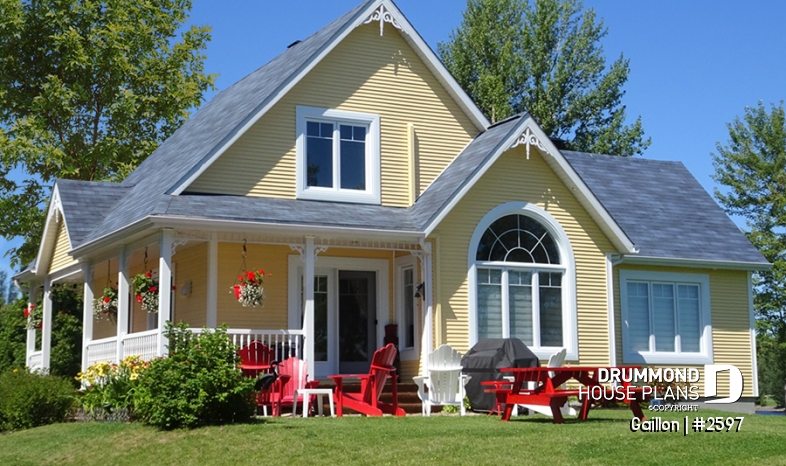

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

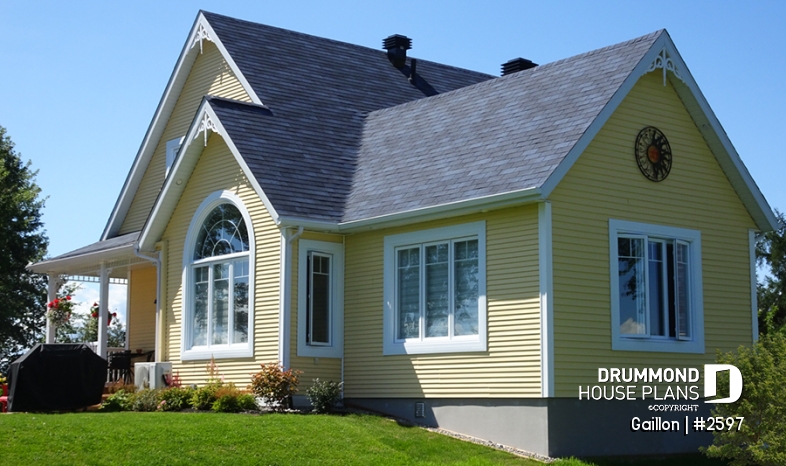

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

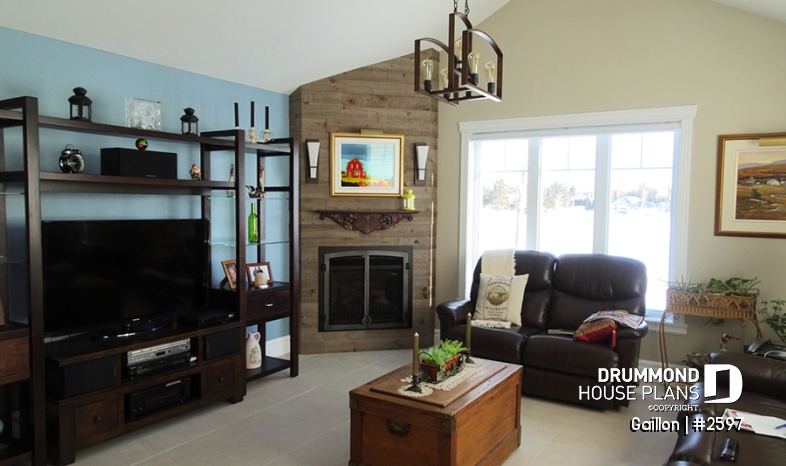

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Build small, live large! 2 to 3 beds cottage home plan with cathedral and wraparound porch
It’s proof—1068 sq. ft. holds a lot of living. The main level showcases cathedral ceilings in the family room; dining/kitchen have French doors to a wide wrap-around porch. A lovely bedroom with shower bath snuggles up to the rear of the home.
Upstairs, two generous bedrooms with great closets share a full bath, and open mezzanine for tuning into downstairs activity
Distinctive elements
Bedroom on 1st level. Cathedrale ceiling in living room. Possibility of 3rd bedroom on 2nd level.
Plan feature(s)
Mezzanine, Sitting area, Mud room, Walk-in master bed., Cathedral ceiling, Open floor layout, Warparound, Sloped ceiling
Plan architectural style(s)
. Country, . Cottage, chalet, cabin, . Cape Cod, . A-Frame, . Vacation and waterfront, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
April 18
Nicholas
Hi I really like the living room window are can you please list all the other plans with that kind of window
Thanks
Have a good day
November 13
Joseph
For slab on grade construction, do you provide detailed drawings indicating the location of concrete anchor bolts and water supply and discharge lines?
November 13
Customer service
Good day and thank you for your interest in this plan.
Although we do provide detailed information, we do not the specific plan.
Please let me know if you have any other questions or comments
Regards
Deb
