House plan Gaillon 2 (2597-V1)

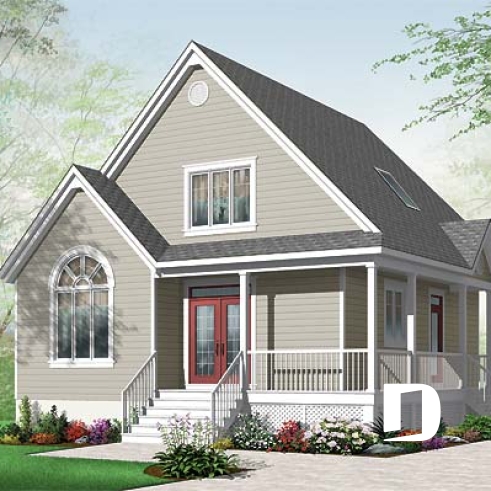

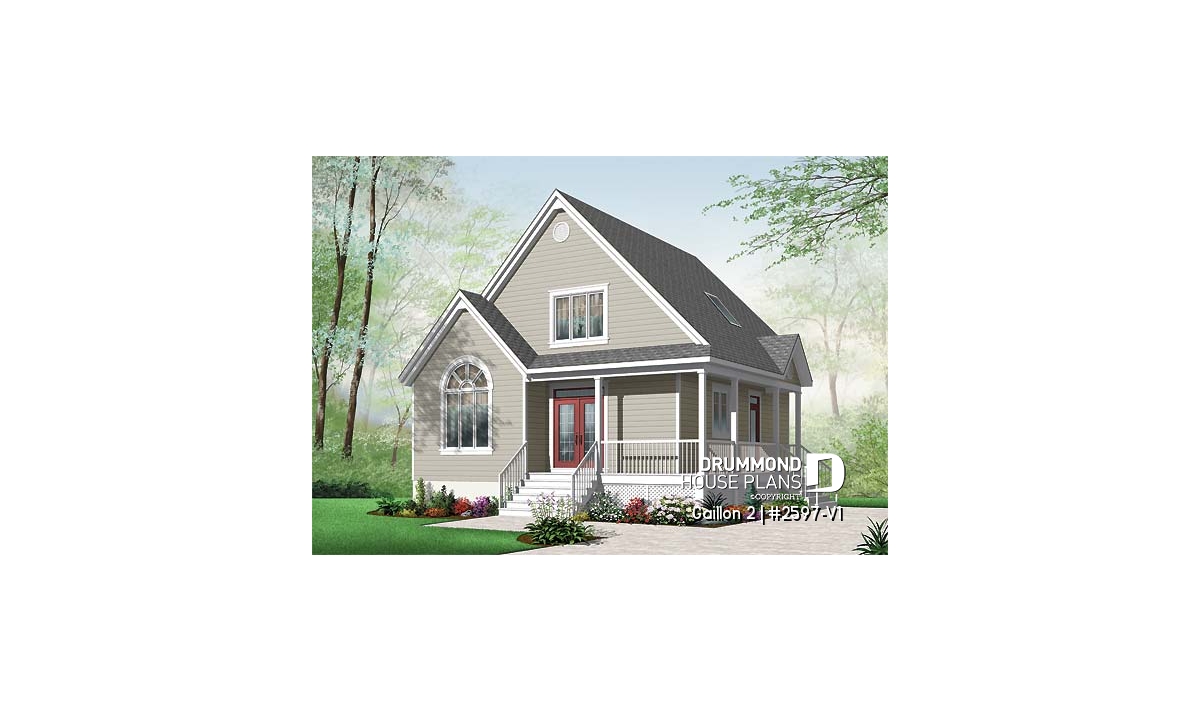

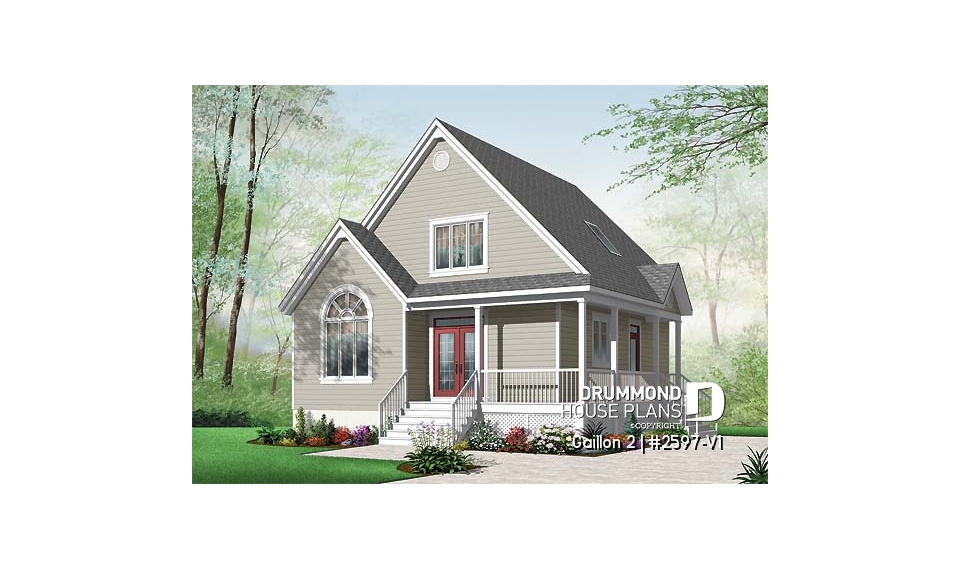

Cape Cod style 2 to 3 bedroom cottage plan with 2 living rooms, 9 ft. ceiling on main floor, mezzanine
View the size of the rooms and height of the ceilings

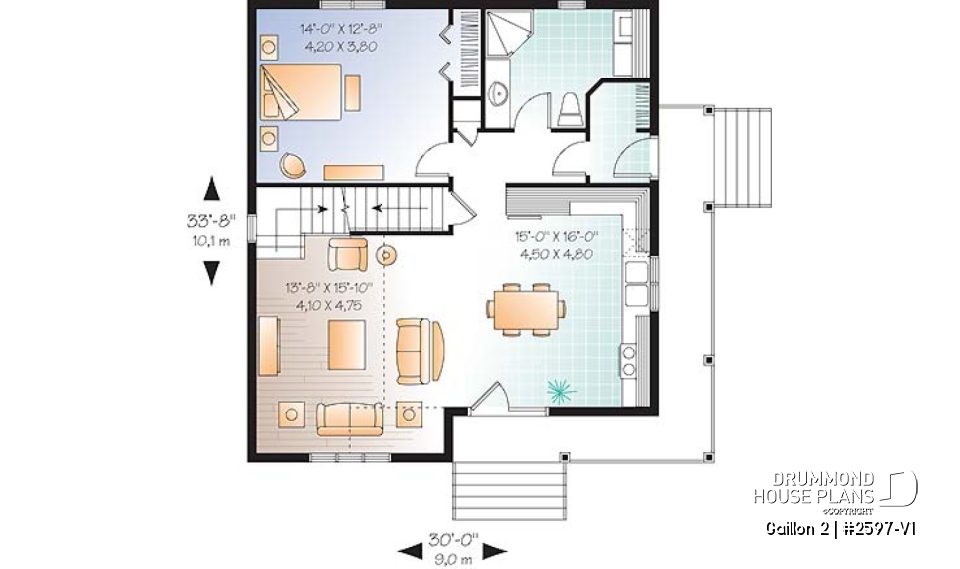

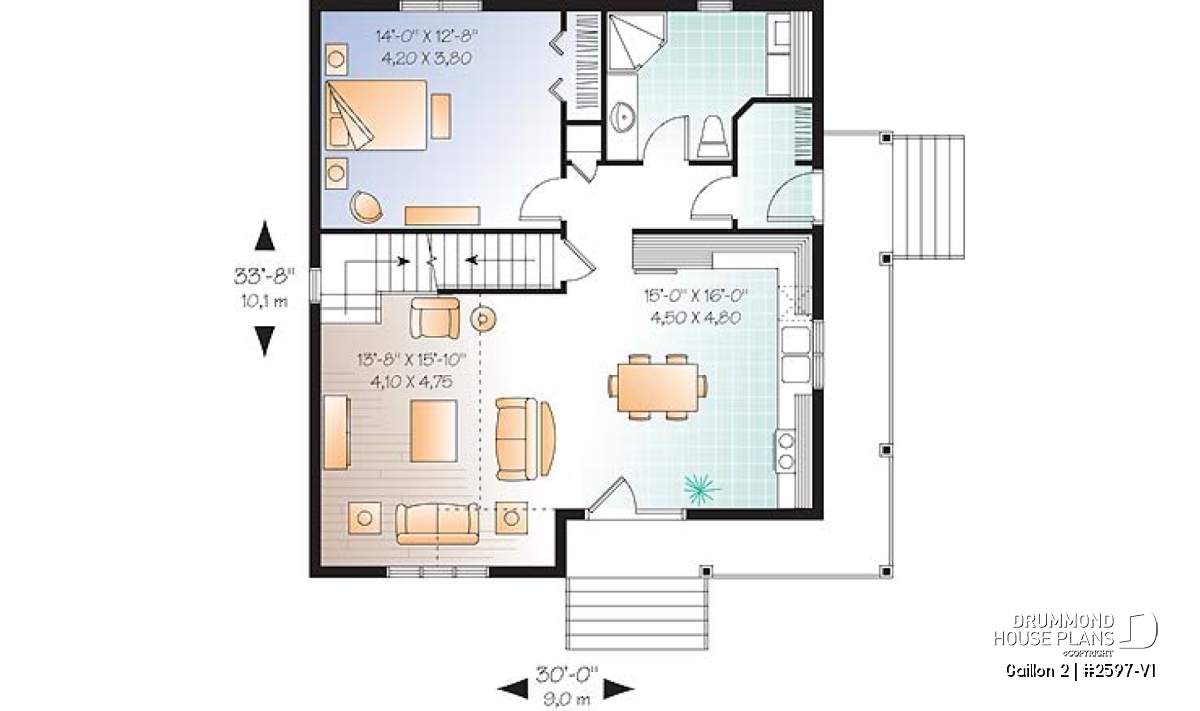

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 15'0" x 16'0" | ~ 9'0" |
| Living room | 13'8" x 16'0" | ~ 16'0" |
| Foyer | 4'4" x 7'4" | ~ 9'0" |
| Bathroom/laundry room | 12'0" x 8'0" | ~ 9'0" |
| Bedroom | 14'0" x 12'8" | ~ 9'0" |
| Linen | 2'0" x 2'0" | ~ 9'0" |
| Porch | 3'4" x 19'0" | N/A |
| Porch | 4'0" x 22'8" | N/A |

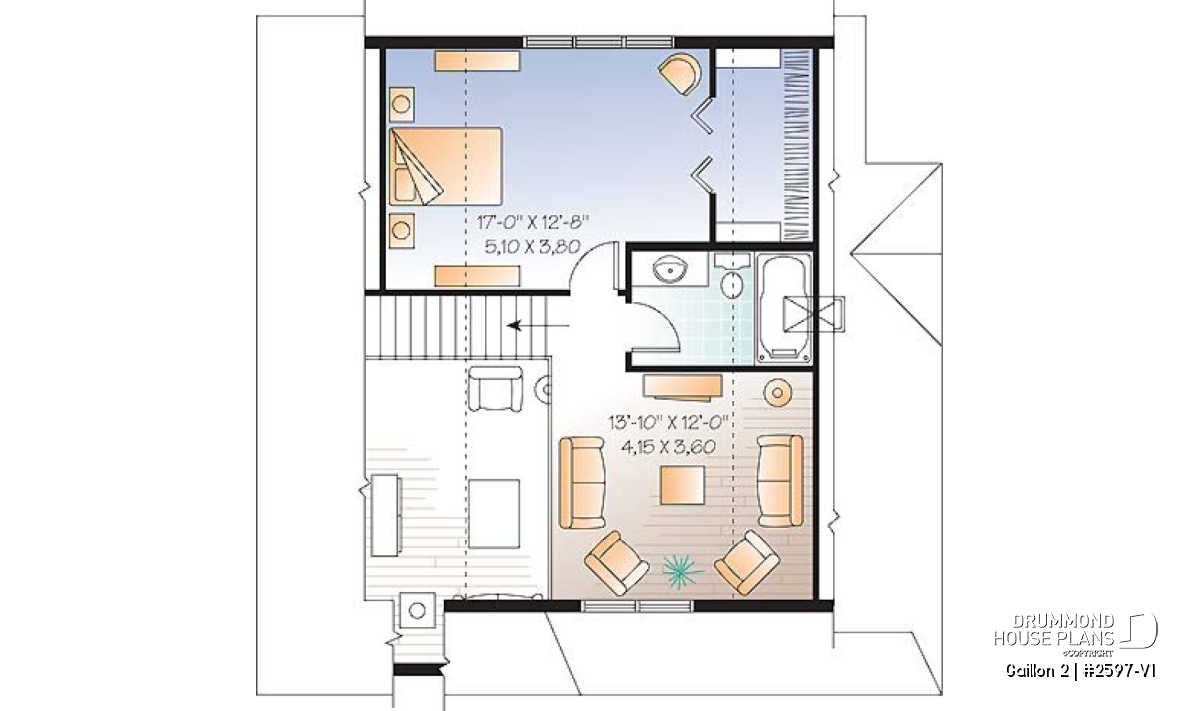

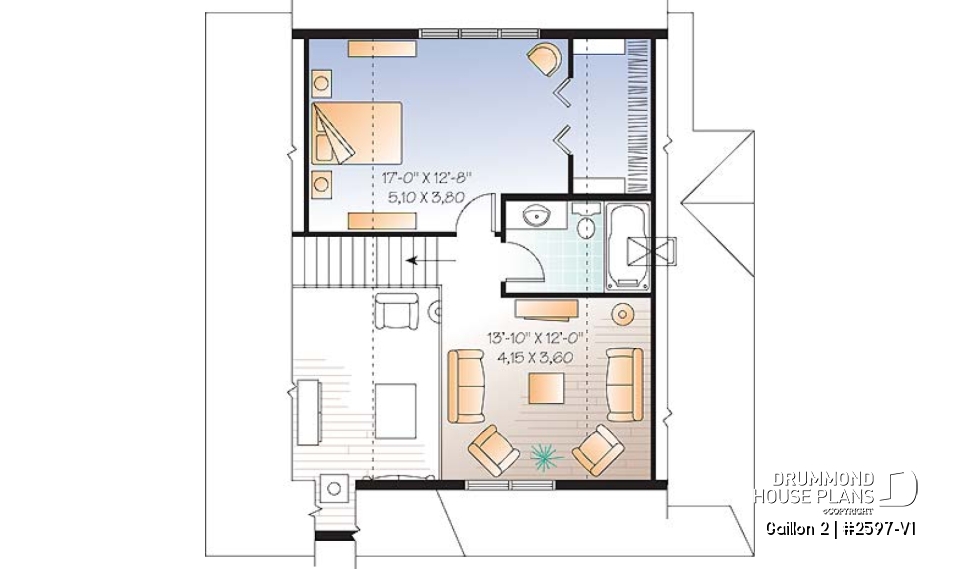

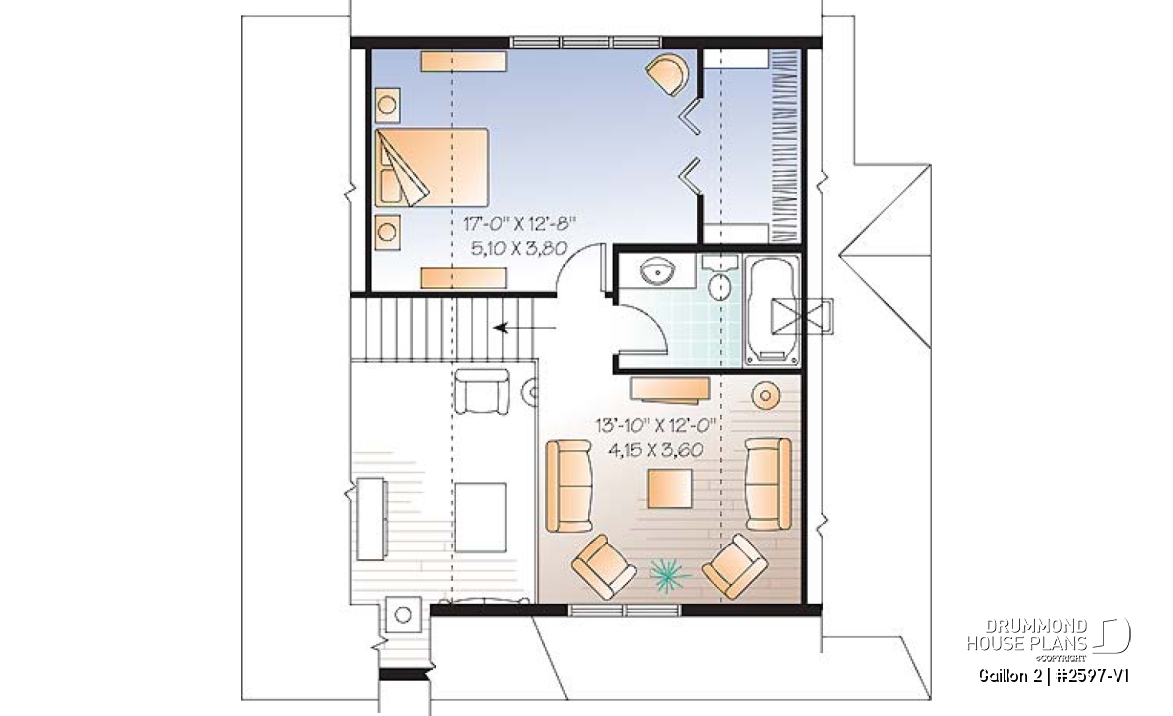

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'6" x 6'0" | ~ 8'0" |
| Bedroom | 17'0" x 12'8" | ~ 8'0" |
| Mezzanine | 12'0" x 13'9" | ~ 8'0" |
General specifications
| Total living area | 1561 sq.ft. |
| 1st level | 960 sq.ft. |
| 2nd level | 601 sq.ft. |
| Width | 30'0" |
| Depth | 33'8" |
| Ridge height from top of foundation | 28'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Small spaces with Cape Cod exterior charms

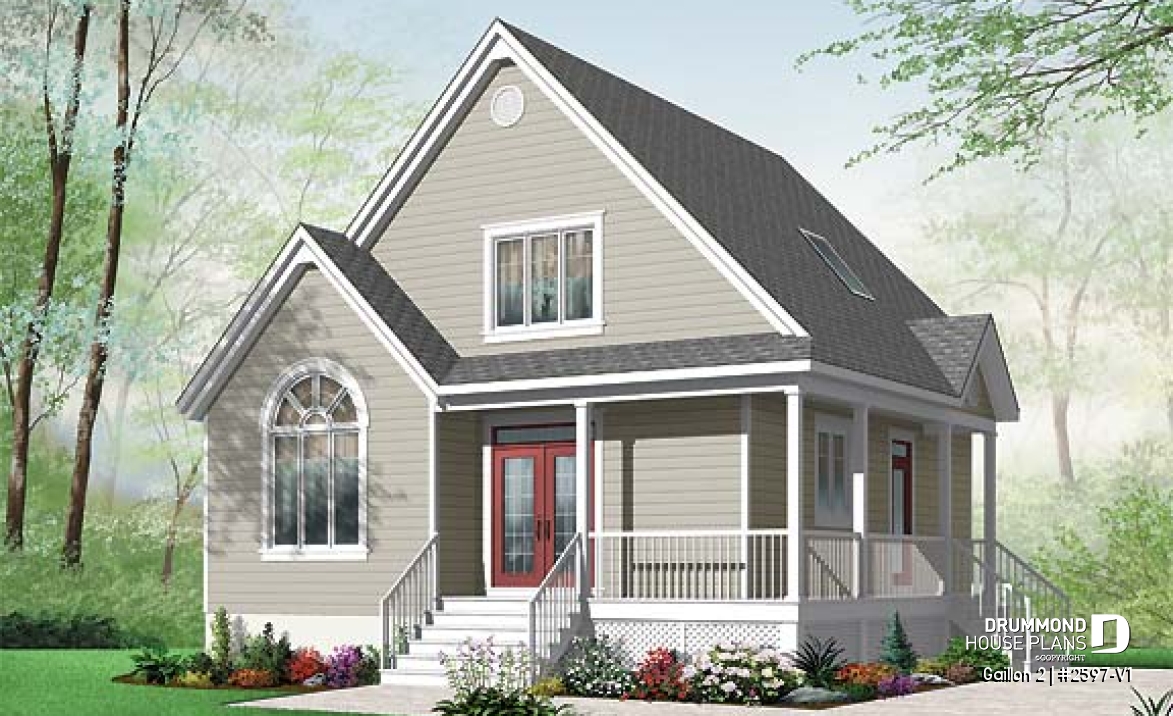

A pillared wrap-around porch dresses up the exterior of this charming country cottage. Inside, a well-designed 1561 sq. ft. holds a lot of living. The main level showcases cathedral ceilings in the family room, 9 foot ceilings throughout the rest of the main level, and the country kitchen has French doors to to the wrap-around porch. A lovely bedroom with shower bath snuggles up to the rear of the home. Upstairs, a bedroom has a walk-in closet and bull bathroom. There is plenty of room n the mezzanine for either a third bedroom, a home office or sitting room.
An unfinished basement provides space for storage or expanded family living area.
Distinctive elements
9' ceiling to the 1st level. Cathedral ceiling to the living room. Dormitory on a mezzanine on 2nd level which can easily transformed in a 3rd bedroom. Bedroom and shower/laundry room on 1st level.
Plan feature(s)
Mezzanine, Gound floor laundry room, Walk-in master bed., Open floor layout, Ceiling over 8', Cathedral ceiling, Loft, Sloped ceiling, Mud room
Plan architectural style(s)
. Country, . Ski chalets, . American, . Cape Cod, . Traditional, . A-Frame, . Cottage, chalet, cabin
Similar plans
Previously Viewed Plans
Questions and comments
April 14
Customer service
Good day and thank you for taking the time to write.
Our customization services would be happy to send you a free estimate for the changes that you require to this plan within two business days after receipt of this on line form.
Please let me know if I can further assist you
Deb
April 14
Ruth
I have been looking at this plan with some changes. (One is an outside more like 3517.) Is there any way to calculate a rough idea of cost so I can judge if I can afford to build?
