3517 (Minuet)

Affordable Craftsman inspired home with cathedral ceiling, 3 bedrooms, 2 bathrooms and mezzanine

Bedrooms

3

Bath(s)

2

Half B.

-

Living area

1343 sq.ft.

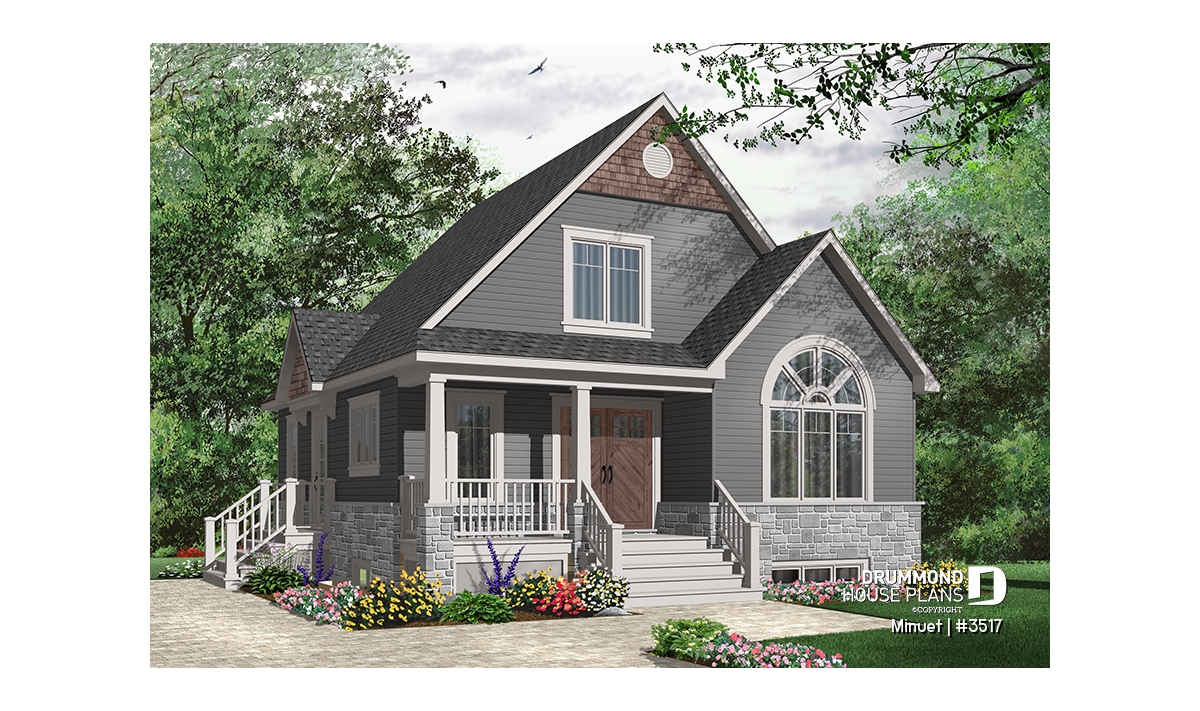

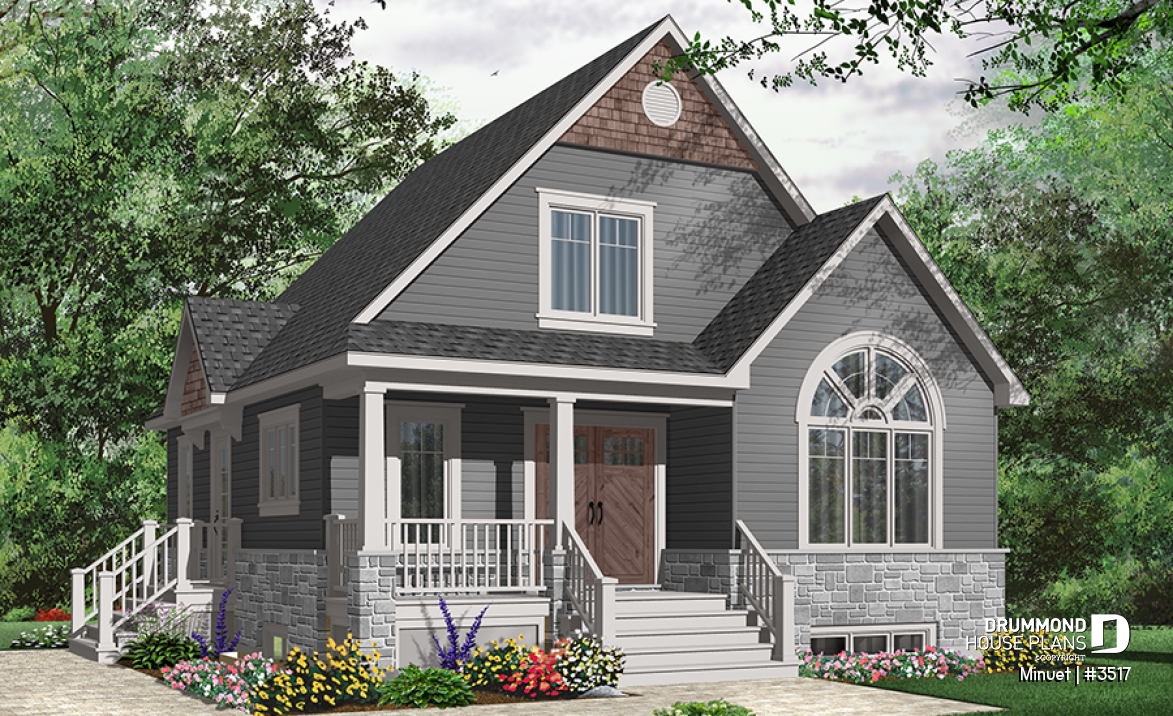

  • Color version 4 - Front - Affordable Craftsman inspired home with cathedral ceiling, 3 bedrooms, 2 bathrooms and mezzanine - Minuet

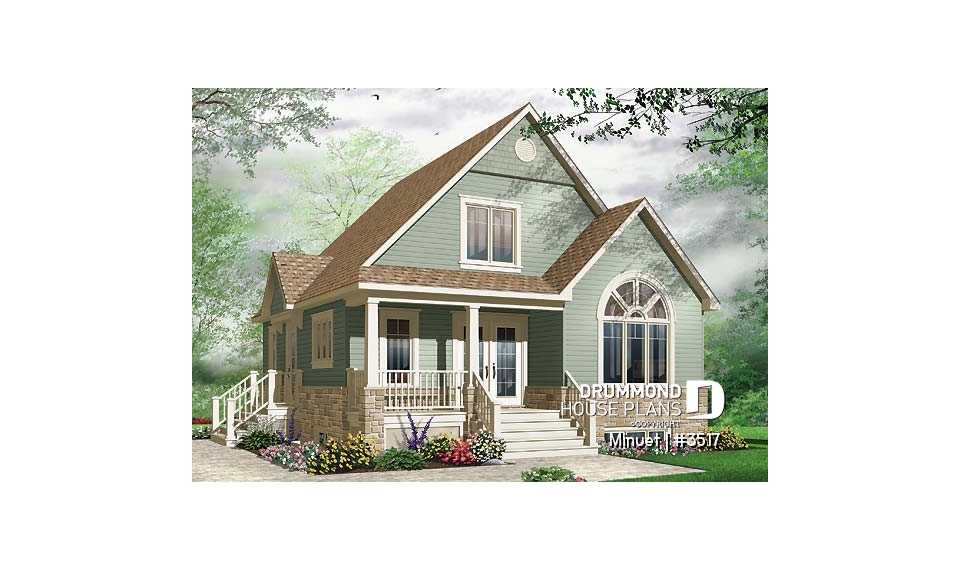

  • front - BASE MODEL - Minuet
  • rear elevation - Minuet

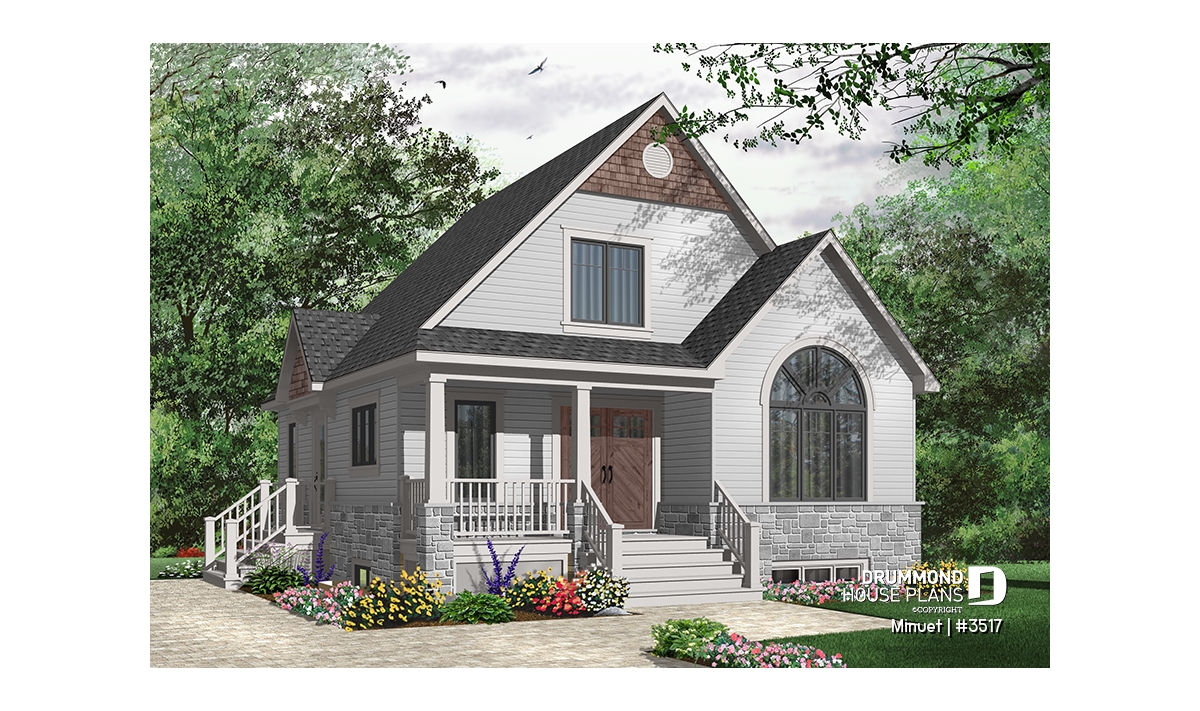

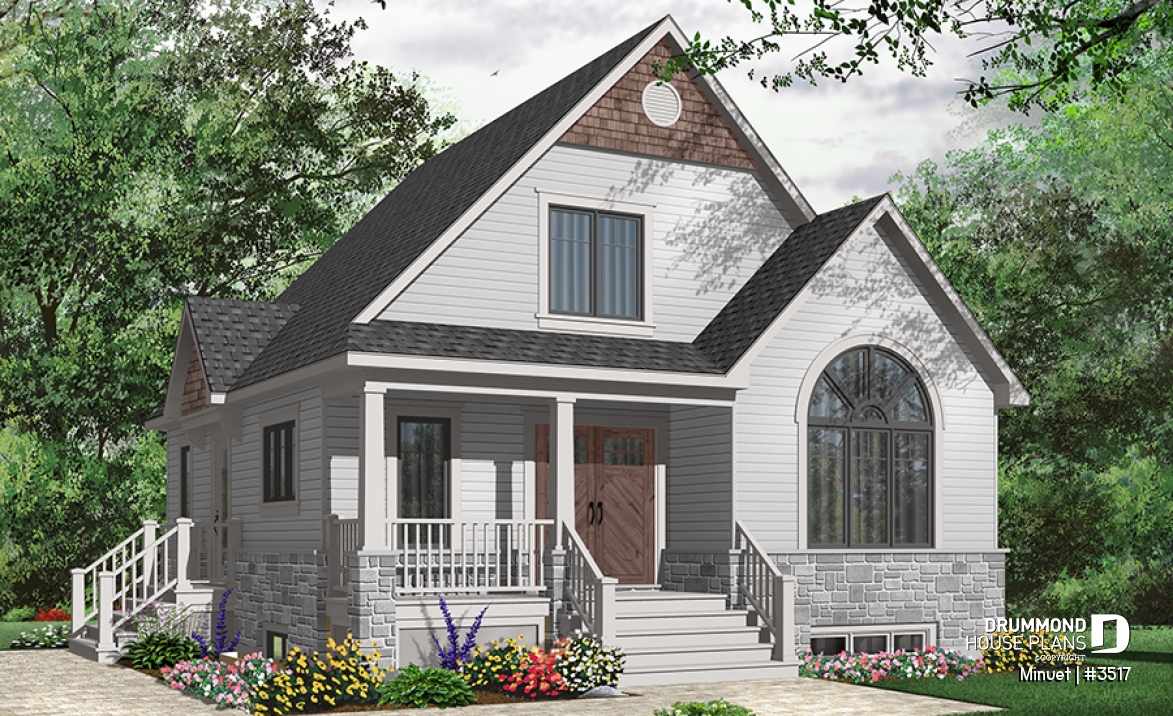

  • Color version 1 - Front - Minuet
  • Color version 2 - Front - Minuet

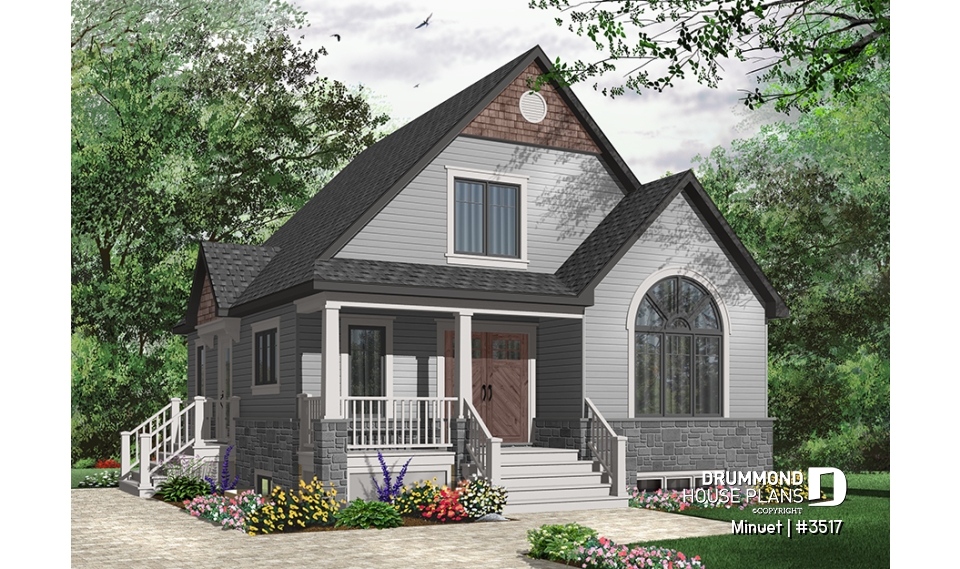

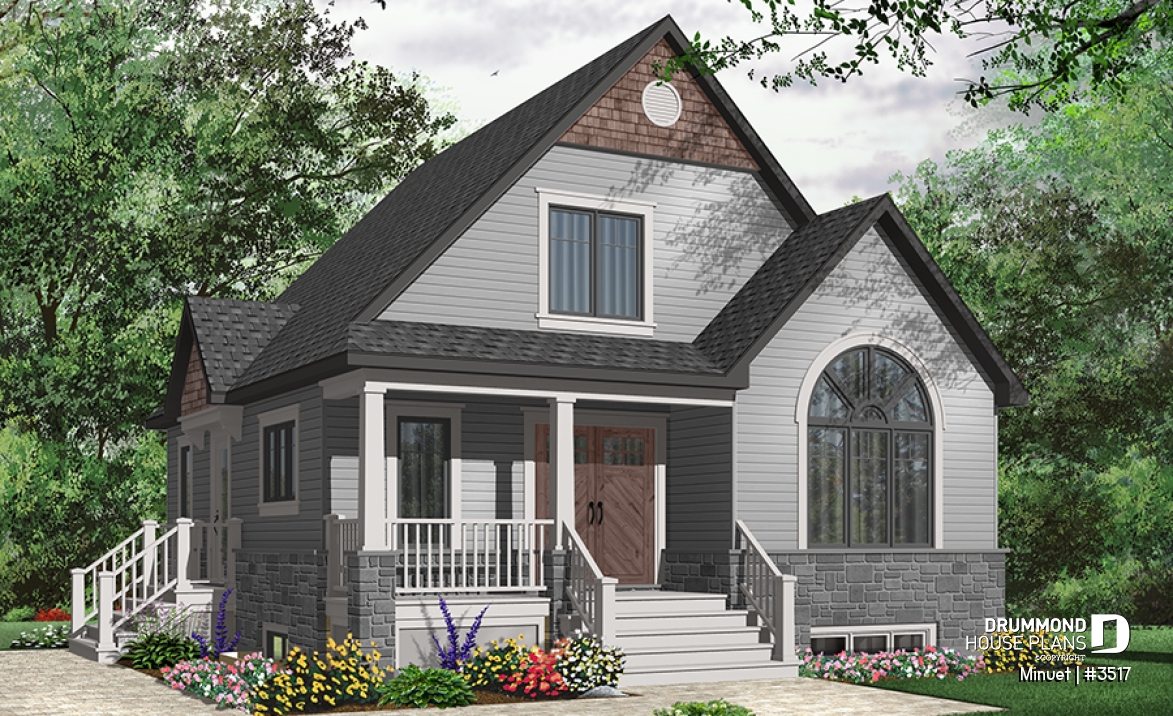

  • Color version 3 - Front - Minuet
  • Color version 5 - Front - Minuet

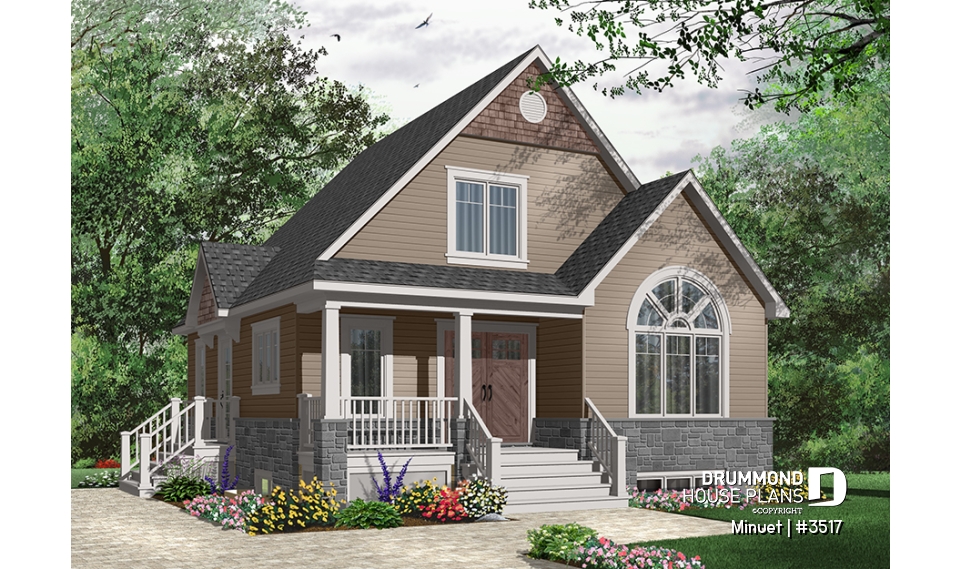

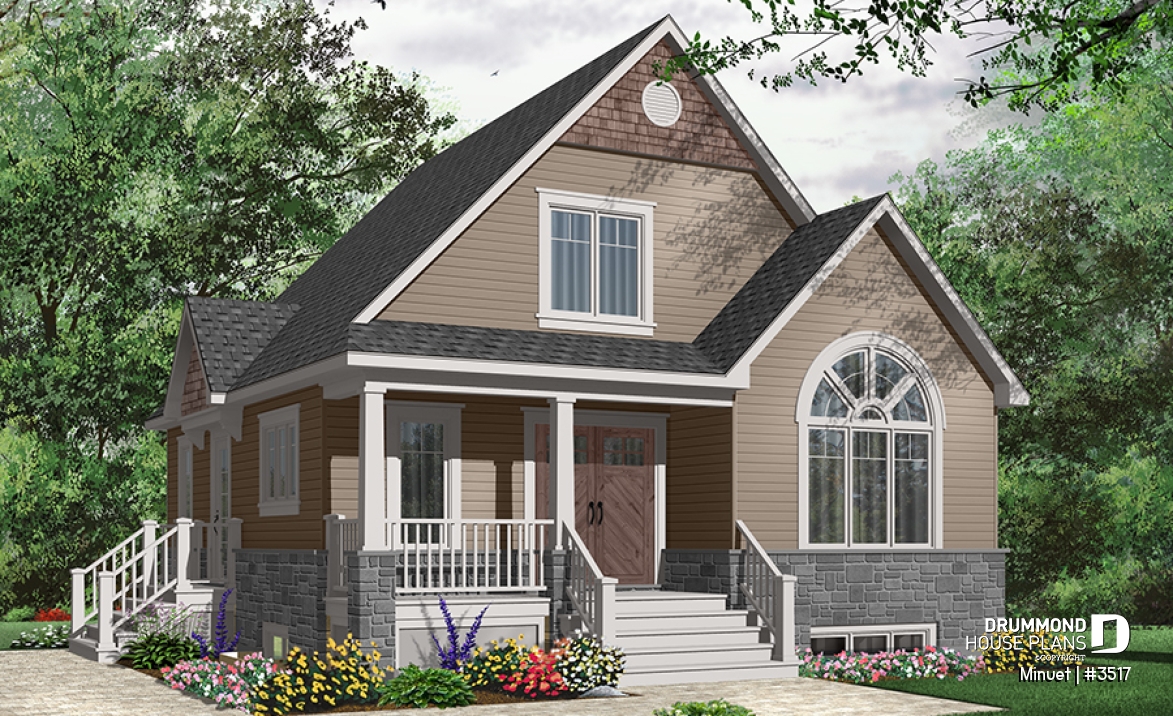

  • Color version 6 - Front - Minuet

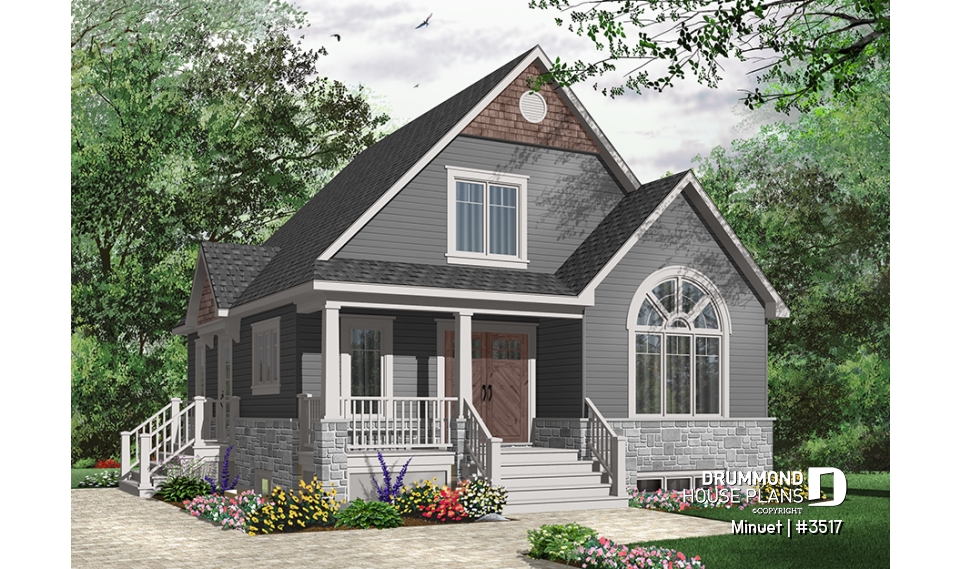

Color version 4 - Front

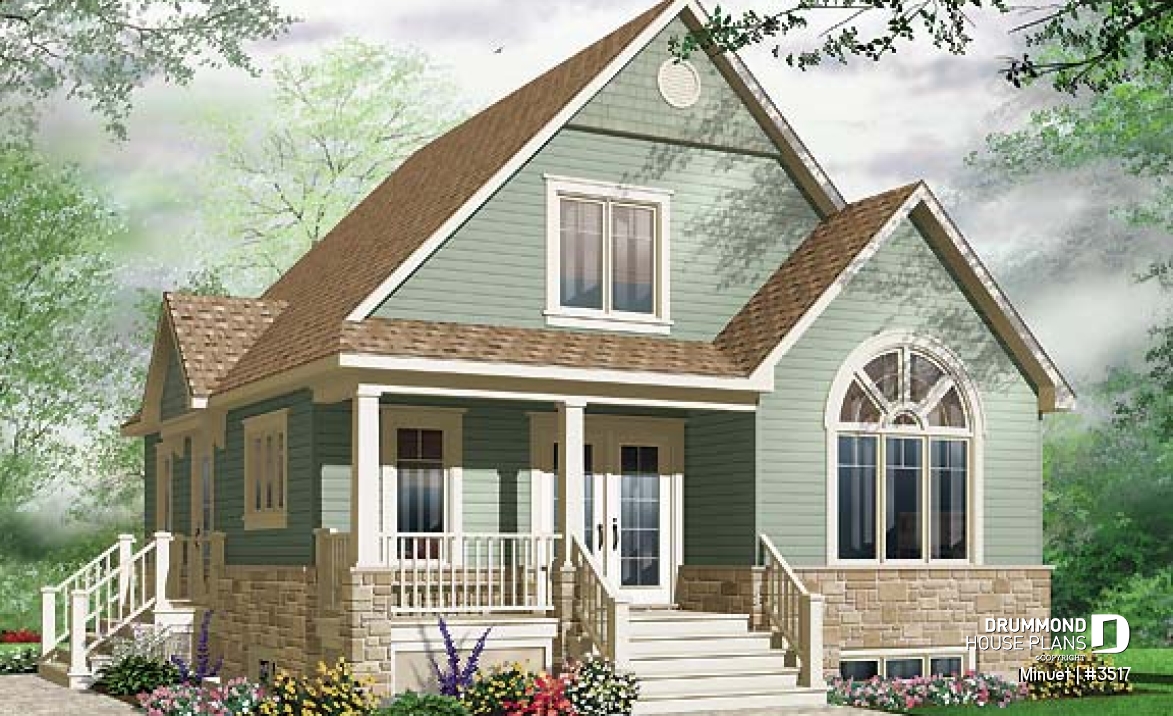

front - BASE MODEL

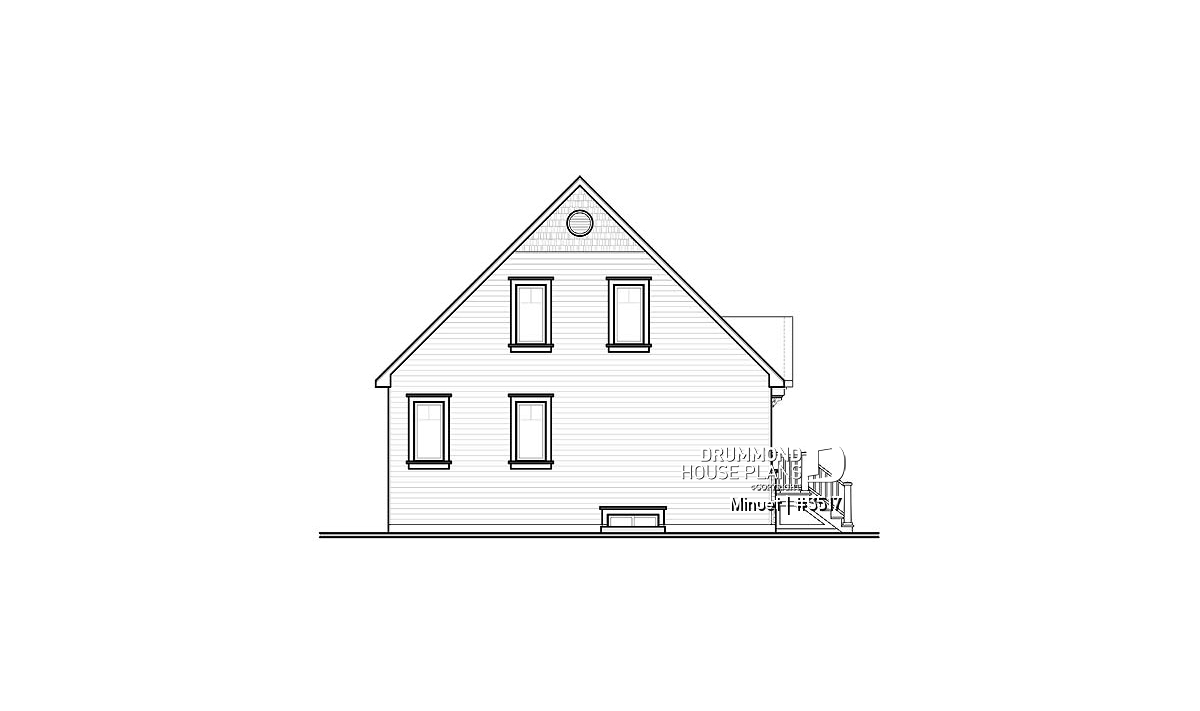

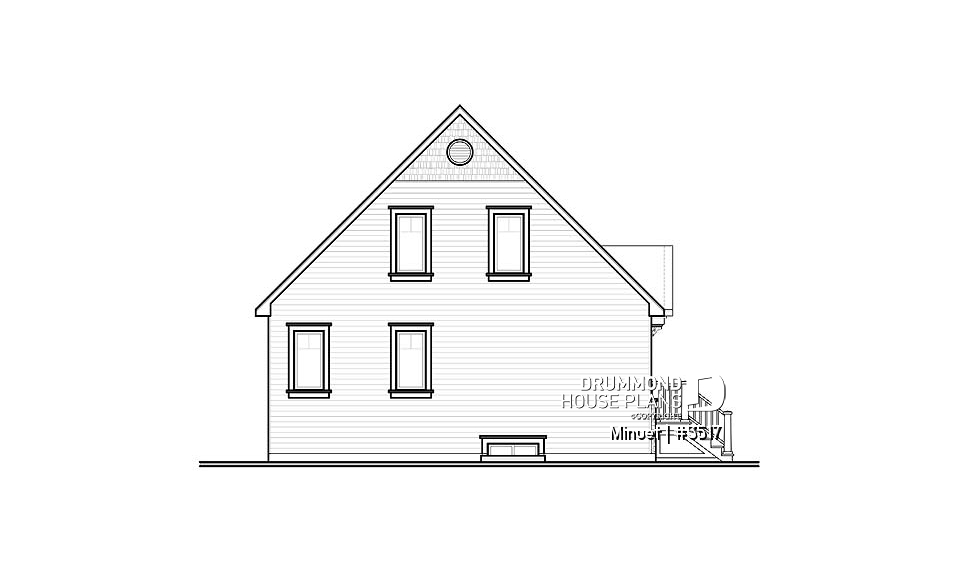

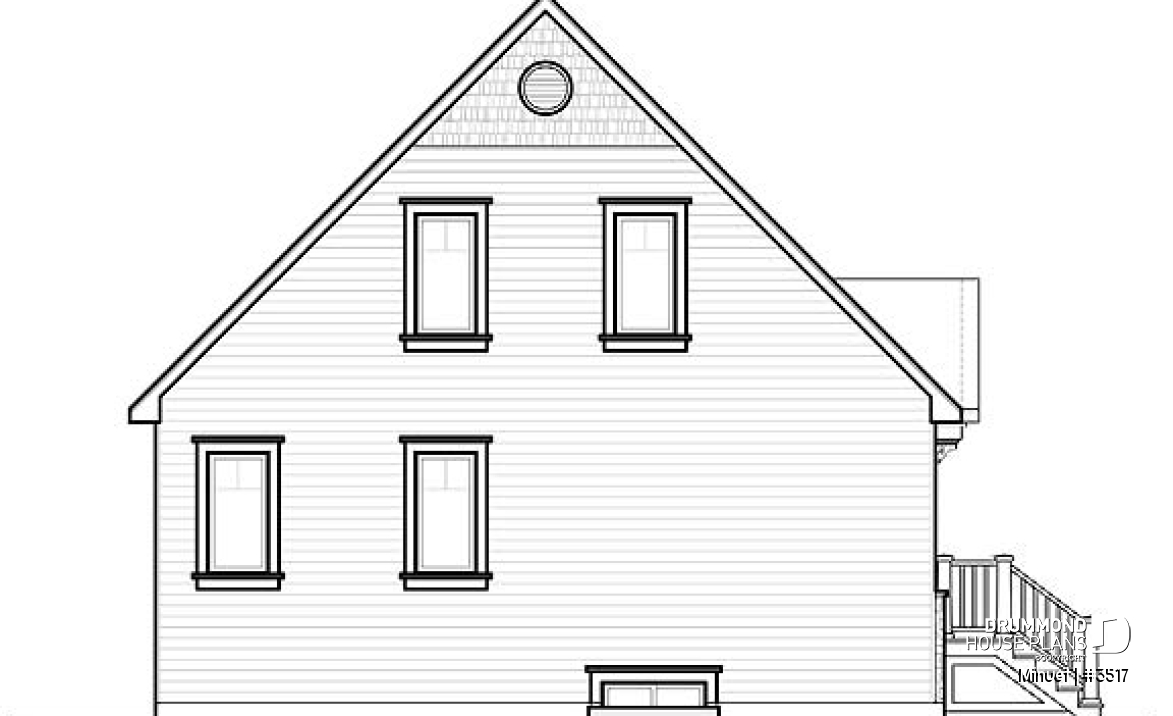

rear elevation

Color version 1 - Front

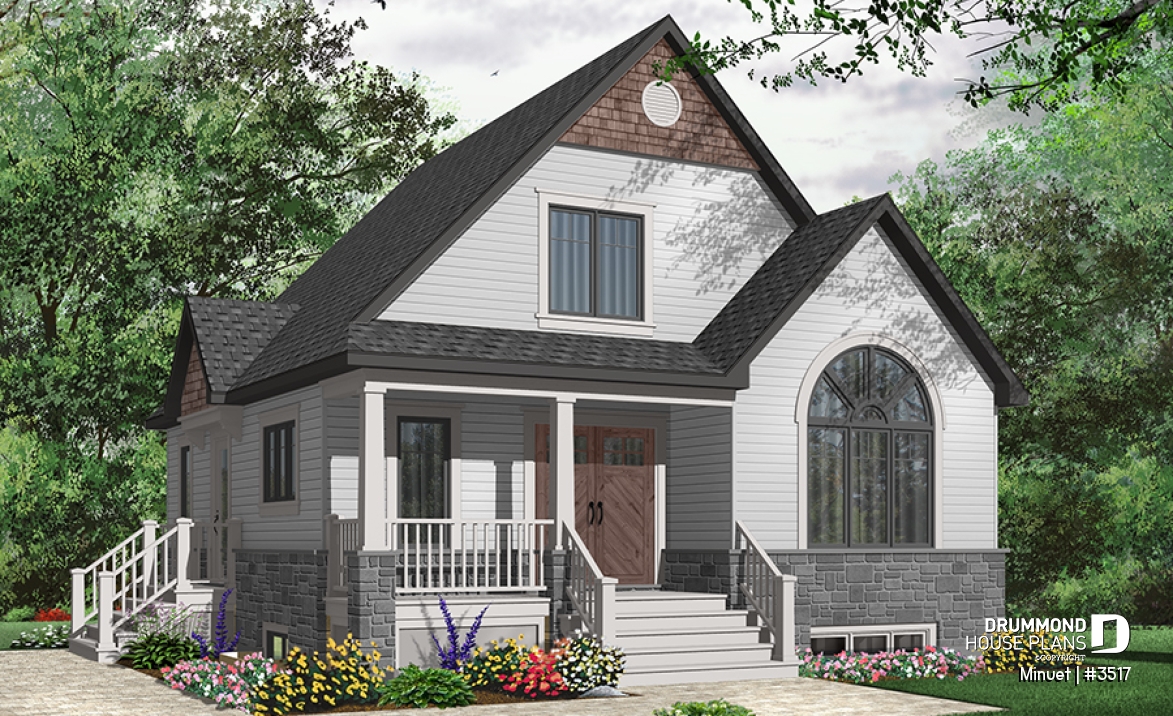

Color version 2 - Front

Color version 3 - Front

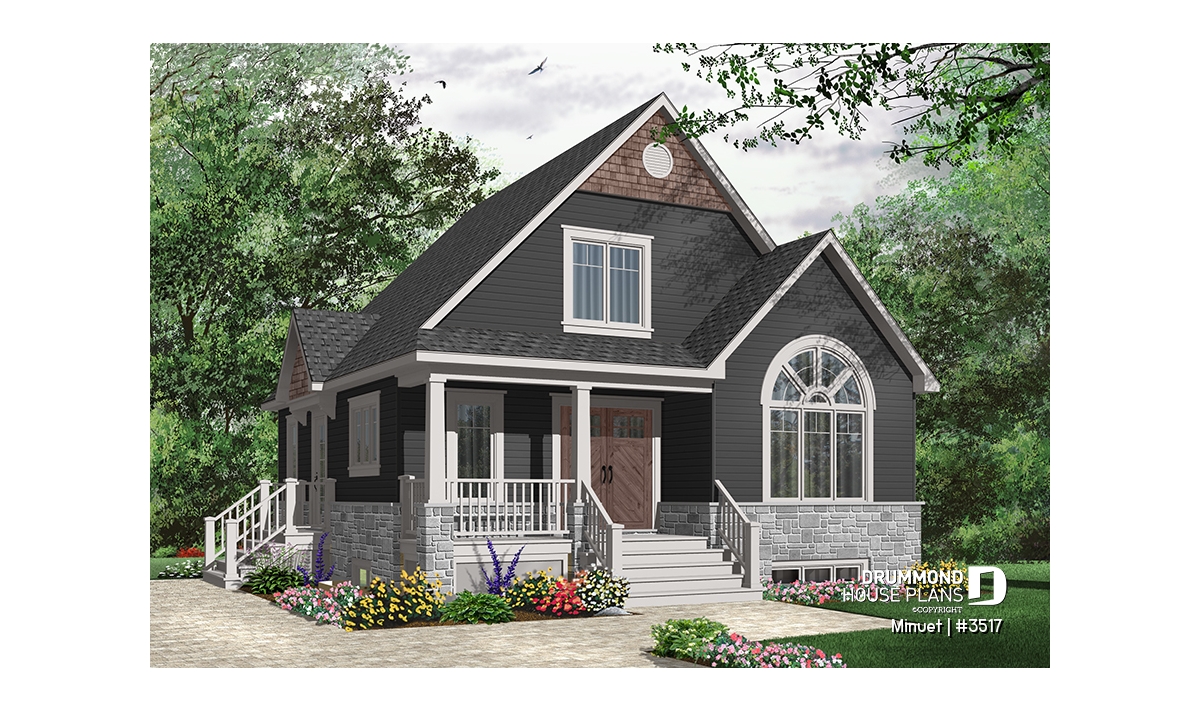

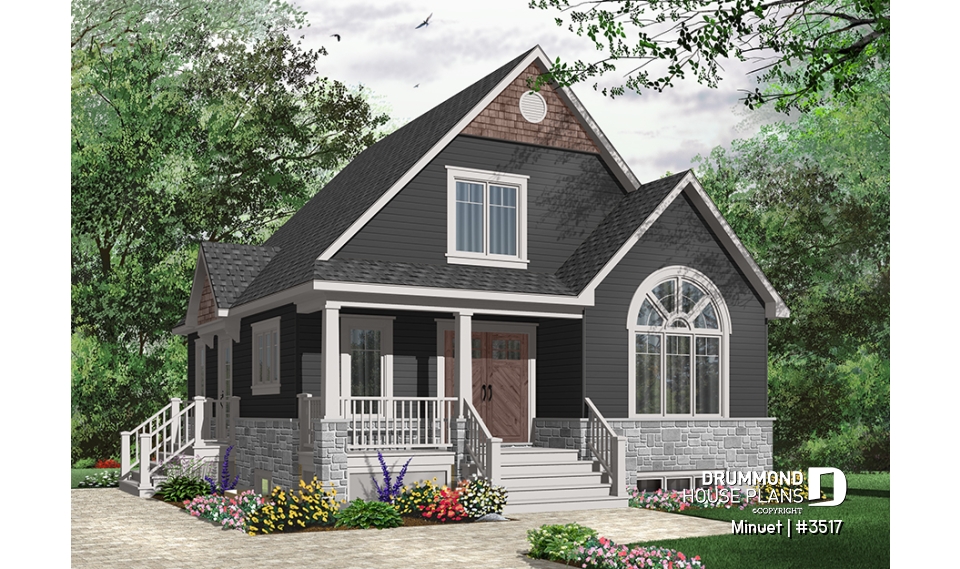

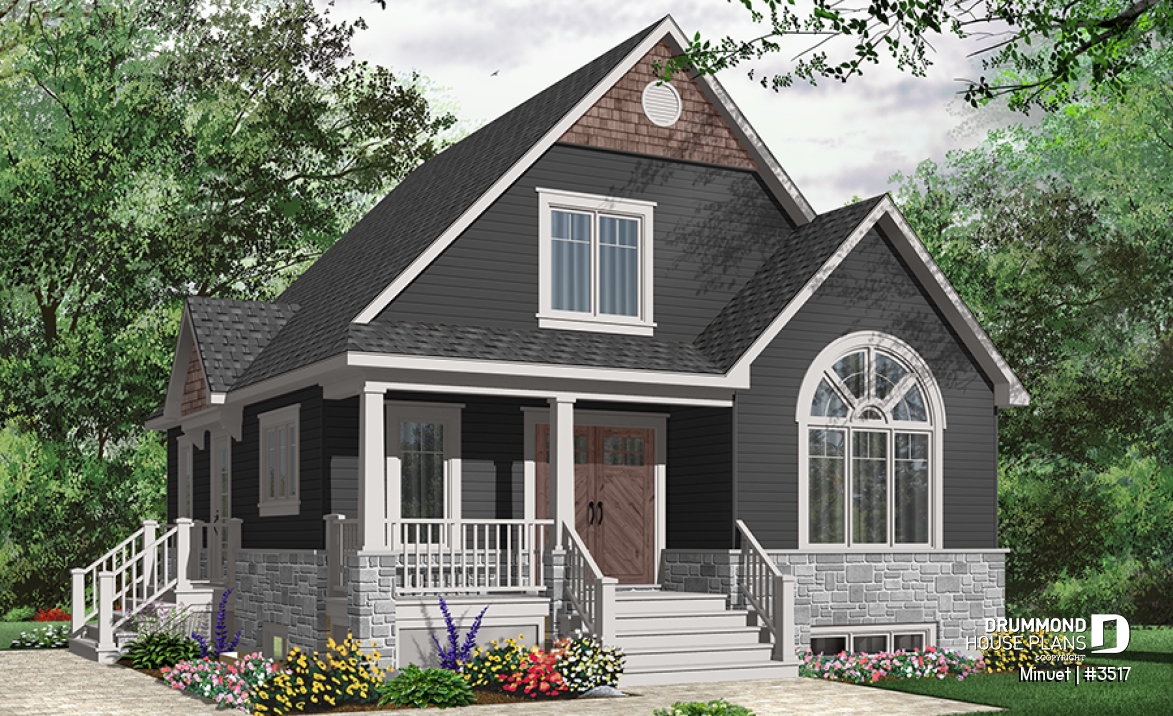

Color version 5 - Front

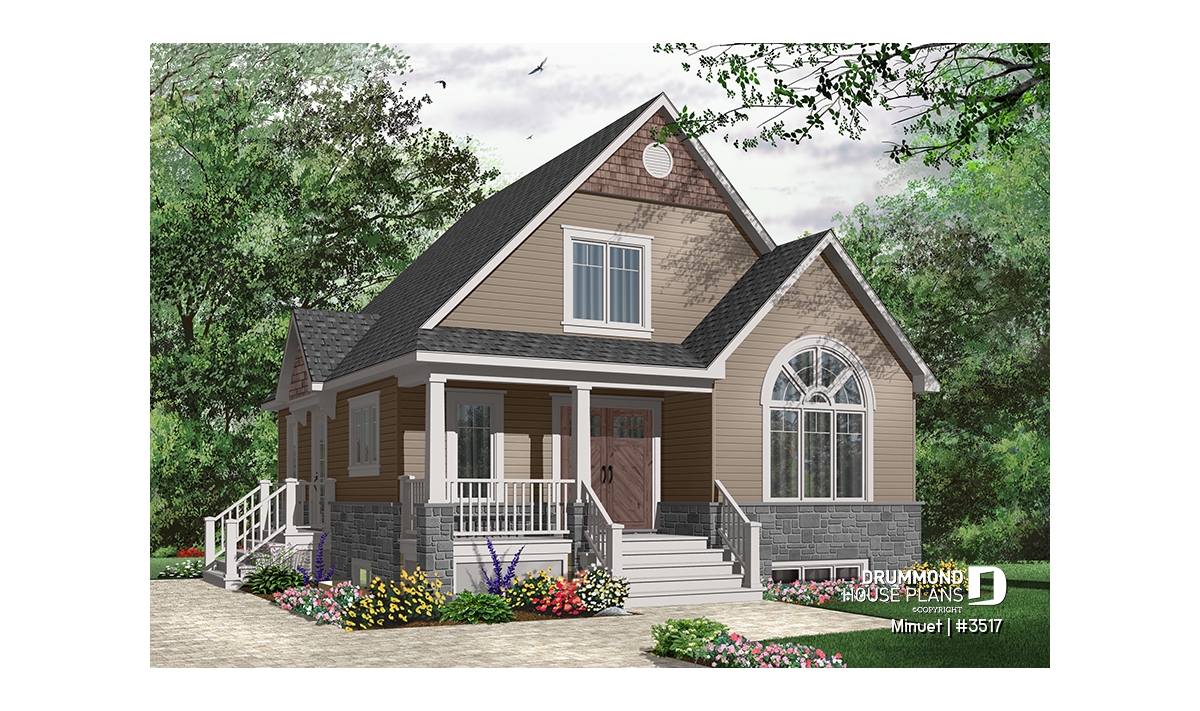

Color version 6 - Front

Vignette Color version 4 - Front - 3517
Vignette front - BASE MODEL - 3517
Vignette rear elevation - 3517
Vignette Color version 1 - Front - 3517
Vignette Color version 2 - Front - 3517
Vignette Color version 3 - Front - 3517
Vignette Color version 5 - Front - 3517
Vignette Color version 6 - Front - 3517

View by floor

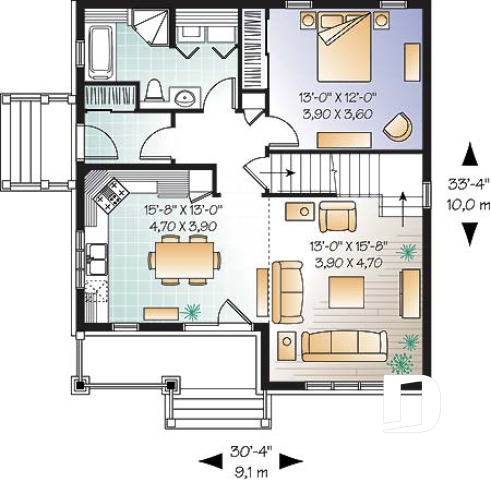

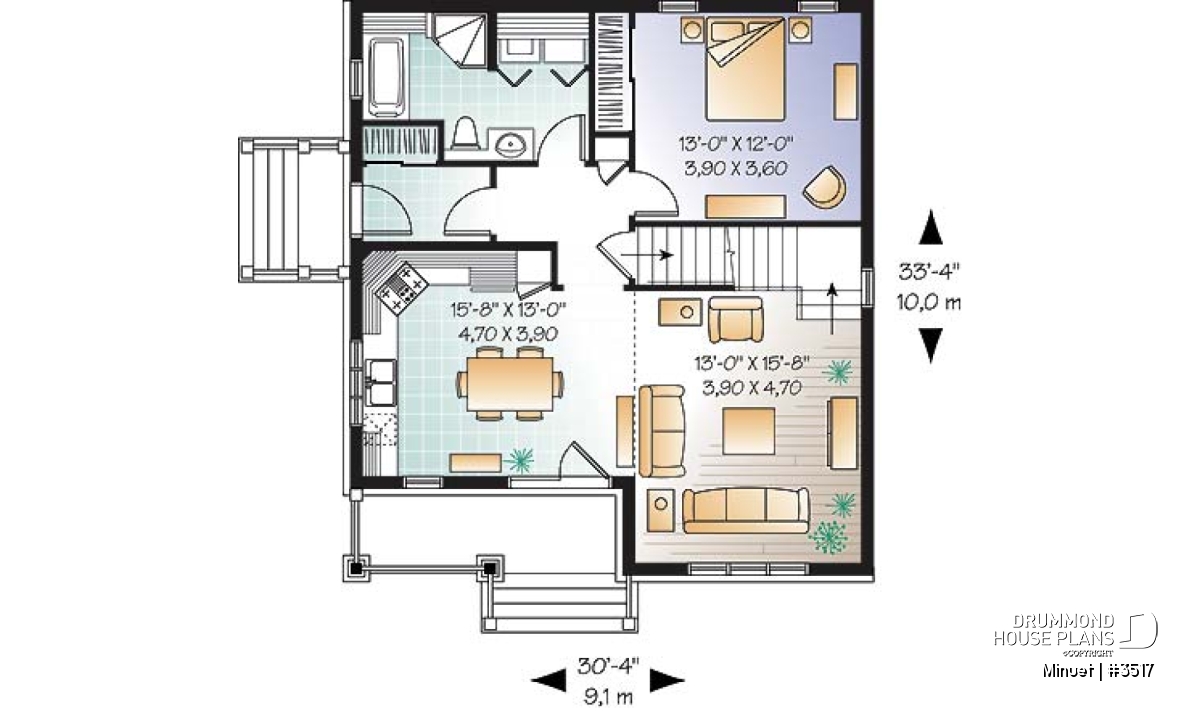

  • 1st level

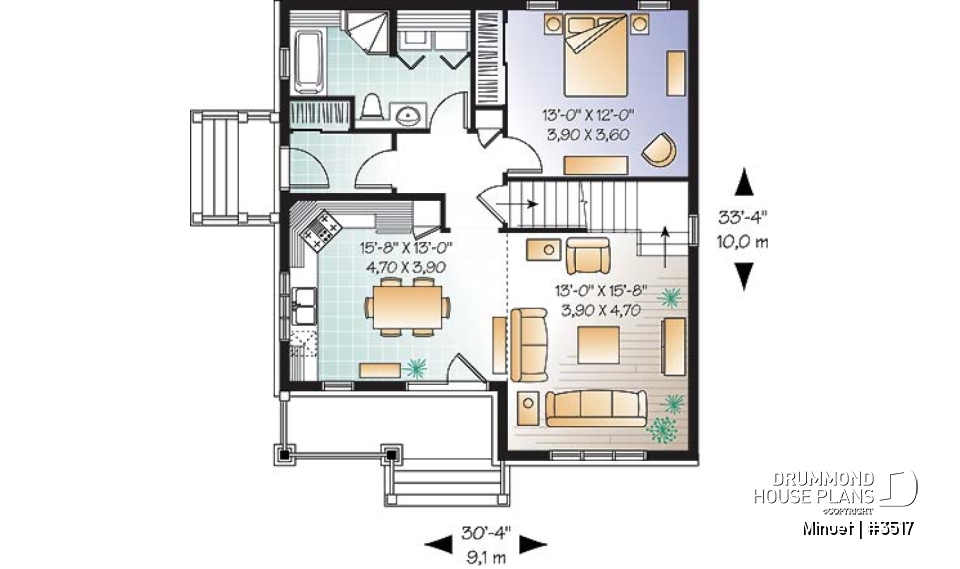

    1st level - Affordable Craftsman inspired home with cathedral ceiling, 3 bedrooms, 2 bathrooms and mezzanine - Minuet

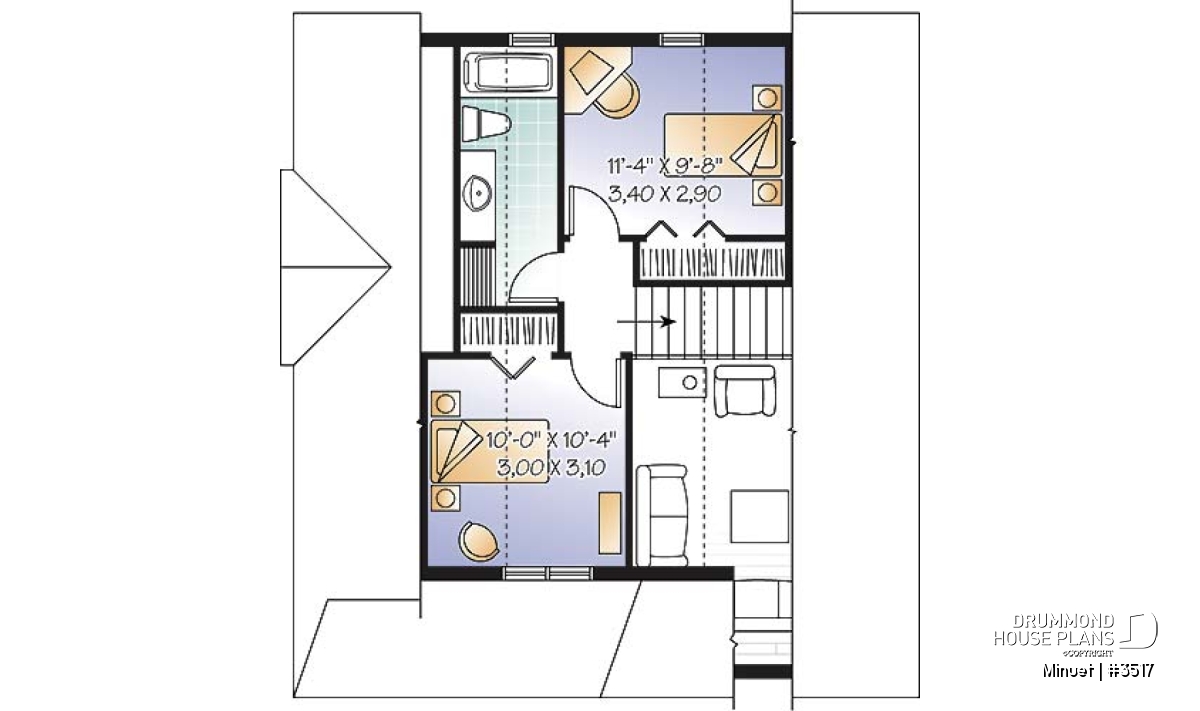

  • 2nd level

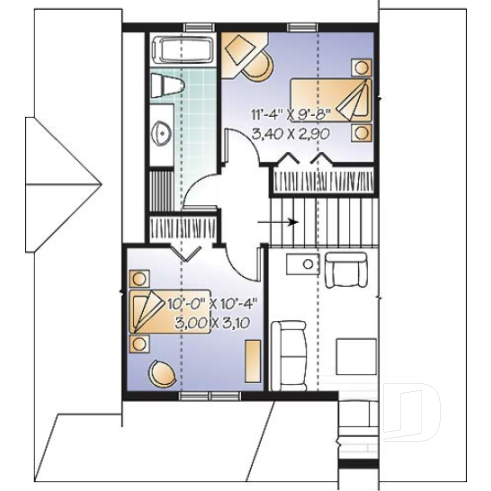

    2nd level - Affordable Craftsman inspired home with cathedral ceiling, 3 bedrooms, 2 bathrooms and mezzanine - Minuet
Vignette 1st level - 3517
Vignette 2nd level - 3517

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Kitchen 15'8" x 13'0" ~ 8'0"
Living room 13'0" x 15'8" ~ 17'4"
Foyer 7'4" x 4'4" ~ 8'0"
Full bathroom 13'0" x 8'6" ~ 8'0"
Bedroom 13'0" x 12'0" ~ 8'0"
Linen 2'0" x 6'10" ~ 8'0"
Porch 15'8" x 5'0" ~ 0'0"
Porch 8'3" x 3'0" ~ 0'0"
2nd level
Rooms Sizes Ceiling
Bedroom 11'0" x 9'7" ~ 8'0"
Bedroom 10'2" x 10'8" ~ 8'0"
Full bathroom 5'0" x 13'4" ~ 8'0"

General specifications

Total living area 1343 sq.ft.
1st level 931 sq.ft.
2nd level 412 sq.ft.
Width 30'4"
Depth 33'4"
Ridge height from top of foundation 27'4"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code C

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths -
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1343 sq.ft.
1st level 931 sq.ft.
2nd level 412 sq.ft.
Width 30'4"
Depth 33'4"
Ridge height from top of foundation 27'4"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code C

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths -
Garage type -
Living bonus space - i
Bonus storage - i

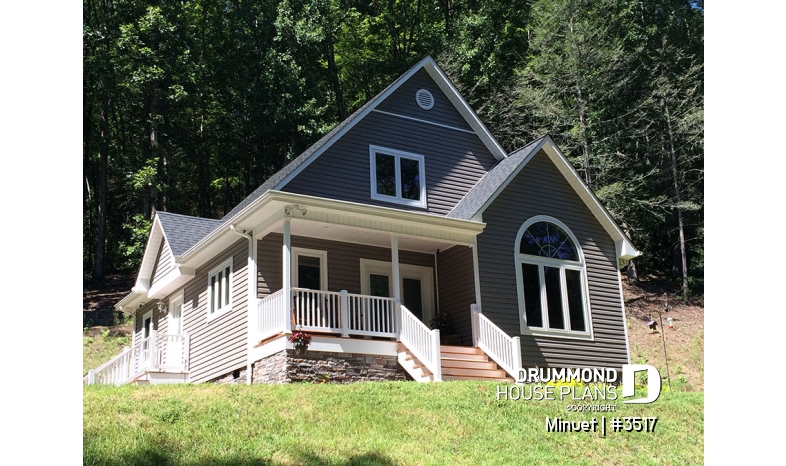

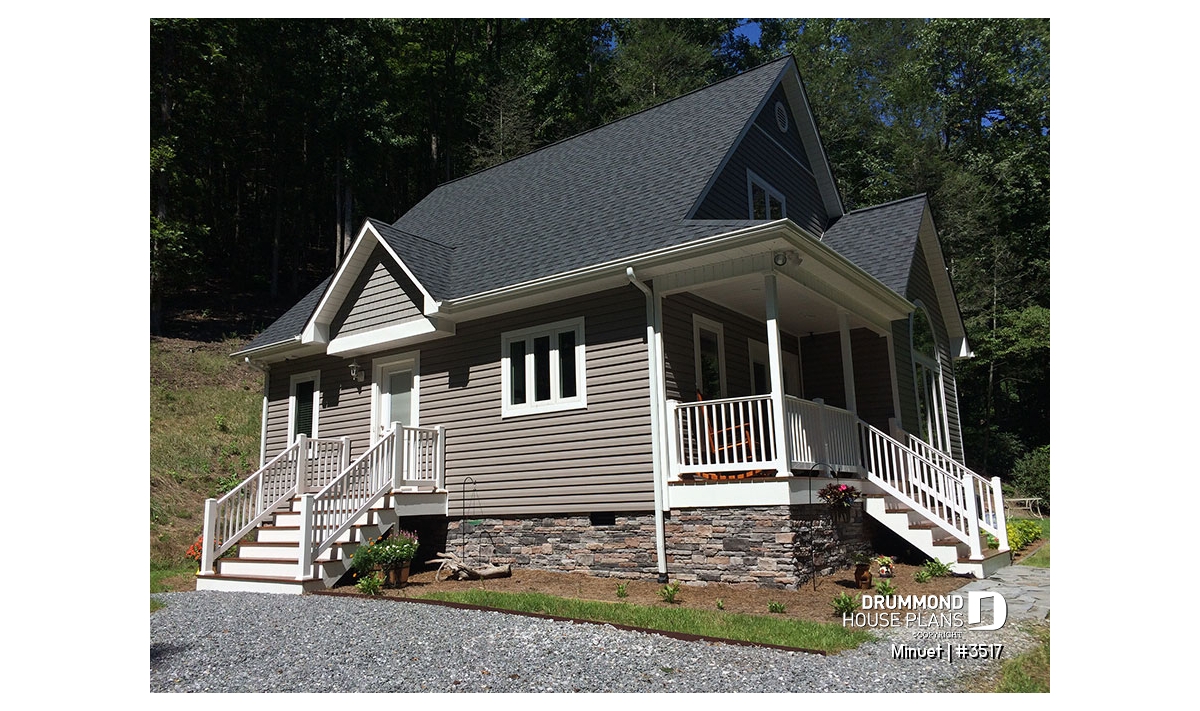

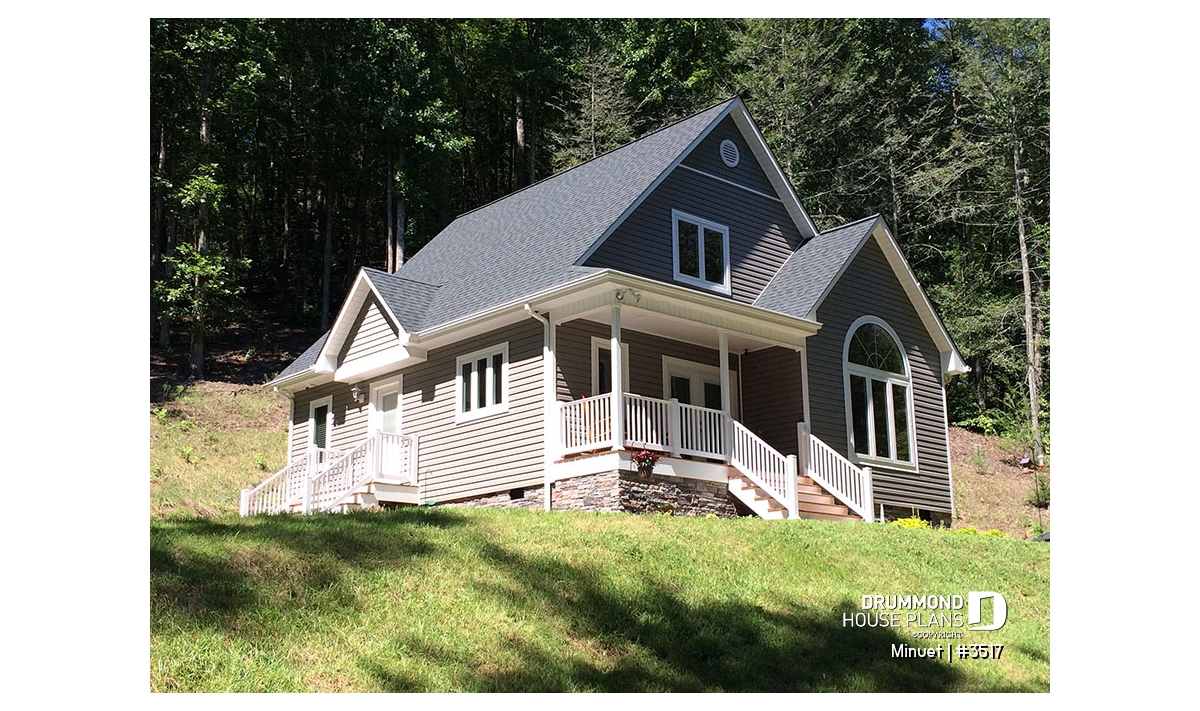

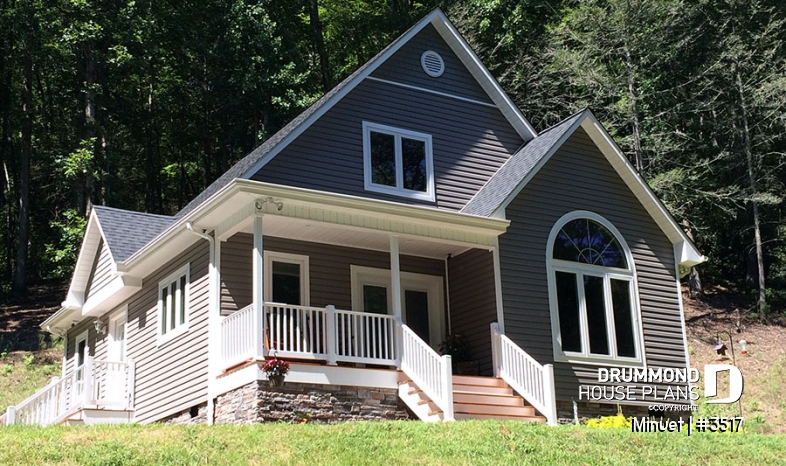

  • Photo front - Minuet

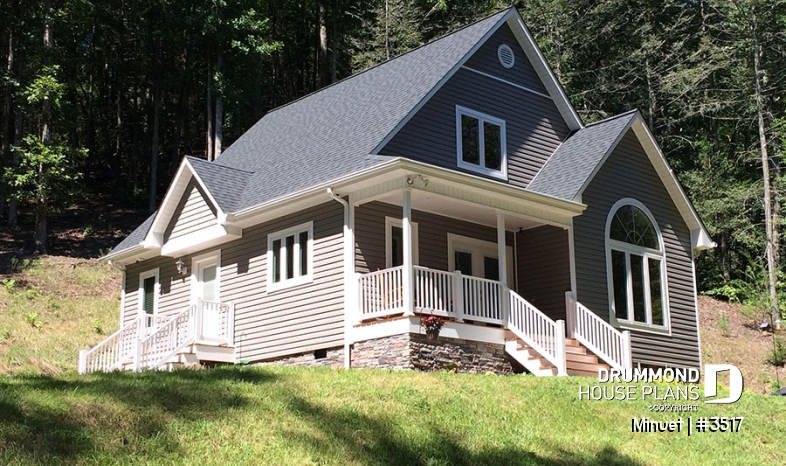

  • Photo front - Minuet

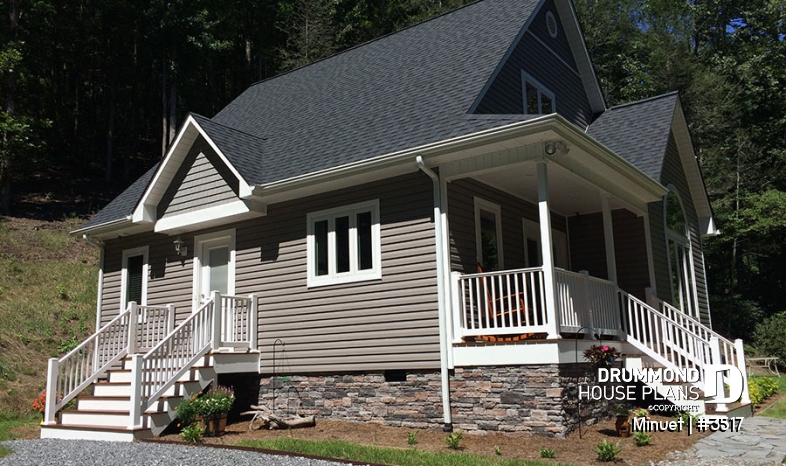

  • Photo front - Minuet

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

Photo thumbnail front - Plan 3517
Photo thumbnail front - Plan 3517
Photo thumbnail front - Plan 3517

Buy this plan

From : 900$

Modify this plan

Get a quote

Description

1st level: Foyer, kitchen with dining space, living room, one bedroom, bathroom inluding laundry space. 2nd level: Two bedrooms and a bathroom.

Other useful information on this plan

Cottage charmer house plan with 3 bedrooms and 2 bathrooms, affordable construction costs

Increasingly sought after by baby boomers, this kind of cottage includes all master amenities on the main floor. A cozy front porch dresses up the exterior and a well-designed plan includes many features in an efficient space.

The entry leads directly to an eat-in kitchen and adjacent living room with vaulted ceiling. The alternate covered side entrance is a mudroom with generous closet. The main floor is completed by a master bedroom and full bathroom with bath separate shower and laundry closet.

Two upstairs bedrooms enjoy angled ceilings and a shared bathroom.

An unfinished basement provides space for storage or expanded living.

Distinctive elements

Living room with a large arched window and a cathedral ceiling. One bedroom and laundry space located on the first level. Foyer in the side-door entry. Remarkable exterior look.

Plan feature(s)

Cathedral ceiling, Washer/dryer closet, Open floor layout, front porch, Master suite on main, Abundant fenestration

Other useful information on this plan

Full description

Cottage charmer house plan with 3 bedrooms and 2 bathrooms, affordable construction costs

Increasingly sought after by baby boomers, this kind of cottage includes all master amenities on the main floor. A cozy front porch dresses up the exterior and a well-designed plan includes many features in an efficient space.

The entry leads directly to an eat-in kitchen and adjacent living room with vaulted ceiling. The alternate covered side entrance is a mudroom with generous closet. The main floor is completed by a master bedroom and full bathroom with bath separate shower and laundry closet.

Two upstairs bedrooms enjoy angled ceilings and a shared bathroom.

An unfinished basement provides space for storage or expanded living.

Distinctive elements

Living room with a large arched window and a cathedral ceiling. One bedroom and laundry space located on the first level. Foyer in the side-door entry. Remarkable exterior look.

Plan feature(s)

Cathedral ceiling, Washer/dryer closet, Open floor layout, front porch, Master suite on main, Abundant fenestration

Questions and comments on this plan

September 25 2014

Ed League

I love this plan but don't need two bedrooms upstairs. I'm curious about the option of making the upstairs into a one bedroom with larger bath and walk in closet. Either this plan or something similar of similar sq footage and footprint.

Thank you,
Ed League

September 25 2014

Customer service

Good day Mr. League and thank you for your interest in our plans.

The following are the links for three models that you may find interesting.

3507 might even be just what you're looking for!

plan 2597-V1 is another choice which may appeal to you

and

3507-V2 has an unfinished upper level that you can design according to your precise requirments.

Our plan customization team would be happy to provide a free estimate for any changes required to the plan of your choice within two business days after receipt of this on line form.

Please let me know if you have any other questions or comments.
Regards
Deb

December 17 2012

Denise

Are there basement windows on the back sides of this house plan? If I got this plan, I would like to duplicate the first floor in the basement and would want to make sure there is an egress window of the bedroom.

December 17 2012

Customer service

Good day and thank you for taking the time to write.

The basement window in the back is located (approximately) under the washer/dryer and measures 84" wide x 24" high. Because its larger dimension is on the horizontal, it is not sufficient for an egress window.

We offer comprehensive modification services for any of our plans and would be happy to provide a free estimate for this or any other changes that you might require.

Please let me know if I can further assist you.

Regards

Deborah

December 08 2010

kristine

how much would it cost to build this house in ontario

December 09 2010

Customer service

Dear Kristine,

Thank you for your interest in Drummond House Plans.

Since we are located in Quebec, the only building costs we have available are provincial averages for our province. The prices are from $148,000 to $179,000. Please note that these prices may not be accurate for Ontario.

Please contact me if you need further information. I will gladly answer any questions you may have.

Best Regards,

Doreen, Customer Service Department

August 19 2010

Lisa Hartwig

We are looking for a design like this house, a simple square, but a bit bigger and a wrap around porch

August 20 2010

Customer service

Dear Mrs Hartwig,

Thank you for your interest in Drummond House Plans.

Below you will find house plan suggestions that we are submitting to you today, in response to your specific criteria. We do not have a plan that meets your exact requirements so we are suggesting plans that might be interesting to you.

Please type the plan numbers below to automatically access the house plan suggested and its similar designs:

Plan 1435

Plan 3512

PLan 2597


Don't forget that any of our house plan can easily be modified or customized, online. To get a FREE estimate for your changes please visit the "Plan Modification Services" section of our website www.drummondhouseplans.com and follow the instructions or call our modification department at: 1-800-567-5267.

If you have further questions, do not hesitate to contact us again. We will gladly answer all your questions.

Best Regards,

Customer Service Department
