House plan Mt. Meridian 2 (6804)
3 bedroom waterfront cottage house plan with wraparound porch, large master suite, breakfast nook
View the size of the rooms and height of the ceilings

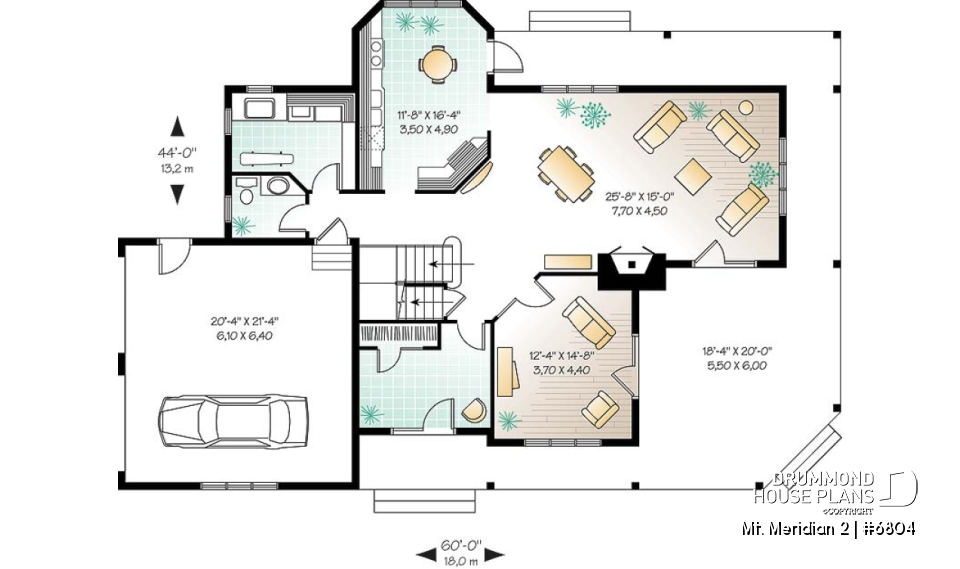

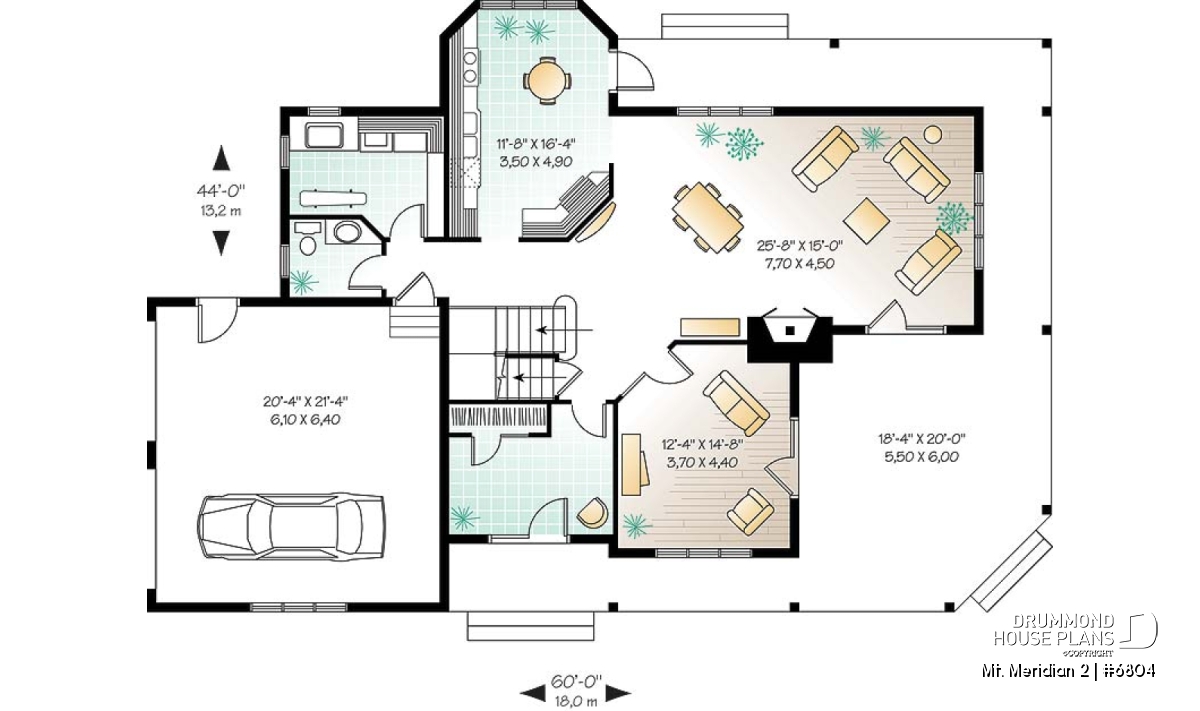

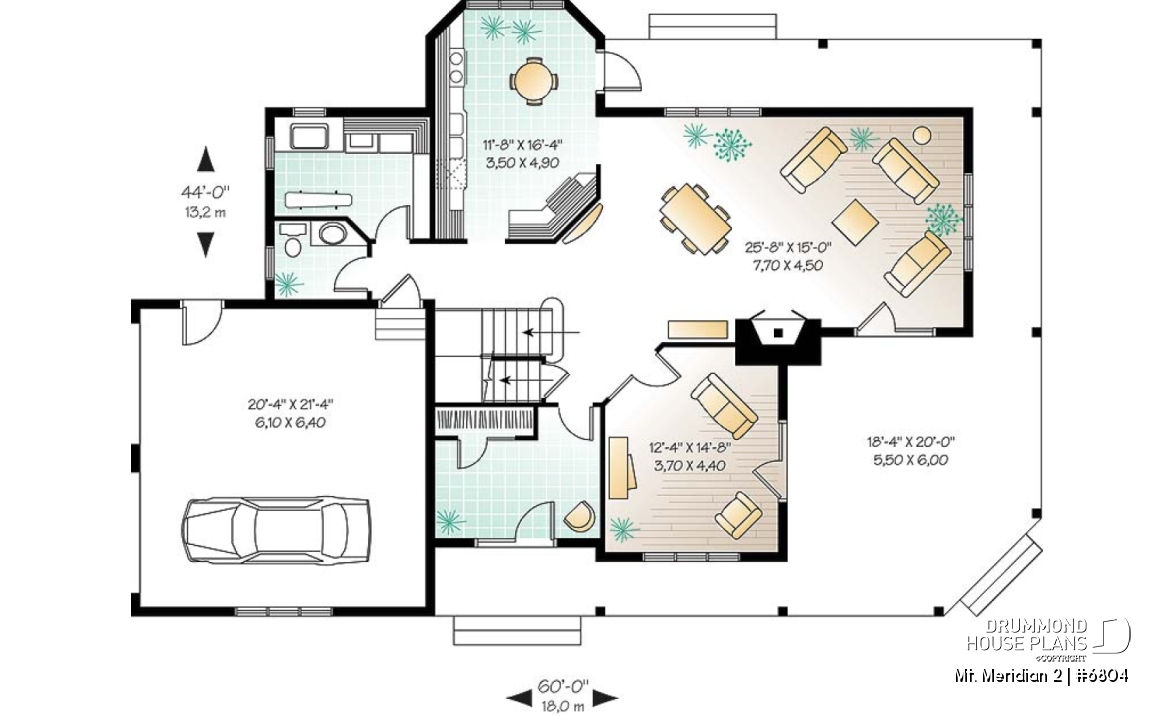

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 6'6" x 5'8" | ~ 9'0" |
| Kitchen | 11'8" x 16'4" | ~ 9'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Great room or Family room | 12'4" x 14'8" | ~ 9'0" |
| Living room/dining room | 25'8" x 15'0" | ~ 9'0" |
| Foyer | 11'8" x 7'0" | ~ 9'0" |
| Closet | 7'0" x 2'0" | ~ 9'0" |
| Laundry room | 11'0" x 8'8" | ~ 9'0" |
| Garage | 20'4" x 21'4" | ~ 10'8" |
| Porch | 18'4" x 20'0" | N/A |
| Covered deck | 31'0" x 5'0" | N/A |

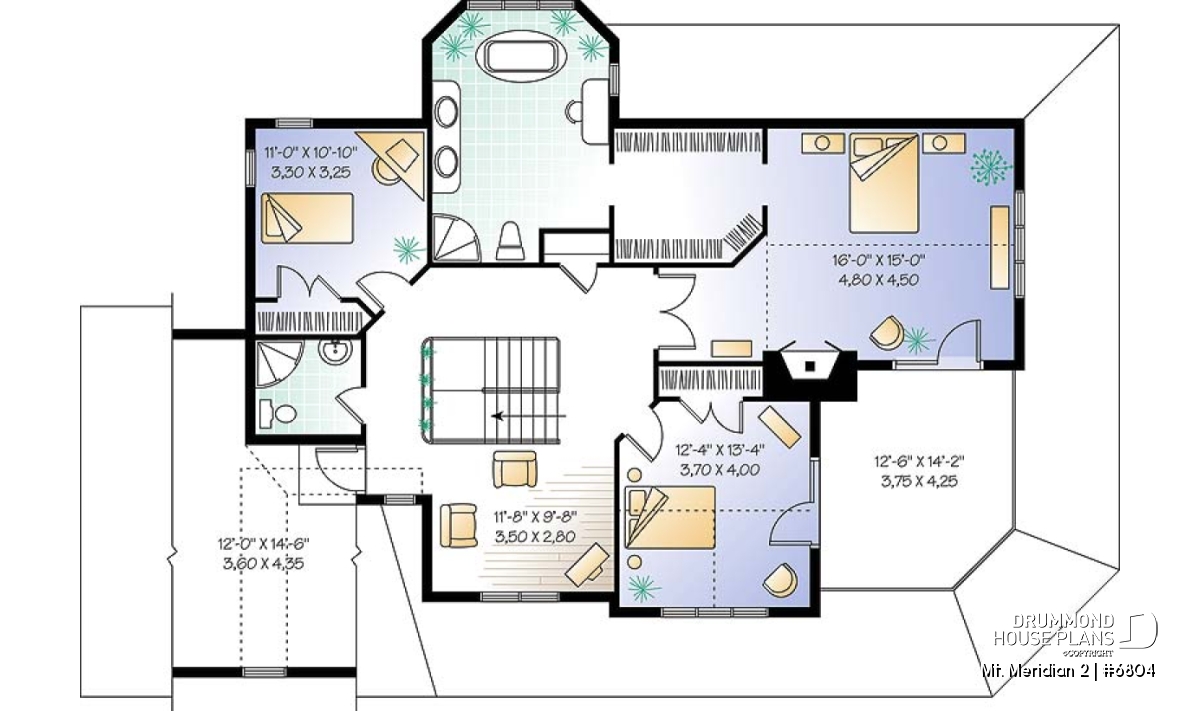

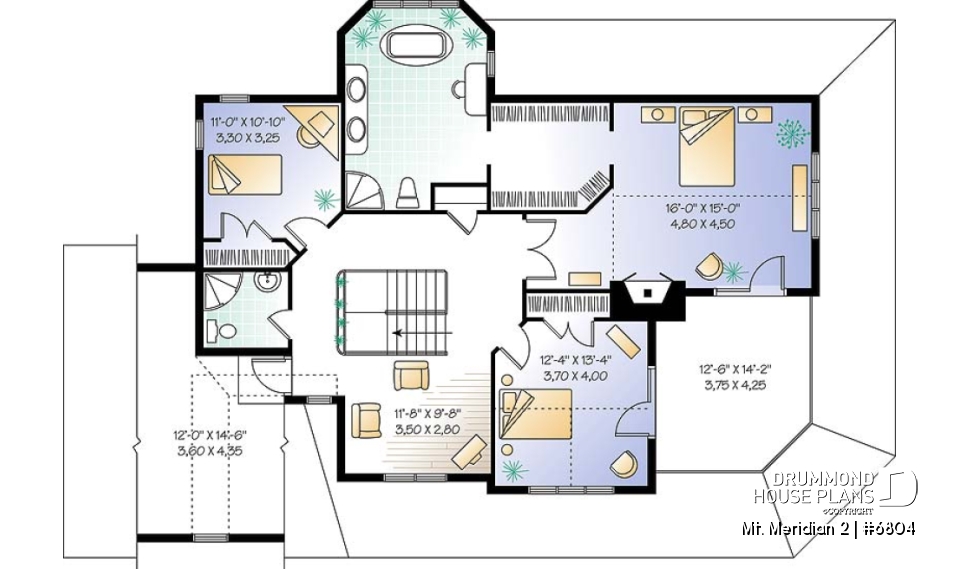

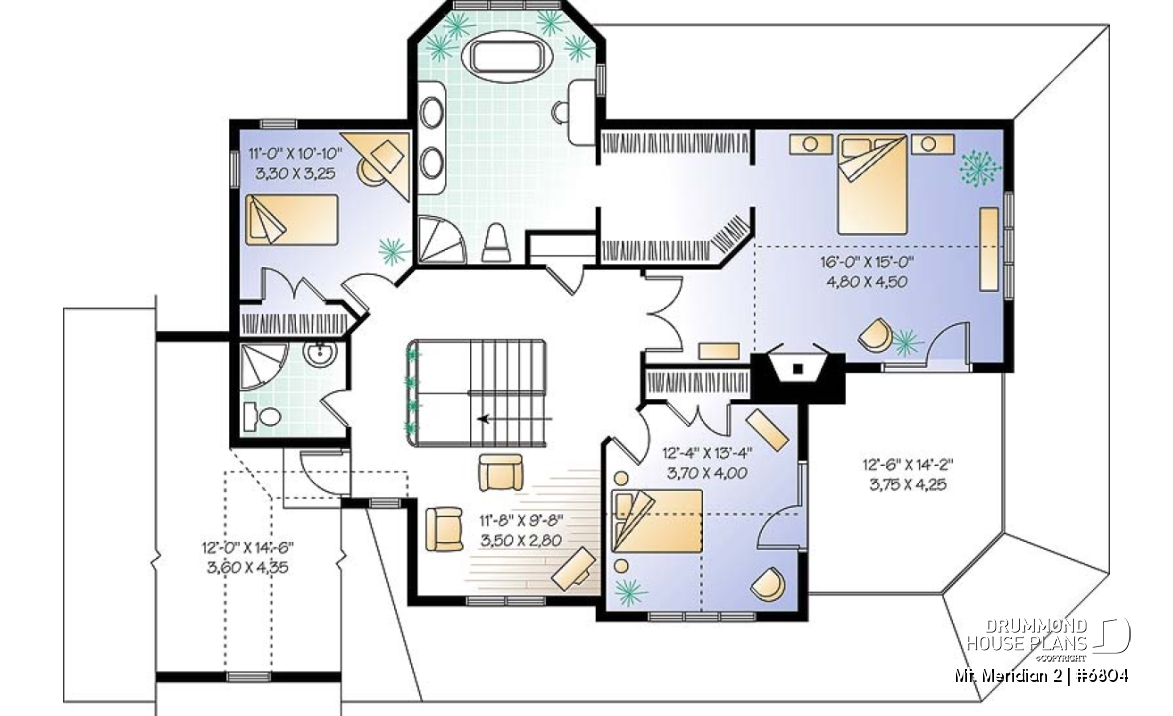

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 6'2" x 6'7" | ~ 8'0" |
| Master suite | 16'0" x 15'0" | ~ 11'8" |
| Full bathroom | 11'8" x 16'2" | ~ 8'0" |
| Walk-in closet | 9'4" x 8'8" | ~ 8'0" |
| Bedroom | 12'4" x 13'4" | ~ 8'0" |
| Closet | 6'8" x 2'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'10" | ~ 8'0" |
| Closet | 7'4" x 2'0" | ~ 8'0" |
| Living bonus room | 12'0" x 14'6" | ~ 8'0" |
| Reading/computer area | 11'8" x 9'8" | ~ 8'0" |
| Balcony | 12'6" x 14'2" | N/A |
| Linen | 4'4" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 2687 sq.ft. |
| 1st level | 1297 sq.ft. |
| 2nd level | 1390 sq.ft. |
| Width | 60'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 33'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
While away the summer days on your wraparound veranda!

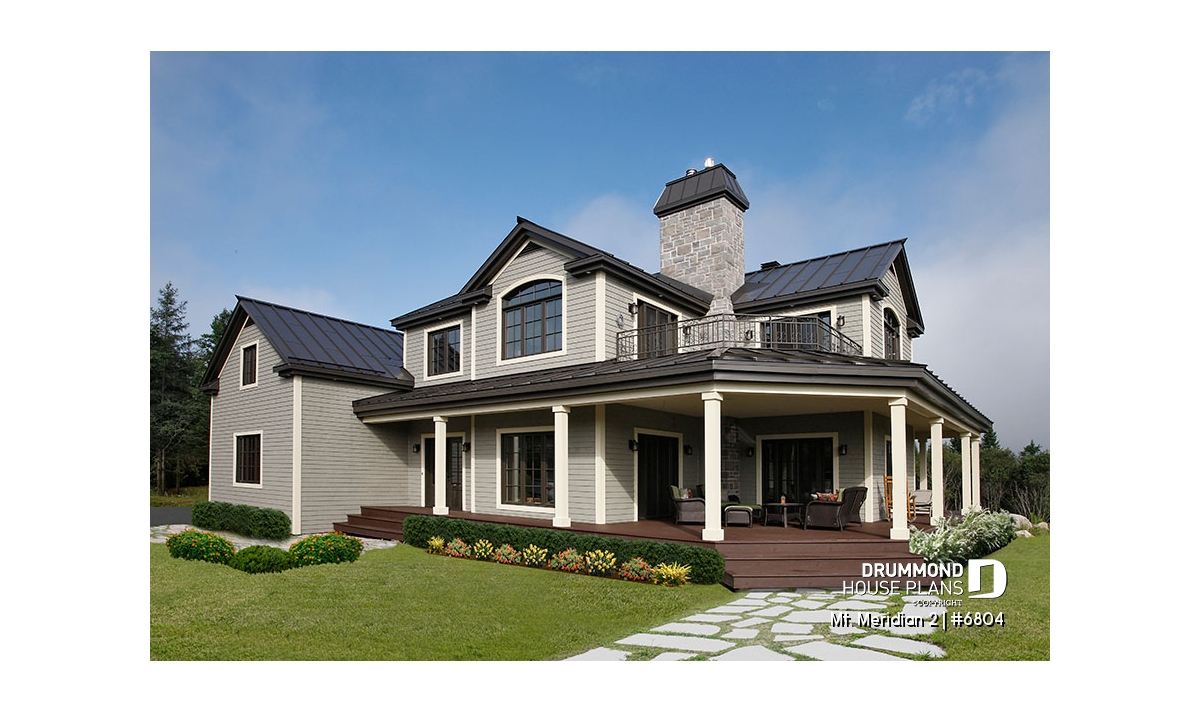

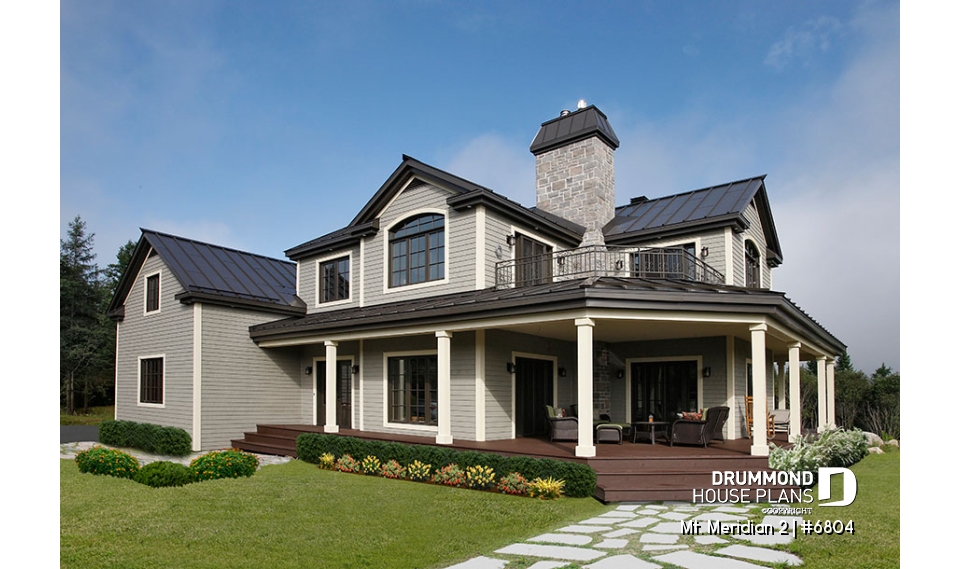

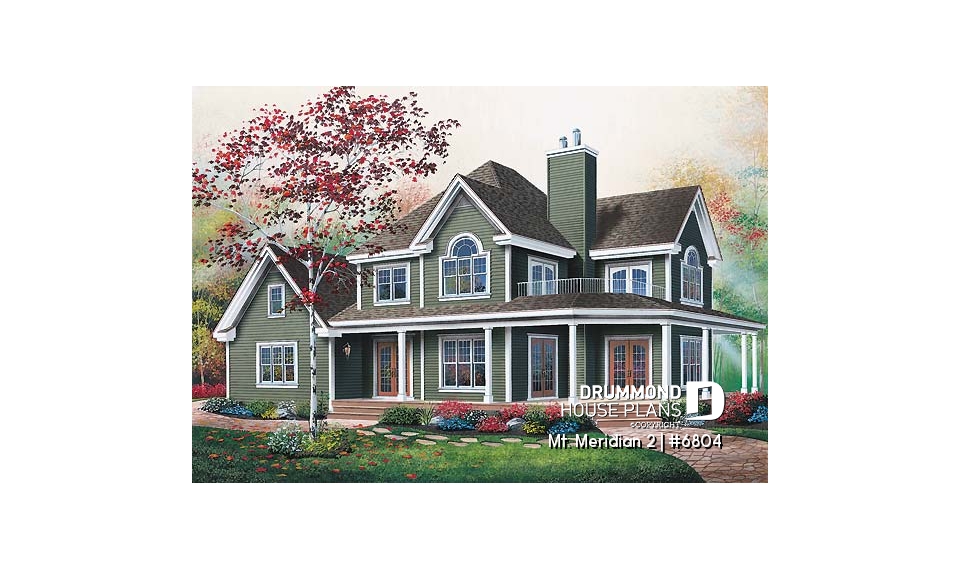

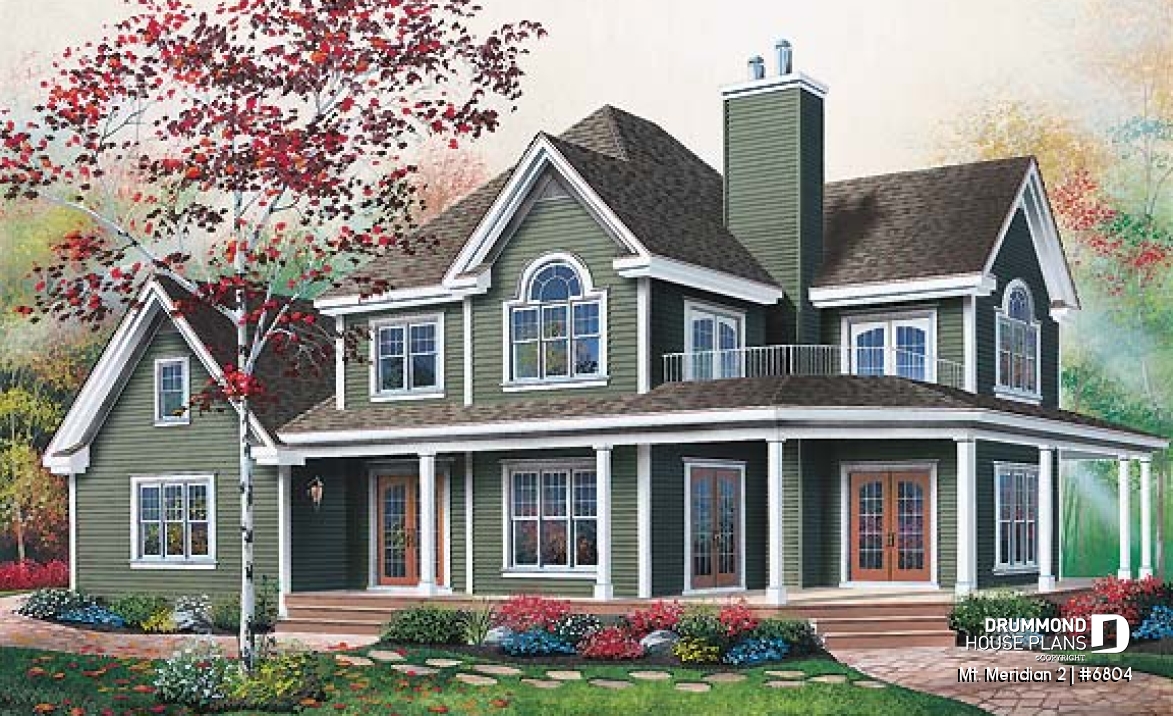

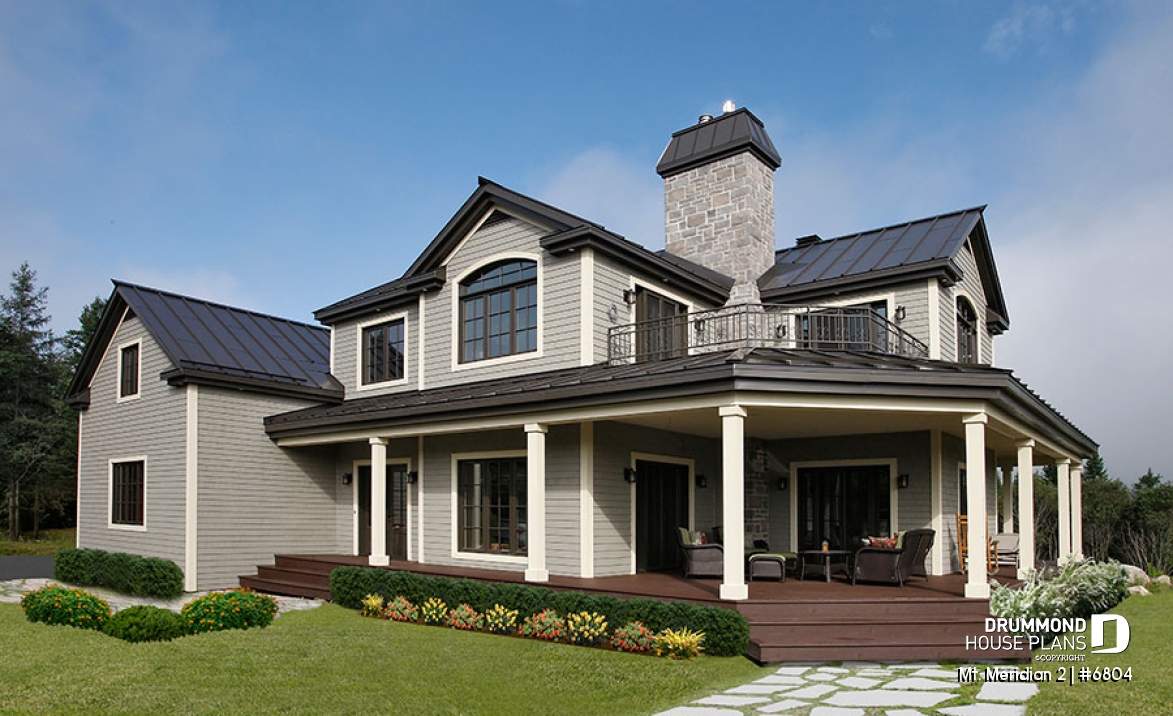

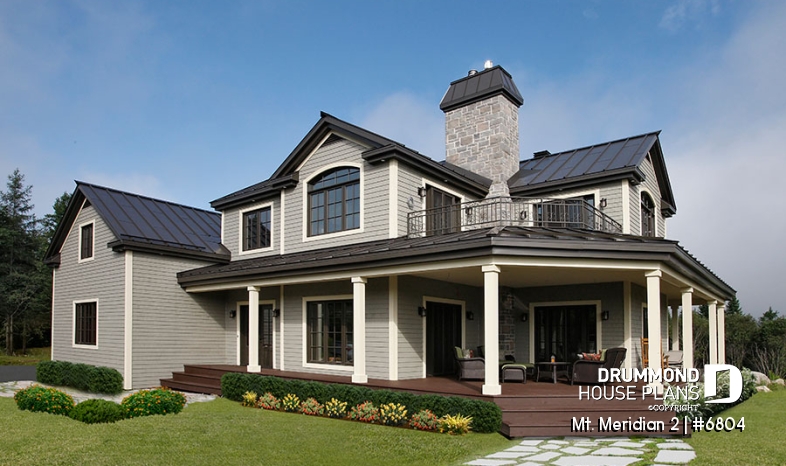

This home is a celebration of exterior and interior spaces. A generous covered entry transitions to a covered social deck and then lures one all the way to the back. This veranda allows for sheltered enjoyment and conversation areas as well as providing the main floor protection from the midday sun. Contrasting siding and trim accentuate the lines of the house including a stately double chimney. The double garage is discreetly accessed from the side.
Inside one is greeted by a generous foyer. To the right one discovers a comfortable lifestyle room that can be used as a sitting room, office or guest room. Beyond this is an open concept living/dining room which is warmed by a central fireplace. At the rear of the house is a kitchen with ample counter and cabinet space plus a bright breakfast area with direct access to the veranda. To finish off the main-floor necessities, one finds a good-sized laundry room and a discreetly located powder room.
On the upper level, we find a master suite, two additional bedrooms and a full bathroom, activity area plus a bonus space over the garage. The master retreat is noteworthy for its size, fireplace, large walk-in closet and generous master bathroom plus direct access to an open-sky terrace.
Distinctive elements
Ideal lakefront house design with wraparound covered porch.
Abundant windowing,
9 foot ceiling on first floor,
Large dining / living room with fireplace.
Breakfast nook.
Laundry and powder room on main floor.
Large master suite with private walk-in and bathroom, and acces to a balcony.
2 to 3 secondary bedrooms share a shower room.
Two-car garage with access door to the house, near kitchen.
Unfinished daylight basement. Many foundation options available with this home.
Plan feature(s)
Fireplace, Living bonus space, Panoramic view, Master suite upstairs, Gound floor laundry room, Ceiling over 8', Side entry garage, Deck, Balcony 2nd floor, Walk-in master bed., Sitting area, Breakfast nook, Separate bath and shower, Double sinks, Cathedral ceiling, Sloped ceiling
Plan architectural style(s)
. Country, . Farmhouse, . Traditional, . Vacation and waterfront, . American, . Cottage, chalet, cabin, . Mountain, . Craftsman / Northwest, . Modern rustic
