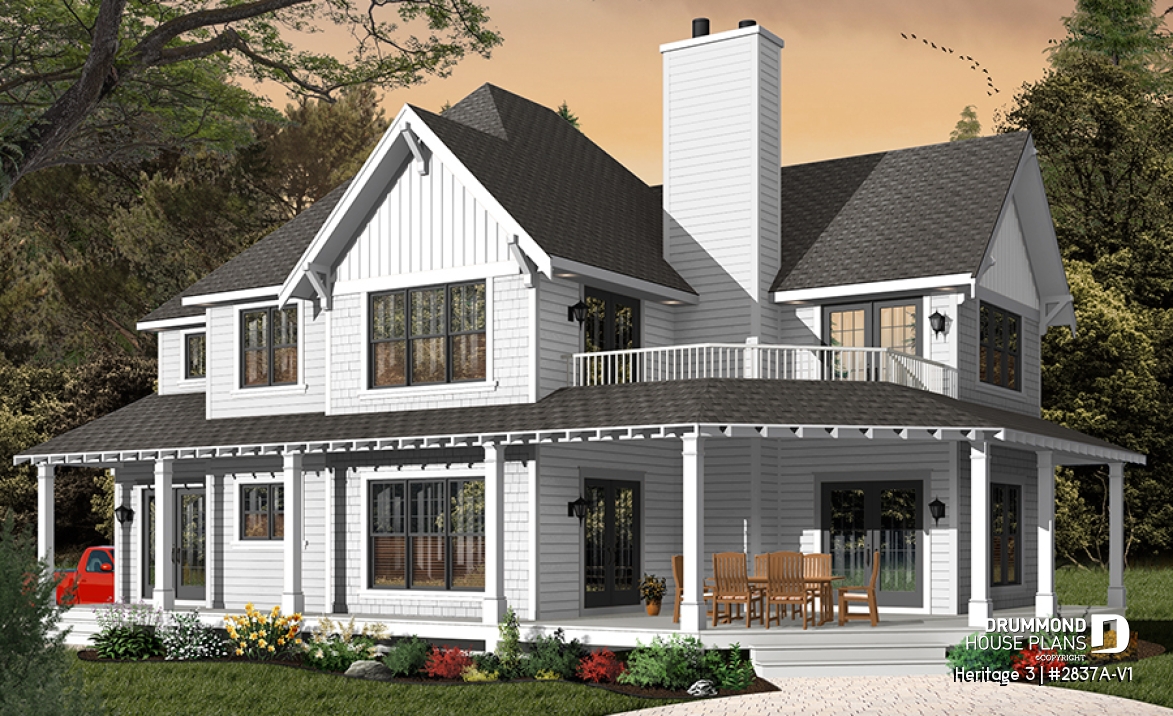

House plan Heritage 3 (2837A-V1)

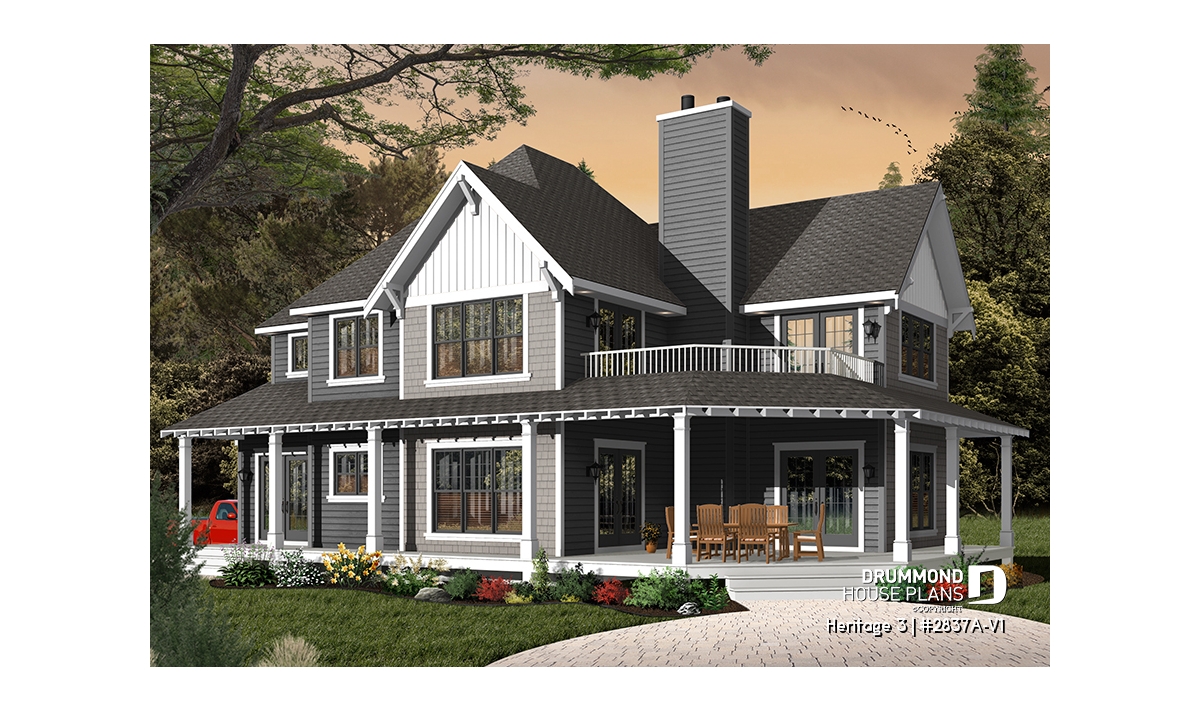

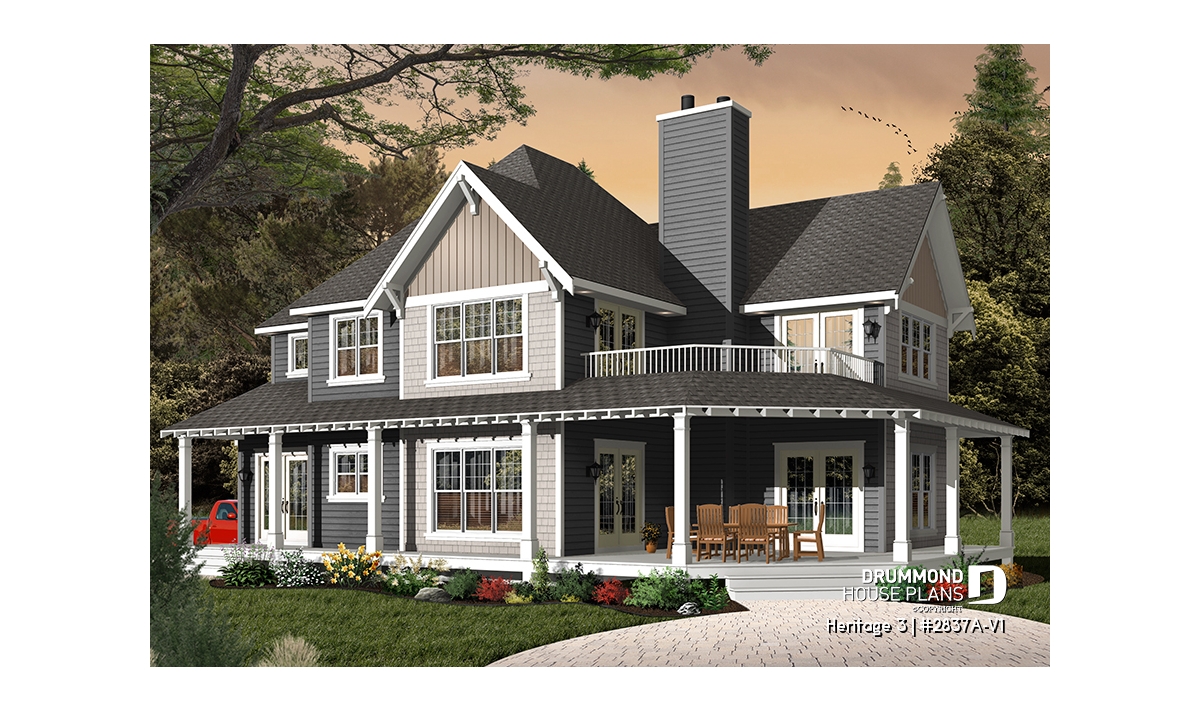

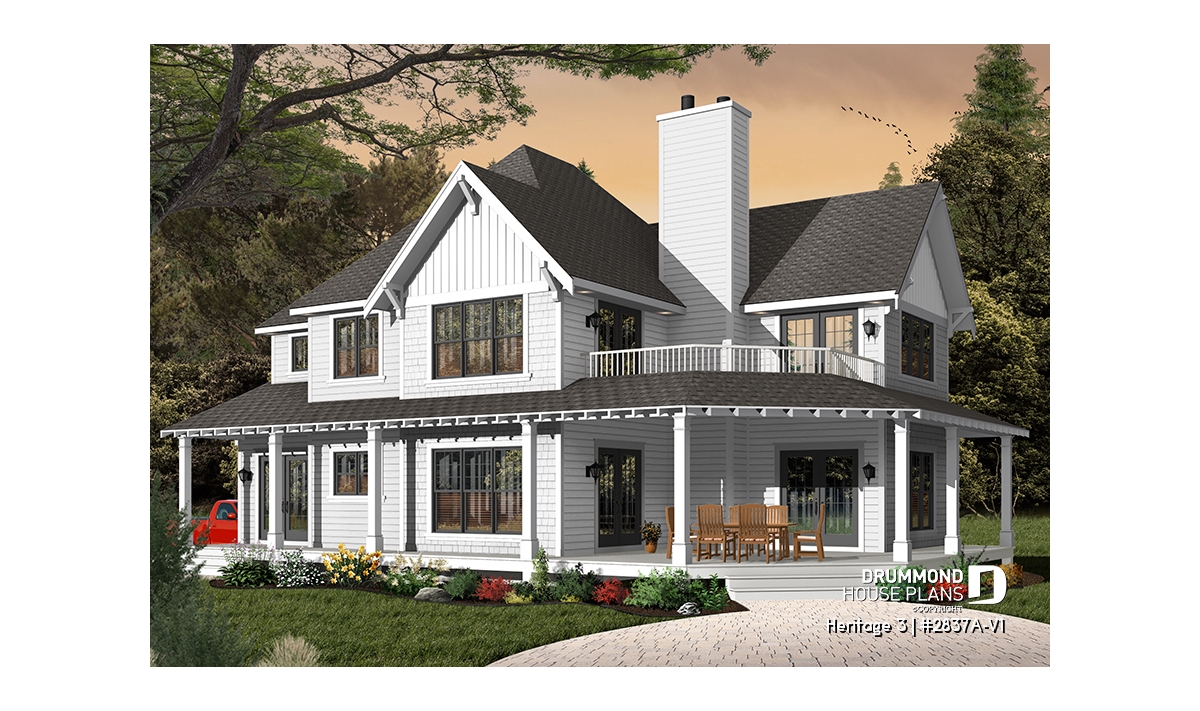

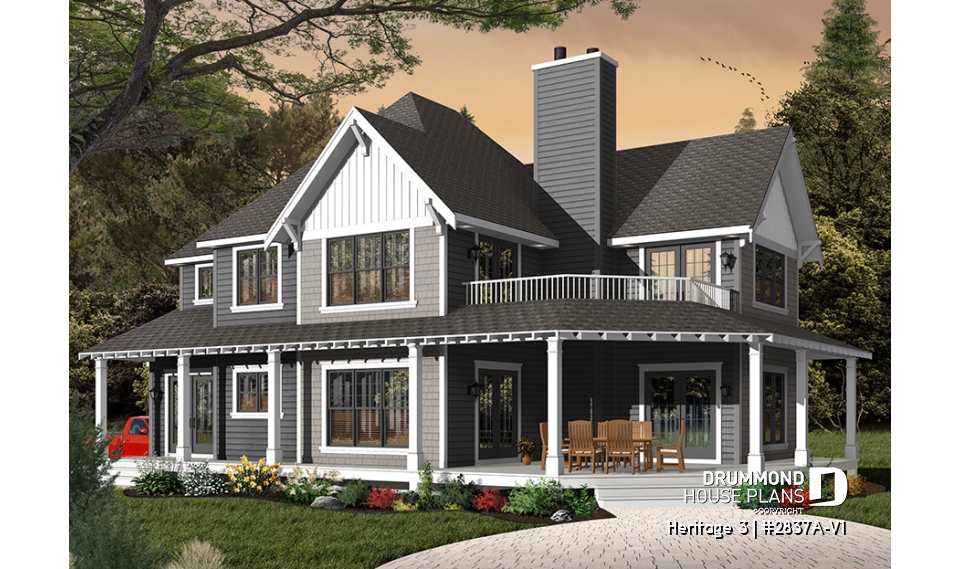

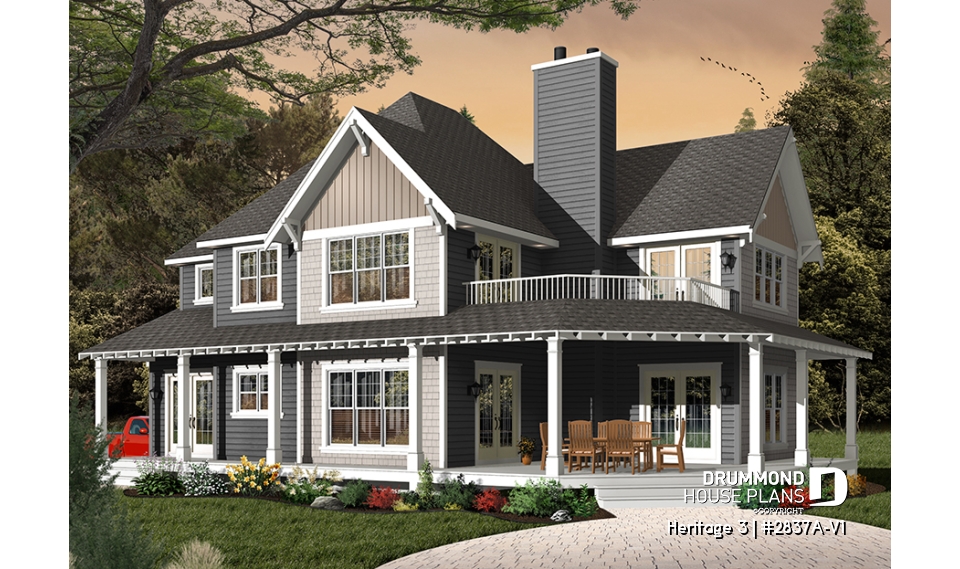

Country Cottage home plan, wraparound porch, 3 to 4 bedrooms, large master suite, lakefront home
View the size of the rooms and height of the ceilings

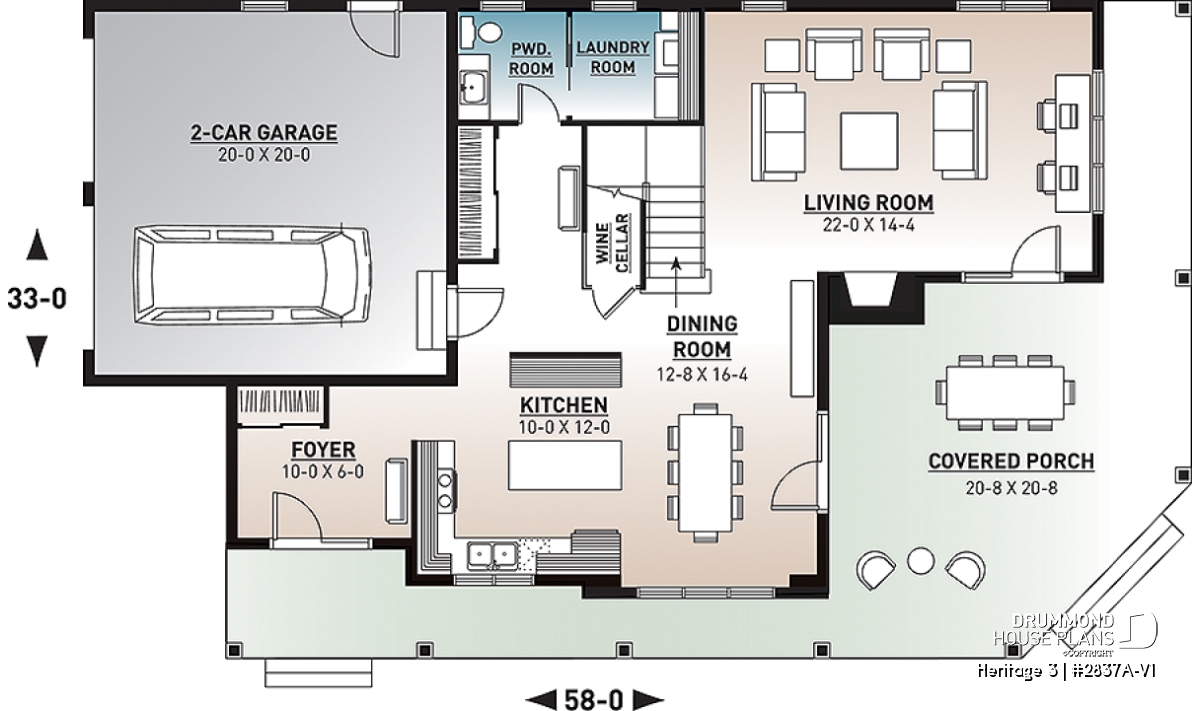

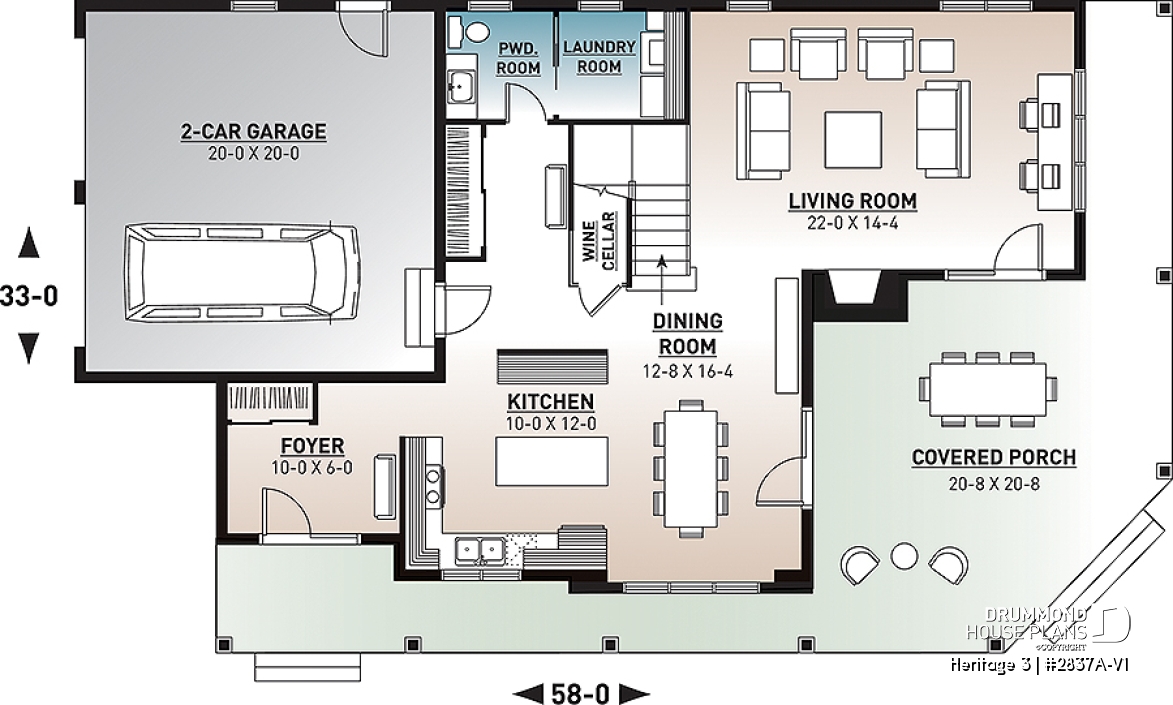

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'0" x 12'0" | ~ 9'0" |
| Half bath or powder room | 6'5" x 6'0" | ~ 9'0" |
| Foyer | 10'0" x 6'0" | ~ 9'0" |
| Garage | 20'0" x 20'0" | ~ 9'0" |
| Mud room | 2'4" x 2'0" | ~ 9'0" |
| Dining room | 12'8" x 16'4" | ~ 9'0" |
| Living room | 22'0" x 14'4" | ~ 9'0" |
| Laundry room | 6'10" x 6'0" | ~ 9'0" |
| Storage | 3'0" x 4'0" | ~ 9'0" |
| Porch | 20'8" x 20'8" | N/A |

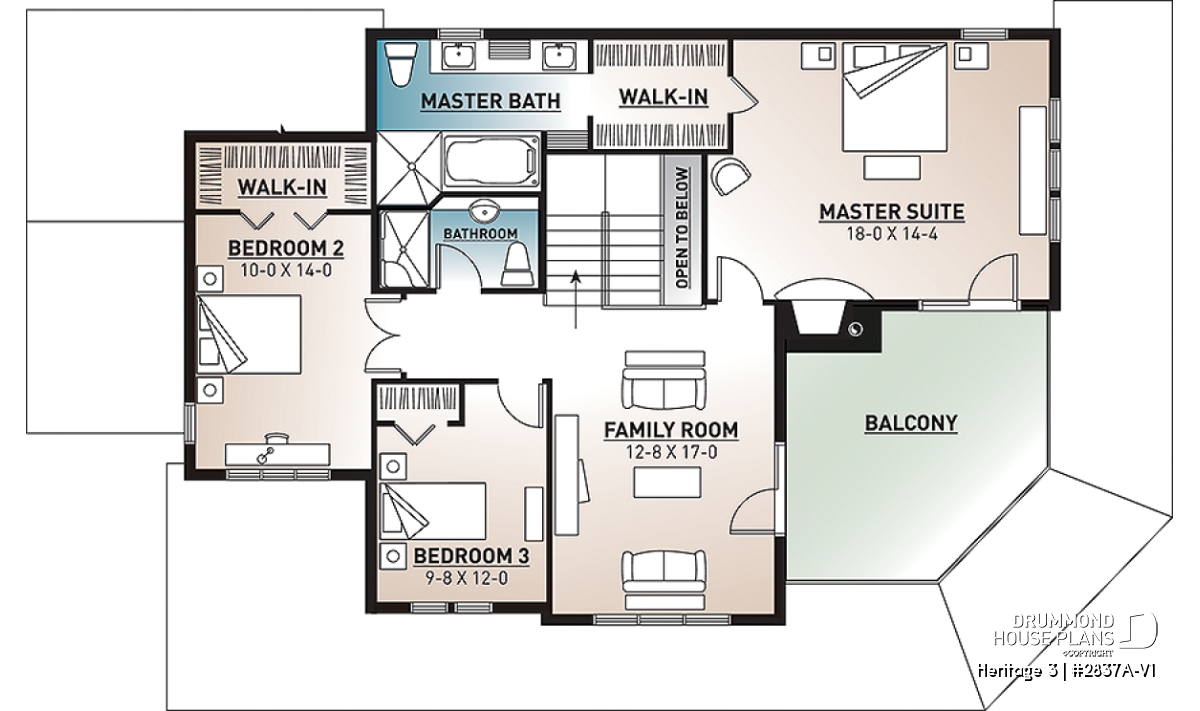

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Balcony | 15'0" x 15'0" | N/A |
| Bedroom | 10'0" x 14'0" | ~ 8'0" |
| Bedroom | 9'8" x 12'0" | ~ 8'0" |
| Reading/computer area | 12'8" x 17'0" | ~ 8'0" |
| Shower room or three quarter bath | 9'0" x 5'0" | ~ 8'0" |
| Master suite | 18'0" x 14'4" | ~ 11'9" |
General specifications
| Total living area | 2326 sq.ft. |
| 1st level | 1095 sq.ft. |
| 2nd level | 1231 sq.ft. |
| Width | 58'0" |
| Depth | 33'0" |
| Ridge height from top of foundation | 33'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Crawl space i |
| Other available foundations (a fee may apply) | Unfinished Basement, Floating Slab, Monolithic Slab |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
Country Cottage Cachet with nice master suite (fireplace, terrace, ensuite)!
Use of natural materials enhance this timeless, yet totally modern 2326 sq.ft. three-bedroom with 2.5 baths. Main-floor layout includes living room with fireplace, dining area, kitchen, half-bath, laundry room and French door access to covered deck.

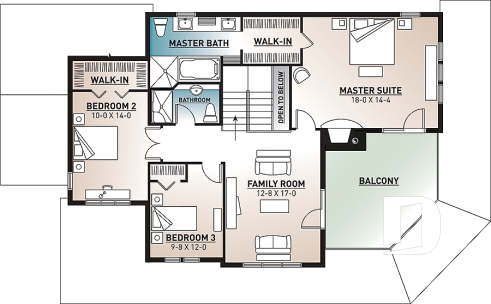

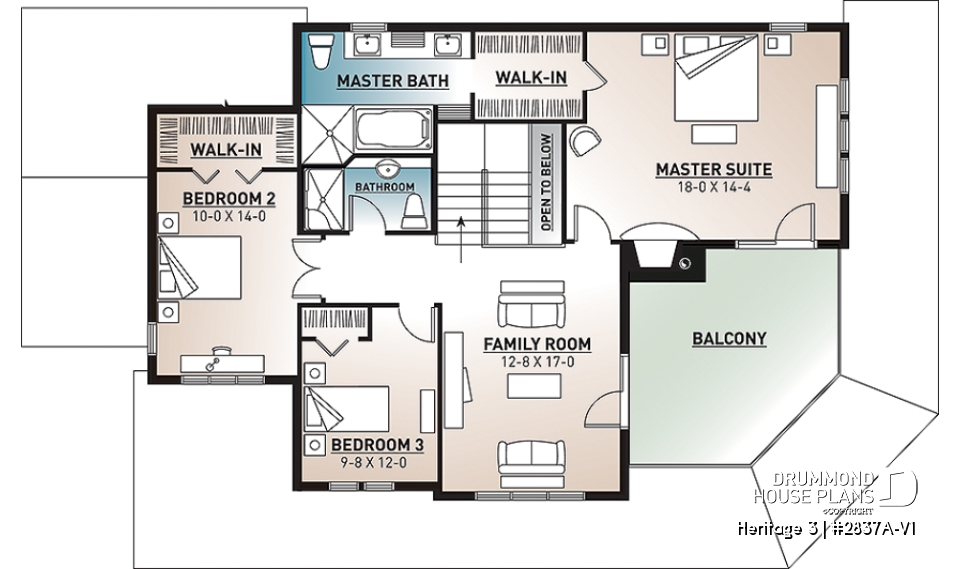

Upstairs, the master suite enjoys French door access to the upper balcony, walk-in closet and five-fixture master bathroom. Two additional bedrooms share a bathroom, and a relaxed upstairs family room can become bedroom #4, if desired. Two-car garage stores more than cars!
The plan includes a crawlspace foundation but alternate foundations are available if more living area is desired.
Distinctive elements
9' ceiling on 1st level. Family room and master suite with fireplace and access to a terrace. Living room on 2nd level with possibility to being converted to a 4th bedroom.
Plan feature(s)
Fireplace, Mezzanine, Gound floor laundry room, Panoramic view, Side entry garage, Ceiling over 8', Master suite upstairs, Deck, Balcony 2nd floor, Walk-in master bed., Wine cellar, Cathedral ceiling, Separate bath and shower, Double sinks
Plan architectural style(s)
. Craftsman / Northwest, . Country, . Traditional, . Vacation and waterfront, . Modern rustic, . Rustic, . American, . Cottage, chalet, cabin, . Farmhouse
