House plan The Madeline 5 (3825)
Open floor plan, home office, 3-4 bedrooms, 2-car garage, see-thru fireplace, large bonus room
View the size of the rooms and height of the ceilings

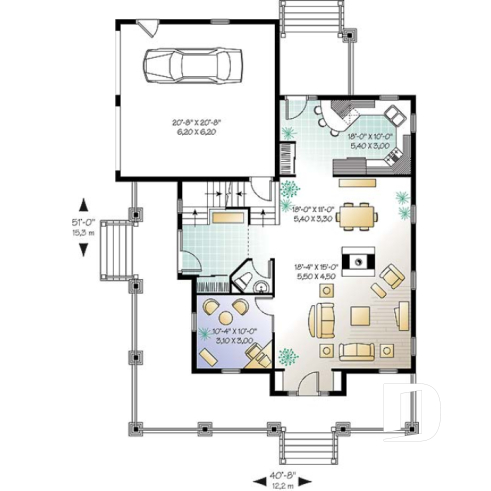

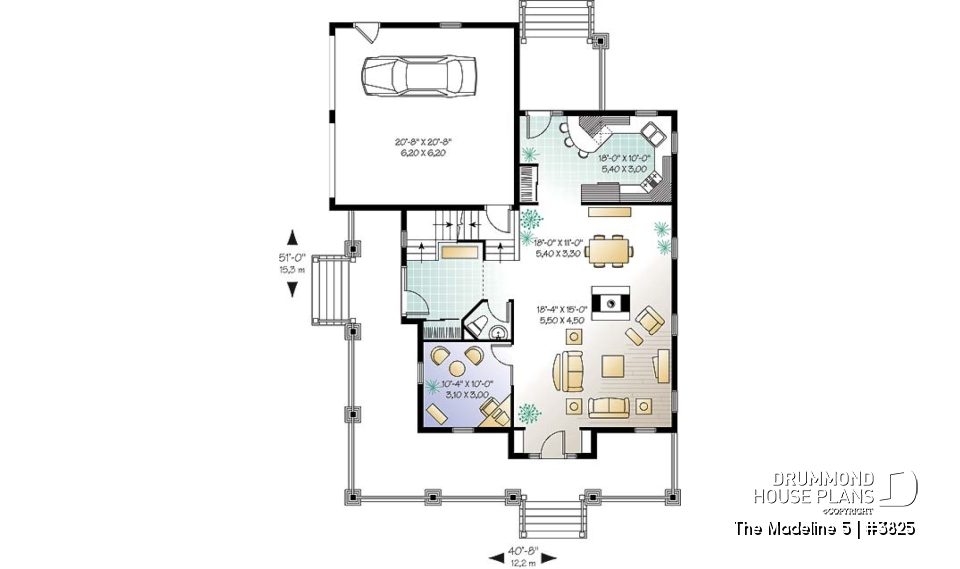

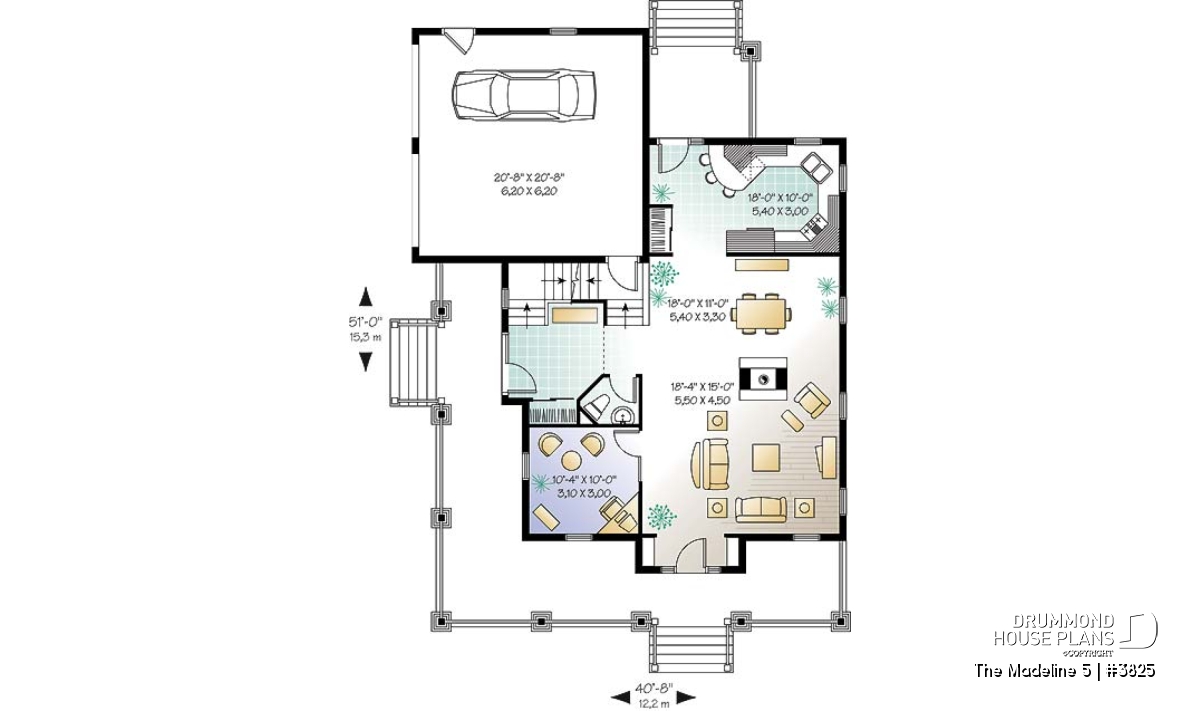

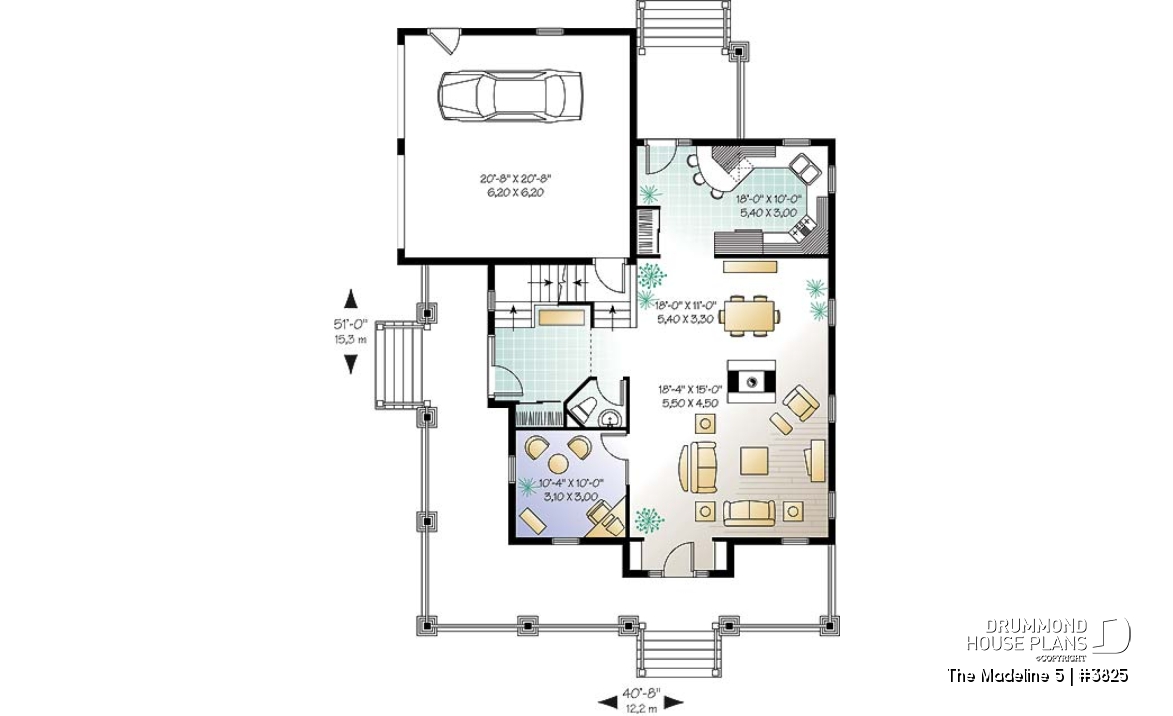

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 18'0" x 10'0" | ~ 9'0" |
| Dining room | 18'0" x 11'0" | ~ 9'0" |
| Living room | 18'4" x 15'0" | ~ 9'0" |
| Home office | 10'4" x 10'0" | ~ 9'0" |
| Garage | 20'8" x 20'8" | ~ 9'8" |
| Porch | 38'4" x 8'0" | N/A |
| Covered deck | 10'4" x 8'8" | N/A |
| Porch | 8'0" x 34'0" | N/A |
| Half bath or powder room | 5'8" x 4'4" | ~ 9'0" |
| Foyer | 8'10" x 9'0" | ~ 9'0" |

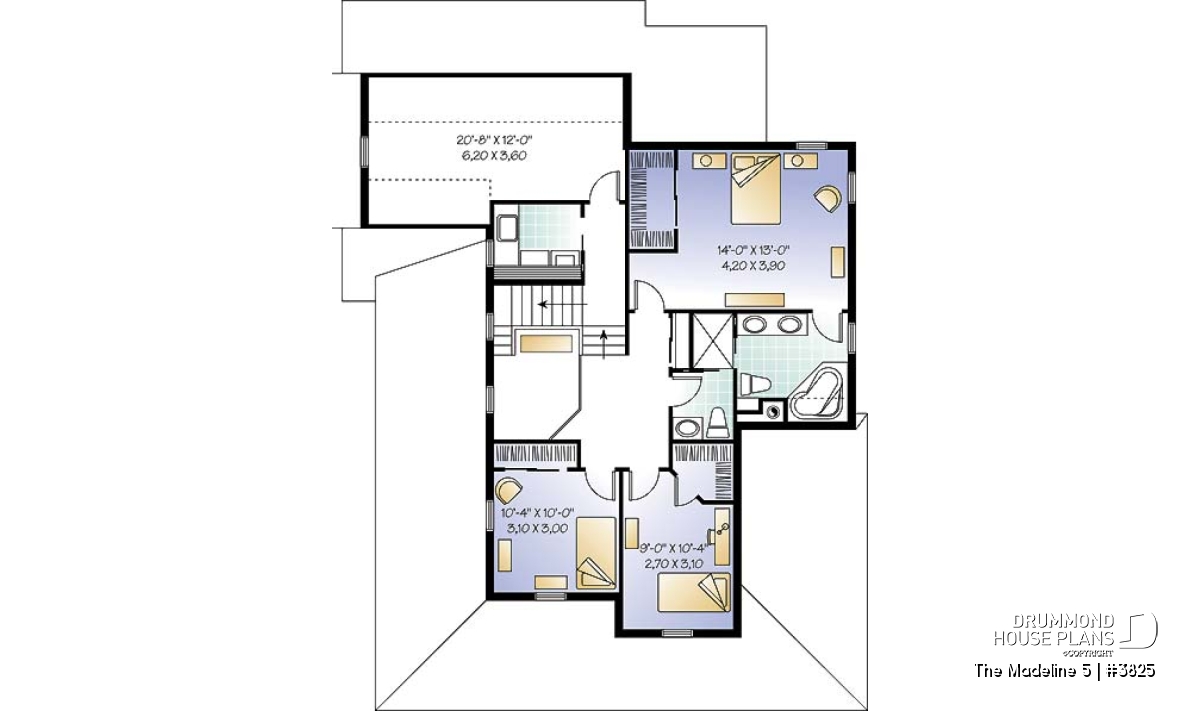

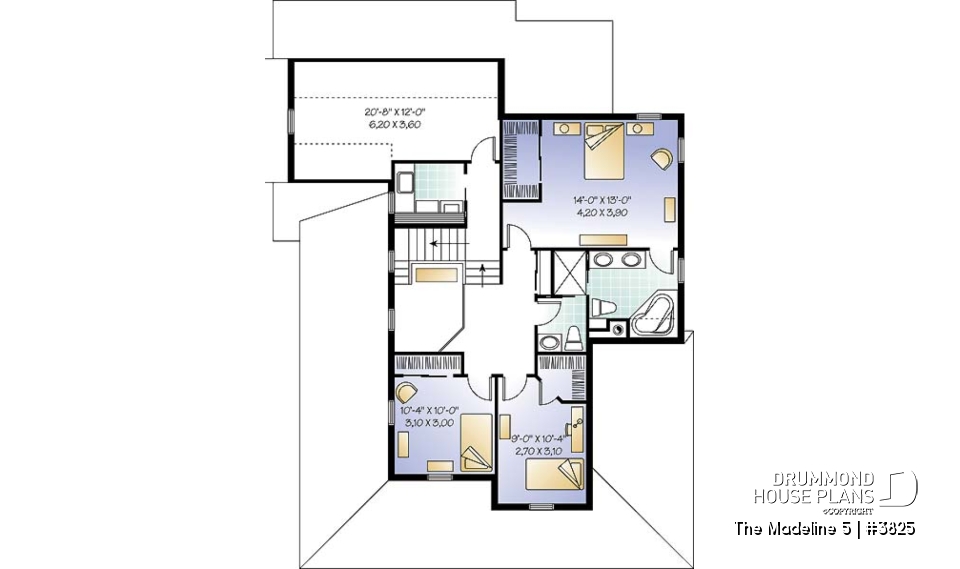

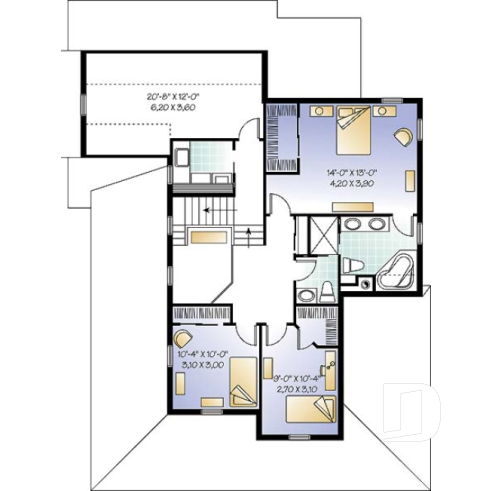

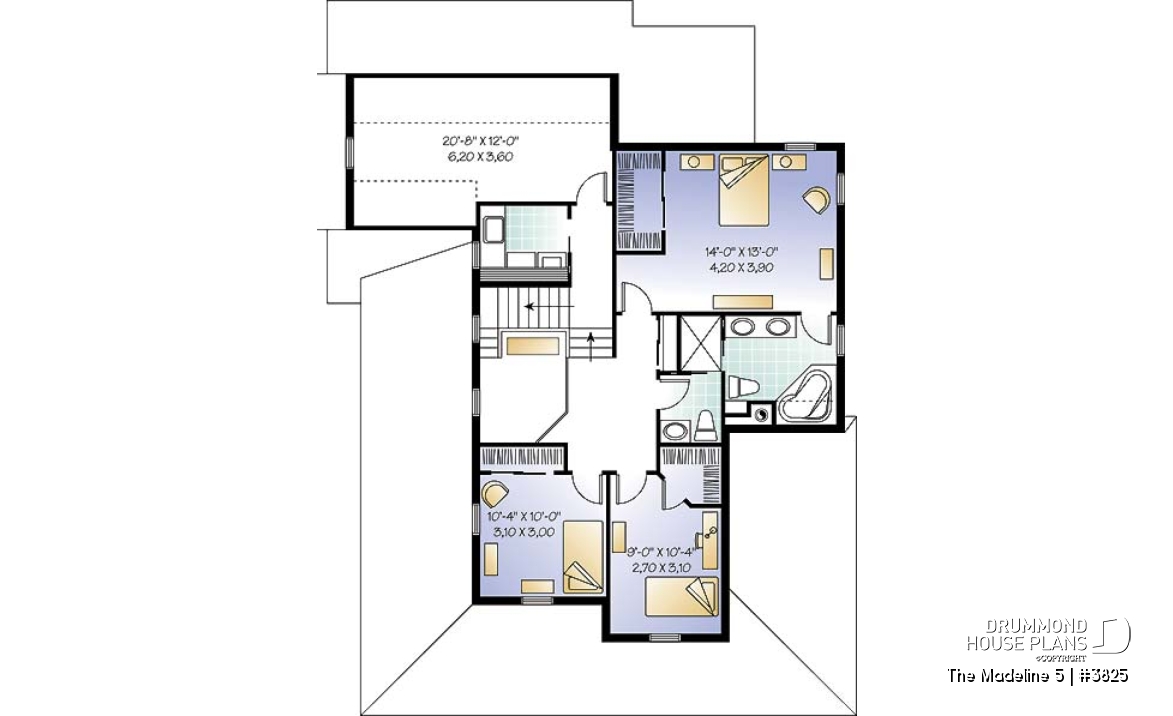

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 5'0" x 10'4" | ~ 9'0" |
| Bedroom | 10'4" x 10'0" | ~ 8'0" |
| Bedroom | 9'0" x 10'4" | ~ 8'0" |
| Living bonus room | 20'8" x 12'0" | ~ 8'0" |
| Linen | 1'4" x 4'6" | ~ 8'0" |
| Laundry room | 7'0" x 6'2" | ~ 10'6" |
| Master suite | 14'0" x 13'0" | ~ 8'0" |
General specifications
| Total living area | 2008 sq.ft. |
| 1st level | 1080 sq.ft. |
| 2nd level | 928 sq.ft. |
| Width | 40'8" |
| Depth | 51'0" |
| Ridge height from top of foundation | 32'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Perfect Porch Promenade for this 3 to 4 bedroom affordable house plan with large bonus room

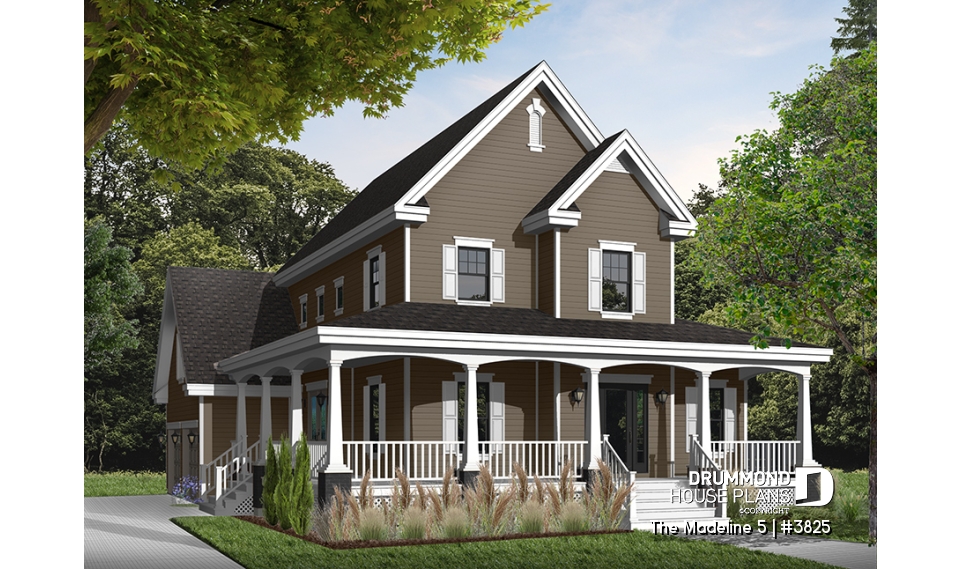

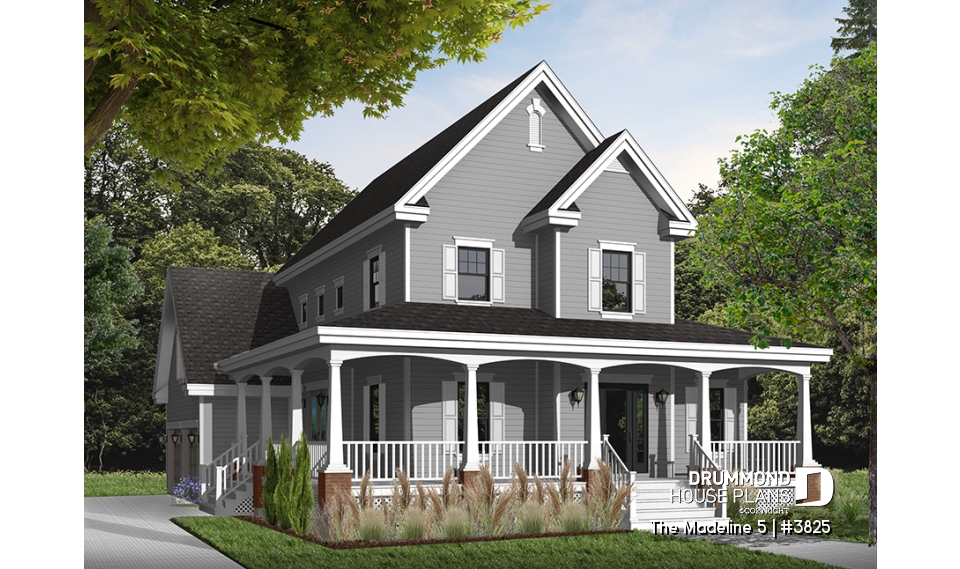

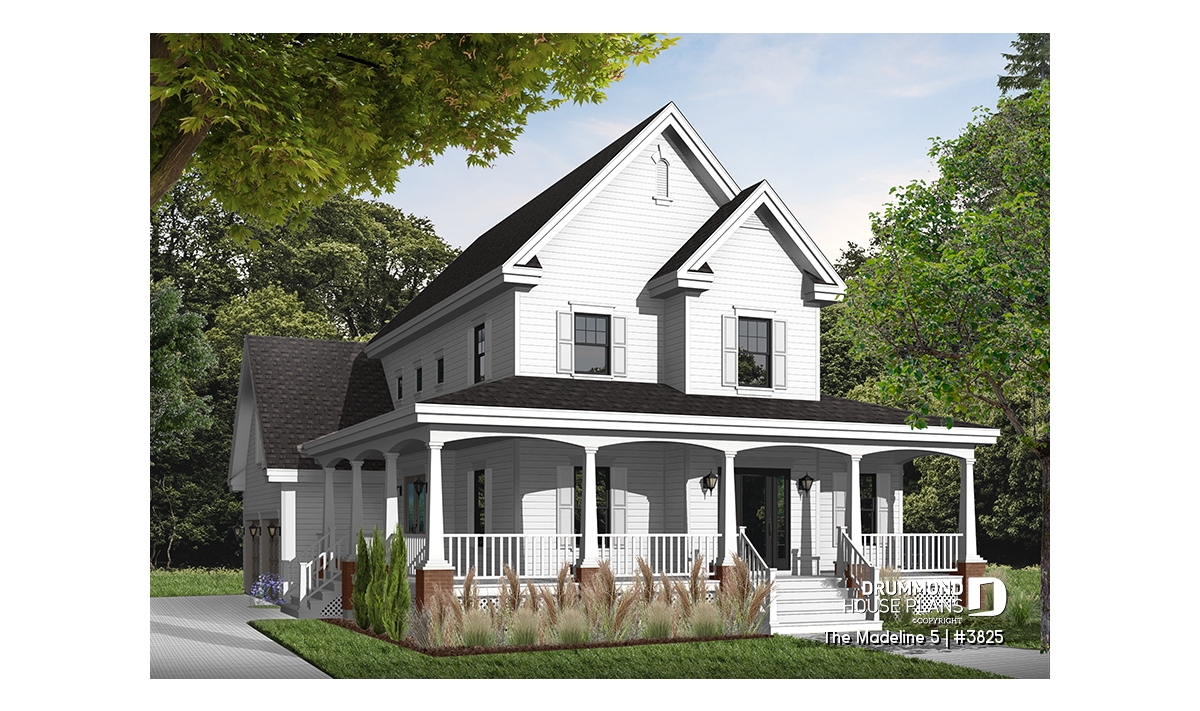

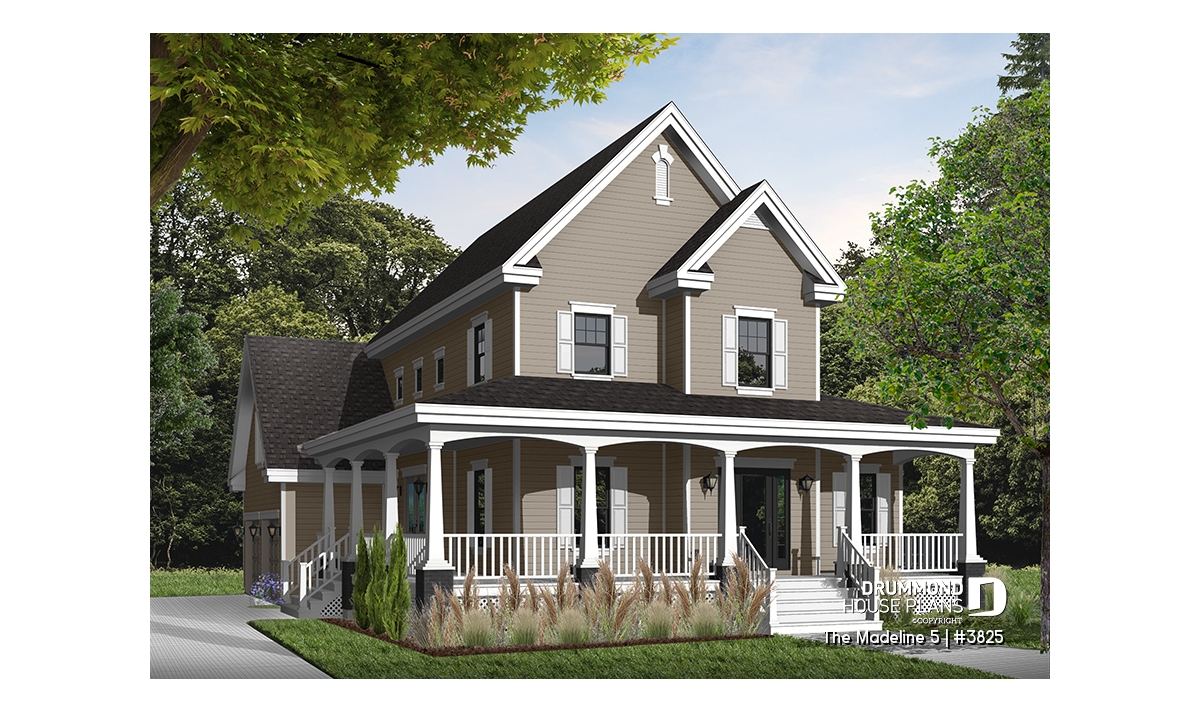

A perfect porch wraps two sides of this country-style home. Ideally sited with the porch facing forward, receive guests at the side entry in the dramatically vaulted foyer with enchanting wrapped staircase. A generous living room shares a two-sided fireplace with the dining area. An adjoining den/study provides some private space or step out front to enjoy that perfect porch. Beyond the dining room, the kitchen enjoys backyard views and easy access to a grilling deck.
Upstairs discover a very comfortable master suite with walk-in closet and private bathroom. Two additional bedrooms share a hall bathroom and all the bedrooms have easy access to a laundry. A bonus room over the garage is available to finish as desired.
The side-loading garage of this home is discreetly located at the back of the house making this a perfect design for a wide lot with a sweeping drive or a corner lot.
No matter where you build this house, it is sure to be admired.
Distinctive elements
2-story (side entrance).
Walk in closet in one of the secondary bedrooms.
Abundant windowing.
See-thru fireplace.
Plan feature(s)
Fireplace, Mezzanine, Deck, Office / Study / Den, Side entry garage, Living bonus space, Second floor laundry room, Master suite upstairs, Lunch counter, Narrow lot, Ceiling over 8', Warparound, Sloped ceiling, 2-Story foyer
Plan architectural style(s)
. Country, . Farmhouse, . Traditional, . American, . Colonial
