House plan Fabien (2823)
3 bedroom economical 2-story house plan with garage, narrow lot, large kitchen, laundry on main floor
View the size of the rooms and height of the ceilings

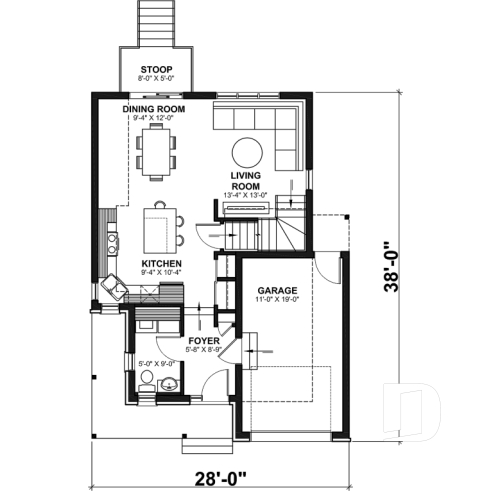

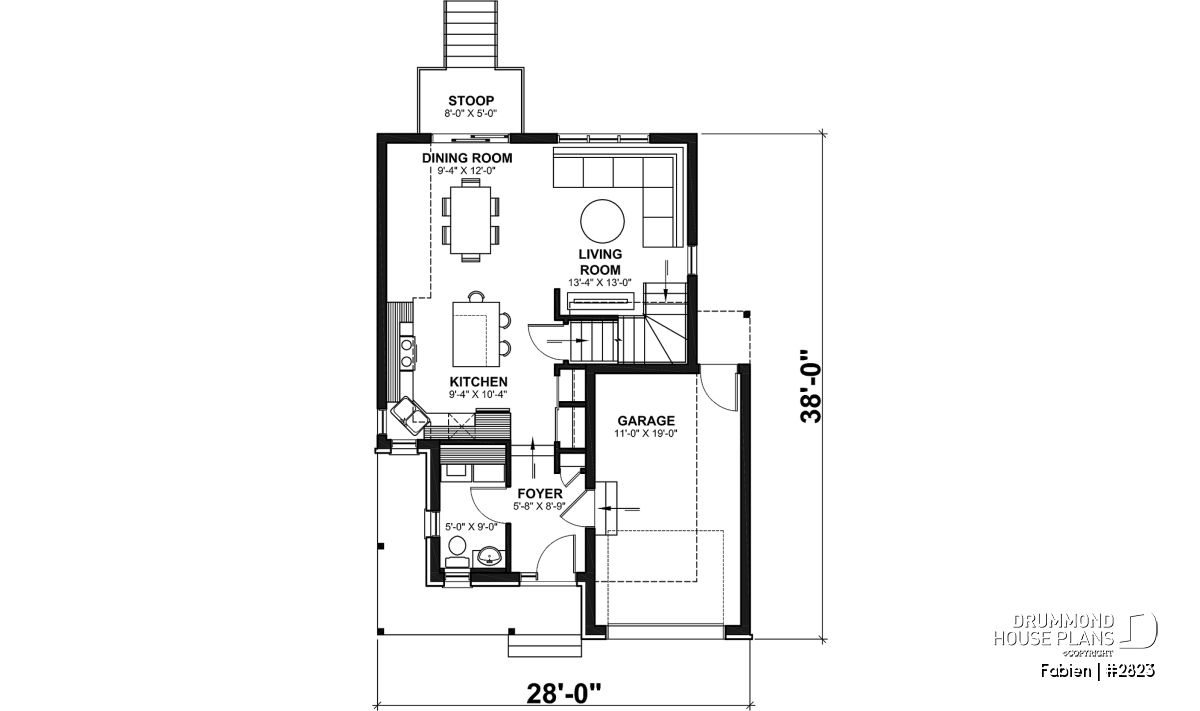

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'4" x 10'4" | ~ 8'0" |
| Dining room | 10'0" x 12'0" | ~ 8'0" |
| Living room | 12'8" x 12'0" | ~ 8'0" |
| Foyer | 5'8" x 7'6" | ~ 9'0" |
| Utility room | 5'0" x 5'4" | ~ 8'0" |
| Garage | 11'0" x 19'0" | ~ 10'4" |
| Porch | 15'4" x 4'0" | N/A |
| Porch | 3'8" x 10'0" | N/A |
| Terrace | 8'0" x 6'0" | N/A |
| Half bath or powder room | 5'0" x 4'0" | ~ 9'0" |

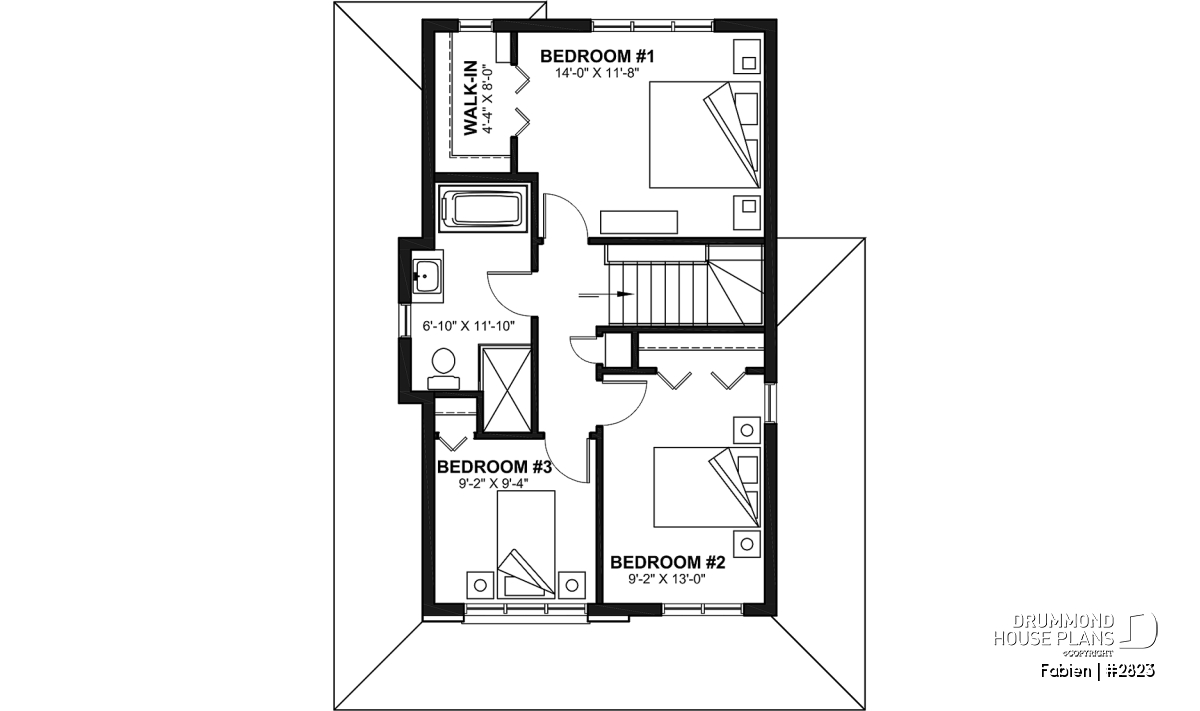

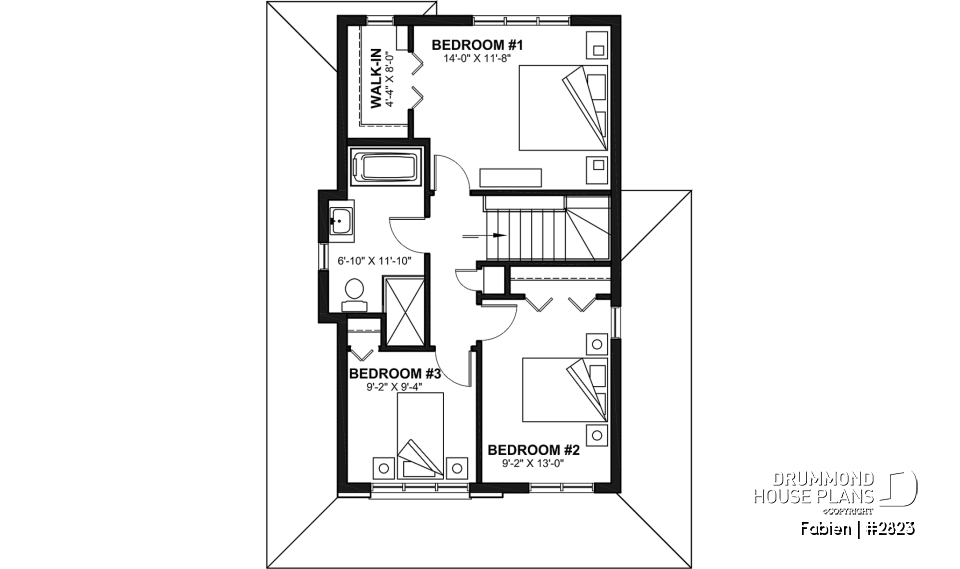

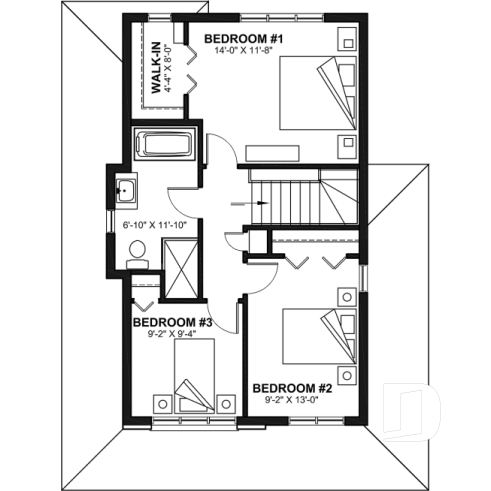

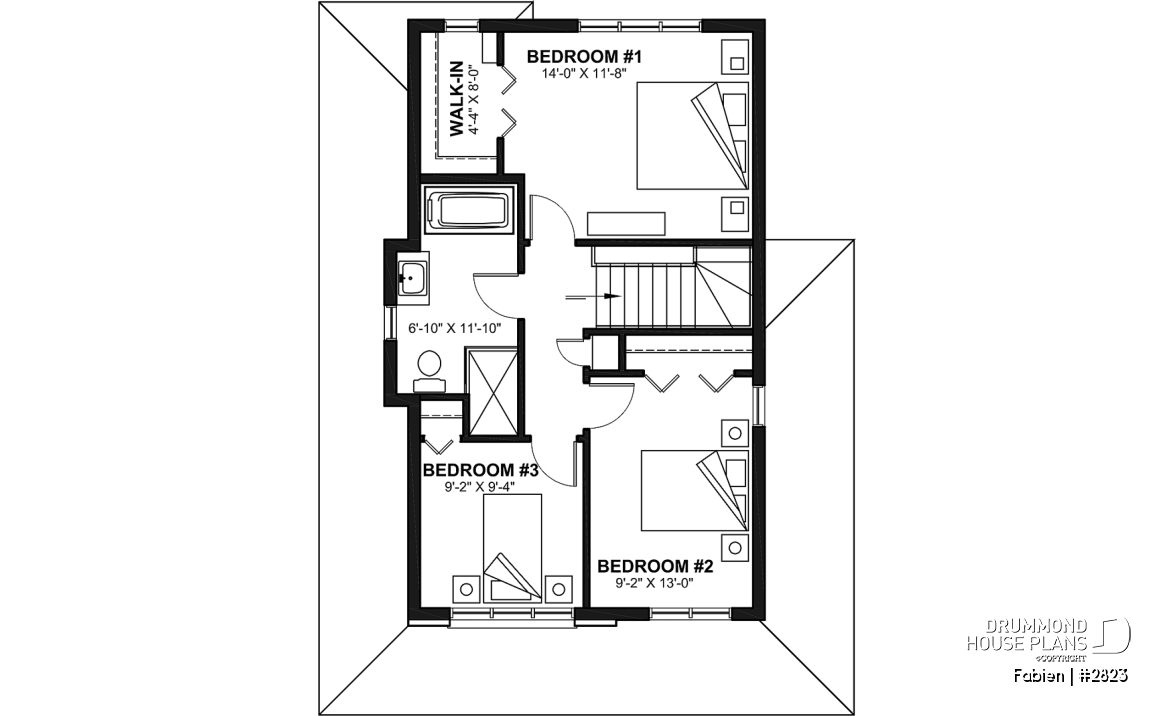

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'0" x 12'0" | ~ 8'0" |
| Bedroom | 14'0" x 11'8" | ~ 8'0" |
| Bedroom | 9'2" x 13'0" | ~ 8'0" |
| Bedroom | 9'2" x 9'4" | ~ 8'0" |
| Linen | 1'6" x 2'0" | ~ 8'0" |

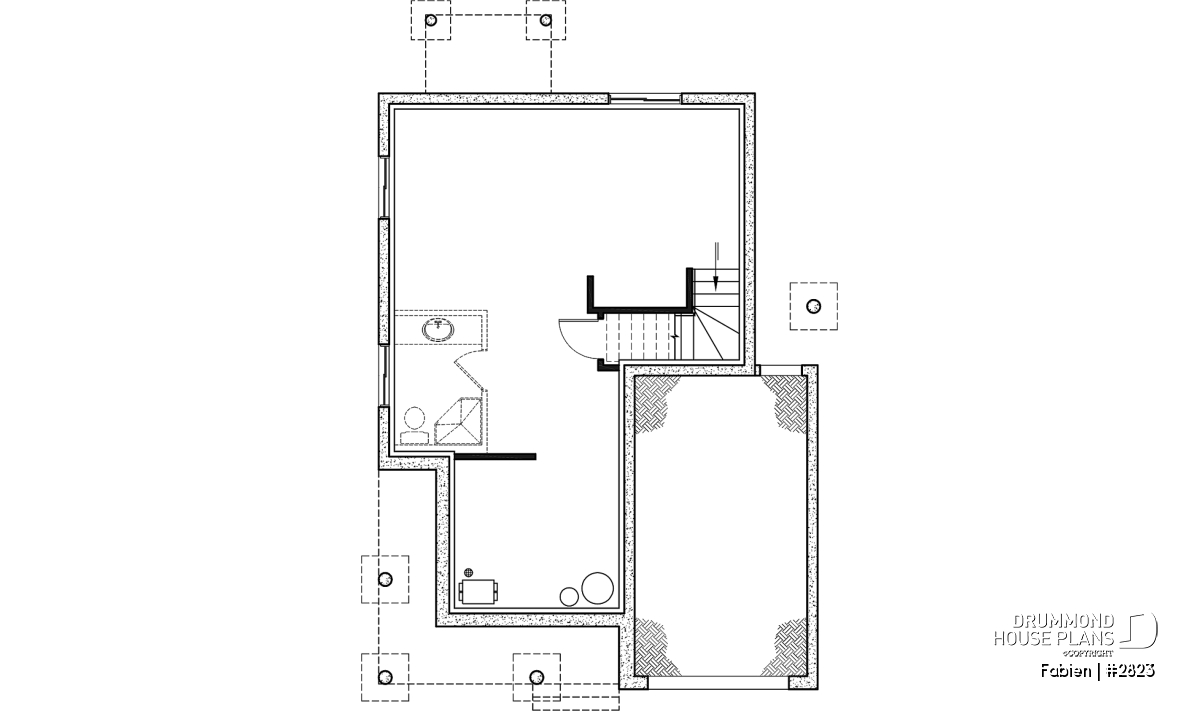

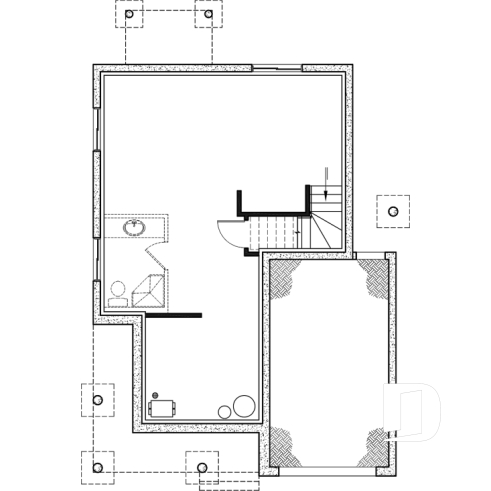

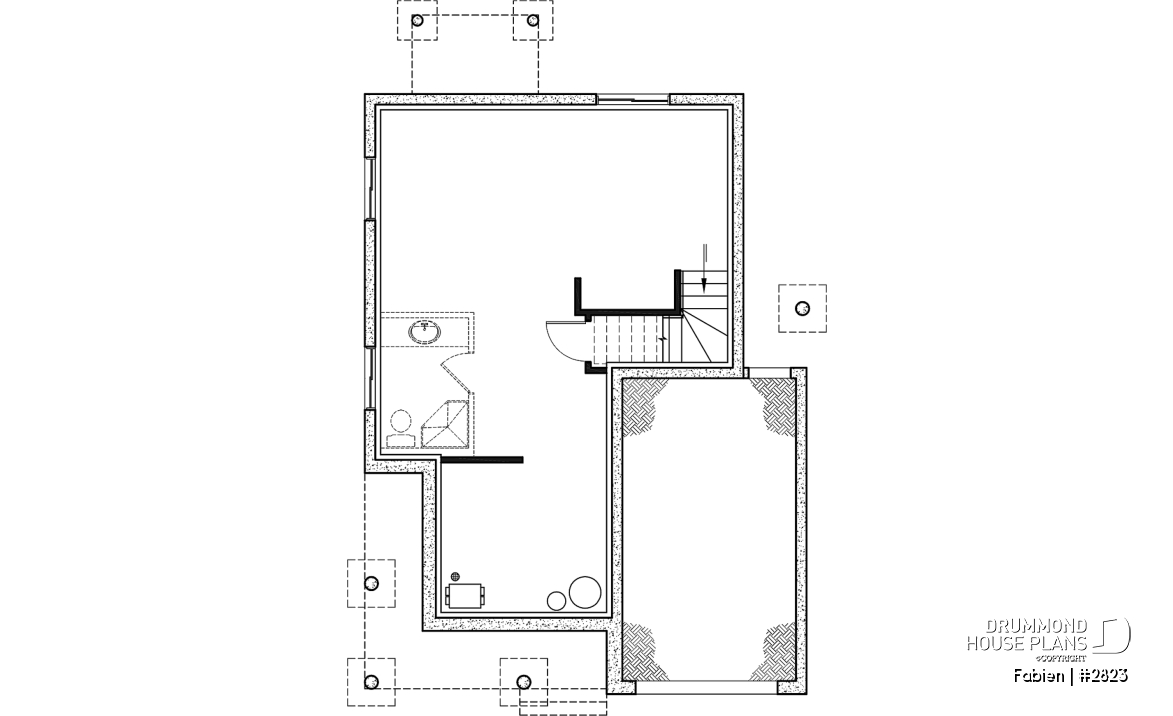

| Basement |
|---|
General specifications
| Total living area | 1346 sq.ft. |
| 1st level | 656 sq.ft. |
| 2nd level | 690 sq.ft. |
| Basement | 656 sq.ft. |
| Width | 28'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 29'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

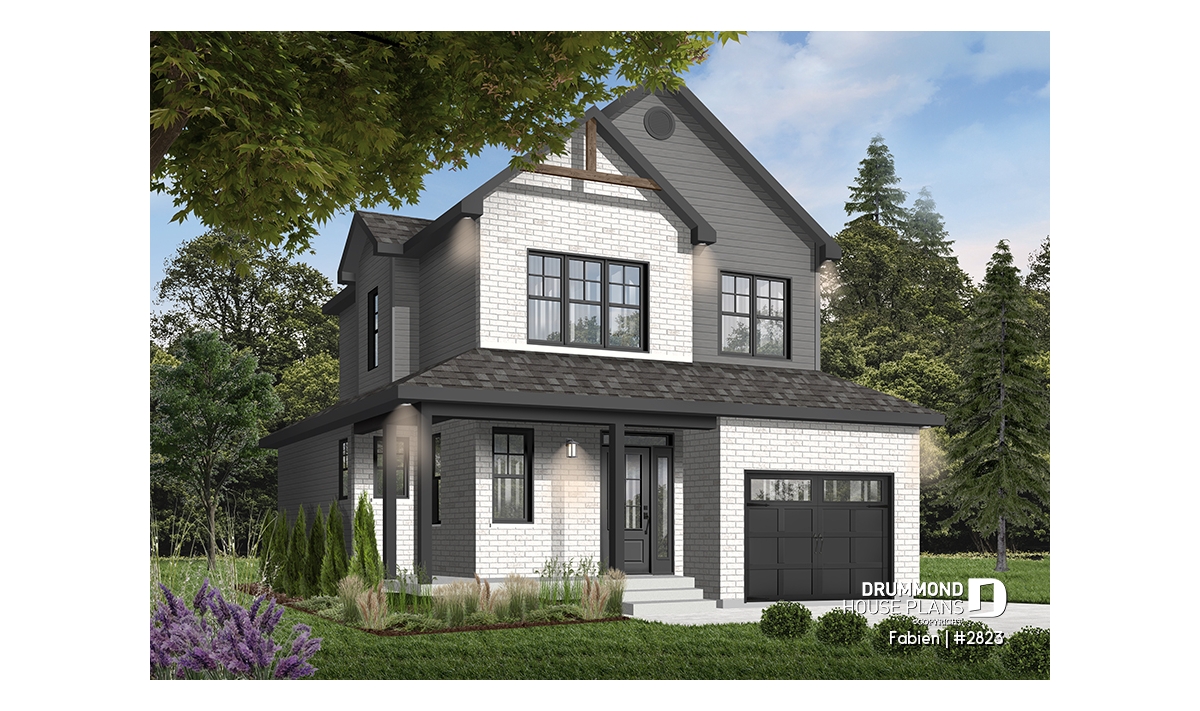

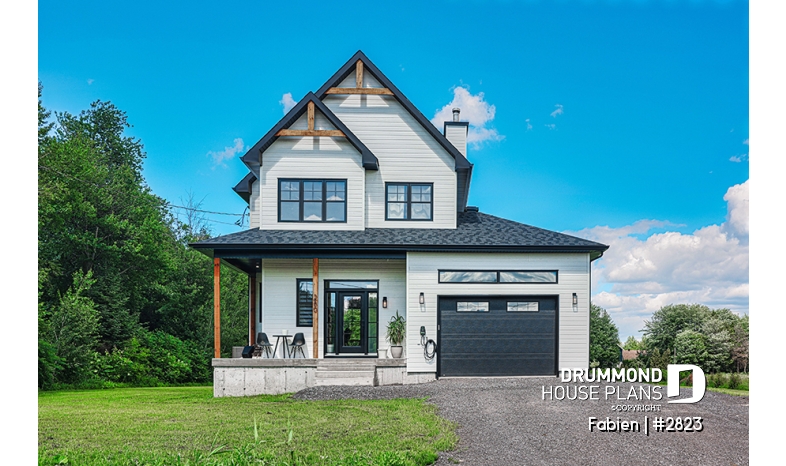

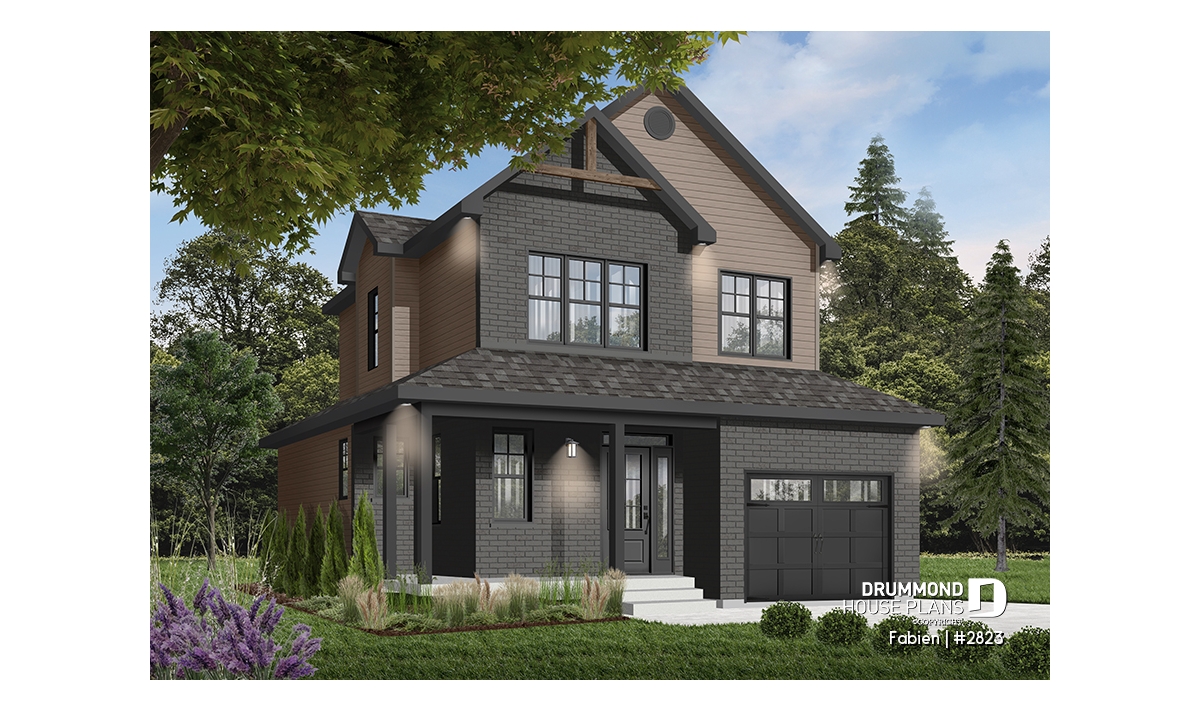

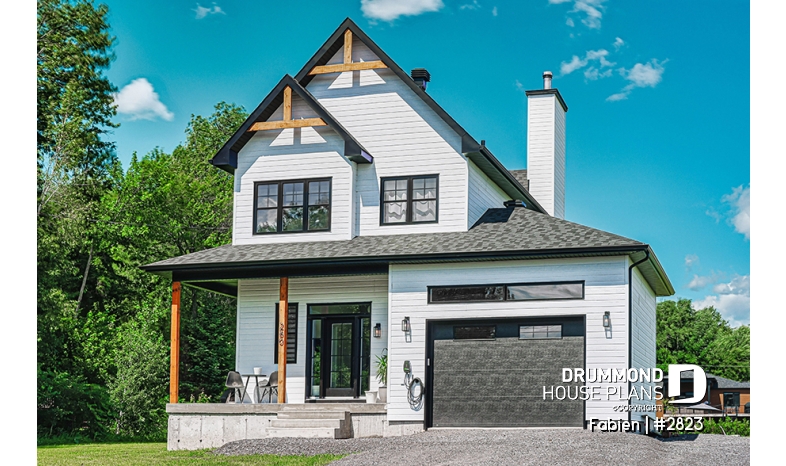

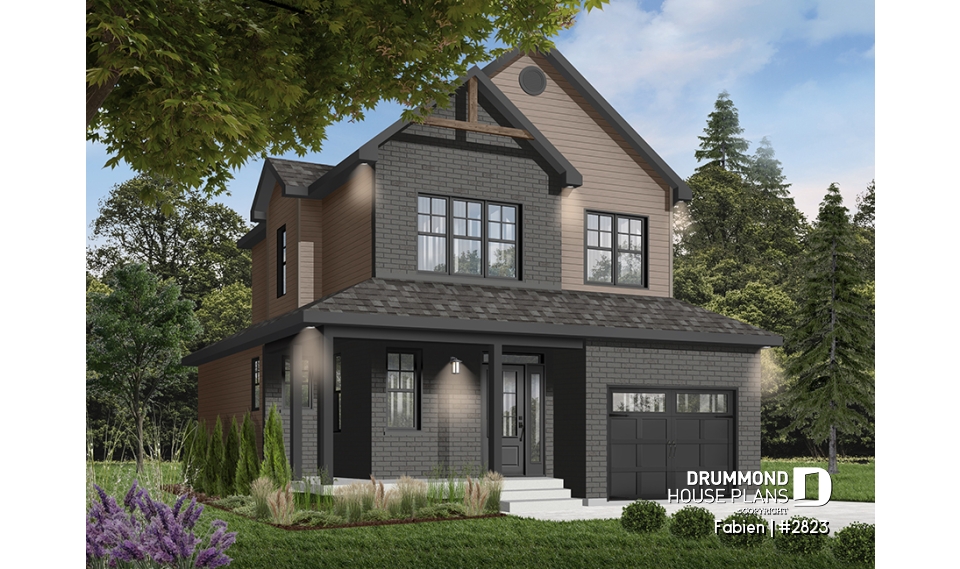

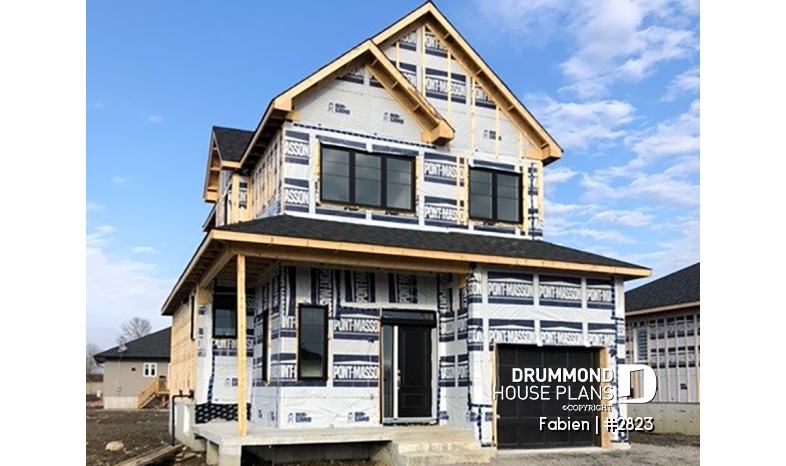

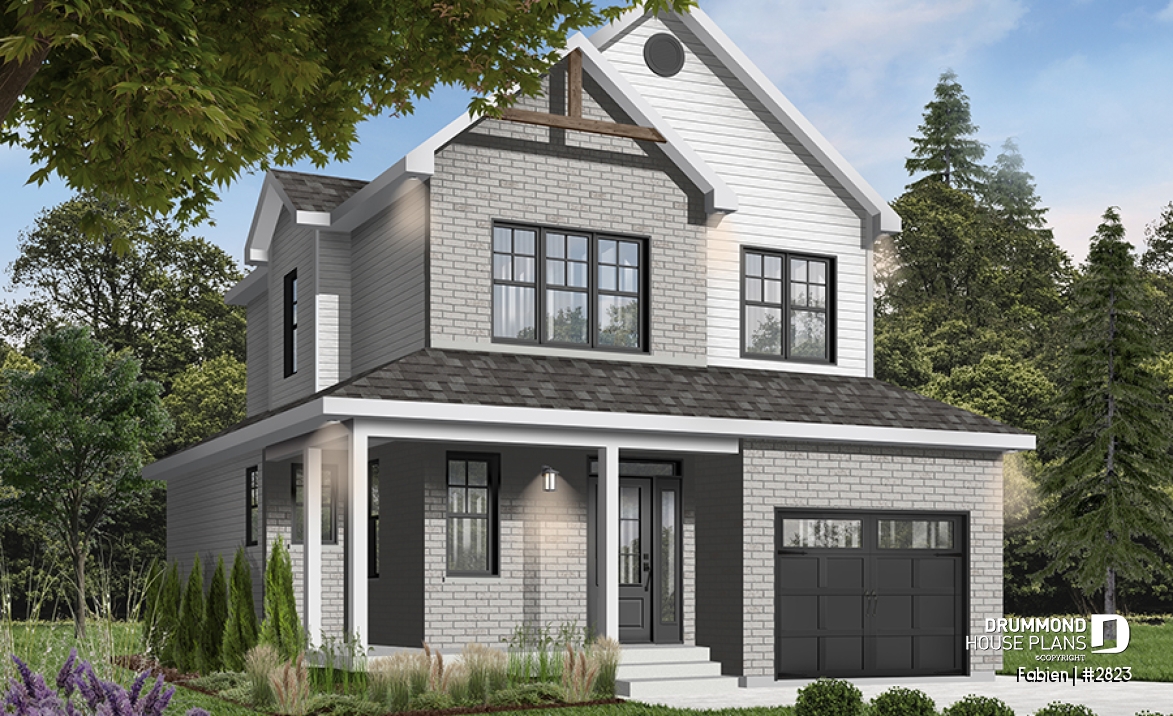

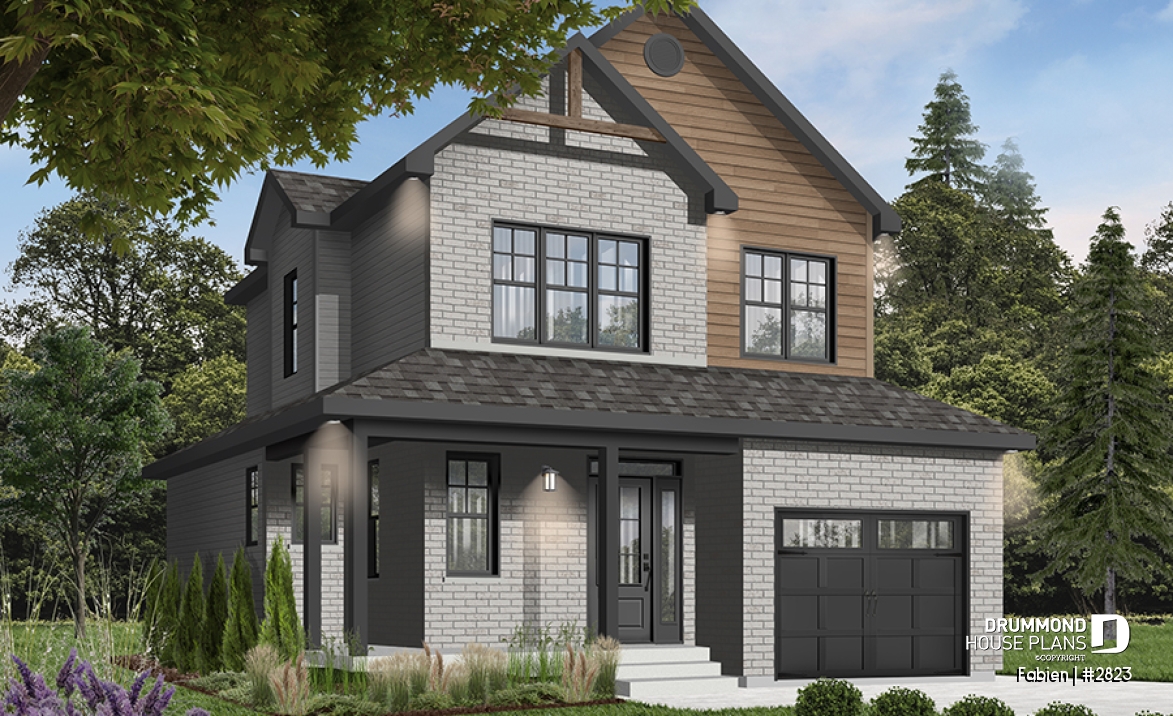

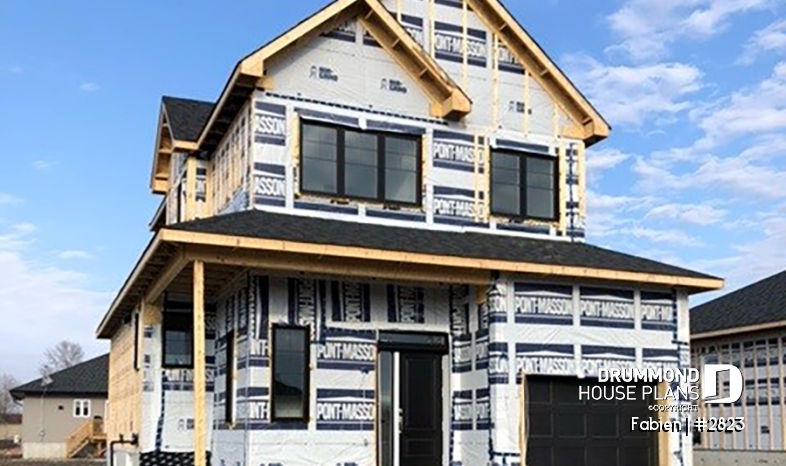

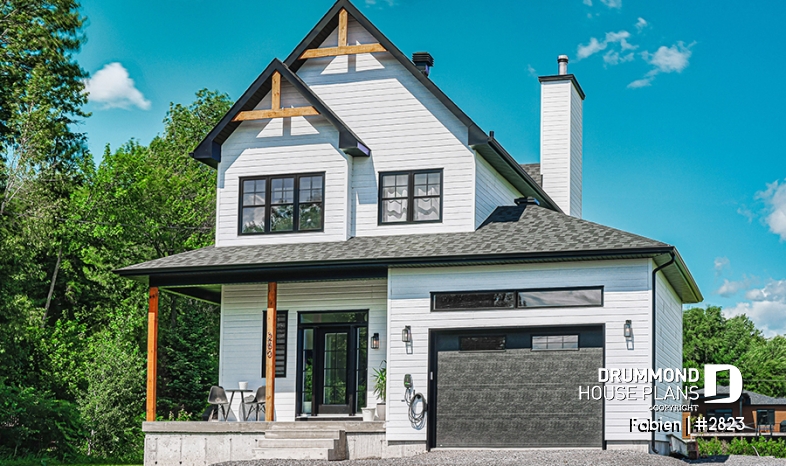

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

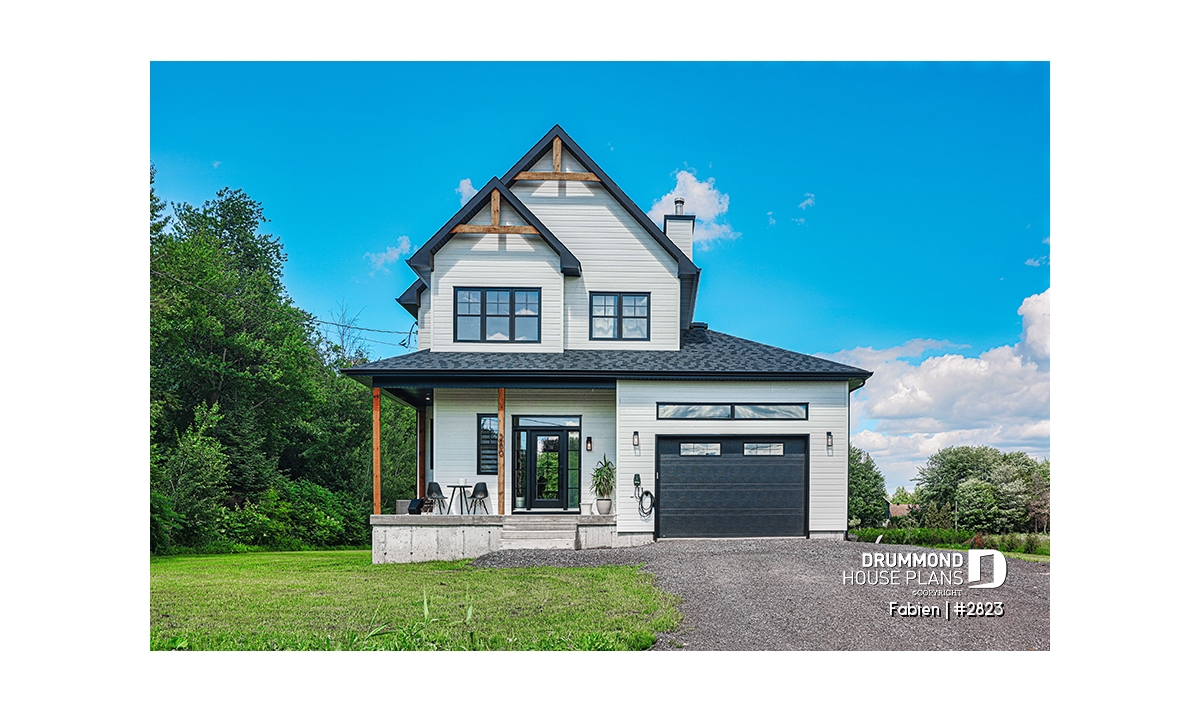

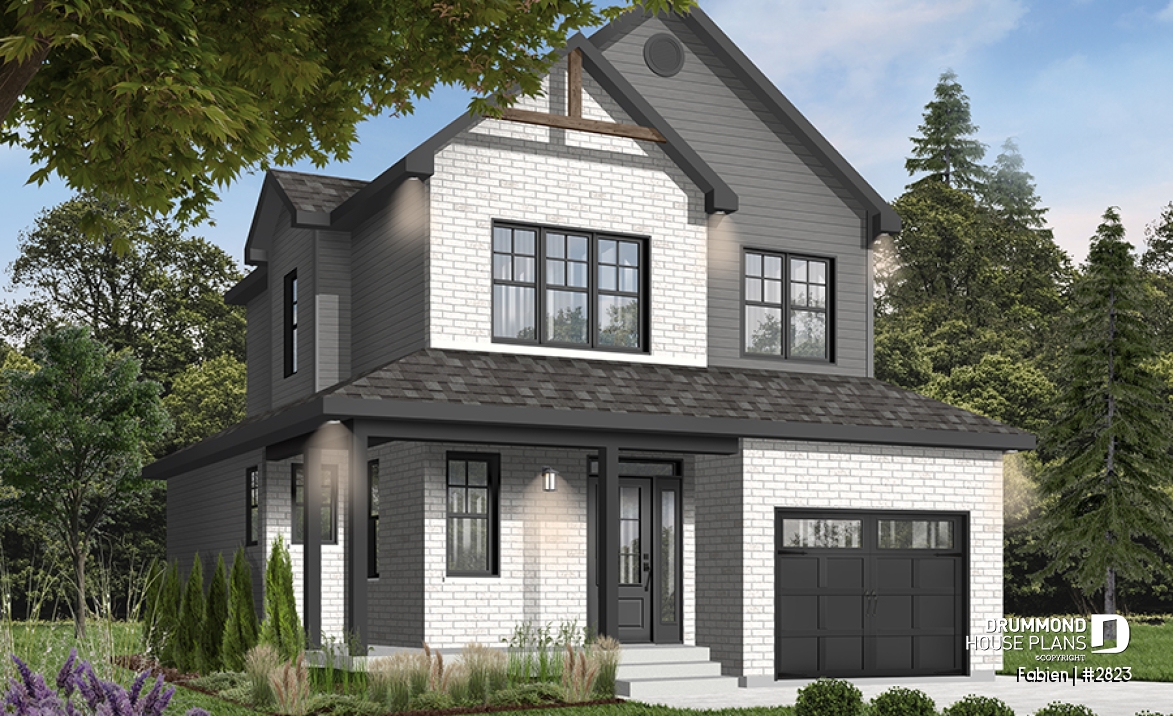

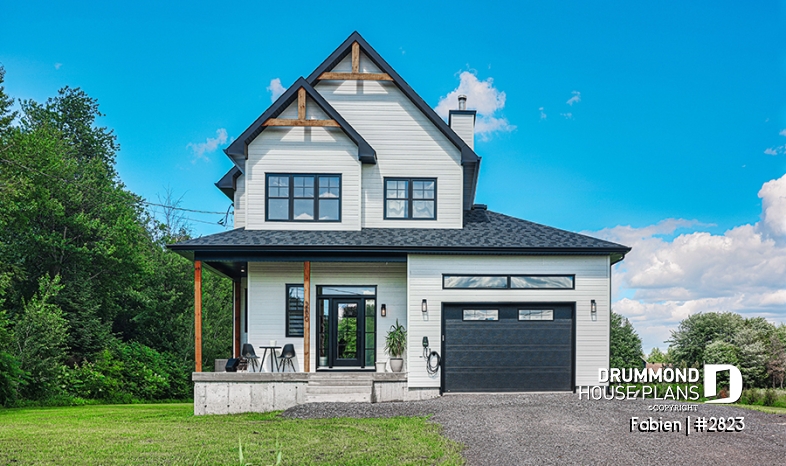

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

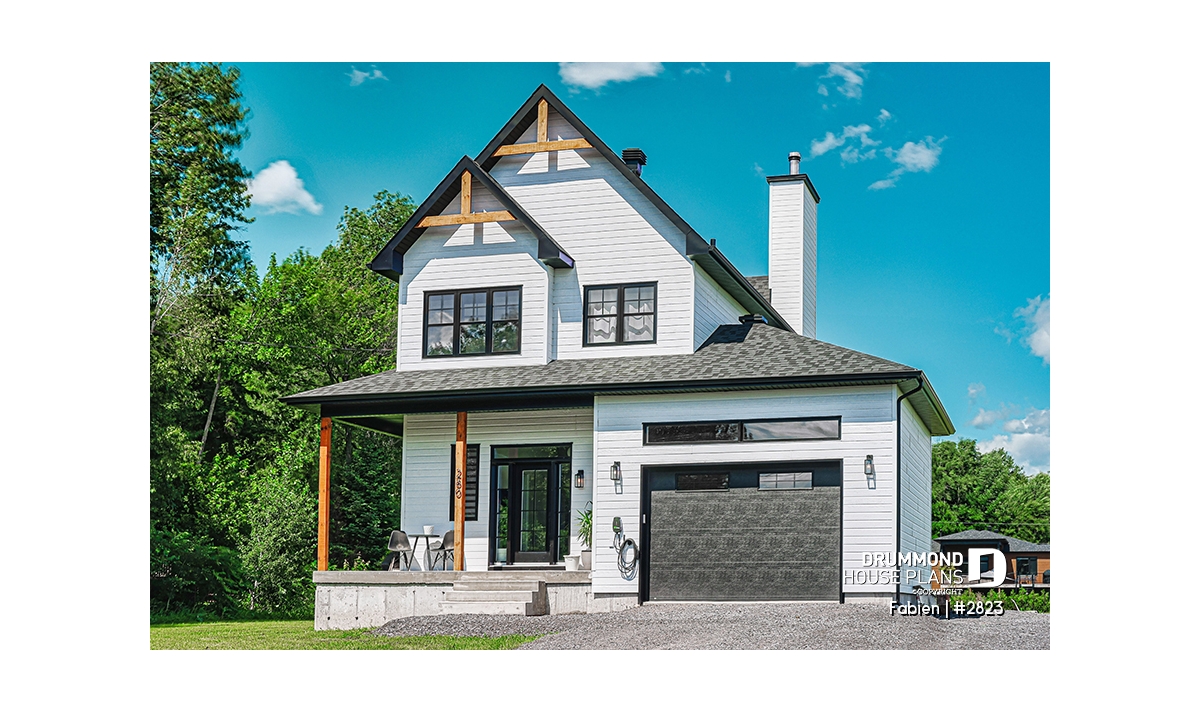

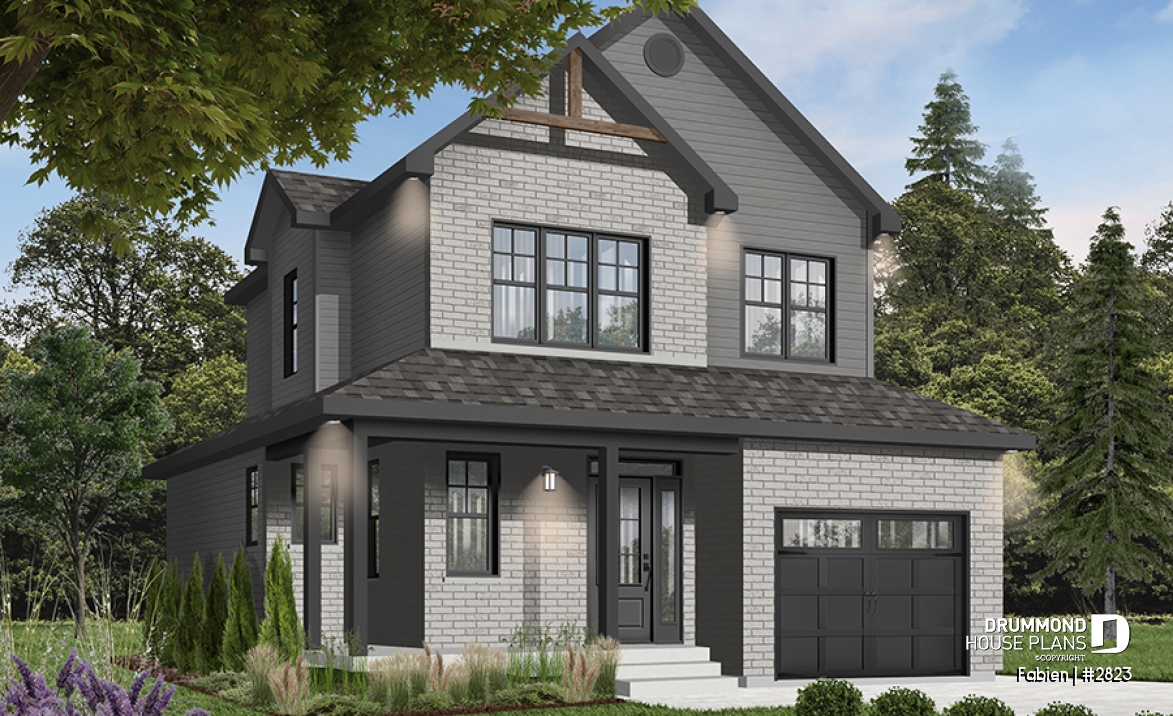

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

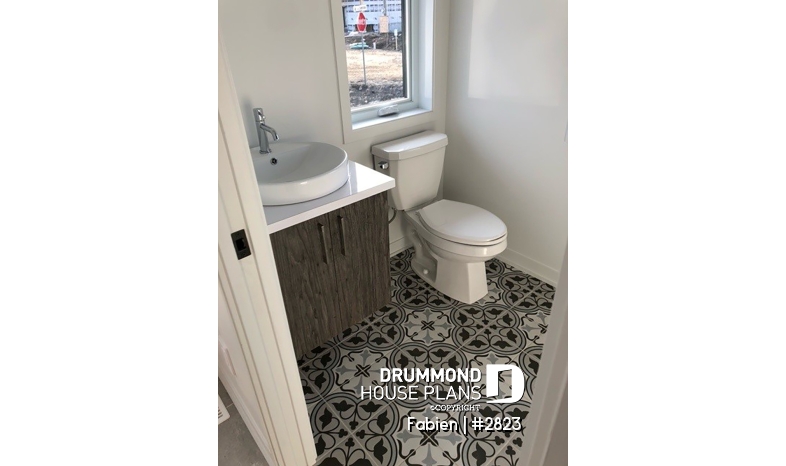

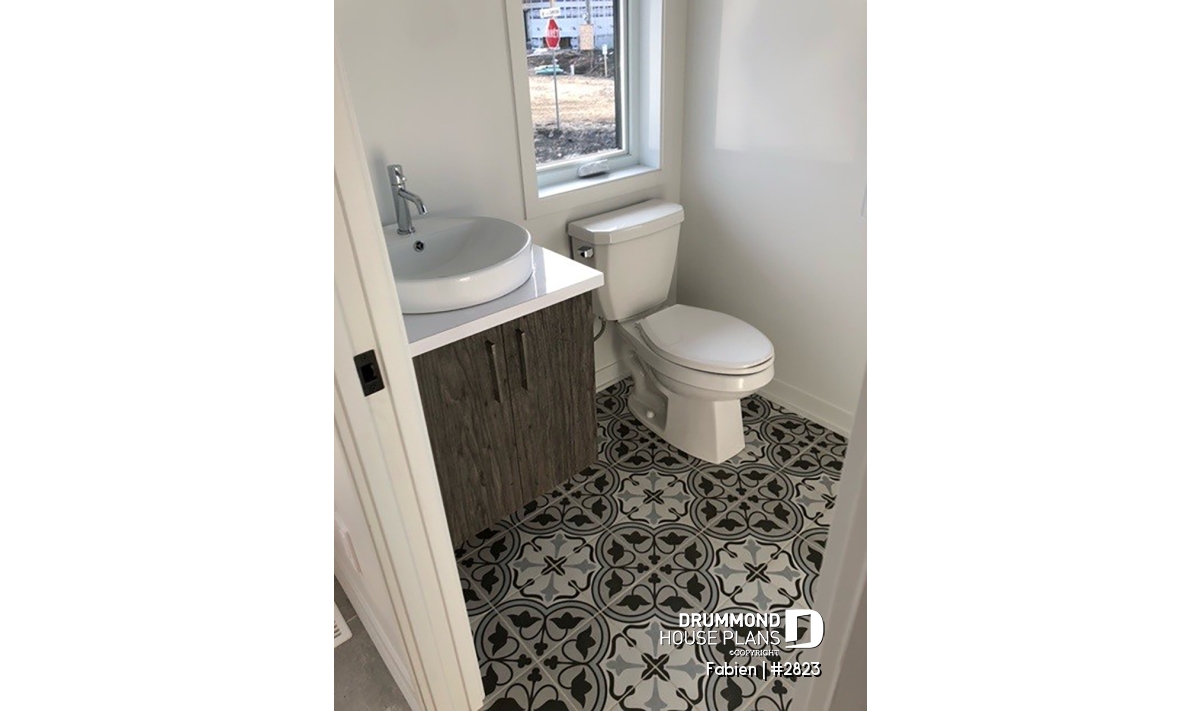

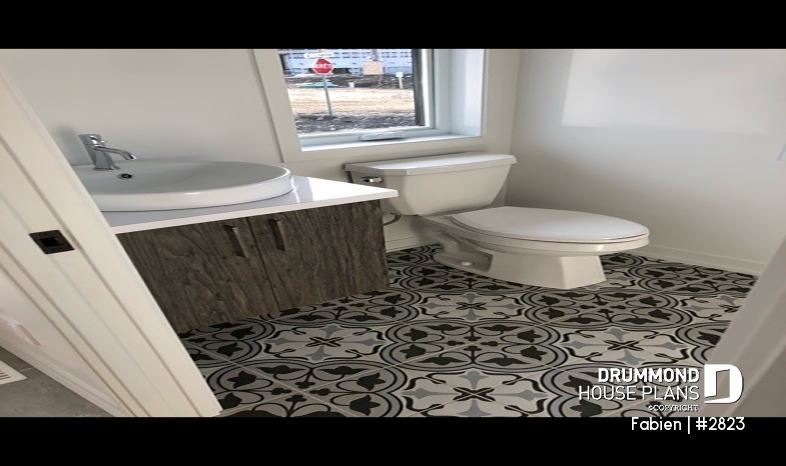

Half bath
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

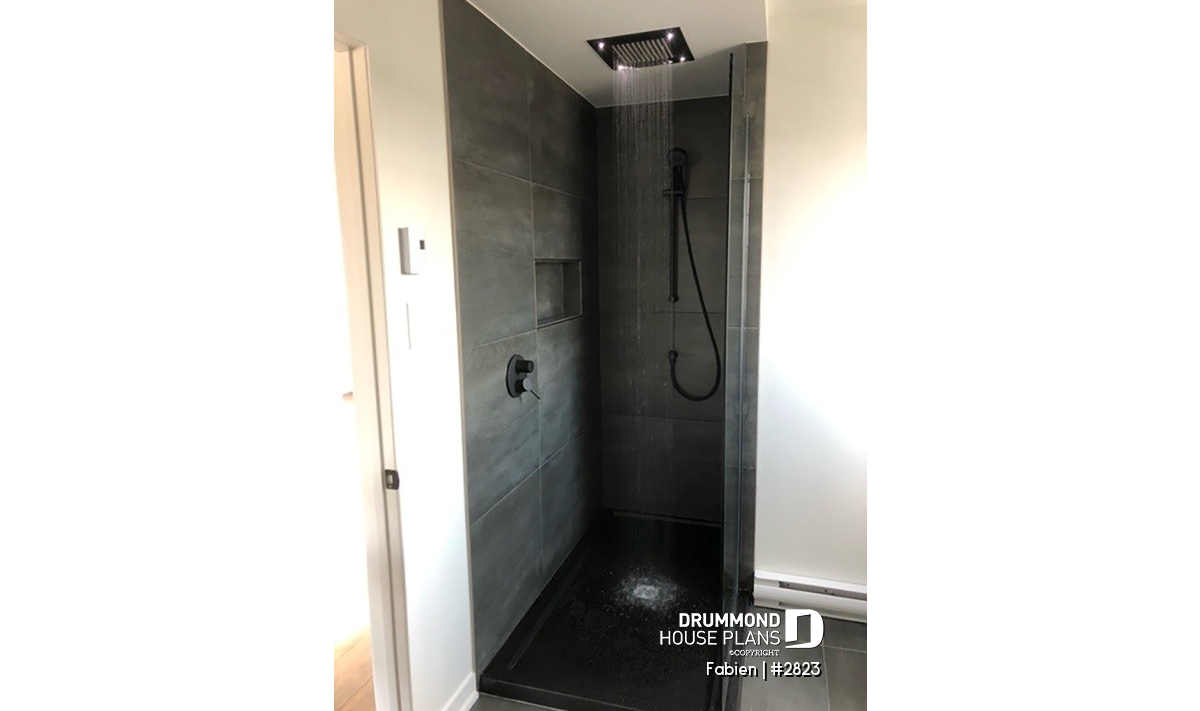

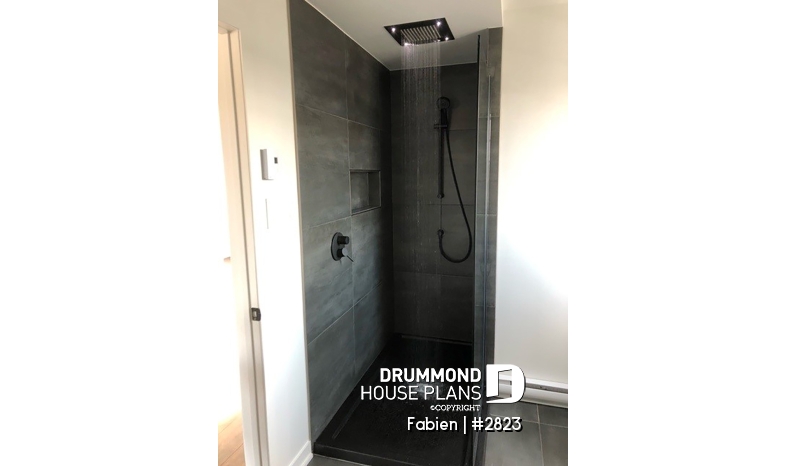

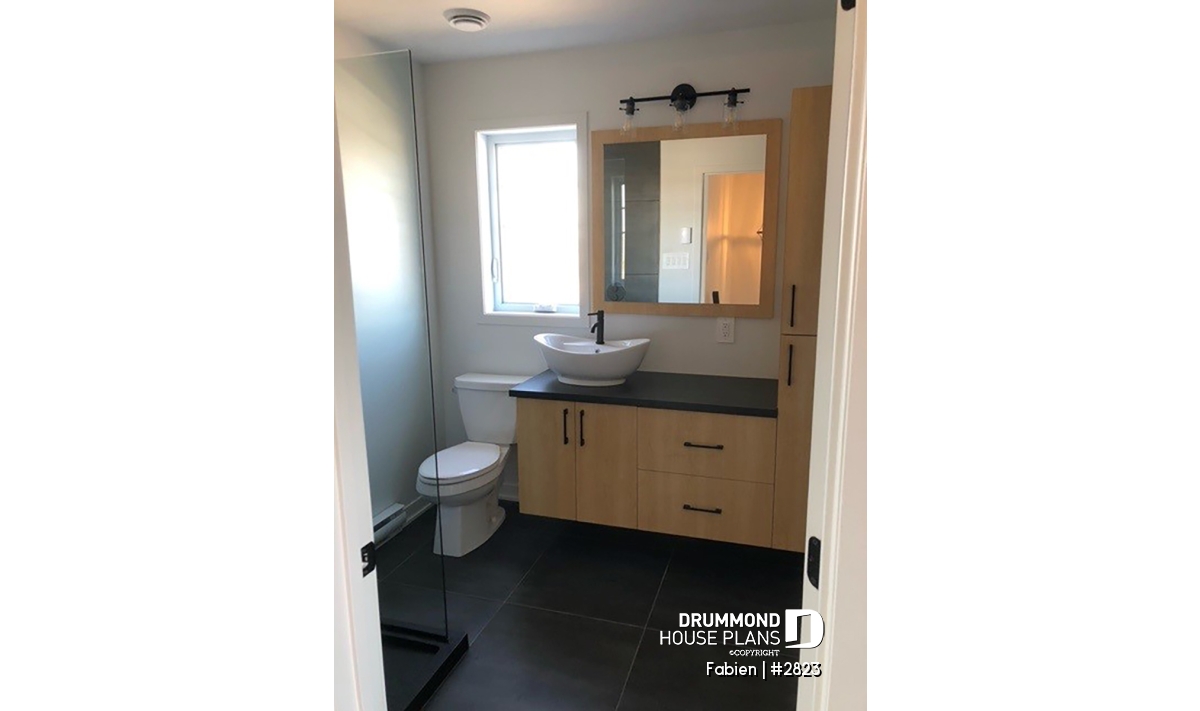

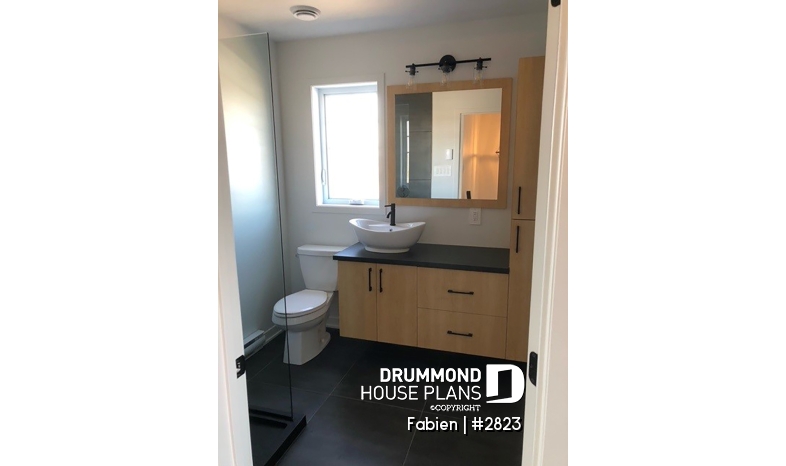

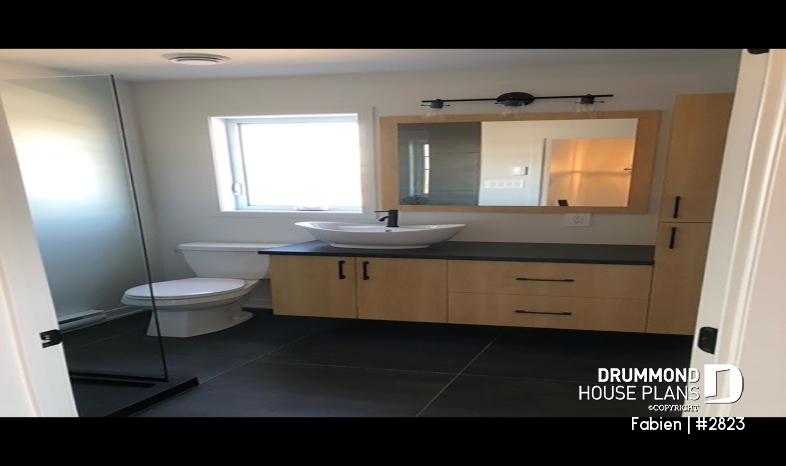

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

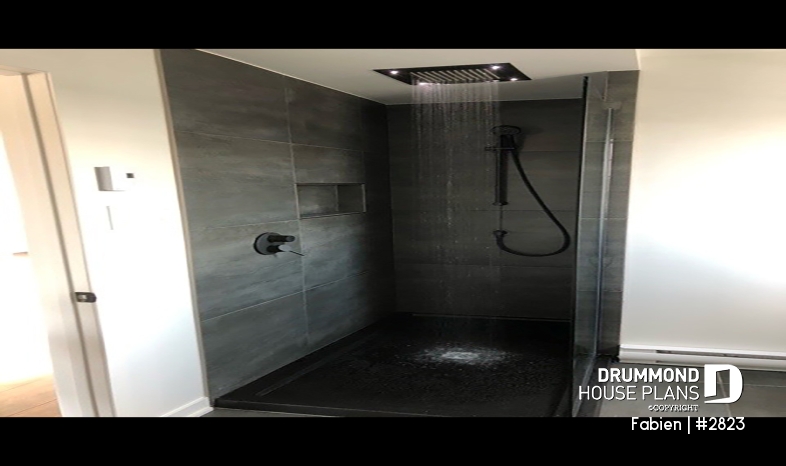

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

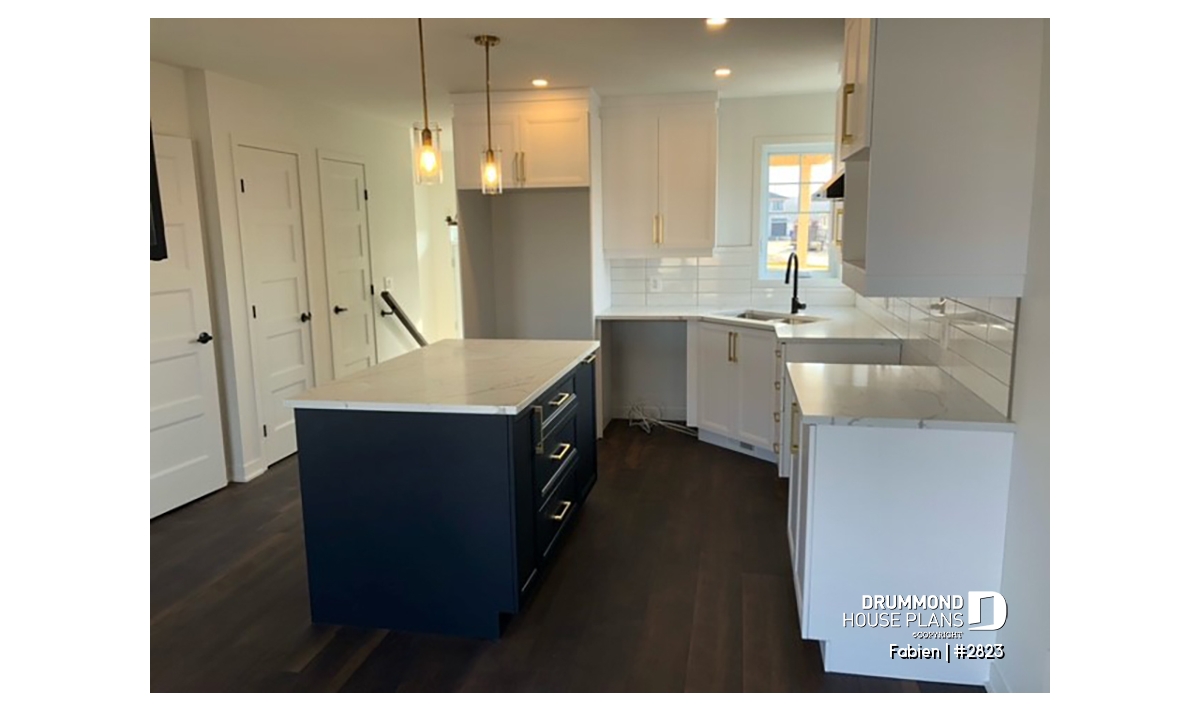

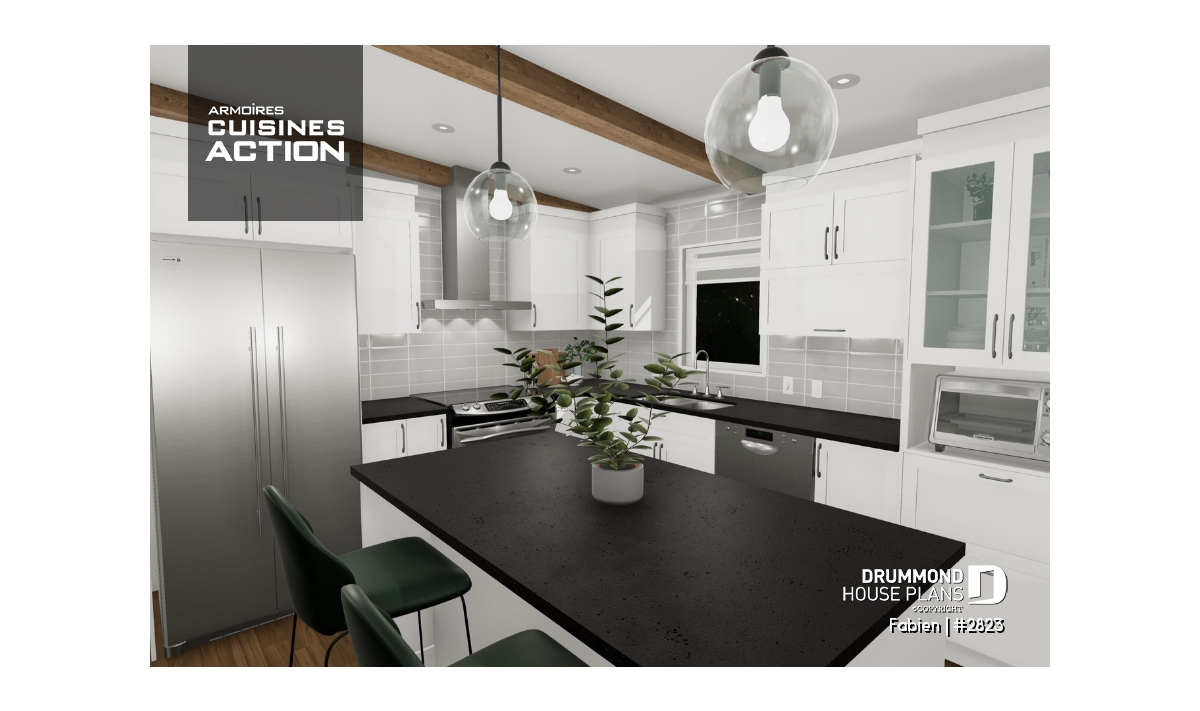

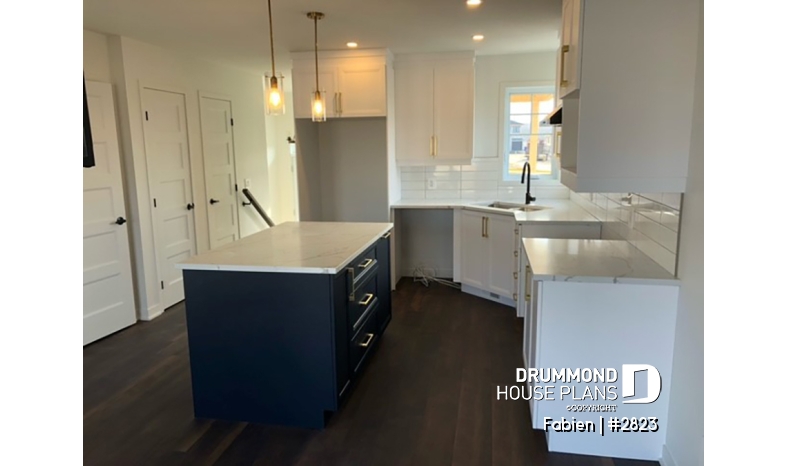

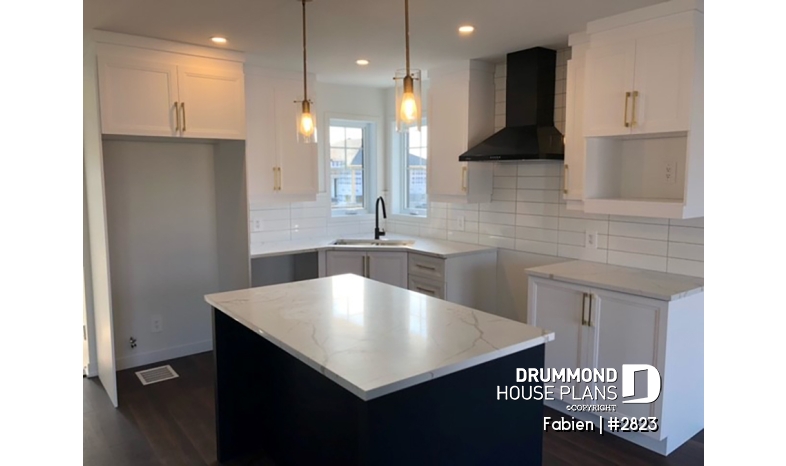

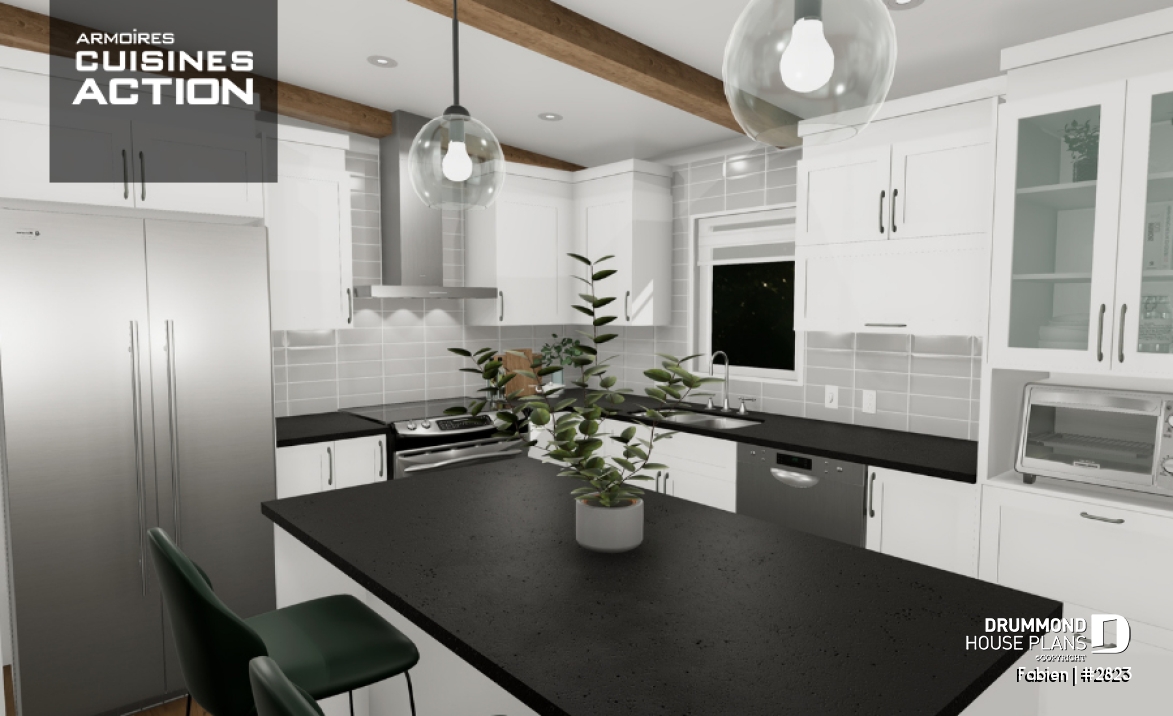

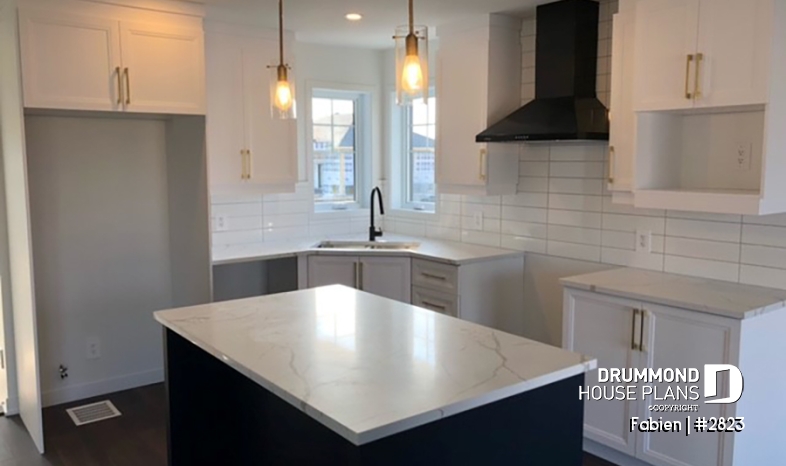

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

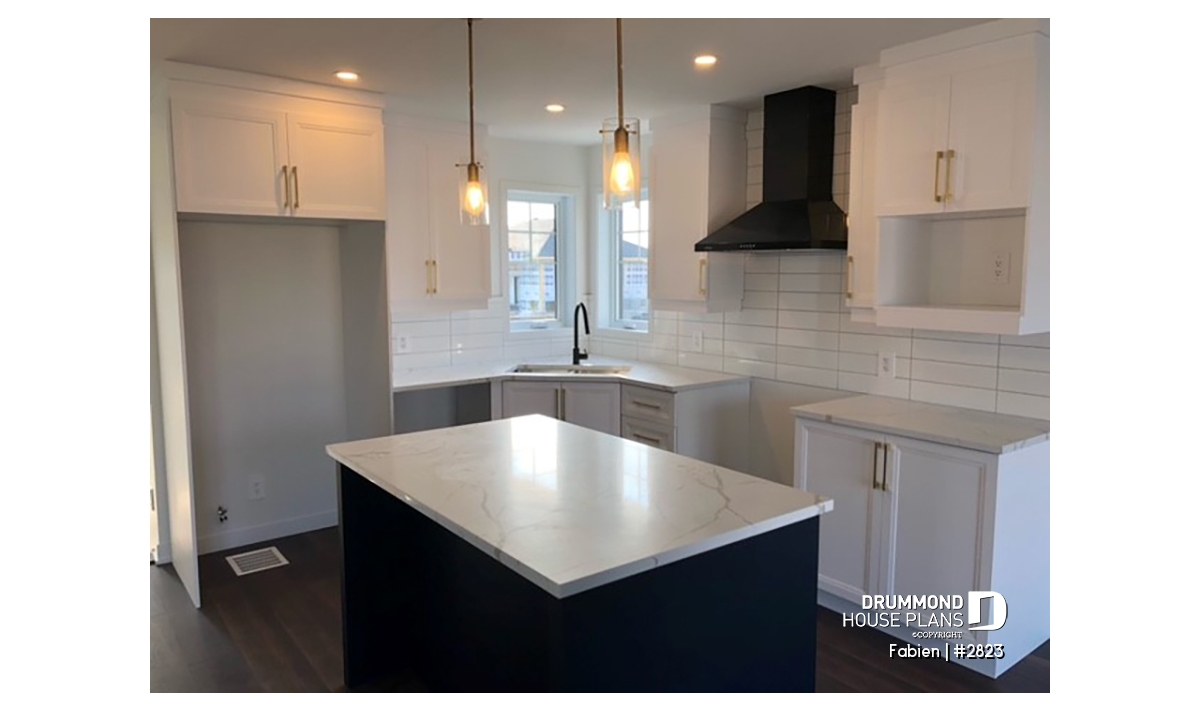

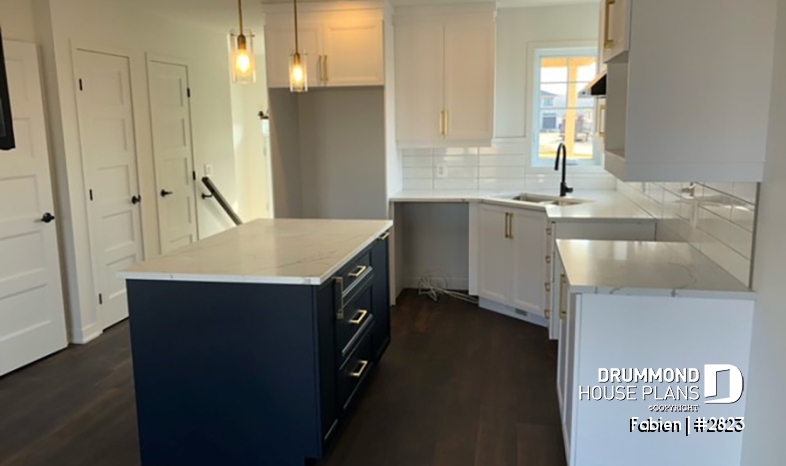

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

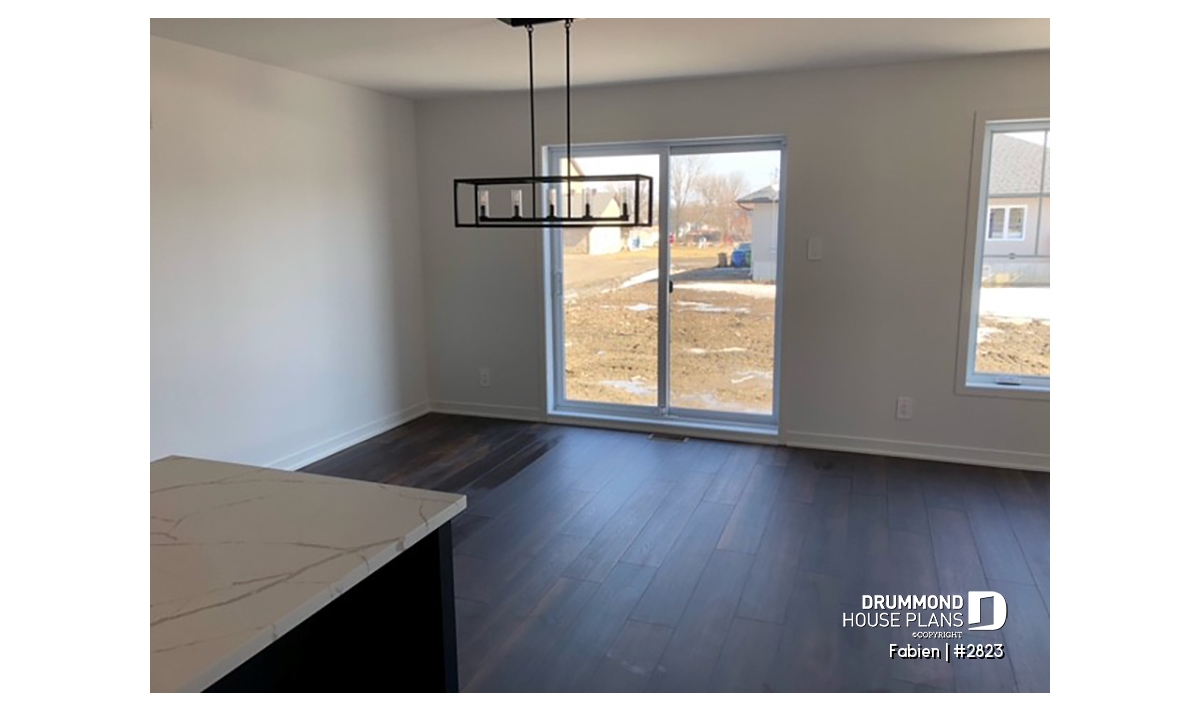

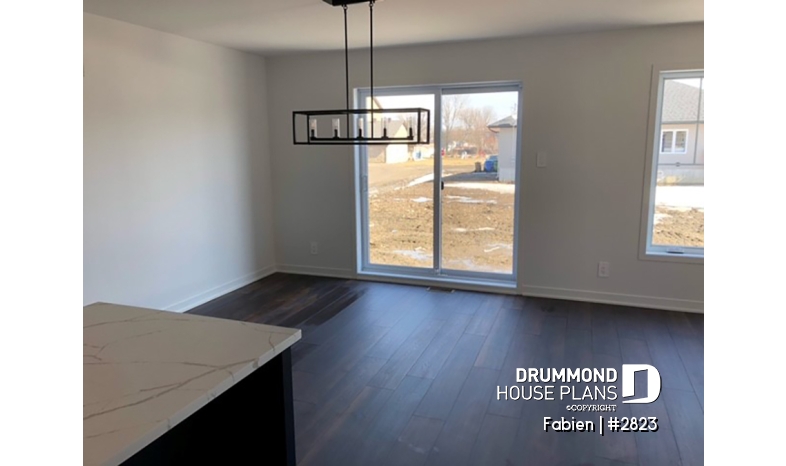

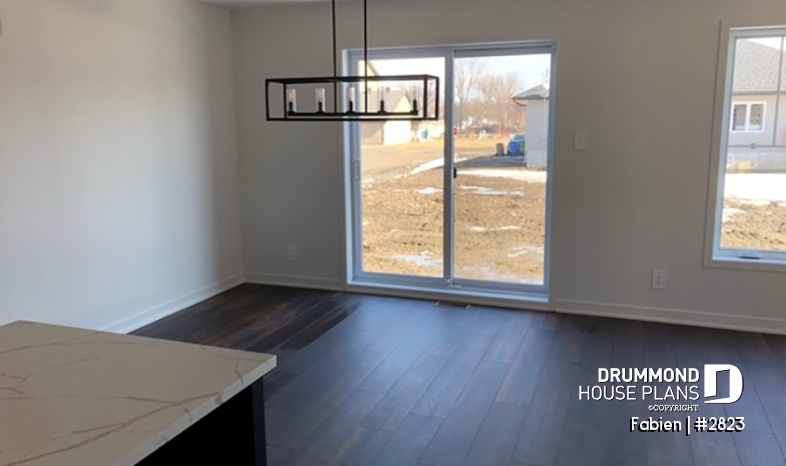

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

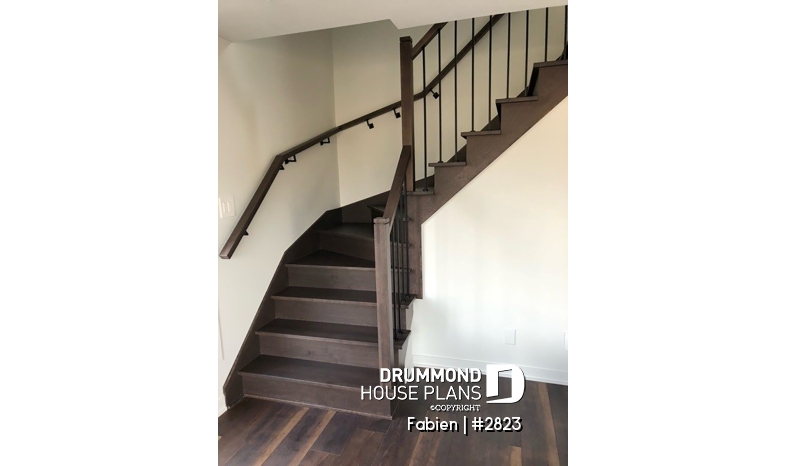

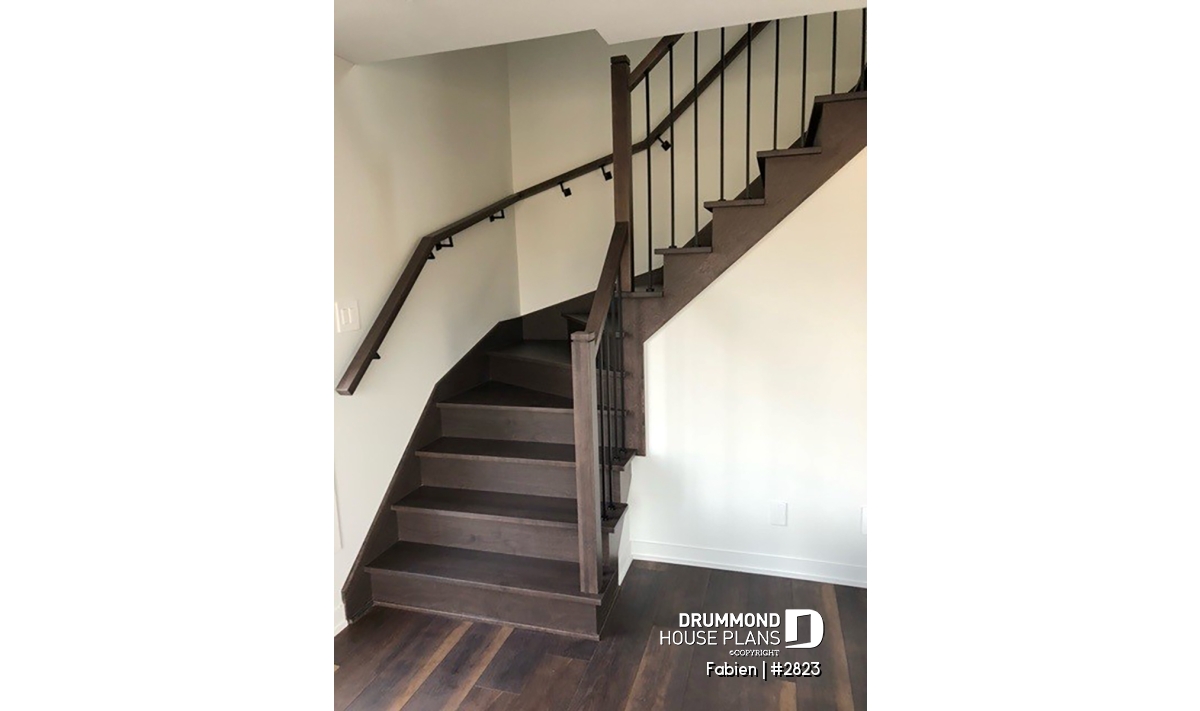

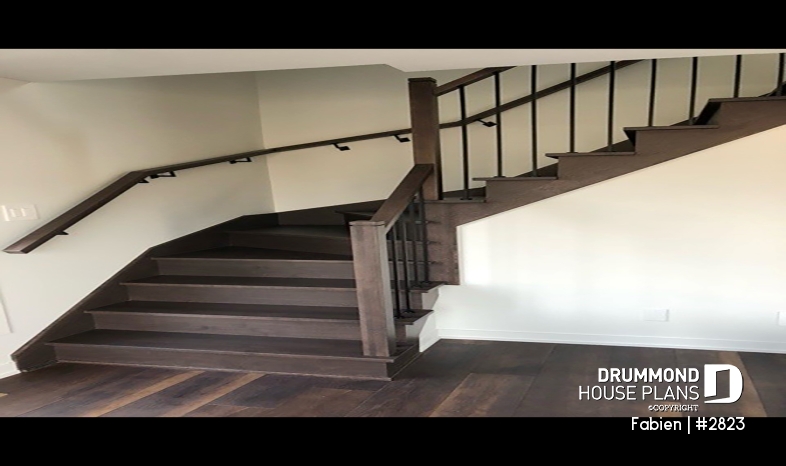

Stairs
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Amazing 3 bedroom 2-storey house plan with garage, ideal for narrow lot
.
Distinctive elements
Charming 2-storey mountain style house plan with garage.
Ideal house plan for narrow lot.
Wrap around porch.
3 bedroom on second floor and master bedroom with walk-in clloset.
Laundry room and half-bath on first floor.
Large kitchen with island and opened to dining and living room.
Plan feature(s)
Open floor layout, Warparound, Gound floor laundry room, Island, Walk-in master bed., Bath in the shower, Builder, Self-Build
Plan architectural style(s)
. Country, . European, . Craftsman / Northwest, . Modern rustic, . Mountain
