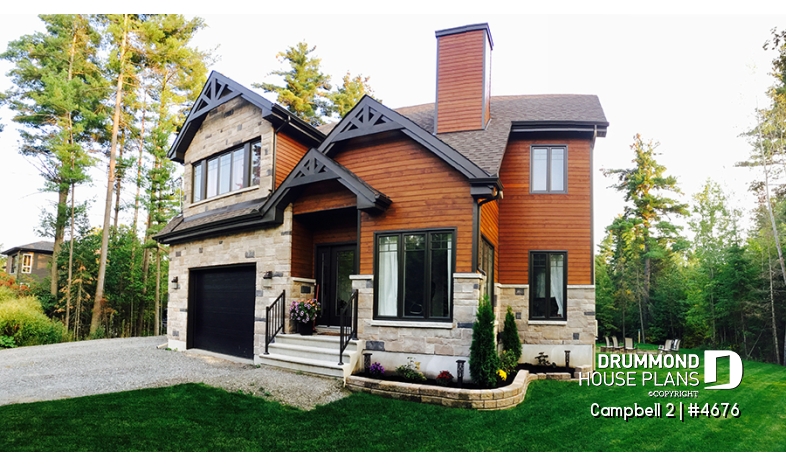

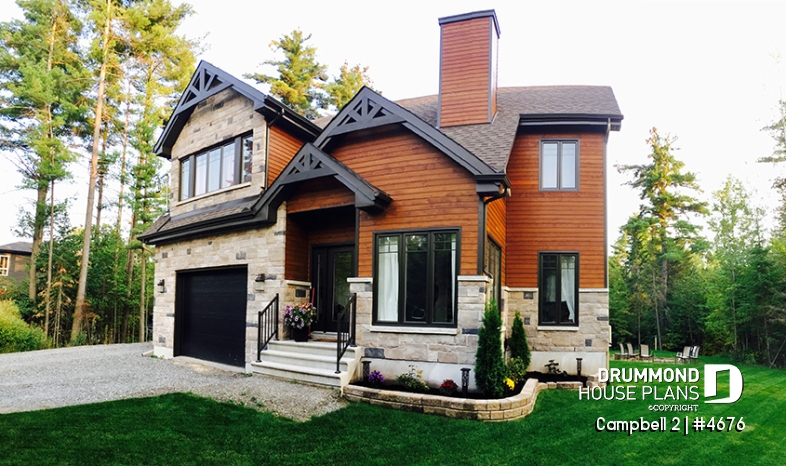

House plan Campbell 2 (4676)
2-storey house plan, garage, narrow lot, master suite, 3 to 4 bedrooms, 2.5 baths, laundry on second floor
View the size of the rooms and height of the ceilings

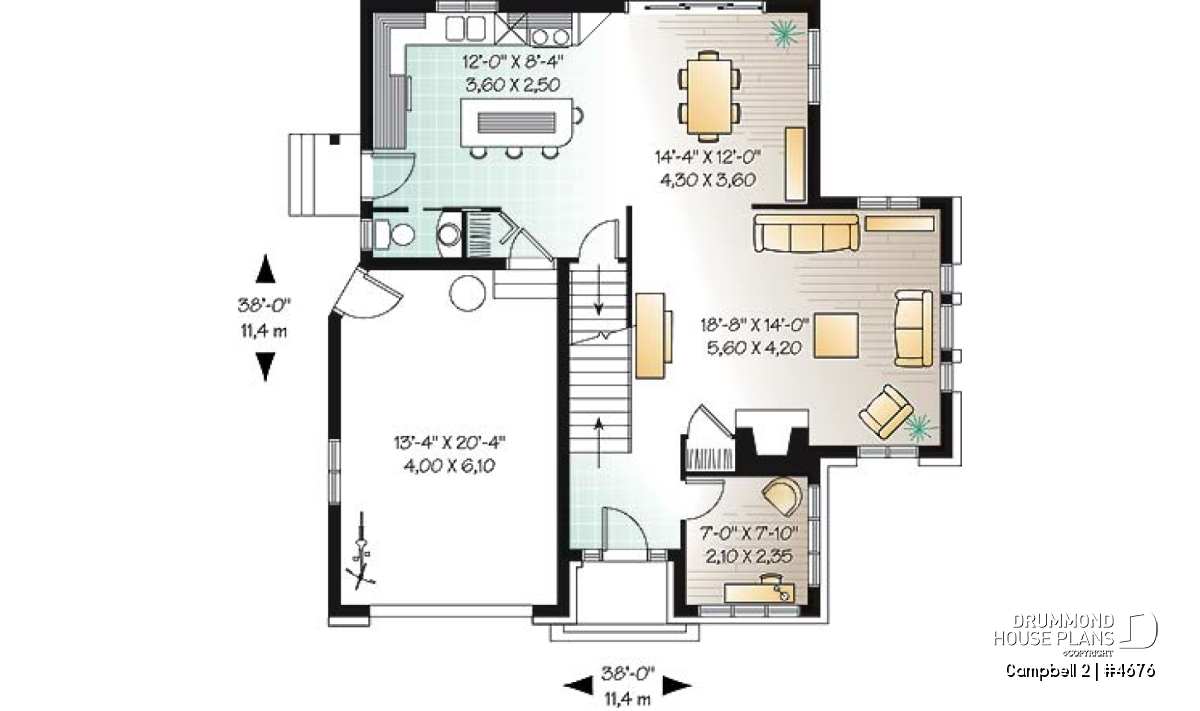

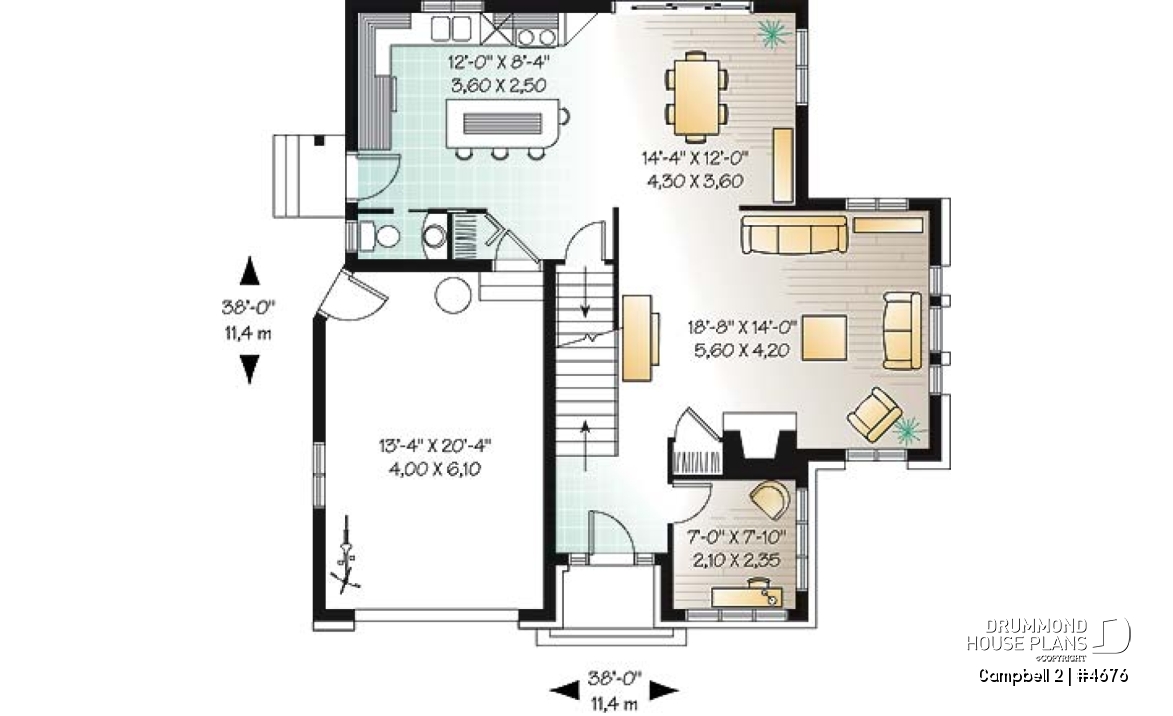

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 3'0" x 5'4" | ~ 8'0" |
| Kitchen | 12'0" x 8'4" | ~ 8'0" |
| Dining room | 14'4" x 12'0" | ~ 8'0" |
| Living room | 18'8" x 14'0" | ~ 8'0" |
| Home office | 7'0" x 7'10" | ~ 8'0" |
| Foyer | 6'8" x 6'4" | ~ 8'0" |
| Garage | 13'4" x 20'4" | ~ 9'8" |
| Closet | 3'0" x 1'10" | ~ 8'0" |
| Porch | 6'0" x 3'0" | N/A |
| Pergola | 5'0" x 3'0" | N/A |
| Terrace | 11'0" x 5'0" | N/A |

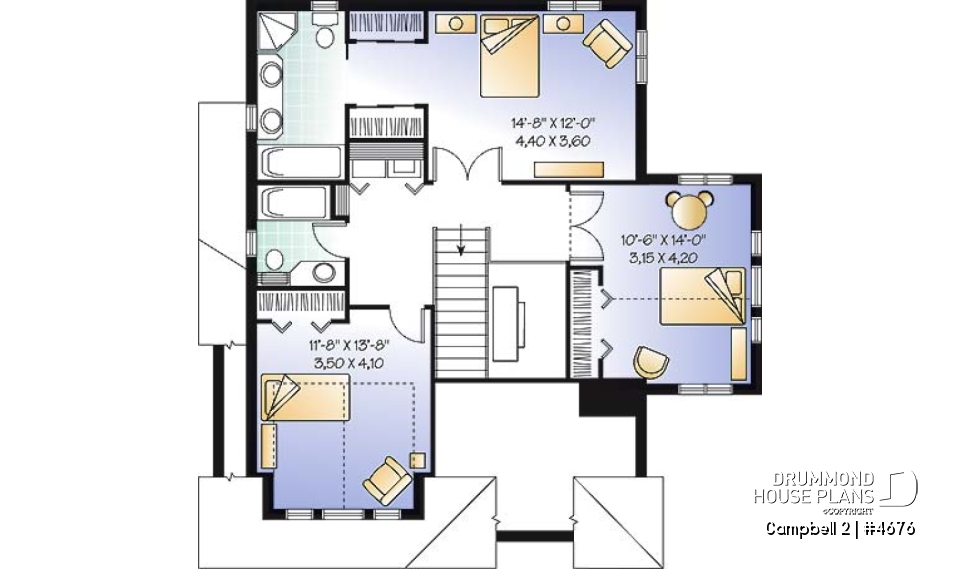

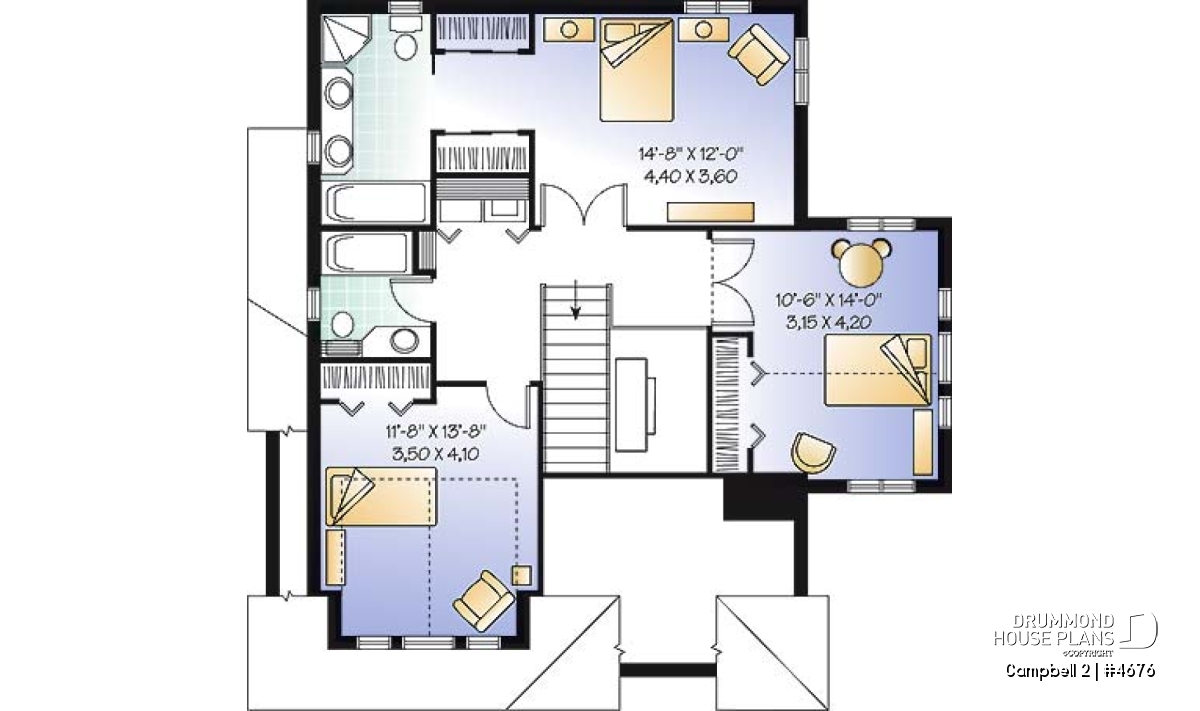

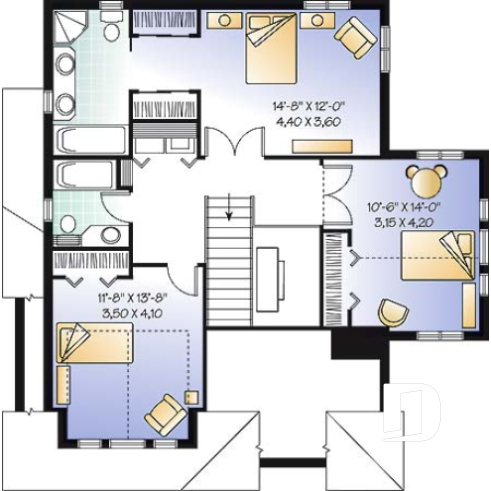

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'0" x 6'0" | ~ 8'0" |
| Master suite | 14'8" x 12'0" | ~ 8'0" |
| Bedroom | 10'6" x 14'0" | ~ 11'1" |
| Bedroom | 11'8" x 13'8" | ~ 8'0" |
| Utility room | 5'0" x 2'6" | ~ 8'0" |
General specifications
| Total living area | 1867 sq.ft. |
| 1st level | 911 sq.ft. |
| 2nd level | 956 sq.ft. |
| Width | 38'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 26'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Beautiful country style house plan with great master suite!
.
Distinctive elements
Ideal 2-storey home for narrow lot (38' wide).
Home office located near front entrance.
Fireplace in living room.
Kitchen island.
Open kitchen and dining room concept.
Half-bath near kitchen.
Master suite with ensuite and 2 closets.
2 secondary bedrooms share a full bathroom.
Second floor laundry.
Unfinished daylight basement.
One-car garage access to the house, near kitchen.
Plan feature(s)
Fireplace, Office / Study / Den, Panoramic view, Island, Open floor layout, Cathedral ceiling, Master suite upstairs, Narrow lot, Second floor laundry room, 2-Story foyer, Mezzanine, Double sinks, Separate bath and shower
Plan architectural style(s)
. American, . European, . Traditional, . Craftsman / Northwest, . English, . Modern rustic, . Country, . Mountain
Similar plans
Previously Viewed Plans
Questions and comments
