House plan Moderna (3071)
Modern duplex house plan with 2-4 bedrooms, 1-2 bathrooms and 1-2 family rooms per unit
View the size of the rooms and height of the ceilings

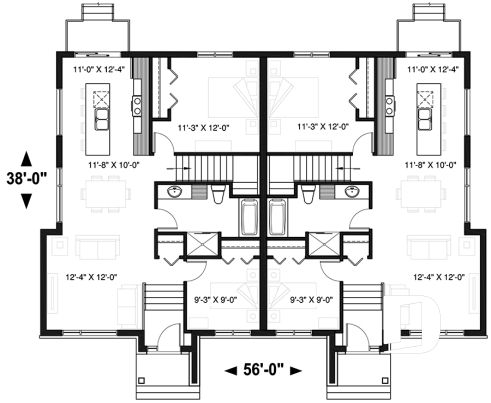

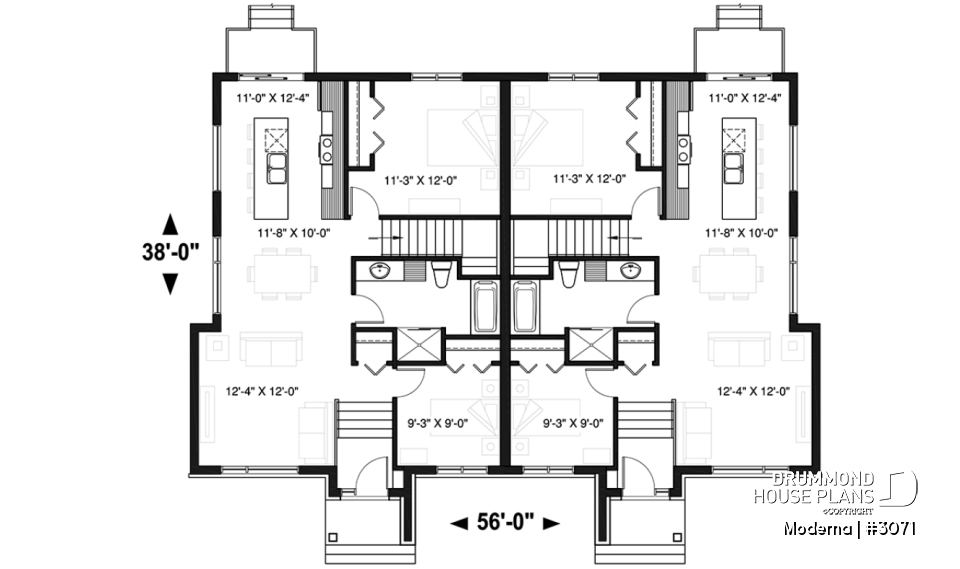

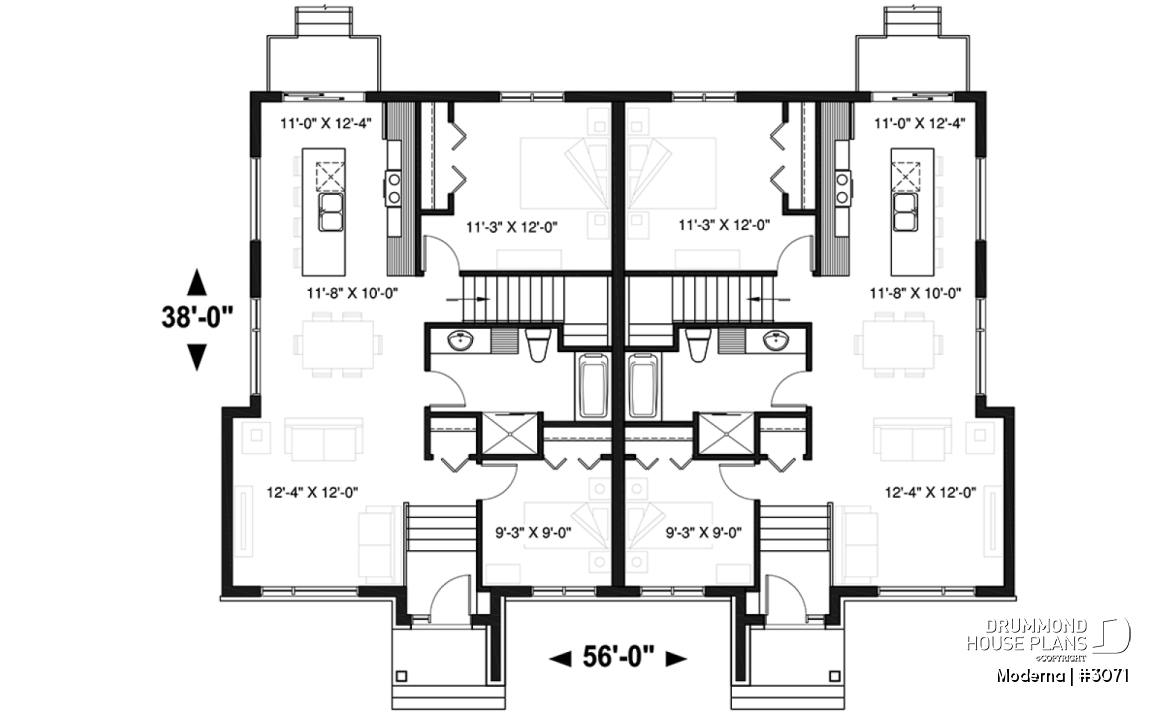

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'1" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 7'8" | ~ 8'0" |
| Bedroom | 9'1" x 9'0" | ~ 8'0" |
| Closet | 4'11" x 2'0" | ~ 8'0" |
| Full bathroom | 12'9" x 6'0" | ~ 8'0" |
| Kitchen | 11'0" x 12'4" | ~ 8'0" |
| Dining room | 11'8" x 10'0" | ~ 8'0" |
| Living room | 12'4" x 12'0" | ~ 8'0" |
| Foyer | 5'0" x 4'7" | ~ 11'2" |
| Bedroom | 11'1" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 7'8" | ~ 8'0" |
| Bedroom | 9'1" x 9'0" | ~ 8'0" |
| Closet | 4'11" x 2'0" | ~ 8'0" |
| Kitchen | 11'0" x 12'4" | ~ 8'0" |
| Foyer | 5'0" x 4'7" | ~ 11'2" |
| Dining room | 11'8" x 10'0" | ~ 8'0" |
| Full bathroom | 12'9" x 6'0" | ~ 8'0" |
| Living room | 12'4" x 12'0" | ~ 8'0" |
| Closet | 3'4" x 2'8" | ~ 8'0" |
| Closet | 3'4" x 2'8" | ~ 8'0" |
| Covered porch | 8'0" x 4'0" | ~ 11'6" |
| Covered porch | 8'0" x 4'0" | ~ 11'6" |
| Terrace | 8'0" x 4'0" | N/A |
| Terrace | 8'0" x 4'0" | N/A |

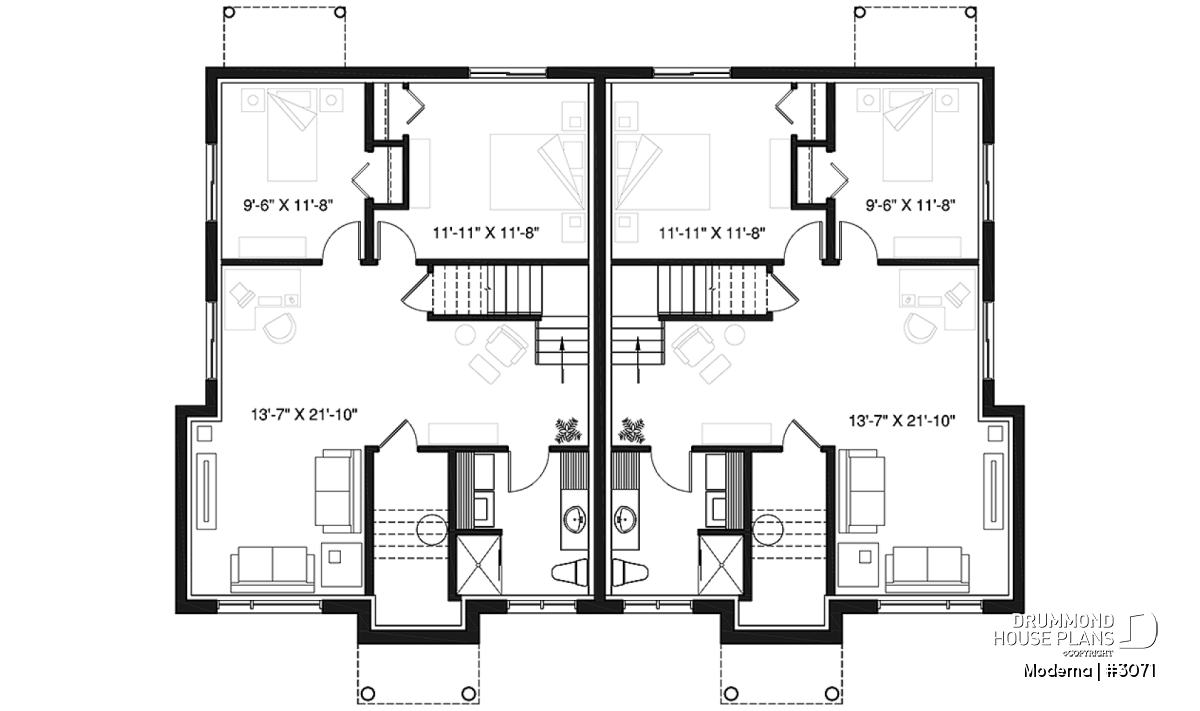

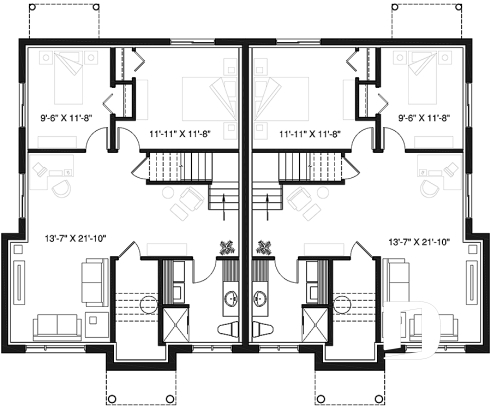

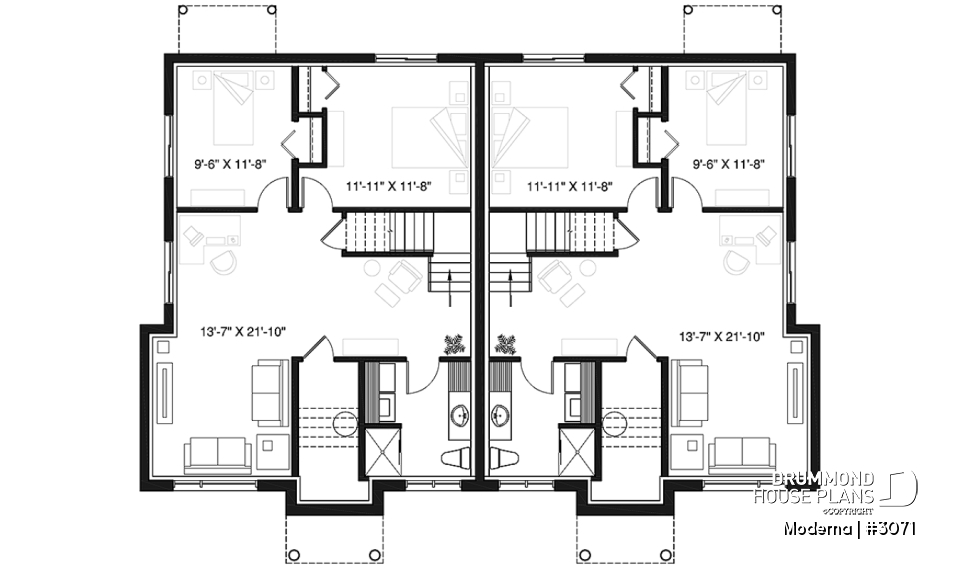

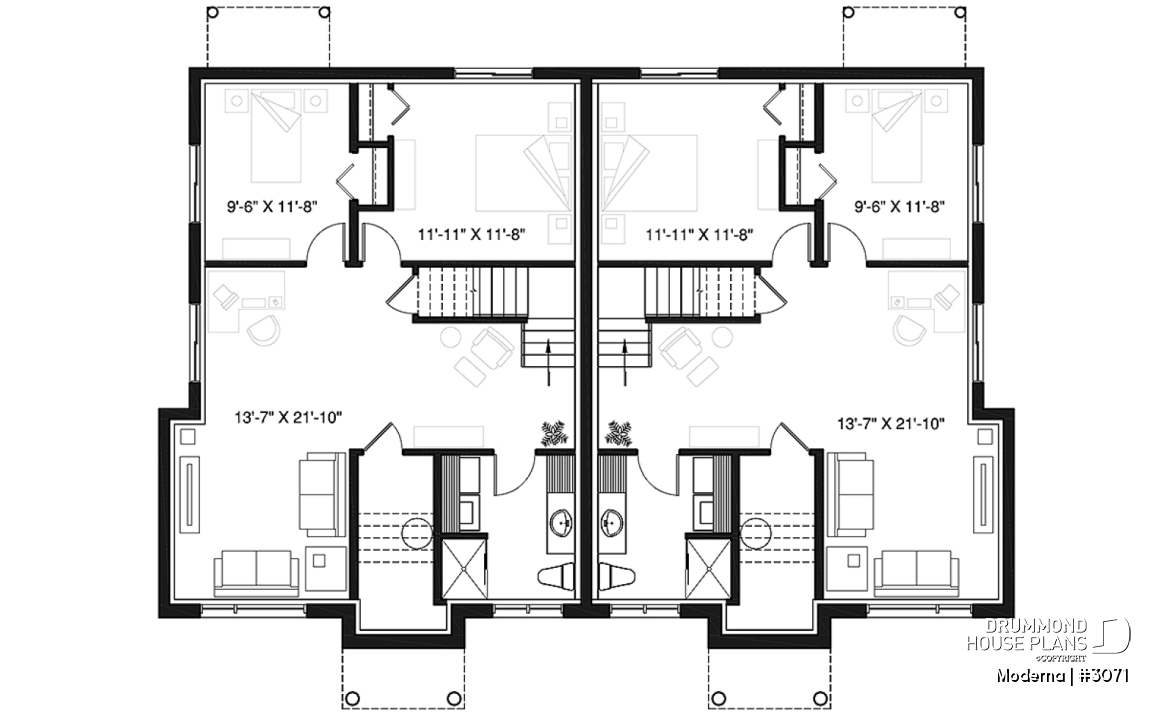

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 9'6" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 3'10" | ~ 8'0" |
| Bedroom | 9'6" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 3'10" | ~ 8'0" |
| Bedroom | 12'0" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 3'10" | ~ 8'0" |
| Bedroom | 12'0" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 3'10" | ~ 8'0" |
| Great room or Family room | 13'7" x 21'10" | ~ 8'0" |
| Great room or Family room | 13'7" x 21'10" | ~ 8'0" |
| Shower/laundry room | 8'10" x 9'6" | ~ 8'0" |
| Shower/laundry room | 8'10" x 9'6" | ~ 8'0" |
| Mechanical room | 5'0" x 11'6" | ~ 8'0" |
| Mechanical room | 5'0" x 11'6" | ~ 8'0" |
General specifications
| Total living area | 4000 sq.ft. |
| 1st level | 2000 sq.ft. |
| Basement | 2000 sq.ft. |
| Width | 56'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 21'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MF |
Rooms specifications
| Bedroom(s) | 2, 3, 4 |
| Full baths | 2 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 64 sq.ft. |
Units specifications

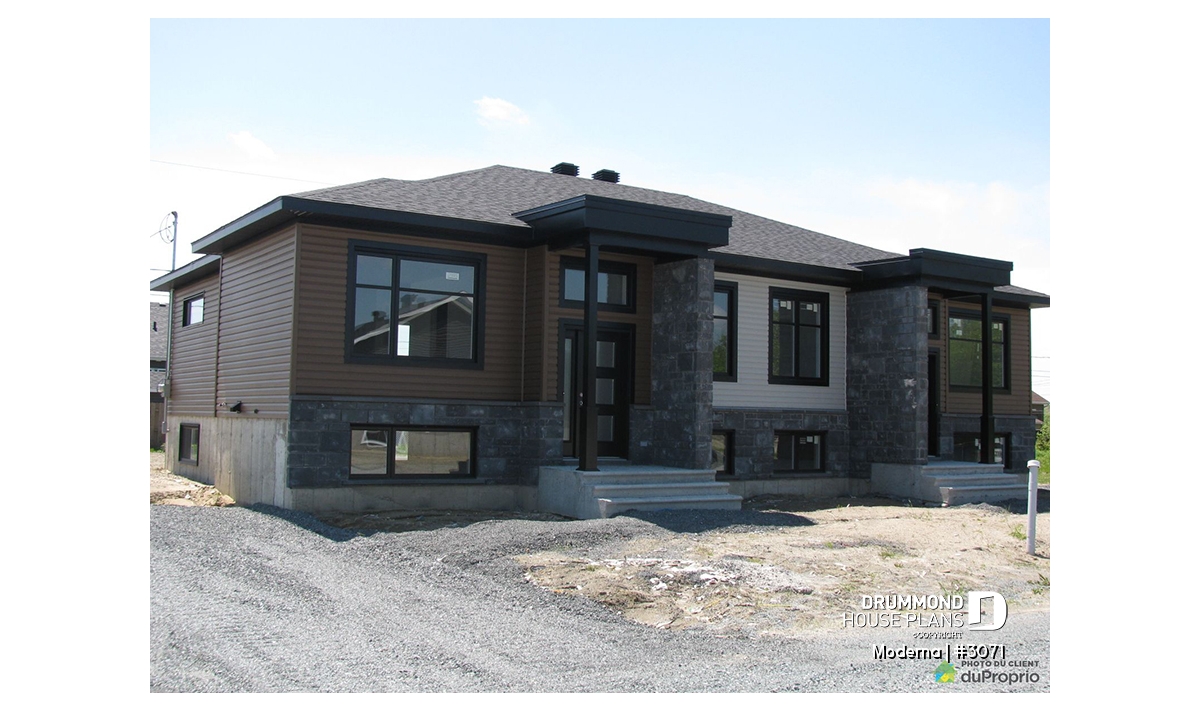

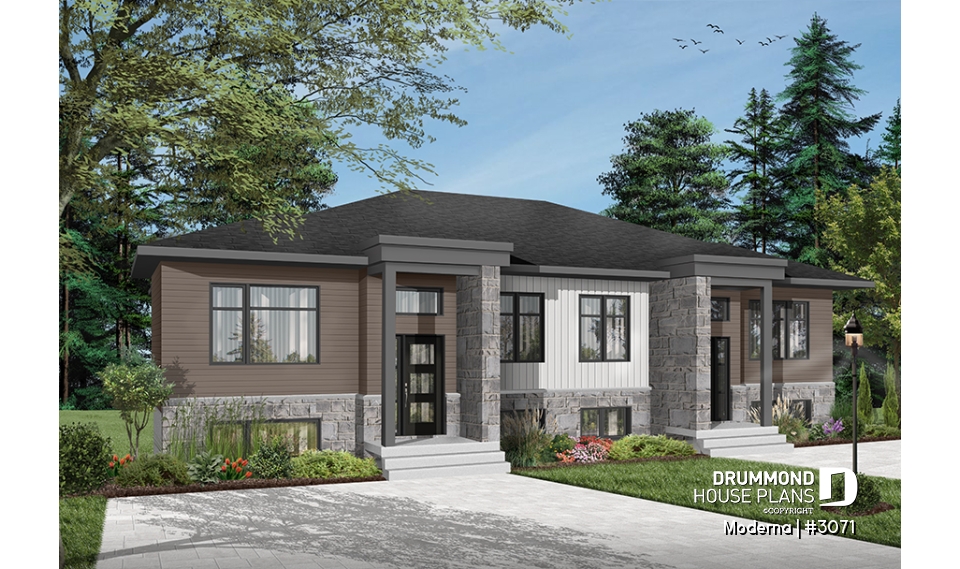

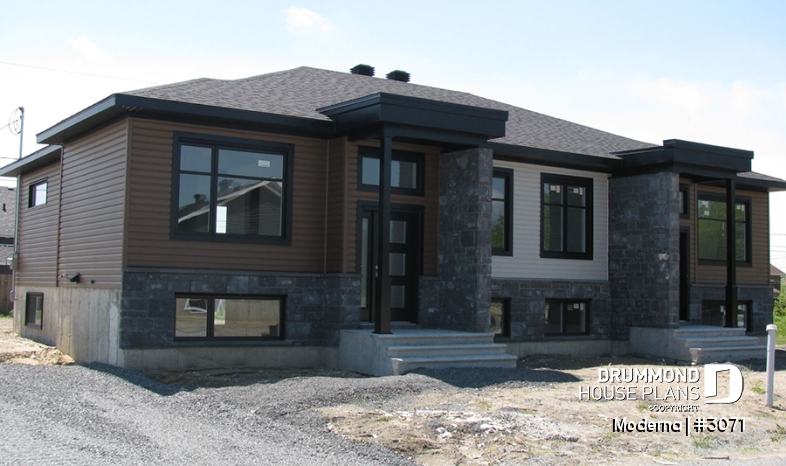

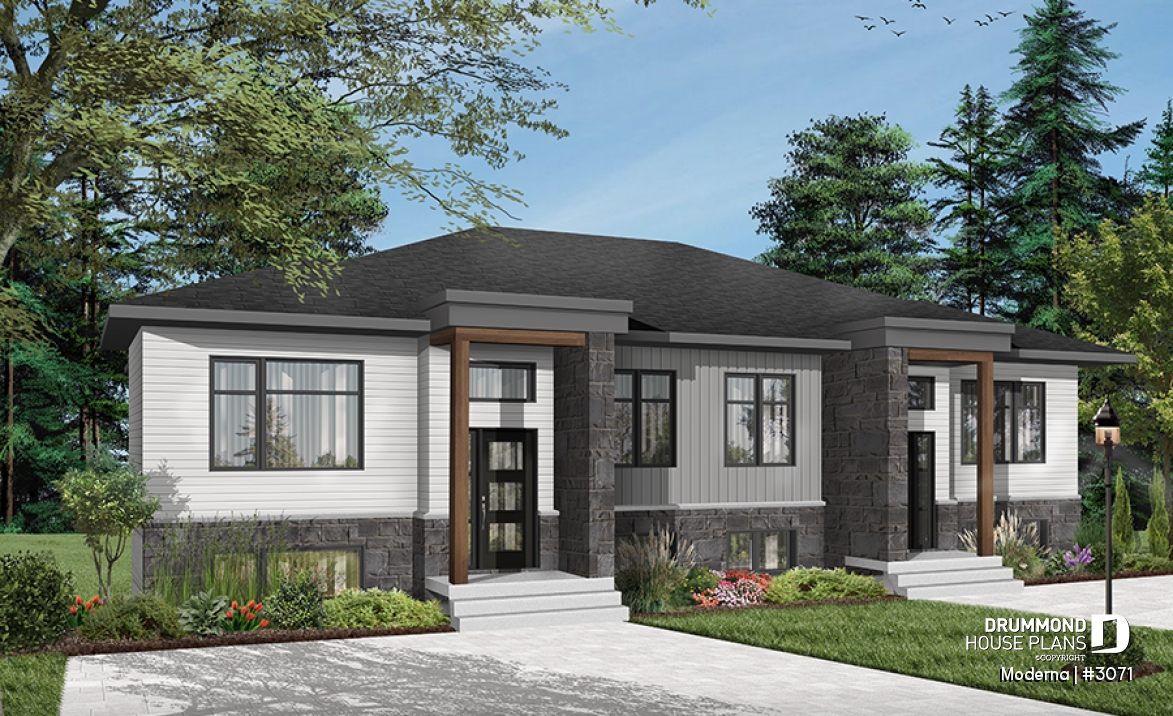

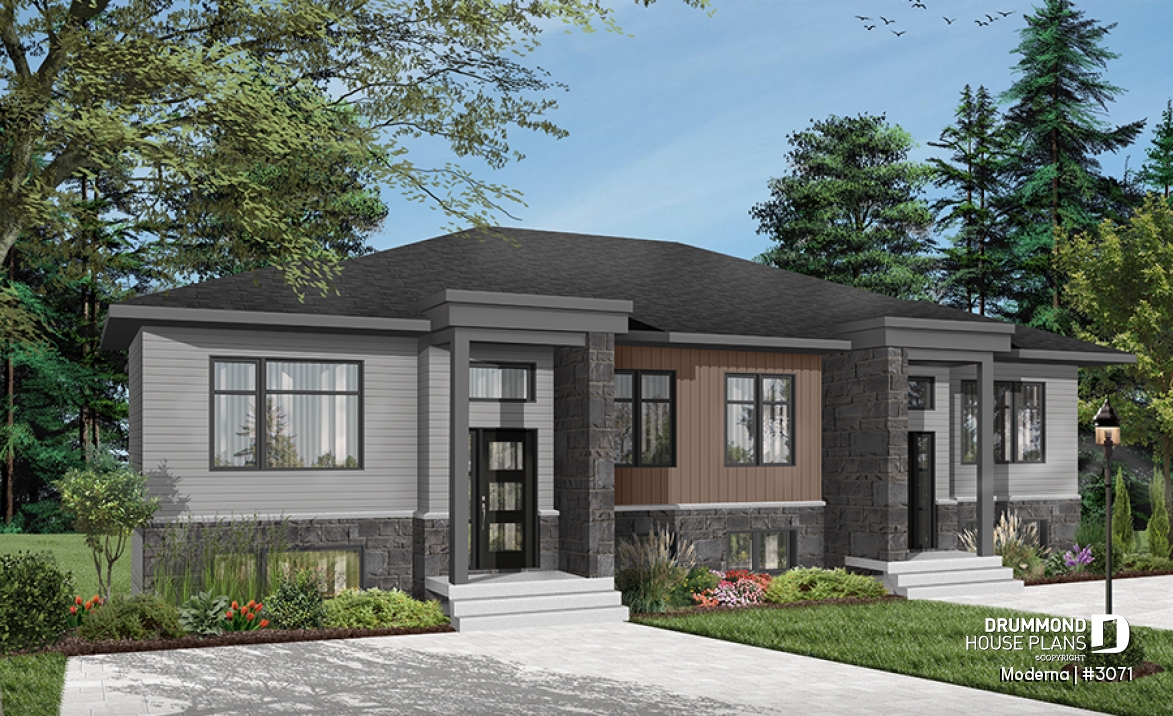

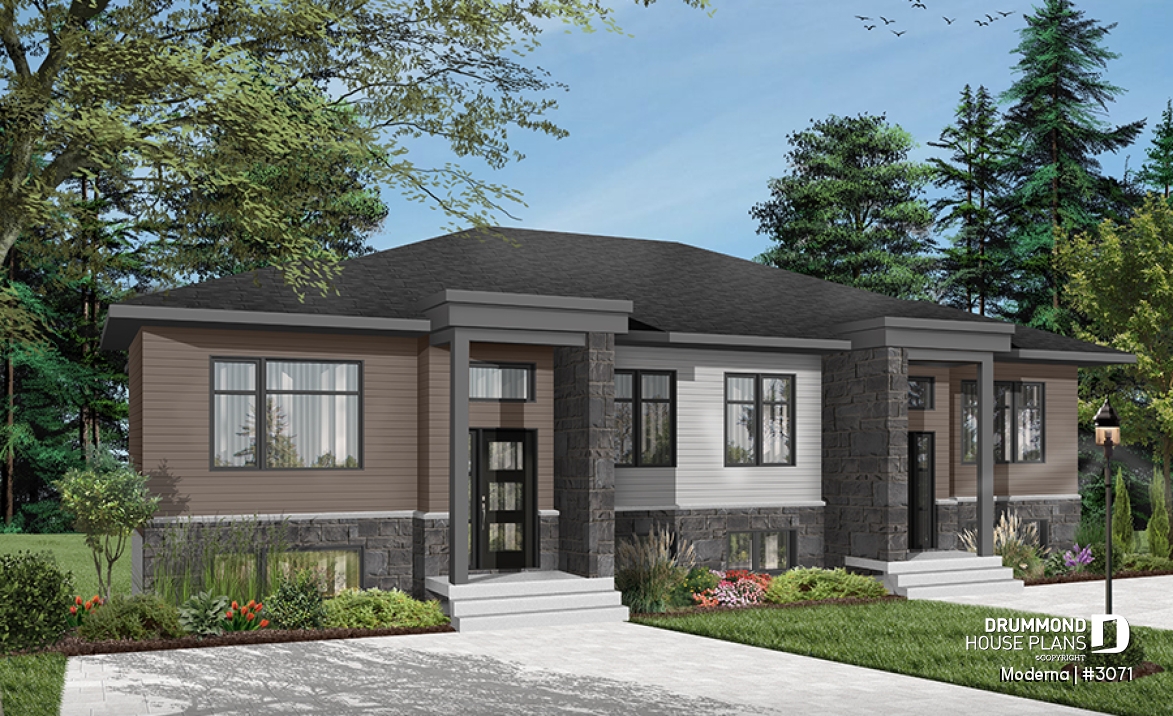

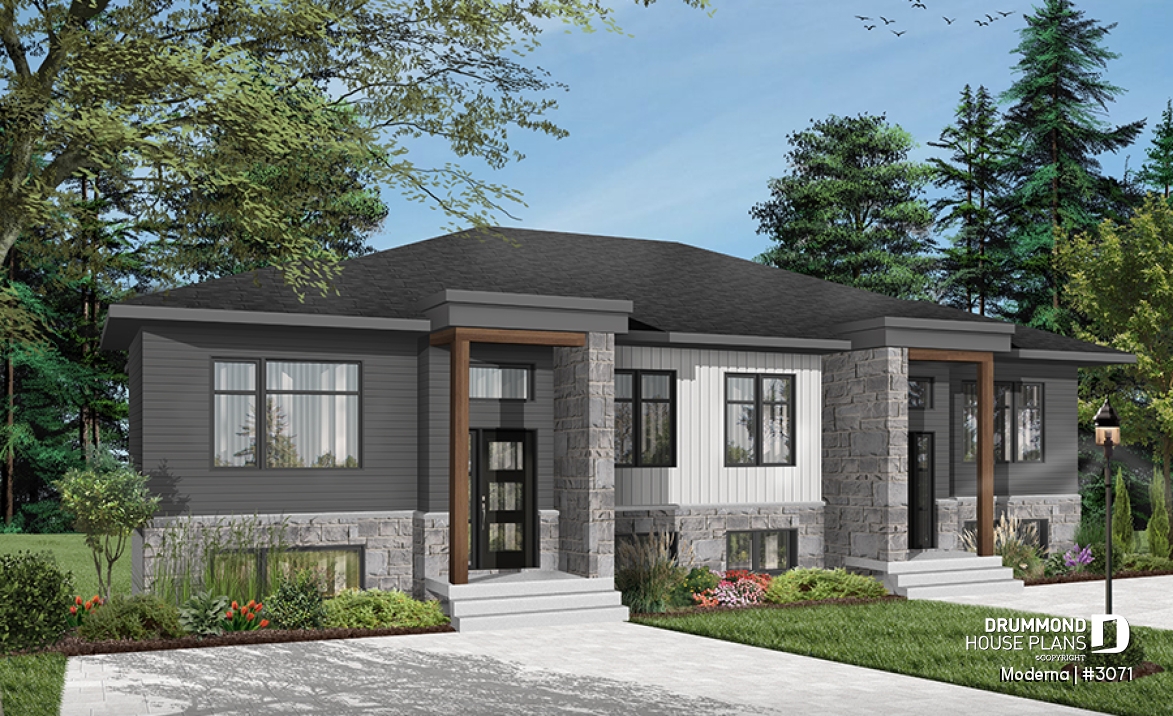

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

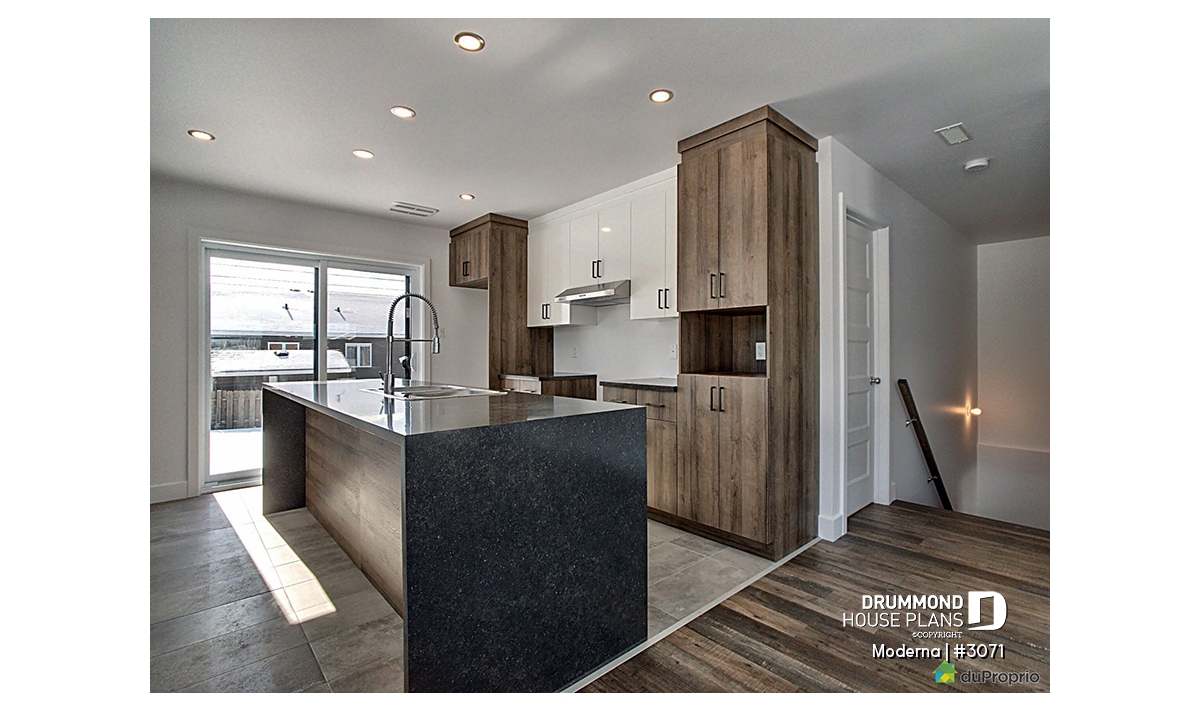

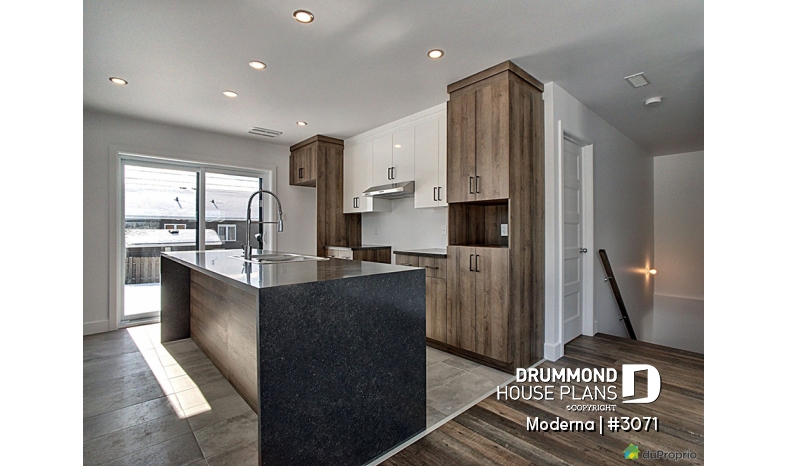

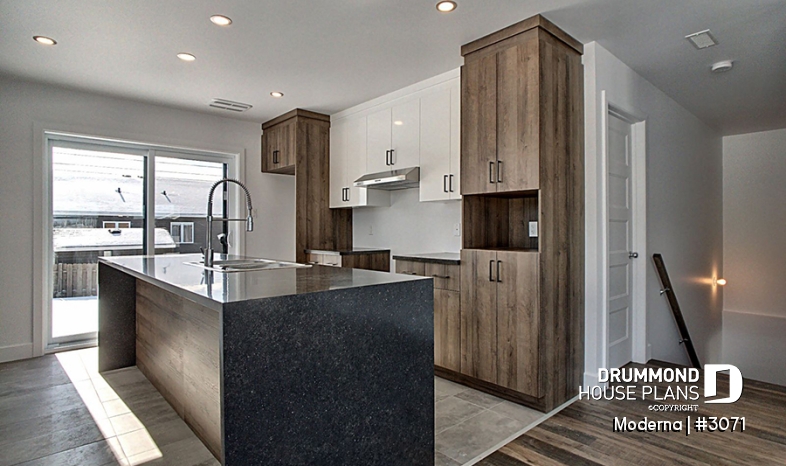

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Plan feature(s)
Island, Lunch counter, Lunch counter, Open floor layout, Open floor layout, Island
Plan architectural style(s)
. Contemporary, . Transitional, . Modern / Design, . Modern rustic
