House plan Charny (3069)

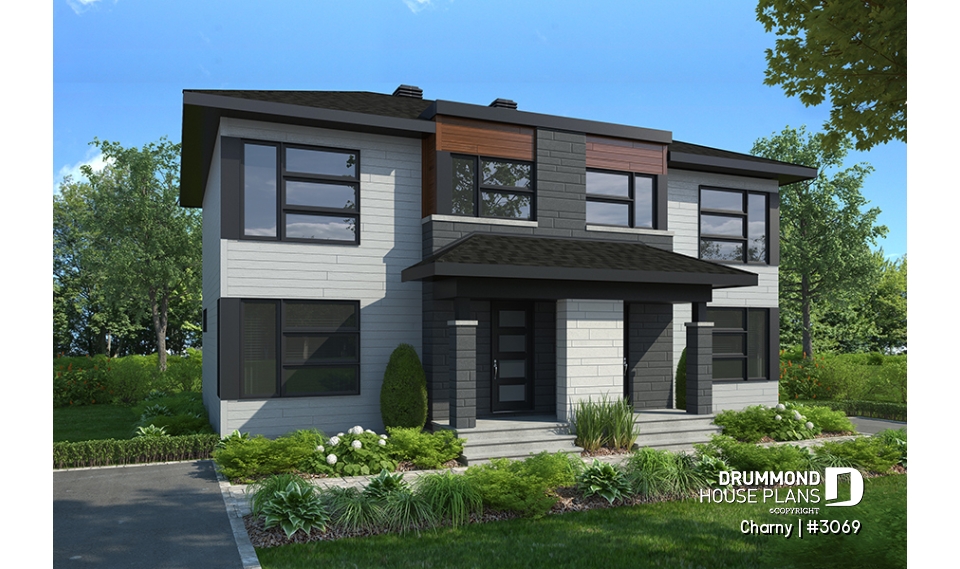

Modern duplex home plan, 3 to 4 bedrooms & 1.5 bathrooms per unit, kitchen w/island, open floor plan concept
View the size of the rooms and height of the ceilings

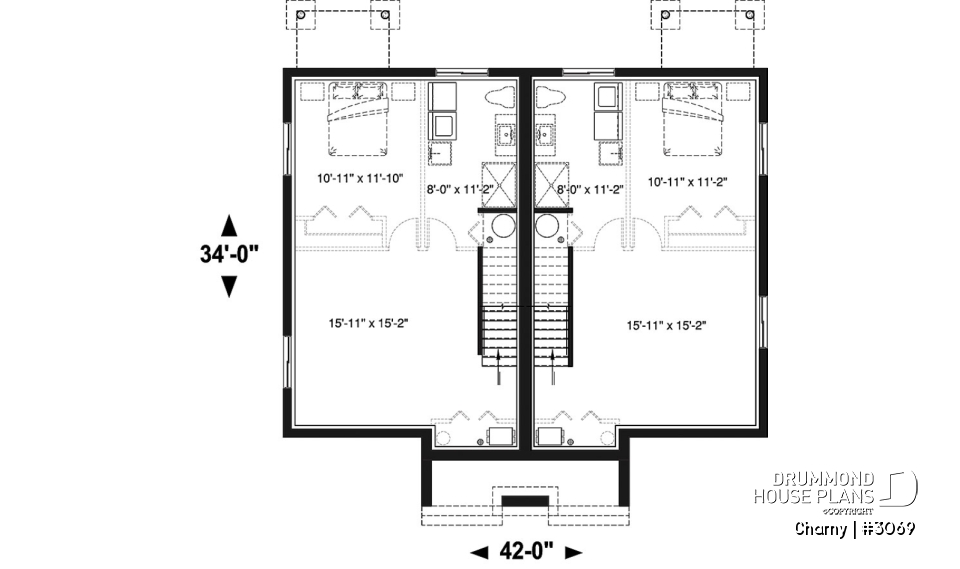

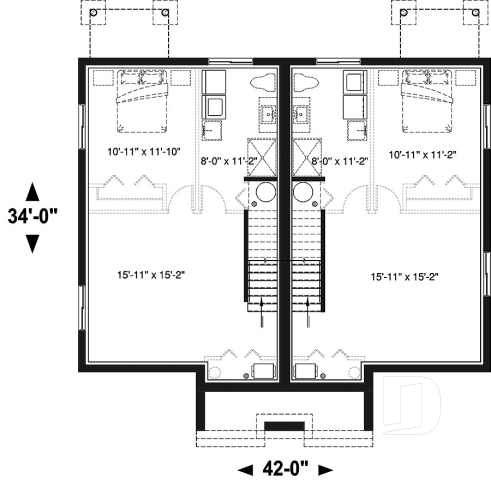

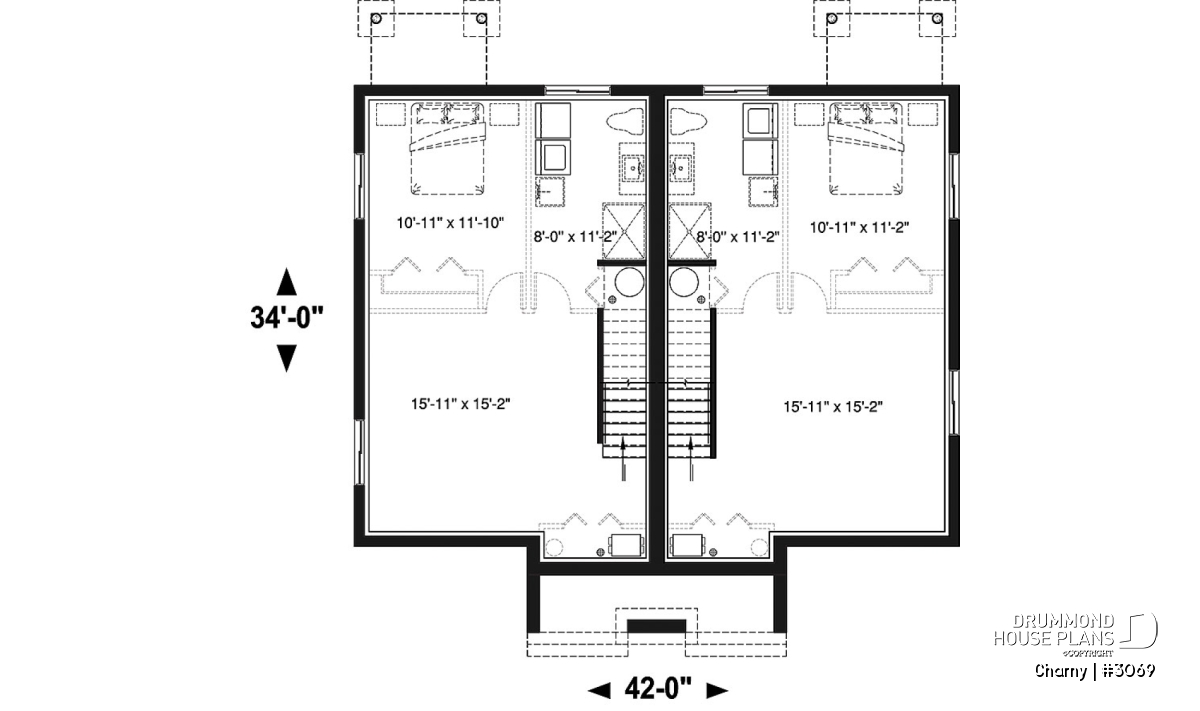

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bathroom/laundry room | 8'0" x 11'2" | ~ 8'0" |
| Bathroom/laundry room | 8'0" x 11'2" | ~ 8'0" |

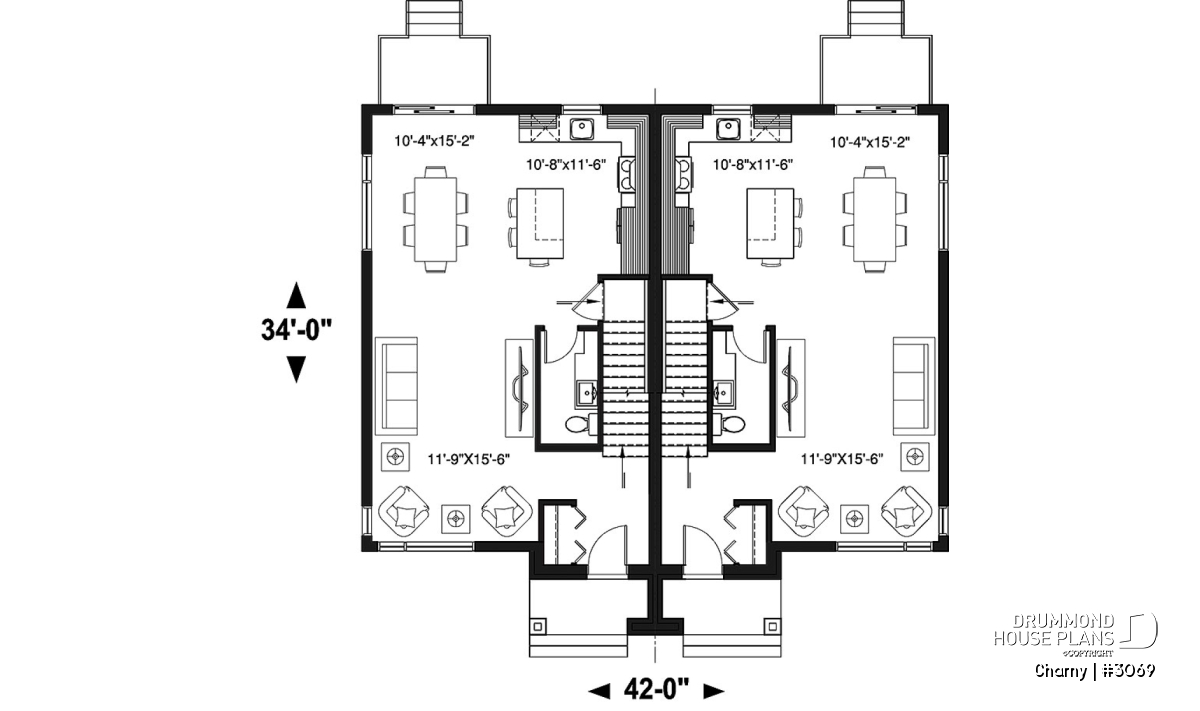

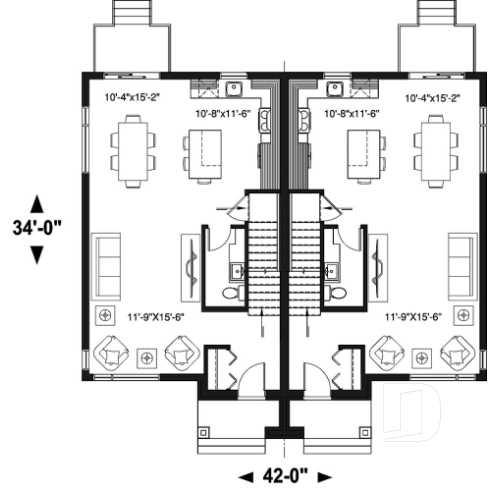

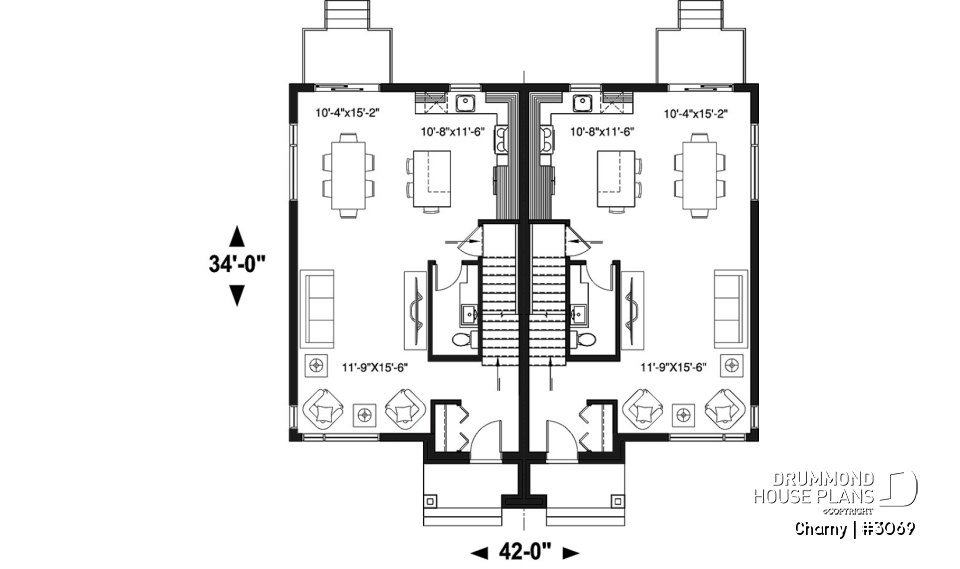

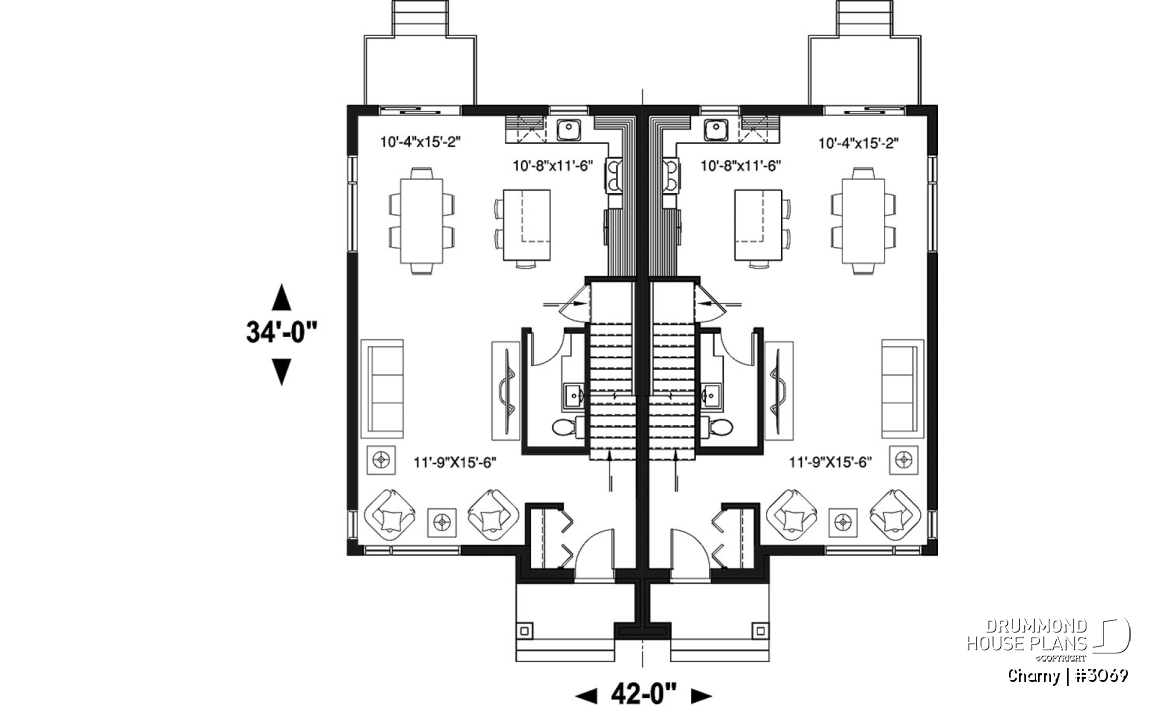

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 10'3" x 15'2" | ~ 8'0" |
| Dining room | 10'3" x 15'2" | ~ 8'0" |
| Kitchen | 10'8" x 11'6" | ~ 8'0" |
| Kitchen | 10'8" x 11'6" | ~ 8'0" |
| Living room | 11'7" x 15'6" | ~ 8'0" |
| Living room | 11'7" x 15'6" | ~ 8'0" |
| Foyer | 7'9" x 8'2" | ~ 8'0" |
| Closet | 4'4" x 2'0" | ~ 8'0" |
| Foyer | 7'9" x 8'2" | ~ 8'0" |
| Closet | 4'4" x 2'0" | ~ 8'0" |
| Bathroom | 4'2" x 8'2" | ~ 8'0" |
| Bathroom | 4'2" x 8'2" | ~ 8'0" |

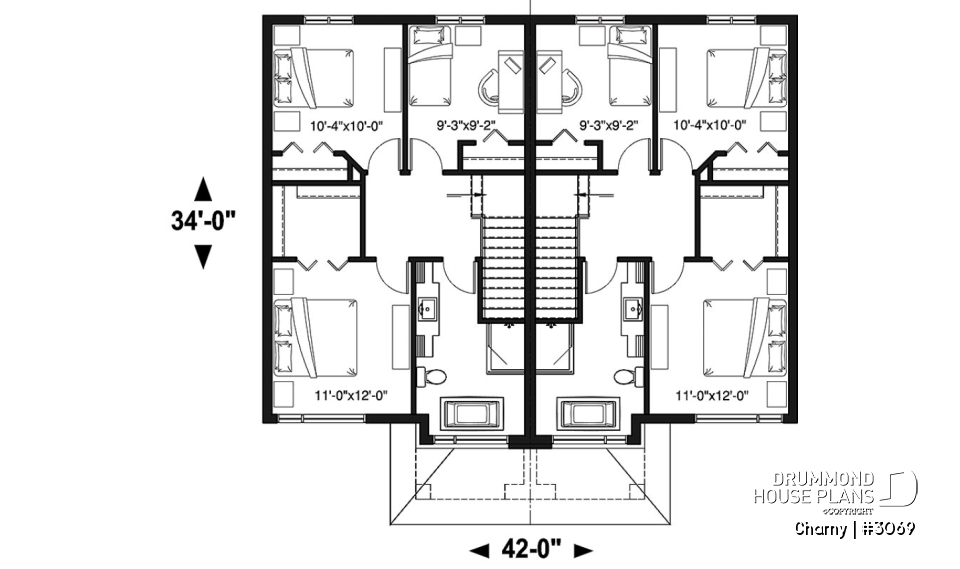

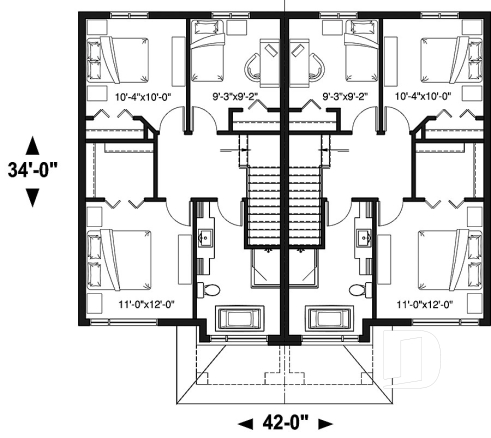

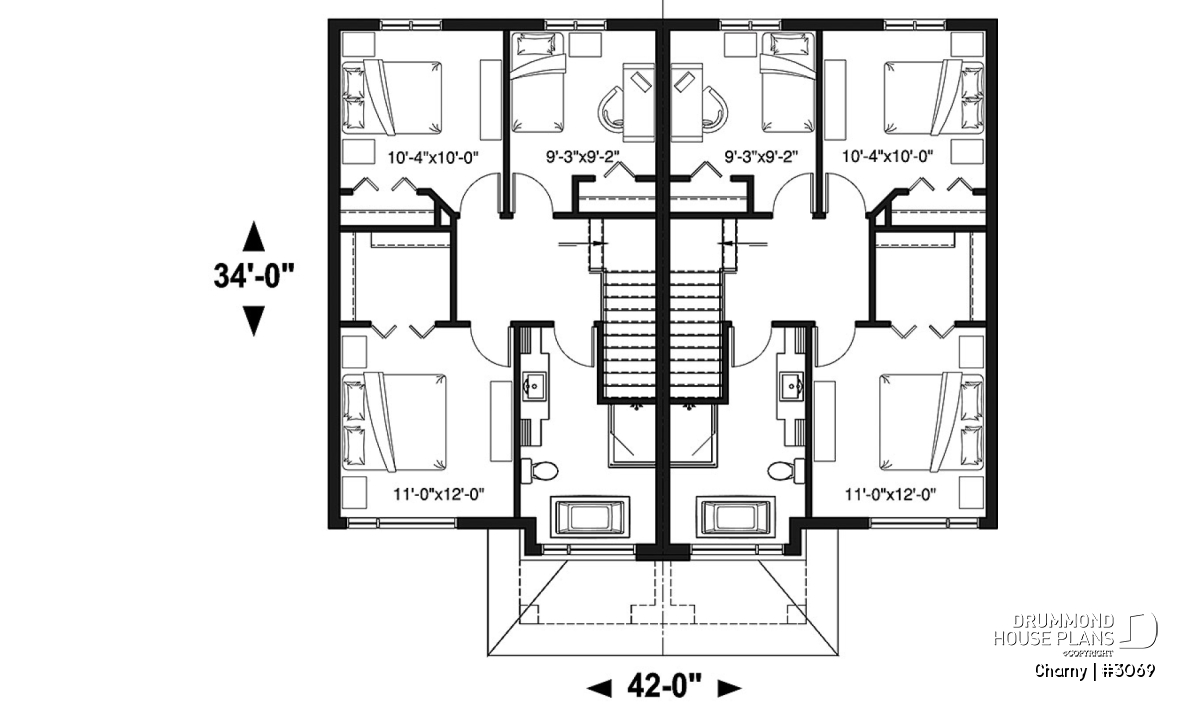

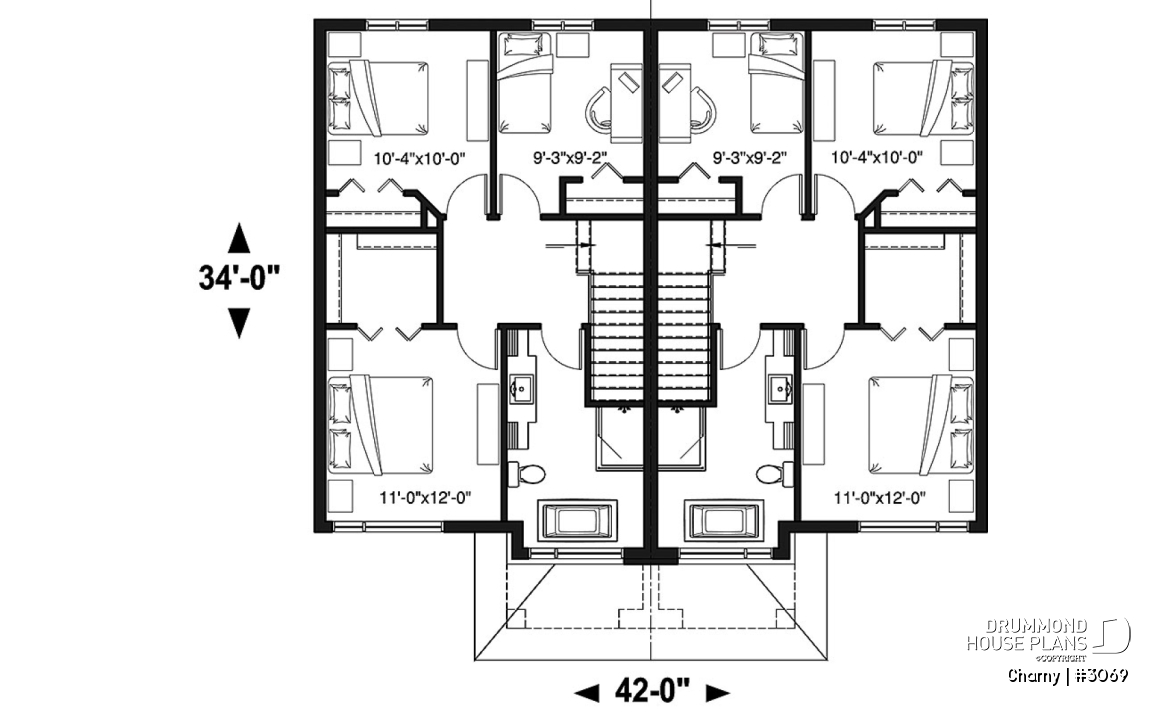

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Walk-in closet | 7'0" x 5'8" | ~ 8'0" |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Walk-in closet | 7'0" x 5'8" | ~ 8'0" |
| Bedroom | 10'4" x 10'0" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |
| Bedroom | 10'4" x 10'0" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |
| Bedroom | 9'1" x 9'2" | ~ 8'0" |
| Closet | 4'9" x 2'0" | ~ 8'0" |
| Bedroom | 9'1" x 9'2" | ~ 8'0" |
| Closet | 4'11" x 2'0" | ~ 8'0" |
| Full bathroom | 8'3" x 13'8" | ~ 8'0" |
| Full bathroom | 8'3" x 13'8" | ~ 8'0" |
General specifications
| Total living area | 2760 sq.ft. |
| Basement | 1380 sq.ft. |
| 1st level | 1380 sq.ft. |
| 2nd level | 1380 sq.ft. |
| Width | 42'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 27'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MC |
Rooms specifications
| Bedroom(s) | 3, 4 |
| Full baths | 1 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | - |
Units specifications

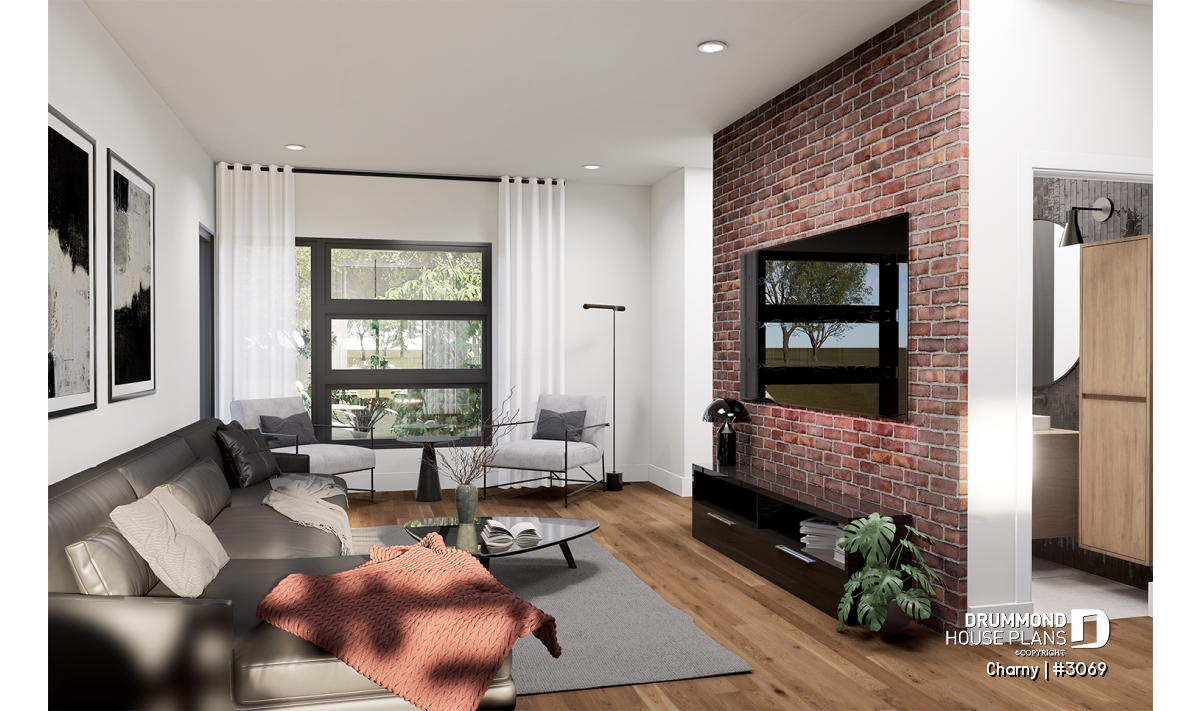

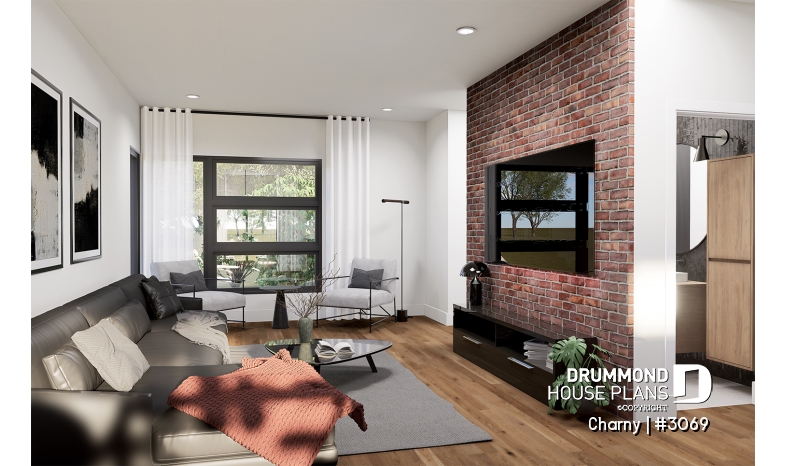

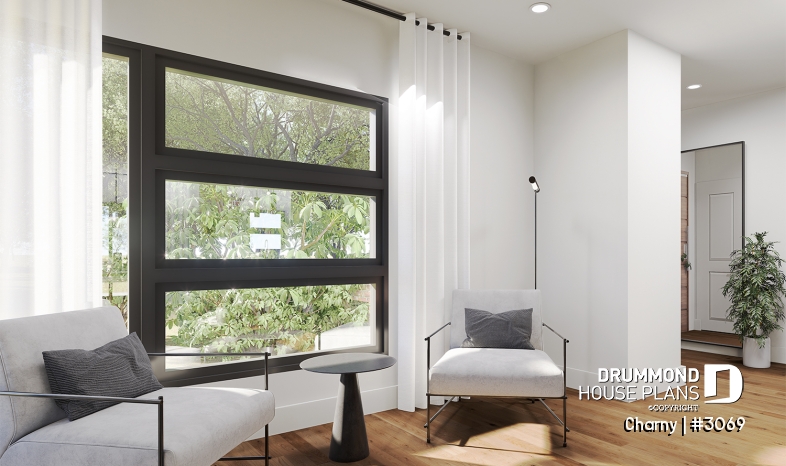

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

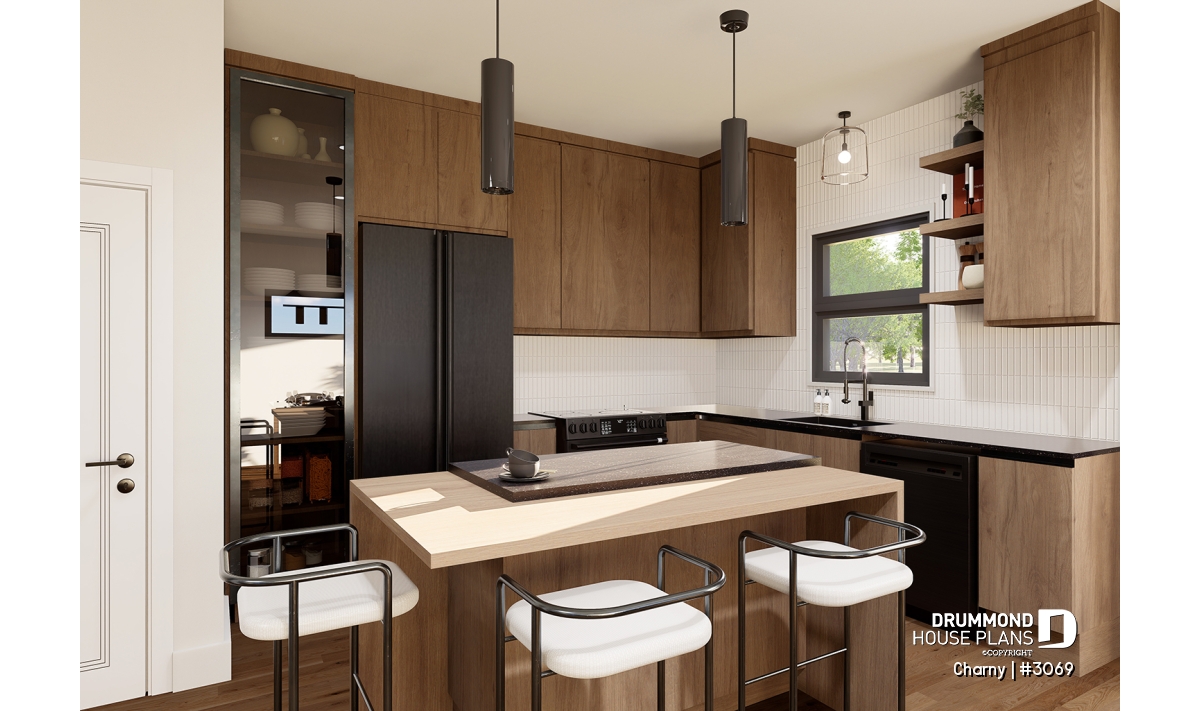

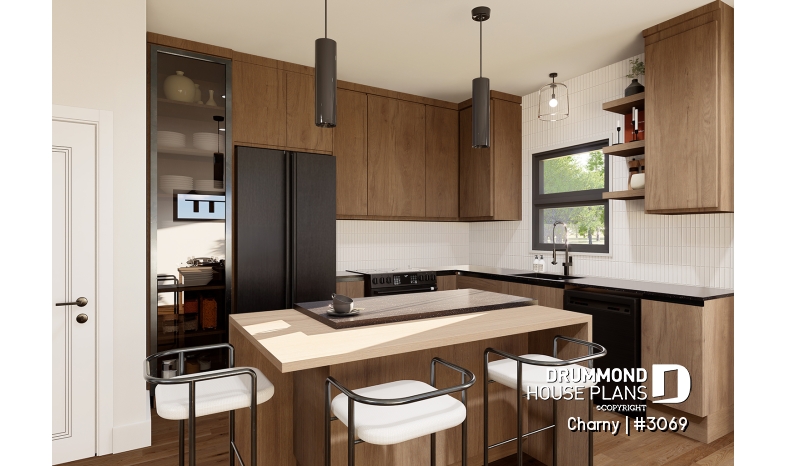

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

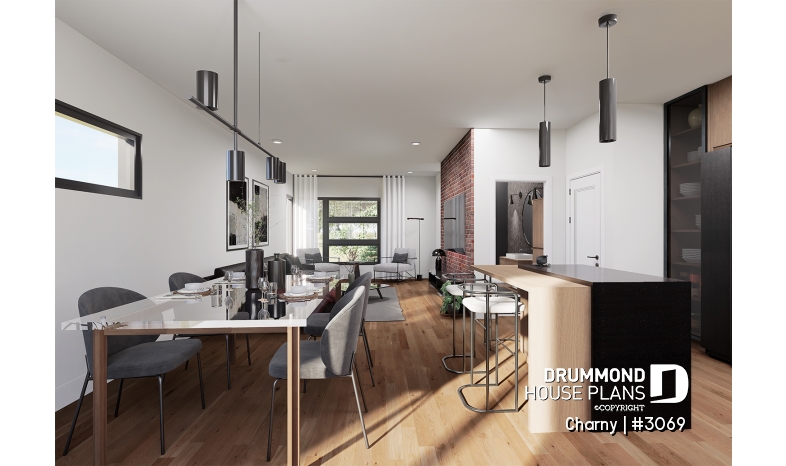

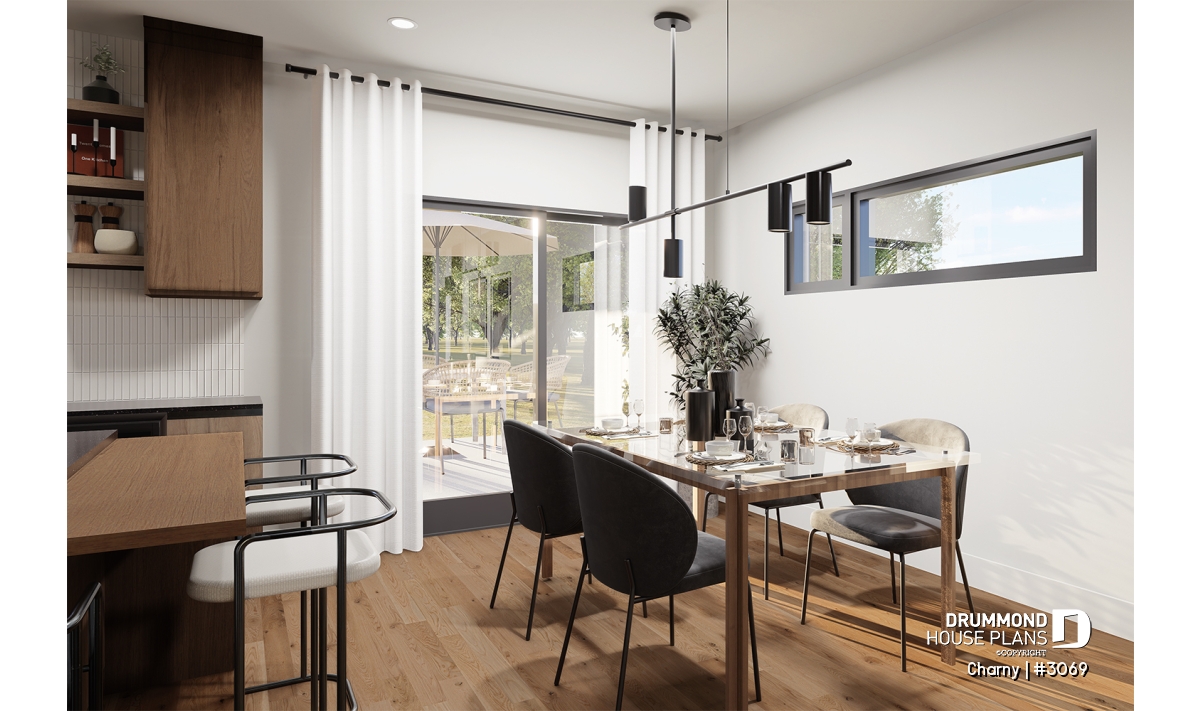

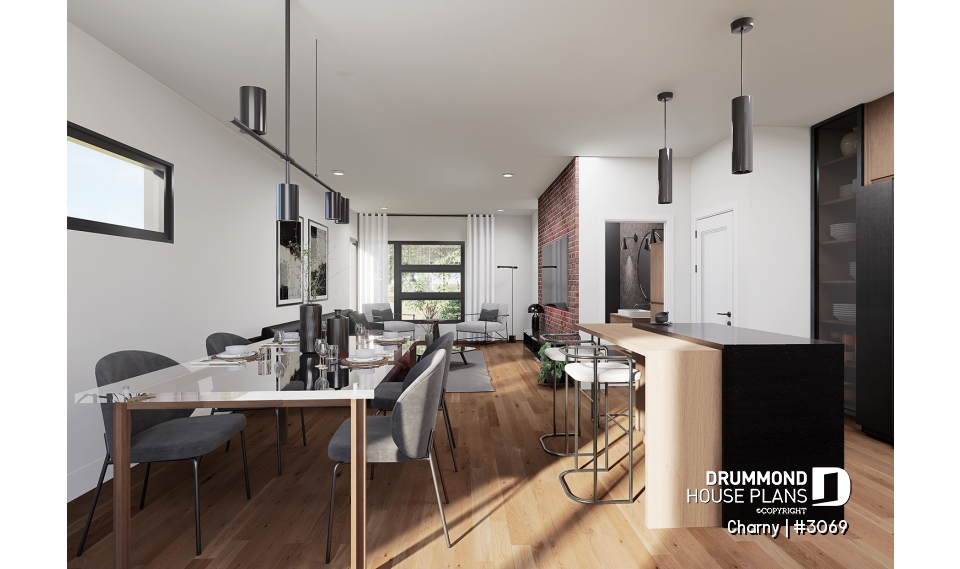

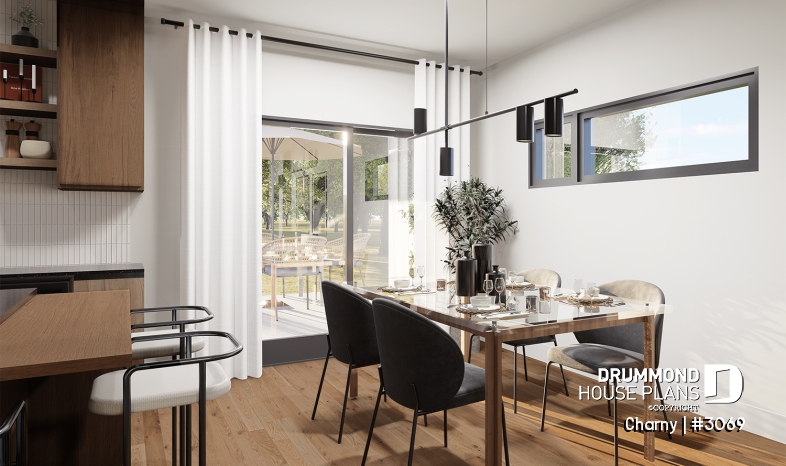

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

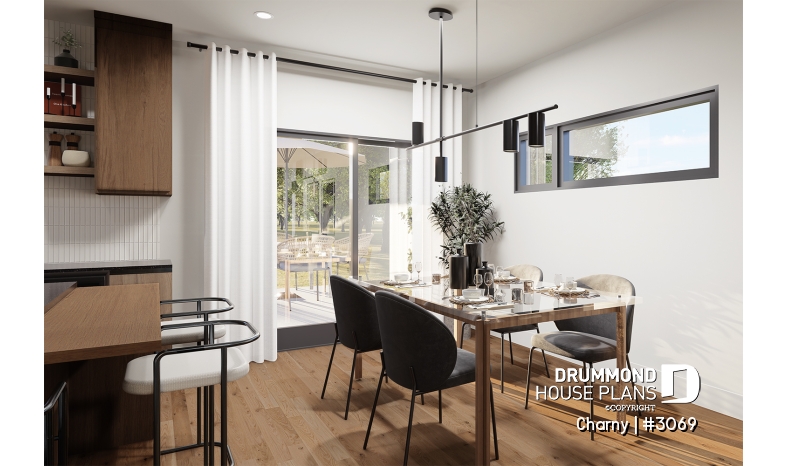

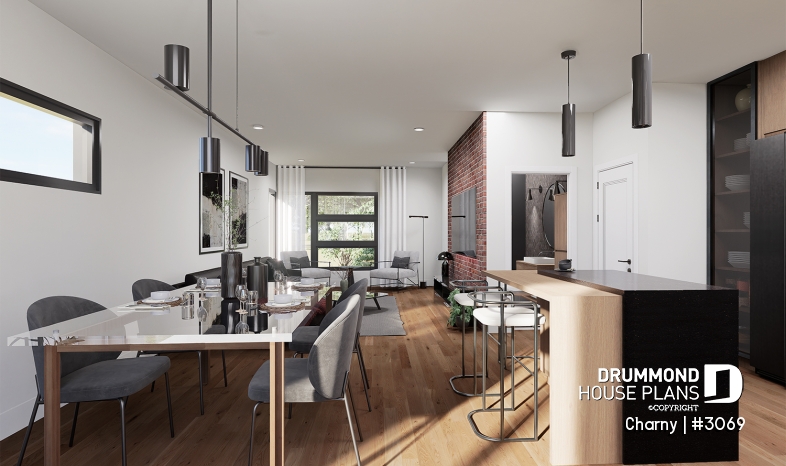

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

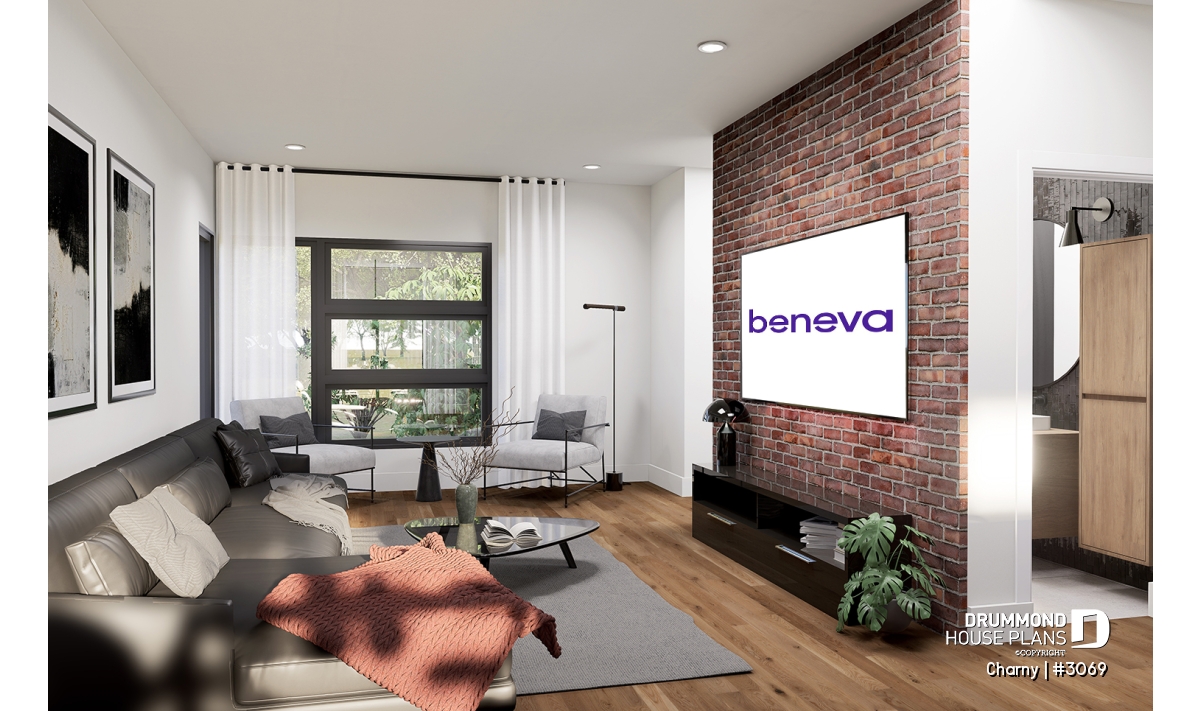

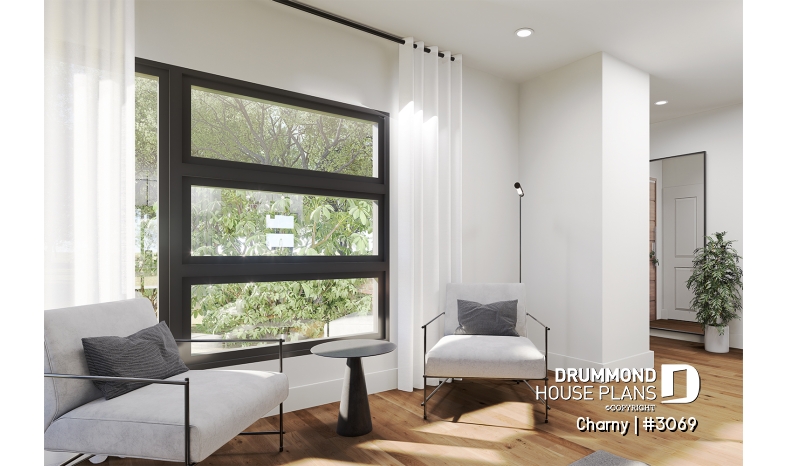

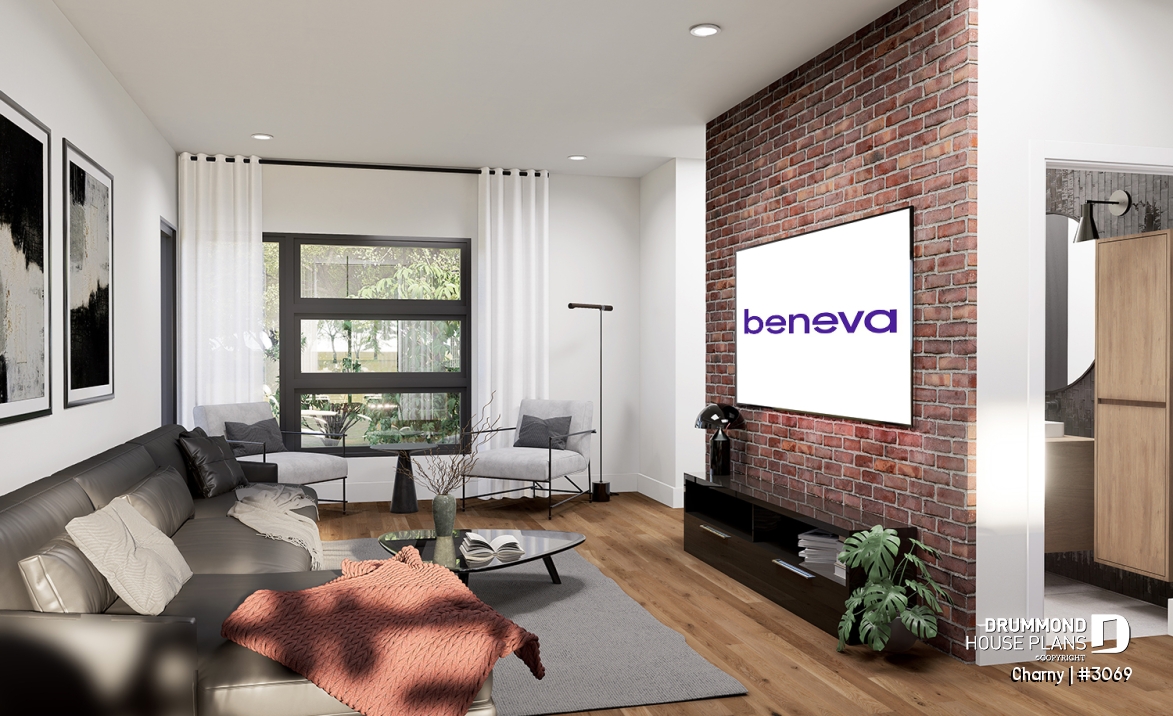

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan

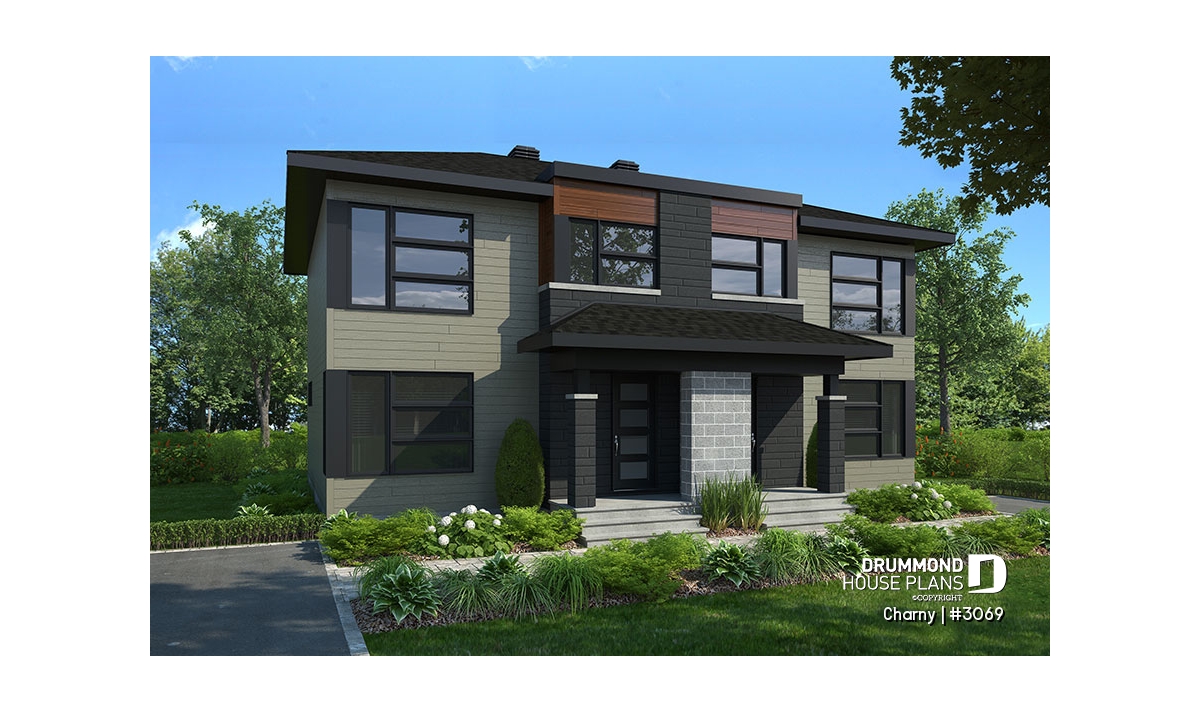

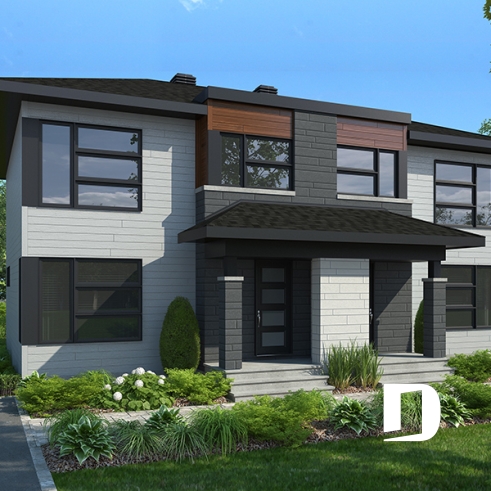

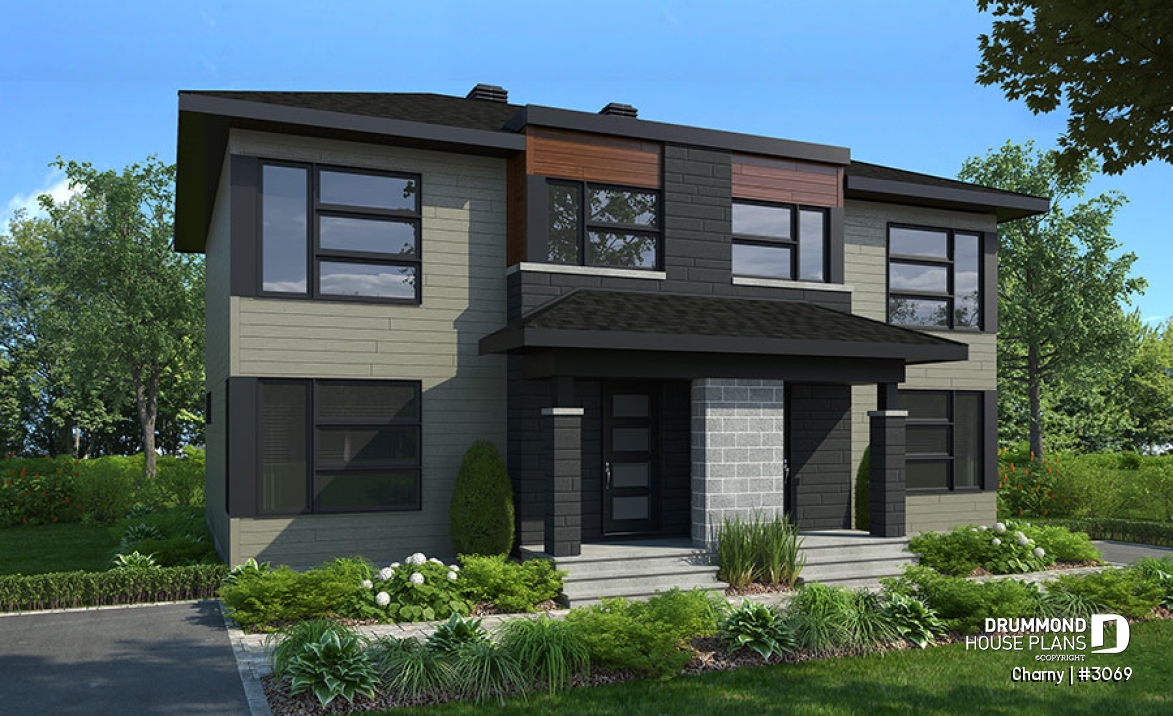

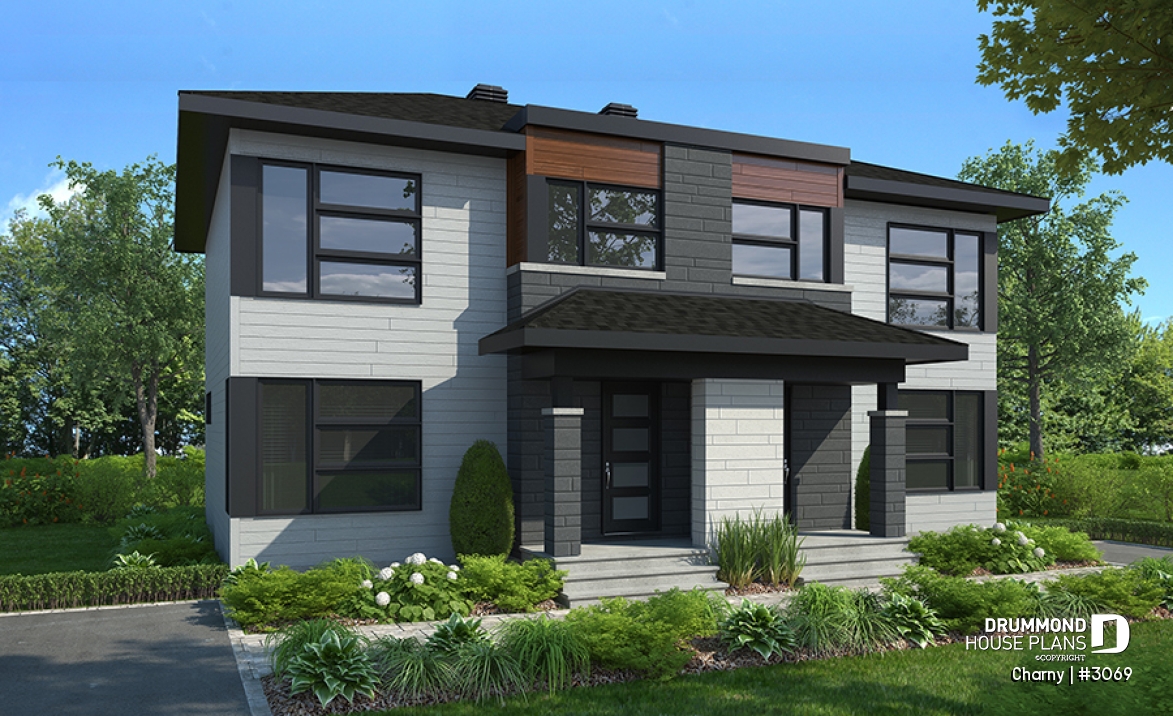

New modern two-storey duplex house plan with plenty of natural light and 3 to 4 beds per unit

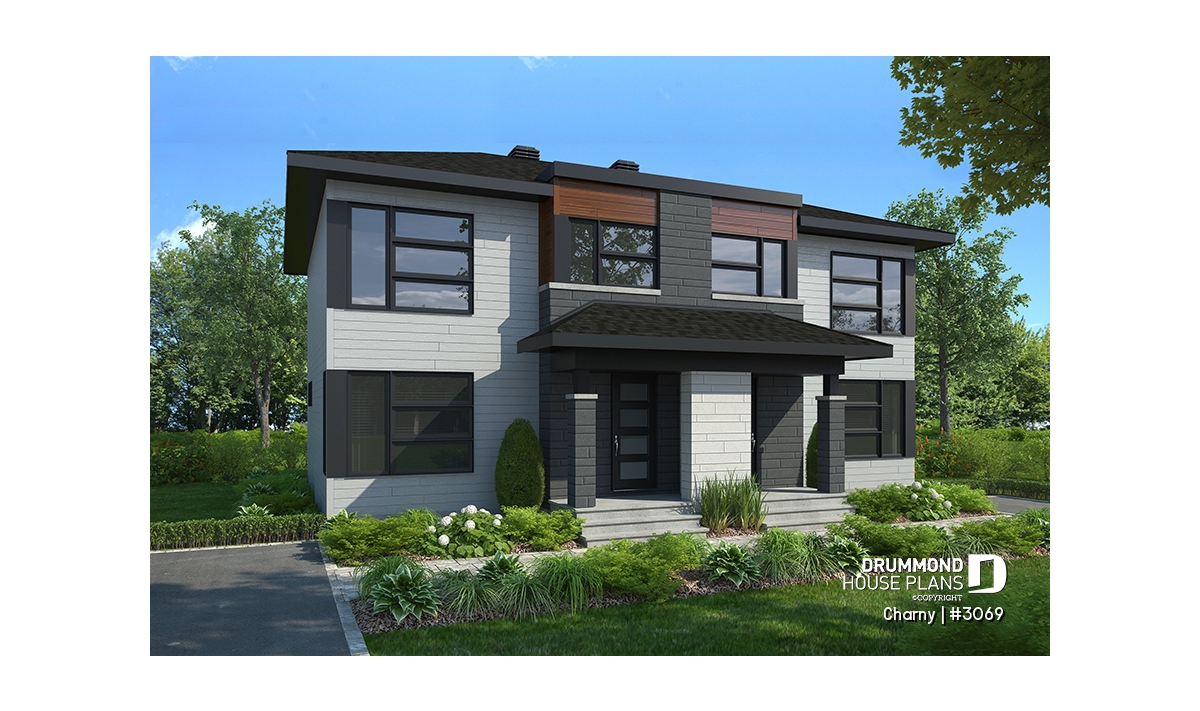

With its contemporary architecture, modern windows with original shapes and spacious and open floor plan, the new two-story duplex house plan # 3069 by Drummond House Plans, also named "Charny", will appeal to young families!

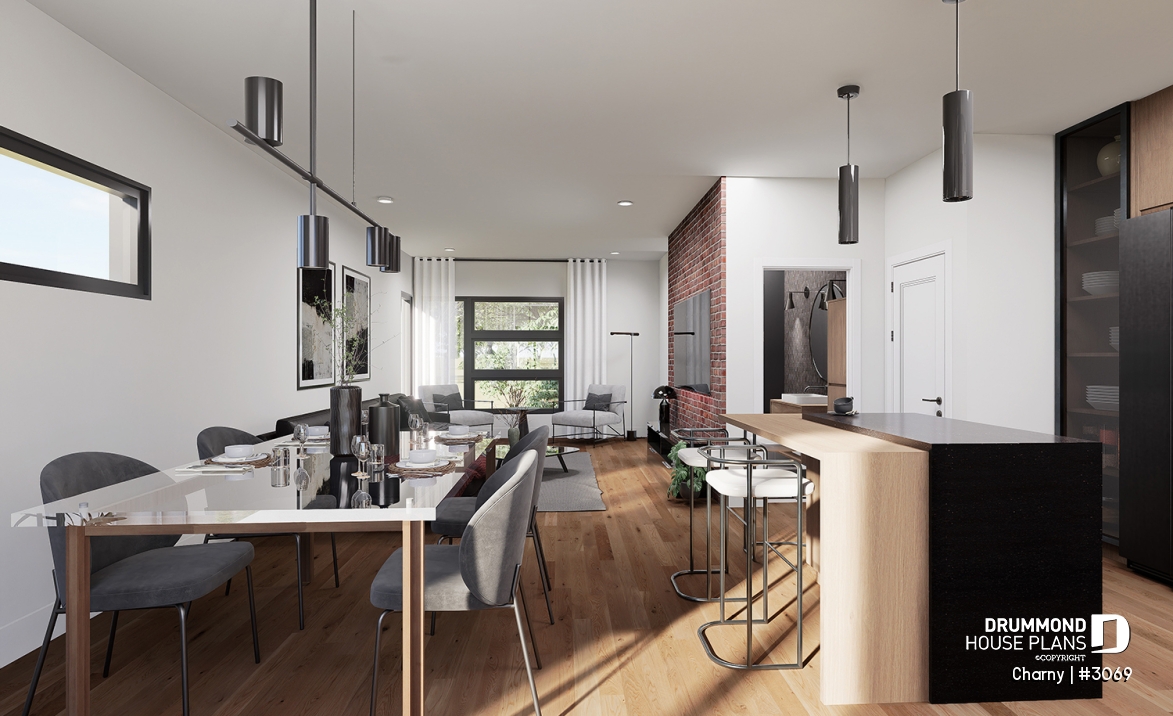

The sheltered balconies at the front, as well as a coat closet from the outset to comfort. The living room and the dining room are in open concept and receive a lot of natural light thanks to the size and the number of windows in this area. The kitchen has a central island and convenient pantry, and it adjoins a half bathroom. Access to the basement is located near the kitchen, and the laundry room is in the basement.
The three bedrooms are located upstairs, which is convenient for families with young children. The master bedroom has a walk-in closet. Two secondary rooms are of similar size and each have a closet. The family bathroom has a separate bath and shower. The plan comes with an unfinished daylight basement but many other foundation options are available through our modification dpt. Please call for information.
Distinctive elements
Trendy modern duplex plan.
Entrance with coat closet.
Half-bath on main floor.
Large kitchen with island & small pantry.
Open concept dining and living room.
Master bedroom with walk-in closet.
Separate bath and shower stall in second floor bathroom.
Unfinished daylight basement. Many foundation options are available, please call for information.
Plan feature(s)
Walk-in master bed., Open floor layout, Island, Builder
Plan architectural style(s)
. Contemporary, . Modern / Design, . Modern rustic
