3056-V1 (The Mallory 2 )

Contemporary duplex house plan, 2 or 3 bedroom option, ensuite, 2 kitchen options with large kitchen island

Bedrooms

5, 2, 6, 3

Bathroom(s)

2

Living area

3172 sq.ft.

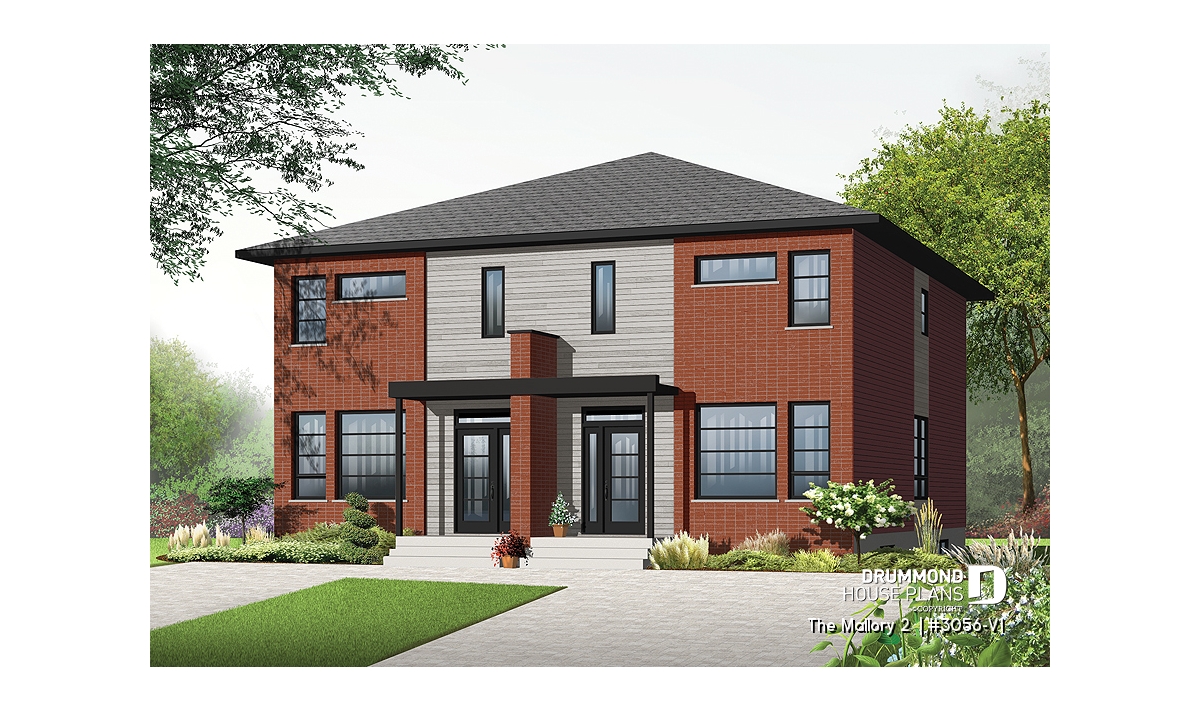

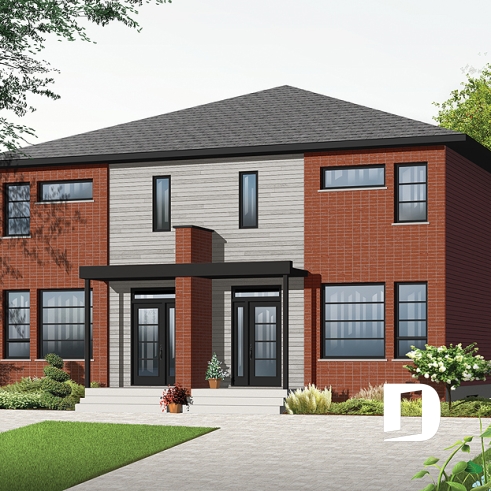

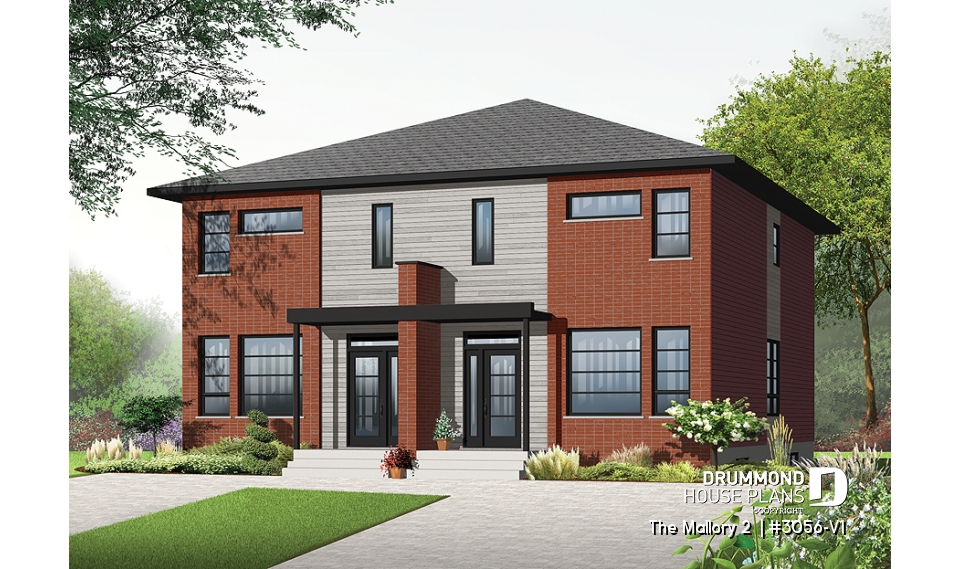

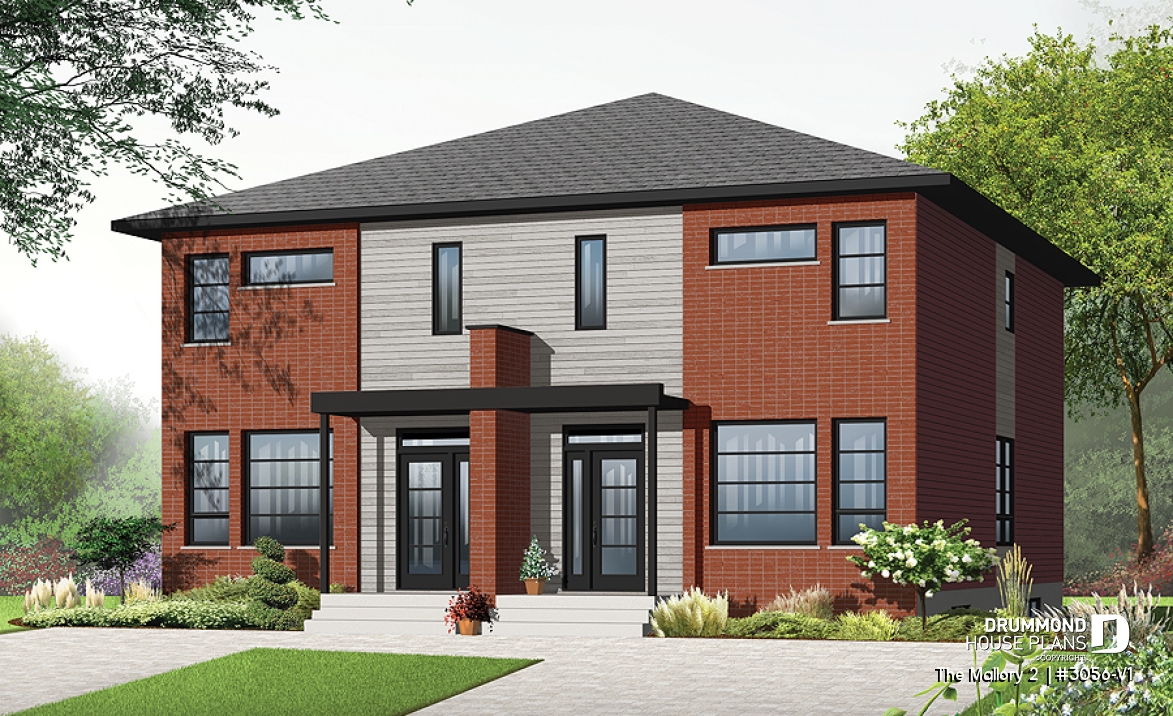

  • front - BASE MODEL - Contemporary duplex house plan, 2 or 3 bedroom option, ensuite, 2 kitchen options with large kitchen island - The Mallory 2

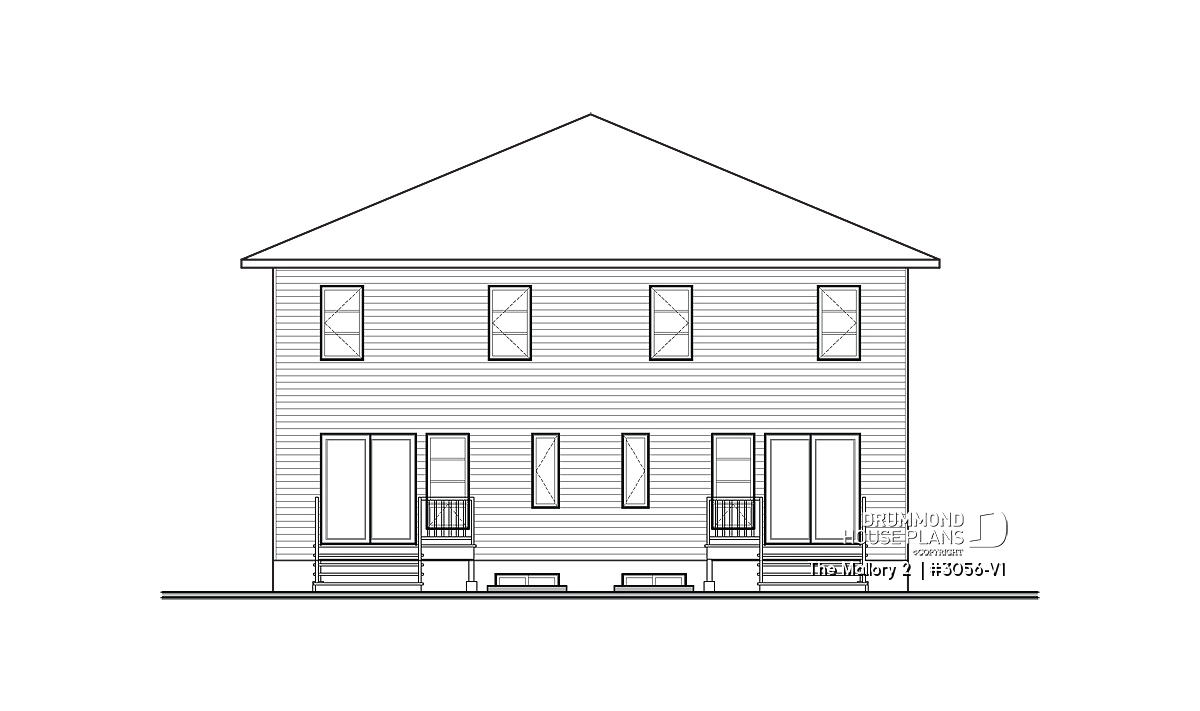

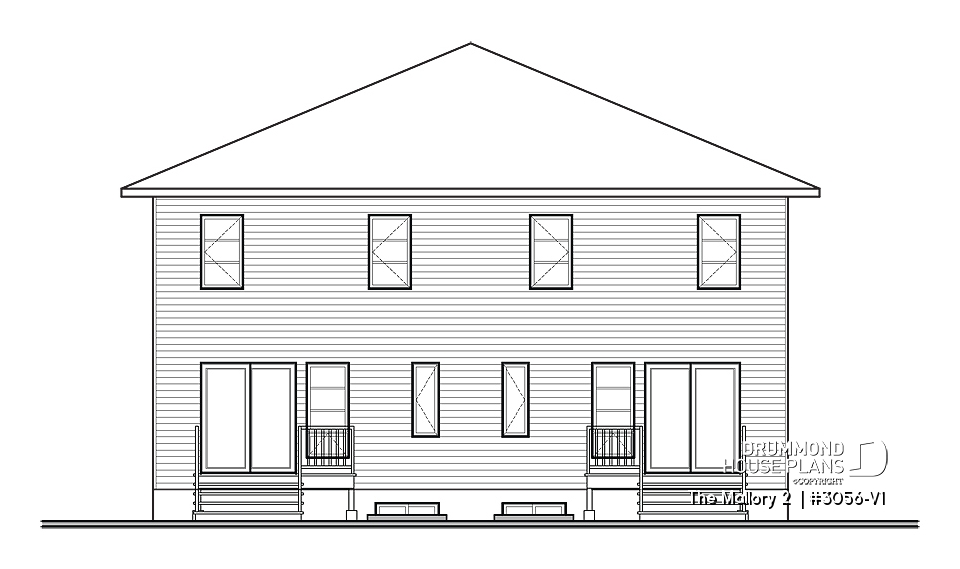

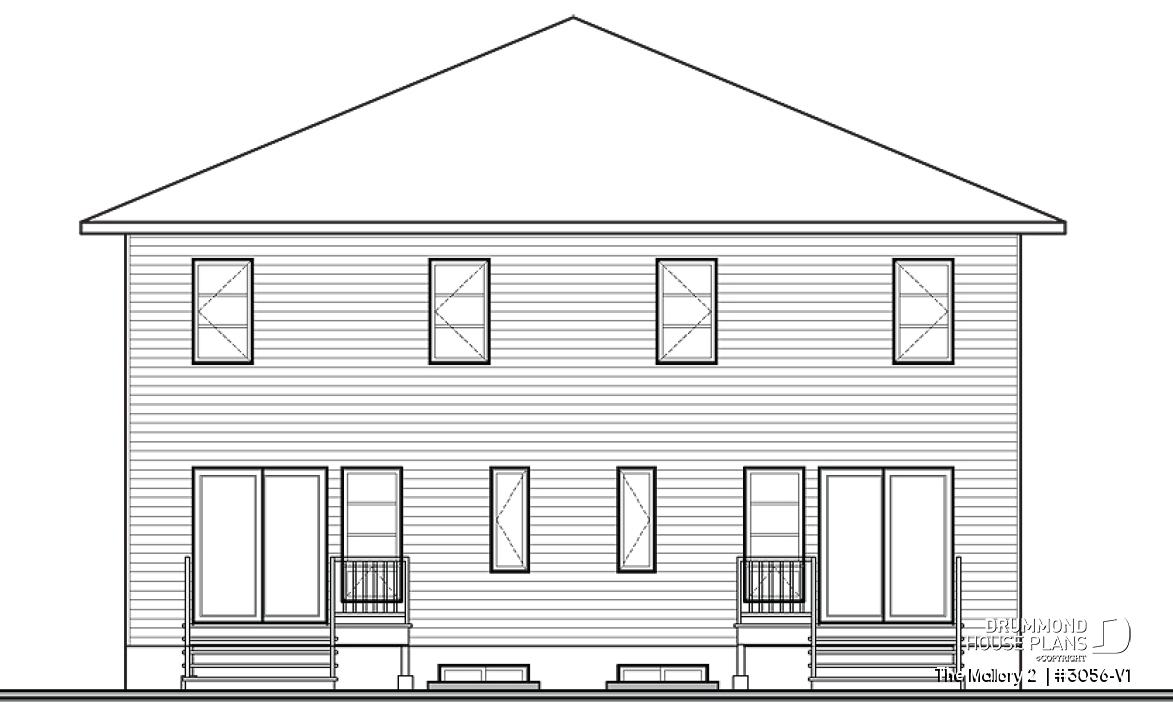

  • rear elevation - The Mallory 2

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 3056-V1
Vignette rear elevation - 3056-V1

View by floor

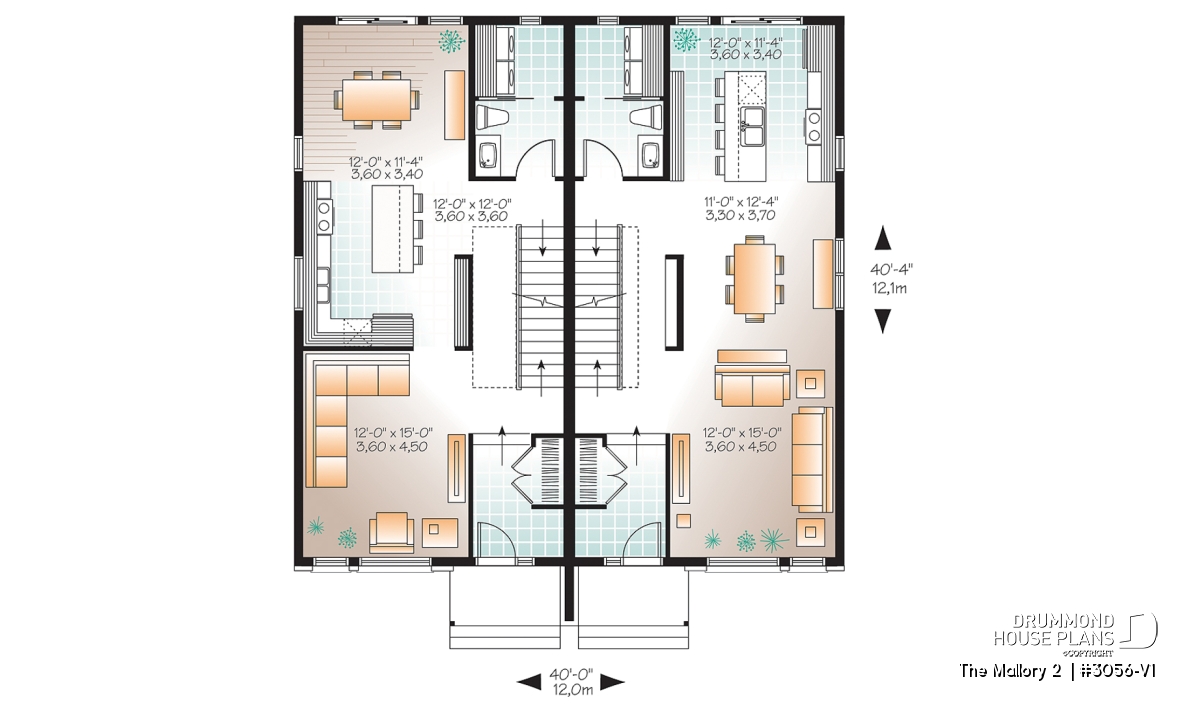

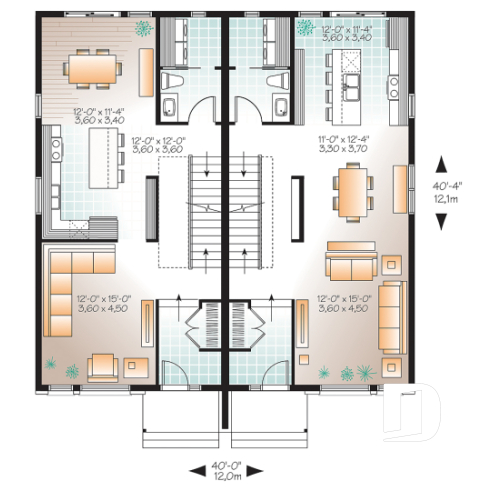

  • 1st level

    1st level - Contemporary duplex house plan, 2 or 3 bedroom option, ensuite, 2 kitchen options with large kitchen island - The Mallory 2

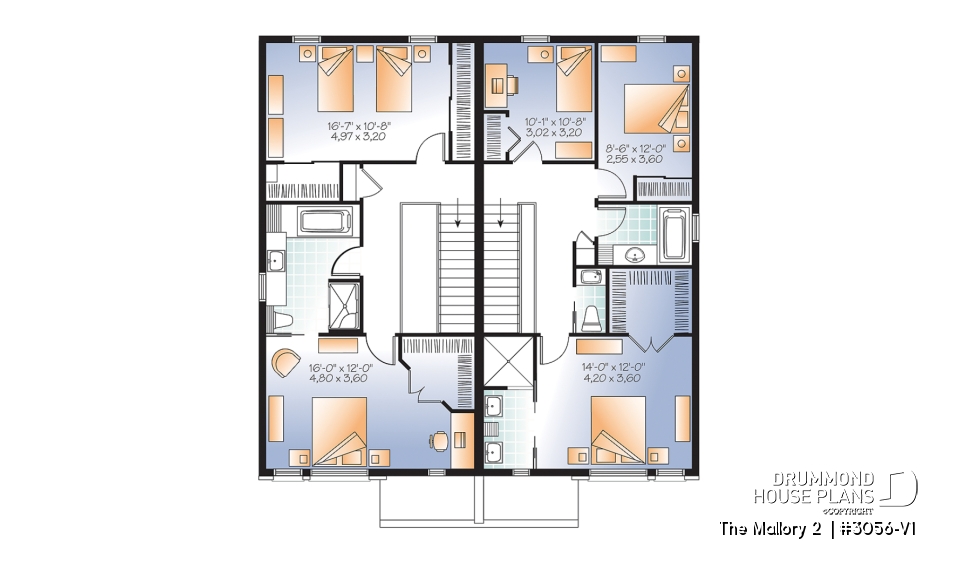

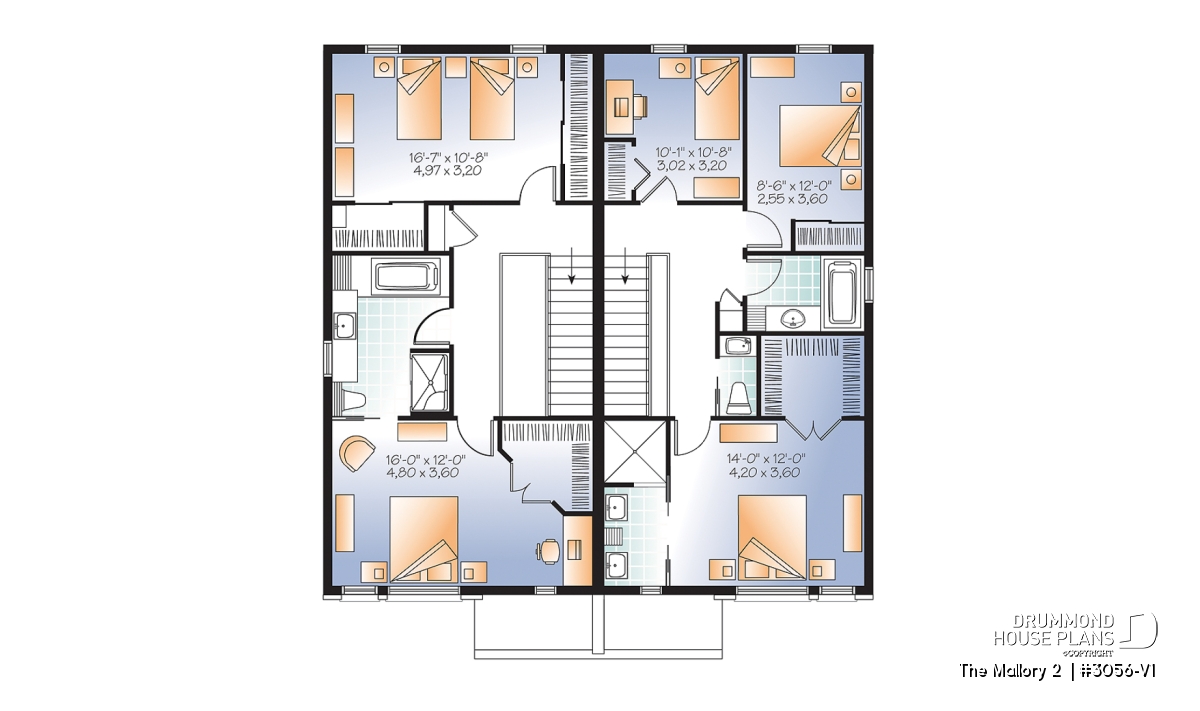

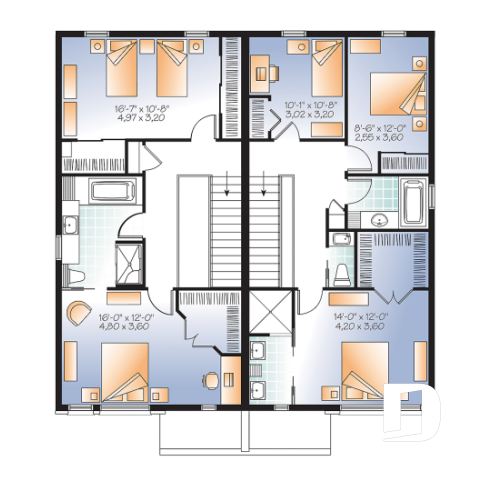

  • 2nd level

    2nd level - Contemporary duplex house plan, 2 or 3 bedroom option, ensuite, 2 kitchen options with large kitchen island - The Mallory 2
Vignette 1st level - 3056-V1
Vignette 2nd level - 3056-V1

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Living room 12'0" x 15'0" ~ 8'0"
Dining room 12'0" x 11'4" ~ 8'0"
Kitchen/dinette 12'0" x 12'0" ~ 8'0"
Pantry 1'0" x 8'0" ~ 0'0"
Powder/laundry room 6'3" x 11'0" ~ 8'0"
Foyer 6'5" x 9'0" ~ 9'5"
Dining room 11'0" x 12'4" ~ 8'0"
Kitchen/dinette 12'0" x 11'4" ~ 8'0"
Pantry 1'0" x 6'4" ~ 0'0"
Living room 12'0" x 15'0" ~ 8'0"
Powder/laundry room 6'3" x 11'0" ~ 8'0"
Foyer 6'5" x 9'0" ~ 9'5"
2nd level
Rooms Sizes Ceiling
Bedroom 16'0" x 12'0" ~ 8'0"
Walk-in closet 6'5" x 6'5" ~ 8'0"
Bedroom 8'6" x 12'0" ~ 8'0"
Closet 4'7" x 8'8" ~ 8'0"
Closet 5'0" x 2'0" ~ 8'0"
Full bathroom 8'6" x 11'8" ~ 8'0"
Linen 1'4" x 2'6" ~ 0'0"
Linen 1'4" x 2'6" ~ 0'0"
Bedroom 13'11" x 12'0" ~ 8'0"
Walk-in closet 7'6" x 5'10" ~ 8'0"
Shower room or three quarter bath 4'6" x 12'0" ~ 8'0"
Bedroom 16'5" x 10'8" ~ 8'0"
Walk-in closet 6'8" x 3'4" ~ 8'0"
Closet 2'0" x 10'8" ~ 8'0"
Bedroom 9'11" x 10'8" ~ 8'0"
Closet 2'0" x 4'3" ~ 8'0"
Linen 1'6" x 3'4" ~ 8'0"
Linen 1'8" x 1'10" ~ 8'0"
Bathroom 8'6" x 5'6" ~ 8'0"
Linen 1'4" x 1'10" ~ 0'0"
Powder room 2'8" x 5'10" ~ 8'0"

General specifications

Total living area 3172 sq.ft.
1st level 1613 sq.ft.
2nd level 1559 sq.ft.
Width 40'0"
Depth 40'4"
Ridge height from top of foundation 28'2"
Exterior wall
Foundation type included in the plan Full Basement
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code MD

Rooms specifications

Bedroom(s) 5, 2, 6, 3
Full baths 2
Half baths 3
Garage type -
Living bonus space -
Bonus storage -

Units specifications

Left unit Right unit
Total living area 3172 sq.ft. 3172 sq.ft.
1st level 806.8 sq.ft. 806.5 sq.ft.
2nd level 768 sq.ft. 791 sq.ft.
Width 20' 0" 20' 0"
Depth 40' 4" 40' 4"
Ridge height from top of foundation 28' 2" 28' 2"
Exterior wall
Foundation type Full Basement Full Basement
Bedroom(s) 2 3
Full baths 1 1
Half baths 1 2
Garage type - -
Living bonus space - -
Bonus storage - -
Find a builder

General specifications

Total living area 3172 sq.ft.
1st level 1613 sq.ft.
2nd level 1559 sq.ft.
Width 40'0"
Depth 40'4"
Ridge height from top of foundation 28'2"
Exterior wall
Foundation type included in the plan Full Basement i
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code MD

Rooms specifications

Bedroom(s) 5, 2, 6, 3
Full baths 2
Half baths 3
Garage type -
Living bonus space - i
Bonus storage - i

Units specifications

Left unit Right unit
Total living area 3172 sq.ft. 3172 sq.ft.
1st level 806.8 sq.ft. 806.5 sq.ft.
2nd level 768 sq.ft. 791 sq.ft.
Width 20' 0" 20' 0"
Depth 40' 4" 40' 4"
Ridge height from top of foundation 28' 2" 28' 2"
Exterior wall
Foundation type Full Basement Full Basement
Bedroom(s) 2 3
Full baths 1 1
Half baths 1 2
Garage type - -
Living bonus space - -
Bonus storage - -

Buy this plan

From : 1349$

Modify this plan

Get a quote

Description

1st level: Entry, living room, dining room, kitchen/dinette, guest bathroom, laundry. 2nd level - Unit A: Two bedrooms, bathroom Unit B: Master bedroom with shower room. Two additional bedrooms. Bathing room and toilet room. Unfinished basement. Many foundation options available.

Other useful information on this plan

Flexible & Functional Floorplans ...

Floorplan options abound with plans 3056 and 3056-V1. Strategic planning of openings allow interchangeable interiors using one of the four layouts. Investors who purchase both plans enjoy very interesting combinations of two or three bedroom units. The units could be built as proposed or easily modified.

This plan offers alternate main level layouts, each proposing a kitchen island, ample storage and abundant natural light. The living areas easily transition to backyard enjoyment. A guest bathroom and laundry complete the main floor amenities.

Upstairs, one unit includes a walk-in closet and semi-private bathroom access. A large second bedroom could easily be divided at the time of building or later on. The second unit master suite includes a walk-in closet, shower and dual vanity. A separate toilet room and bathing room provide privacy for family members. Additional living space or storage is available by developing the full basement.

Crisp, streamlined exteriors allow the budget to be spent on high-quality, low-maintenance materials for a timeless contemporary style.

Distinctive elements

Interiors that can be interchanged with a small adjustment to the stairwell. Contemporary floorplan with indoor/outdoor living, kitchen with island

Plan architectural style(s)

Contemporary, Modern / Design, Modern rustic

Other useful information on this plan

Full description

Flexible & Functional Floorplans ...

Floorplan options abound with plans 3056 and 3056-V1. Strategic planning of openings allow interchangeable interiors using one of the four layouts. Investors who purchase both plans enjoy very interesting combinations of two or three bedroom units. The units could be built as proposed or easily modified.

This plan offers alternate main level layouts, each proposing a kitchen island, ample storage and abundant natural light. The living areas easily transition to backyard enjoyment. A guest bathroom and laundry complete the main floor amenities.

Upstairs, one unit includes a walk-in closet and semi-private bathroom access. A large second bedroom could easily be divided at the time of building or later on. The second unit master suite includes a walk-in closet, shower and dual vanity. A separate toilet room and bathing room provide privacy for family members. Additional living space or storage is available by developing the full basement.

Crisp, streamlined exteriors allow the budget to be spent on high-quality, low-maintenance materials for a timeless contemporary style.

Distinctive elements

Interiors that can be interchanged with a small adjustment to the stairwell. Contemporary floorplan with indoor/outdoor living, kitchen with island

Plan architectural style(s)

Questions and comments on this plan

November 24 2014

David

Hi,

Do you do plans for Australian homes?

Regards
David

November 24 2014

Customer service

Good day and thank you for taking the time to write.

Although our plans meet or exceed North American construction standards there may be some differences with regards to construction in your specific area. To overcome this, you can order the plan of your choice in CAD format which is a modifiable version that can be customized to meet the requirements of your geographic location.

If the plan is purchased in electronic format, either PDF or CAD, there is no extra charge for shipping as it will be sent to you via Email.

Please let me know if you have any other questions or comments
Regards
Deb

March 20 2012

Adla Itorcheak

Can some of the plans like W 3056 V1 be converted to structural insulated panel structure? SIP floor, SIP wall and SIP roof; also if the house can be configured for post and pier foundation?

March 20 2012

Customer service

Good day and thank you for your interest in our plans.

The modification that you have in mind can be done. If you fill in the modification check list, for which I have attached the link below, our trained staff will be in touch with you within 2 business days to give you a free estimate for this change.

http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form.html

Please let me know if I can be of further assistance.

Regards

Deborah

Questions and comments

November 24 2014

David

Hi,

Do you do plans for Australian homes?

Regards
David

November 24 2014

Customer service

Good day and thank you for taking the time to write.

Although our plans meet or exceed North American construction standards there may be some differences with regards to construction in your specific area. To overcome this, you can order the plan of your choice in CAD format which is a modifiable version that can be customized to meet the requirements of your geographic location.

If the plan is purchased in electronic format, either PDF or CAD, there is no extra charge for shipping as it will be sent to you via Email.

Please let me know if you have any other questions or comments
Regards
Deb

March 20 2012

Adla Itorcheak

Can some of the plans like W 3056 V1 be converted to structural insulated panel structure? SIP floor, SIP wall and SIP roof; also if the house can be configured for post and pier foundation?

March 20 2012

Customer service

Good day and thank you for your interest in our plans.

The modification that you have in mind can be done. If you fill in the modification check list, for which I have attached the link below, our trained staff will be in touch with you within 2 business days to give you a free estimate for this change.

http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form.html

Please let me know if I can be of further assistance.

Regards

Deborah
