House plan Belisle (3004)
Two-storey, 3 bedroom semi-detached, duplex house plan, laundry room on main, master with walk-in
View the size of the rooms and height of the ceilings

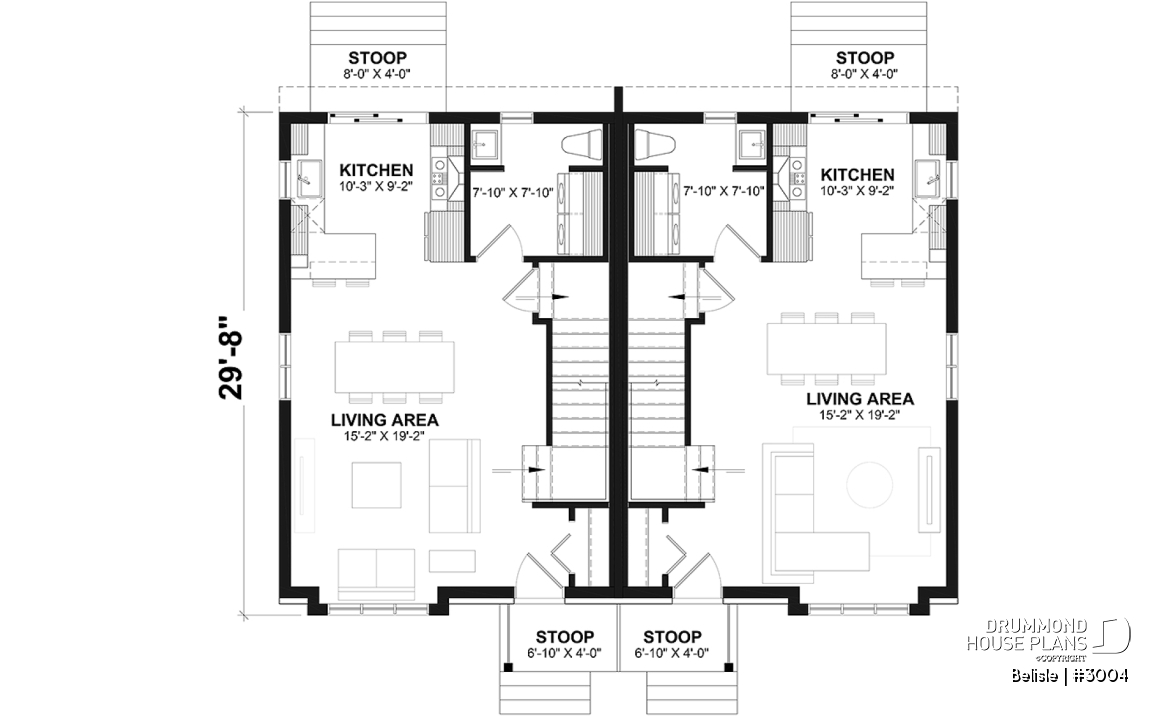

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 15'2" x 10'0" | ~ 8'0" |
| Living room | 15'2" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 4'2" | ~ 8'0" |
| Porch | 7'0" x 4'0" | N/A |
| Deck | 8'0" x 4'0" | N/A |
| Powder/laundry room | 7'10" x 7'10" | ~ 8'0" |
| Kitchen | 10'3" x 9'2" | ~ 8'0" |
| Pantry | 2'0" x 1'4" | N/A |
| Kitchen | 10'3" x 9'2" | ~ 8'0" |
| Pantry | 2'0" x 1'4" | N/A |
| Powder/laundry room | 7'10" x 7'10" | ~ 8'0" |
| Porch | 7'0" x 4'0" | N/A |
| Dining room | 15'2" x 10'0" | ~ 8'0" |
| Living room | 15'2" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 4'2" | ~ 8'0" |
| Deck | 8'0" x 4'0" | N/A |

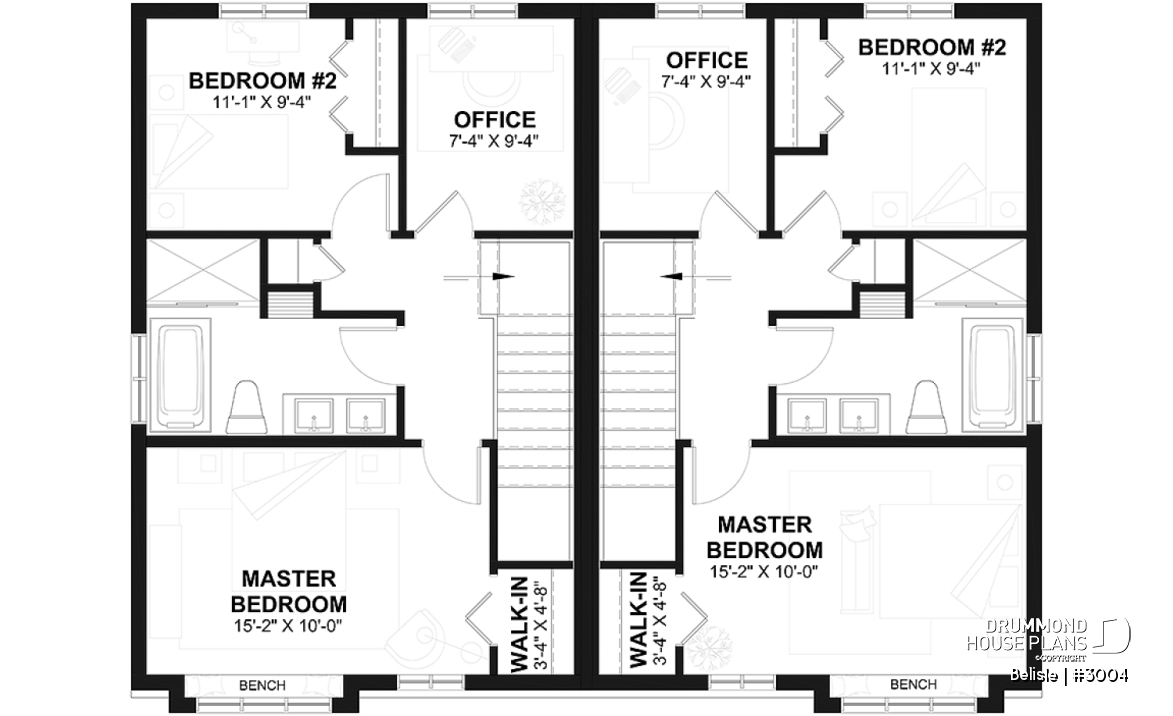

| 2nd level | ||
|---|---|---|

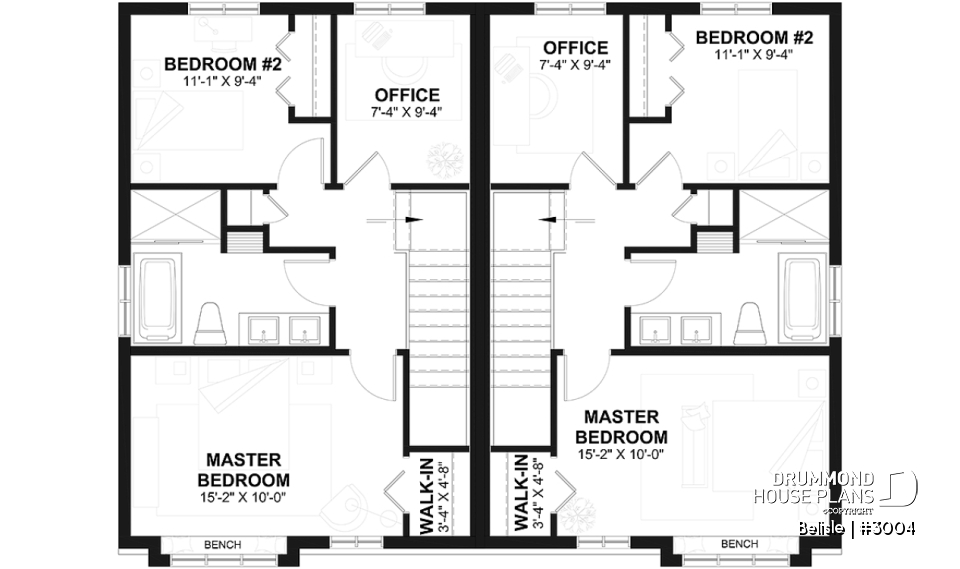

| Rooms | Sizes | Ceiling |
| Bedroom | 15'2" x 10'0" | ~ 8'0" |
| Bedroom | 11'1" x 9'4" | ~ 8'0" |
| Full bathroom | 11'0" x 8'10" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Bedroom | 15'2" x 10'0" | ~ 8'0" |
| Walk-in closet | 3'5" x 7'1" | ~ 8'0" |
| Bedroom | 11'1" x 9'4" | ~ 8'0" |
| Closet | 3'4" x 2'4" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Full bathroom | 11'0" x 8'10" | ~ 8'0" |
| Home office | 7'4" x 9'4" | ~ 8'0" |
| Home office | 7'4" x 9'4" | ~ 8'0" |

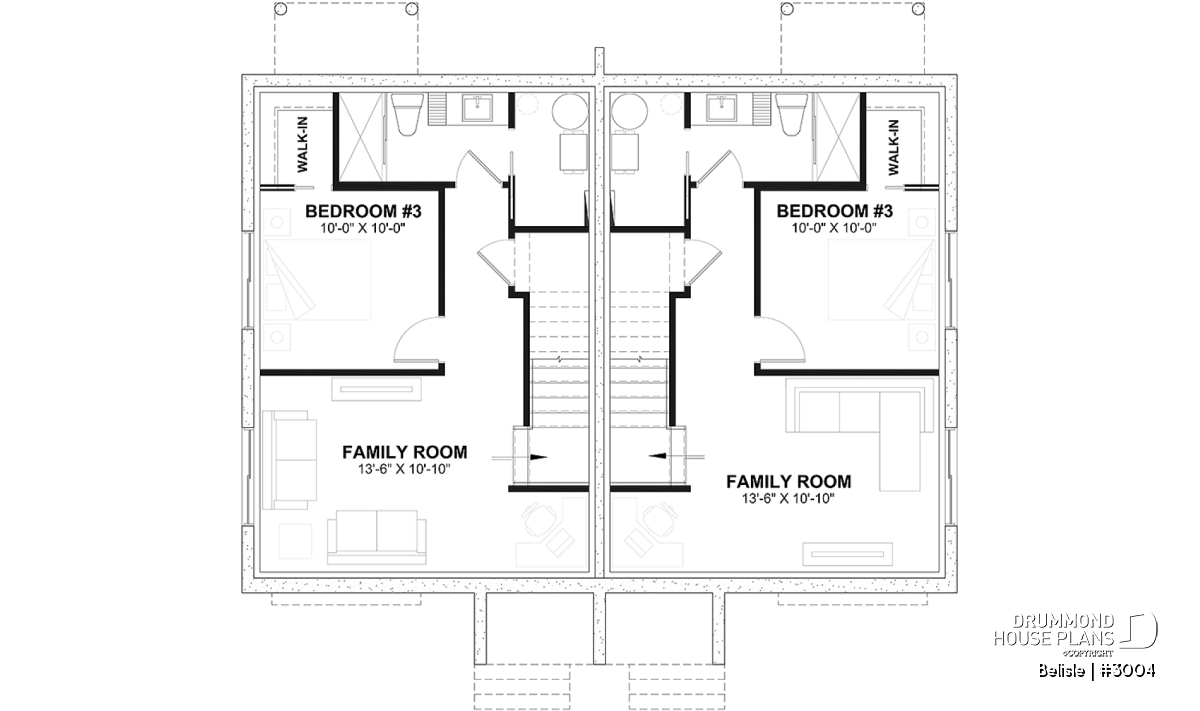

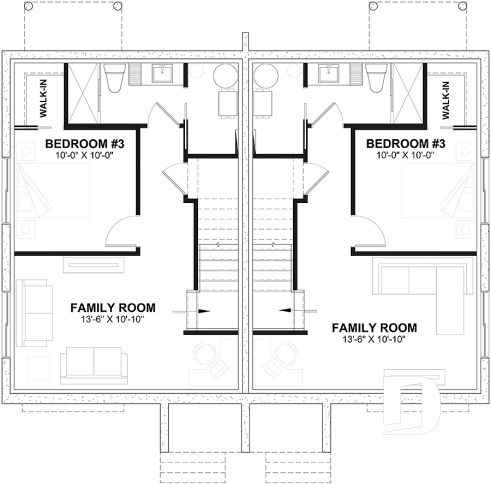

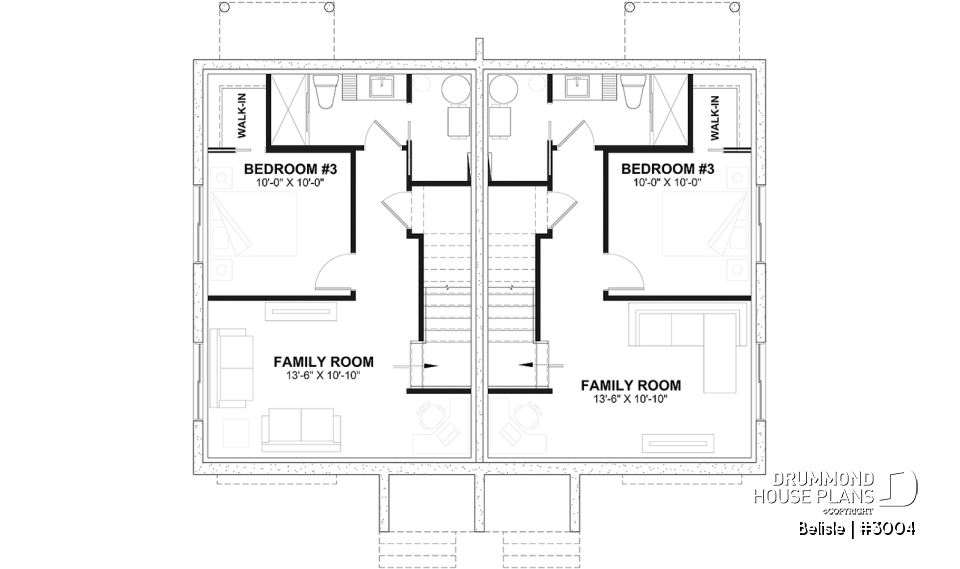

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Walk-in closet | 4'0" x 5'2" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Walk-in closet | 4'0" x 5'2" | ~ 8'0" |
| Bathroom | 9'8" x 5'0" | ~ 8'0" |
| Bathroom | 9'8" x 5'0" | ~ 8'0" |
| Great room or Family room | 13'6" x 10'10" | ~ 8'0" |
| Great room or Family room | 13'6" x 10'10" | ~ 8'0" |
General specifications
| Total living area | 3570 sq.ft. |
| 1st level | 1172 sq.ft. |
| 2nd level | 1226 sq.ft. |
| Basement | 1172 sq.ft. |
| Width | 40'0" |
| Depth | 29'8" |
| Ridge height from top of foundation | 27'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Other available foundations (a fee may apply) | Unfinished Basement, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | ME |
Rooms specifications
| Bedroom(s) | 3, 4 |
| Full baths | 2 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 56 sq.ft. |
Units specifications
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Utility room/laundry room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Modern 3+ bedroom, 2.5 bathroom semi-detached house plan
.
Plan feature(s)
Gound floor laundry room, Panoramic view, Walk-in master bed., Separate bath and shower, Builder
Plan architectural style(s)
. Contemporary, . Traditional, . Country, . Modern rustic, . Modern / Design, . Transitional, . Mountain
Similar plans
Previously Viewed Plans
