House plan The Mallory (3056)
Modern duplex plan, 3 bedrooms per unit, laundry room on main floor, master suite, open concept
View the size of the rooms and height of the ceilings

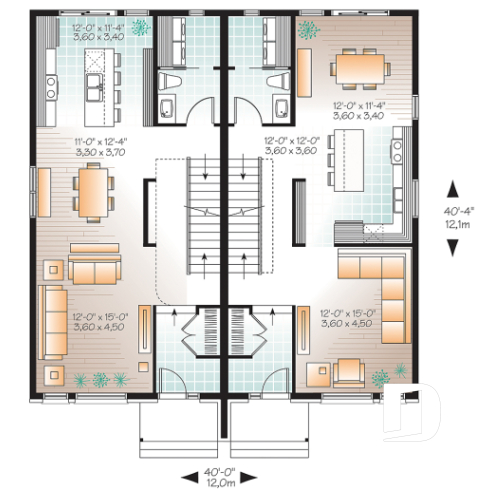

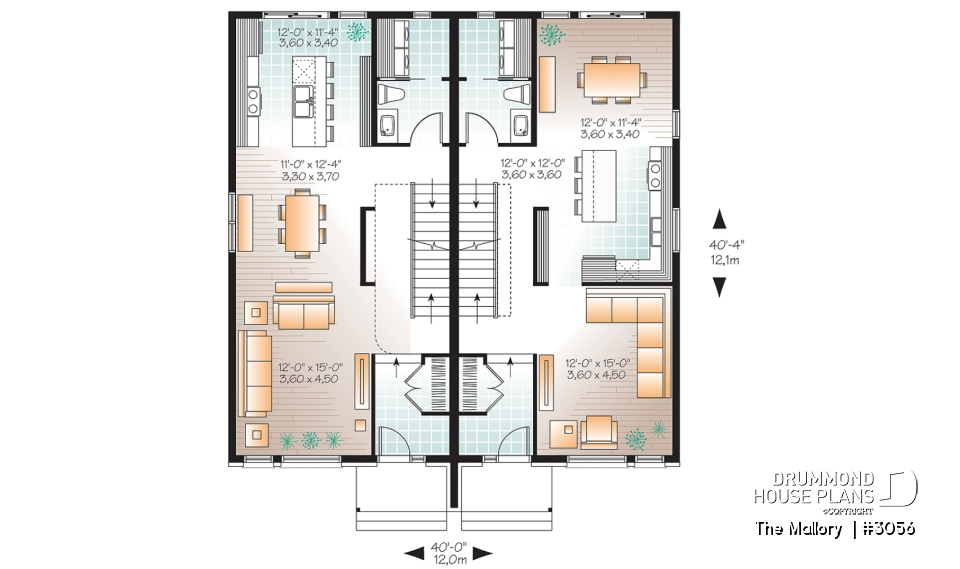

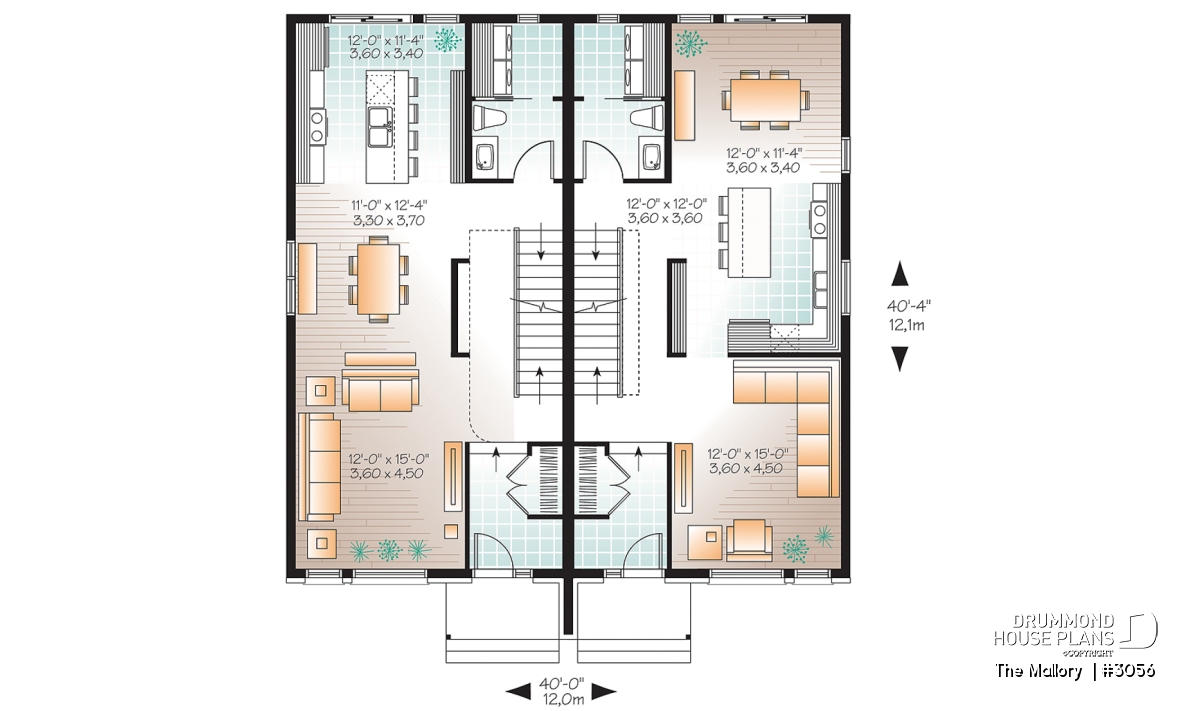

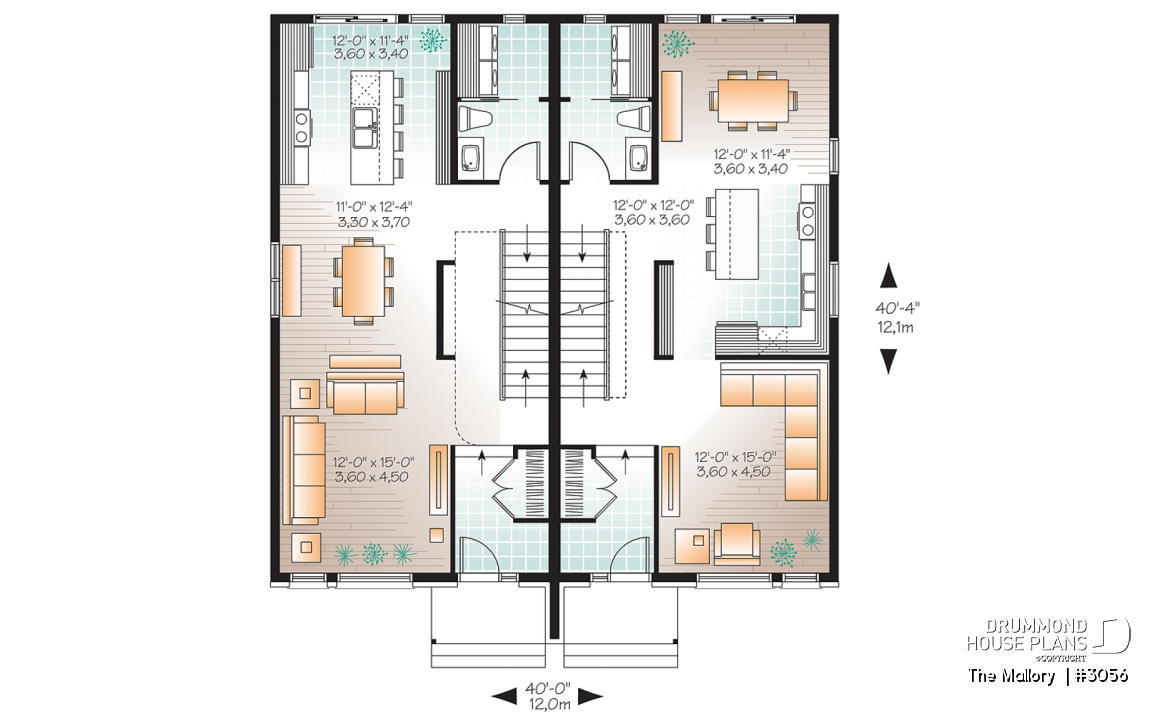

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 6'7" x 9'0" | ~ 9'5" |
| Closet | 2'2" x 4'10" | ~ 9'5" |
| Living room | 12'0" x 15'0" | ~ 8'0" |
| Dining room | 11'0" x 12'4" | ~ 8'0" |
| Kitchen/dinette | 12'0" x 11'4" | ~ 8'0" |
| Pantry | 1'0" x 8'0" | N/A |
| Powder/laundry room | 6'5" x 11'0" | ~ 8'0" |
| Foyer | 6'7" x 9'0" | ~ 9'5" |
| Dining room | 12'0" x 11'4" | ~ 8'0" |
| Kitchen/dinette | 12'0" x 12'0" | ~ 8'0" |
| Pantry | 1'0" x 6'4" | N/A |
| Living room | 12'0" x 15'0" | ~ 8'0" |
| Powder/laundry room | 6'5" x 11'0" | ~ 8'0" |

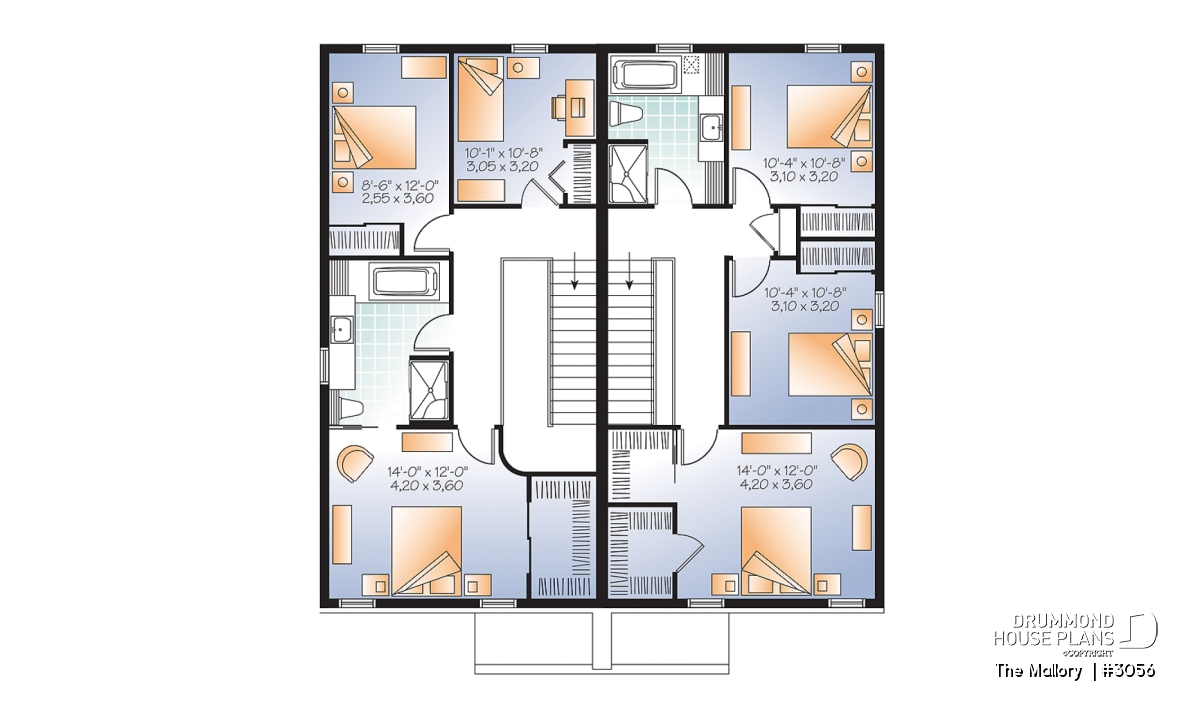

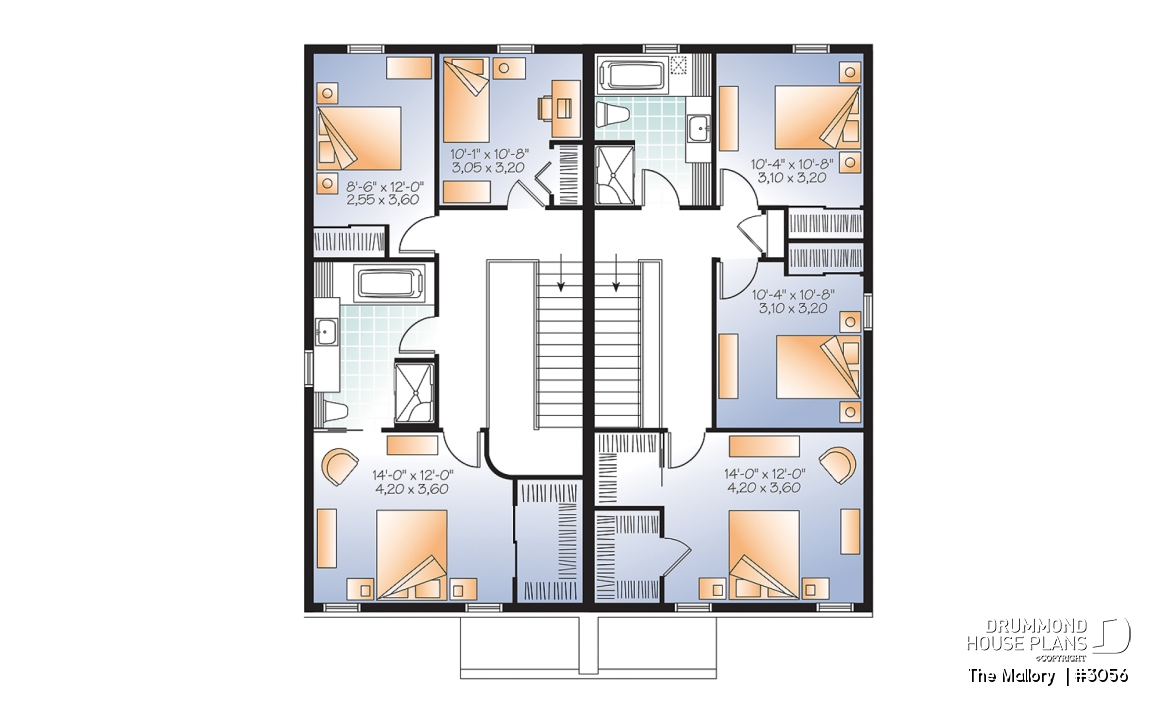

| 2nd level | ||
|---|---|---|

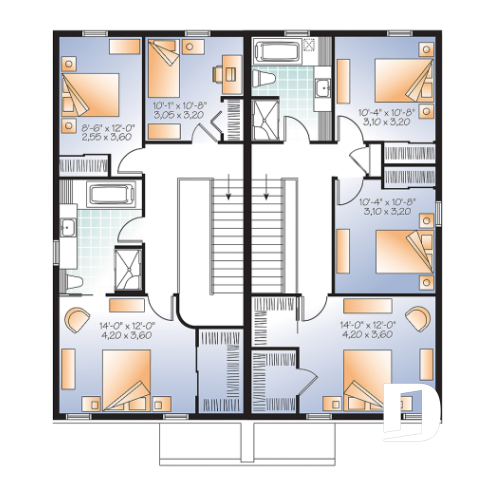

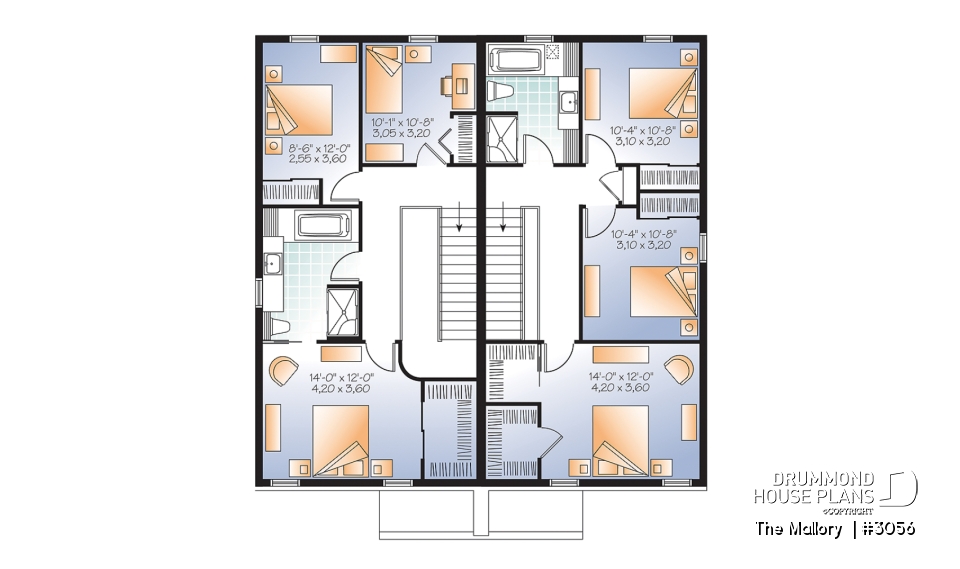

| Rooms | Sizes | Ceiling |
| Bedroom | 14'0" x 12'0" | ~ 8'0" |
| Closet | 4'7" x 8'8" | ~ 8'0" |
| Walk-in closet | 6'7" x 9'0" | ~ 9'5" |
| Bedroom | 8'6" x 12'0" | ~ 8'0" |
| Pantry | 5'0" x 2'0" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Bedroom | 10'1" x 10'8" | ~ 8'0" |
| Closet | 2'0" x 4'3" | ~ 8'0" |
| Full bathroom | 8'6" x 11'8" | ~ 8'0" |
| Linen | 1'4" x 2'6" | N/A |
| Bedroom | 14'0" x 12'0" | ~ 8'0" |
| Walk-in closet | 4'7" x 6'6" | ~ 8'0" |
| Walk-in closet | 4'7" x 5'2" | ~ 8'0" |
| Bedroom | 10'4" x 10'8" | ~ 8'0" |
| Closet | 5'3" x 2'0" | ~ 8'0" |
| Bedroom | 10'4" x 10'8" | ~ 8'0" |
| Closet | 5'3" x 2'0" | ~ 8'0" |
| Full bathroom | 8'3" x 10'8" | ~ 8'0" |
| Linen | 1'4" x 3'0" | N/A |
| Linen | 1'4" x 3'0" | N/A |
| Linen | 1'3" x 3'4" | ~ 8'0" |
General specifications
| Total living area | 3151 sq.ft. |
| 1st level | 1613 sq.ft. |
| 2nd level | 1538 sq.ft. |
| Width | 40'0" |
| Depth | 40'4" |
| Ridge height from top of foundation | 28'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MD |
Rooms specifications
| Bedroom(s) | 3 |
| Full baths | 1 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | - |
Units specifications

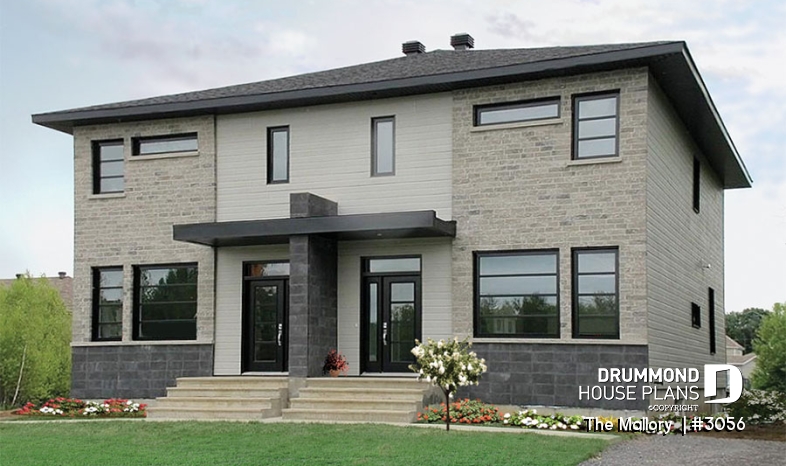

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
2-story Modern duplex plan with 3 bedrooms per unit
Floorplan options abound with plans 3056 and 3056-V1. Strategic planning of openings allow interchangeable interiors using one of the four layouts. Investors who purchase both plans enjoy very interesting combinations of two or three bedroom units. The units could be built as proposed or easily modified.
This plan offers alternate main level layouts, each proposing a kitchen island, ample storage and abundant natural light. The living areas easily transition to backyard enjoyment. A guest bathroom and laundry complete the main floor amenities.
Upstairs, one unit includes his and hers walk-in closets. The other unit features a semi-private bathroom access from the master bedroom. to the family bathroom. Additional living space or storage is available by developing the full basement.
Crisp, streamlined exteriors allow the budget to be spent on high-quality, low-maintenance materials for a timeless contemporary style.
Distinctive elements
Alternate Interior layouts. Indoor/outdoor lifestyle achieved with contemporary floorplan. Each kitchen appointed with island.
Plan feature(s)
Gound floor laundry room, Island, Entrance hall, Open floor layout, Separate bath and shower, Built-ins, Coffee bar, His/Hers walk-in, Walk-in master bed.
