House plan Monticello (3002)

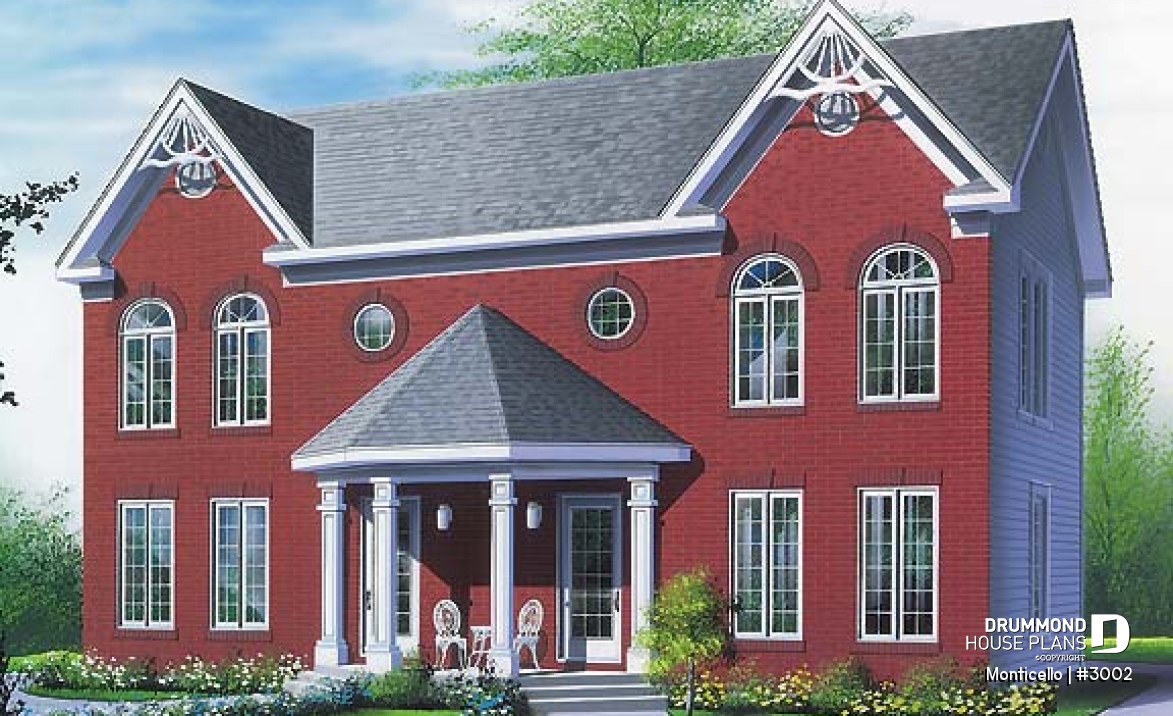

2-story semi-detached house plan, 2 to 3 bedrooms and 2 bathrooms per unit, open floor plan concept
View the size of the rooms and height of the ceilings

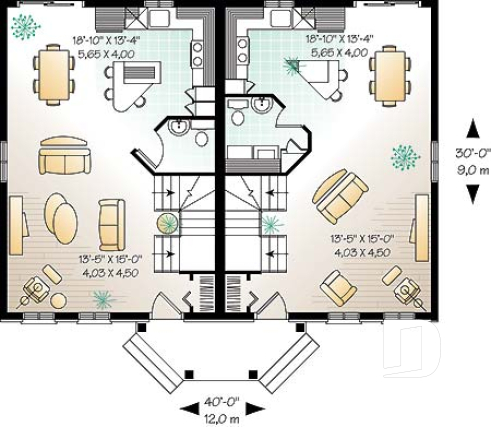

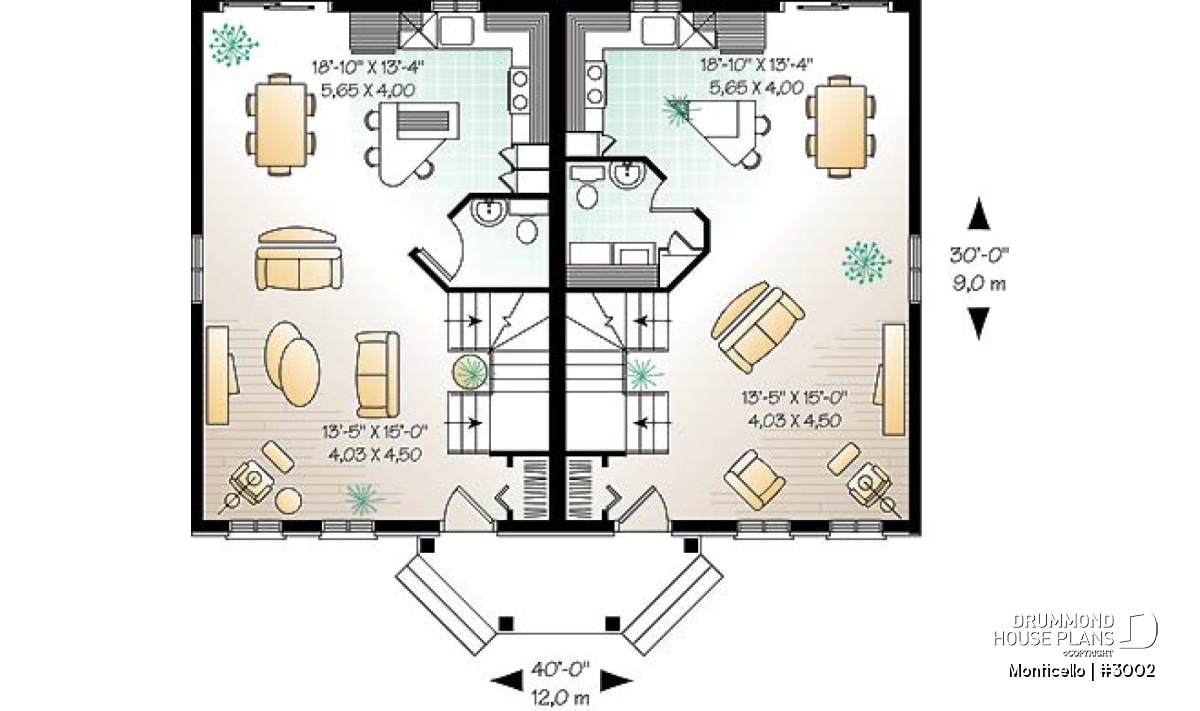

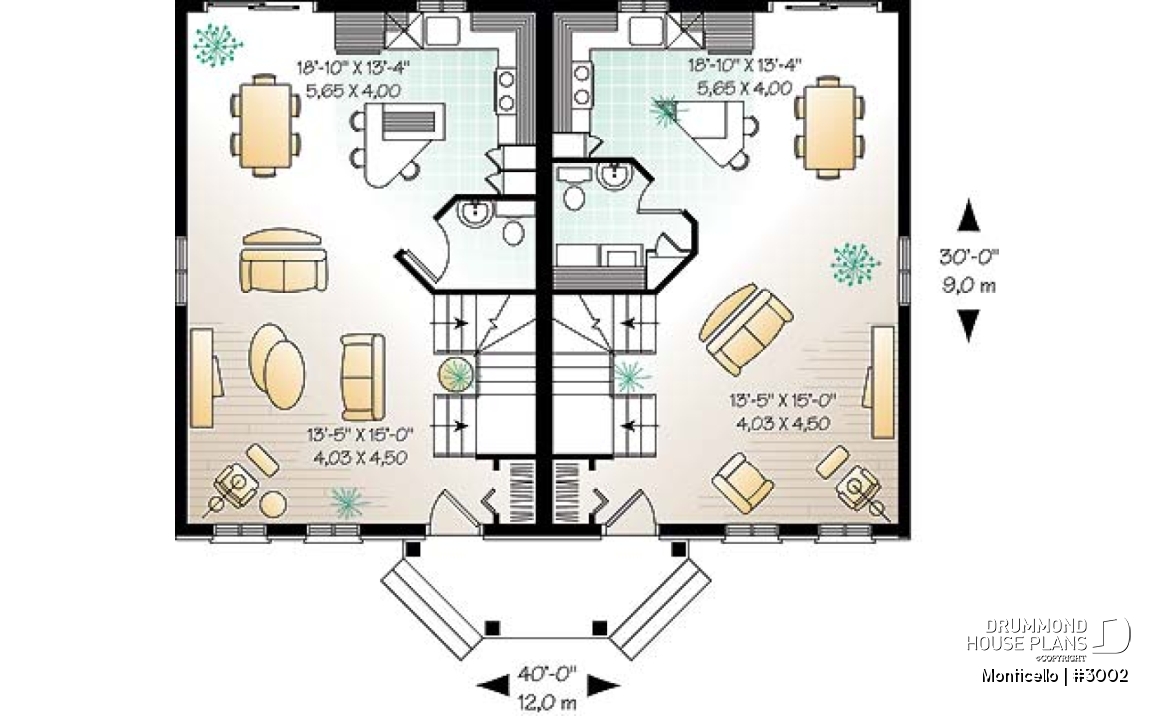

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dining room | 18'9" x 13'4" | ~ 8'0" |
| Pantry | 2'0" x 2'7" | N/A |
| Living room | 13'2" x 15'0" | ~ 8'0" |
| Covered porch | 15'6" x 5'0" | N/A |
| Deck | 9'4" x 5'0" | N/A |
| Half bath or powder room | 5'4" x 4'10" | ~ 8'0" |
| Powder/laundry room | 7'6" x 6'9" | ~ 8'0" |
| Living room | 13'2" x 15'0" | ~ 8'0" |
| Foyer | 3'2" x 3'8" | ~ 8'0" |
| Closet | 2'0" x 3'8" | ~ 8'0" |
| Kitchen/dining room | 18'9" x 13'4" | ~ 8'0" |
| Pantry | 2'0" x 1'2" | N/A |
| Foyer | 3'2" x 3'8" | ~ 8'0" |
| Closet | 2'0" x 3'8" | ~ 8'0" |
| Deck | 9'4" x 5'0" | N/A |

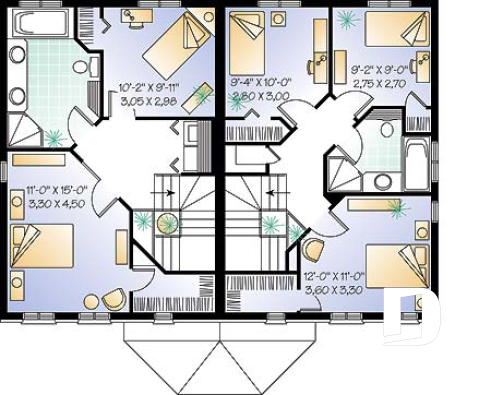

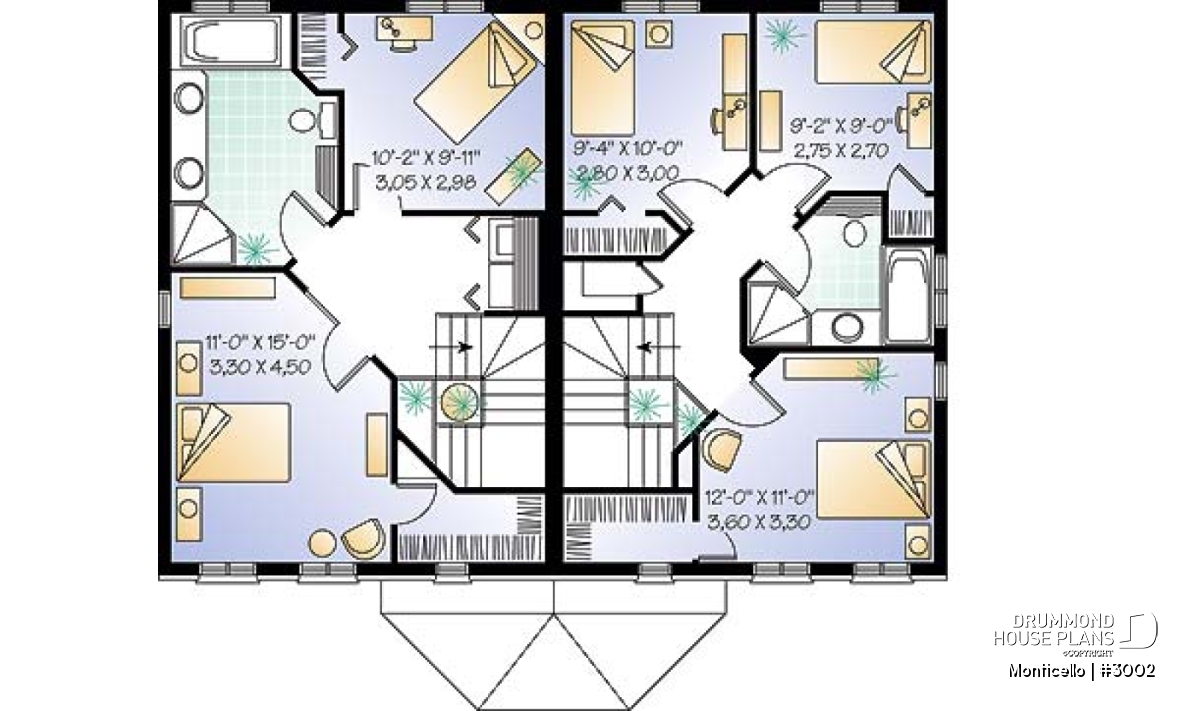

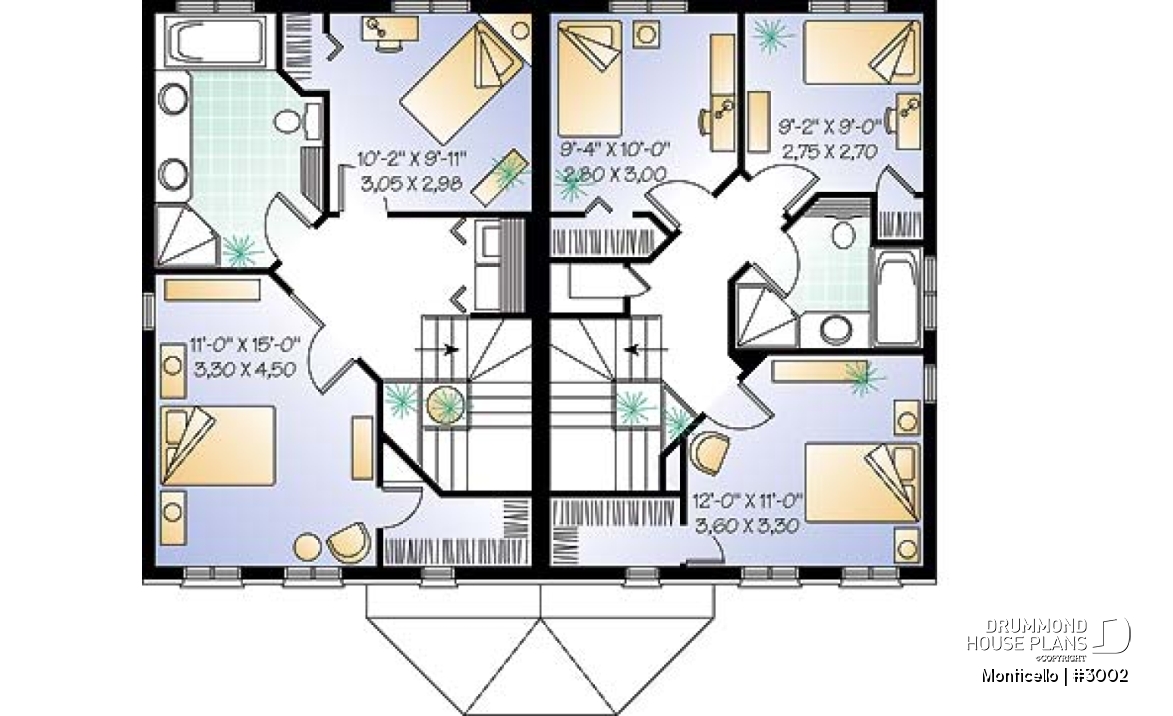

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'4" x 13'0" | ~ 8'0" |
| Bedroom | 11'0" x 15'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'0" | ~ 8'0" |
| Laundry room | 3'0" x 5'0" | ~ 8'0" |
| Bedroom | 10'1" x 9'11" | ~ 8'0" |
| Bedroom | 9'3" x 10'0" | ~ 8'0" |
| Bedroom | 9'2" x 9'0" | ~ 8'0" |
| Full bathroom | 9'8" x 7'6" | ~ 8'0" |
| Storage | 3'7" x 2'8" | ~ 8'0" |
General specifications
| Total living area | 2400 sq.ft. |
| 1st level | 1200 sq.ft. |
| 2nd level | 1200 sq.ft. |
| Width | 40'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 29'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MB |
Rooms specifications
| Bedroom(s) | 2, 3 |
| Full baths | 1 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 78 sq.ft. |
Units specifications
Other useful information on this plan
2 to 3 bedroom, 2-story semi-detached house plan with open floor plan concept
.
Distinctive elements
2 to 3 bedroom, 2-story semi-detached house plan.
Half bath with laundry area, on right unit.
Kitchen with island and patio doors.
Walk-in closet in master bedroom.
Special fenestration.
Covered front stoop.
Unfinished basement. Other foundation options available.
Plan feature(s)
Island, Gound floor laundry room, Walk-in master bed., Open floor layout, Panoramic view, Separate bath and shower
