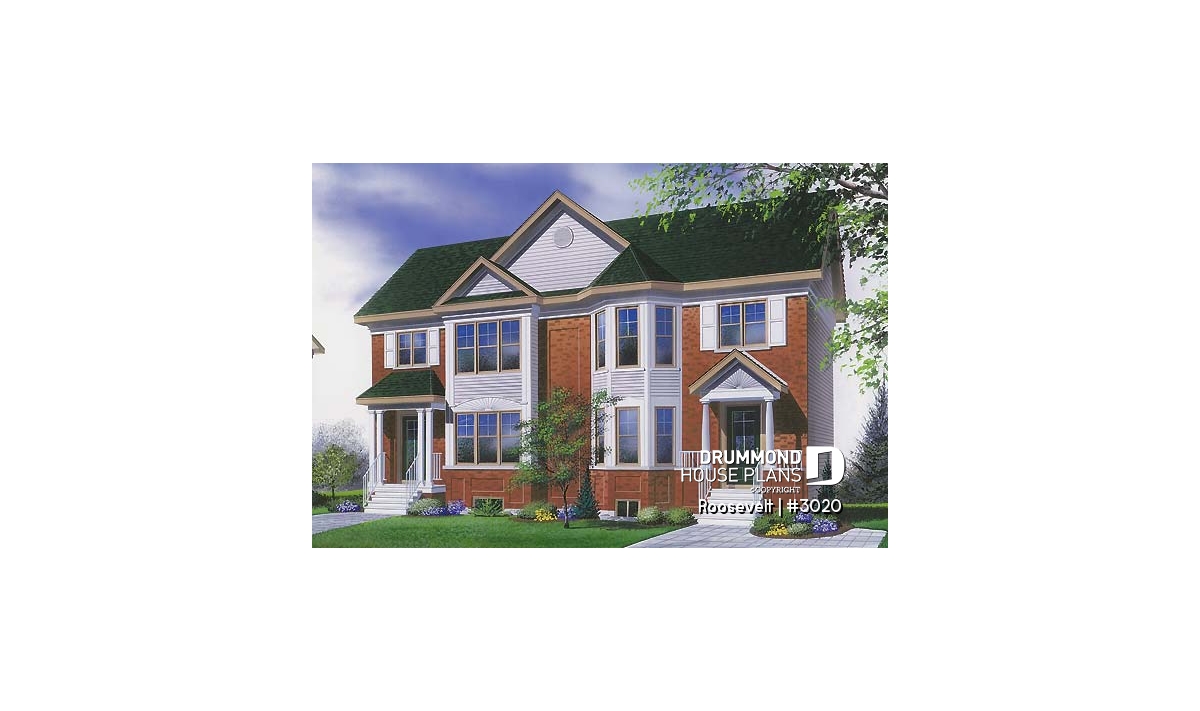

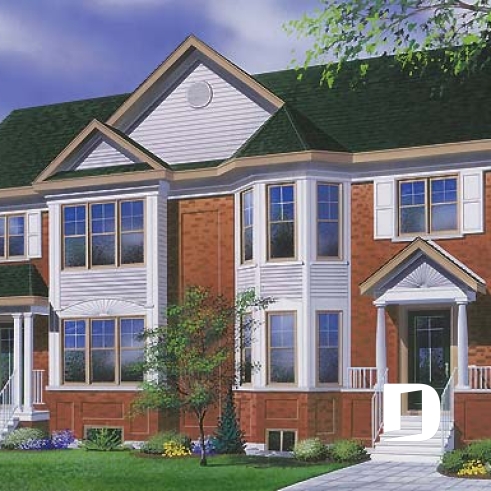

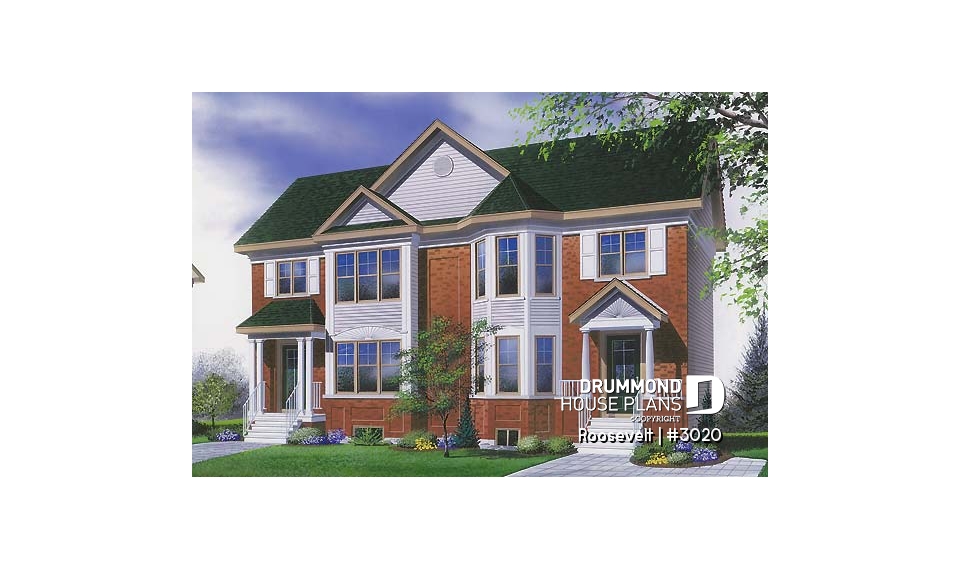

House plan Roosevelt (3020)
2 to 3 bedroom semi-detached building plan, 1.5 baths, open plan concept, pantry in kitchen
View the size of the rooms and height of the ceilings

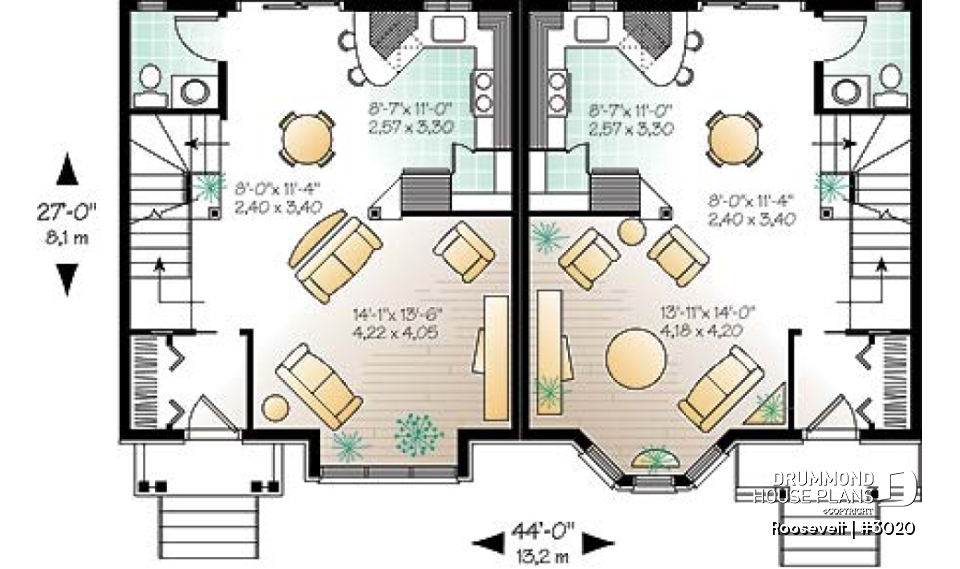

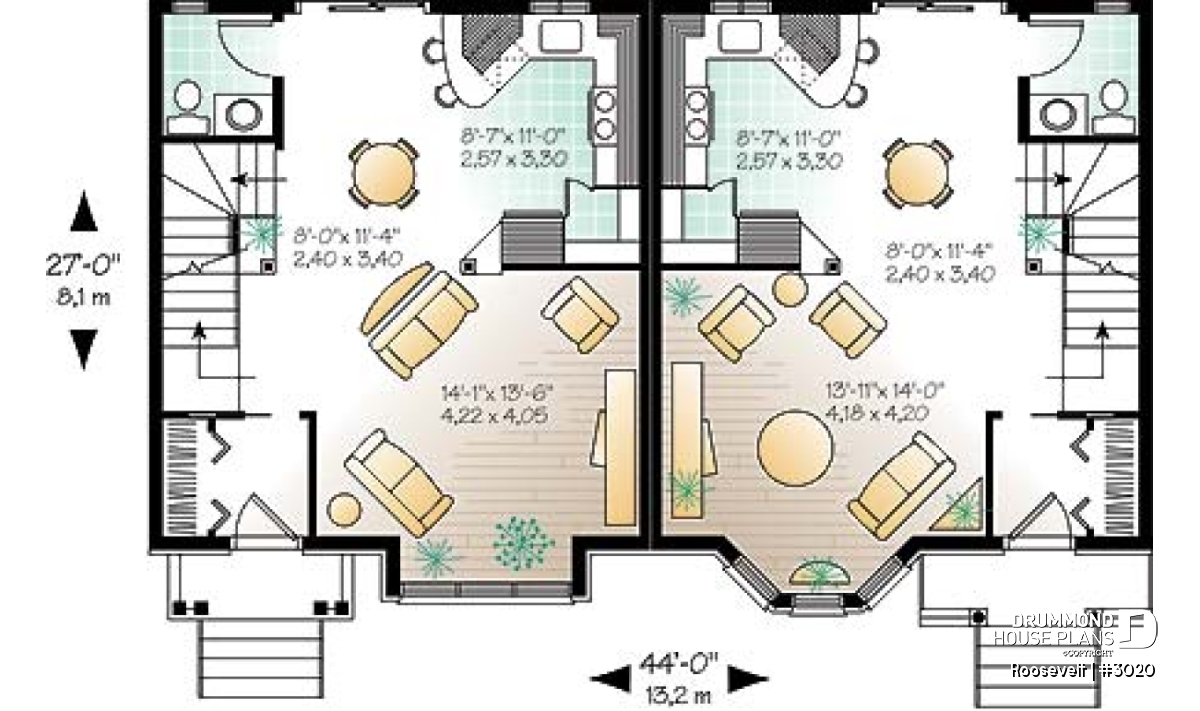

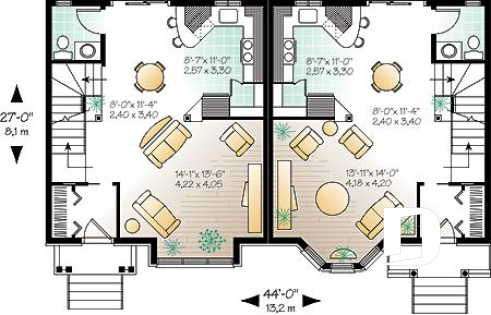

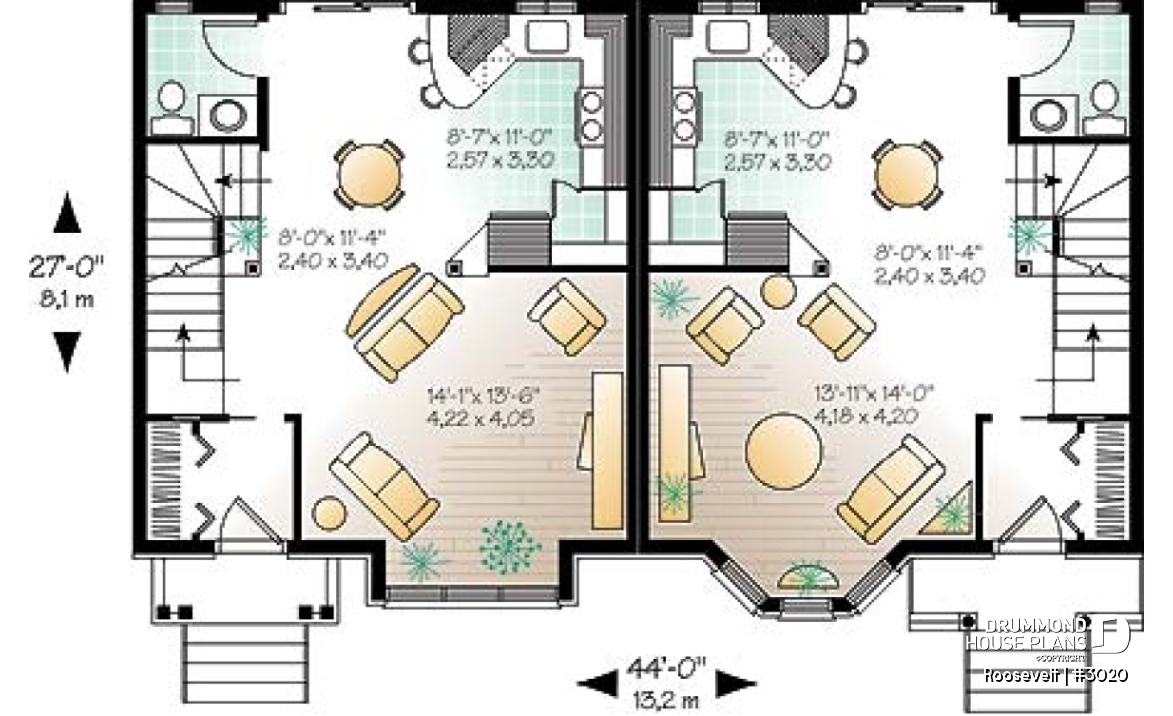

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 5'0" x 5'6" | ~ 8'0" |
| Kitchen | 8'7" x 11'0" | ~ 8'0" |
| Dining room | 7'10" x 11'4" | ~ 8'0" |
| Foyer | 4'2" x 4'10" | ~ 8'0" |
| Closet | 2'0" x 4'10" | ~ 8'0" |
| Deck | 8'0" x 5'0" | N/A |
| Living room | 13'11" x 14'0" | ~ 8'0" |
| Covered porch | 8'6" x 3'0" | N/A |
| Living room | 14'1" x 13'6" | ~ 8'0" |
| Covered porch | 8'0" x 3'0" | N/A |
| Kitchen | 8'7" x 11'0" | ~ 8'0" |
| Half bath or powder room | 5'0" x 5'6" | ~ 8'0" |
| Foyer | 4'2" x 4'10" | ~ 8'0" |
| Closet | 2'0" x 4'10" | ~ 8'0" |
| Dining room | 7'10" x 11'4" | ~ 8'0" |
| Deck | 8'0" x 5'0" | N/A |

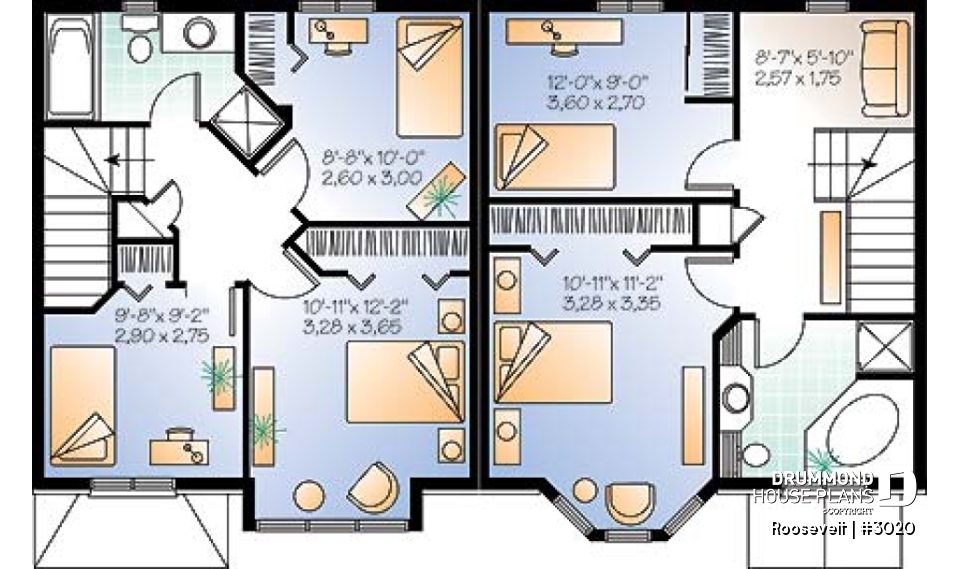

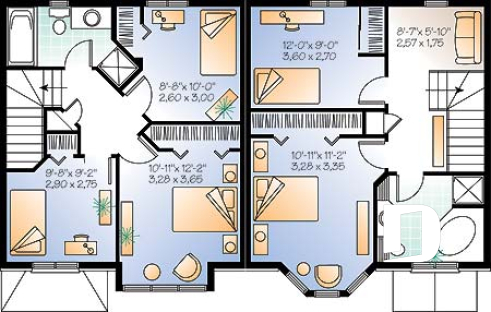

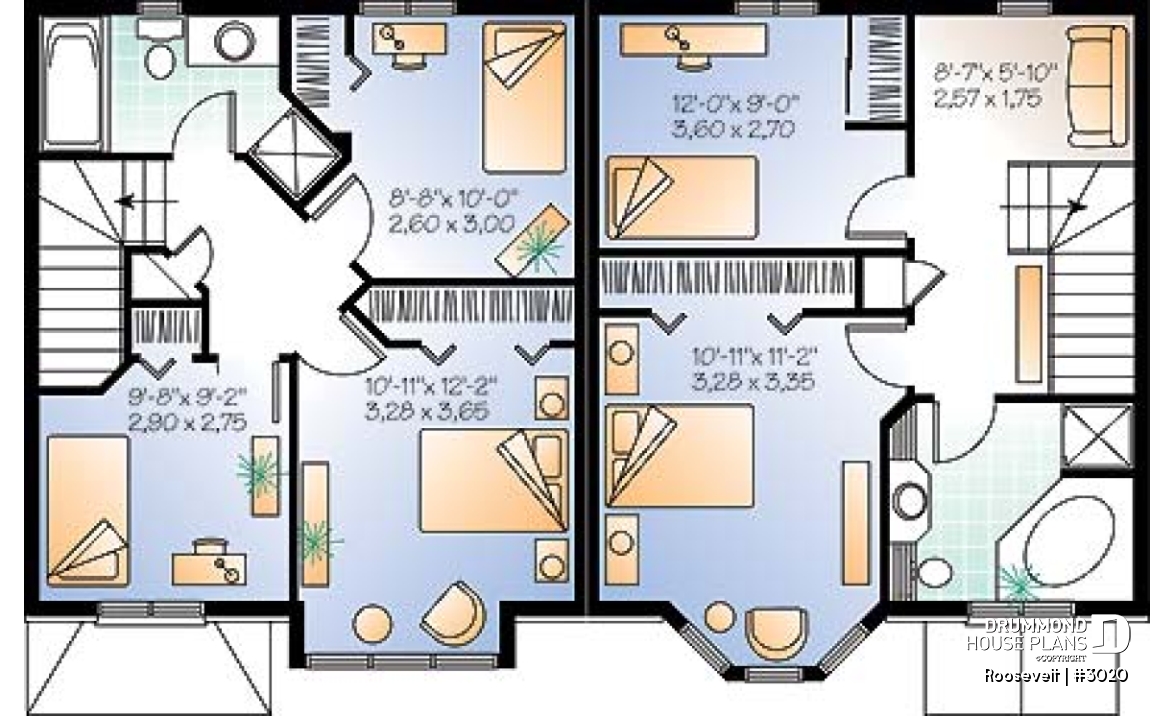

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'10" x 9'0" | ~ 8'0" |
| Closet | 4'6" x 2'0" | ~ 8'0" |
| Den | 8'7" x 5'10" | ~ 8'0" |
| Linen | 1'6" x 2'0" | ~ 8'0" |
| Full bathroom | 9'8" x 7'10" | ~ 8'0" |
| Linen | 1'6" x 2'0" | ~ 8'0" |
| Full bathroom | 10'0" x 7'10" | ~ 8'0" |
| Den | 8'7" x 5'10" | ~ 8'0" |
| Bedroom | 10'9" x 12'2" | ~ 8'0" |
| Closet | 8'4" x 2'0" | ~ 8'0" |
| Bedroom | 10'9" x 11'2" | ~ 8'0" |
| Closet | 10'2" x 2'0" | ~ 8'0" |
| Bedroom | 8'6" x 10'0" | ~ 8'0" |
| Closet | 4'0" x 2'0" | ~ 8'0" |
| Bedroom | 9'8" x 9'2" | ~ 8'0" |
| Closet | 2'9" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 2208 sq.ft. |
| 1st level | 1104 sq.ft. |
| 2nd level | 1104 sq.ft. |
| Width | 44'0" |
| Depth | 27'0" |
| Ridge height from top of foundation | 29'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MB |
Rooms specifications
| Bedroom(s) | 2, 3 |
| Full baths | 1 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 50 sq.ft. |
Units specifications
Other useful information on this plan
Semi-detached house plan, 2 to 3 bedrooms per unit
.
Distinctive elements
Covered main entrances, abundant fenestration.
Plan feature(s)
Pantry, Mud room, Open floor layout, Lunch counter, Office / Study / Den
Plan architectural style(s)
. Traditional, . Country, . European, . English, . Victorian
