Rosalie (6008)
Victorian inspired duplex plan with 2 to 3 bedroom per unit and large kitchen with pantry
View the size of the rooms and height of the ceilings

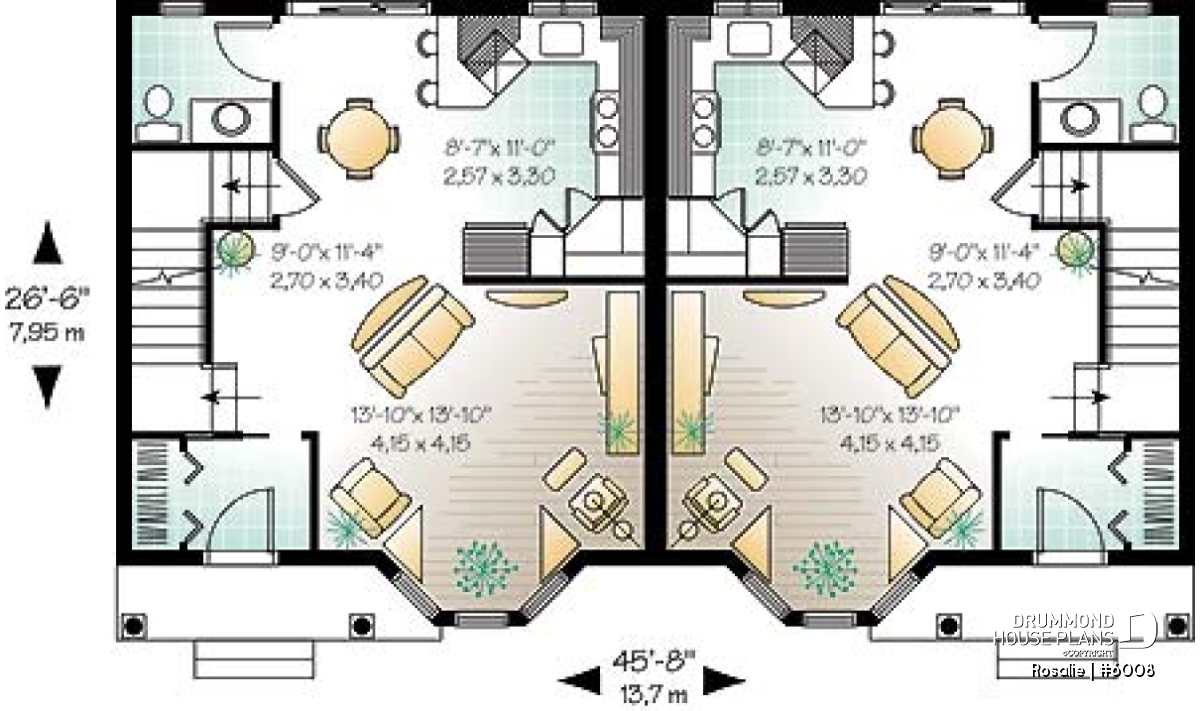

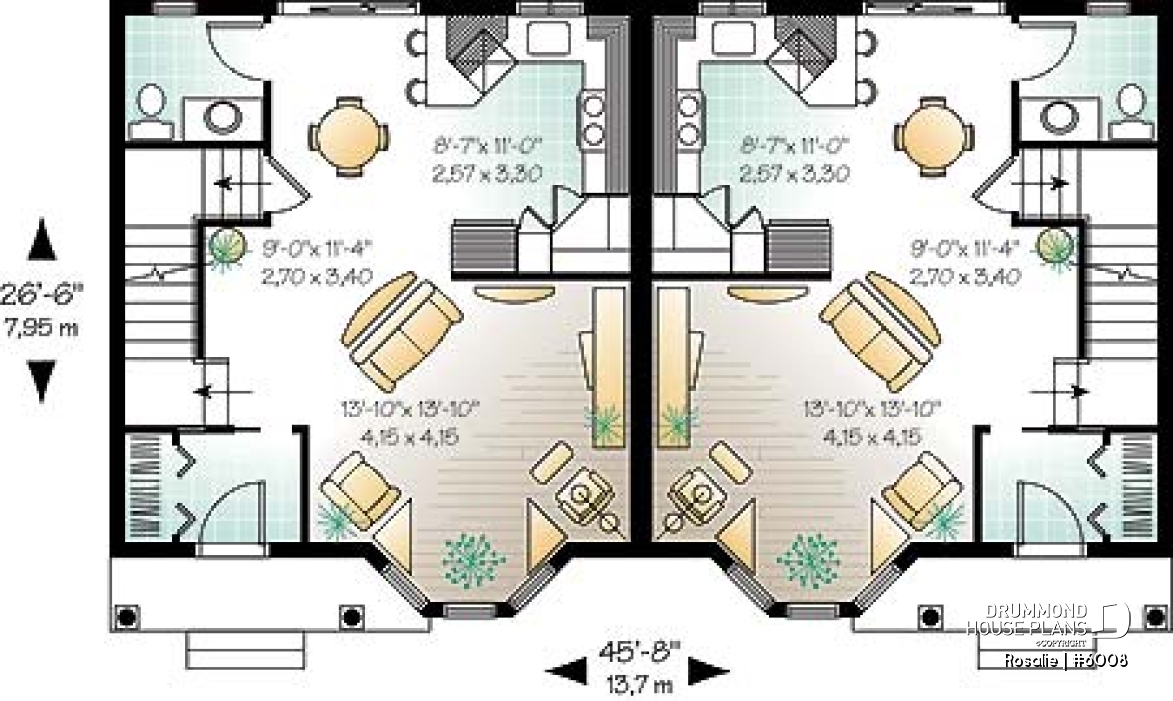

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 5'10" x 5'4" | ~ 8'0" |
| Kitchen | 7'7" x 11'0" | ~ 8'0" |
| Pantry | 0'0" x 0'0" | N/A |
| Pantry | 0'0" x 0'0" | N/A |
| Pantry | 0'0" x 0'0" | N/A |
| Pantry | 0'0" x 0'0" | N/A |
| Pantry | 3'4" x 3'4" | N/A |
| Dining room | 7'10" x 11'4" | ~ 8'0" |
| Living room | 14'0" x 13'0" | ~ 8'0" |
| Foyer | 5'3" x 4'4" | ~ 8'0" |
| Closet | 2'0" x 4'4" | ~ 8'0" |
| Covered porch | 13'8" x 3'0" | N/A |
| Deck | 10'0" x 10'0" | N/A |
| Kitchen | 7'7" x 11'0" | ~ 8'0" |
| Pantry | 3'4" x 3'4" | N/A |
| Half bath or powder room | 5'10" x 5'4" | ~ 8'0" |
| Foyer | 5'3" x 4'4" | ~ 8'0" |
| Closet | 2'0" x 4'4" | ~ 8'0" |
| Covered porch | 13'8" x 3'0" | N/A |
| Dining room | 7'10" x 11'4" | ~ 8'0" |
| Living room | 14'0" x 13'0" | ~ 8'0" |
| Deck | 10'0" x 10'0" | N/A |

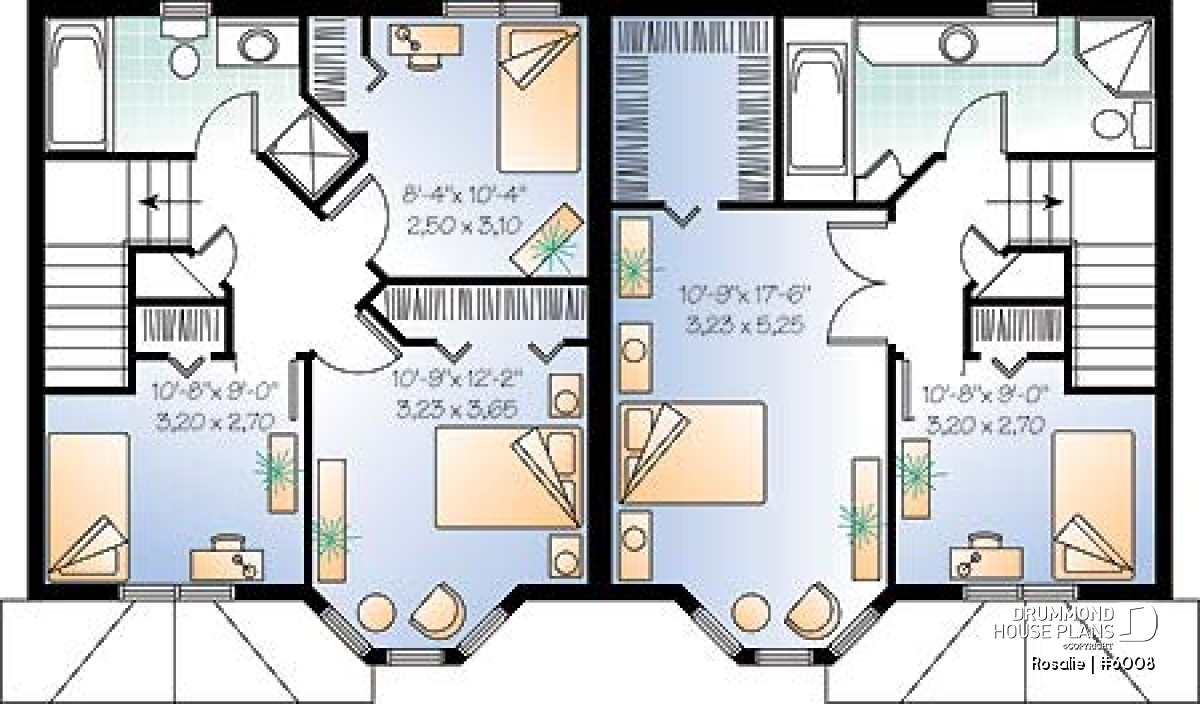

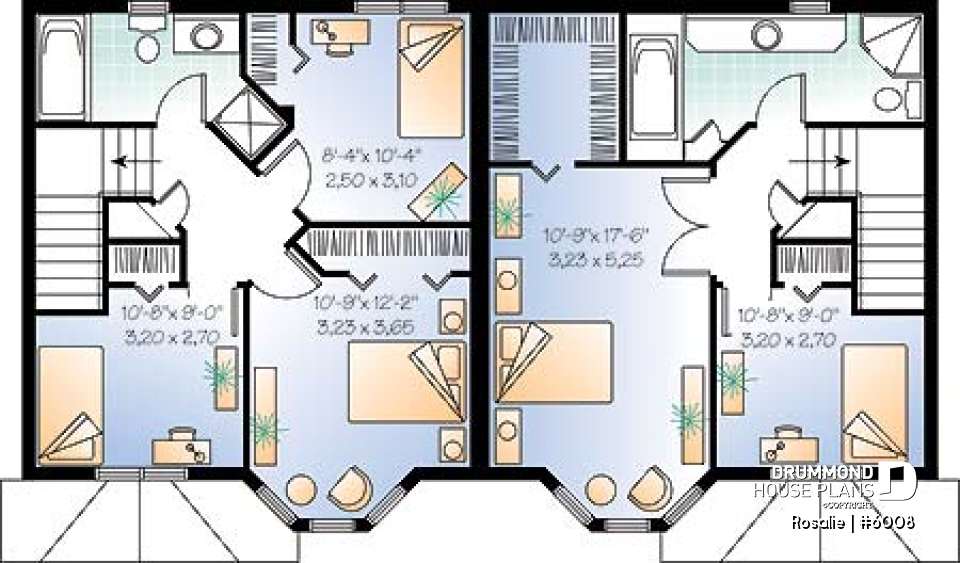

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'8" x 9'0" | ~ 8'0" |
| Closet | 3'8" x 2'0" | ~ 8'0" |
| Bedroom | 10'9" x 17'6" | ~ 8'0" |
| Closet | 8'4" x 2'0" | ~ 8'0" |
| Bedroom | 10'8" x 9'0" | ~ 8'0" |
| Closet | 3'8" x 2'0" | ~ 8'0" |
| Linen | 3'6" x 1'8" | ~ 8'0" |
| Bedroom | 10'9" x 17'6" | ~ 8'0" |
| Walk-in closet | 6'6" x 7'4" | ~ 8'0" |
| Bedroom | 10'8" x 9'0" | ~ 8'0" |
| Closet | 3'8" x 2'0" | ~ 8'0" |
| Linen | 3'6" x 1'8" | ~ 8'0" |
| Full bathroom | 14'7" x 7'4" | ~ 8'0" |
| Full bathroom | 10'7" x 5'2" | ~ 8'0" |
General specifications
| Total living area | 2252 sq.ft. |
| 1st level | 1126 sq.ft. |
| 2nd level | 1126 sq.ft. |
| Width | 45'8" |
| Depth | 26'6" |
| Ridge height from top of foundation | 25'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MB |
Rooms specifications
| Bedroom(s) | 2, 3 |
| Full baths | 1 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 82 sq.ft. |
Units specifications
Other useful information on this plan
2 to 3 bedroom semi-detached house plan, victorian style!
.
Distinctive elements
Two-story, 2 to 3 bedroom duplex plan.
Kitchen with counter and pantry.
Half bath on main floor.
Abundant fenestration in the living room and in master bedroom.
Large walk-in closet in master bedroom, in the two bedrooms option.
Unfinished basement. Other foundations available.
Plan feature(s)
Pantry, Panoramic view, Lunch counter, Walk-in master bed., Entrance hall
Plan architectural style(s)
. Victorian, . Country, . Traditional, . American
