House plan Southampton (3948)
Panoramic 4 bedroom lakefront or mountain house plan, reverse floor plans, 2-car garage
View the size of the rooms and height of the ceilings

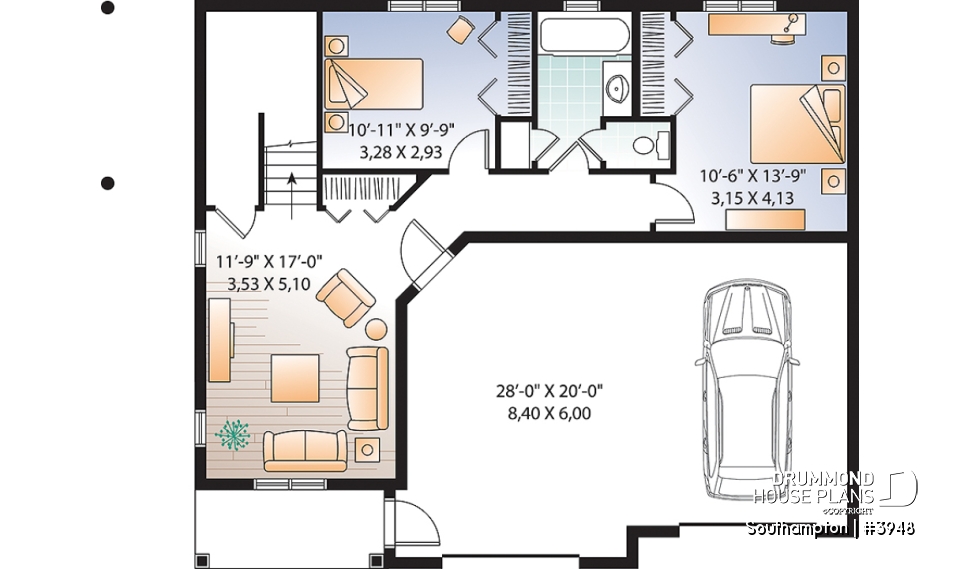

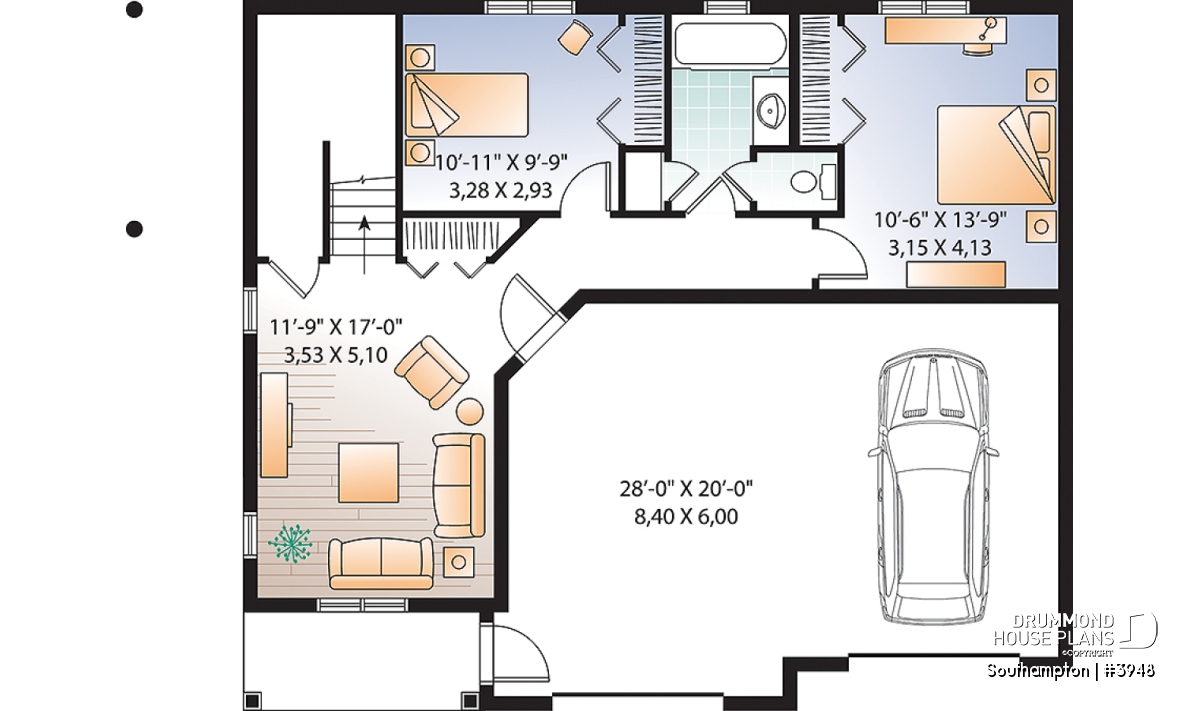

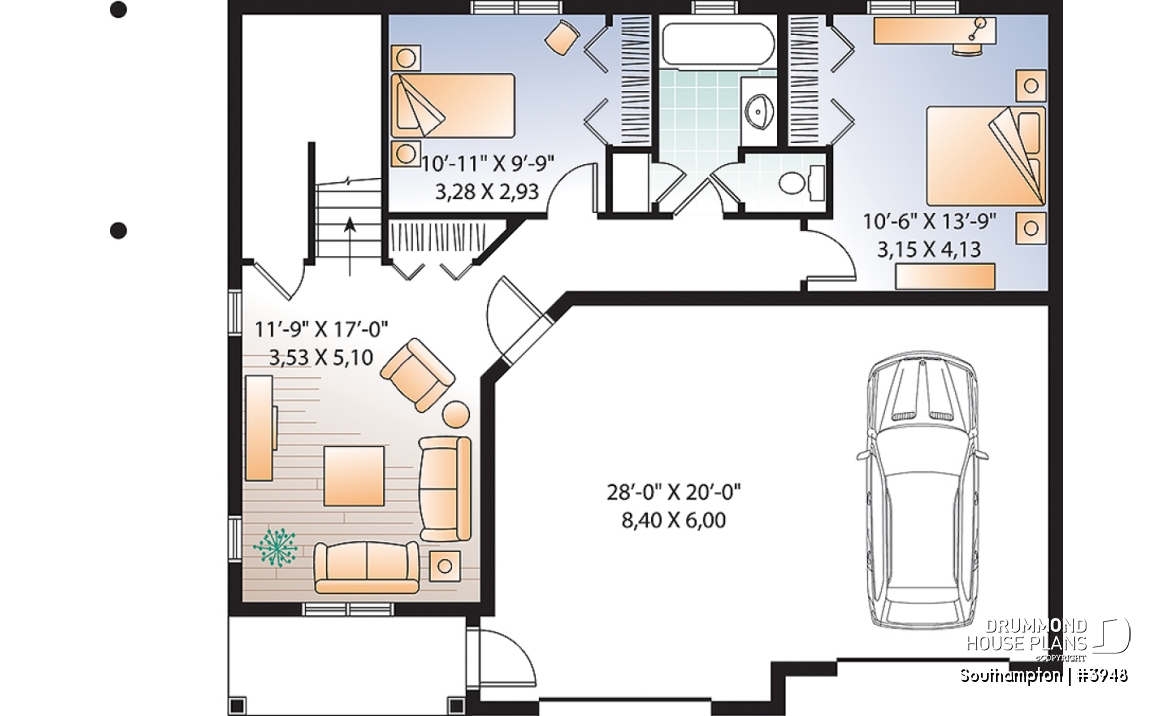

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 9'8" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |
| Bedroom | 10'5" x 13'8" | ~ 8'0" |
| Bedroom | 11'0" x 9'8" | ~ 8'0" |
| Garage | 28'0" x 20'0" | ~ 8'0" |
| Playroom | 11'9" x 17'0" | ~ 8'0" |

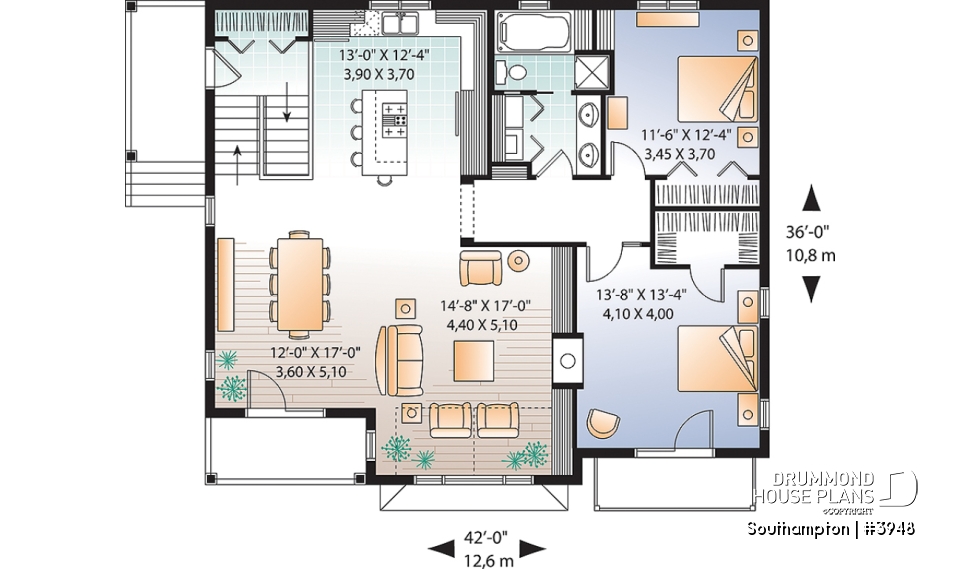

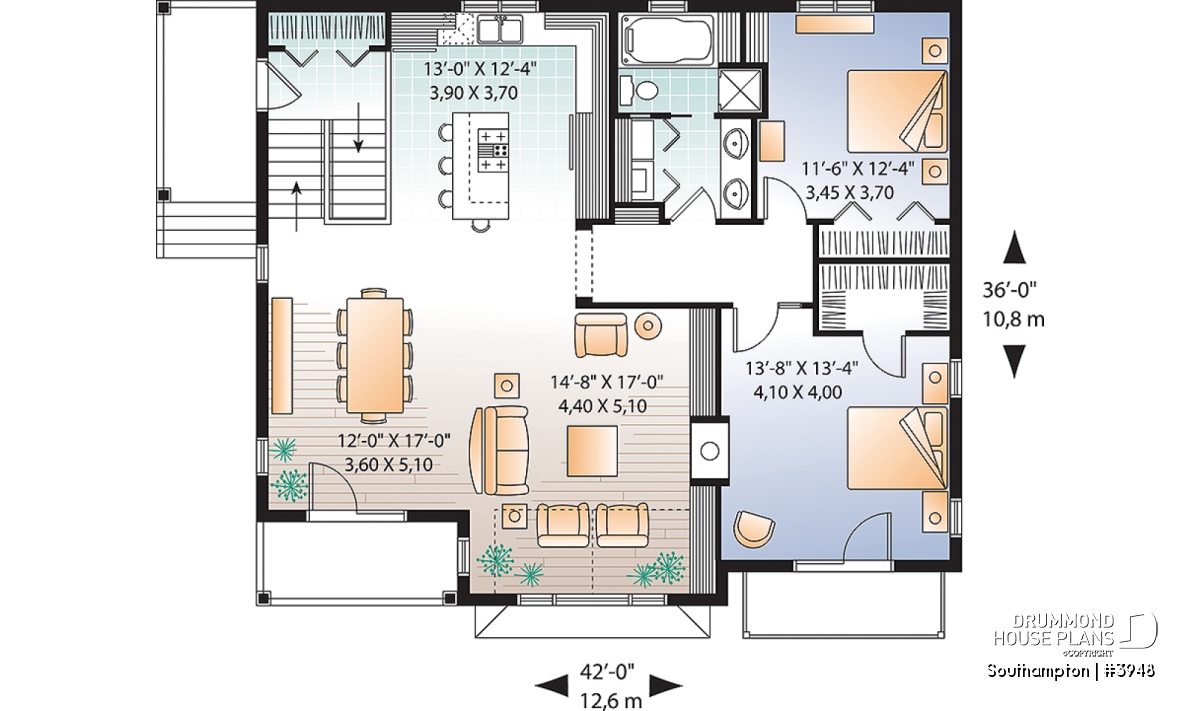

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'0" x 12'4" | ~ 8'0" |
| Dining room | 12'0" x 17'0" | ~ 8'0" |
| Living room | 14'8" x 17'0" | ~ 10'2" |
| Foyer | 7'0" x 4'1" | ~ 8'0" |
| Full bathroom | 8'0" x 12'4" | ~ 8'0" |
| Bedroom | 13'8" x 13'4" | ~ 8'0" |
| Bedroom | 11'6" x 12'4" | ~ 8'0" |
| Balcony | 12'0" x 5'0" | N/A |
| Balcony | 12'0" x 4'0" | N/A |
| Porch | 6'0" x 12'0" | N/A |
General specifications
| Total living area | 2285 sq.ft. |
| Basement | 861 sq.ft. |
| 1st level | 1424 sq.ft. |
| Width | 42'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 27'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
Reverse floor plan ski chalet house plan with 4 bedrooms, 2 bathrooms and 2-car garage
.
Distinctive elements
Activiy area opened entirely and suggested on the lower level to maximize the panorama view. Kitchen with central island lunch-counter. Living room with integrated built-ins and two-sided fireplace sharing with the master suite. Two bedrooms provided on each level. Game room in the basement. Double garage with plenty of storage space.
Plan feature(s)
Fireplace, Island, Balcony 2nd floor, Second floor laundry room, Walk-in master bed., Inverted living, Cathedral ceiling, Separate bath and shower, Double sinks
Plan architectural style(s)
. Mountain, . Vacation and waterfront, . Traditional, . Ski chalets, . Country, . Cottage, chalet, cabin
