Charleston 2 (4955)
Ski chalet plan, reverse floor plans, master and living areas on second floor, large fireplace
View the size of the rooms and height of the ceilings

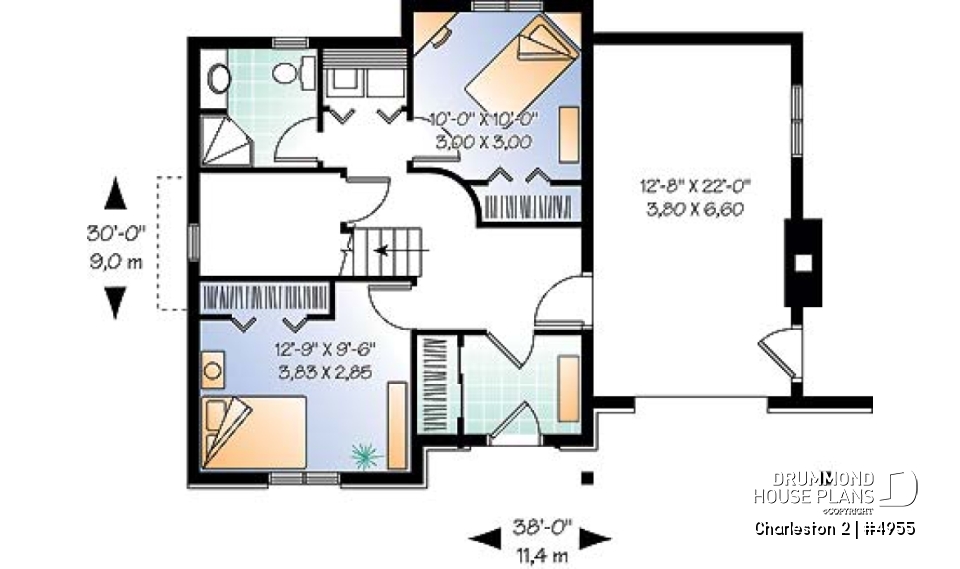

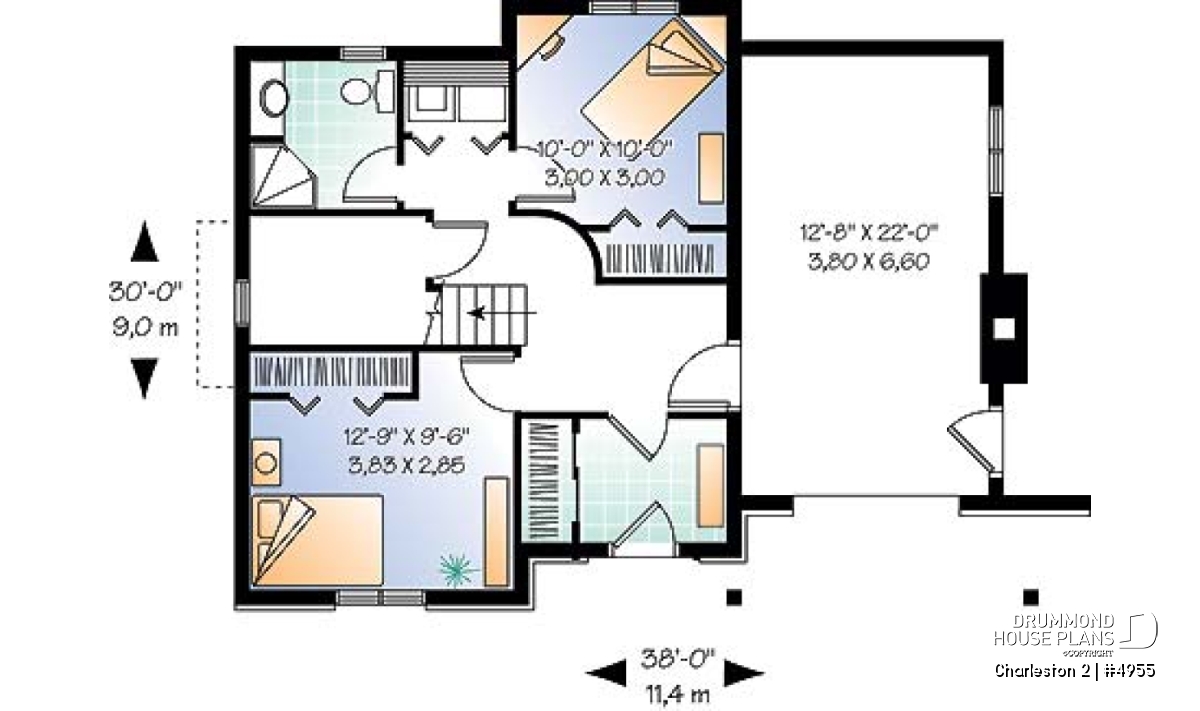

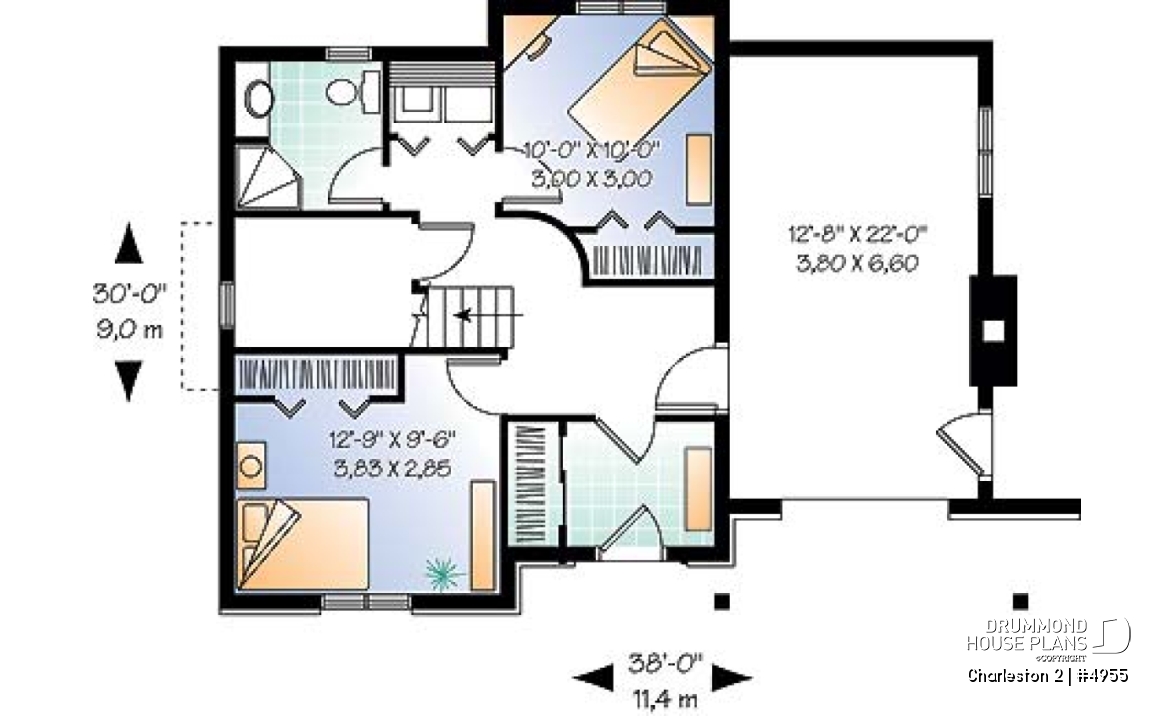

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 12'8" x 22'0" | ~ 8'6" |
| Full bathroom | 7'1" x 7'3" | ~ 8'0" |
| Bedroom | 12'9" x 9'6" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Foyer | 6'10" x 6'6" | ~ 8'0" |
| Utility room | 5'4" x 3'5" | ~ 8'0" |
| Playroom | 12'8" x 22'0" | ~ 8'6" |
| Storage | 6'4" x 8'8" | N/A |

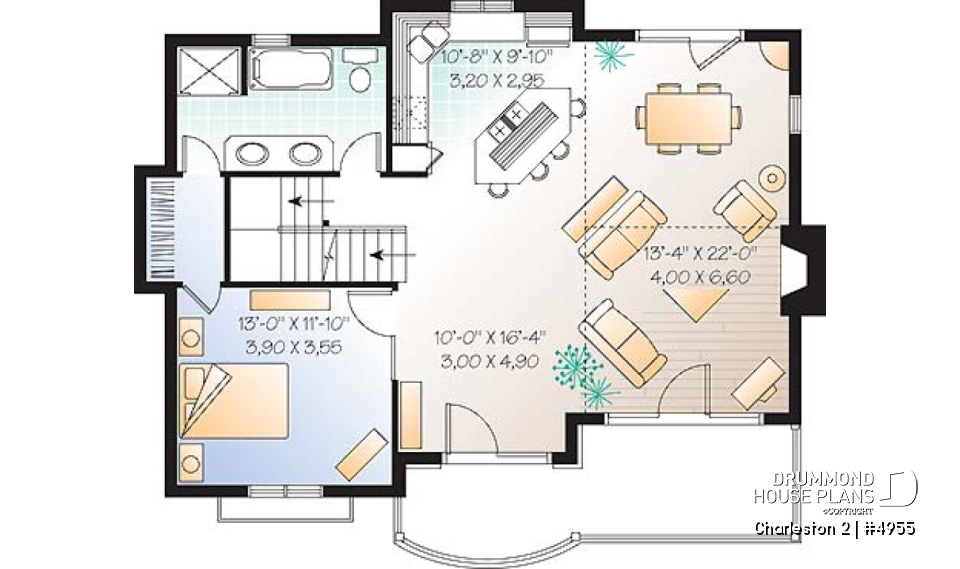

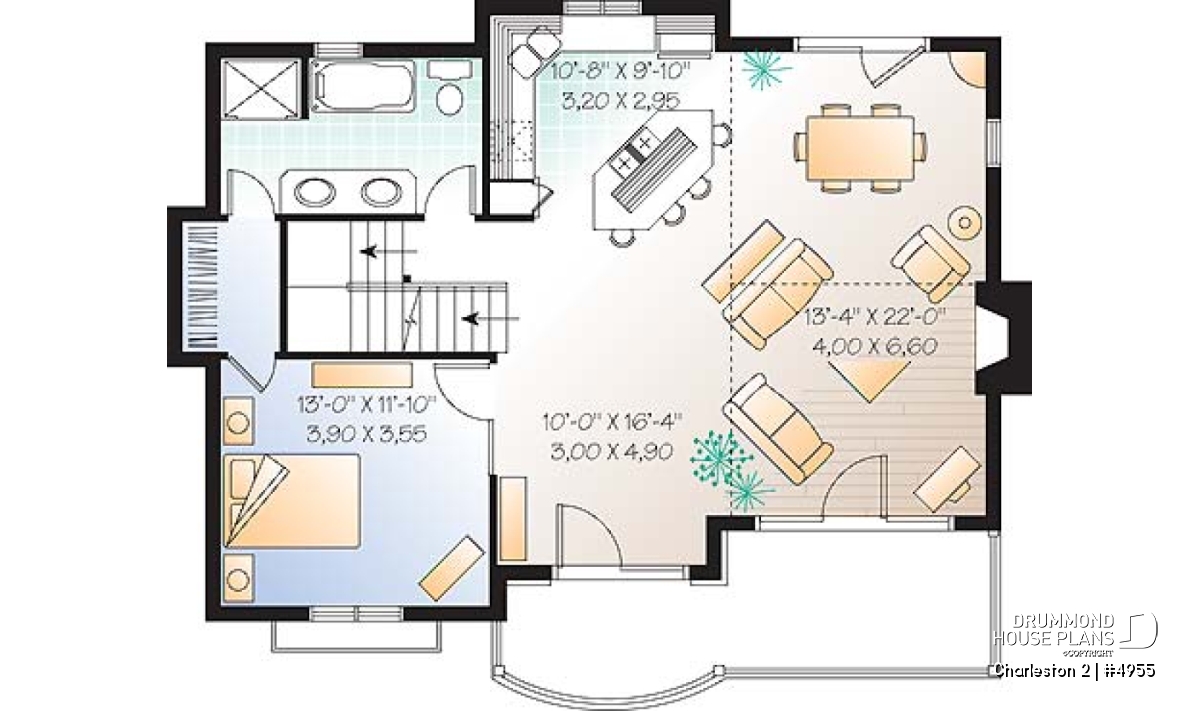

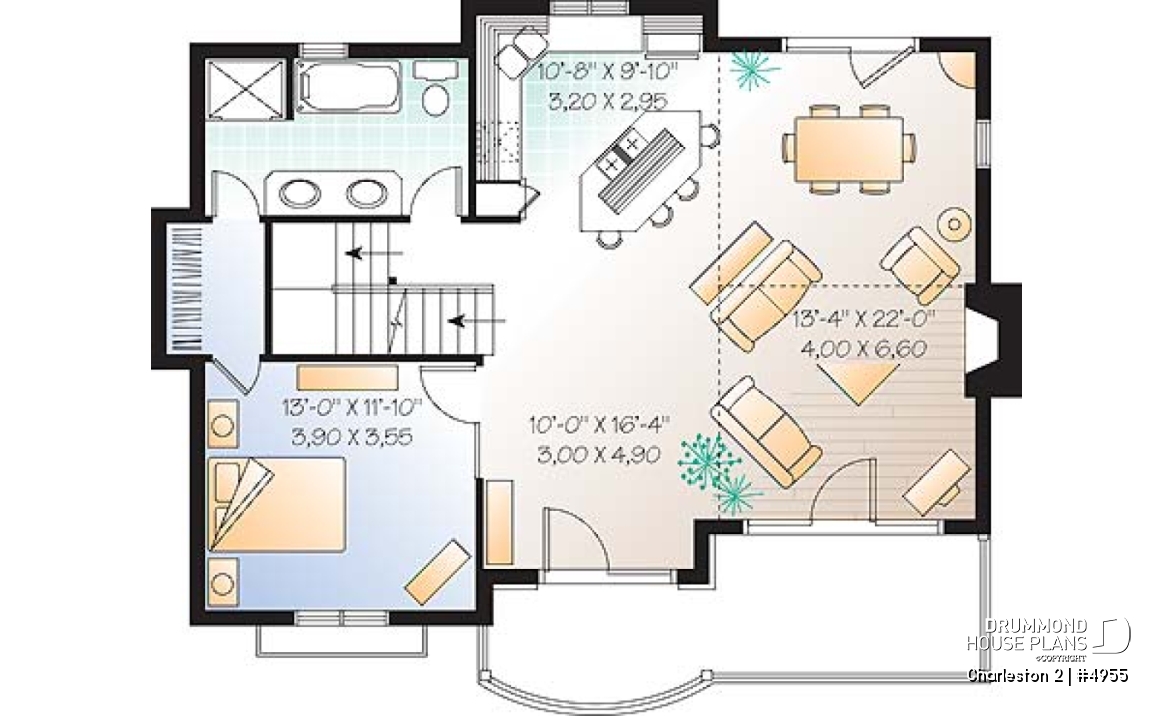

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'8" x 7'6" | ~ 8'0" |
| Kitchen | 10'8" x 9'10" | ~ 8'0" |
| Dining room | 10'0" x 16'4" | ~ 8'0" |
| Living room | 13'4" x 22'0" | ~ 8'0" |
| Bedroom | 13'0" x 11'10" | ~ 8'0" |
| Deck | 8'0" x 5'0" | N/A |
| Deck | 24'4" x 6'8" | N/A |

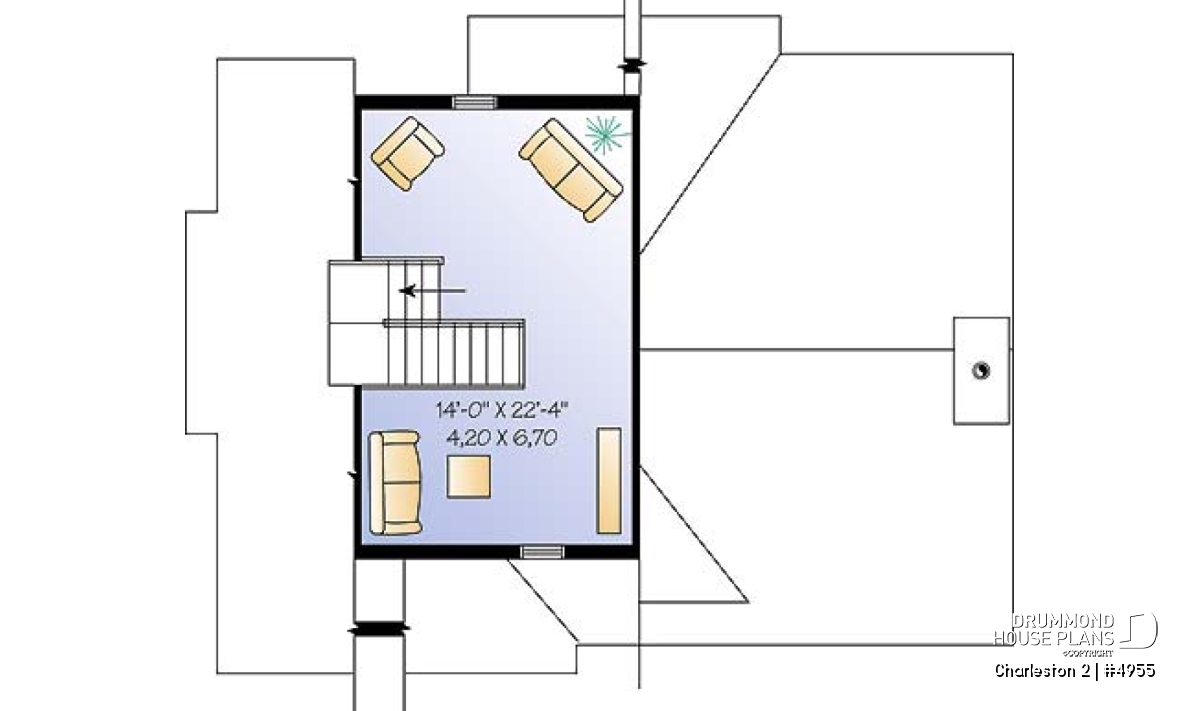

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Playroom | 14'0" x 22'4" | ~ 8'0" |
General specifications
| Total living area | 2117 sq.ft. |
| Basement | 716 sq.ft. |
| 1st level | 1017 sq.ft. |
| 2nd level | 384 sq.ft. |
| Width | 38'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 30'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Chalet style house plan with loft on third floor, reverse floor plan with main living on second floor

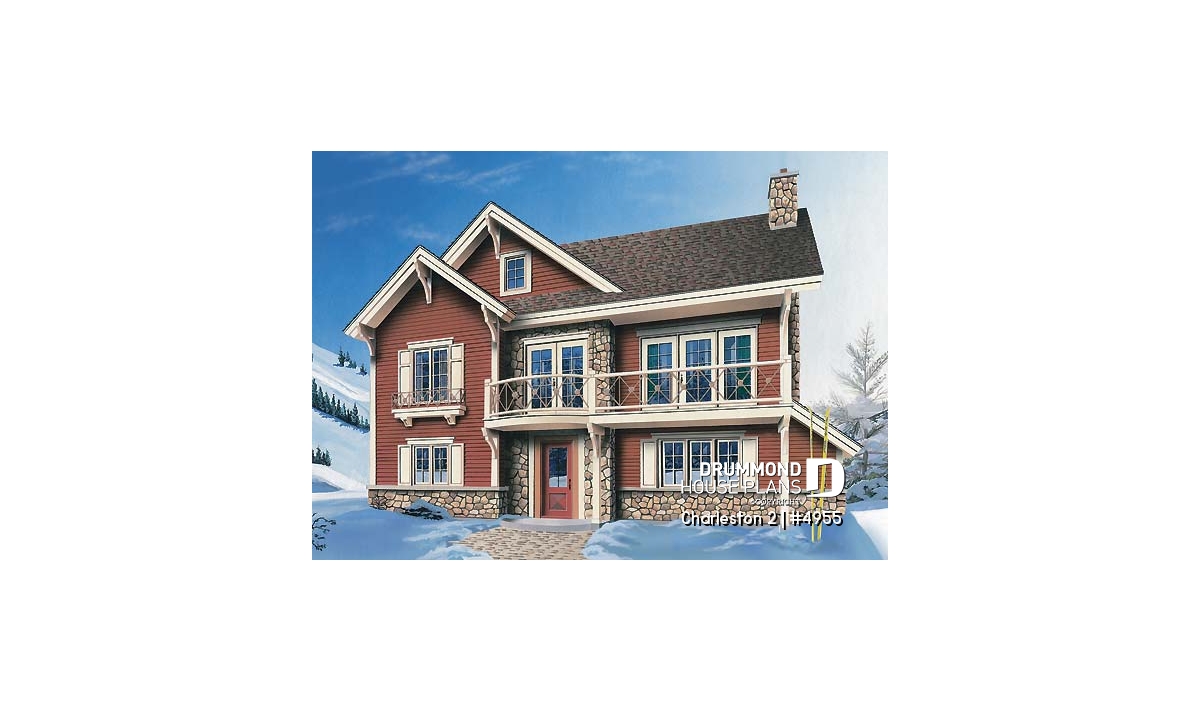

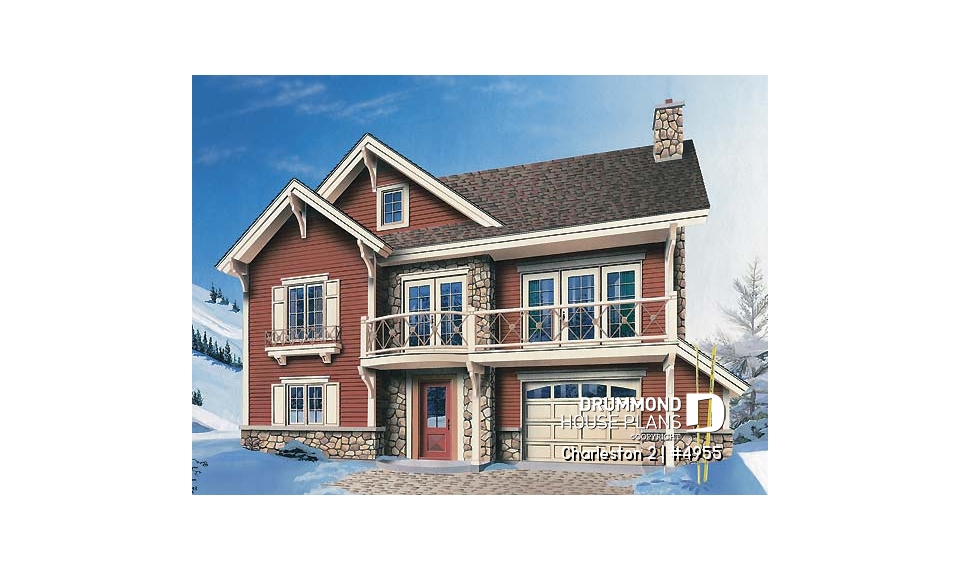

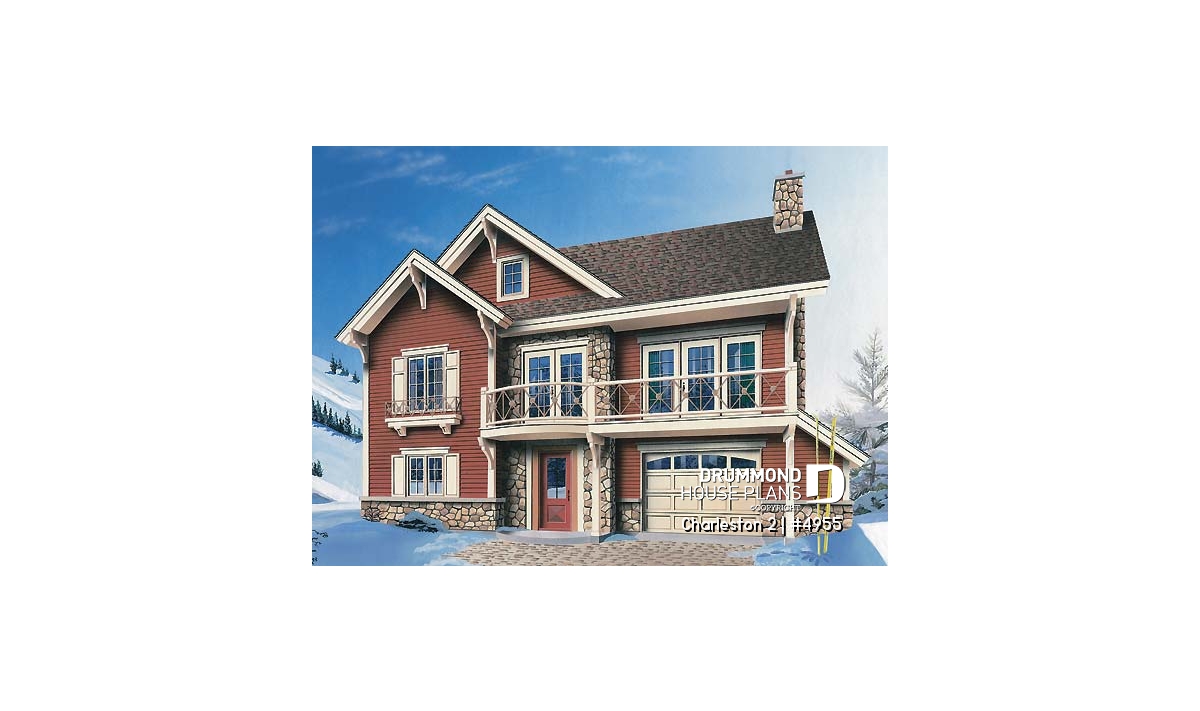

Offering an original approach with its second floor activities area, this chalet offers not only exceptional panoramic views but boasts beautiful interior spaces, and a warm and welcoming exterior that is reminiscent of slope side ski chalets.
The main floor has a foyer with a large, two beautiful bedrooms, a separate laundry area, a shower room and abundant storage space. The garage can be made into a large family room, an option that is included with this plan.
Upstairs a large, bright activities area with cathedral ceiling and a central fireplace and a beautiful master bedroom that has a walk-in closet and its own private access to the bathroom, complete the second floor.
Instead of a basement, occupants of this splendid home have a second floor ‘‘loft’’ space that’s perfect for storage or can even be used as a guest room for welcoming visitors to this delightful chalet... the perfect place for winter sports enthusiasts!
Distinctive elements
Garage can be converted into family room or games room (option included with the plans), abundant fenestration, shutters, cathedral ceiling in family room, special ceiling treatments, balcony at level 1.
Plan feature(s)
Fireplace, Cathedral ceiling, Loft, Island, Separate bath and shower, Double sink vanity, Entrance hall, Gound floor laundry room, Balcony 2nd floor
Plan architectural style(s)
. Craftsman / Northwest, . Country, . Vacation and waterfront, . Ski chalets, . A-Frame, . Rustic, . Modern rustic, . Cottage, chalet, cabin
