3876 (Winslet)

Modern narrow lot house plan with garage, large kitchen with island, 3 bedrooms, master with ensuite

Bedrooms

3

Bathroom(s)

2

Living area

1617 sq.ft.

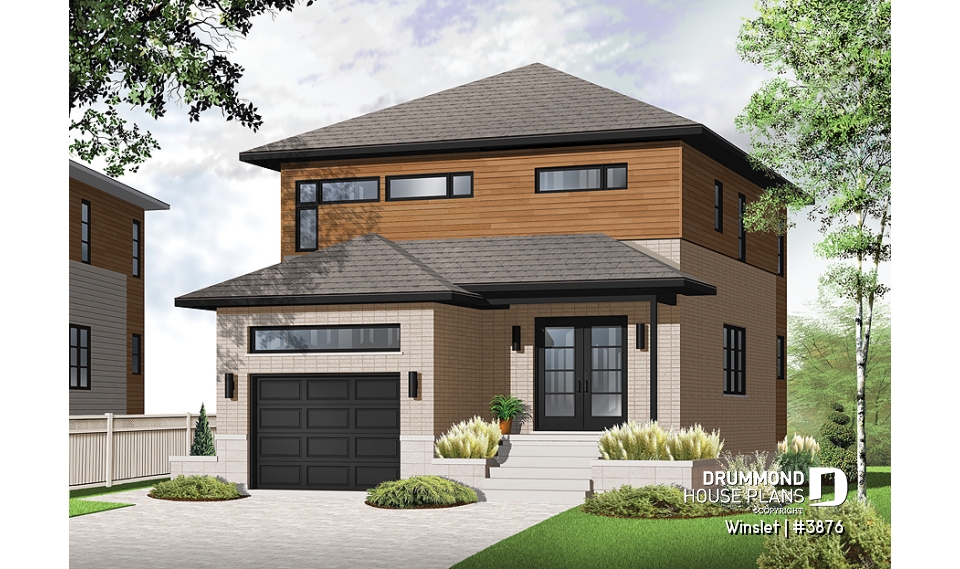

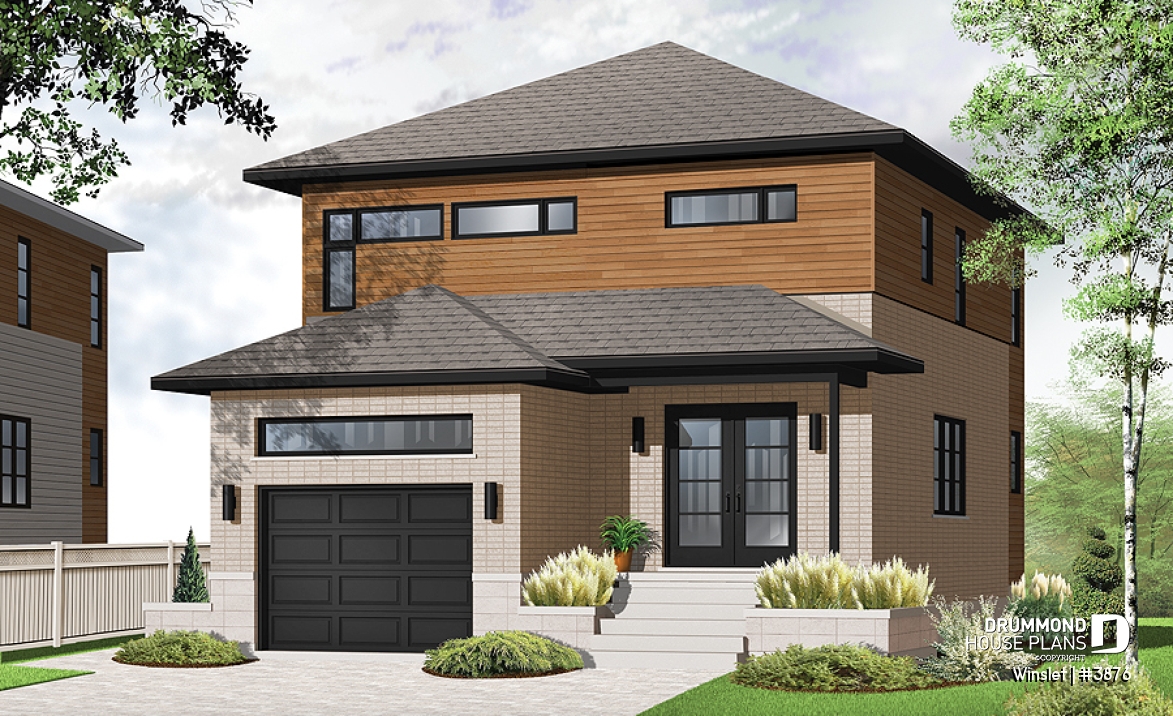

  • front - BASE MODEL - Modern narrow lot house plan with garage, large kitchen with island, 3 bedrooms, master with ensuite - Winslet

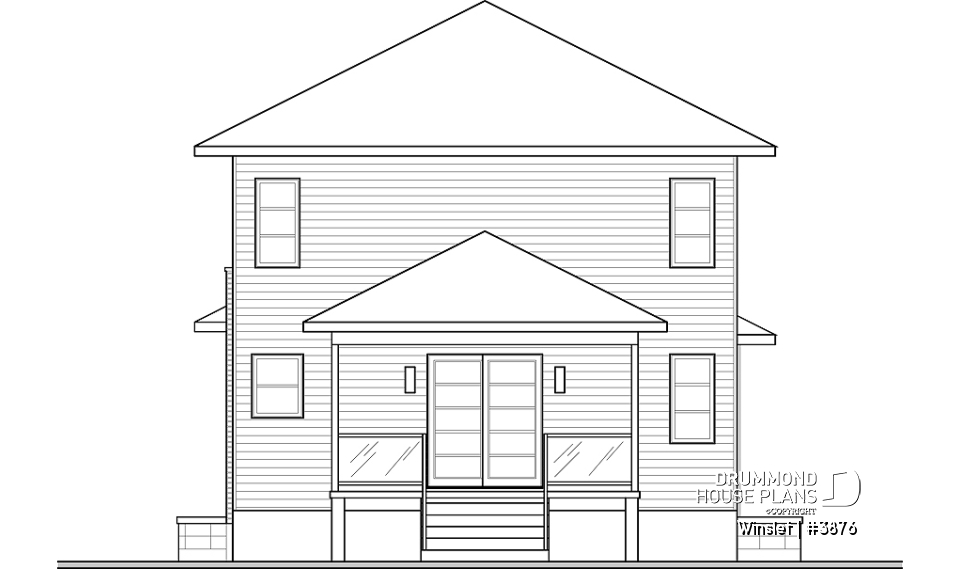

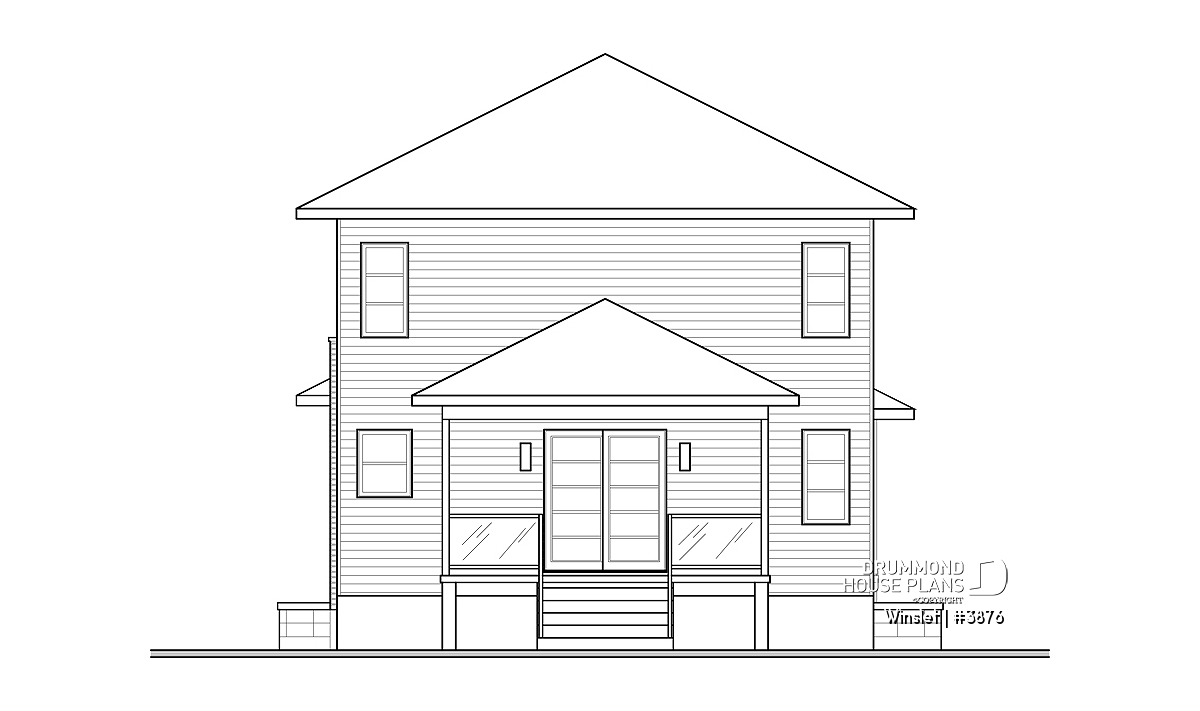

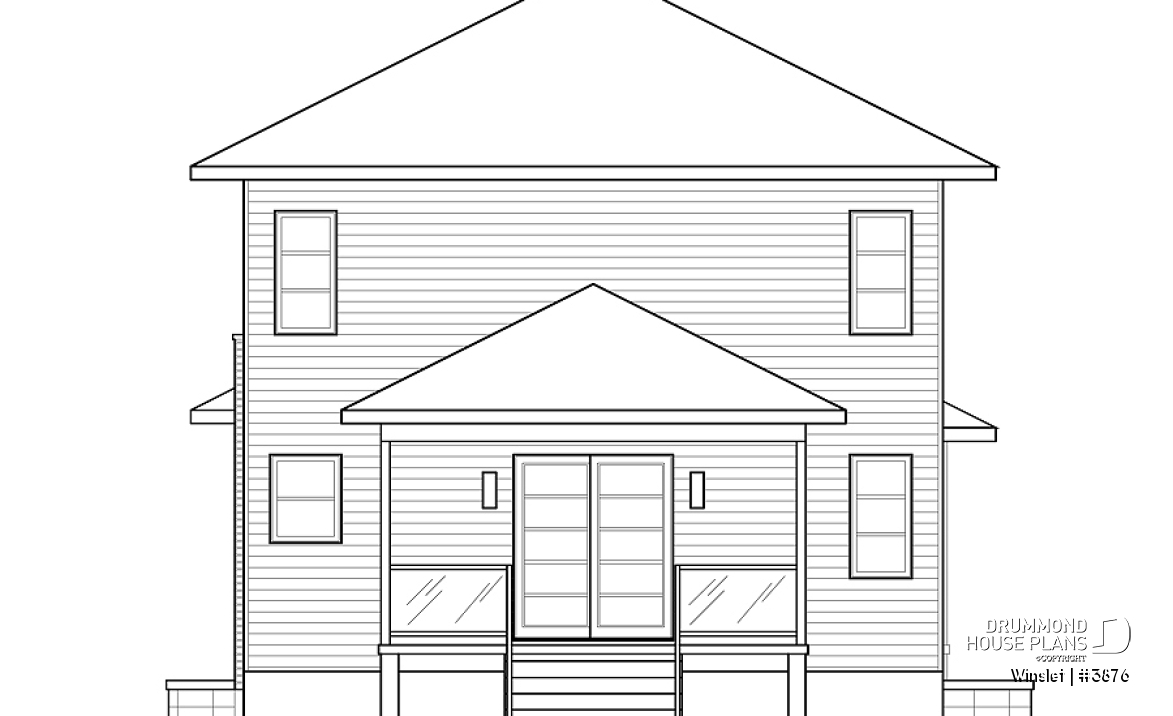

  • rear elevation - Winslet

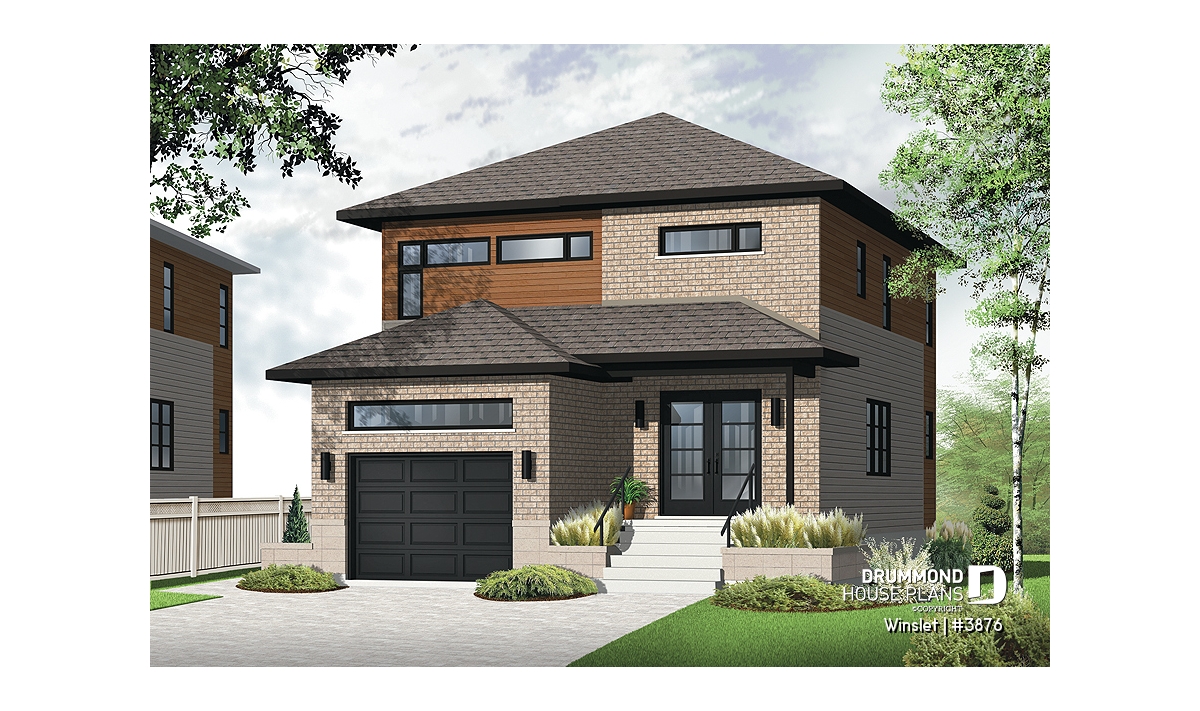

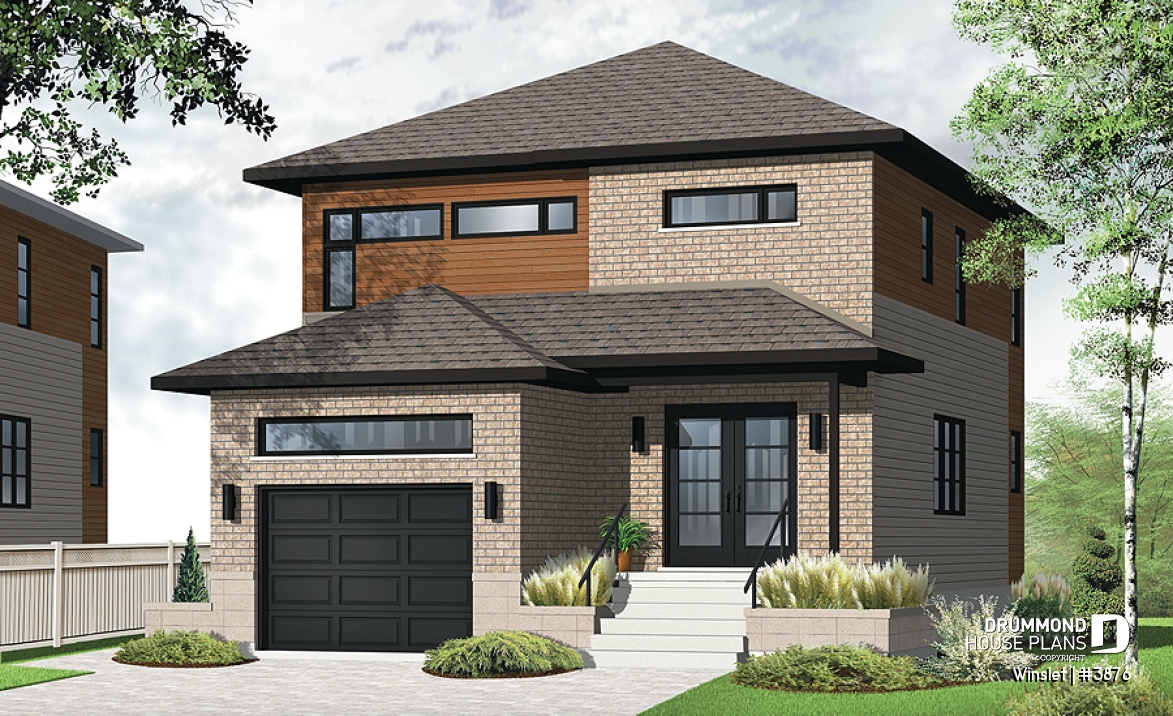

  • Color version 1 - Front - Winslet

front - BASE MODEL

rear elevation

Color version 1 - Front

Vignette front - BASE MODEL - 3876
Vignette rear elevation - 3876
Vignette Color version 1 - Front - 3876

View by floor

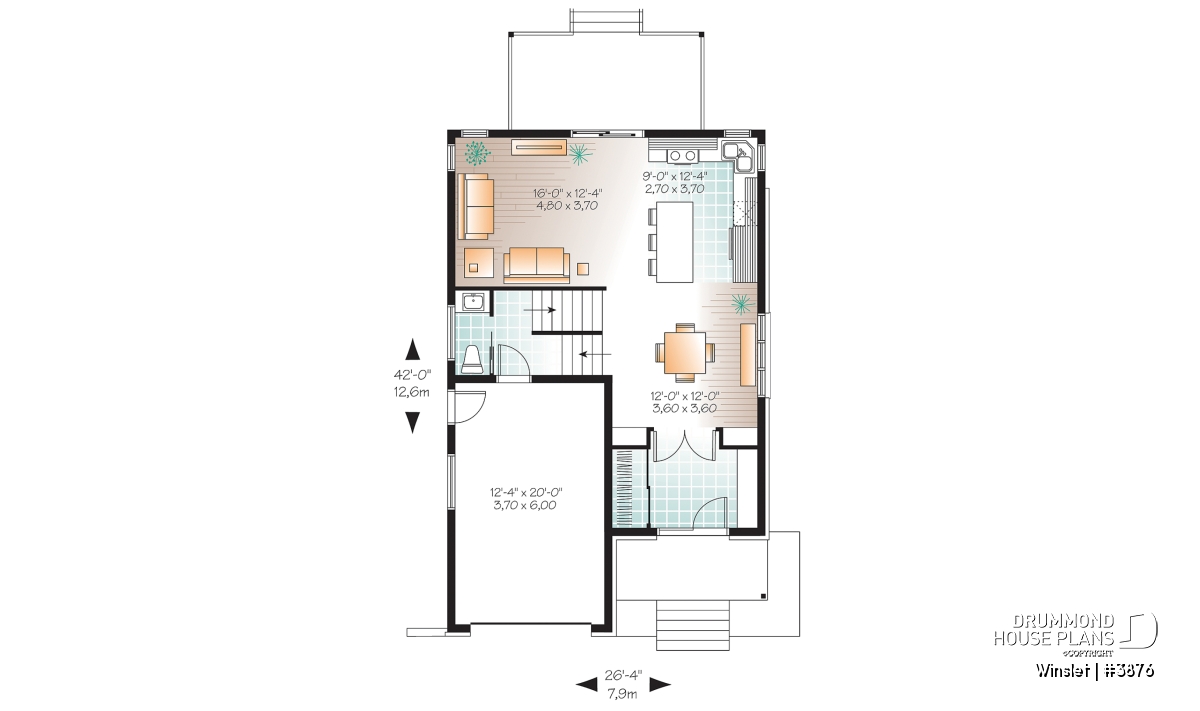

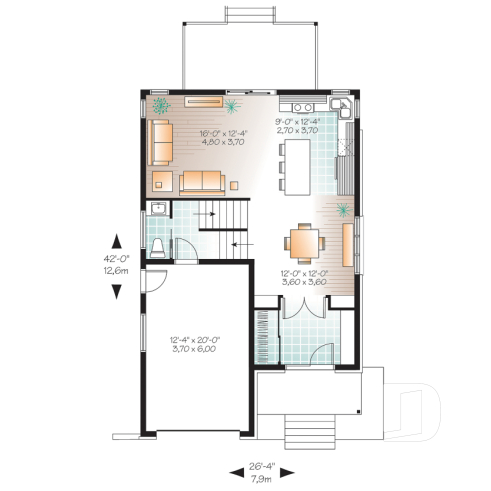

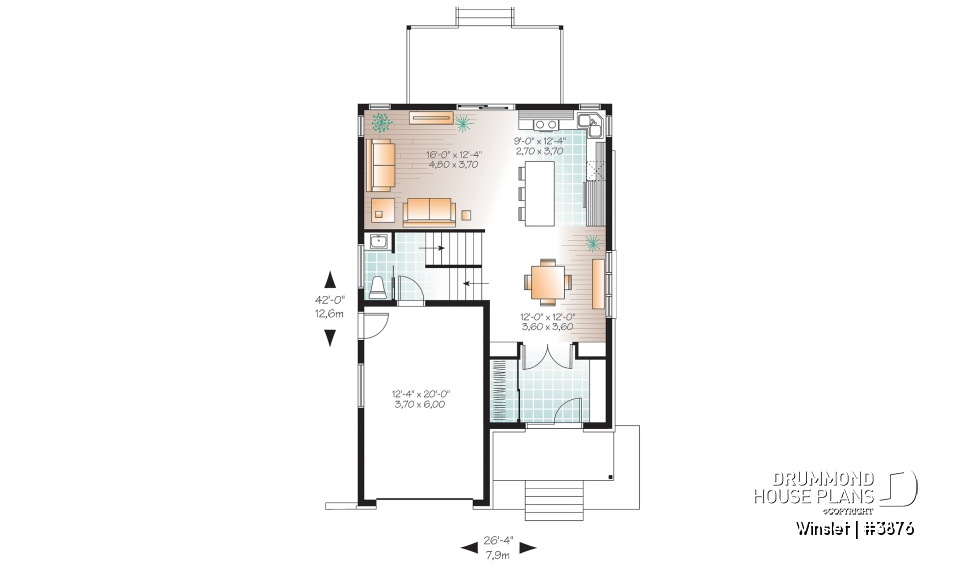

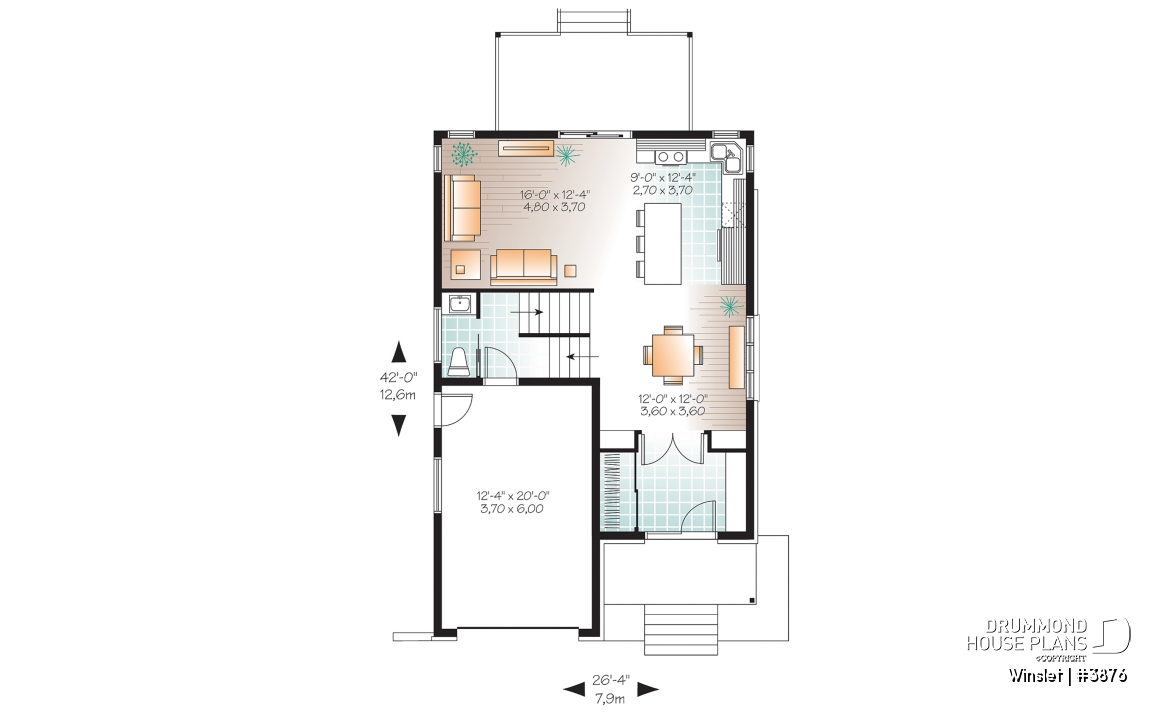

  • 1st level

    1st level - Modern narrow lot house plan with garage, large kitchen with island, 3 bedrooms, master with ensuite - Winslet

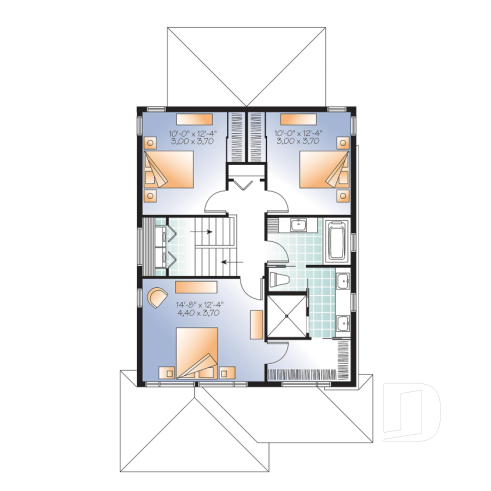

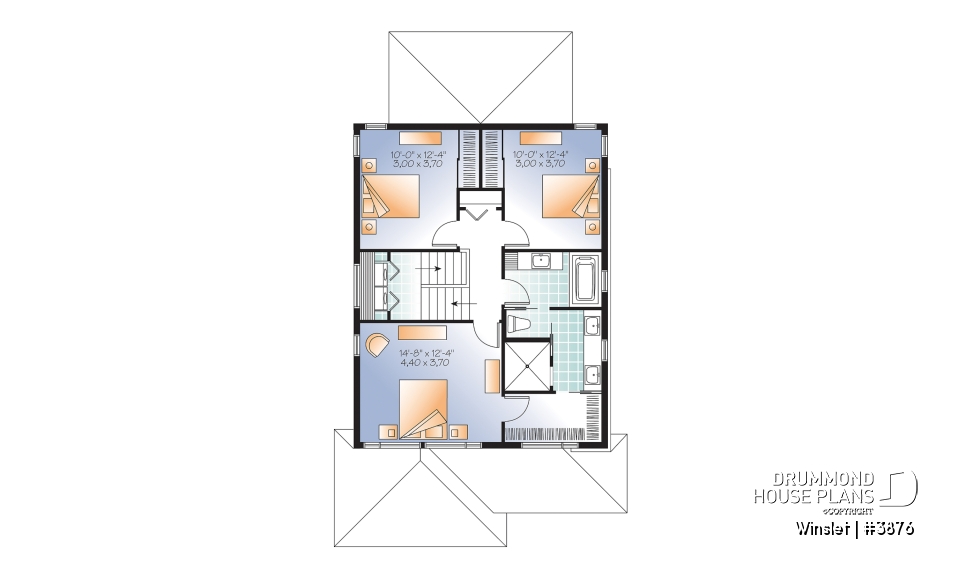

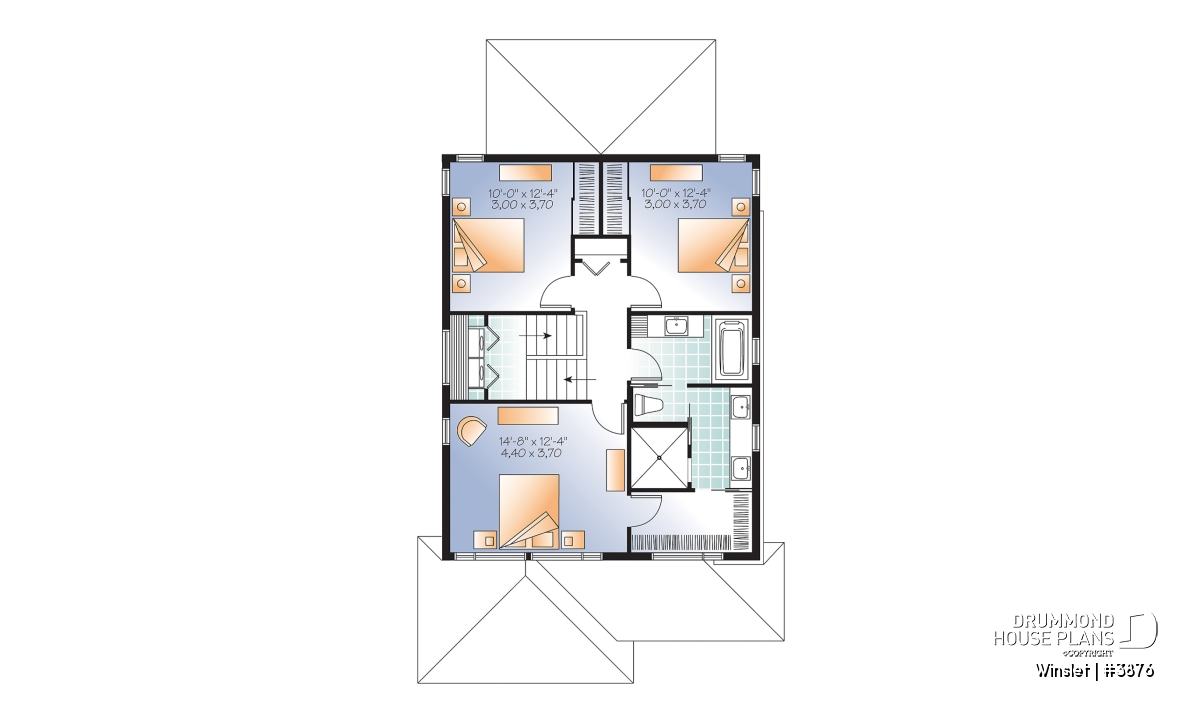

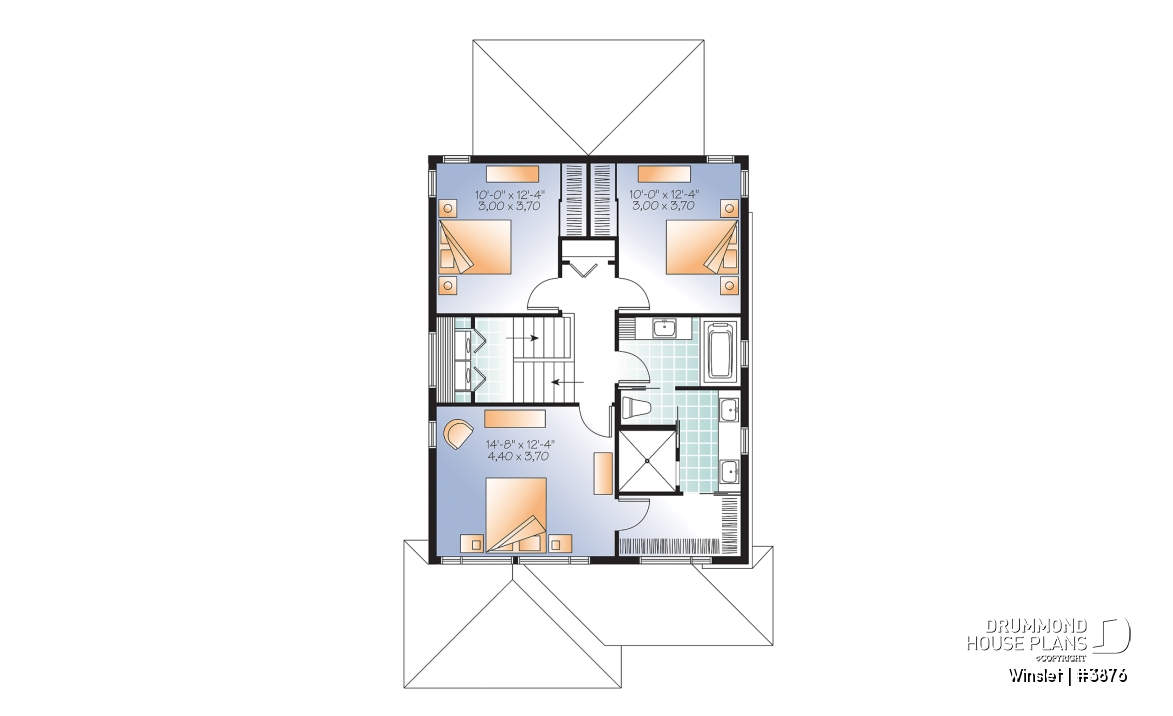

  • 2nd level

    2nd level - Modern narrow lot house plan with garage, large kitchen with island, 3 bedrooms, master with ensuite - Winslet
Vignette 1st level - 3876
Vignette 2nd level - 3876

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Foyer 8'10" x 6'6" ~ 8'0"
Closet 3'0" x 6'6" ~ 8'0"
Kitchen/dinette 9'0" x 12'4" ~ 8'0"
Pantry 1'8" x 2'0" ~ 0'0"
Living room 16'0" x 12'4" ~ 8'0"
Dining room 12'0" x 12'0" ~ 8'0"
Half bath or powder room 2'10" x 7'0" ~ 8'0"
Garage 12'4" x 20'0" ~ 11'0"
2nd level
Rooms Sizes Ceiling
Bedroom 14'8" x 12'4" ~ 8'0"
Closet 10'0" x 5'0" ~ 8'0"
Shower room or three quarter bath 10'0" x 8'4" ~ 8'0"
Bedroom 10'0" x 12'4" ~ 8'0"
Closet 2'0" x 6'0" ~ 8'0"
Bedroom 10'0" x 12'4" ~ 8'0"
Closet 2'0" x 6'0" ~ 8'0"
Full bathroom 10'0" x 14'4" ~ 8'0"
Laundry room 2'10" x 7'0" ~ 8'0"
Linen 4'4" x 1'8" ~ 8'0"

General specifications

Total living area 1617 sq.ft.
1st level 726 sq.ft.
2nd level 891 sq.ft.
Width 26'4"
Depth 42'0"
Ridge height from top of foundation 28'7"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations ($) Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths 1
Garage type One-car garage (281 sq.ft.)
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1617 sq.ft.
1st level 726 sq.ft.
2nd level 891 sq.ft.
Width 26'4"
Depth 42'0"
Ridge height from top of foundation 28'7"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations ($) Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths 1
Garage type One-car garage (281 sq.ft.)
Living bonus space - i
Bonus storage - i

Buy this plan

From : 920$

Modify this plan

Get a quote

Description

Narrow lot house plan with garage, contemporary 3 bedroom with foyer and large shower. 1st level: Vestibule, dining room, kitchen/dinette, living room and bathroom level with garage. 2nd level: Three bedrooms, two bathrooms, laundry at mid-point of the stairs off the landing.

Other useful information on this plan

Modern amenities for narrow lot Modern house plan

Produced in the wake of some other models designed for narrow lots , this model also incorporates contemporary style , providing a very attractive solution for narrow lots.

A generous covered entry leads to an enclosed foyer flanked by a generous closet and a built-in bench. A beautifully flowing activities area begins at the brightly windowed dining area which flows on to an L-shaped kitchen with large island. The adjoining family room enjoys easy access to a covered 16’ x 8’ outdoor room, ideal for lounging or grilling.A discreet powder room is located down a half-flight of stairs, adjacent to the garage entrance.

Upstairs, the master bedroom enjoys a private corner of the level, walk-in closet, and private bathroom access. Two additional bedrooms boast generous space and large closets. A shared compartmentalized bathroom allows private bathing and grooming spaces. A laundry closet is ideally located between the levels.

Distinctive elements

Foyer with 36"x78" coat closet and integrated bench.Dining room with built-in furniture. Kitchen with 36"x80" eating island. Three bedrooms upstairs including the master with walk-in closet and access to a well-organized bathroom including a 56"x60" shower and two separate vanities. 16'x8' covered rear deck.

Plan feature(s)

Island, Abundant fenestration, Second floor laundry room, Master suite, Walk-in master bed., Powder room, Island

Plan architectural style(s)

Contemporary, Modern / Design, Modern rustic

Other useful information on this plan

Full description

Modern amenities for narrow lot Modern house plan

Produced in the wake of some other models designed for narrow lots , this model also incorporates contemporary style , providing a very attractive solution for narrow lots.

A generous covered entry leads to an enclosed foyer flanked by a generous closet and a built-in bench. A beautifully flowing activities area begins at the brightly windowed dining area which flows on to an L-shaped kitchen with large island. The adjoining family room enjoys easy access to a covered 16’ x 8’ outdoor room, ideal for lounging or grilling.A discreet powder room is located down a half-flight of stairs, adjacent to the garage entrance.

Upstairs, the master bedroom enjoys a private corner of the level, walk-in closet, and private bathroom access. Two additional bedrooms boast generous space and large closets. A shared compartmentalized bathroom allows private bathing and grooming spaces. A laundry closet is ideally located between the levels.

Distinctive elements

Foyer with 36"x78" coat closet and integrated bench.Dining room with built-in furniture. Kitchen with 36"x80" eating island. Three bedrooms upstairs including the master with walk-in closet and access to a well-organized bathroom including a 56"x60" shower and two separate vanities. 16'x8' covered rear deck.

Plan feature(s)

Island, Abundant fenestration, Second floor laundry room, Master suite, Walk-in master bed., Powder room, Island

Plan architectural style(s)
