House plan Winslet 3 (3876-V2)
Modern 2 storey-home plan for narrow-lot, with garage, 3 bedrooms, open layout, laundry room on second floor
View the size of the rooms and height of the ceilings

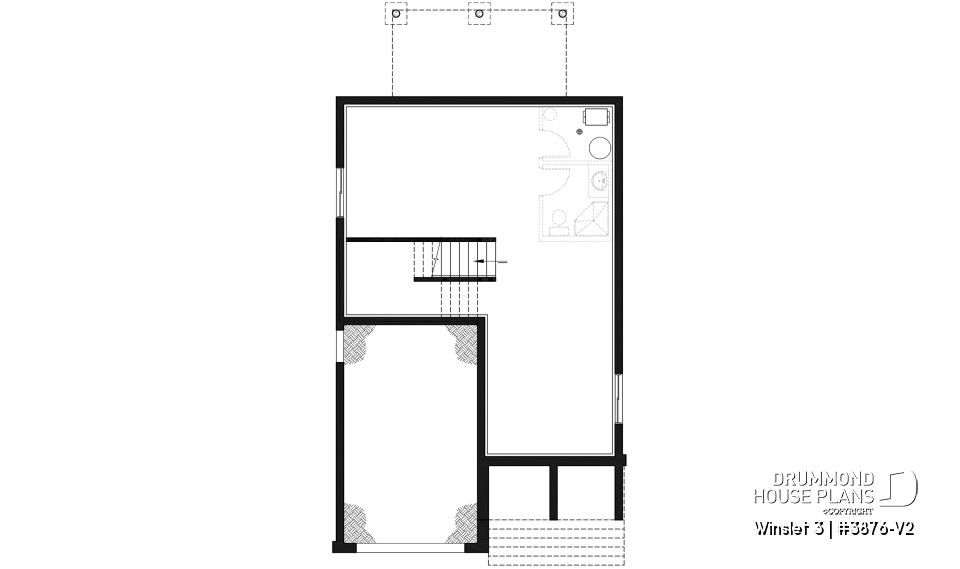

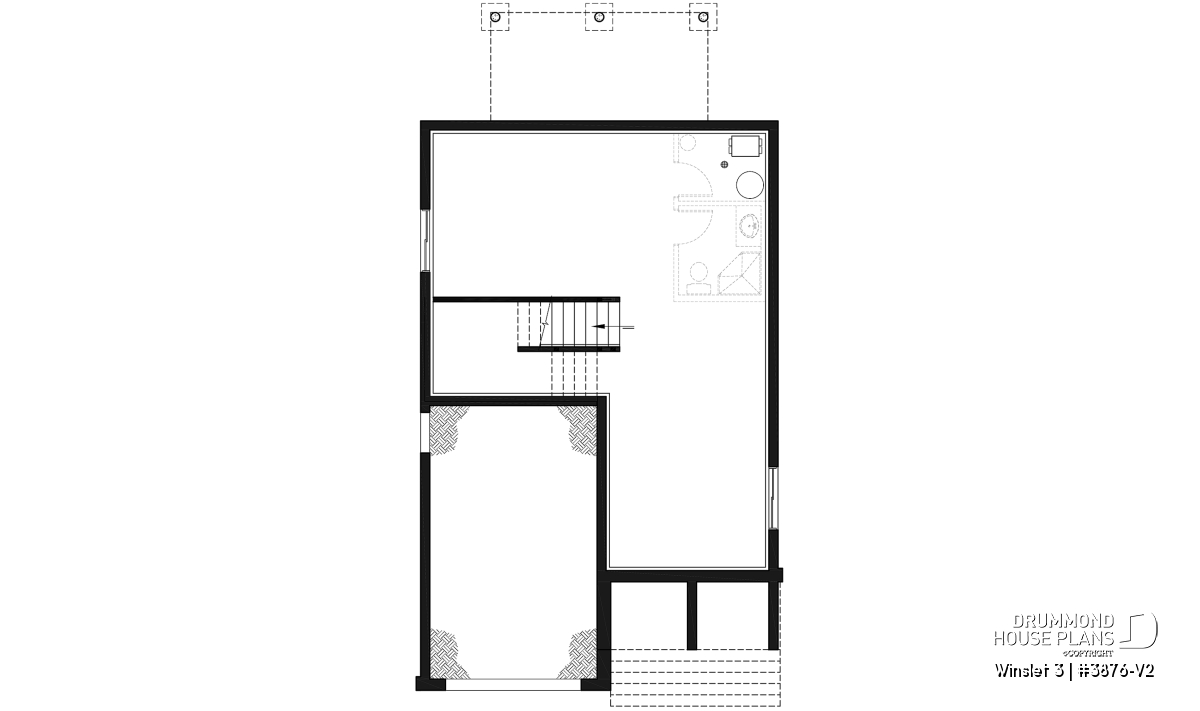

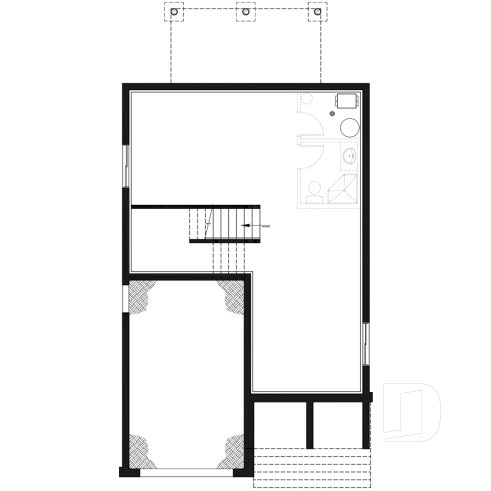

| Basement |
|---|

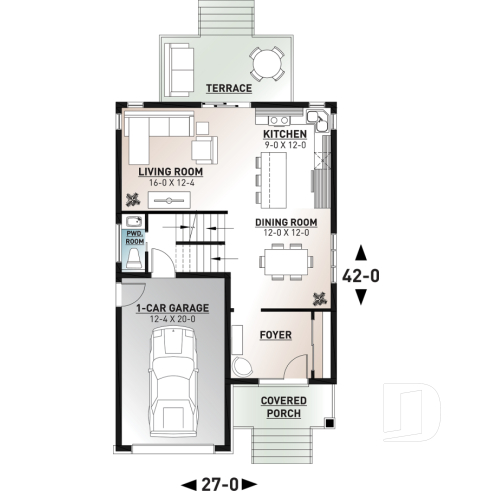

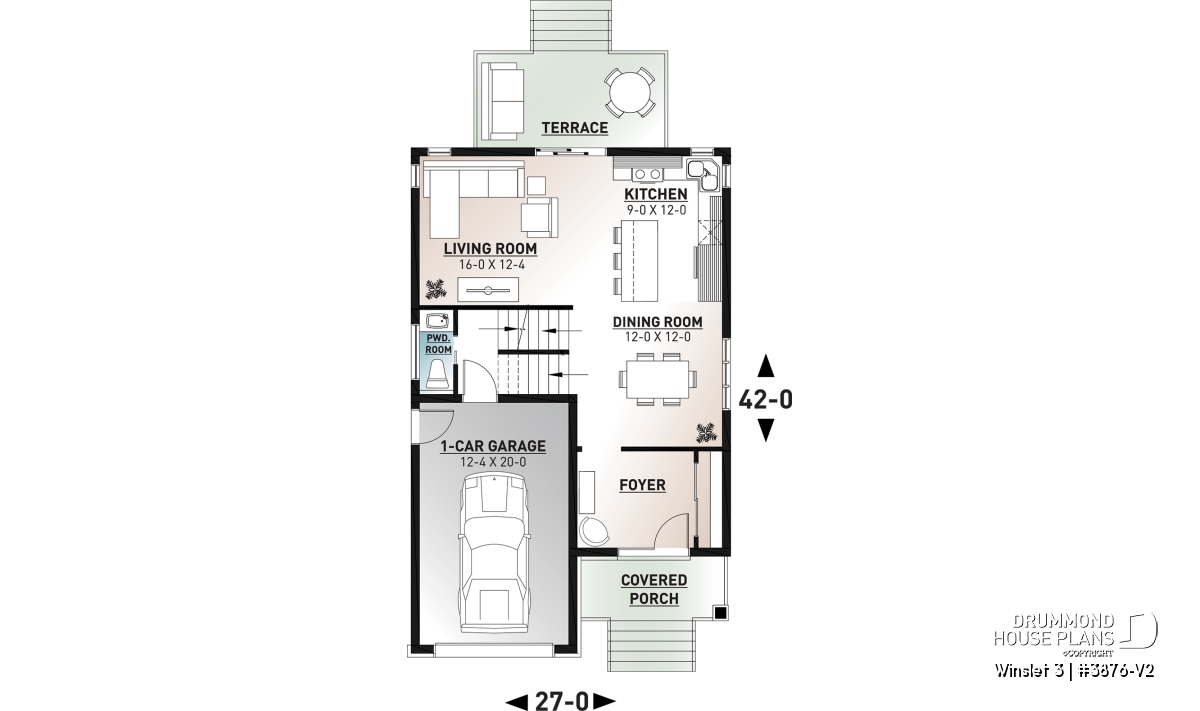

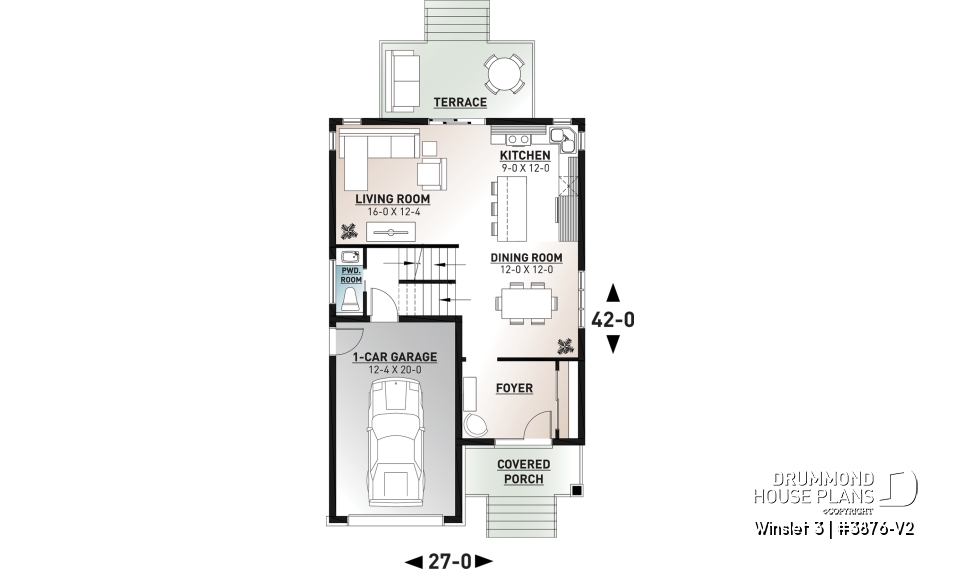

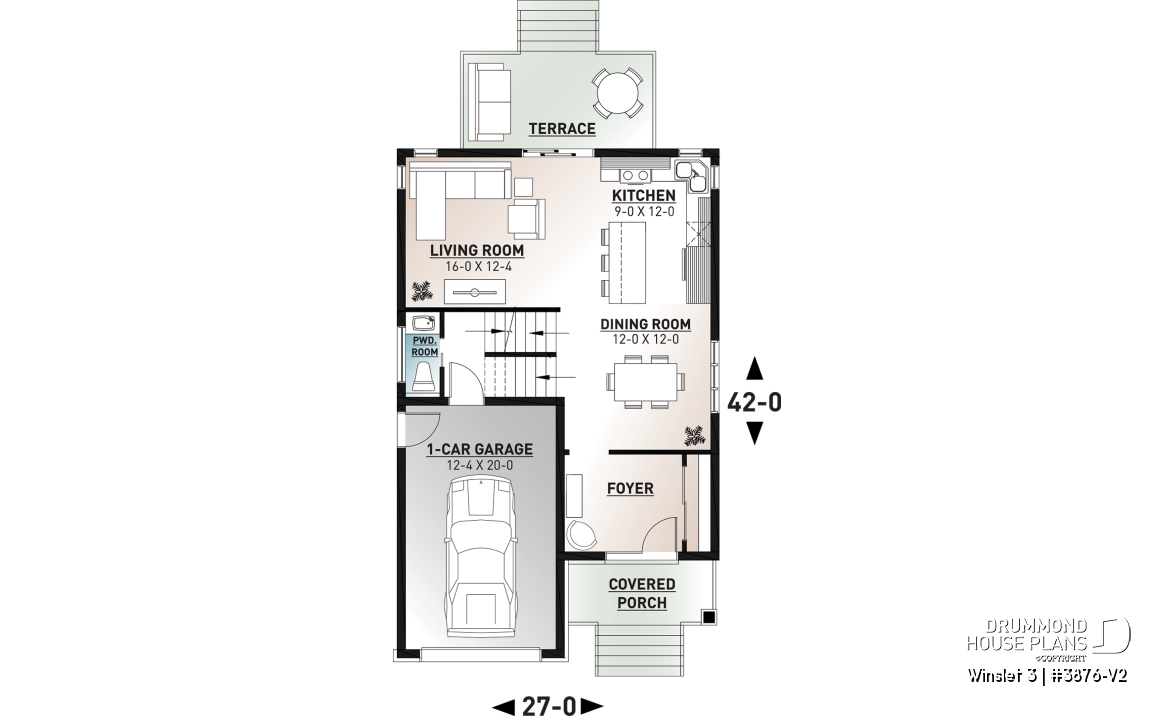

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'0" x 12'0" | ~ 8'0" |
| Foyer | 9'8" x 8'0" | ~ 8'0" |
| Closet | 2'0" x 8'0" | ~ 8'0" |
| Garage | 12'4" x 20'0" | ~ 11'4" |
| Terrace | 16'0" x 8'0" | N/A |
| Covered porch | 12'6" x 5'0" | ~ 8'4" |
| Enclosed toilet space | 2'10" x 6'8" | ~ 7'3" |
| Living room | 16'0" x 12'4" | ~ 8'0" |
| Dining room | 12'0" x 12'0" | ~ 8'0" |

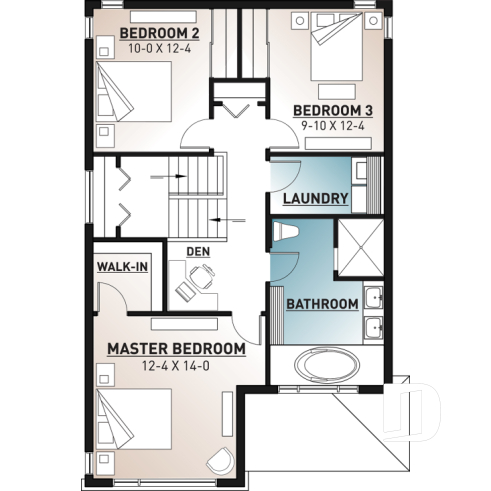

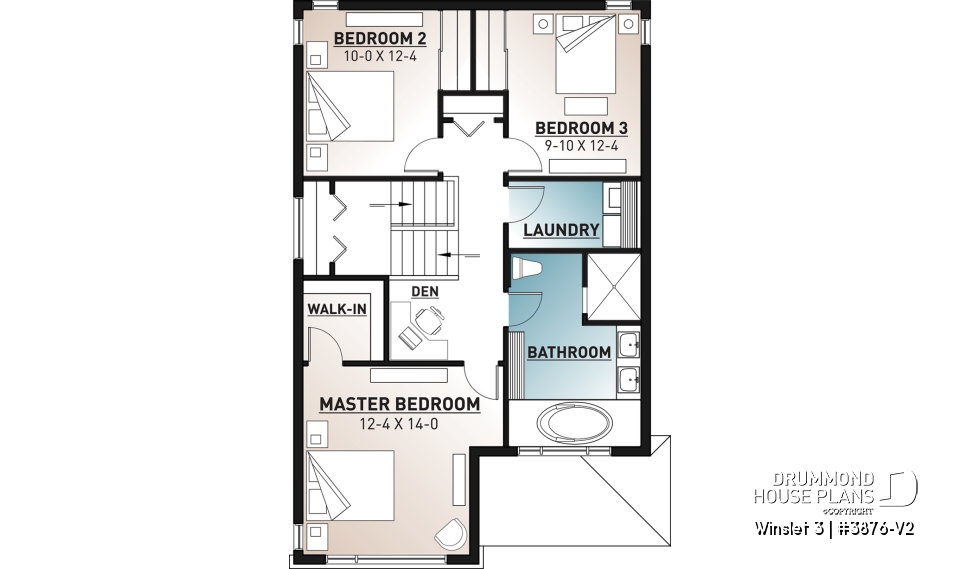

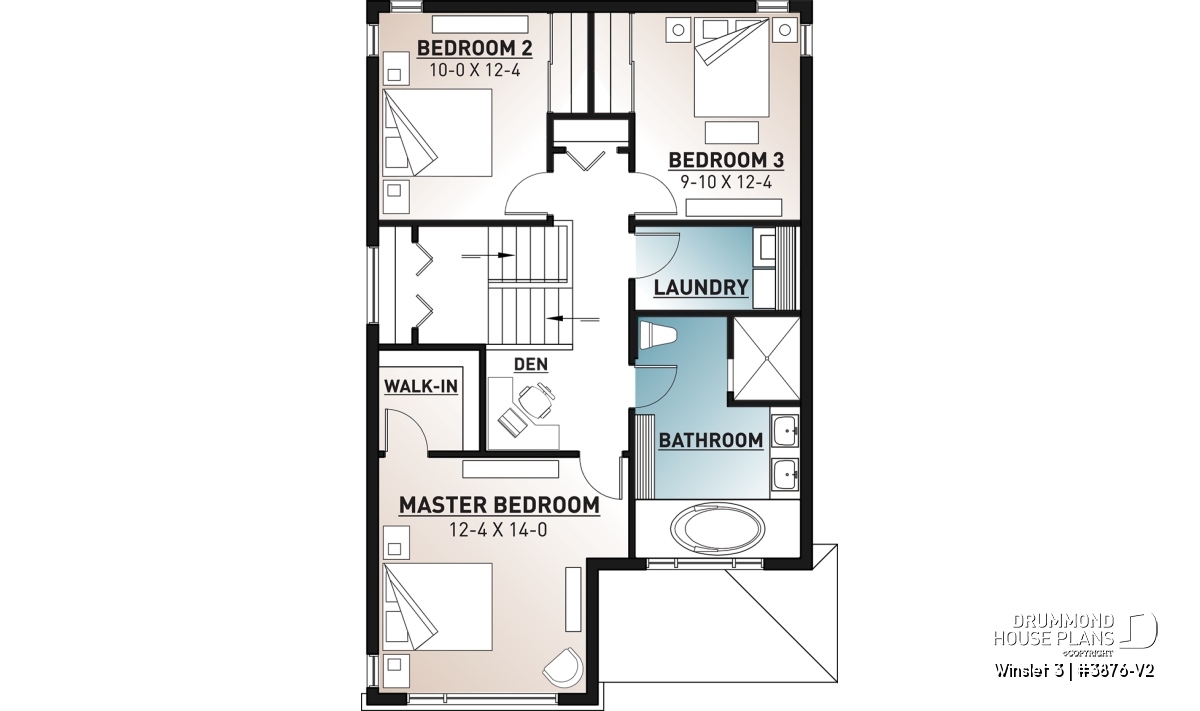

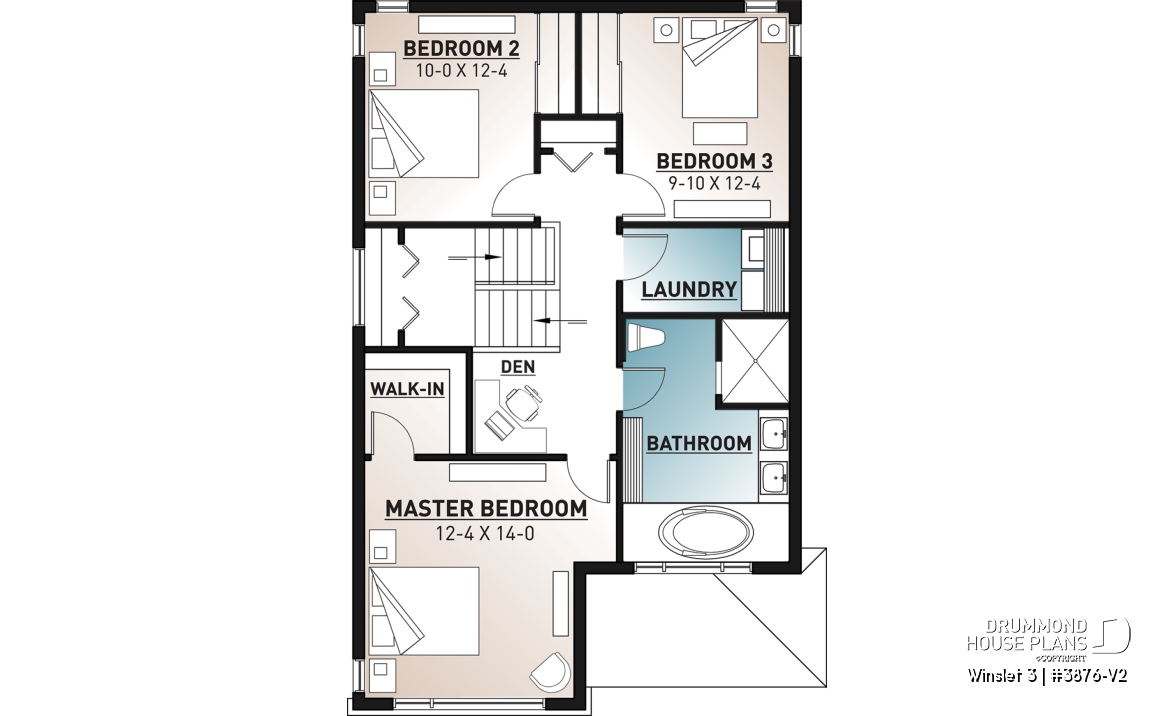

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'4" x 14'0" | ~ 8'0" |
| Walk-in closet | 6'0" x 6'0" | ~ 8'0" |
| Bedroom | 10'0" x 12'4" | ~ 8'0" |
| Closet | 2'0" x 6'0" | ~ 8'0" |
| Bedroom | 9'10" x 12'4" | ~ 8'0" |
| Closet | 2'0" x 6'0" | ~ 8'0" |
| Reading/computer area | 5'2" x 6'0" | ~ 8'0" |
| Closet | 2'0" x 7'0" | ~ 8'0" |
| Linen | 4'6" x 1'8" | ~ 8'0" |
| Laundry room | 9'6" x 5'0" | ~ 8'0" |
| Full bathroom | 9'10" x 14'4" | ~ 8'0" |
| Enclosed shower space | 4'0" x 5'0" | ~ 8'0" |
General specifications
| Total living area | 1722 sq.ft. |
| Basement | 726 sq.ft. |
| 1st level | 726 sq.ft. |
| 2nd level | 996 sq.ft. |
| Width | 27'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 28'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Modern home with garage for a narrow lot
Plan number 3876-V2, also called Patriot 3, is a slightly enlarged version of the original plan number 3876. In addition, the laundry room has been relocated on the second level for convenient access to the bedrooms.
You will notice the rather narrow 27’ in width, including a garage, which makes it perfect for smaller lots. The space above the garage is used for the master bedroom, which also allowed the addition of a large walk in closet.
On the main floor, the spacious entrance has as a large closet and this area is big enough to fit an entrance bench and even a small table. The kitchen has an island and is open to the dining area, as well as the family room area (or living room). A patio door and windows allow occupants to enjoy plenty of natural light in the common area.
A practical bathroom (washroom) was fitted halfway between the ground floor and the basement. Speaking of basement, it was designed to be above ground level which allows for lots of light, ideal for rooms in the basement or also if you need additional rooms, an office space or family room.
The parents' room is large and offers a large walk-in closet. Upstairs we also find two (2) additional bedrooms with closets, as well as a laundry room and a large family bathroom. The family bathroom is composed of 2 sinks, a large shower, toilet and bath.
Do you want to modify this plan to personalize it to your specific needs? We can change this plan for you online or through our regional offices. Contact us for more information.
Distinctive elements
Modern two-story home with garage, ideal for narrow lot.
Large entrance hall with coat closet (or storage area).
Kitchen with island and open to dining and living rooms.
Master bedroom with walk-in closet.
Laundry on second floor.
Large family bathroom with two sinks, large shower and bath.
Plan feature(s)
Panoramic view, Island, Walk-in master bed., Second floor laundry room, Open floor layout, Planning desk, Separate bath and shower, Double sinks
Plan architectural style(s)
. Contemporary, . Modern / Design, . Transitional
