House plan Aldana (3470)
Modern home plan, master suite, 4 bedrooms, 3 bathrooms, covered deck, home office, open floor concept
View the size of the rooms and height of the ceilings

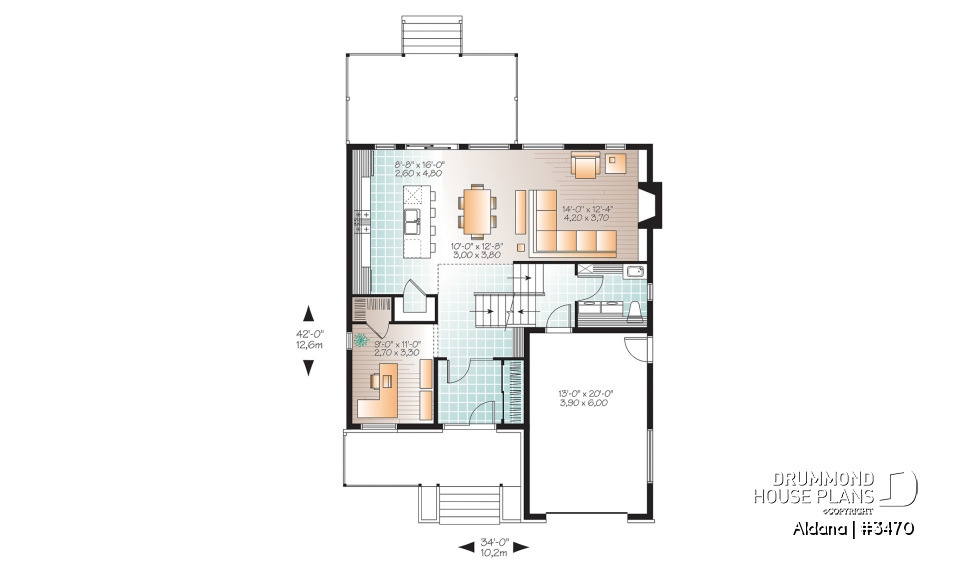

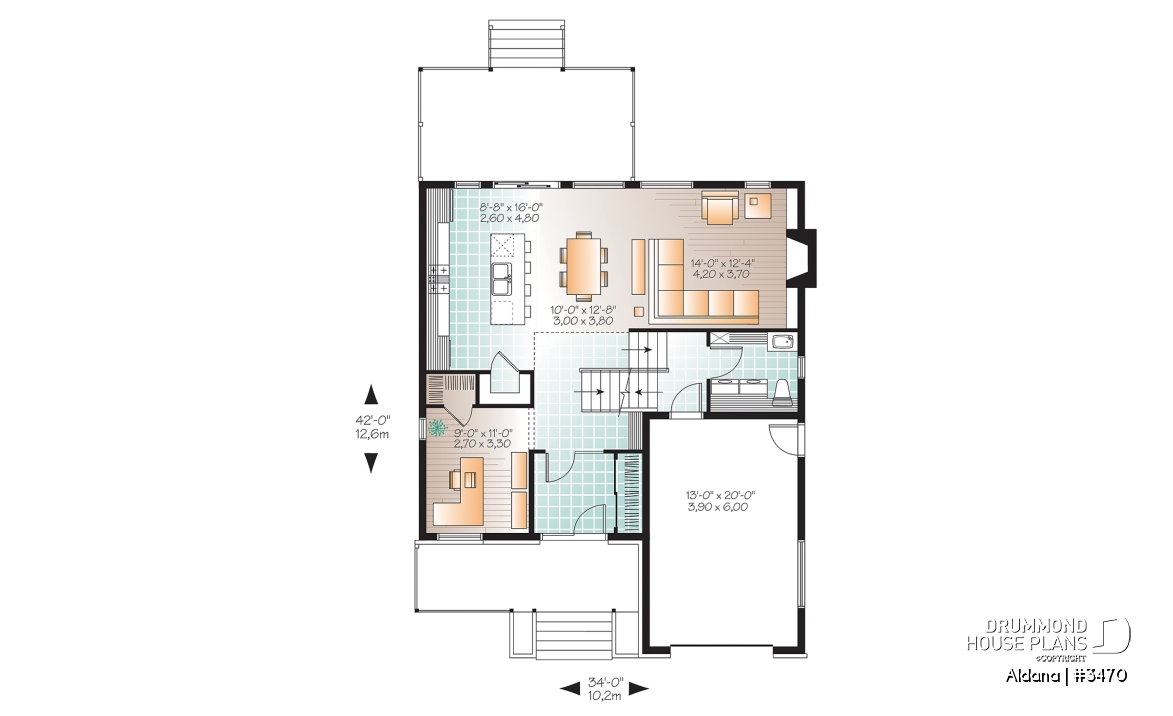

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'0" x 7'0" | ~ 8'0" |
| Closet | 2'2" x 7'0" | ~ 8'0" |
| Home office | 9'0" x 11'0" | ~ 8'0" |
| Closet | 4'4" x 2'8" | ~ 8'0" |
| Kitchen/dinette | 8'8" x 16'0" | ~ 8'0" |
| Pantry | 4'6" x 2'8" | ~ 8'0" |
| Dining room | 10'0" x 12'8" | ~ 8'0" |
| Living room | 14'0" x 12'4" | ~ 8'0" |
| Laundry room | 7'8" x 7'0" | ~ 8'0" |
| Storage | 1'2" x 3'4" | ~ 8'0" |
| Half bath or powder room | 2'8" x 7'0" | ~ 8'0" |
| Linen | 5'0" x 1'0" | N/A |
| Porch | 19'8" x 6'0" | N/A |
| Covered deck | 19'0" x 10'0" | N/A |
| Garage | 13'0" x 20'0" | ~ 8'7" |

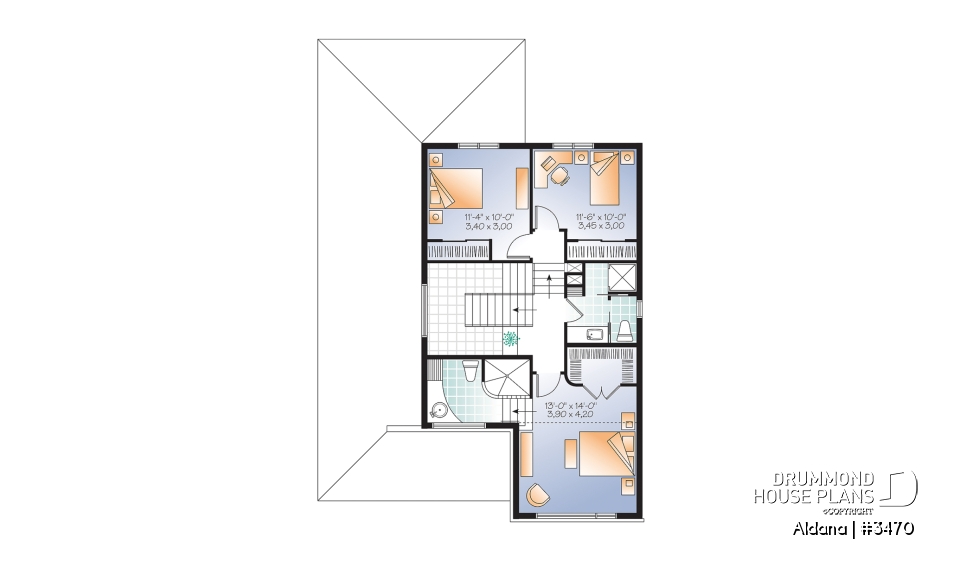

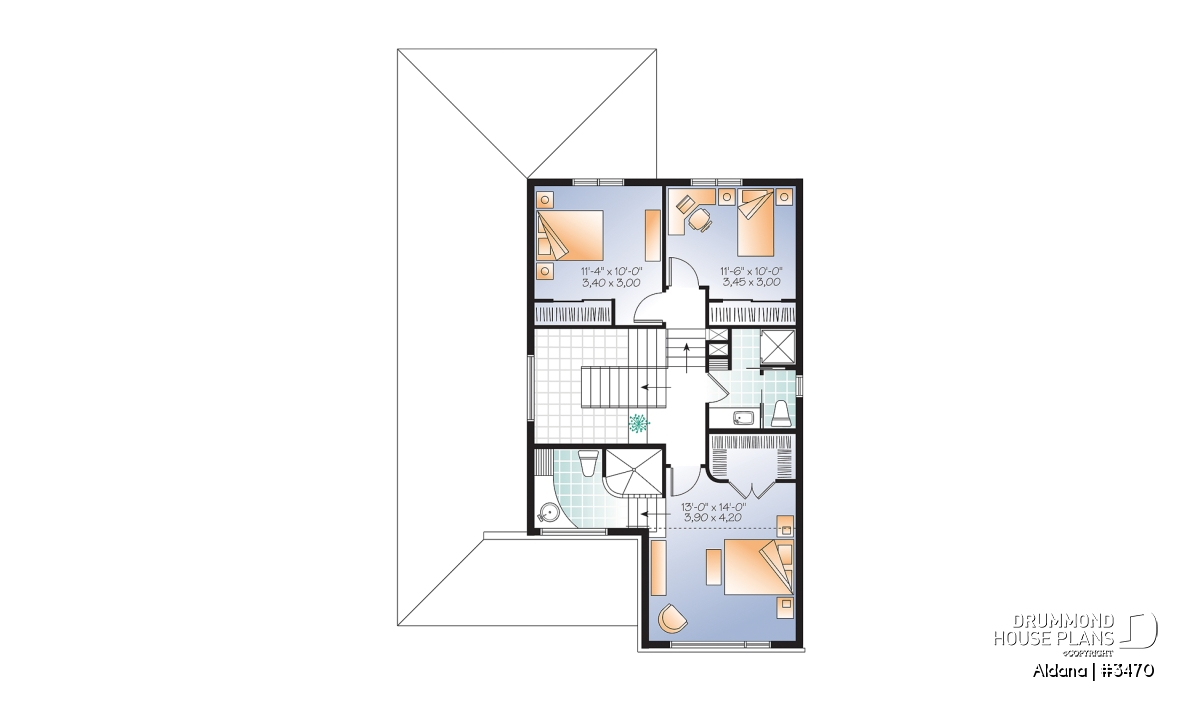

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 7'8" x 8'10" | ~ 11'0" |
| Linen | 1'8" x 1'0" | N/A |
| Bedroom | 13'0" x 14'0" | ~ 8'0" |
| Walk-in closet | 7'8" x 4'0" | ~ 11'0" |
| Bedroom | 11'4" x 10'0" | ~ 8'0" |
| Closet | 6'10" x 2'0" | ~ 8'0" |
| Bedroom | 11'6" x 10'0" | ~ 8'0" |
| Closet | 7'8" x 2'0" | ~ 8'0" |
| Shower room or three quarter bath | 9'10" x 7'2" | ~ 8'0" |
| Linen | 1'8" x 2'4" | N/A |
General specifications
| Total living area | 1788 sq.ft. |
| 1st level | 938 sq.ft. |
| 2nd level | 850 sq.ft. |
| Width | 34'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 26'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | D |
Rooms specifications

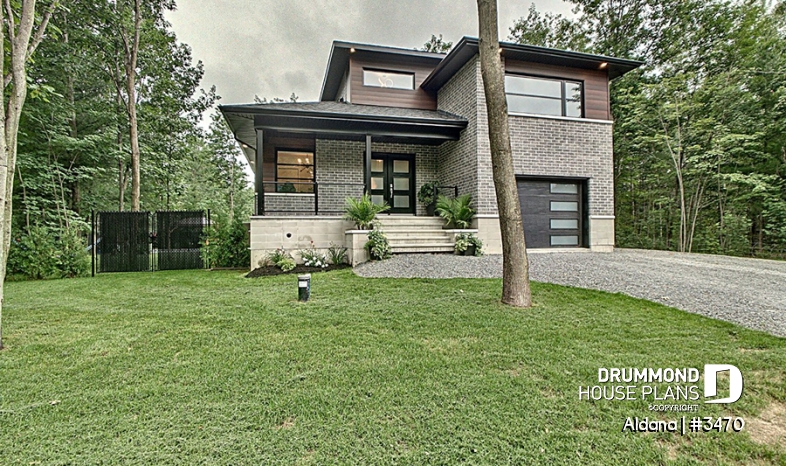

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

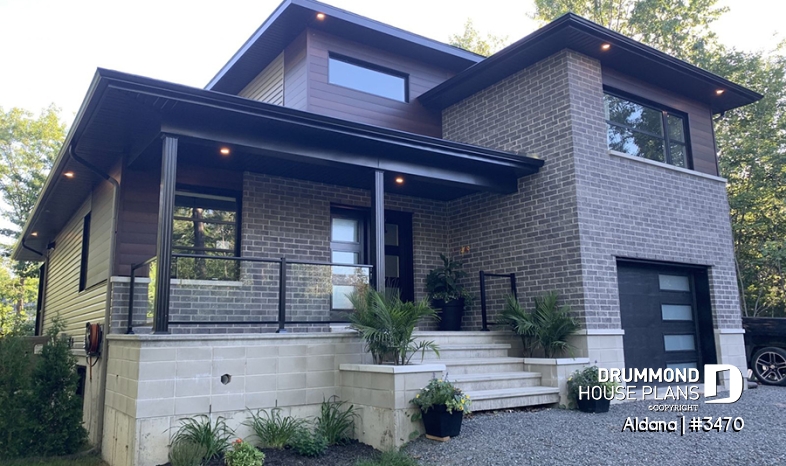

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

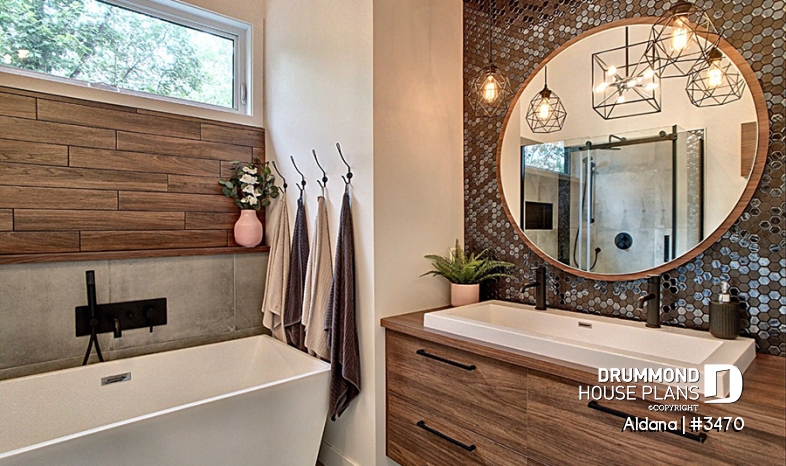

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Home office
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Utility room/laundry room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Contemporary New American Home with large master suite and open floor plan concept
Amongst the models in Drummond House Plans’ contemporary collection, this split level model with a single car garage has been designed with a relatively narrow lot in mind. The family area in the back of the home opens onto a beautiful covered terrace that is 19’ wide x 10’ deep.
Following the example of plan 3407, from which the design for plan 3470 was inspired, the comfortable sized foyer and spacious closet are adjacent to a home office space complete with a walk-in. The open concept in which kitchen /dining room/living room areas are enhanced by a view of the fireplace. The large kitchen island adds valuable work space and a walk-in pantry are some of the features which enhance the livability of this contemporary styled home.
At the heart of the main level is the wide staircase which is open on two floors and offers the convenience of a powder room/laundry area on the same level as the garage with only 4 stairs to climb to reach the first floor level. Just 9 stairs higher is the second level and its master suite complete with a walk-in closet and a private bathroom that features a 5' x 4' shower. Two generously sized bedrooms and a separate shower room complete the upper floor.
Distinctive elements
Contemporary inside and out. Covered front porch, office/den close to entry. Kitchen with 3' x 8' lunch island and walk-in pantry. Abundant windows in activities areas overlooking the rear. Rear 19' x 10' covered deck. Laundry on stair landing for easy access from master bedroom and from main level. Master suite with walk-in closet and private bathroom with 5' x 4' shower.Laundry chute.
Plan feature(s)
Pantry, Office / Study / Den, Island, Fireplace, Built-ins, Master suite upstairs, Walk-in master bed., Gound floor laundry room, Open floor layout, Laundry chute, Panoramic view, Entrance hall, Deck
Plan architectural style(s)
. Contemporary, . Modern / Design, . Transitional
